MPE 750 HO Snow. Manual - part 5

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

1

Spare Parts Catalogue

Page 15

Pos. Part No Description

QTY

1

100024 Sensor Coolant Temperature

1

See Chapter Cooling System

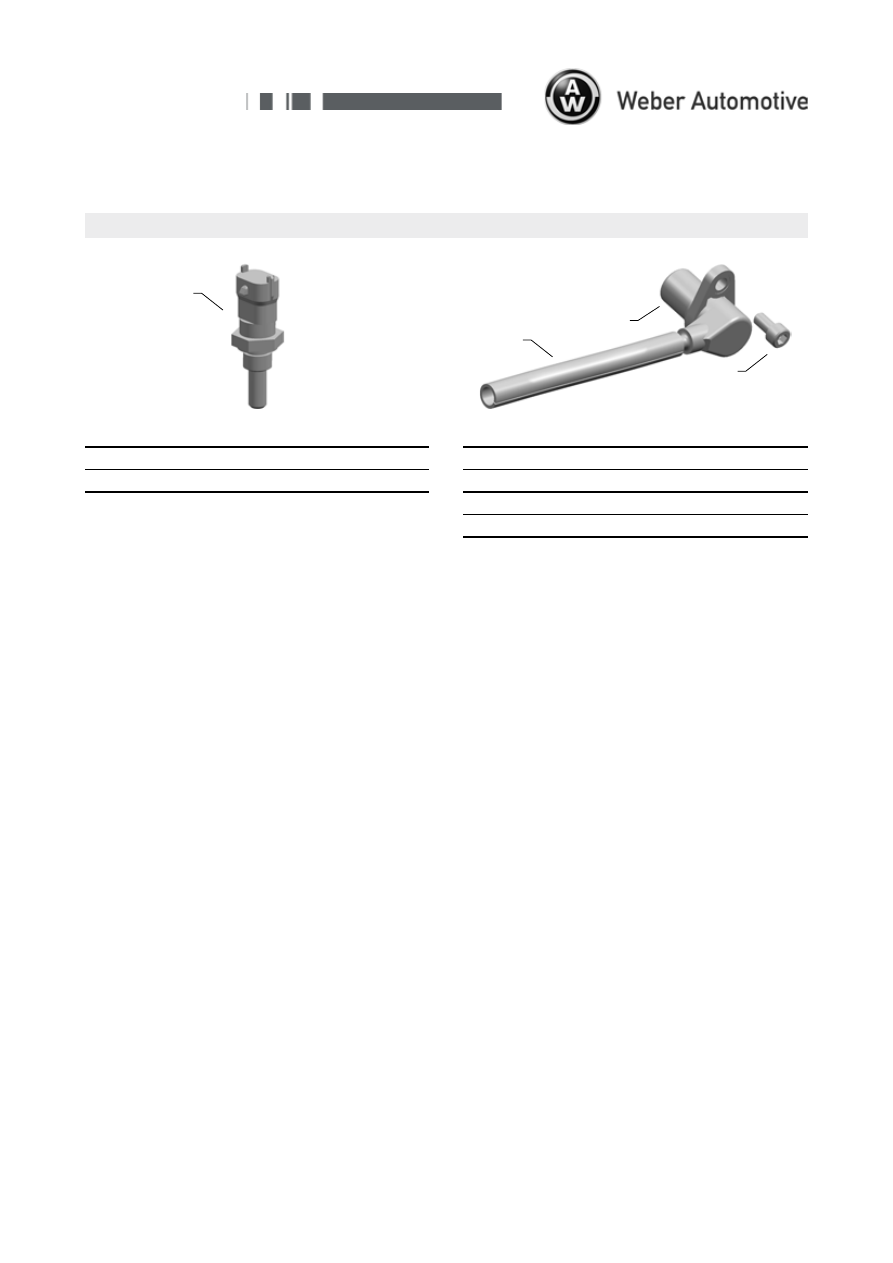

080  Engine Management System

Pos. Part No Description

QTY

1

100032 Sensor Crankshaft

1

2

101736 Bolt

M6x12

1

3

100831 Conduit

1

See Chapter Crankcase

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

4

5

6

9

7

8

Spare Parts Catalogue

Page 1

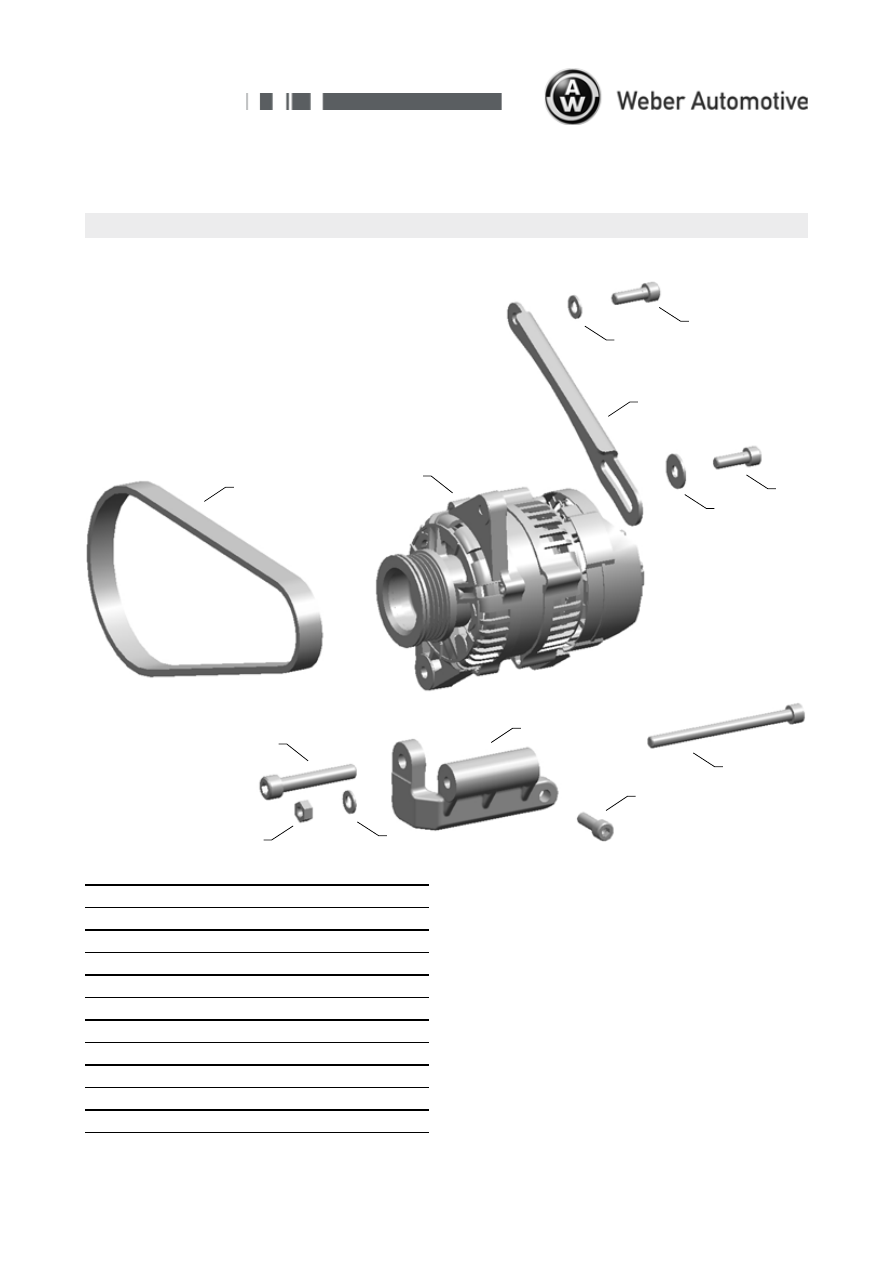

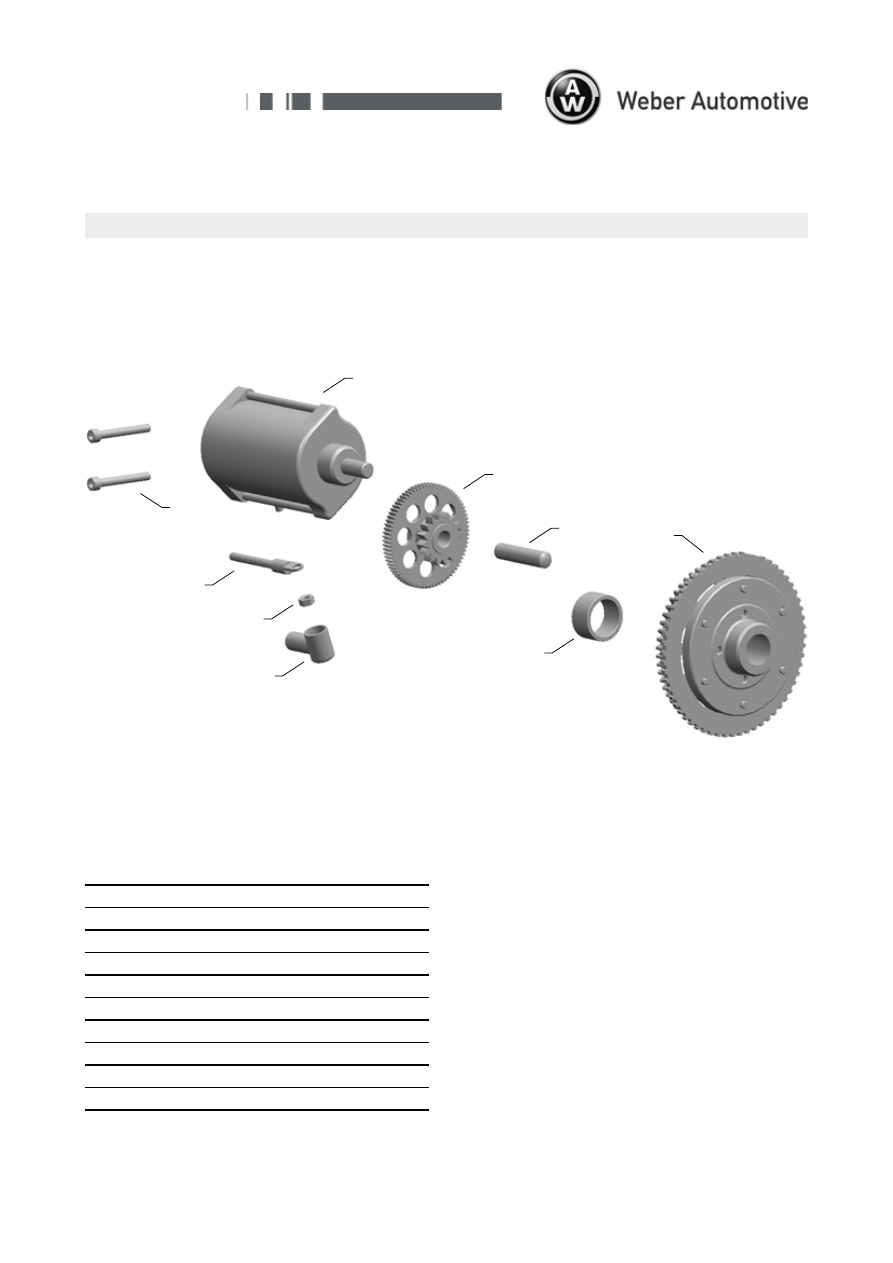

090  Starter, Generator

Pos. Part No Description

QTY

1

100545 Bolt

M6x50 8.8

2

2

100151 Starter

1

3

102263 Starter Lead

1

4

100835 Nut

M6

1

5

100388 Rubber Gromet

1

6

101261 Gear

1

7

101117 Axle

1

8

100565 Neadle Bearing

1

9

401427 Overrun

1

01 Starter

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

7

8

2

10

4

9

5

4

5

6

5

3

Spare Parts Catalogue

Page 17

090  Starter, Generator

Pos. Part No Description

QTY

1

103088 Belt

1

2

402201 Alternator

1

3

401192 Clamping Arm

1

4

100468 Washer

2

5

102490 Bolt

M8x25

3

6

101924 Washer

1

7

100525 Bolt

M10x60 8.8

1

8

102481 Nut

M8

1

9

101090 Alternator Bracket

1

10

102478 Bolt

M8x110 8.8

1

02 Generator

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

4

7

8

5

6

3

Spare Parts Catalogue

Page 18

*  See Chapter Engine Management System

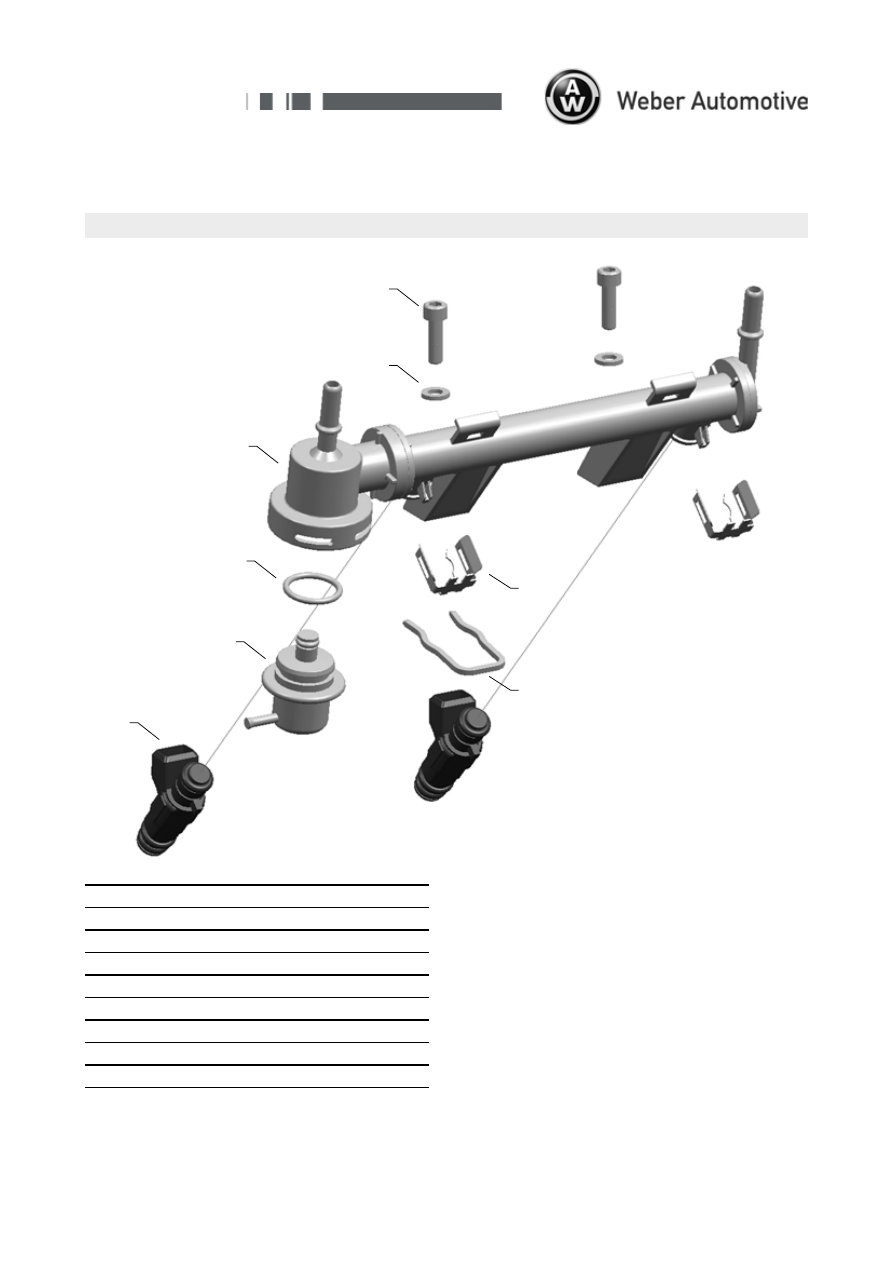

100  Fuel Unit

Pos. Part No Description

QTY

1

100447 Bolt

M6x20

2

2

100448 Washer

2

3

*

Injector

2

4

103037 Fuel Rail

1

5

100431 Locking Clip

2

6

102927 O-Ring

1

7

103041 Fuel Pressure Regulator incl. Pos. 6

1

8

100364 Locking Clip

1
