MPE 750 NA Snow. Manual - part 6

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

(2)

2

6

4

3

5

6

7

8

Spare Parts Catalogue

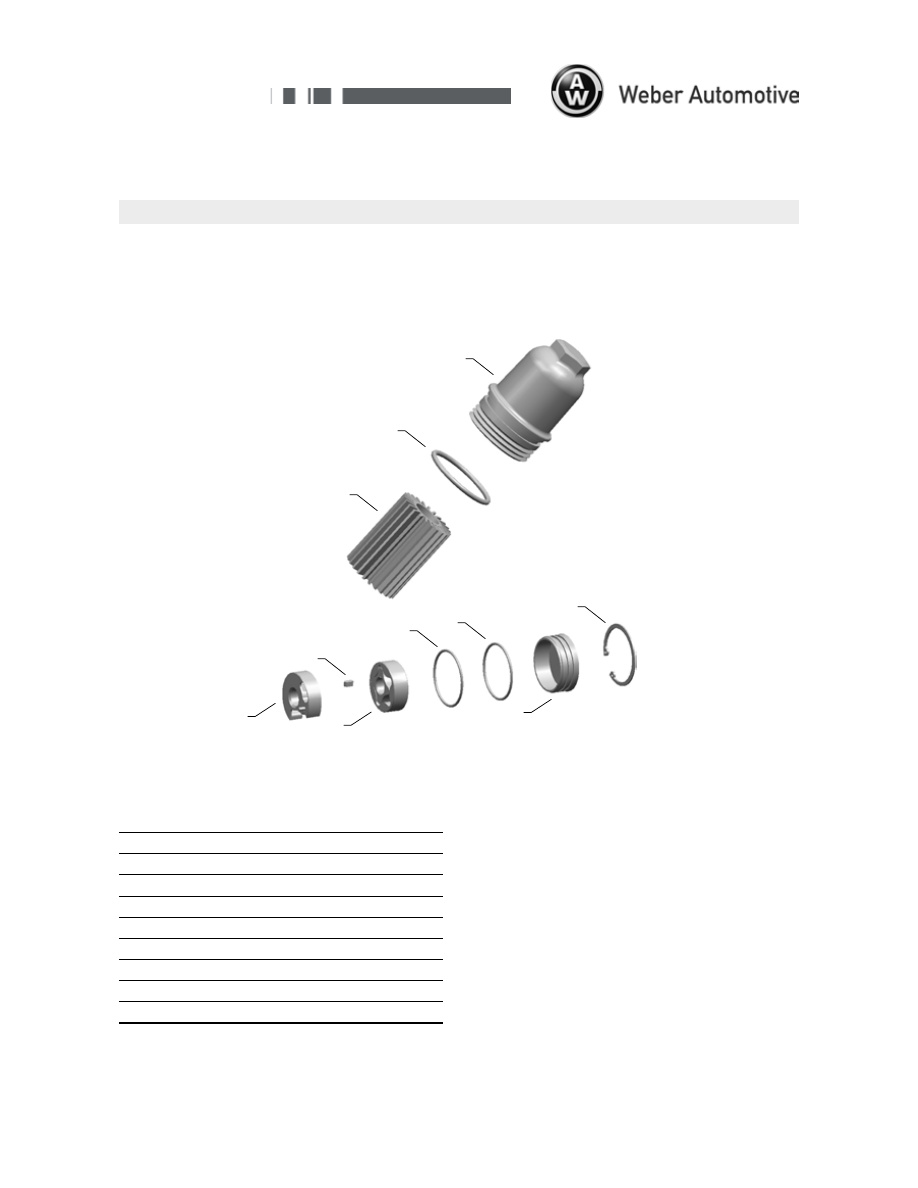

Page 19

110 Lubrication

System

02 Oil Filter, Oil Pump

Pos.

Part No

Description

QTY

1

100071

Oil Filter Cover incl. Pos. 2

1

2

101109

Oil Filter

1

3

100137

Timing Insert

1

4

100293

Key

1

5

100275

Oil Pump

1

6

102398

O-Ring

2

7

100104

Oil Pump Cover

1

8

100294

Circleclip

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

1

1

1

1

1

Spare Parts Catalogue

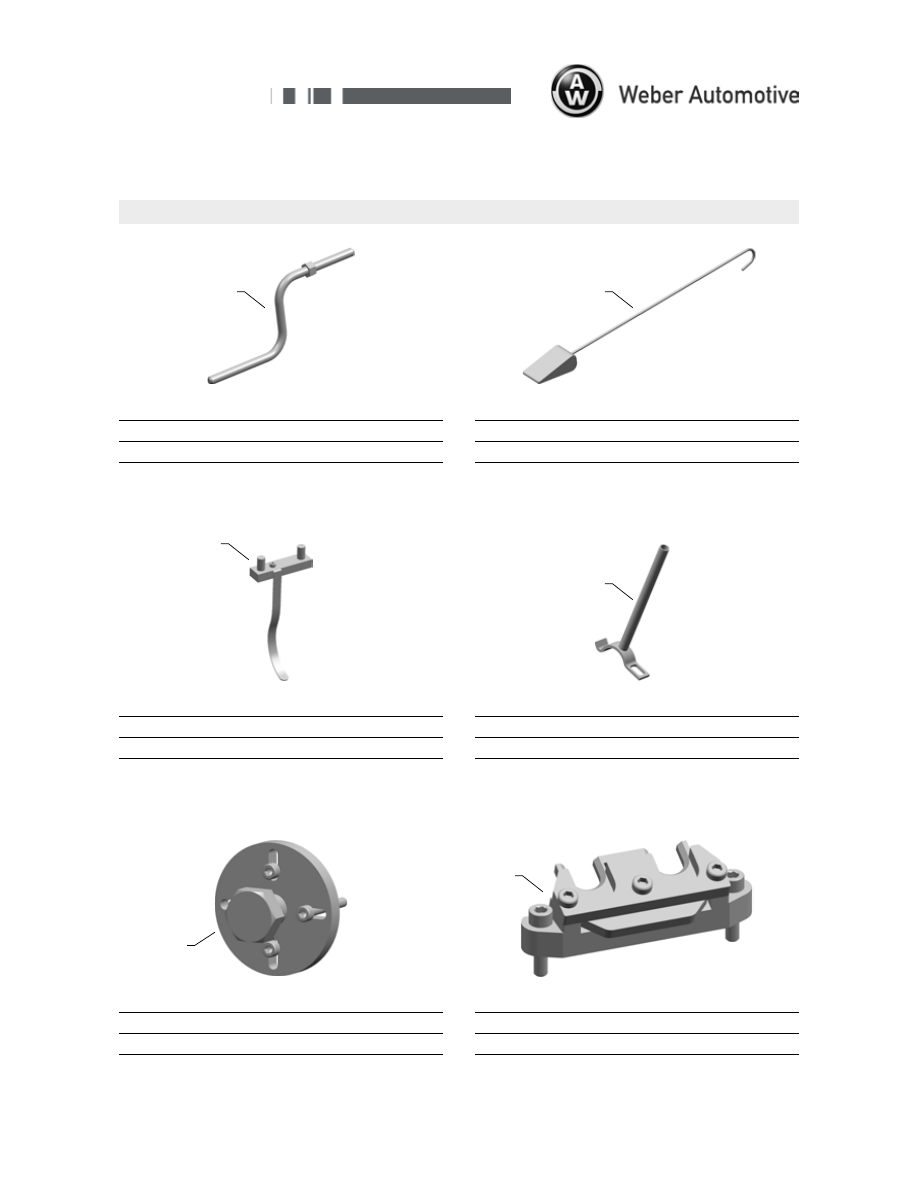

Page 20

Pos.

Part No

Description

QTY

1

401386

Hand Crank

1

Pos.

Part No

Description

QTY

1

401401

Chain Tool

1

Pos.

Part No

Description

QTY

1

401402

Valve Installation Tool

1

Pos.

Part No

Description

QTY

1

401370

Hook-Wedge

1

Pos.

Part No

Description

QTY

1

401355

Removal Tool

1

900 Special

Tools

Pos.

Part No

Description

QTY

1

103330

Valve Adjustment Tool

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

1

3

3

8

7

6

9

4

5

1

2

Spare Parts Catalogue

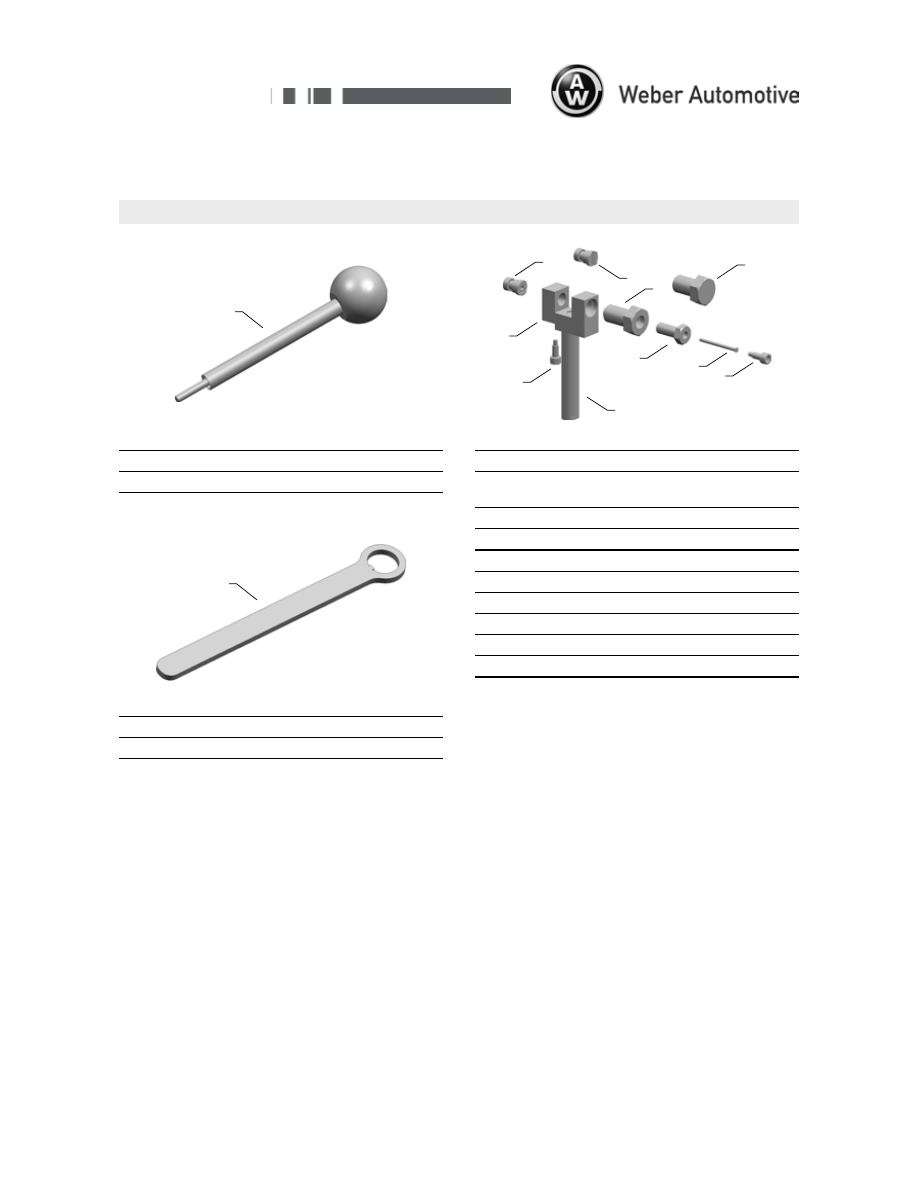

Page 21

900 Special

Tools

Pos.

Part No

Description

QTY

1

103701

Chain Breaking Tool consisting of
Pos. 2 - 9

1

2

402921

Header

1

3

401389

Bolt

M6x16 8.8

2

4

401376

Counterpart Break

1

5

401377

Counterpart Rivet

1

6

401378

Bolt

M16 12.9

1

7

401381

Bolt

M10x1 12.9

1

8

401383

Spike

1

9

401391

Bolt

M16 12.9

1

Pos.

Part No

Description

QTY

1

103609

Installation Spike Valve Stem Seal

1

Pos.

Part No

Description

QTY

1

401356

Crankshaft Counterholder

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

Spare Parts Catalogue

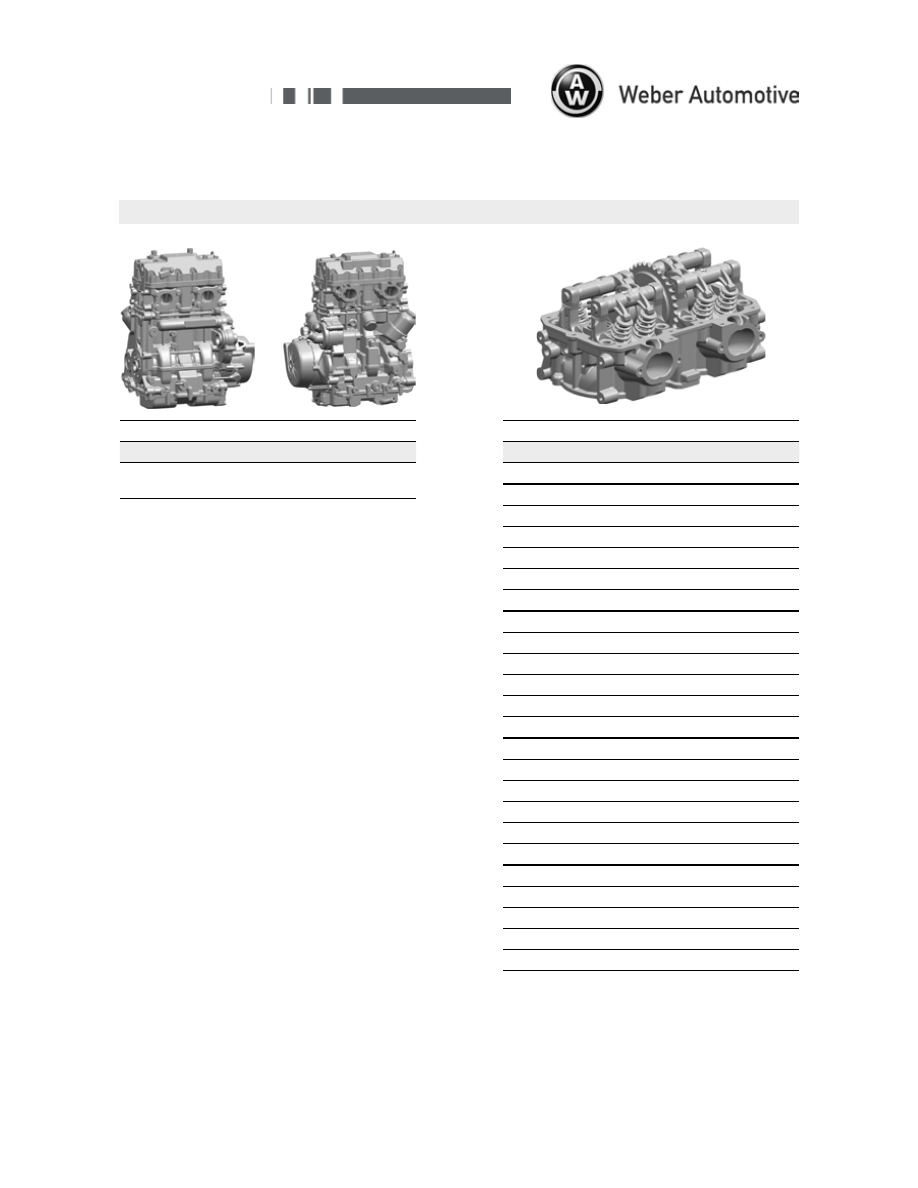

Page 22

910 Repair

Kits

Part No

Description

QTY

103321

Long Block Type 2

1

Long block with a black valve cover. Sub system parts like
starter and fuel rail are not supplied.

Part No

Description

QTY

103335

Cylinder Head

1

The Repair Kit includes:

104249

Cylinder Head

1

100514

Bolt

M6x40 10.9

4

100094

Welch Plug

2

100228

Sleeve

8

101973

Rocker Arm Support 1

2

101974

Rocker Arm Support 2

2

100605

Bolt

M6x20 10.9

4

100091

Exhaust Valve

4

102542

Intake Valve

4

100262

Spring Pad

8

100081

Valve Spring

8

102316

Spring Cup

8

100129

Collet Valve

16

101921

Camshaft

1

100078

Camshaft Axle

1

102024

Rocker Arm Long

2

102023

Rocker Arm Short

2

100080

Rocker Axle

4

102992

Plug

2

102453

Stud

M8x38 8.8

8

400920

Fitting (total lenght 33mm) M8x1x12

1

401990

Fitting (total lenght 38mm) M8x1x17

1

100587

Seal

8x12x1 Al

2
