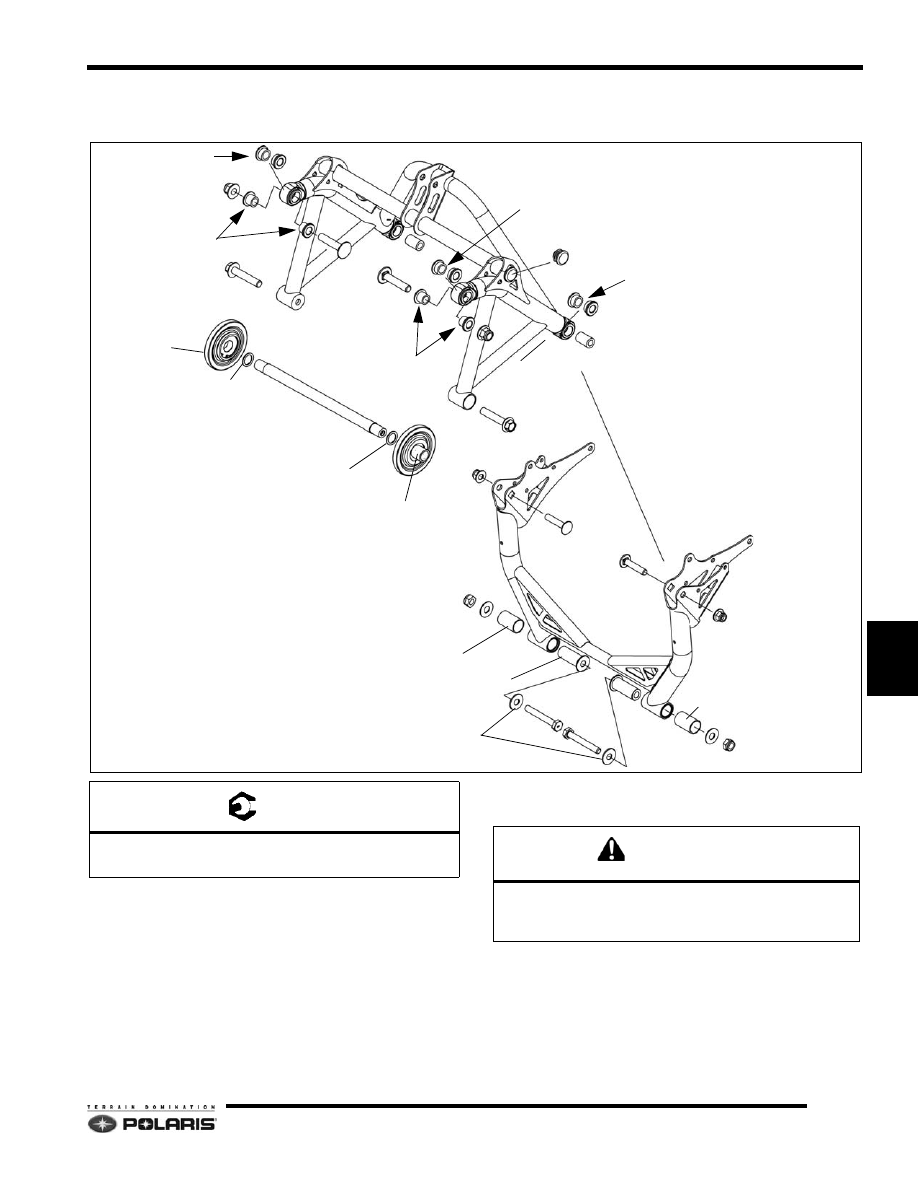

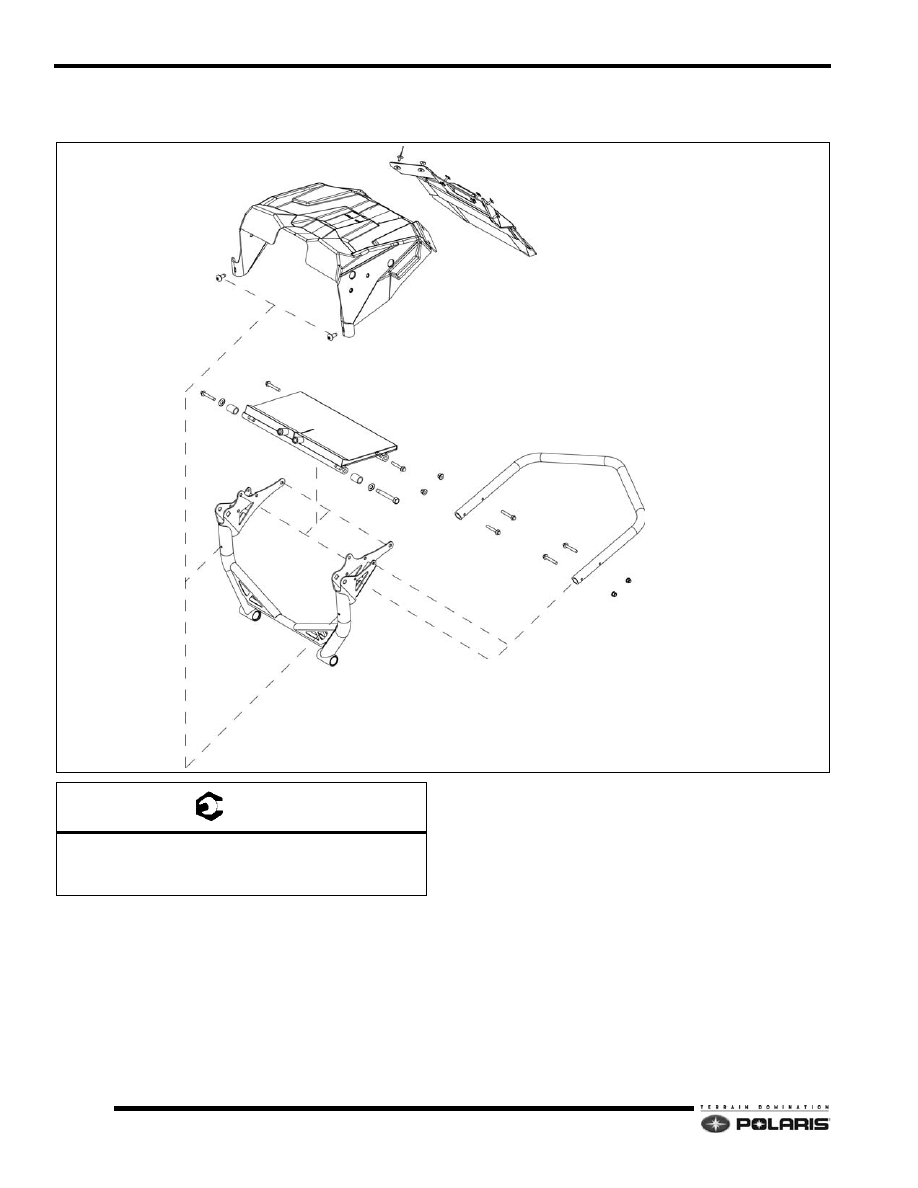

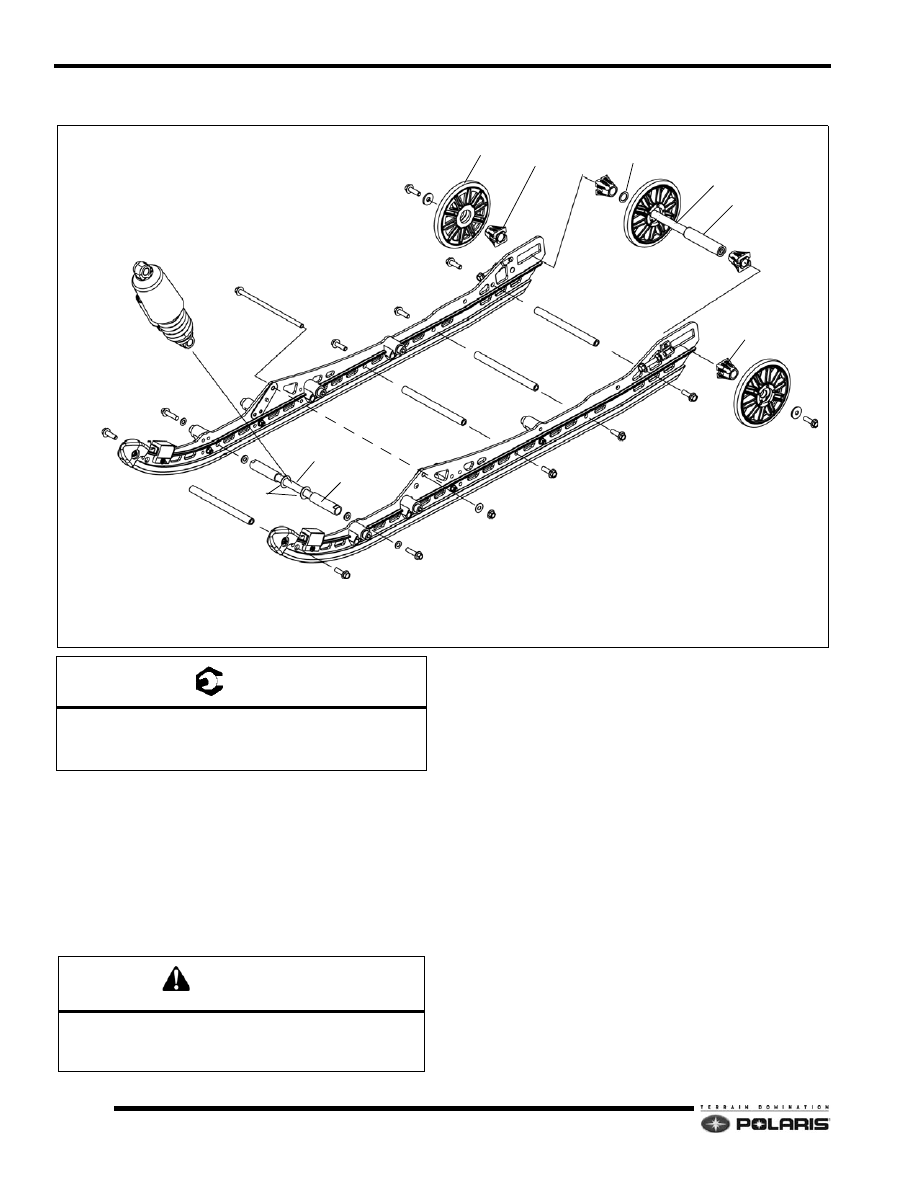

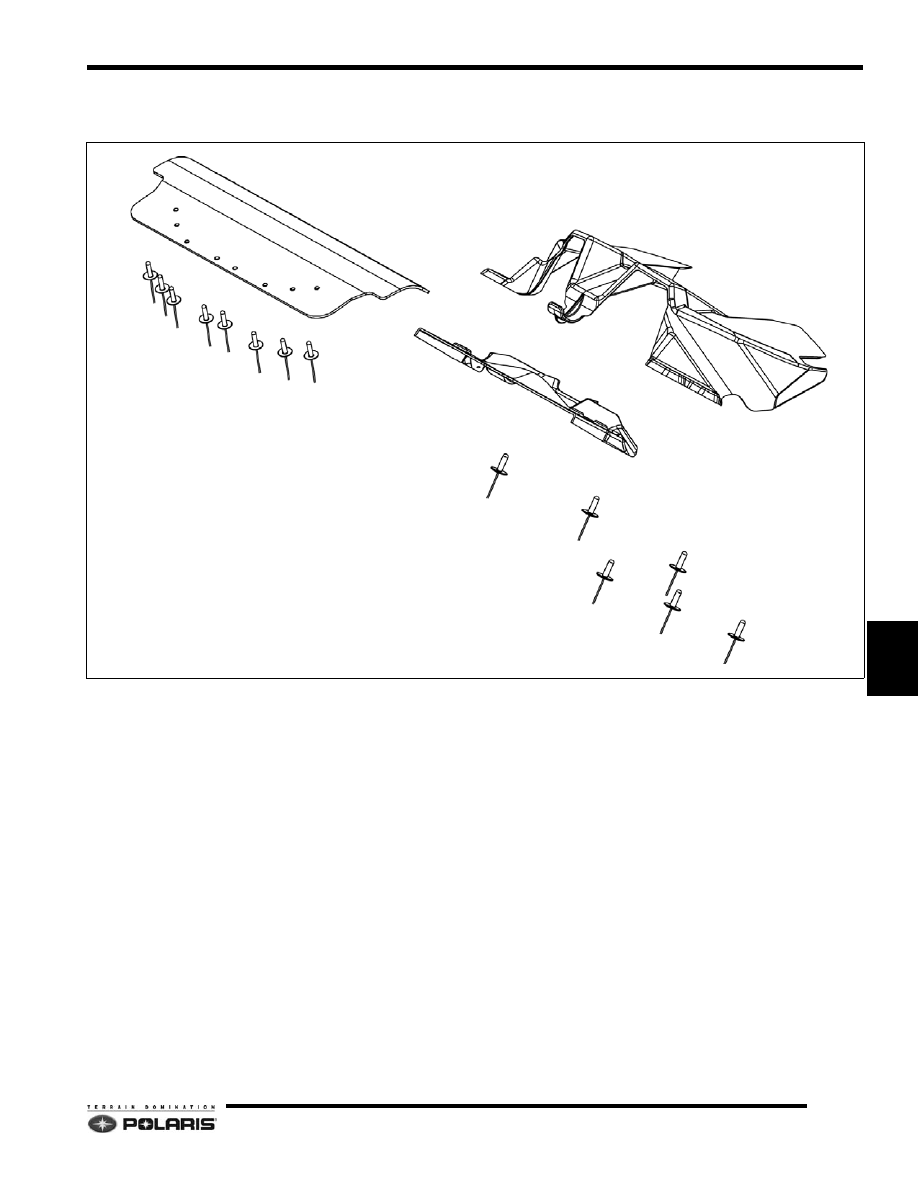

8.46 Steering and Suspensions 9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual © 2011 Polaris Sales Inc. Progressive 136 Idler Shafts Assembly Notes • Never re-use lock nuts. Always replace with new parts. • All pivots must rotate freely after tightening fasteners. • Install rear idler adjust blocks with flat side facing adjuster screw. INNER SHAFT SPACER ADJUSTER SPACER SHAFT SHAFT ANODIZED SHAFT REAR IDLER WHEELS A A B A A A A WASHER WASHERS INNER SHAFT SPACERS ADJUSTER SPACER INSTALL TORQUE ARM BOLT IN THIS DIRECTION A C METRIC FASTENERS A A SHAFT B A = T A: 33 ft-lb (45 Nm) Apply Loctite® 262™ to threads B: 50 ft-lb (67 Nm) Apply Loctite® 262™ to threads C: 60 ft-lb (81 Nm) CAUTION Some rail shaft fasteners are pre-coated with locking agent. Never re-use these fasteners once removed. Always use new pre-coated fasteners. |
