PRE-RIDE INSPECTIONS

Before Starting the Engine

Brakes

Always check the following items for proper operation before starting
the engine.

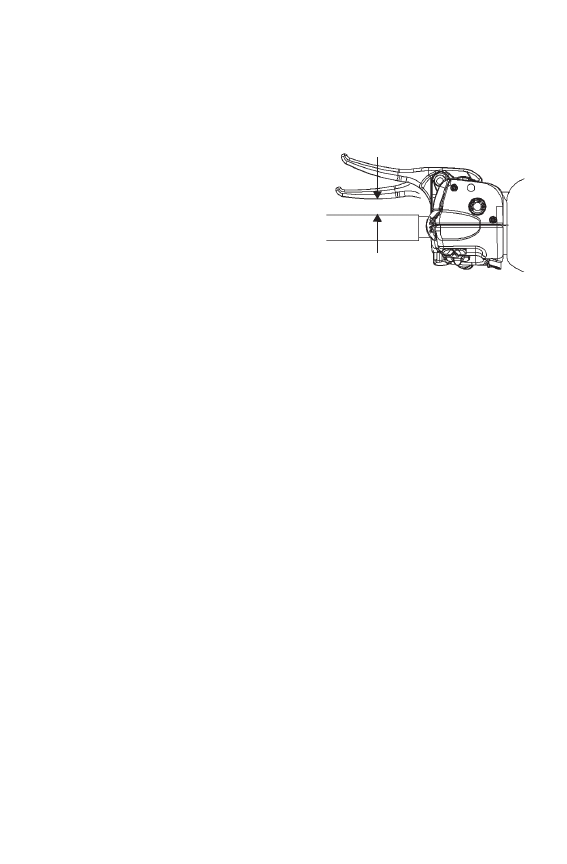

Brake Lever Travel

Squeeze the brake lever. It
should move no closer to the
handgrip than 1/2” (1.3 cm).
A smaller distance indicates
low brake fluid level or air in
the hydraulic system. Refer
to the brake bleeding infor-
mation on page 102.

Brake Lever Feel

If the brake lever feels “spongy” when squeezed, check the brake fluid
level and condition. Add fluid as needed. See page 101.

Check for the presence of air in the fluid system. See page 102 for more
information, or see your dealer for service.

WARNING! Continued use of “spongy” brakes may cause a complete loss of
brakes, which could result in serious injury or death. Always have the brakes
serviced at the first sign of sponginess.

1/2" (1.3 cm)

PRE-RIDE INSPECTIONS

Before Starting the Engine

Parking Brake Lever Lock

Use the parking brake lever lock only
when you want the snowmobile to
remain stationary; for example, when
parked on an incline for a period of
five minutes or less.

1. Brake Lever

2. Parking Brake Lever Lock

3. Master Cylinder Reservoir/Cover

4. Fluid Level Indicator

Lock Engagement

To engage the lock, squeeze the brake lever tightly and push forward on
the lock. Hold the lock forward while releasing the brake lever.

Tip: If the brake lever is squeezed tightly enough, the lock will move freely into

place. Do not force the lock or it may break.

The parking brake light on the gauge will light up if the parking brake
lever lock is set while the engine is running. It will also be lit when the
service brake is in use. If the parking brake light does not come on when
the parking brake or service brake is in use, have it serviced by your
dealer.

Lock Release

To release the lock, squeeze the brake lever tightly. The lock will return
to the unlocked position.

WARNING! If the parking brake lever lock is partially or entirely engaged while
riding, the brakes may overheat, resulting in brake damage. In extreme cases it
could cause a fire, which could result in serious injury or death. Always ensure
that the lever lock is completely disengaged before operating the snowmobile.

PRE-RIDE INSPECTIONS

Before Starting the Engine

Track Inspection

WARNING! Operating the snowmobile with a damaged track increases the
possibility of track failure, which could cause loss of control resulting in serious
injury or death. Always inspect the track for damage before using the vehicle.

WARNING! Use of traction products such as studs increases the possibility of
track damage and/or failure. Driving at high speeds for extended periods of time
in marginal lubrication could severely damage track rods, break track edges,
and cause other track damage. Examples of marginal lubrication would include
frozen bodies of water without snow cover, icy trails, and no-snow conditions.

Track damage or failure caused by operation on ice or poor lubrication
conditions voids the track warranty.

PRE-RIDE INSPECTIONS

Before Starting the Engine

Suspension Inspection

Loose nuts and bolts can reduce your snowmobile's reliability and cause
needless repairs and down time. Before beginning any snowmobile trip,
a visual inspection will uncover potential problems. Check the
following items on a weekly basis or before any long trip.

Item

Check

Page

Suspension mounting bolts

Tightness

Rear idler wheel bolts

Tightness

111

Rear idler adjusting bolt locknuts

Tightness

Torque arm bolts

Tightness

Carrier and bogie wheel bolts

Tightness

Front torque arm limiter strap

Condition

Rail slide

Condition

112

Track

Tension

110

All rear suspension components

Lubrication

Ski runner/skag

Condition

Ski spindle bolts

Tightness

Tie rod end nuts

Tightness
