MAINTENANCE

Maintenance Log

Additional Services Performed

Authorized Polaris Servicing Dealer
Servicing Technician
Date

Mileage

Type of Service

Additional Services Performed

Authorized Polaris Servicing Dealer
Servicing Technician
Date

Mileage

Type of Service

MAINTENANCE

Lubrication

Lubricate the suspension and steering components with Polaris

Premium grease at 500 miles (800 km) and annually or about

every 1000 miles (1600 km) thereafter. See page 132 for the part

numbers of Polaris products.
The illustration shows the location of suspension and steering

components. A + indicates a grease point or fitting.
S

Grease the left and right spindles. Raise the front end of the ma-

chine to permit better grease entry into the spindle area.

Lubricate both of the front ski pivots at the fittings as shown.

Grease the jackshaft and driveshaft clutch side bearings.

Use an aerosol lubricant on the steering post support bracket.

Grease the center steering arms.

Grease the steering post lower pivot.

Grease the rear suspension pivot shafts (raise the rear of unit).

A grease gun kit, complete with grease and adaptors, is available to

lubricate all fittings on Polaris snowmobiles. See page 132.

Aerosol

MAINTENANCE

Lubrication

The suspension pivot shafts should be lubricated with Polaris Premium

All Season Grease at 500 miles (800 km) initially, every 1000 miles

(1600 km) after that, and before off-season storage each year. Lack of

lubrication will adversely affect your ride and the life of the

suspension. For detailed information about suspension lubrication and

adjustments, see your Polaris dealer.

NOTE: The following illustrations are general representations. Your

model may differ. Lubrication points are indicated by a L,

and forward is to the left.

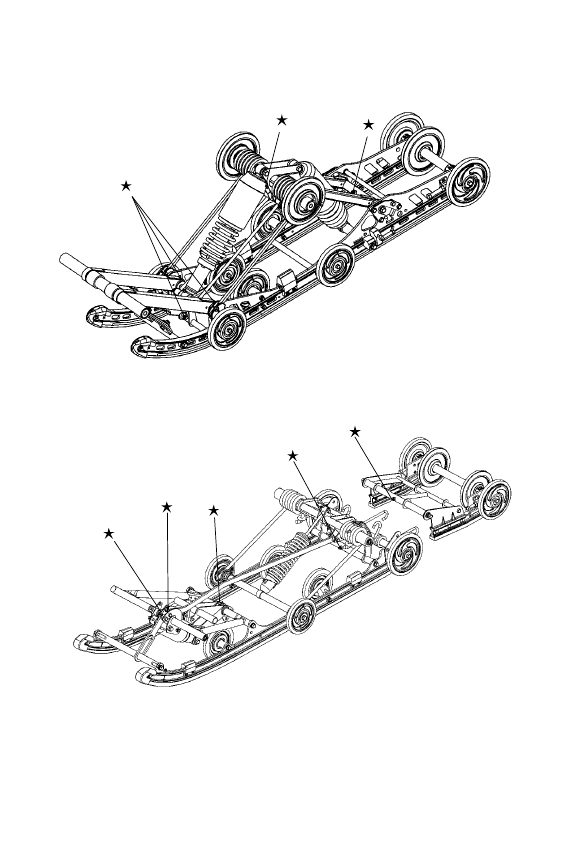

Edge 136 Suspension (Indy 340 Touring)

Edge Touring Suspension

MAINTENANCE

Lubrication

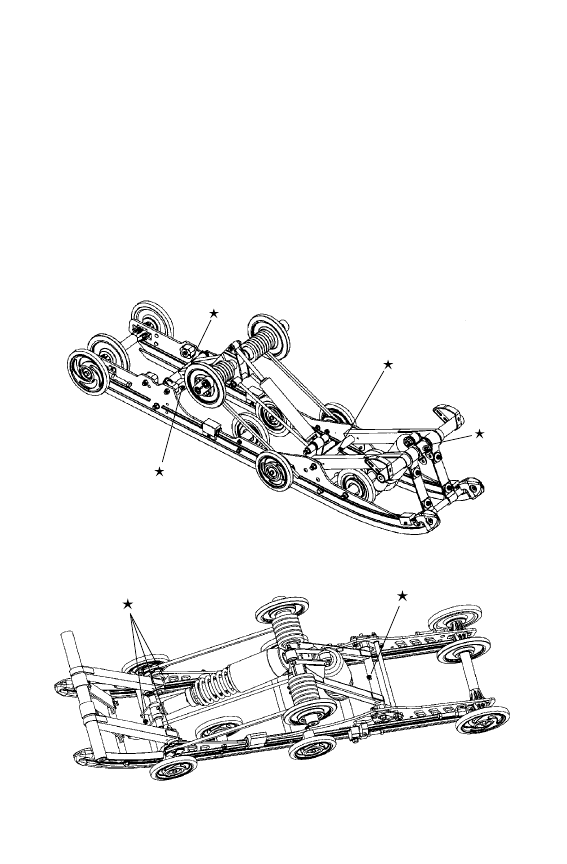

ETS ACE Suspension

WideTrak Suspension
