12.15

Chassis Electrical System

12

Rev. 1 07/2006

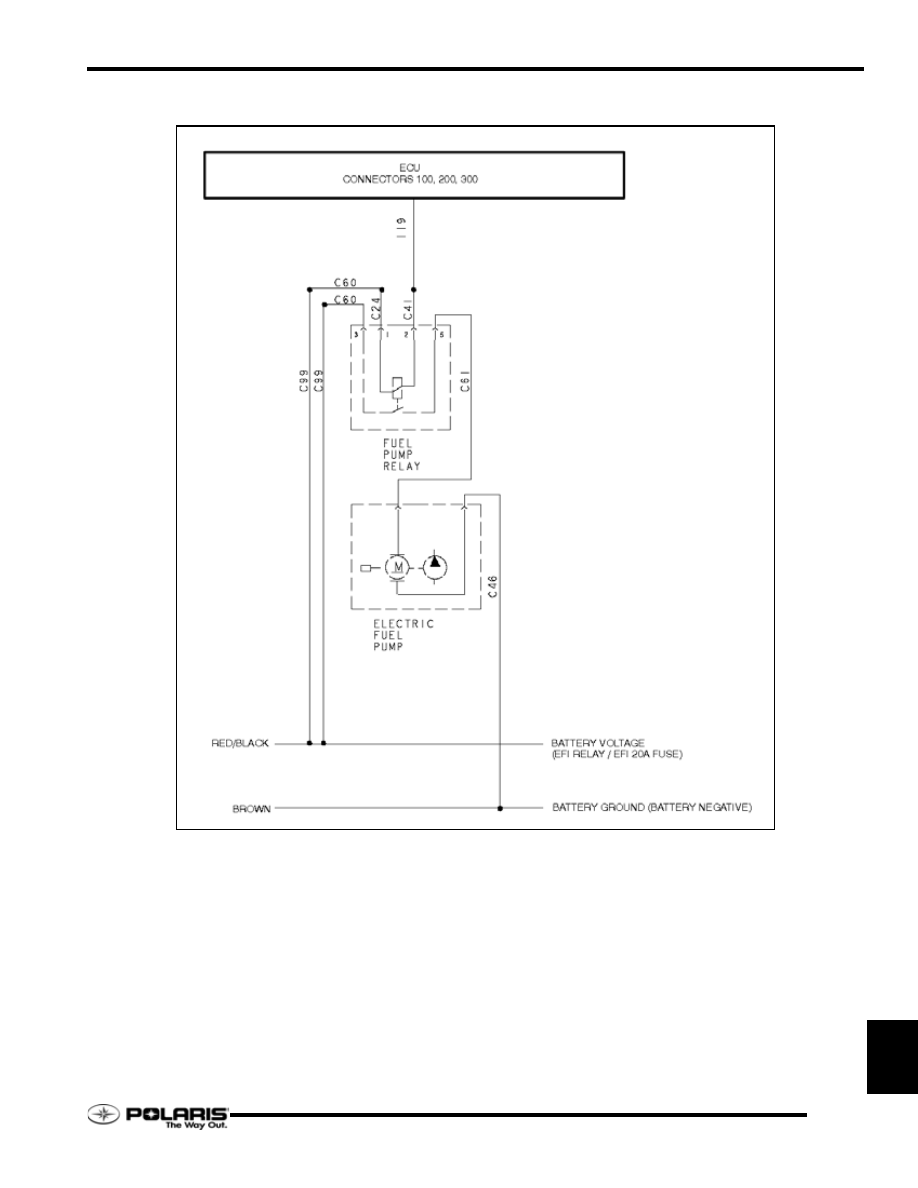

Fuel Pump Relay Circuit

12.16

Chassis Electrical System

Rev. 1 07/2006

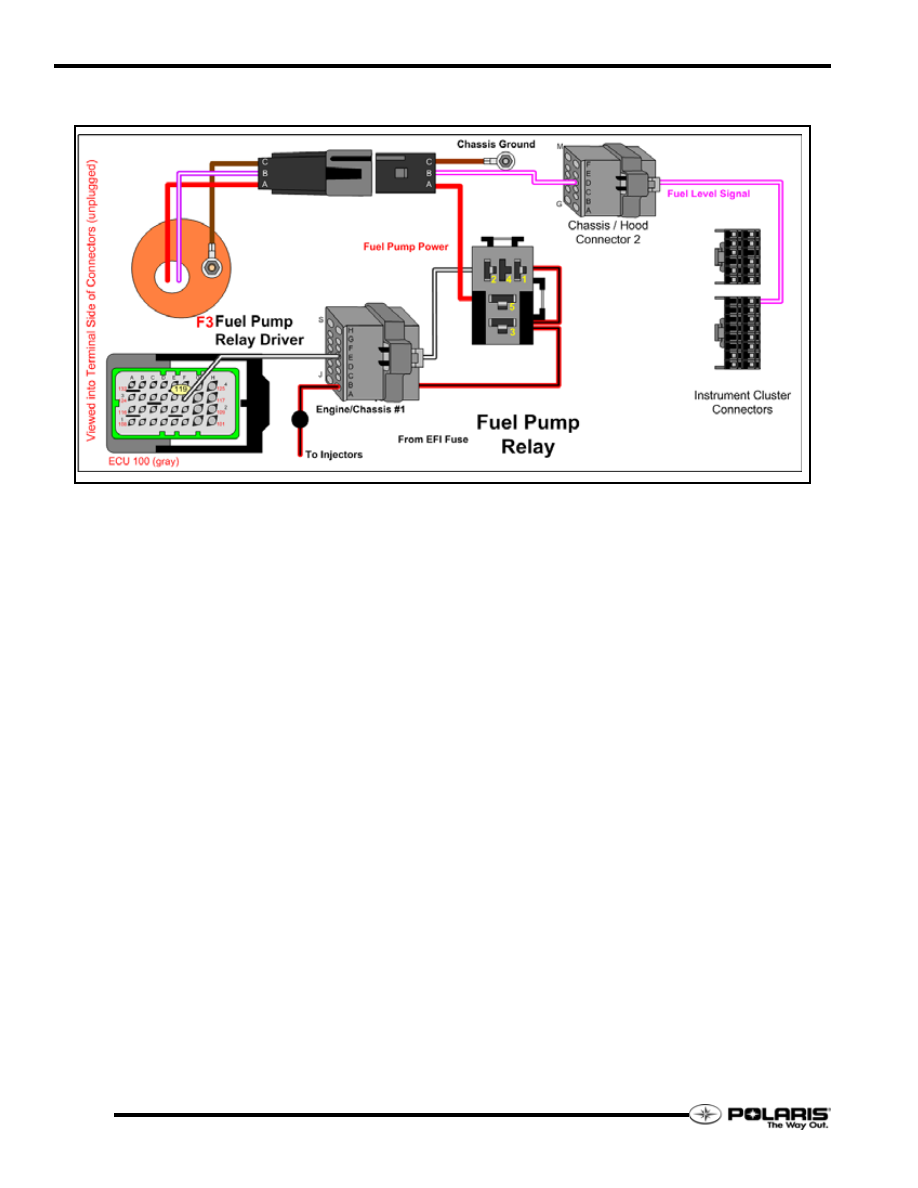

Fuel Pump Relay Circuit

The ECU controls the fuel pump relay via the fuel pump relay
driver control (ECU Pin 119). When the relay is activated
(closed), EFI-fused protected battery voltage is supplied to the
fuel pump motor inside the fuel tank.

12.17

Chassis Electrical System

12

Rev. 1 07/2006

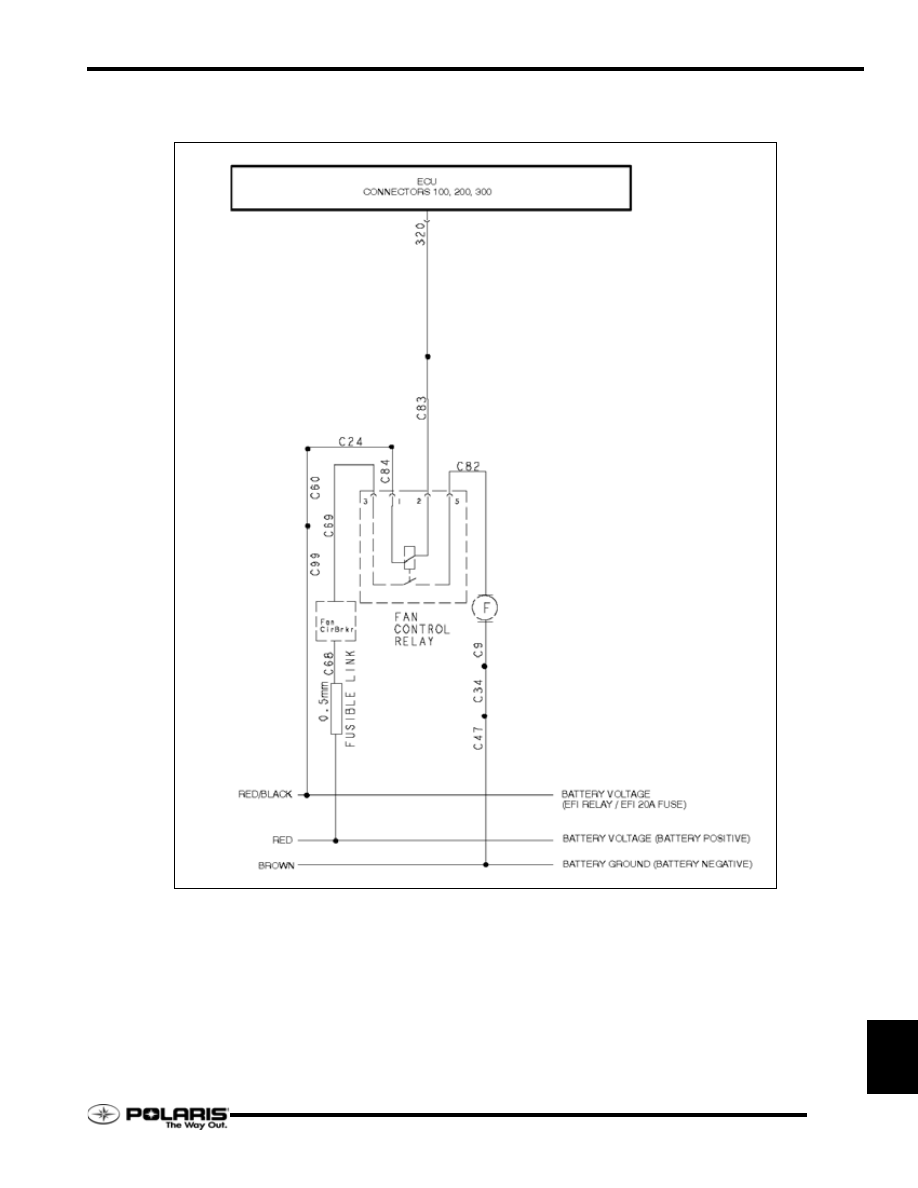

Charge Air Cooler (Intercooler) Fan Relay

Circuit

12.18

Chassis Electrical System

Rev. 1 07/2006

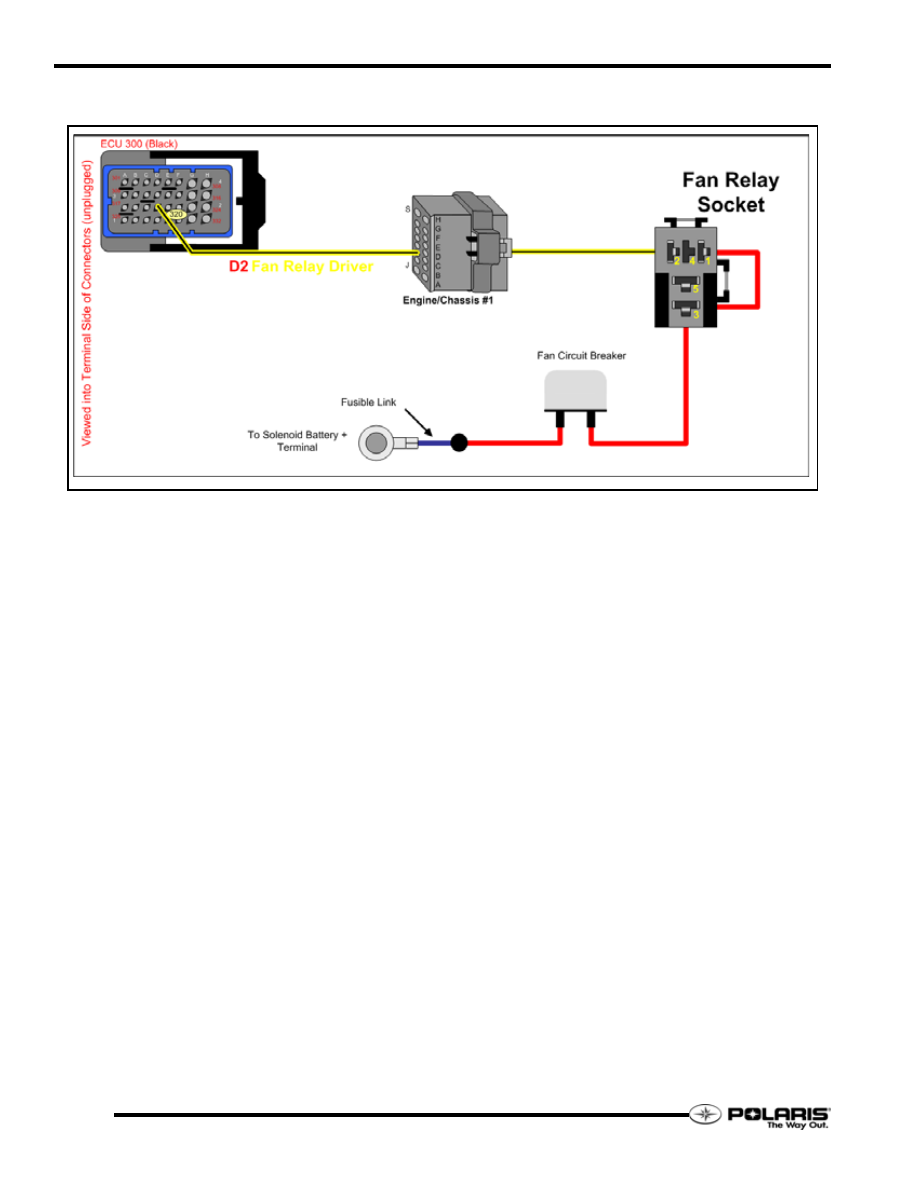

 Charge Air Cooler Relay Circuit

The ECU controls the CAC fan with the CAC fan relay. A circuit
breaker is installed on the fan’s power circuit to prevent fan /
electrical system damage in the event the fan becomes jammed
or obstructed. The circuit breaker will reset itself when given
time to cool down.
