Snowmobile Polaris 2006 - 2007 FS / FST. Manual - part 56

10.25

Rear Suspension

Rev. 1 07/2006

Rear Track Shock Valving

RTS 7043216

COMPRESSION

1.300 x .008

1.300 x .006

.800 x .010

1.300 x .010

1.300 x .008

.900 x .008

1.125 x .093 Top Out

Piston orifice .055

REBOUND

1.250 x .012

1.100 x .010

1.125 x .093 Top Out

.620 x .093 Back Up

RTS 7043190

COMPRESSION

1.125x.093

.900x.008

1.300x.008

1.300x.010

.800x.010

1.300x.006

1.300x.008

Piston orifice .055

REB

OUND

1.250x.012

1.100x.010

1.125x.093

.620x.093

RTS 7043177

COMPRESSION

1.125x.093

.900x.010

1.000x.010

1.100x.012

1.100x.010

1.100x.008

1.000x.006

1.300x.008

Piston orifice .093

REBOUND

1.250x.010

1.100x.012

1.000x.012

.900x.012

.800x.012

.620x.093

RTS 7043246

COMPRESSION

1.300 x .008

1.250 x .008

.800 x .008

1.250 x .012

1.100 x .012

1.000 x .010

.700 x .015

1.125 x .093 Top Out

Piston orifice .070

UND

1.250 x .008

.700 x .006

1.100 x .015

.900 x .008

.950 x .050 Back Up

10.26

Rear Suspension

Rev. 1 07/2006

SHIM PART NUMBERS

Shims are used in a stack on the top and on the bottom of the
shock piston. The stacks can be adjusted to control the amount
of fluid that is forced by as the piston travels through its motion.
Below is a chart that has the part numbers of these shims,
proceeding the part number is the size of the washer (out side
diameter x thickness). A thick washer (.700 x .010) will try to
keep the fluid from passing through the piston as it travels.

Refer to the appropriate parts manual for a complete listing of
shock parts.

Ryde FX Shims

PART NUMBER

SIZE

THICKNESS

1700080

0.700

0.004

1700086

0.800

1700092

0.900

1700081

0.700

0.006

1700087

0.800

1700093

0.900

1700121

1.000

1700129

1.100

1700134

1.250

1700139

1.300

1700094

0.900

0.008

1700122

1.000

1700130

1.100

1700135

1.250

1700140

1.300

1700082

0.700

0.009

1700088

0.800

1700083

0.700

0.010

1700089

0.800

1700095

0.900

1700126

1.000

1700131

1.100

1700136

1.250

1700141

1.300

1700084

0.700

0.012

1700090

0.800

1700096

0.900

1700127

1.000

1700132

1.100

1700137

1.250

1700142

1.300

1700085

0.700

0.015

1700091

0.800

1700120

0.900

1700128

1.000

1700133

1.100

1700138

1.250

1700143

1.300

10.27

Rear Suspension

Rev. 1 07/2006

Fox Shims

NOTE: The chart below groups the valves by
thickness

PART NUMBER

SIZE

THICKNESS

1500055

0.700

0.006

1500054

0.800

1500053

0.900

1500048

1.000

1500049

1.100

1500050

1.250

1500052

1.300

1500029

0.700

0.008

1500028

0.800

1500033

0.900

1500032

1.000

1500031

1.100

1500051

1.250

1500030

1.300

1500044

0.700

0.010

1500047

0.800

1500046

0.900

1500045

1.000

1500027

1.100

1500026

1.250

1500062

1.300

1500056

0.700

0.012

1500057

0.800

1500058

0.900

1500059

1.000

1500060

1.100

1500078

1.250

1500079

1.300

1500081

0.700

0.015

1500082

0.800

1500083

0.900

1500084

1.000

1500085

1.100

1500086

1.250

1500087

1.300

PART NUMBER

SIZE

THICKNESS

10.28

Rear Suspension

Rev. 1 07/2006

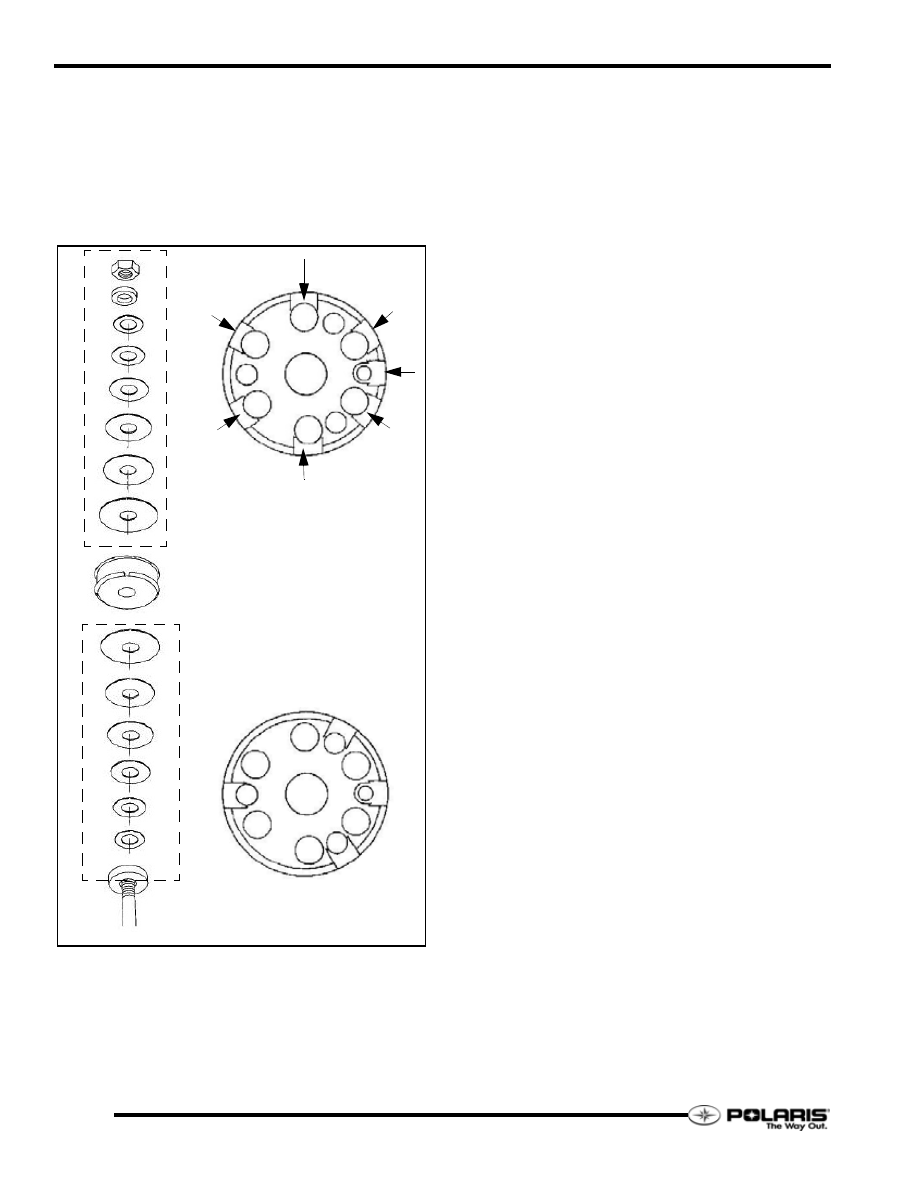

Shim Arrangement

Shown below is an example of how valving stacks are arranged.
Parts in the box below are an example of standard valving.

NOTE: Note the direction of the valve piston before
disassembly. The side with the greater number of
relief slots (1) should face the nut end (2) of the
shaft.
