MAINTENANCE

Clutch System

n

Drive Belt Deflection

Measure belt deflection with both

clutches at rest and in their full

neutral position.

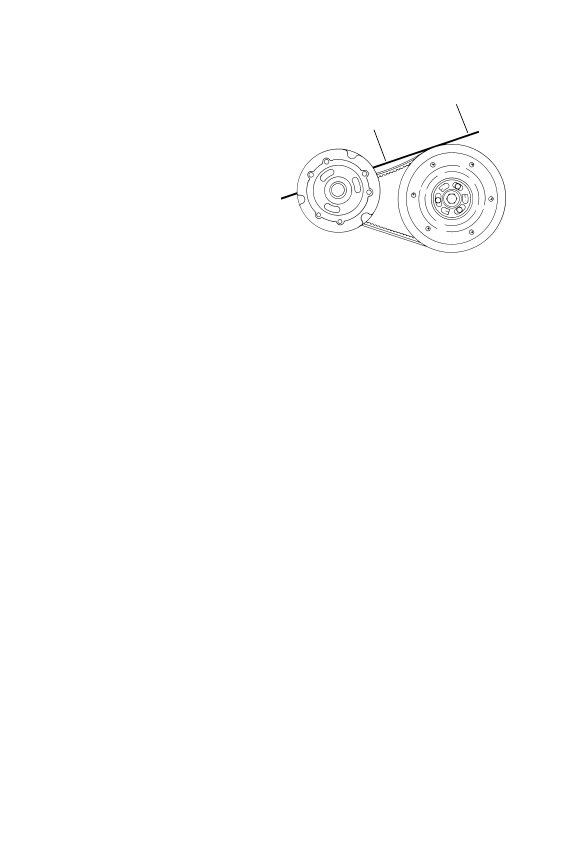

Place a straight edge (1) on the

belt and apply downward pressure

while measuring at point 2. This

measurement should be 1 1/4

inches (3.2 cm).

Drive Belt Adjustment

Belt deflection can be adjusted without removing the clutch from the

jackshaft.

1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as

needed.

NOTE: Turn the set screw in (clockwise) to increase the distance

between the sheaves and out (counterclockwise) to decrease

the distance.

3. Tighten the jam nut.

1

2

95

MAINTENANCE

Clutch System

Torque Stop

If your snowmobile is equipped

with an engine torque stop, periodi-

cally check torque stop clearance.

With clutches in proper alignment,

the torque stop clearance should be

.010I-.030I (.25-.75 mm) from the

engine case.

Adjust if necessary, and lock the

jam nut.

Reverse Maintenance

If your snowmobile is equipped

with reverse, or if you have a

reverse kit installed, it's especially important to maintain track tension

as specified on page 98.

Allow the engine to reach idle speed before attempting to shift into or

out of reverse.

WARNING

Improper track tension can cause serious damage to the snowmobile, which

can result in loss of vehicle control and serious injury or death. Always main-

tain the track tension as specified.

CAUTION

Damage will occur to chaincase or transmission if shifting is attempted before

the machine has come to a complete stop. Make sure the snowmobile has

completely stopped and the engine has returned to idle speed before shifting

gears.

.010-.030

I

(.25-.75 mm)

96

MAINTENANCE

Chain Tension

Maintain the proper chain tension as outlined on page 85.

Fall Tune-Up

For maximum performance, arrange for a fall service tune-up with your

Polaris dealer. His experienced and trained service technician will keep

your machine in peak operating condition.

Tool Kit

A tool kit is included with each machine for emergency and routine

maintenance. Always keep the tool kit with the snowmobile.

97

MAINTENANCE

Track

Track Inspection

1. Using a hoist, safely lift and

support the rear of the snow-

mobile off the ground.

2. Rotate the track by hand to

check for damage.

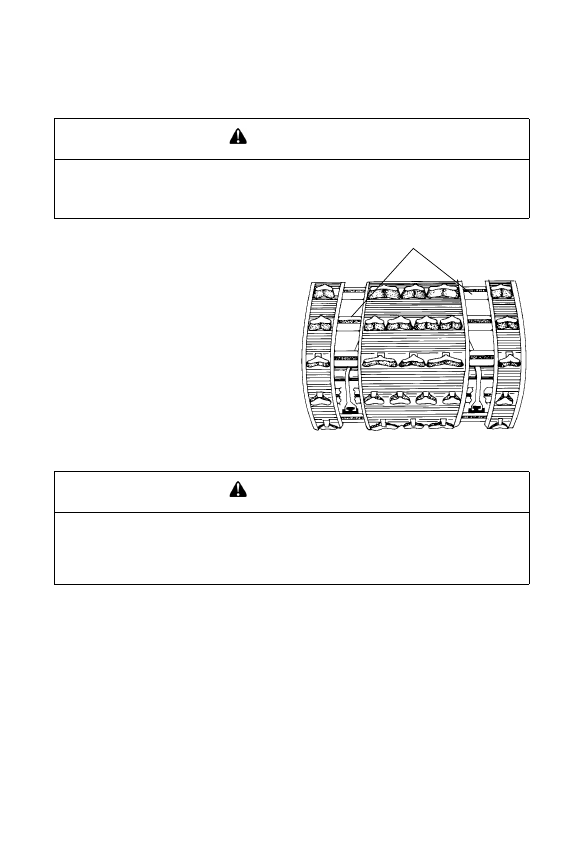

3. Carefully examine the track

along the entire length of each

rod (+). Bend the track to

check for breakage.

4. Replace the track if any rod

damage is found.

Track Lubrication

The slide rail needs snow for lubrication. Excessive wear indicates

insufficient lubrication. A new rail slide can cause faster heat build-up

in limited lubrication, resulting in excessive wear.

NOTE: If excessive rail slide wear occurs due to poor snow conditions,

additional wheel kits are available. See your dealer for more

information.

NOTE: Track damage or failure caused by operation on ice or under

other poor lubrication conditions will void the track warranty.

WARNING

Broken track rods can cause a rotating track to come off the machine, which

could cause serious injury or death. Never operate with a damaged track.

Never rotate a damaged track under power.

WARNING

Operating with insufficient lubrication between the rail slide and track guide

clips can cause track failure, loss of vehicle control and loss of braking ability,

which can result in serious injury or death. Avoid operating for extended peri-

ods on ice and other surfaces that have little or no snow for lubrication.

+
