MAINTENANCE

Carburetor

Water/Sediment Trap Service

Most Polaris snowmobiles contain patented carburetor bowl water/sedi-

ment traps located at the bottom of each carburetor. The trap, consisting

of a hose with a plug, should be drained at least every 2000 miles (3200

km) and inspected for contamination.

1. Turn the fuel tank supply valve off.
2. Position a container or shop towels to

catch the contaminated gasoline.

3. Slide the clamp away from the drain

plug and remove the drain plug from

the sediment tube.

4. Wipe residue from the plug and reinstall

it. Reposition and tighten the clamps.

Continue until all traps have been emp-

tied.

WARNING

When draining the traps, fuel spillage will occur. Always work in a well venti-

lated area away from anything that may cause the fuel to ignite, such as open

flames, sparks, heaters, trouble lights, cigarettes, etc. Review the gasoline

warnings



found on page 56.

Clamp

Drain

Plug

85

MAINTENANCE

Exhaust System

Check the exhaust system for wear or damage at approximately 2000

miles (3200 km). To inspect, allow the engine and exhaust system to

cool completely. Open the hood and inspect the muffler and pipes for

cracks or damage. Check for weak or missing retaining springs or

damper/support grommets.

Drive Chain Tension

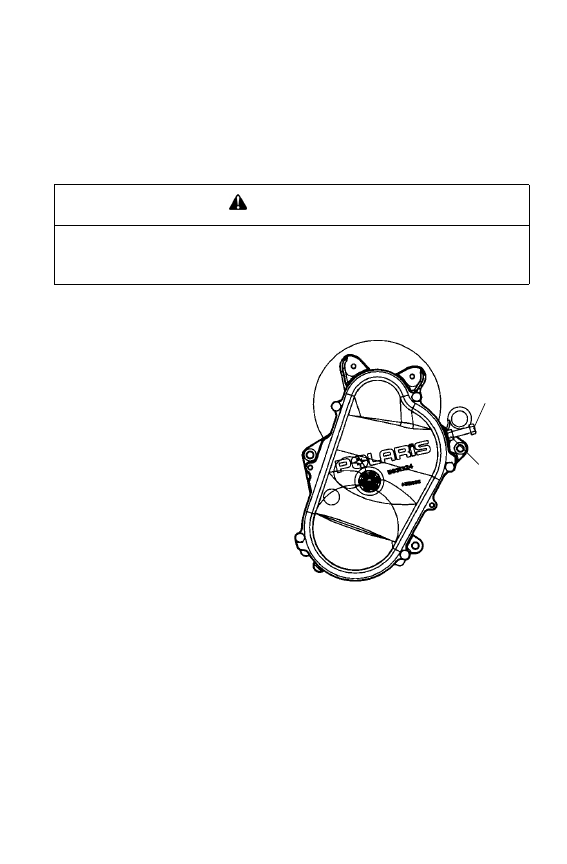

To obtain correct chain tension:

1. Rotate the driven clutch

counterclockwise to move all

chain slack to the tensioner

side. Lock the brake lever

lock, or have an assistant

hold the brake lever firmly.

2. Loosen the adjuster bolt jam

nut.

3. Finger tighten the adjuster

bolt until it can no longer be

adjusted by hand, then back

off 1/4 turn.

4. Tighten the jam nut while

holding the adjuster bolt.

Torque to 21 ft. lbs. (28 Nm).

5. Release the brake lever lock.

WARNING

Hot exhaust system parts can cause serious burns. Allow adequate time for

the exhaust system to cool. Never perform this procedure with the engine

running.

Jam

Nut

Adjuster

Bolt

86

MAINTENANCE

Brakes

n

Hydraulic Brake Inspection

Inspect the brake lever reserve before each use of the snowmobile. See

page 47.

Brake pads must be replaced when the brake pad material becomes thin-

ner than the backing plate (approximately 1/16I). A kit is available for

replacing brake pads. See your dealer.

Excessive Lever Travel

Hydraulic brakes are self-adjusting, but if excessive brake pad clearance

develops, bring the machine to an authorized Polaris dealer for inspec-

tion and adjustment.

Brake Components

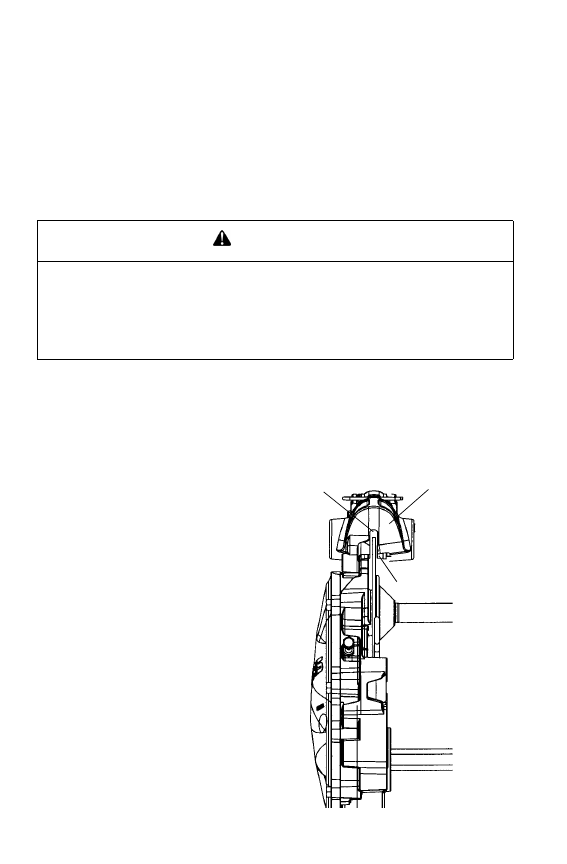

1. Brake Caliper
2. Brake Disc
3. Brake Pad Material

(Replace when thickness is

less than 1/16I/1.5 mm).

WARNING

Brake failure during operation can result in serious injury or death. Properly

functioning brakes are vital to your safety. Be sure the brake pads do not

drag on the disc and that brake lever travel is not excessive.
Always replace brake pads when the brake pad material becomes thinner

than the backing plate (approximately 1/16

I

).

2

1

3

87

MAINTENANCE

Brakes

Brake Fluid

On some models, the brake fluid level can be seen through a plastic

sight glass in the brake reservoir. If the fluid is sufficient, the sight glass

will be black. If the sight glass is any color other than black, add brake

fluid.

On all other models, frequently check the reservoir to be sure it contains

the correct amount of fluid. To add fluid, remove the master cylinder

reservoir cover. Add the recommended brake fluid to bring the level up

to the top of the fluid level mark on the inside of the reservoir.

Replace brake fluid at least every two years with Polaris DOT 4 high

temperature brake fluid. See page 113 for the part numbers of Polaris

products.

WARNING

After opening a bottle of brake fluid, always discard any unused portion.

Never store or use a partial bottle. Brake fluid is hygroscopic, meaning it rap-

idly absorbs moisture from the air. The moisture causes the boiling tempera-

ture of the brake fluid to drop, which can lead to early brake fade and the

possibility of accident or serious injury.

WARNING

Keep the master cylinder cover free of dirt and debris. The vent slits allow for

diaphragm movement, and if they become plugged, movement of brake fluid

below the diaphragm may be restricted, altering brake function.

CAUTION

Brake fluid will damage decals, paint and some plastics. Always wipe up
