Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect

suspension action.

Each rear suspension can be adjusted to suit rider preference and deliver

excellent performance for a given set of conditions. However, all sus-

pension designs and adjustments involve a compromise, or trade-off.

For example, a suspension set up for snowcross racing would provide a

very stiff ride on the trail. A suspension set up for trail riding would bot-

tom out harshly on a snowcross course.

See your Polaris dealer for initial suspension setup information. Addi-

tional adjustments can be made after initial setup. Make adjustments to

one area at a time so you can evaluate the change. For further assistance,

see your dealer.

33

THE PERFECT FIT

Rear Suspension Adjustments

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a

little experimentation, each rider can find a preferred setup. These

adjustments are easy to make, involve very little time or effort, and

greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the machine's performance. Bogie wheel kits

are available from your dealer.

• Polaris offers track kits for improved flotation in deep snow. See your

dealer for assistance.

NOTE: Keep the suspension pivot points lubricated. This will reduce

moisture and rust build-up and ensure proper function of the

suspension components. Grease rear suspension pivots before

adjusting the rear suspension. See page 76.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment. Refer to the track tension maintenance sec-

tion beginning on page 98.

34

THE PERFECT FIT

EDGE 136 Rear Suspension Adjustments

Initial Spring Preload Setting (Sag Method)

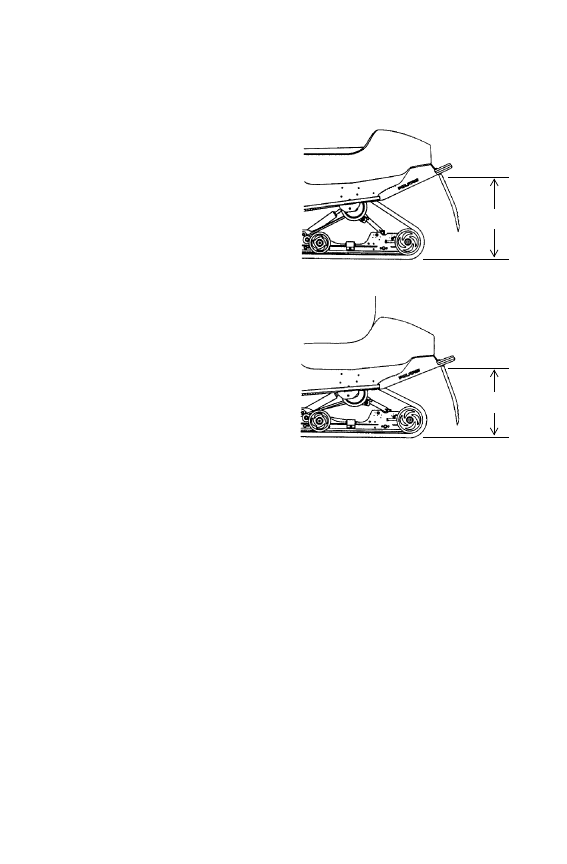

To set up the EDGE rear suspension

torsion spring preload, measure the

distance between the ground and

rear bumper. This is measurement

X.

Take the first measurement with no

rider and with the rear suspension at

full extension.

NOTE: The rear bumper may need

to be lifted upward slightly

to fully extend the rear sus-

pension.

Next, have the rider drop down

hard on the seat and bounce up and

down several times, collapsing the

rear suspension. With the rider

seated, measure the distance

between the ground and the rear

bumper at the exact location used

for measurement X. This is mea-

surement Y.

To determine sag, commonly referred to as ride-in, subtract measure-

ment Y from X (sag=X-Y). Adjust sag by rotating the torsion spring

preload cams located on the rear torque arm. Use the illustration for ref-

erence. The ideal amount of Sag for the EDGE rear suspension is four

inches (X-Y=4).

If the rear suspension rides in less than three inches or more than five

inches with the torsion spring preload cams at their maximum range of

adjustment, optional torsion springs (softer or stiffer, respectively) may

be required. This is only an initial set-up, and final spring preload may

vary based on rider preference and riding conditions.

X

Y

35

THE PERFECT FIT

EDGE 136 Rear Suspension Adjustments

Rear Spring Tension

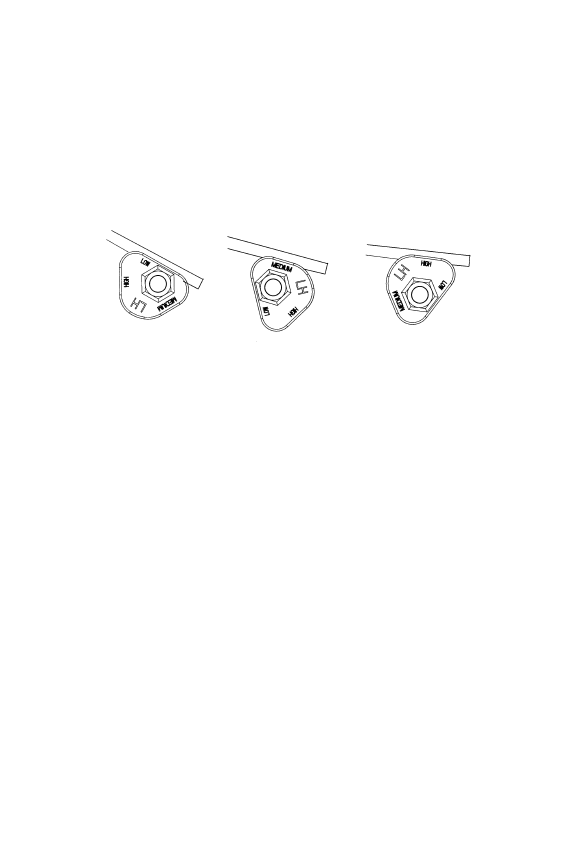

To adjust rear torsion spring tension, rotate the three-position cam using

the engine spark plug tool. Different rate torsion springs are available if

a firmer ride is desired. See your dealer for more information.

The following information is provided only as a guideline to be used for

initial suspension set-up. Your set-up may vary based on your desired

riding style.

Low Tension

Medium Tension

High Tension
