Snowmobile Polaris (2006 year). Manual - part 63





12.6

CHASSIS / HOOD

EDGE SEAT REMOVAL / INSTALLATION

1.

Remove the two bolts that hold the rear of the seat located
underneath the tunnel area.

2.

Lift the seat and disconnect the electrical connection.

3.

Remove the seat.

SEAT COVER REPLACEMENT

1.

Remove seat.

2.

Remove the old covering by removing the staples that hold
it on the base.

3.

If replacing the tail light assembly see “TAIL LIGHT
ASSEMBLY REPLACEMENT” on page 6

4.

Drape the new cover over the seat foam.

5.

Turn the assembly over and begin upholstering by lining
up the seat cover vinyl side flaps with the indented square
location indicators located on the plastic seat base.

6.

Using a staple fun, tack each side of the vinyl cover in
place using two staples (1). If cover has a Polaris" emblem
carefully align emblem with the bottom edge of the seat.
This will help ensure that the cover is positioned properly.

7.

Align the two sewn seams located at the rear of the seat
cover with the two back corners of the seat base.

8.

Pull the vinyl tight and tack the seat cover to the plastic
seat base in each corner. Use two or three staples per
corner.

9.

Now that the cover is positioned, and tacked to the plastic
seat base in for places, turn the assembly over an inspect
it. If the seat cover seems to fit correctly and everything
looks straight, including the tool compartment flap,
continue.

10. Staple the remainder of the unattached seat cover to the

plastic seat base. Always staple between two existing
staples and follow this procedure until the seat cover is
completely stapled to the seat base see the staple sequence
above.

11. Turn the seat cushion assembly over and inspect for

wrinkles or imperfections. If imperfections are visible,
remove the staples in the affected area and staple
correctly.

12. Trim excess vinyl from the bottom around the back of the

seat area only after a satisfactory fit is obtained.

IQ SEAT COVER REPLACEMENT

CONSOLE

IQ CONSOLE REMOVAL / INSTALLATION

1.

Place the adjustable steering in the center.

2.

Remove the two T25 Torx screws (A).

3.

Remove filler cap and the threaded filler retainer (B).

4.

Remove the two T25 Torx screws on each side of the
shroud (C).

5.

You can set the console aside with the starter rope still
installed or you can carefully un-tie the knot in the recoil
handle and route it through the chassis, then secure a knot
and let the rope rest on the recoil housing.

EDGE CONSOLE REMOVAL /
INSTALLATION

TAIL LIGHT

TAIL LIGHT ASSEMBLY REPLACEMENT

1.

After removal of seat cover, drill out three rivets from top
of taillight.

2.

Remove taillight assembly and wire harness.

3.

Install new taillight assembly and rivet into place.

4.

Connect taillight wire harness. Taillight harness wires
must be routed away from any possible contact with seat
cover staples to prevent electrical shorts.

5.

Pull seat cover tightly and evenly into position and re-
staple to seat pan.

6.

Inspect cover for a wrinkle-free finish before reinstalling
on the snowmobile.

AIR INTAKE REMOVAL

The IQ air intake system supplies the engine with air. The
system will ingest air from the hood vents and direct it into the
boost box, which forces it into the throttle bodies. The throttle
bodies meter the amount of air into the engine case where the
air is mixed with a designated amount of fuel to create the fuel
to air mixture ready for making power.

EDGE AIR BOX REMOVAL

1.

Lift off the air filter.

2.

Lift the rubber fastener form the rear of the air box.

3.

Unplug the CDI box.

4.

Unplug the ignition coils.

5.

Remove the carburetor venting tubes from the air box.

6.

Push down on the front and lift the rear of the air box out

WARNING

Apply staples in the stapling channel only. If you apply

staples outside the channel, you will damage the fuel

tank reservoir in the seat base. If this happens you will

have to replace the entire seat assembly.

12.7

CHASSIS / HOOD

of the chassis.

EDGE AIR BOX INSTALLATION

1.

Place the air box in the chassis.

2.

Align the carburetor intake with the air box carburetor
boots.

3.

Push the rear of the air box down so that it is seated with
the carburetors.

4.

Attach the carburetor vent tubes to the air box.

5.

Plug in the CDI box and the coils.

6.

Lift the rubber fastener over the rear latch.

7.

Replace the air filter.

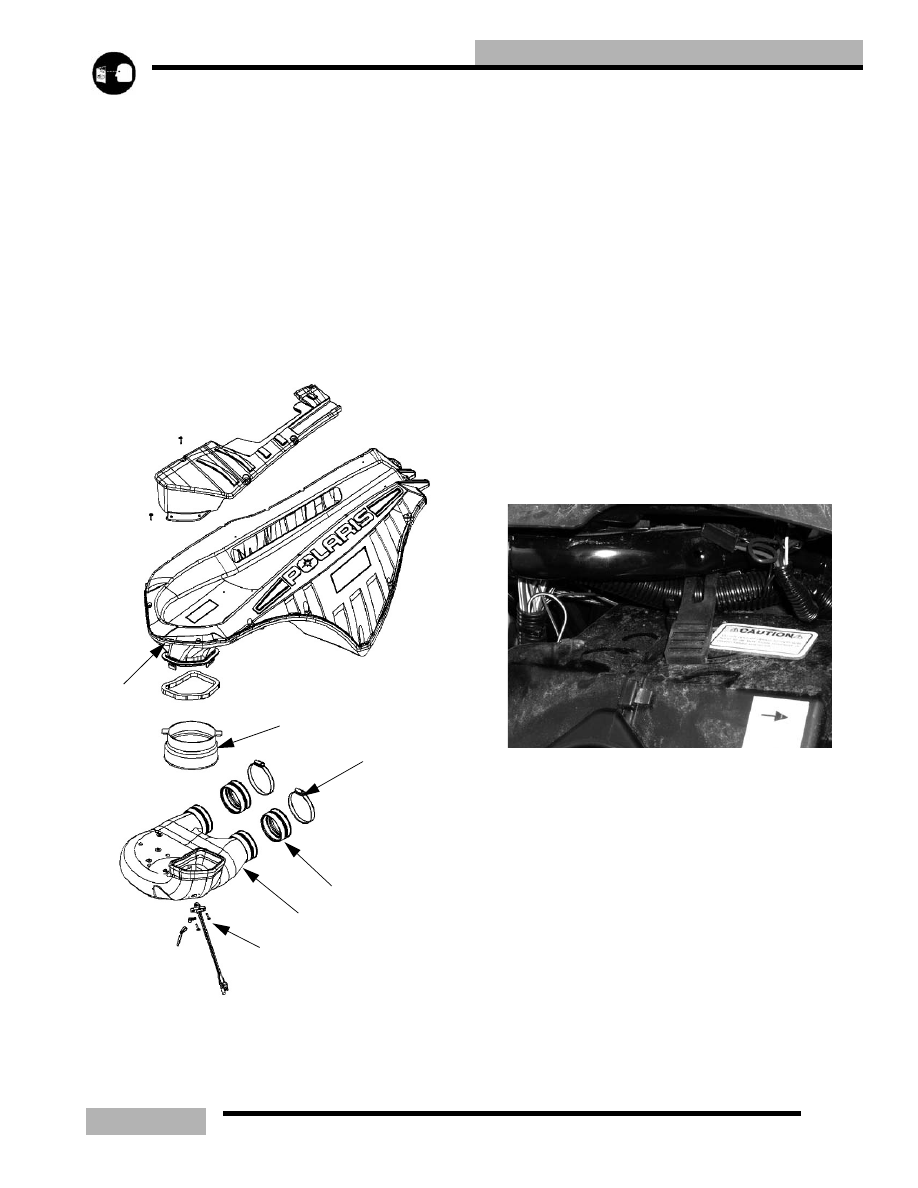

IQ 700/900 AIR INTAKE REMOVAL

1.

Roll the lower lip of the duct boot (A) up.

2.

With force, pull the front part of the plenum (B) upward.

3.

Pull the rear part of the plenum forward and remove it from
the machine.

4.

If removing the boost box (C), unplug the intake air sensor
(D).

5.

Loosen the narrow clamps (E).

6.

Pull the boost box (C) forward from the boots (F), and
remove it from the machine.

IQ 700/900 AIR INTAKE INSTALLATION

1.

If the boost box was removed install the intake air sensor
(D).

2.

Push the boost box (C) toward the boots (F),.

3.

Tighten the narrow clamps (E).

4.

Push the rear part of the plenum toward the plenum tab
holder in the chassis.

5.

Push the front part of the plenum (B) downward into the
boost box.

6.

Roll the lower lip of the duct boot (A) down.

IQ CARBURETED AIR INTAKE REMOVAL

1.

Remove the air filter.

2.

Remove the top air box strap.

3.

Remove the CDI from the air box.

4.

Unplug the CDI connection.

5.

Disconnect the spark plug caps from the spark plugs.

6.

Pull air box straight up to access the carburetor vent lines
and coil connectoion.

7.

Label and remove the vent lines.

8.

Disconnect the coil connection.

9.

Remove the air box.

A

B

C

D

E

F

C

12.8

CHASSIS / HOOD

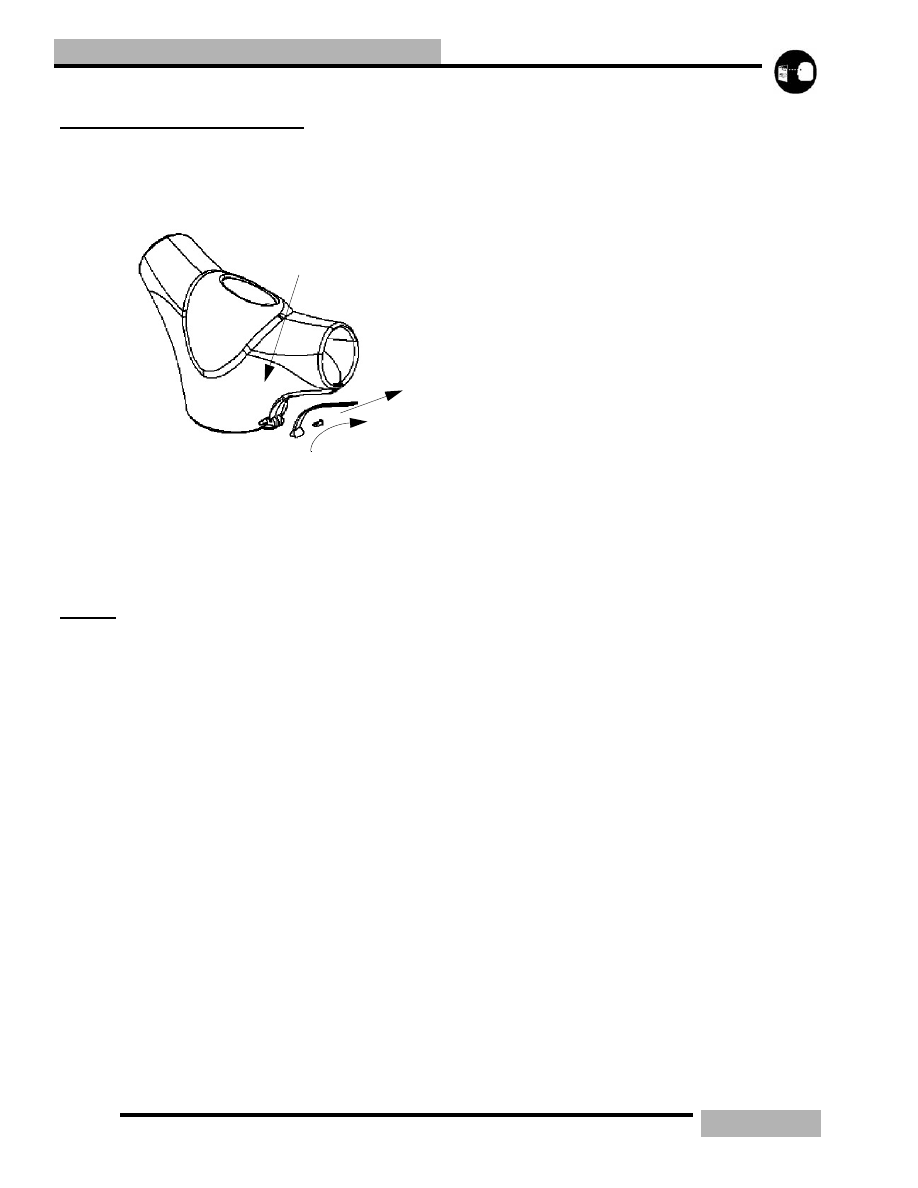

HANDLEBAR COVER

HANDLE BAR COVER REMOVAL/
INSTALTION

1.

Slide handle bar covers slide (A) off on each side.

2.

Remove the handle bar cover darts (B) on each side.

3.

Remove handle bar cover (C).

4.

Installation is in reverse order of removal.

SKIS

SKI REMOVAL

1.

Securely lift the front of the machine off the ground.

2.

Remove the ski to spindle bolt and washers.

3.

Remove ski, bushing and ski bumper.

SKI INSTALLATION

1.

Place ski, bushing and bumper onto spindle.

2.

Insert the ski to spindle bolt through the ski and spindle.

NOTE:  The ski bumper is orientated so that the
“FRONT” label is installed toward the toe of the ski.

3.

Tighten the nuts.

C

A

B

12.9

CHASSIS / HOOD

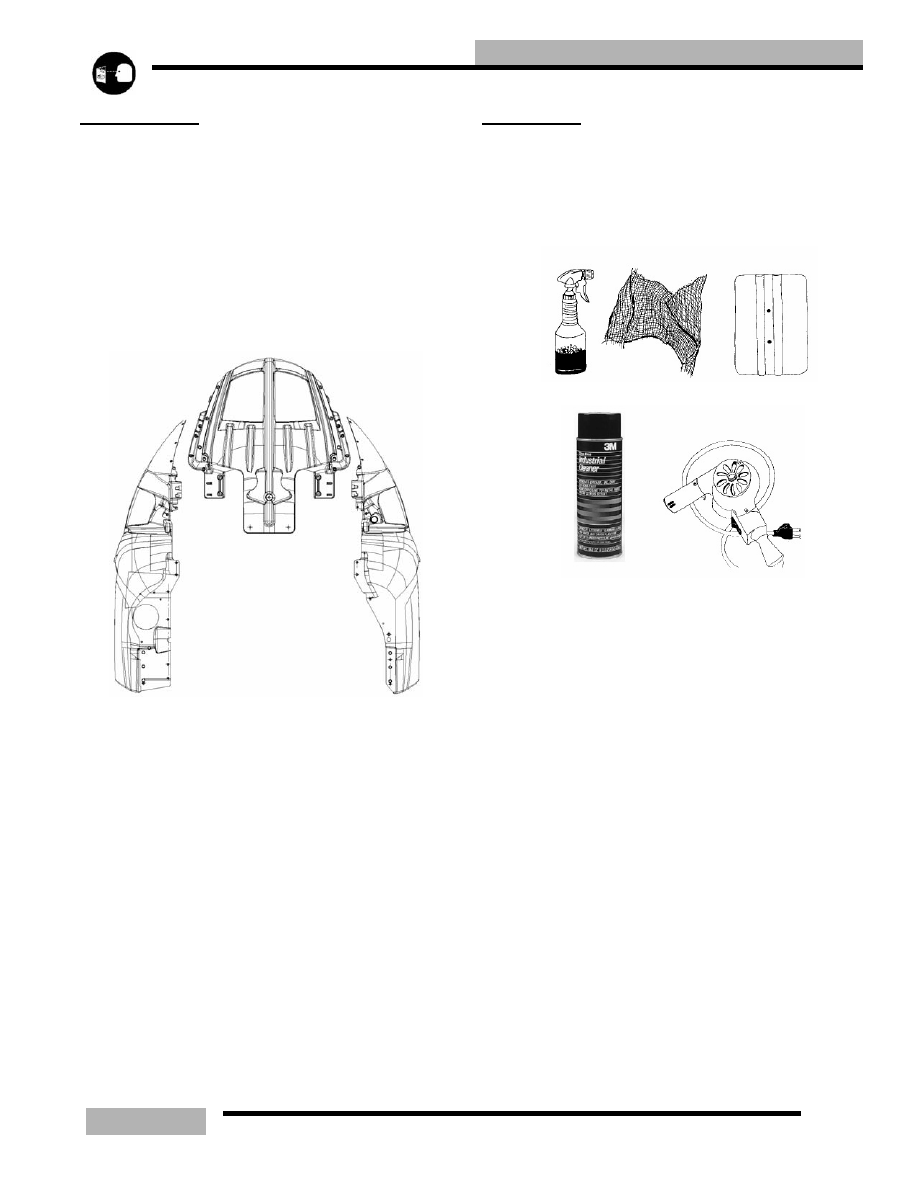

NOSEPAN

REPLACEMENT

IMPORTANT: When installing a replacement
nosepan, the open circles represent rivets installed
from inside the nosepan through the bottom. The
filled in circles represent rivets installed from the
under side of nosepan through to the top.

NOTE:  Rivet holes may require drilling into the
bulkhead. When transfer drilling holes do not force
the nosepan into a position which is not uniform to
the other side. Rivet holes across from each other.

DECALS

DECAL REMOVAL

Before you begin, read these instructions and check to be sure
all parts and tools are accounted for.

You will need the following items:

• Squeegee

• Cheese Cloth or a non abrasive cloth

• Paper Shop Towels

• Hair Drier or Heat Gun

• Wallpaper seam roller or similar roller

• 3Mt citrus based clear (3Mt PN 62-4615-430-5)

available at most auto parts stores

• Cleaning solution (99% water 1% mild dish washing

detergent)

• ScotchR 233 Performance masking tape

Perform the decal removal procedures carefully! If care is not
taken, the possibility exists that paint could peel from the
hood. Follow each step thoroughly and completely to avoid
hood damage! Polaris is not responsible for any hood or

Cleaning Solution

Cheese cloth

Squeegee

3Mt cleaner

Hair dryer
