11.2

REAR SUSPENSION

REAR SUSPENSION
SPECIFICATIONS

MOUNTING TORQUE SPECIFICATIONS

3/8”top shock mounting bolts........28-30 ft. lbs. (39 - 41 Nm)

3/8”suspension mounting bolts....35 - 40 ft. lbs. (49 - 55 Nm)

7/16” suspension mounting bolts...55 - 60 ft. lbs. (76 - 83 Nm)

Shock rod bolts(do not over torque)*Shock rods must pivot
freely after torquing...................................12 ft. lbs. (17 Nm)

REAR SUSPENSION
OPERATION

OPERATION

The primary function of the rear suspension is to provide a
comfortable ride in all types of riding conditions. It separates
the rider from the ground, while allowing for complete vehicle
control. The rear suspension also must provide weight transfer
and maintain track tension.

The rear suspension has many adjustable features for fine
tuning to achieve optimum comfort. The suspension can be
adjusted to suit rider preference and deliver excellent
performance for a given set of conditions. It should be noted,
however, that suspension adjustments involve a compromise
or trade off. A machine set up to perform well in the moguls
would not suit the preference of a groomed trail rider.

WEIGHT TRANSFER

The shifting of weight from the skis to the track is called
weight transfer. As engine torque is applied to the drive axle
the torque is transferred to the track, pulling it forward. This
energy also tries to pull the suspension forward. The front
torque arm reacts to this force by pushing down on the front of
the track, in effect applying more weight to the front of the
track and reducing the weight on the skis. It is important to
note that energy used to lift the front of the machine is not
available to push the vehicle forward.

Changing the angle of the front torque arm changes the
suspension's reaction to the force. Adjusting the length of the
limiter strap will change the front torque arm angle.
Shortening the strap limits the extension of the front of the
suspension; reducing the angle of the torque arm and
increasing ski pressure during acceleration. Lengthening the
strap allows the front of the suspension to extend further;

increasing the angle of the torque arm and decreasing ski
pressure during acceleration. Limiter strap adjustment has a
great affect on weight transfer. Limiter straps only affect
acceleration. It is important to check track tension whenever
limiter strap length is changed.

Front track shock spring preload also affects weight transfer.
A stiffer spring and/or more preload on the spring transfers
more weight to the track. A softer spring and/or less preload
keeps more weight on the skis. Keep your riding application
in mind when choosing springs and setting spring preload.
Soft springs/preload will increase ski pressure, but may
bottom out. Stiff springs/preload will provide more track
pressure (reduced ski pressure), but may result in a less
comfortable ride

During acceleration, the rear of the suspension will compress
and the IFS will extend, pivoting the machine about the front
torque arm. Because of this pivoting effect, rear spring and
spring preload also have some effect on weight transfer. Softer
rear springs, or less preload, allow more weight transfer to the
track and reduce ski pressure. Stiffer rear springs, or increased
preload, allow less weight transfer to the track and increase ski
pressure. The main function of the rear torque arm is to
support the weight of the vehicle and rider, as well as to
provide enough travel to absorb bumps and jumps.

Shock valving also has an effect on weight transfer. Refer to
shock tuning information in this chapter. Scissor stops also
affect weight transfer. See scissor stop information also in this
chapter.

Rear Scissor blocks also have a big effect on weight transfer.



see “SCISSOR STOP ADJUSTMENTS” on page 11.4.

SUSPENSION COUPLING

On all Polaris snowmobile rear suspensions, there are two
torque arms that control the movement of the rail beam. Prior
to the advent of suspension coupling, these torque arms could
move independently of each other. Rear suspension coupling
links the movement of the front and rear torque arms to each
other.

The front rear scissor stop (FRSS) couples the movement of
the front torque arm with the rear torque arm and limits the
amount of independence between the movement of the front
torque arm and the rear torque arm.

When hitting a bump, the front torque arm starts to compress.
The FRSS links that movement to the rear torque arm, causing
it to compress and raise the rear suspension up as one,
allowing the suspension to hit the bump only once and

11.3

REAR SUSPENSION

eliminating kickback. The factory setting are usually adequate
for all riders in all conditions.

The rear rear scissor stop (RRSS) couples the movement o the
rear torque arm with the front torque arm and limits the
amount of independent movement between the rear torque arm
and the front torque arm.

Adjusting the RRSS either allows more weight to transfer to
the rear for more traction, or allows less weight to transfer to
the rear, resulting in improved cornering performance. And
adjustment dot is located on the RRSS. This dot id at the
higher end of the scissor stop.

Moving the RRSS to a higher position will reduce weight
transfer, improve chatter bump ride and improve cornering
performance.

REAR TORSION SPRING TENSION
ADJUSTMENT

Rear spring tension adjustments are made by rotating the
eccentric spring block. The block provides three spring tension
positions. This adjustment is easier if the long spring leg is
lifted over the roller and replaced after the block is properly
positioned. Always maintain equal adjustment on both sides.

Torsion springs are much like coil springs, although shaped
differently. The rate of the torsion spring is controlled by the
wire diameter of the spring, and the number of coils. Pre-load
is controlled by the free opening angle. see “TORSION
SPRING ADJUSTMENT” on page 11.5.

REAR SUSPENSION
ADJUSTMENTS AND SETTINGS

REAR SUSPENSION ADJUSTMENT
PROCEDURES

It is a good idea to have customers break the suspension in for
approximately 150 miles (240 km) before fine tuning
adjustments are made.

All settings will vary from rider to rider, depending on rider
weight, vehicle speed, riding style, and trail conditions. We
recommend starting with factory settings and then customizing
each adjustment individually to suit rider preference. The
machine should be methodically tested under the same
conditions after each adjustment (trail and snow conditions,
vehicle speed, riding position, etc.) until a satisfactory ride is
achieved. Adjustments should be made to one area at a time, in
order to properly evaluate the change.

The purpose of the front rear scissor stop (FRSS) is to control
the bump attitude of the rear suspension. As the front torque
arm (FTA) hits the bump, it forces the rear scissor to collapse a
predetermined amount, depending on the FRSS block position.

This accomplishes two important things, it allows a lighter
spring rate on the FTA because it can borrow spring rate from
the rear torsion springs; and it prepares the rear portion of the
suspension for the bump, reducing secondary kick back.

The FRSS is made of a resilient material allowing smooth
action and preventing any suspension component damage.

This unique feature is applied to the EDGE rear suspensions.

11.4

REAR SUSPENSION

SETTING REAR SUSPENSION RIDE
HEIGHT

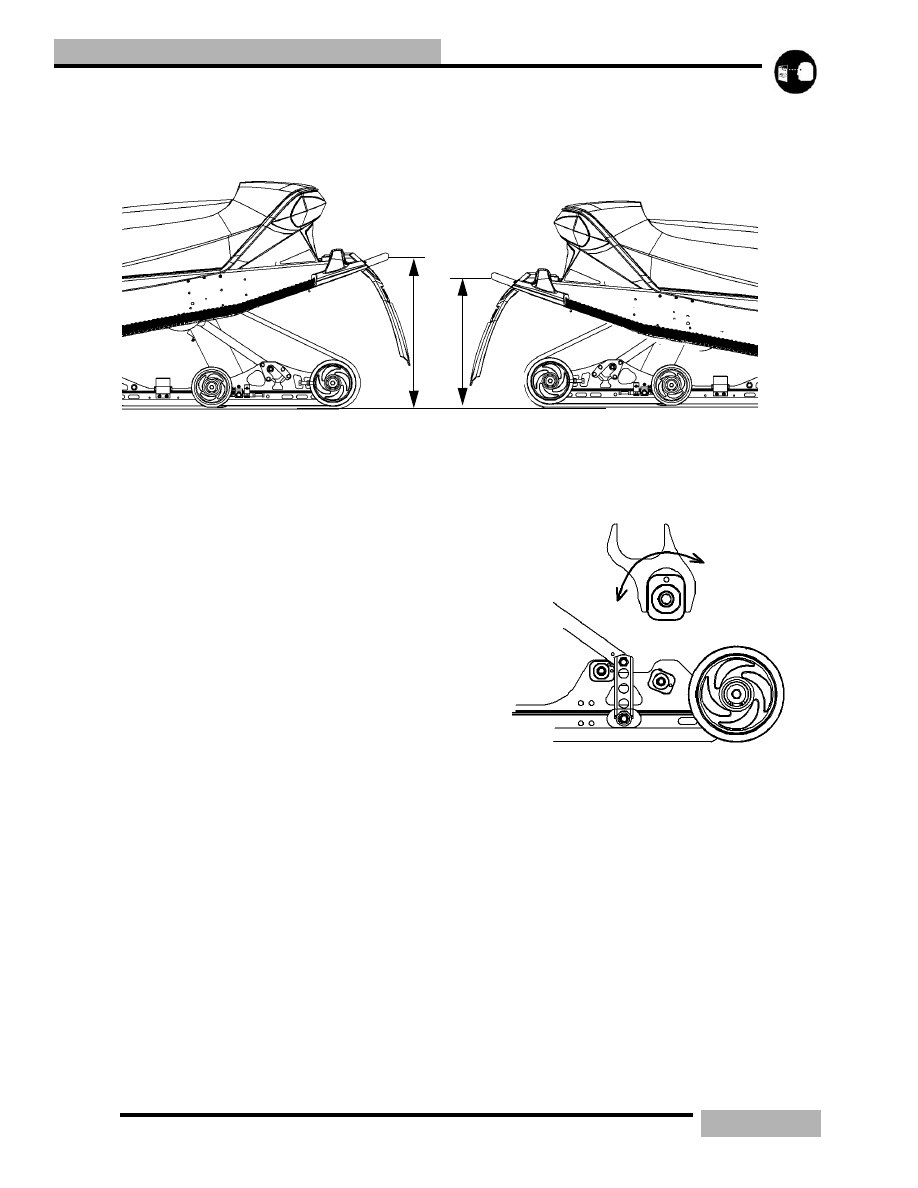

1.

To set up the rear suspension torsion spring preload,
measure the distance between the ground and rear bumper
with out the rider on the seat and the suspension at full
extension. This can be achieved by lifting the rear of the
machine so that the suspension is off the ground and
carefully setting the machine down. Write this down as
measurement “X”.

2.

Have the rider in full gear drop down on the seat, work the
suspension slightly by bouncing up and down and sit in the
seated riding position. With the rider in the seated position
measure from the ground to the bumper in the same spot
as you did for measurement “X” and write it down as
measurement “Y”.

3.

To determine the correct ride height, subtract
measurement X from measurement Y. (X - Y = ride
height).

4.

The ideal ride height is:

• IQ Fusion (700/900) = 2” (5cm)

• IQ Fusion (600) = 4-5”(10-13cm)

• IQ RMK = 5” (13cm)

• IQ M-10 = 3-4” (8-10cm)

• Switchback = 5” (13cm)

• EDGE RMK/EDGE = 4” (10cm)

• EDGE M-10 = 3-5” (8-13cm)

• Widetrak = 1.5” (4cm)

5.

Adjust for the desired ride height by rotating the torsion
spring cams located on the rear of the torsion spring.

If the rear suspension ride height can not be adjusted to the
correct dimension, optional torsion springs may be required.
This is only an initial setup, and final spring preload may vary

based on rider preference and riding conditions.

SCISSOR STOP ADJUSTMENTS

The RRSS controls weight transfer from the rear suspension
to the skis. It also influences the stiffness of the ride by
controlling the amount of coupling action between the front
and rear torque arms. To decrease weight transfer, the RRSS
should be set in the high position.

The RRSS can be totally removed for maximum weight
transfer. However, unless the torsion springs and rear shock
valving are changed, the ride will be compromised. Always
maintain equal adjustment on both sides.

To adjust the scissor stops place the scissor tool onto the
scissor block and turn to the desired position. Ensure that the
rear scissor stop face is square with the face of the scissor arm
to ensure complete contact.

X

Y

ROTATE

11.5

REAR SUSPENSION

The dot is an indicator of
the HIGH position. The
sides are the LOW
position and the bottom
is the MEDUIUM
position.

FRONT TORQUE
ARM LIMITER
STRAP
ADJUSTMENT

One method of changing ski-to-snow pressure is to change the
length of the front torque arm limiter straps. The limiter strap
is normally mounted in the fully extended position. Both
limiter straps must be adjusted evenly and remain equal in
length to avoid improper Hi-Fax and track wear.

• Lengthening the straps decreases ski pressure under

acceleration.

• Shortening the straps increases ski pressure under

acceleration.

RMK Set up Recommendations for Optimum Performance

• DEEP POWDER SNOW:FTA in LOW position for

maximum lift and flotation

• POWDER-HARDPACK:FTA in STANDARD position

for overall handling and speed over snow.

• HARDPACK: FTA in HIGH position for increased

control and less transfer.

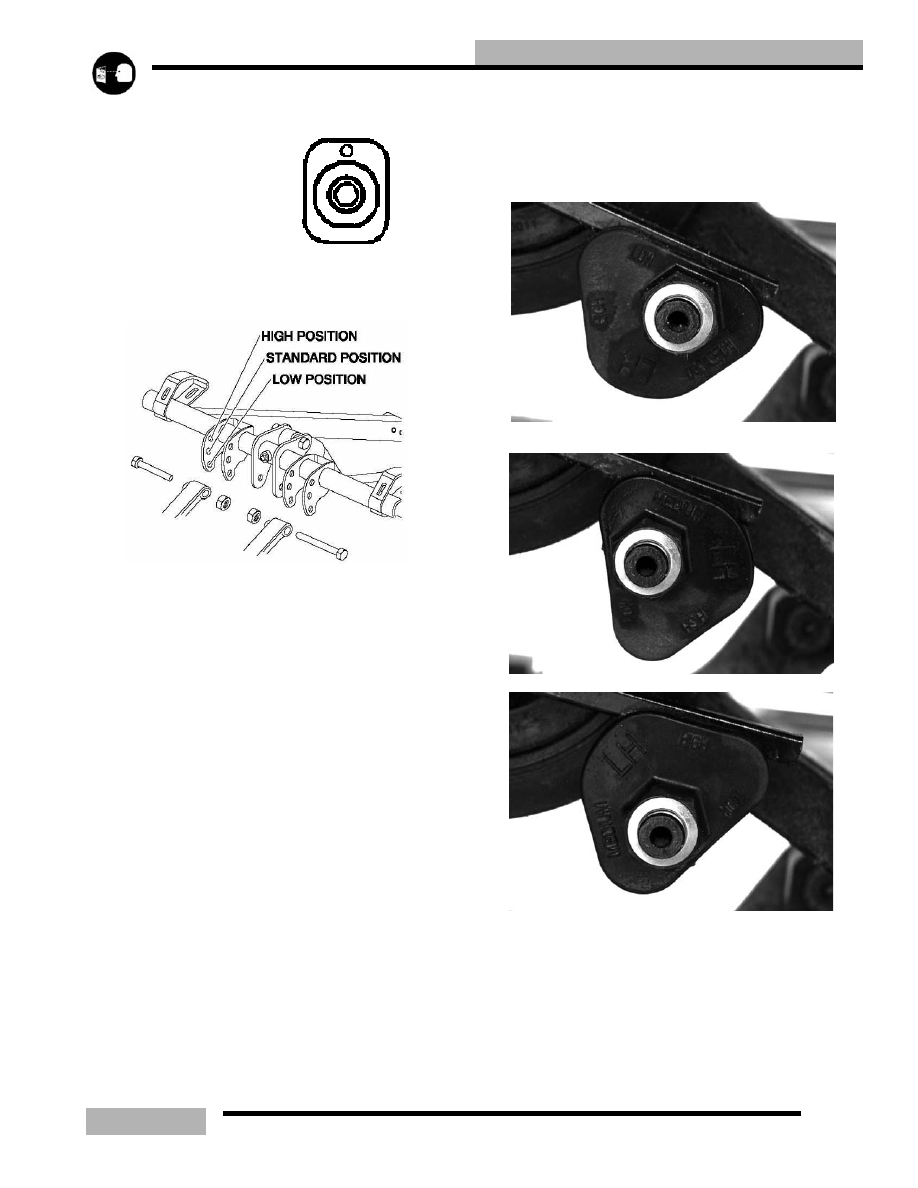

TORSION SPRING ADJUSTMENT

To adjust the rear torsion spring, rotate the adjuster cam to the
desired adjustment. The cam has three sides, LOW, MEDIUM
and HIGH.

HIGH

LOW

LOW

MEDIUM

LOW

MED

HIGH
