4.14

CARBURETION

15. Check throttle free play.see “THROTTLE LEVER FREE

PLAY” on page 3.24.

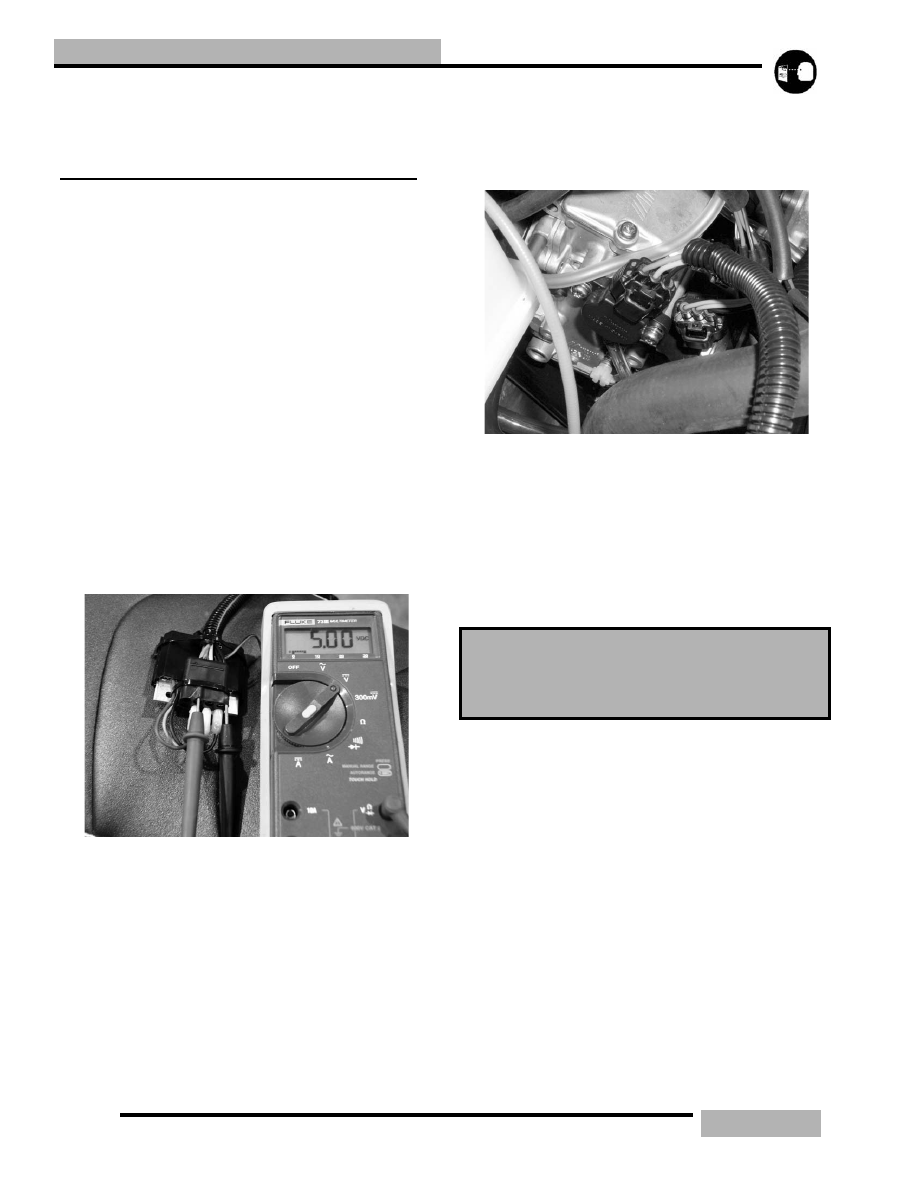

THROTTLE POSITION SENSOR

The main job of the throttle position sensor (TPS) is for the
CDI box to read the throttle position. This indicated throttle
position will determine the timing map for the conditions that
the engine is running at. The CDI box will look for the TPS
opening value and water temperature value and determine
which timing map to give the engine. The TPS setting is
critical for correct timing and run ability.

SETTING THE TPS

The TPS comes set form the factory and should not need any
adjustments. However, if the TPS was moved or removed for
any reason, Polaris has developed a TPS sensor tool that will
assist you in correctly setting the TPS to specification.

1.

Verify that the carburetors are synchronized (See
“THROTTLE VALVE SYNCRONIZATION” on
page 4.13.).

2.

Verify that the throttle freeplay is with in specification
(See “THROTTLE LEVER FREE PLAY” on page 3.24.).

3.

Once steps 1 and 2 are verified, you can set the TPS.

4.

Set up your TPS sensor tool (PN 2201519) as per the
instructions that came with the tool.

5.

Make sure that you have a good 9v battery and place it in
the TPS sensor tool.

6.

With your volt meter, place the black probe lead to the
black terminal.

7.

Place the red probe lead to the Pink terminal.

8.

Turn your meter to the VDC setting.

9.

Your voltage reading on your meter should read 4.99 -
5.01 VDC. If not replace the 9v battery with a new one.

10. Remove the probes from the TPS sensor tool.

11. Remove the TPS connector from the TPS on the

carburetor.

12. Plug in the TPS connector on the TPS sensor tool to the

TPS on the carburetor.

13. Insert the Red probe from you meter to the Yellow

terminal on the TPS sensor tool.

14. Insert the Black probe form your meter to the Black

terminal on the TPS sensor tool.

15. Turn your meter to the VDC setting.

16. Slowly open the throttle and watch your meter for a

smooth voltage increase.

NOTE:  You may see a O.L. momentarily when the
throttle is open. This is normal.

17. If the specification is not correct, you will need to turn the

TPS on the carburetor.

18. To increase the voltage you must turn the TPS

counterclockwise.

19. To decrease the voltage you must tun the TPS clockwise.

20. When the TPS is set to specification, torque the TPS

holding screws to 31 in-lb (3.5Nm).

21. Make sure that the voltage is within the specification after

torquing the screws.

22. Disconnect the TPS sensor tool.

23. Connect the TPS connector back on the TPS.

24. Disconnect the 9v battery form the TPS sensor tool and

place both in storage.

TPS Volts at wide open throttle for Domestic

engines with carburetors:

4.0 - 4.2 VDC

4.15

CARBURETION

CARBURETOR CABLE
ADJUSTMENTS

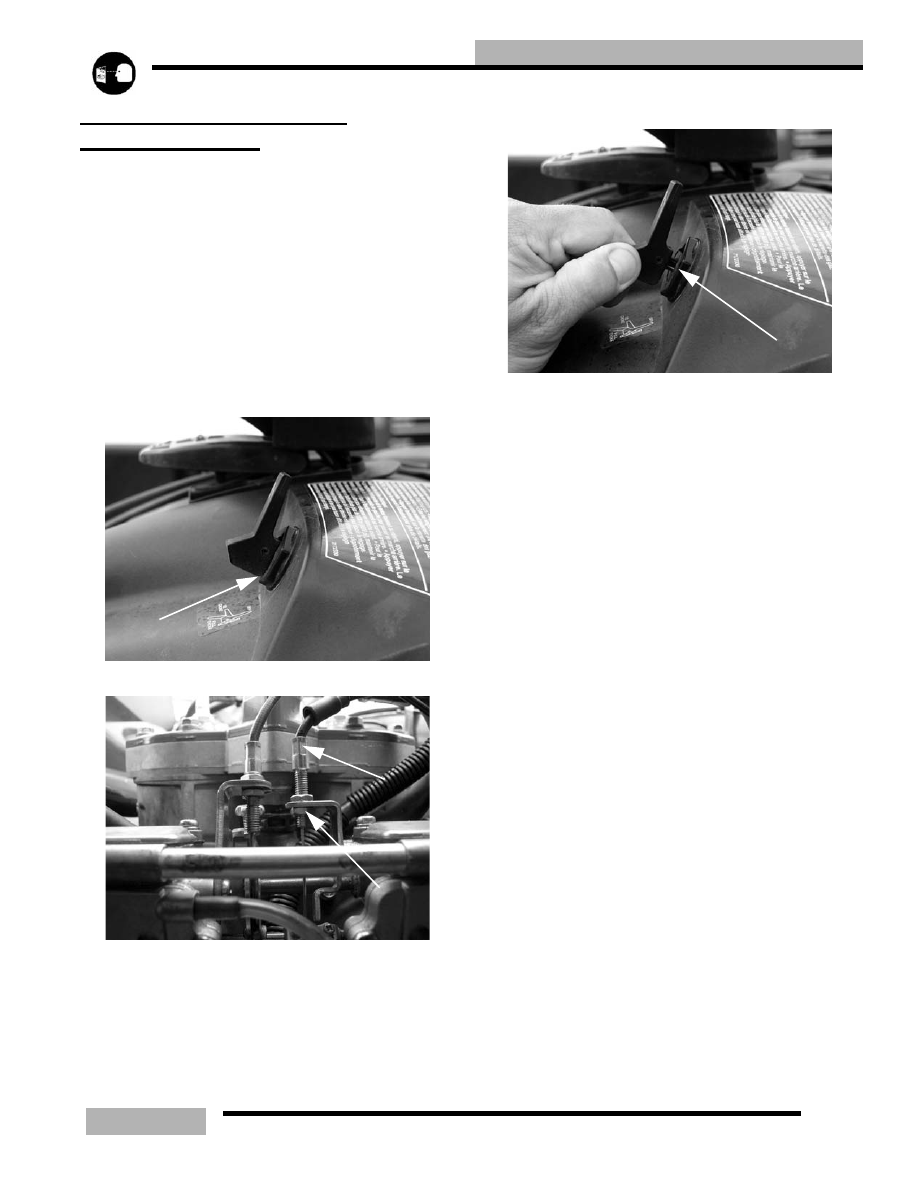

CHOKE ADJUSTMENT

With the dash mounted choke control toggle flipped to the off
position, the choke plunger must be seated on the fuel passage
way in the carburetor. If the plunger is not seated on the
passage way, the engine will flood or run too rich, causing
plug fouling and very poor engine performance.

If cable slack is too great there will be excessive toggle free
play resulting in hard starting. Also the half on position used
for intermittent applications will not function.

1.

Flip the choke toggle to the full off position (1).

2.

Loosen adjustment locknut (2) on the carburetor.

3.

Turn cable sleeve adjusting nut (3) counterclockwise until
toggle has no freeplay, then rotate it clockwise until .125-

.250in (.3-.6cm) toggle free play(4).

4.

Tighten adjustment locknut (2).

5.

For VM carburetors, repeat steps 4 and 5 for remaining
carburetor.

THROTTLE LEVER FREEPLAY

See “THROTTLE LEVER FREE PLAY” on page 3.24.

1

2

3

4

4.16

CARBURETION

CARBURETOR COMPONENT
PART NUMBERS

MIKUNI PILOT JETS

MIKUNI MAIN JETS

MIKUNI JET NEEDLES

MIKUNI STARTER JETS

Table 4-2: Mikuni Pilot Jets

PILOT JET NUMBER

PART NUMBER

25

3130064

30

3130065

35

3130066

40

3130067

45

3130068

50

3130629

55

3130070

60

3130071

Table 4-3: Mikuni Hex Head Main Jets

MAIN

JET

PART

NUMB

ER

MAIN

JET

PART

NUMB

ER

MAIN

JET

PART

NUMB

ER

MAIN

JET

PART

NUMB

ER

95

3130102

175

3130118

310

3130134

470

3130147

100

3130103

180

3130119

320

3130135

490

3130148

105

3130104

185

3130120

330

3130136

500

3130149

110

3130105

190

3130121

340

3130137

510 N

3131400

115

3130106

195

3130122

350

3130138

520 N

3131401

120

3130107

200

3130123

360

3130139

530 N

3131402

125

3130108

210

3130124

370

3130290

540 N

3131408

130

3130109

220

3130125

380

3130140

550 N

3131409

135

3130110

230

3130126

390

3130480

560 N

3131410

140

3130111

240

3130127

400

3130141

145

3130112

250

3130637

410

3130599

150

3130113

260

3130129

420

3130142

155

3130114

270

3130130

430

3130143

160

3130115

280

3130131

440

3130144

165

3130116

290

3130132

450

3130145

170

3130117

300

3130133

460

3130146

Table 4-4: Mikuni Jet Needles

JET NEEDLE

PART NUMBER

J8-9FH04-57

3130794

J8-9EH01-57

3130795

J8-9DH01-54

3130796

J8-8BEY01

3131250

J8-9DFH06-57

3131253

J8-9EFH01-60

3131207

J8-9DFH07-60

3131268

J8-9DFH10-57

3131313

J8-9DGI01-60

3131377

J8-9DGJ02-57

3131378

J8-9EFY02-61

3131202

Table 4-5: Mikuni Starter Jets

STARTER JET

PART NUMBER

130

3130805

135

3130767

140

3130768

145

3130769

150

3130770

155

3130771

160

3130772

4.17

CARBURETION

MIKUNI PILOT AIR JETS

MIKUNI PILOT AIR JETS

MIKUNI PISTON VALVES

Table 4-6: Mikuni Pilot Air Jets (SHORT)

AIR JET

PART NUMBER

0.5

3130773

0.6

3130774

0.7

3130775

0.8

3130776

0.9

3130777

1.0

3130778

1.1

3130799

1.2

3130780

1.3

3130781

1.4

3130782

1.5

3130783

1.6

3130784

1.7

3130785

1.8

3130786

1.9

3130787

2.0

3130788

Table 4-7: Mikuni Pilot Air Jets (LONG)

AIR JET

PART NUMBER

0.5

3131255

0.6

3131249

0.7

3131256

0.8

3131254

0.9

3131203

1.0

3131257

1.1

3131258

1.2

3131259

1.3

3131260

1.4

3131261

1.5

3131262

1.6

3131263

1.7

3131264

1.8

3131265

1.9

3131266

2.0

3131267

Table 4-8: Mikuni Piston Valves

PISTON VALVE

PART NUMBER

1.5

3130940

2.0

3131252

2.5

3130790

3.0

3130791

3.5

3130792

4.0

3130793
