3.12

MAINTENANCE

NOTE:  The Rod Pin position in relation to the dial
indicator tells you what action is required to
straighten the shaft.

CRANKSHAFT RUNOUT INSPECTION

Crankshaft runout can be checked with the engine in the
machine. Using a dial indicator with the crankshaft holding
fixture (PN 2870569) will yield the most accurate results.

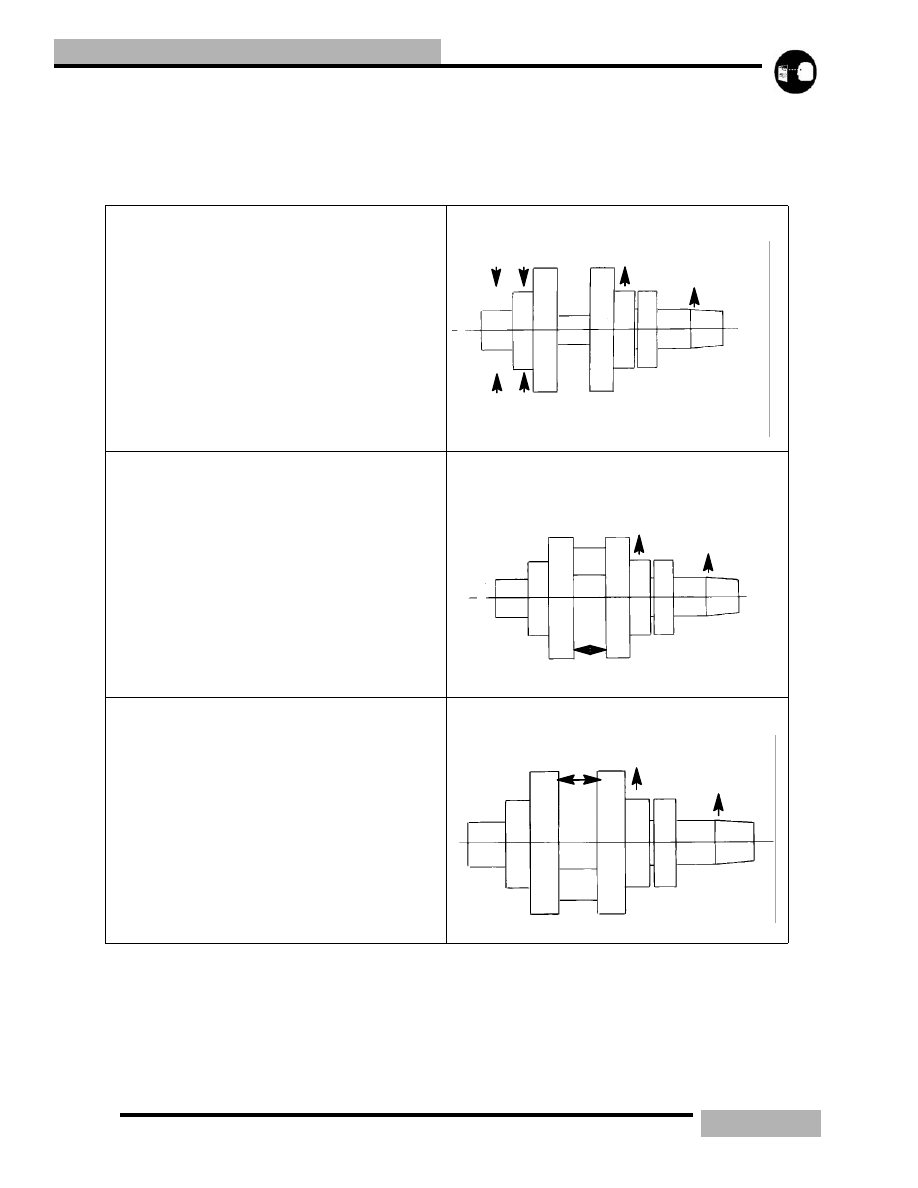

Table 3-3: Truing Examples

To correct a situation like this. Strike the shaft at point
A with a brass hammer.

To correct a situation like the one shown in this.
Squeeze the crankshaft at point A. You will use the
tool from the alignment kit PN 2870569.

If the crank rod pin location is 180_ from the dial
indicator (opposite of above), it will be necessary to
spread the crankshaft at the A position as shown in
illustration 3. When rebuilding and straightening a
crankshaft, straightness is of utmost importance.
Runout must be as close to zero as possible.

A

B

HIGH .004 (.1mm)

HIGH .004 (.1mm)

SUPPORT CRANKSHAFT
AT THESE TWO BEARINGS

A

A

HIGH .002 (.05mm)

HIGH .005 (.13mm)

A

HIGH .002 (.05mm)

HIGH .005(.13mm)

A

3.13

MAINTENANCE

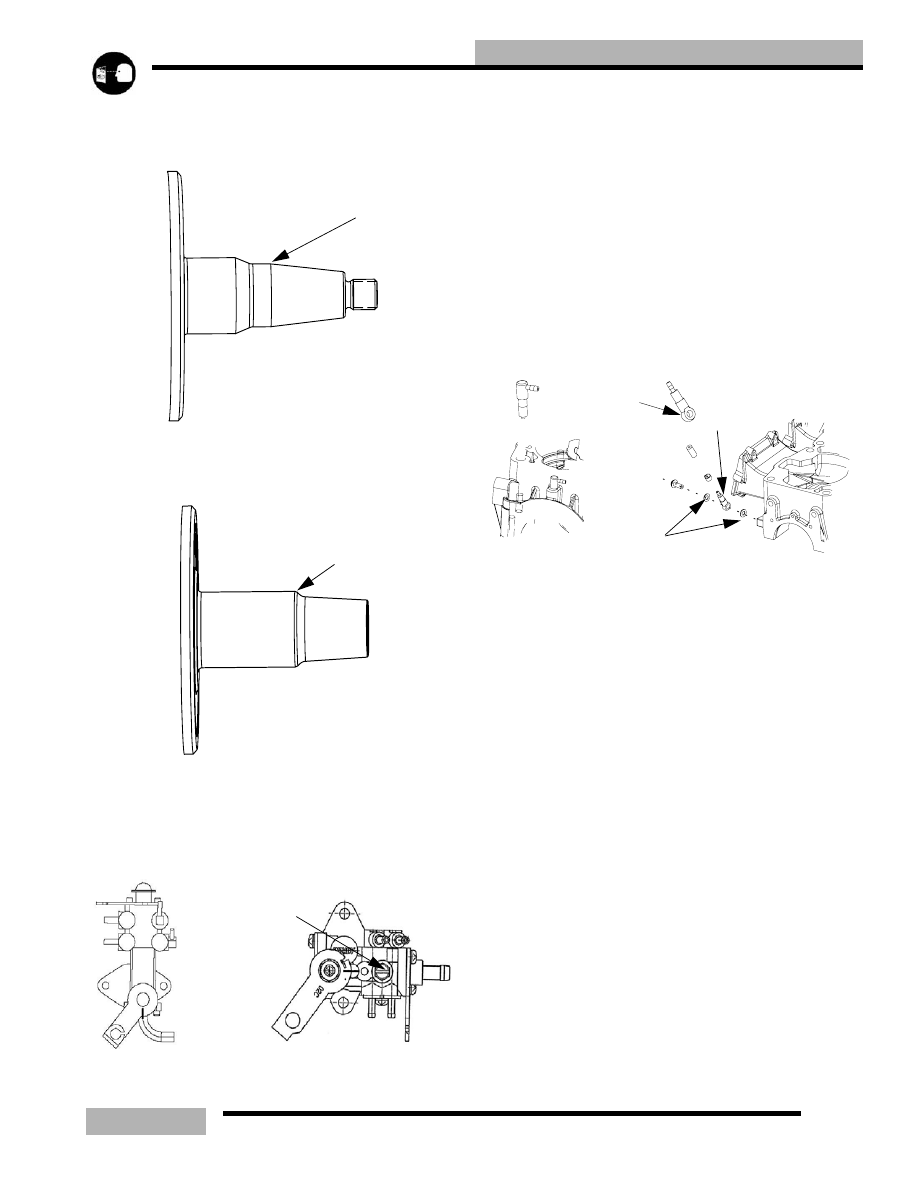

When checking the crankshaft runout on the MAG side. Place
the dial indicator end at 1/2” (12.7mm) from the bearing flat
(A).

When checking the crankshaft runout from the PTO side.
Place the dial indicator end where the taper starts after the
bearing flat (B).

NOTE:  Acceptable crankshaft runout (in a crank
fixture) is 0 - .0015” (0 - .04mm) on Libertyt engines.
0 - .0025” (0 - .07mm) on Fuji engines.

OIL PUMP BLEEDING

1.

To aid in bleeding the air out of the oil lines, fill oil

reservoir with the appropriate Polaris injector oil. This will
add pressure to the oil lines.

2.

Loosen the bleed screw (A). After approximately 30
seconds oil should flow from beneath the screw head. This
will indicate the pump is free of the air.

3.

Tighten bleed screw (A) securely.

NOTE:  Any time that the engine is disassembled or
repaired, it is important that the oil supply from the
oil pump be checked and full of oil.

IMPORTANT: The oil pump must always be bled
following any service to the oil injection system or
engine.

FITTING TYPES

VERIFYING CHECK VALVE OPERATION

1.

To check the operation of the fittings, fill the oil reservoir,
bleed the pump.

2.

Remove the check valve (A,B) from the component.

3.

Place the oil line (with check valve) in a safe area where no
moving engine part will make contact with it.

4.

Start the engine and let it idle for approximately 1-2
minuets.

5.

Drops of oil should be visible from the check valve after
the engine has idled 1 to 2 minuets, with a drop occurring
every few seconds.

6.

If oil does not flow from one of the check valves, remove
the oil line from the check valve and repeat step 4, if oil is
present during this test replace the faulty check valve.

NOTE:  Valves should open with 2-7 lbs of pressure.

NOTE:  Install new sealing washers (C) upon
installation on either side of the banjo check valve.

If oil does not flow with the check valves removed from their
feed lines, check the following

• In line filter blocked

• Air may not be bled from the oil pump

• Feed lines leaking

MAG END

1/2”(12.7

A

PTO END

B

PTO END

A

BANJO TYPE

B

C

3.14

MAINTENANCE

• Oil tank vent restricted or kinked

• Defective pump

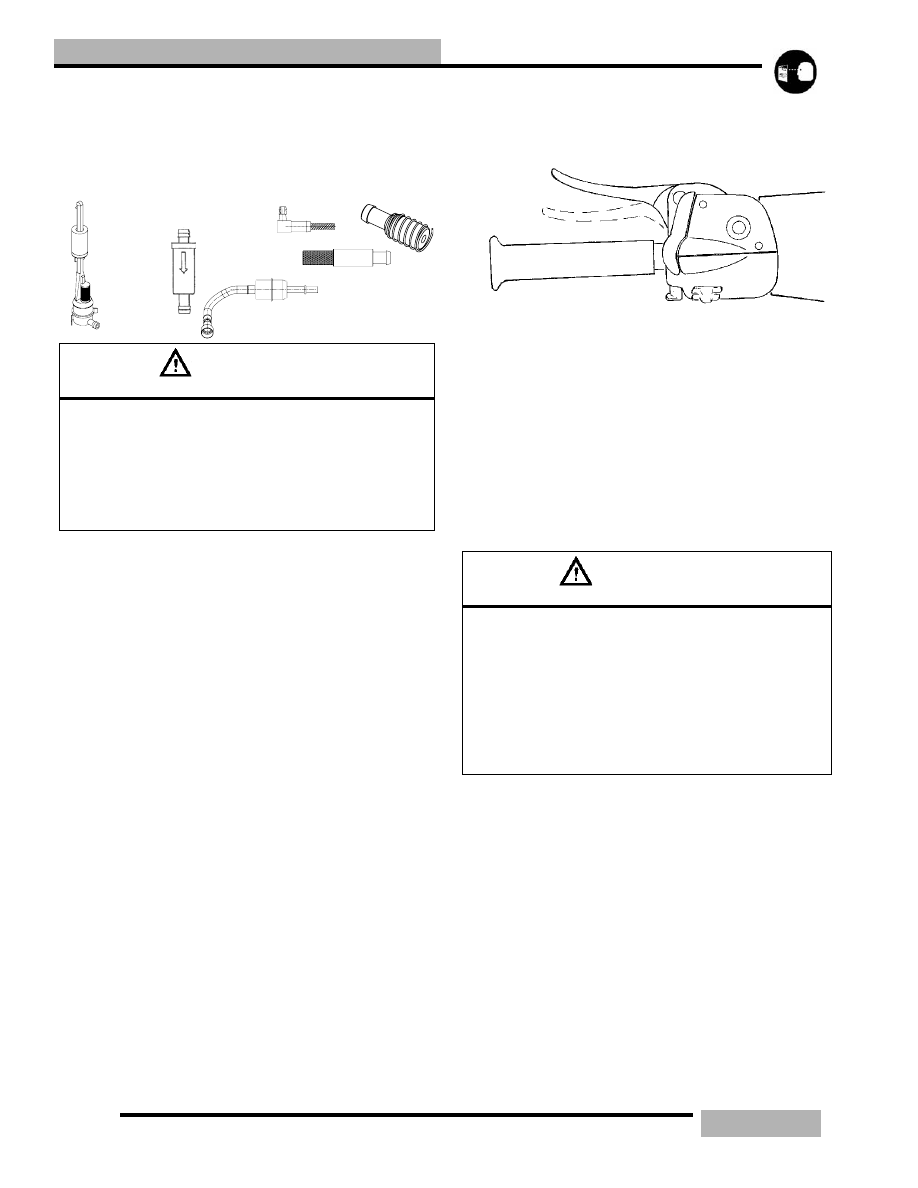

OIL / FUEL FILTER

NOTE:  The direction of the arrow indicates the
direction of the flow through the filter. After
changing the oil filter, the oil injection system must
be bled of all trapped air. see “OIL PUMP
BLEEDING” on page 3.13.

Most models use an oil and fuel filters which are of a special
design and must not be substituted. These filters should be
changed and the oil and fuel lines should be inspected
annually or every 1000 miles (1600 km).

These filters may have an arrow on the filter or line. This
arrow is the direction of flow. Install accordingly.

EDGE models utilize a special oil filter that is built into the
oil sending unit located in the bottom of the oil tank. It should
be replaced every two years or 2400 miles (3862 km).

700/900 FUSION/RMK models use the in-line filter and
should be replaced every two years or 2400 miles (3862 km).

BRAKE LEVER TRAVEL

The brake lever travel should have a clearance no less than 1/
2” (1.27cm) from the handlebar grip. Inspection should be
made with the lever firmly depressed. If the lever has less than
this amount you may need to bleed the brake system, see
“BRAKE FLUID REPLACEMENT & BLEEDING” on
page 8.3.

BRAKE FLUID

Inspect the reservoir to be sure it contains the correct amount
of fluid. Use only Polaris DOT 4 high temperature brake fluid.
Change fluid every 2 years or whenever the fluid is dark or
contamination is suspected.

CAUTION

The in tank fuel filter and fuel lines should be inspected

regularly. Special attention should be given to the fuel

line condition after periods of Summer storage. Normal

deterioration from weather and fuel can occur during

this storage period. Do not damage fuel lines when re-

moving them. If a fuel line has been damaged or kinked

it must be replaced.

WARNING

Do not over fill the master cylinder. Fluid expansion

could cause brakes to lock, resulting in serious injury or

death. Once a bottle of brake fluid is opened, use what

is necessary and discard the rest. Do not store or use

a partial bottle of brake fluid. Brake fluid is hygroscopic,

meaning it rapidly absorbs moisture from the air. This

causes the boiling temperature of the brake fluid to

drop, leading to early brake fade and the possibility of

serious injury

3.15

MAINTENANCE

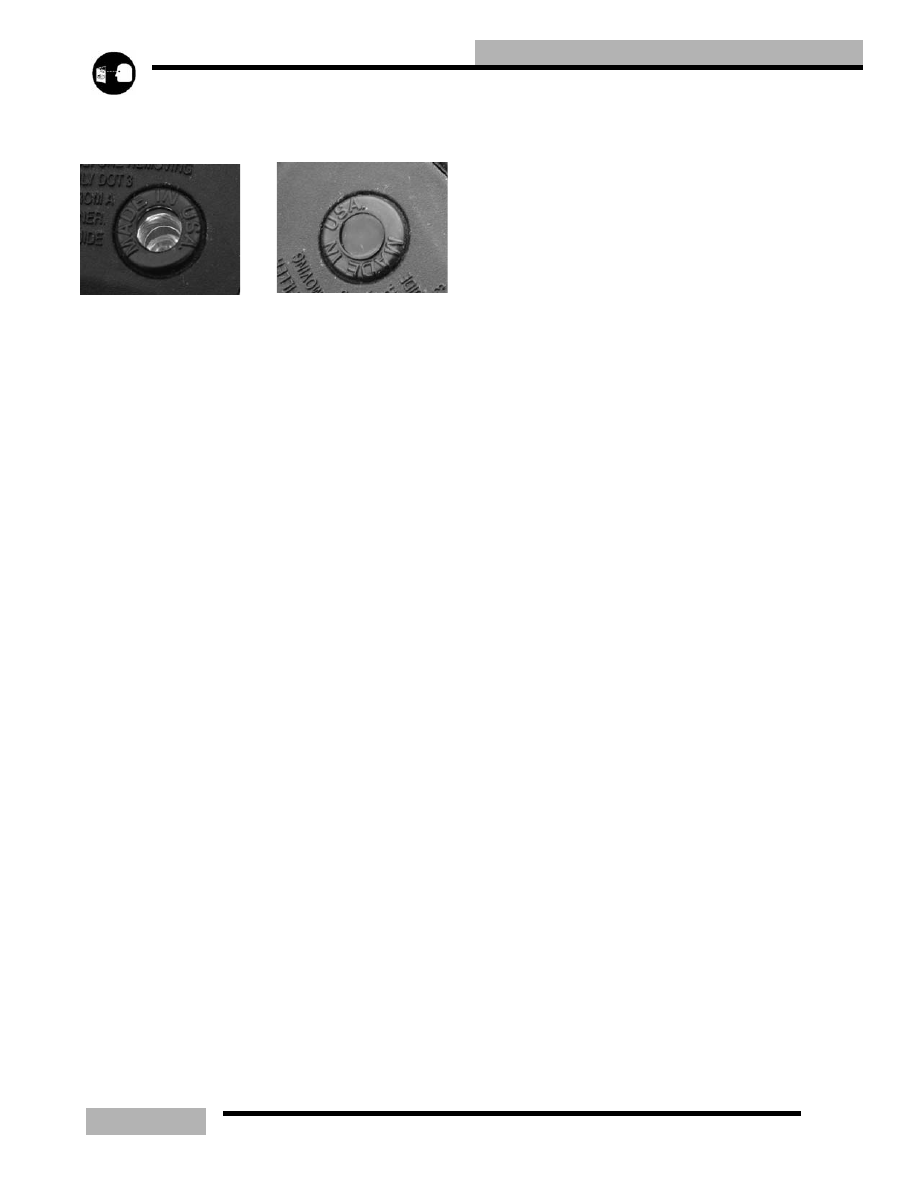

NOTE:  A low brake fluid level can be indicated
through the sight glass on the cover. If the fluid is
low this sight glass will glow a brighter. color.

BRAKE FLUID BLEEDING

see “BRAKE FLUID REPLACEMENT & BLEEDING” on
page 8.3.

FULL

LOW
