Challenger Terra Gator 3244 Chassis. Manual - part 103

Cab

5-4

627333-A

Filter life is affected by environmental conditions and

should be replaced when odor, taste or other symptom

of contamination is detected.

m

WARNING: Inadequate sealing may

cause filter malfunction. Personal injury

could result. Isoamyl acetate, which has a

banana-like odor, may be used to check

seal. Periodically inspect door gasket for

damage.

NOTE: Store replacement filters in original packaging

in a clean dry area away from exposure to any

chemicals. If stored in cab, floor areas should

be kept clean from any foreign material.

IMPORTANT: Once filter is removed from its protective

packaging, immediate installation must follow.

Exposure to environment reduces validity of

filter.

NOTE: The vapor absorption (carbon) section of these

filters cannot be cleaned. Replace filter if odor,

taste or other indication of contamination is

detected.

627333-A

5-5

Cab Seat

CAB SEAT

DELUXE SEAT

Seat is a self-contained air ride seat with its own air

compressor under seat base to provide air for air

spring. Seat is mounted on top of HVAC cabinet.

m

CAUTION: Turn off engine and remove

key from ignition.

Removal

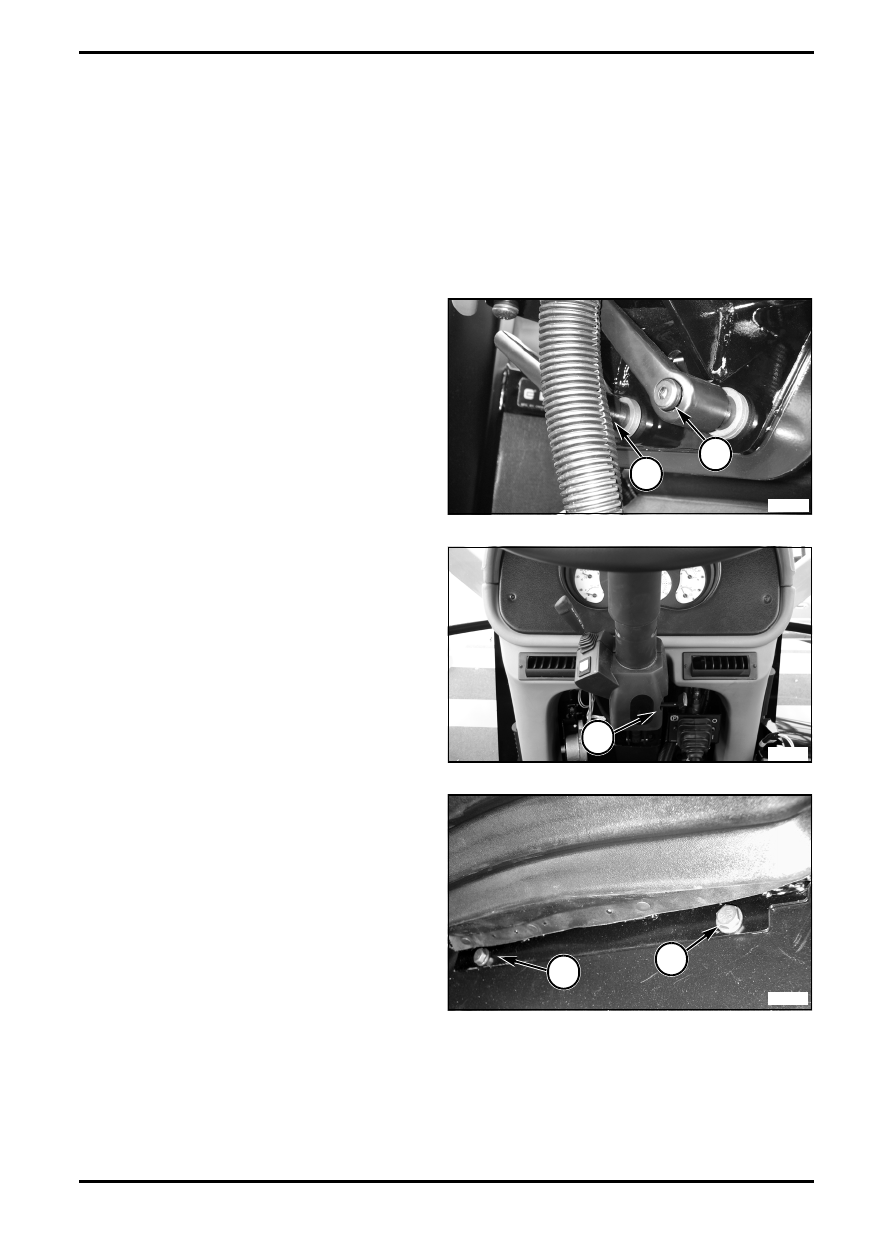

FIG. 1: Remove two bolts (1) holding shift console to

right-hand side of seat. Lower shift console to floor.

FIG. 2: Using tilt control lever (1), raise steering

column up to a vertical position to allow seat removal.

FIG. 3: Loosen and remove two bolts (1) on right-hand

side of base plate.

FIG. 1

1

M411008

1

FIG. 2

1

M424002

FIG. 3

M411003

1

1

Cab Seat

5-6

627333-A

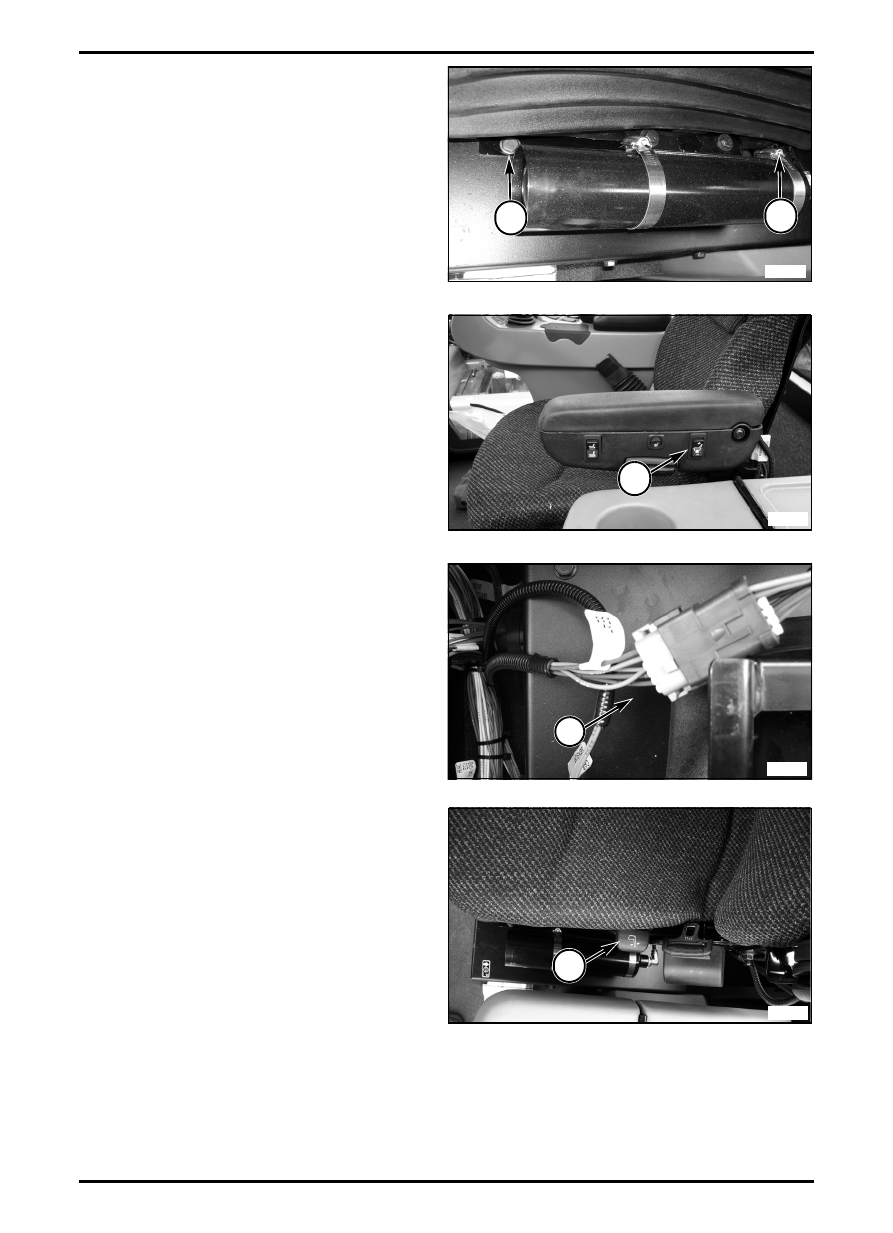

FIG. 4: Loosen and remove two bolts (1) on left-hand

side of base plate.

FIG. 5: With height adjustment button (1)  air to the

seat suspension to the highest position to aid in

removal.

NOTE: If the seat is not in highest position while lift the

seat of the mounting plate. The suspension of

the seat will travel out before come of the

mounting plate.

FIG. 6: Disconnect pigtail electrical connector (1) on

lower right-hand rear corner of seat. Pigtail coming from

harness is labeled SEAT.

FIG. 7: Use backrest recline adjustment lever (1) to

fold back of seat forward.

m

CAUTION: Use caution as seat is

extremely heavy.

Lift seat assembly from HVAC cabinet and remove

from cab. Cushions, suspension, air compressor and

base plate are removed as a unit.

FIG. 4

M411004

1

1

FIG. 5

M424006

1

FIG. 6

M424003

1

FIG. 7

1

M411002

627333-A

5-7

Cab Seat

Installation

Lift seat into cab and place on HVAC cabinet.

m

CAUTION: Use caution as seat is

extremely heavy.

NOTE: Align bolts with holes on HVAC cabinet.

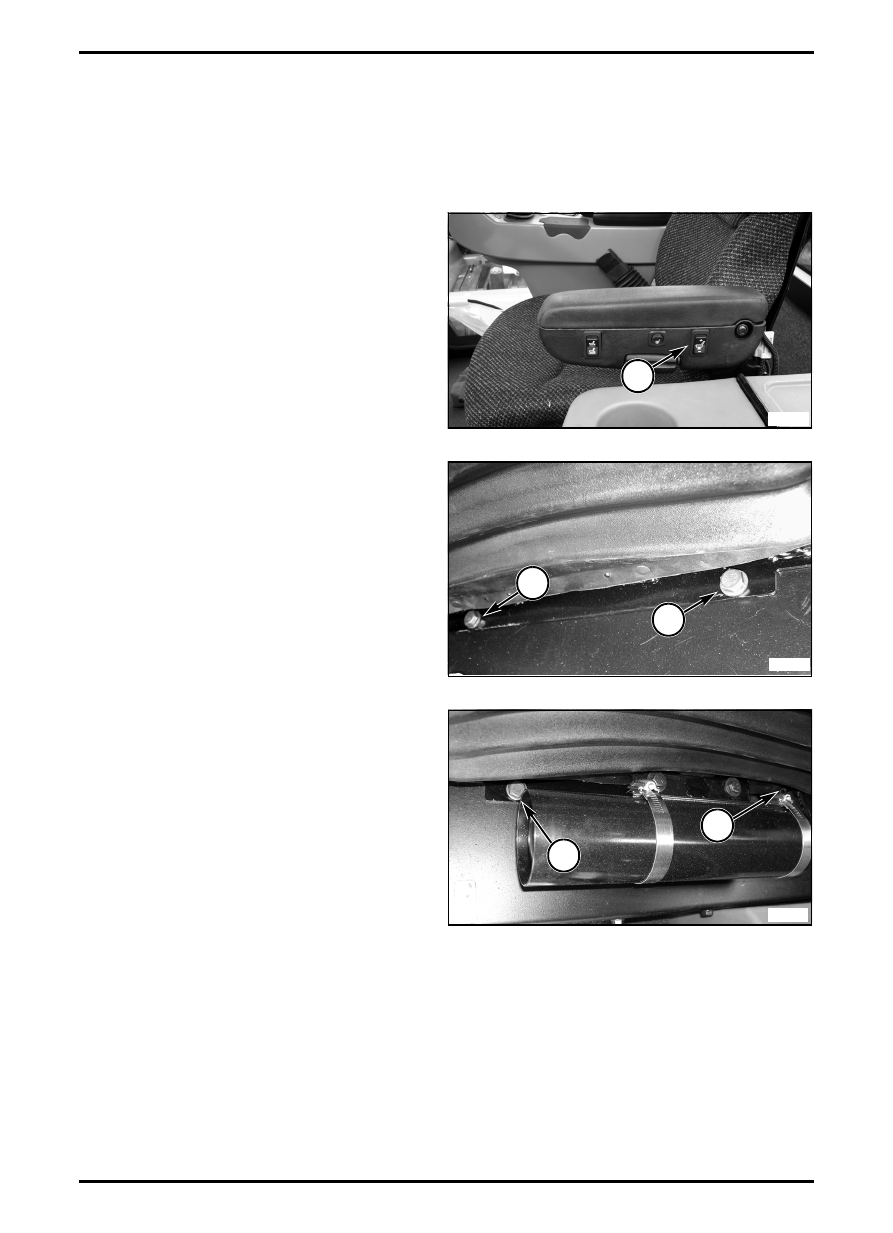

FIG. 8: Turn the ignition key to the Accessory position

or ON position. With height adjustment button (1) lift

seat up to its highest position to aid in installation.

FIG. 9: Install two bolts (1) on right-hand side and

tighten.

FIG. 10: Install two bolts (1) on left-hand side and

tighten.

FIG. 8

M424006

1

FIG. 9

M411003

1

1

FIG. 10

M411004

1

1
