Technical Data 33 Rear wheel drive

R 1150 RT

Rear wheel drive

Type

Bevel gears

Oil grades

Brand name hypoid-gear lubricant
SAE 90 API GL 5

Capacity

l (Imp. pint/US quart) approximately 0.25 (0.44/0.27) (to the bottom of

the filler neck thread)

Gear tooth pattern

Klingenberg-Palloid helical gearing

Gear ratio

2.91 : 1

Number of teeth

32 : 11

Backlash

mm (in) 0.07...0.16 (0.0028...0.0063)

Taper roller bearing preload

mm (in) 0.05...0.1 (0.0020...0.0039)

Drive shaft

Type

Drive shaft with integrated torsional vibration
damper and two universal joints

Swinging arm

Type

BMW Paralever

Swinging arm length

mm (in) 506 (19.9216) (swinging arm pivot to wheel cen-

tre)

Rear suspension

Type

Central spring strut with single-tube gas-filled
damper (shock absorber), adjustable rebound
damping and hydraulically adjustable spring
preload

Total spring travel at wheel

mm (in) 135 (5.3150)

33.4

33.5

33 10

Removing, disassembling, reas-

sembling and installing rear wheel
drive

33 10

Removing rear wheel drive

•

If necessary, drain the oil from the rear wheel
drive.

d

 Warning:

Integral ABS When removing and installing the
brake calipers, force back the pistons carefully to
ensure that the wheel-circuit reservoir does not
overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (

a

00.44).

•

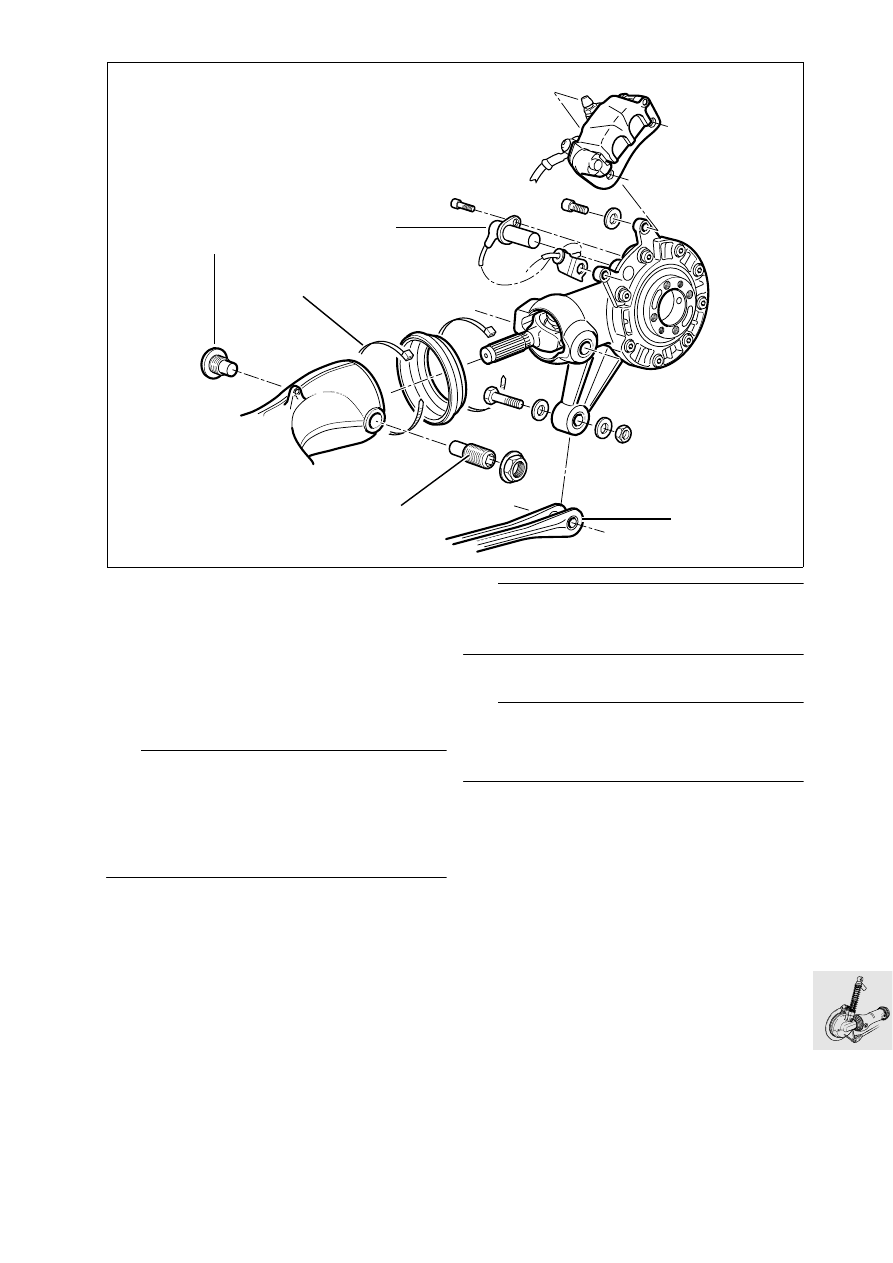

Remove the brake caliper and secure it to the
rear frame with a cable strap.

•

Integral ABS Remove sensor (1).

•

Remove rear wheel.

•

Loosen reaction link (2) at the rear wheel drive.

•

Remove retainer (3).

•

Push the flexible gaiter to the rear.

•

Swinging-arm bearing studs are secured with
Loctite: heat to max. 120 °C (248 °F) to release.

•

Loosen floating bearing stud bolt (4).

•

Loosen fixed bearing stud bolt (5).

•

Remove fastener securing reaction link (2) to rear
wheel drive.

•

Remove floating bearing/fixed bearing stud
bolts.

L



Note:

Do not damage the inner races of the needle roller
bearings; remove separately if necessary.

•

Remove rear wheel drive from universal shaft.

L

 Note:

Do not lay oil-filled rear wheel drive on its side before
installing, or else oil will escape when the motorcy-
cle is ridden (suction effect).

R22330010

1

3

2

4

5

33.6

33 17

Removing and installing taper

roller bearing in rear wheel drive

•

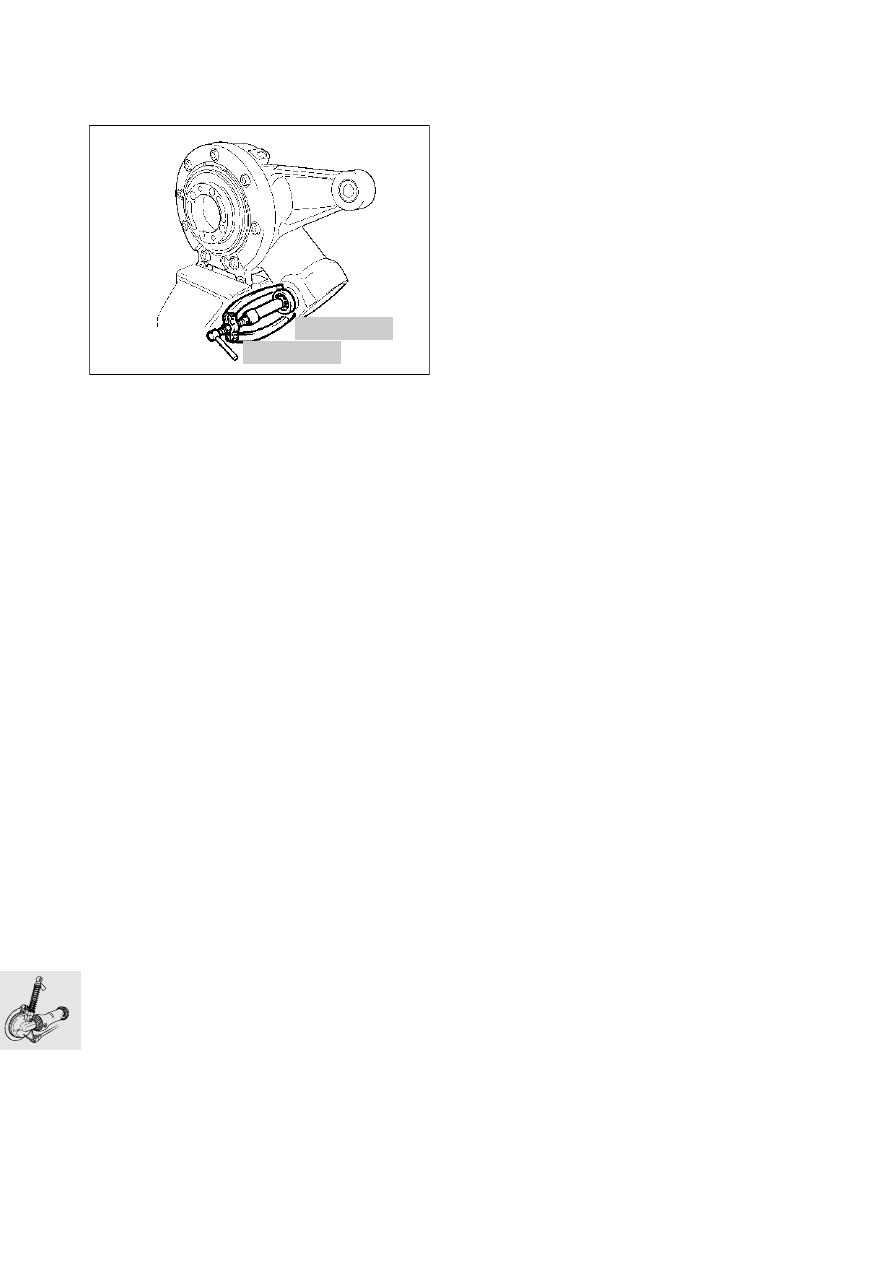

Remove needle roller bearing with counter-sup-
port 22/1, BMW No. 00 8 572, and internal puller
21/4, BMW No. 00 8 573, with ring support.

•

Heat neck of housing to 120 °C (248 °F).

•

Press in needle roller bearing with inner race with
driver, BMW No. 36 3 700.

RT330090

00 8 573

00 8 572
