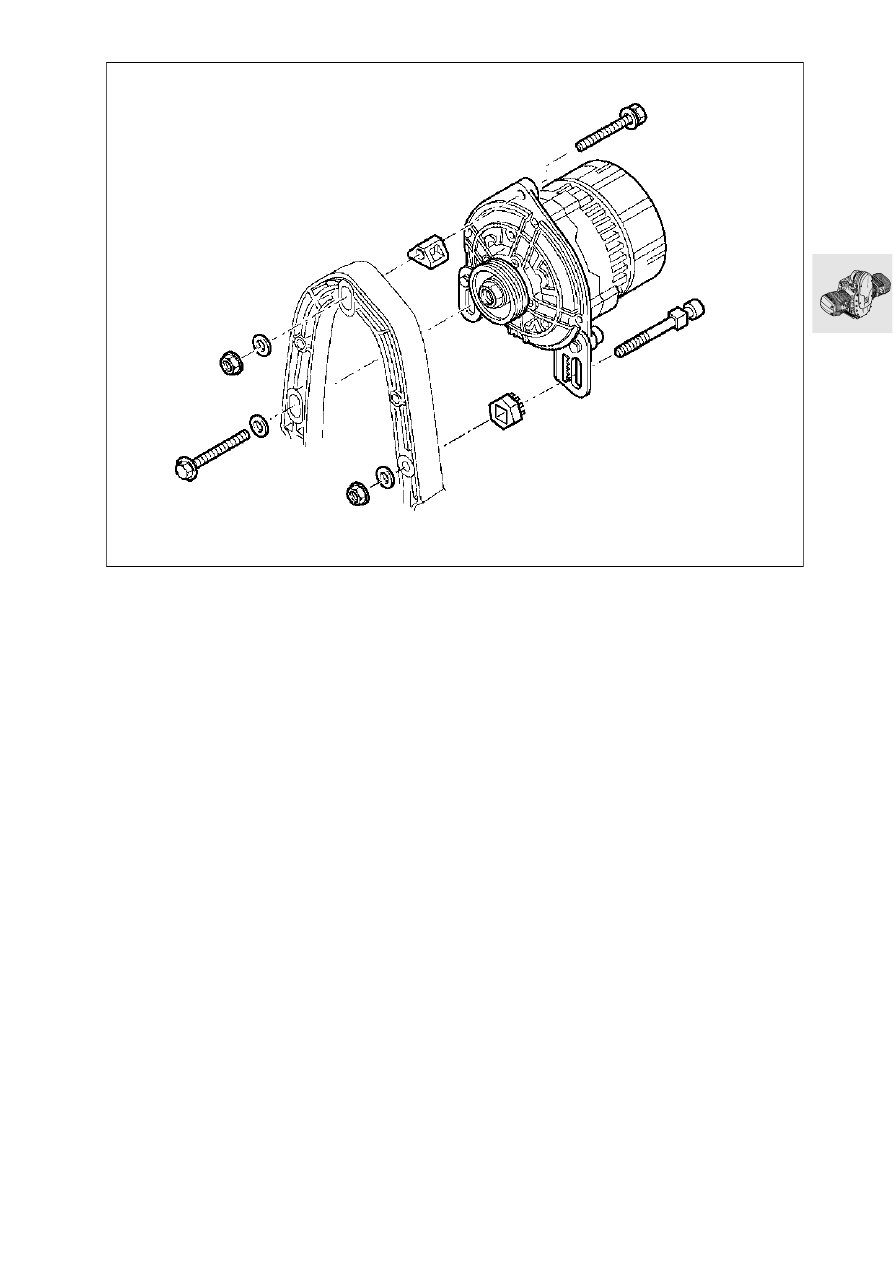

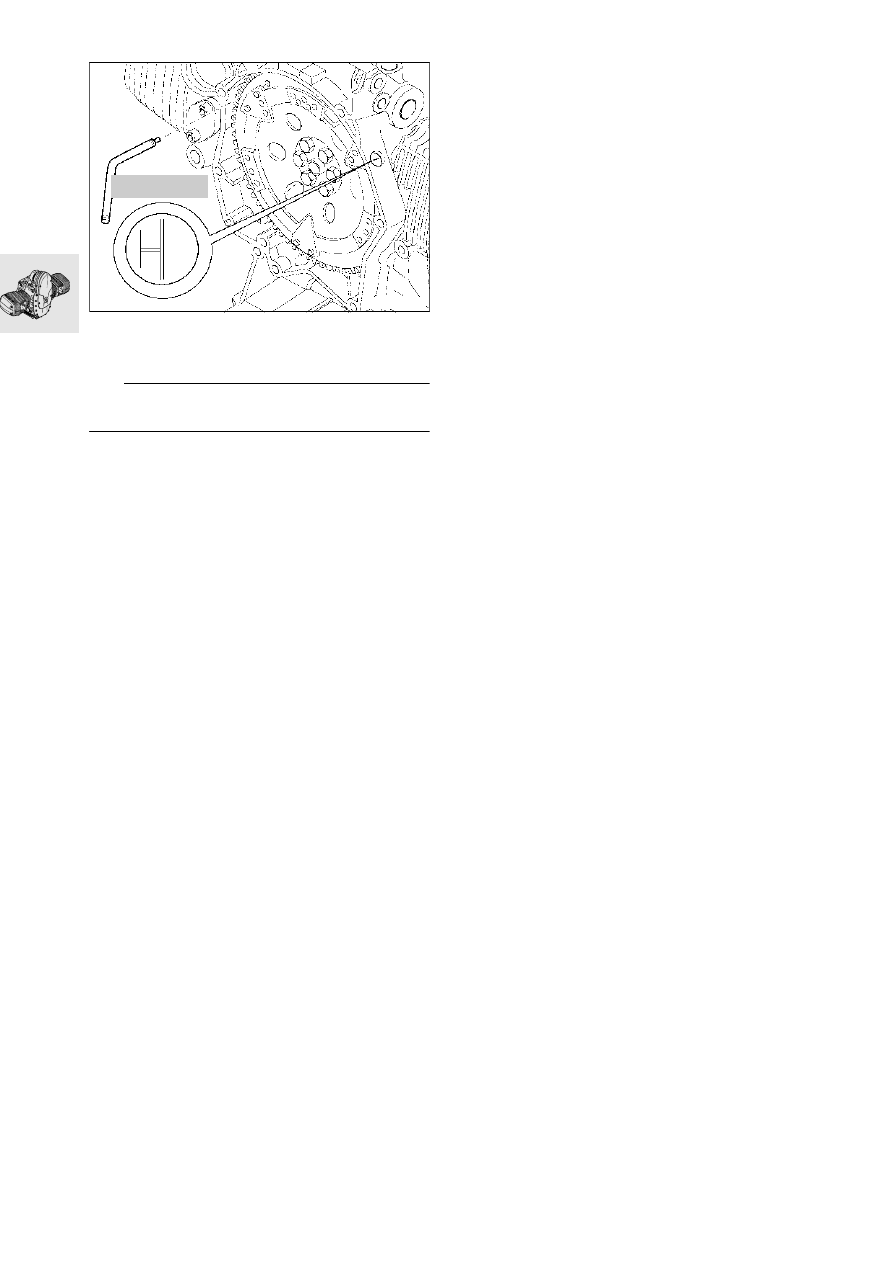

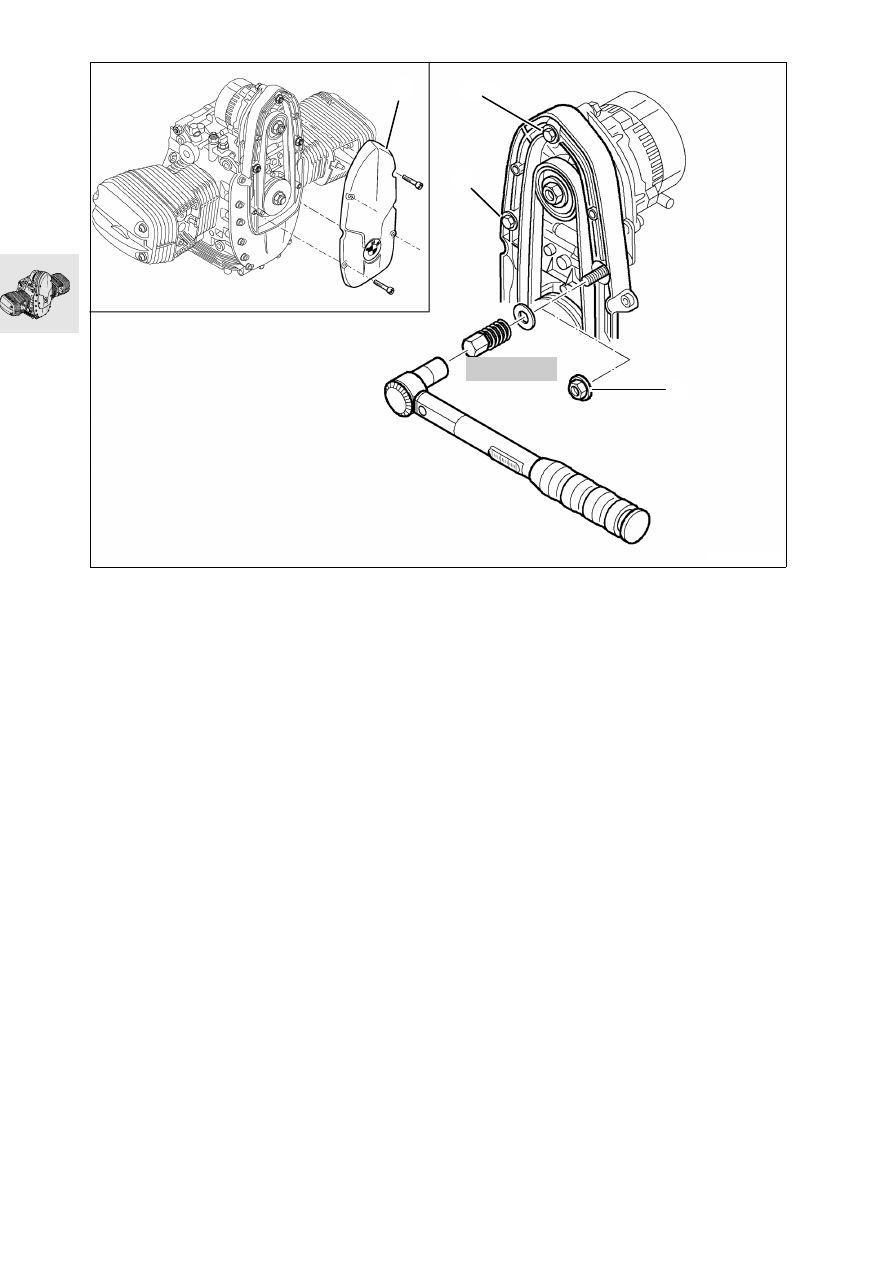

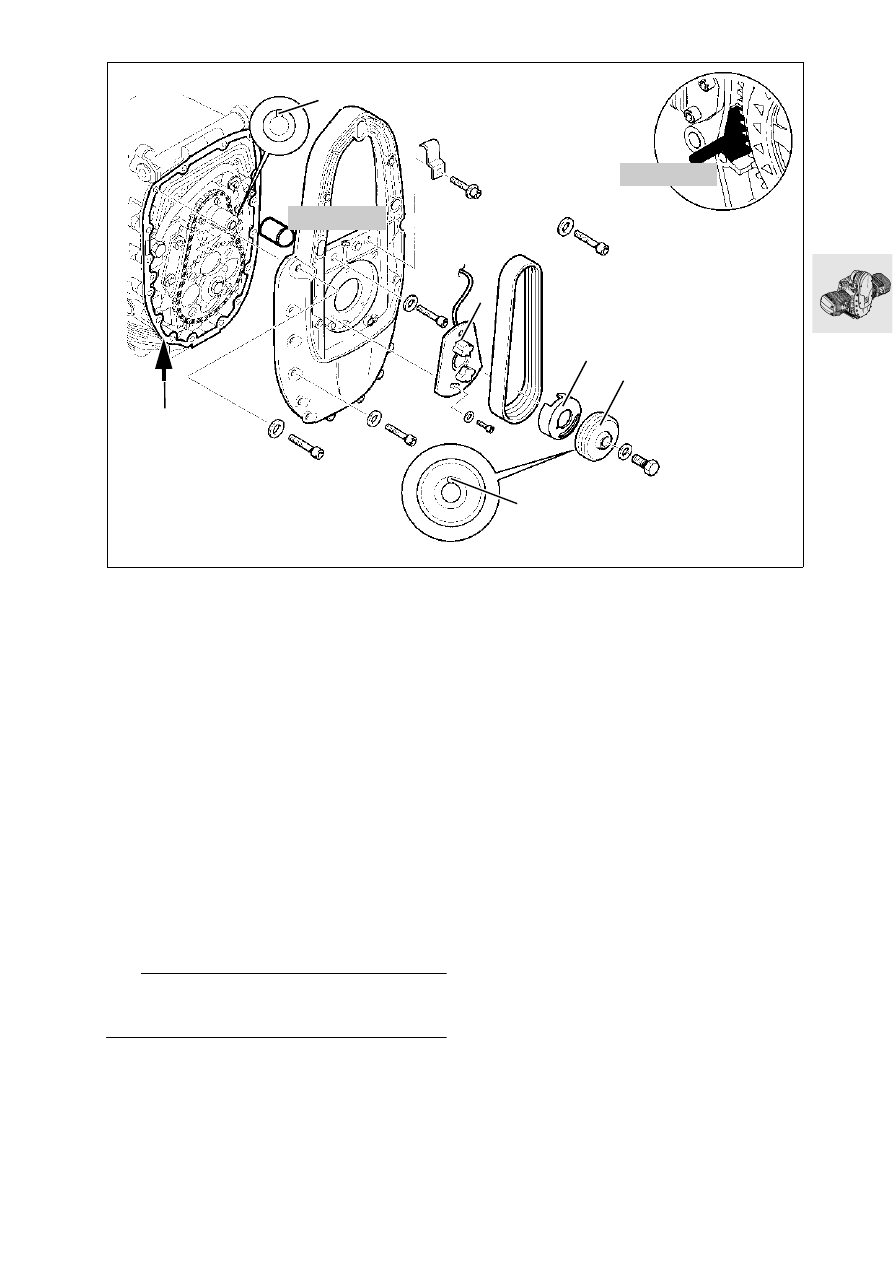

11.63 11 11 045 Installing alternator mount cover • Place assembly sleeve, BMW No. 11 5 680, on • Clean and degrease sealing face (arrow) and ap- • Install alternator mount cover. X Tightening torque: M 8 screw .................................................... 20 Nm M 6 screw ..................................................... 9 Nm 12 11 Installing magnetic gate/belt pul- ley • Install Hall-effect trigger plate (1). • Install locking device, BMW No. 11 5 640, to • Secure rotor (2) of Hall-effect gate to the poly-V e Attention: Seat retainer (4) for Hall-effect gate rotor in groove • Install the poly-V belt pulley. X Tightening torque: Pulley screw ................................................. 50 Nm 4 11 5 680 S110090 11 5 640 3 2 1 5 u |
