Heure et température extérieure (X10 - Renault)



Clock and outdoor temperature

CLOCK AND EXTERIOR TEMPERATURE

(1/2)

Set the hour using control

2

 or

3

, then

press switch

4

 OK



 to confirm.

Set the minutes using control

2

 or

3

,

then press switch

4

 “OK” to confirm.

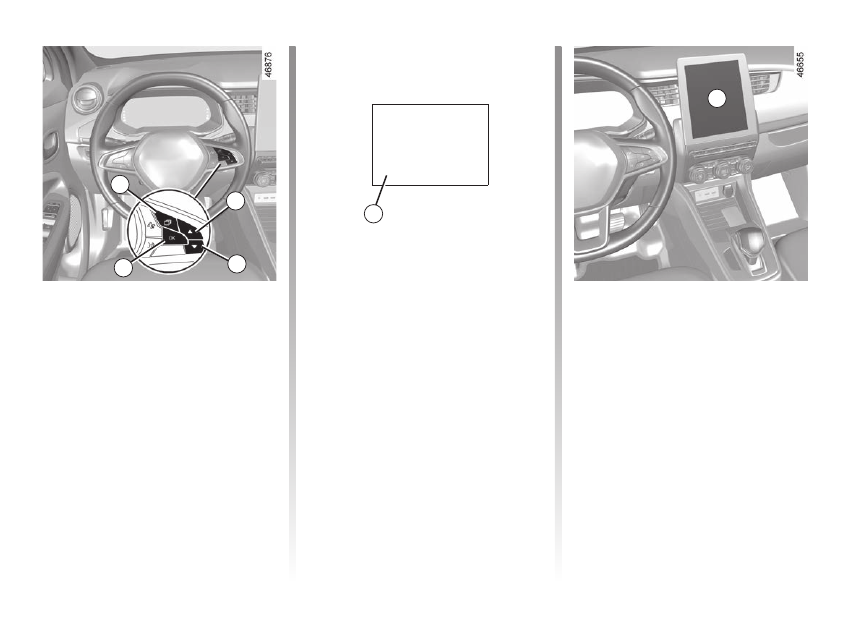

Setting the time

Vehicles not fitted with a multimedia

screen

Press the switch

1

 as many times as re-

quired to reach the “Vehicle” tab.
Repeatedly press control

2

 or

3

 to set

the

5

 clock.

Press and hold switch

4

 “OK” until the

time display flashes.

9°C 12:00

5

2

3

1

4

6

Vehicles fitted with a multimedia

screen

The time and exterior temperature are

displayed on the multimedia screen

6

.

Please refer to the multimedia instruc-

tions for further information.

1.98

ENG_UD57717_1

Heure et température extérieure (X10 - Renault)



External temperature

indicator

As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

External temperature

indicator

Special note:

When the outside temperature is – 3°C

to + 3°C, the °C characters flash (sig-

nalling a risk of ice on the road).

CLOCK AND EXTERIOR TEMPERATURE

(2/2)

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

warning buzzer ..........................................

(up to the end of the DU)

horn:

flash .....................................................

(current page)

horn:

sounding the horn ................................

(current page)

headlight flashers ......................................

(up to the end of the DU)

horn ...........................................................

(up to the end of the DU)

audible and visual signals..........................

(up to the end of the DU)

indicators ...................................................

(up to the end of the DU)

lights:

hazard warning ....................................

(up to the end of the DU)

lights:

direction indicators ...............................

(up to the end of the DU)

indicators:

direction indicators ...............................

(up to the end of the DU)

horn ...........................................................

(current page)

hazard warning lights signal ......................

(up to the end of the DU)

hazard warning lights signal ......................

(up to the end of the DU)

1.99

ENG_UD75261_2

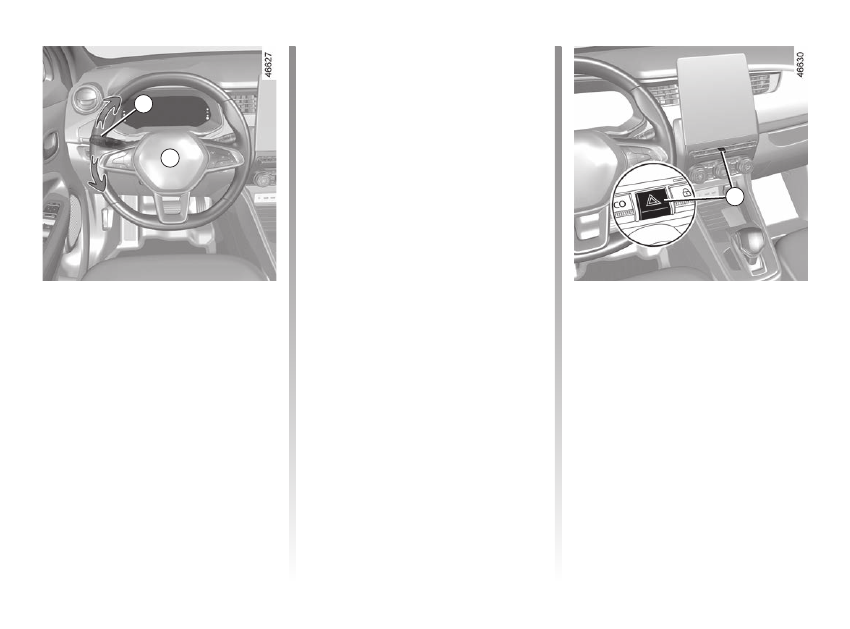

Avertisseurs sonore et lumineux (X10 - Renault)



Audible and visual signals

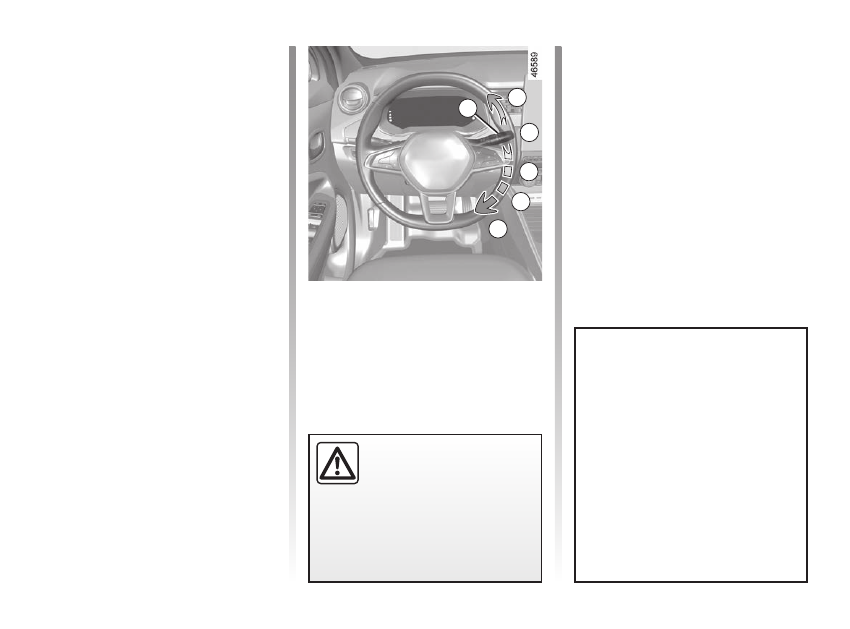

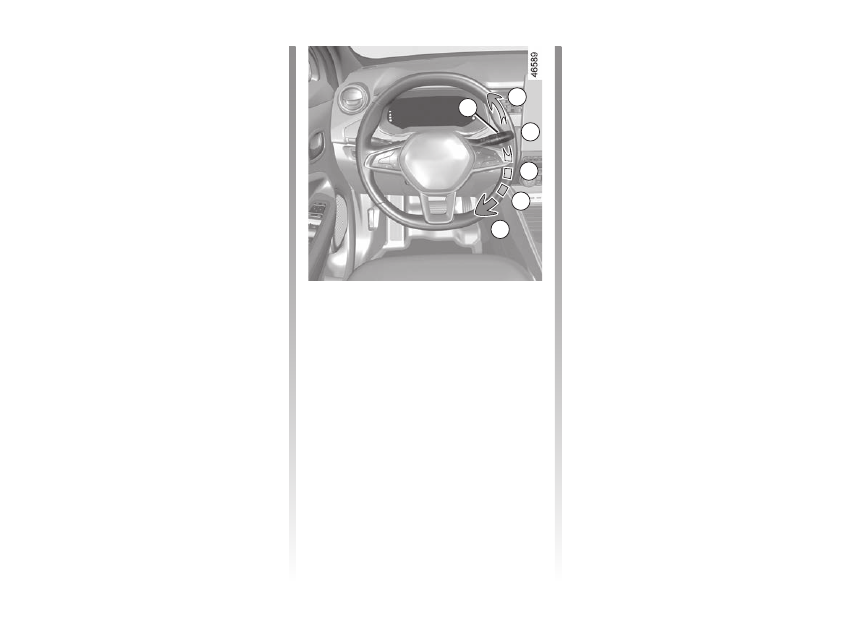

AUDIBLE AND VISUAL SIGNALS

A

1

Horn

Press steering wheel boss

A

.

Headlight flasher

Pull stalk

1

 towards you to flash the

headlights.

Direction indicators

Move stalk

1

 parallel to the steering

wheel and in the direction you are going

to turn it.

One-touch mode

Briefly shift the stalk

1

 upwards or

downwards, not exceeding the point

of resistance, then release it: the stalk

will return to its original position and the

direction indicator light concerned will

flash three times.

é

Hazard warning lights

Press switch

2

. This switch il-

luminates all four direction indicators

and the side-mounted indicator lights

simultaneously. It must only be used in

an emergency to warn drivers of other

vehicles that you have had to stop in

an area where stopping is prohibited or

unexpected or that you are obliged to

drive under special conditions.

2

pedestrian warning system ........................

(current page)

1.100

ENG_UD74507_1

Avertisseur sonore piétons (X10 Ph2 - Renault)



Pedestrian horn

PEDESTRIAN HORN

Electric vehicles are particularly quiet.
This system enables you to warn other

road users of your presence – espe-

cially pedestrians and cyclists.
The system is activated automatically

when the engine is started. The sound

is triggered when the vehicle speed is

between about 1 and 19 mph (1 and

30 km/h).

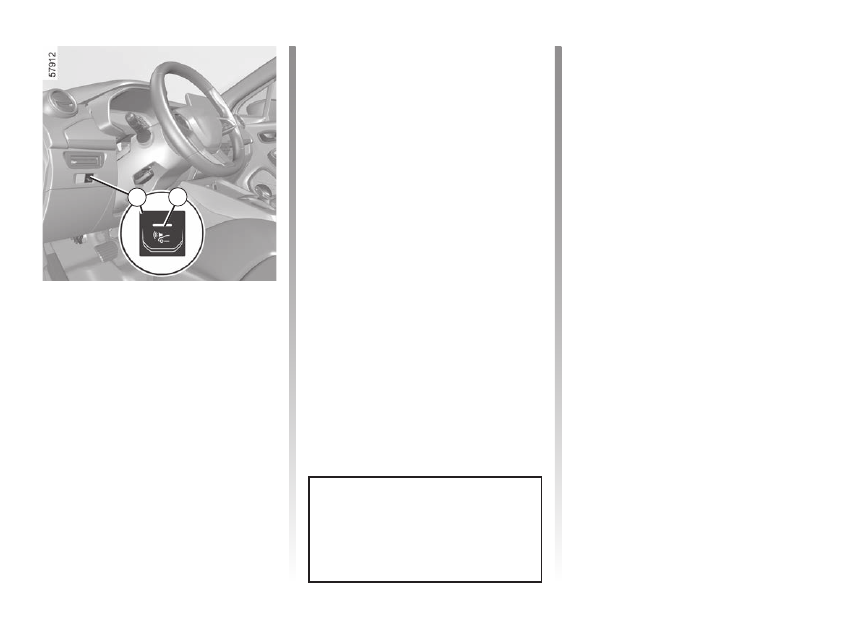

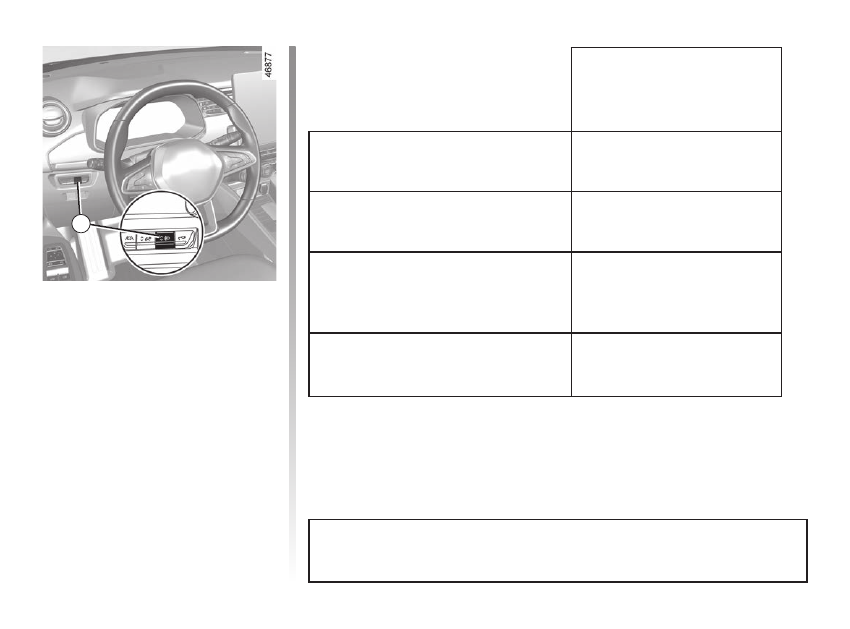

Warning noise selection

To select the sound:
–  with the engine started, engage for-

ward gear (

D

 or

B

) or reverse gear

(

R

);

–  drive at a speed of at least 0.6 mph

(1 km/h) to trigger the sound of the

pedestrian horn;

– immobilise the vehicle (without



switching off the ignition);

–  press and hold the switch

1

. The dif-

ferent sounds offered by the system

will sound in succession;

–  release the switch

1

 to select the

sound of your choice.

1

2

Operating faults

When the system detects an operating

fault, the warning light

2

 on the switch

1



flashes.
Consult an approved dealer.

The warning light

2

 for the switch

1



illuminates only in the event of a

system failure. In all other cases, it

remains off.

lighting:

exterior .................................................

(up to the end of the DU)

lighting:

instrument panel ..................................

(current page)

lights:

dipped beam headlights .......................

(current page)

lights:

side lights .............................................

(current page)

daytime running lights................................

(current page)

hazard warning lights signal ......................

(current page)

signals and lights .......................................

(up to the end of the DU)

instrument panel ........................................

(current page)

1.101

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



Exterior lighting and signals

EXTERIOR LIGHTING AND SIGNALS

(1/6)

Before driving at night, check that the electrical equipment is operating

correctly and adjust the headlight beams (if your vehicle is not carrying

its normal load). As a general precaution, check that the lights are not ob-

scured (by dirt, mud, snow or objects being transported).

1

k

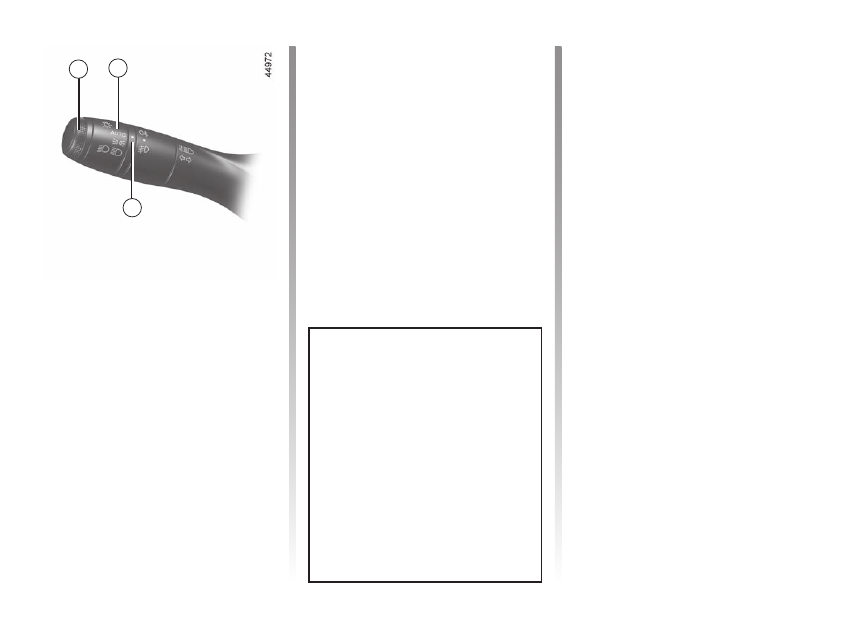

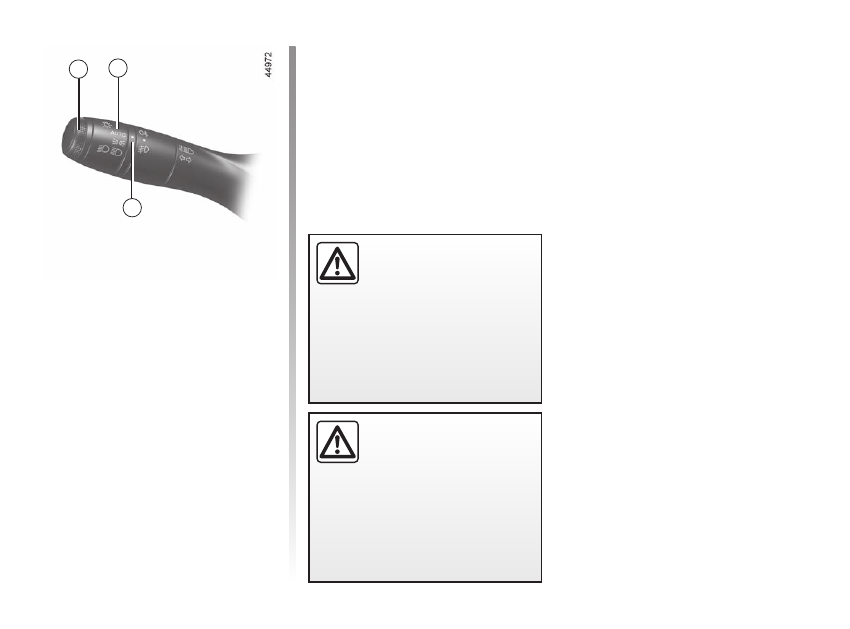

Dipped beam

headlights

Manual operation

Turn the ring

2

 until the symbol is oppo-

site mark

3

. This indicator light on the

instrument panel comes on.

Automatic operation

(depending on vehicle)
Turn ring

2

 until the AUTO symbol is op-

posite mark

3

: with the engine running,

the dipped beam headlights switch on

or off automatically depending on the

brightness of the light outside, without

any action on stalk

1

.

2

If driving on the left in a left-hand

drive vehicle (or vice versa), drivers

must have the lights adjusted by an

authorised dealer for the duration of

the trip.

1

Daytime running lights

Your vehicle is fitted with daytime light-

ing (depending on the version).
The daytime running lights come on

automatically with no action on stalk

1



when the engine is started, and they go

off once the engine is switched off. This

must be in AUTO mode.



Side lights

Turn the ring

2

 until the symbol

is opposite mark

3

. This indicator light

on the instrument panel comes on.

3

1.102

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



The main beam headlights come on au-

tomatically if:

–  exterior light is weak;

–  no other vehicles or lighting are de-

tected;

–  the vehicle speed is above approxi-

mately 25 mph (40 km/h).

If any of the above conditions are not

fulfilled, the system switches to dipped

beam headlights.

Note:

 make sure the windscreen is not

obscured (dirt, mud, snow, condensa-

tion etc.).

To activate automatic main beam

headlights:

Turn ring

2

 until the AUTO symbol is op-

posite mark

3

 and push the stalk

1

.

Warning light

 comes on the in-

strument panel.

EXTERIOR LIGHTING AND SIGNALS

(2/6)

The system may encounter difficul-

ties under certain conditions, inclu-

ding

:

–  extreme weather conditions (rain,

snow, fog, etc.);

–  obstruction in front of the wind-

screen or camera;

–  when a following or oncoming ve-

hicle has weak or hidden lighting;

– incorrect settings for the front

headlights;

–  reflective systems;

– ...

á

Main beam headlights

With the engine running and

the dipped beam headlights lit, push

stalk

1

. This indicator light on the instru-

ment panel comes on.
To return to the dipped headlight posi-

tion, pull the stalk

1

 towards you again.

Automatic main beam

headlights

Depending on the vehicle, this system

switches the main beam headlights on

and off automatically. It uses a camera

located behind the interior rear-view

mirror to detect vehicles that are being

followed and those coming in the oppo-

site direction.

3

2

1

1.103

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



Operating faults

When the message “Check Automatic

Lighting” appears on the instrument

panel, the system is deactivated.

Consult an approved dealer.

EXTERIOR LIGHTING AND SIGNALS

(3/6)

Using the portable naviga-

tion system at night in the

windscreen area below the

camera may disturb the op-

eration of the “automatic main beam

headlights” system (risk of reflection

on the windscreen).

The “automatic main beam

headlights” system should

under no circumstances be

used to replace driver atten-

tion and responsibility with regard

to vehicle lighting and adapting to

light, visibility and traffic conditions.

Automatic main beam

headlights (continued)

To deactivate automatic main beam

headlights:

–  turn ring

2

 to a position other than

AUTO;

or
–  pull the stalk

1

.

Warning light

 goes out on the in-

strument panel.

3

2

1

warning buzzer ..........................................

(current page)

see-me-home lighting ................................

(current page)

lights:

main beam headlights ..........................

(current page)

1.104

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



EXTERIOR LIGHTING AND SIGNALS

(4/6)

1

2

Lights-on reminder buzzer

If the lights are on after the engine is

switched off, a warning beep sounds

when the driver’s door is opened to

warn you that the lights are still on.

Operating faults

If the “Check lighting” message ap-

pears with the

©

 warning light and

the

k

 warning light flashes on the

instrument panel, this indicates a light-

ing fault.
Consult an authorised dealer.

Switching off the lights

The lights will go out automatically

when the engine is switched off, the

driver's door is opened or the vehicle

is locked. In this case, the next time

the engine is started the lights will be

switched back on according to the posi-

tion of the ring

2

.

Note:

 if the fog lights are lit, the lights

are not switched off automatically.

Welcome and goodbye

function

(depending on the vehicle)
Once the function is activated, the day-

time running lights and the rear side

lights will light up automatically upon

detection of the card or when the vehi-

cle is unlocked.
They switch off automatically:
–  approximately one minute after light-

ing up;

–  when starting the engine based on

the position of the lighting stalk;

or
–  upon locking the vehicle.

Activating/deactivating the

function

With the vehicle stationary, engine run-

ning, from the multimedia screen select

the “Settings” menu, “Vehicle” tab, the

“Car configuration” menu, “Welcome”

then “External welcome”. Choose “ON”

or “OFF” to activate or deactivate the

function.

1.105

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



“See-me-home lighting”

function

This function enables you to briefly

switch on the side lights and dipped

beam headlights (e.g. to provide light

when opening a gate).

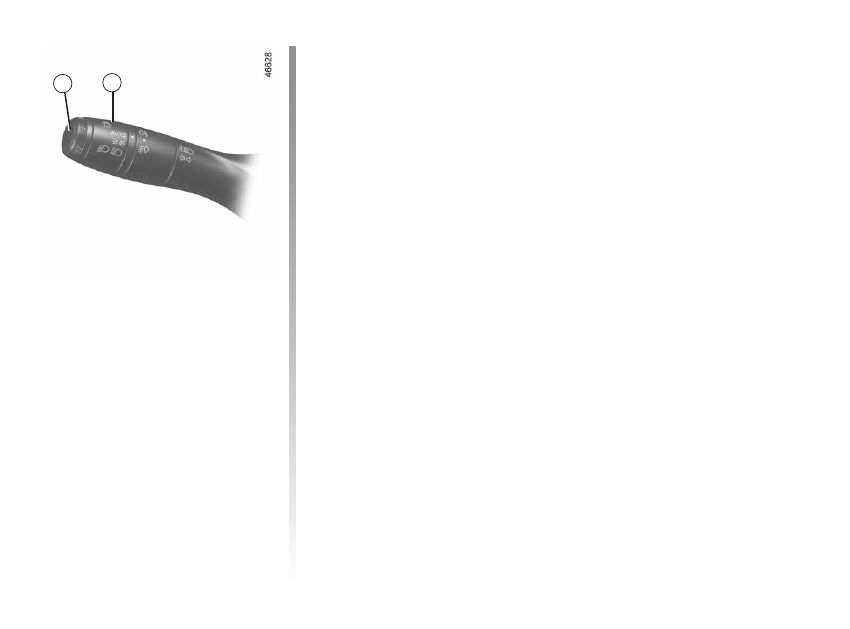

With the engine lights switched off,



the

2

 ring in AUTO, pull the lever

1

 to-

wards you: the side lights and dipped

beam headlights will switch on for ap-

proximately 30 seconds along with the

š

 and

k

 on the instrument

panel.
To increase this duration, you may pull

the stalk up to four times (total time re-

stricted to approximately two minutes).
On the instrument panel, the message

“lighting on _ _ _” followed by the re-

maining time will appear as confirma-

tion. You can then lock your vehicle.
To switch off the lights before they go

out automatically, turn ring

2

 to any po-

sition, then return it to position AUTO.

EXTERIOR LIGHTING AND SIGNALS

(5/6)

1

2

lights:

fog lights ..............................................

(current page)

1.106

ENG_UD69247_3

Éclairages et signalisations extérieurs (X10 - Renault)



EXTERIOR LIGHTING AND SIGNALS

(6/6)

When driving in fog or snow, or

when transporting objects which are

higher than the roof, the headlights

do not come on automatically.
The driver remains in full control of

switching on the fog lights: the indi-

cator lights on the instrument panel

inform you whether the fog lights

are lit (indicator light on) or not (indi-

cator light off).

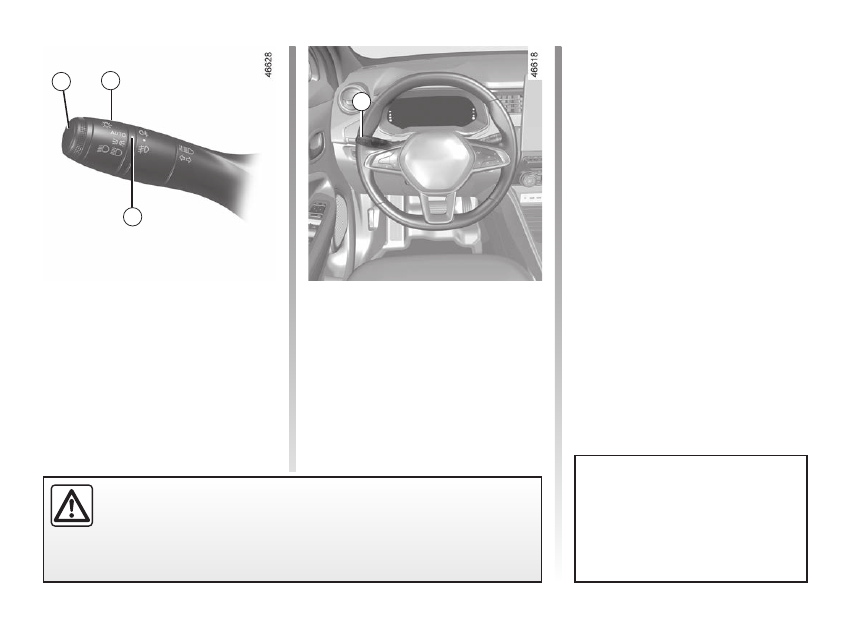

Rear fog light

Turn centre ring

4

 on the stalk

until the symbol faces mark

3

, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting selected, and an in-

dicator light will light up on the instru-

ment panel.
To avoid inconveniencing other road

users, remember to switch off the rear

fog light when it is no longer needed.

Switching off the lights

Turn the centre ring

4

 again until mark

3



is opposite the symbol for the fog lights

that you wish to switch off. The corre-

sponding indicator light on the instru-

ment panel goes out.
The front and rear fog lights switch off

when the exterior lights are switched

off.

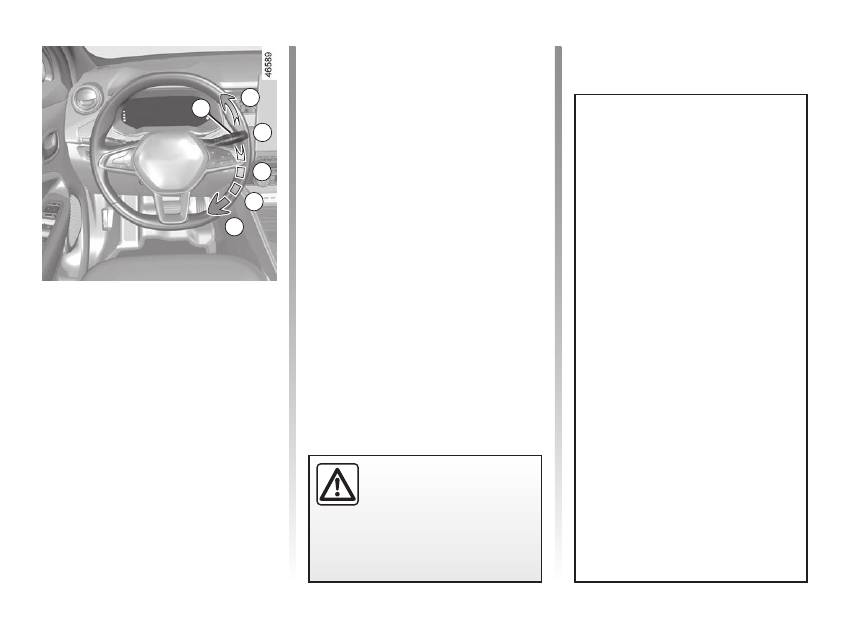

Cornering lights

(depending on vehicle)
Driving in forward gear, whenever the

dipped beam headlights are on and

under certain conditions (at speed, the

steering wheel at an angle, the indica-

tor lights on, etc.), when taking a corner

one of the front fog lights will switch on

to light the inside of the bend.
In reverse, the two front fog lights

switch on automatically.

4

1

2 3

g

Front fog lights

Turn centre ring

4

 on the

stalk

1

 until the symbol faces mark

3

,

then release it.
Operation of the fog lights depends on

the exterior lighting position selected,

and an indicator light will light up on the

instrument panel.

rear view mirrors ........................................

(up to the end of the DU)

1.107

ENG_UD57718_1

Rétroviseurs (X10 - Renault)



Rear view mirrors

REAR VIEW MIRRORS

Interior rear view mirror

Its position can be adjusted.

Rear view mirror with lever 2

When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, depress the little lever located

behind rear view mirror

2

.

Rear view mirror without lever 2

The rear view mirror automatically dark-

ens when you are being followed by a

vehicle using main beam headlights or

in very bright lighting.

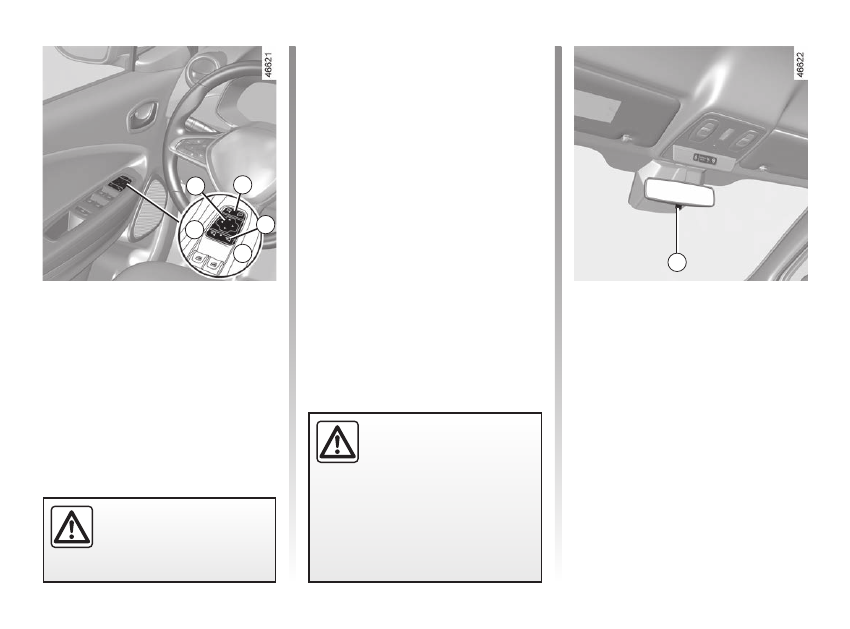

Door mirrors with electrical

adjustment:

Select the door mirror using switch

2

,

then use button

1

 to adjust it to the de-

sired position.

2

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

Heated door mirrors

When the engine is started, mirror de-

icing is activated with the rear screen

de-icing/demisting.

Folding door mirrors

The door mirrors will fold-out automati-

cally when the vehicle is unlocked. The

door mirrors fold in when the vehicle is

locked.
In any case, you can force fold in or fold

out:

–  press switch

3

 in position

B

 to auto-

matically fold in the door mirrors;

–  press switch

3

 in position

A

 to auto-

matically fold out the door mirrors.

A

B

1

2

3

see-me-home lighting ................................

(up to the end of the DU)

lights:

adjusting ..............................................

(up to the end of the DU)

lights

adjustment ...........................................

(up to the end of the DU)

headlight beam adjustment .......................

(up to the end of the DU)

electric beam height adjustment ................

(up to the end of the DU)

signals and lights .......................................

(up to the end of the DU)

1.108

ENG_UD82788_3

Réglage électrique de la hauteur des faisceaux (X10 - Renault)



Headlight beam adjustment

HEADLIGHT BEAM ADJUSTMENT

If driving on the left in a left-hand drive vehicle (or vice versa), drivers must have

the lights adjusted by an authorised dealer for the duration of the trip.

Switch

A

 is used to adjust the height of

the headlight beams according to the

load.
With the dipped beam headlights lit,

press or lift switch

A

 as many times

as is necessary to select the required

position on the instrument panel. The

position selected is displayed on the

instrument panel for approximately

30 seconds.

Note:

 lights on, at each engine start-

up the selected position is displayed on

the instrument panel for approximately

30 seconds.

Examples of positions for

adjusting

control



A



according to the load

Driver alone or with front passenger

0

All seats occupied

1

Driver with passengers and luggage

(or load) reaching the maximum

permissible all-up weight

2

Driver without passengers and luggage

(or load) reaching the maximum

permissible all-up weight

3

* depending on the vehicle

The table below gives some examples. In all cases, adjust control

A

 accord-

ing to the vehicle load so that the road can be seen and other drivers are not

dazzled.

A

wipers ........................................................

(up to the end of the DU)

windscreen washer/wiper ..........................

(up to the end of the DU)

windscreen washer ....................................

(up to the end of the DU)

1.109

ENG_UD78821_3

Essuie-vitre / lave-vitre avant (X10 - Renault)





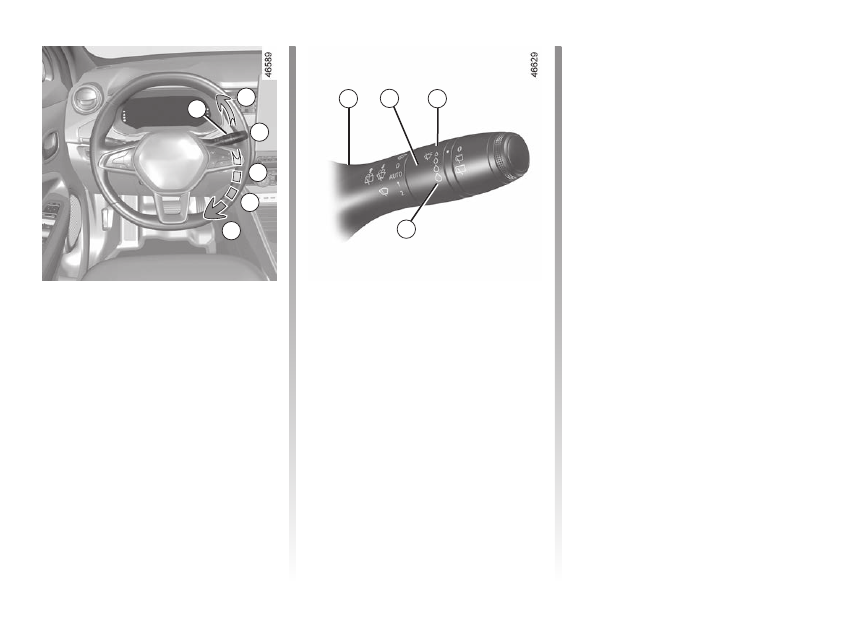

C  automatic wiper function

When this position is selected, the

system detects water on the wind-

screen and triggers the wipers at a

suitable wiping speed. It is possible to

change the triggering threshold and the

time sweeps by turning ring

2

:

–

F

: minimum sensitivity

–

G

: maximum sensitivity

The higher the sensitivity, the quicker

the wipers will react and the faster the

wipe.

Washers, wipers

WINDSCREEN WASH, WIPE

(1/4)

1

1

A

B

C

D

E

Vehicle fitted with front

windscreen wiper rain sensor

The rain sensor is located on the winds-

creen, in front of the interior rear-view

mirror.



A  single sweep

A short push will trigger one sweep of

the wipers.



B stop

2

F

G

When activating automatic wiping or

when increasing sensitivity, one sweep

of the blades is performed.

Note:

–   the rain sensor is only intended as a

driving aid. In the event of reduced

visibility, the driver should manually

activate the wipers. In foggy weather

or during snowfalls, wiping is not au-

tomatically triggered and remains

under the driver’s control;

–   in the event of temperatures below

zero, automatic wiping is not acti-

vated when the vehicle is started. It

is automatically activated as soon as

the vehicle exceeds a certain speed

(approximately 5 mph (8 km/h));

–   do not activate automatic wiping in

dry weather;

–  fully de-ice the windscreen before

activating automatic wiping;

–   when washing the vehicle under a

roller type car wash, return the ring

1



to the

B

 position to deactivate auto-

matic wiping.

1.110

ENG_UD78821_3

Essuie-vitre / lave-vitre avant (X10 - Renault)



WINDSCREEN WASH, WIPE

(2/4)

Operating faults

In the event of a malfunction of the au-

tomatic wiping, the wiper is set to inter-

mittent wiping. Contact an authorised

dealer.
The operation of the rain sensor can be

disturbed in the event of:
–   damaged windscreen wipers; a film

of water or traces left by a blade in

the sensor’s detection zone may in-

crease the response time of the au-

tomatic wiper, or increase the wiping

frequency;

–   a windscreen with any chip or crack

level with the sensor, or a windscreen

covered in dust, dirt, insects, ice, the

use of washing wax and water-repel-

lent chemicals; the windscreen wiper

will be less sensitive or may even not

react at all.

Special note
When driving the vehicle

, the wiping

speed slows down whenever the vehi-

cle stops. For example, fast wiping

speed will slow to normal wiping speed.

As soon as the vehicle moves off,

wiping will return to the speed originally

selected.
If stalk

1

 is operated, it overrides and

cancels the automatic function.

Precautions

–   In the event of ice, check whether the

blades are stuck to the windscreen

before operating the wiping mecha-

nism. If you activate the wipers while

the blades are stuck down with ice,

you may risk damaging both the

blade and the wiper motor.

–   Do not activate the wipers on a dry

screen. This will lead to premature

wear or damage to the blades.



D  slow continuous wiping



E  fast continuous wiping

1

A

B

C

D

E

1.111

ENG_UD78821_3

Essuie-vitre / lave-vitre avant (X10 - Renault)



WINDSCREEN WASH, WIPE

(3/4)

Specific front wiper position

(service position)

This position enables the blades to be

lifted to remove them from the winds-

creen.
It may be useful to:
–  to clean the blades;
–  to release the blades from the wind-

screen in winter;

–  replace the blades

 5.21.

With the ignition on and the engine off,

lower the windscreen wiper stalk to

position

E

 (fast continuous wipe). The

wiper arms stop in a position away from

the bonnet.
To return the blades into position, make

sure they have been placed on the

windscreen, then move the stalk to po-

sition

B

 (stopped) with the ignition on.

Before switching on the ignition,



place the wipers on the windscreen.

Otherwise, there may a risk of damage

to the bonnet or the wipers when they

are switched on.

Before any action involving

the windscreen (washing

the vehicle, de-icing,



cleaning the windscreen,

etc.) return stalk

1

 to position

B



(stop).

Risk of injury and/or damage.

In the event of obstacles on the

windscreen (dirt, snow, ice etc.),

clean the windscreen (including the

central area located behind the inte-

rior rear view mirror) before starting

the wipers (risk of motor overheat-

ing).
If an object is preventing a blade

from moving, it may stop functio-

ning. Remove the obstacle and

reactivate the wiper using the wiper

stalk.

1

A

B

C

D

E

1.112

ENG_UD78821_3

Essuie-vitre / lave-vitre avant (X10 - Renault)



WINDSCREEN WASH, WIPE

(4/4)

Windscreen washer

With the ignition on

, pull stalk

1

 then

release.
A longer pull will trigger, in addition to

the windscreen washer, two sweeps

of the wipers followed, a few seconds

later, by a third.
On vehicles fitted with a multimedia

screen, you can choose to activate or

disable the third sweep of the blades.

 1.94.

Note:

 in temperatures below zero, the

washer liquid may freeze on the wind-

screen, reducing visibility. Heat the

windscreen using the demister control

before cleaning.

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:

–  it must remain clean: clean the

blade and the screen regularly

with soapy water;

–  do not use it when the screen is

dry;

–  free it from the screen when it has

not been used for a long time.

In all cases, replace it as soon as

it begins to lose efficiency: approxi-

mately once a year.

 5.21.

Precaution for using the

wipers

– In freezing or snowy weather

conditions, clear the screen



before starting the wipers (risk of

motor overheating);

–  ensure that no objects are ob-

structing the travel of the blade.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in position

B

 (stop).

Risk of injury.

1

A

B

C

D

E















Content      ..     5      6      7      8     ..
