ADAPTIVE CRUISE CONTROL (9/13)
G
H
J
Limitations of system
The system cannot detect:
Detection during cornering
operation
- vehicles arriving at intersections: slip
When entering a corner or bend, the
road (e.g. H) etc;
radar and/or camera may temporarily
Vehicle detection
not be able to detect the vehicle in front
- vehicles driving on the wrong side of
The system detects only vehicles (cars,
(e.g. J).
the road or reversing towards you.
trucks, motorbikes) that are moving in
The system may trigger an accelera-
the same direction as your vehicle.
tion.
A vehicle turning into the same lane
When exiting a bend, the system’s de-
(e.g. G) will be taken into account by
tection of the vehicle in front may be
the system only once it enters the
disrupted or delayed.
camera and radar detection areas.
The system may trigger abrupt or
The system may trigger abrupt or
delayed braking.
delayed braking.
The adaptive cruise control must
only be used on a motorway (or mul-
ti-lane road separated by a barrier).
2.109
ADAPTIVE CRUISE CONTROL (10/13)
K
L
M
Detection of vehicles in adjacent
Vehicles hidden due to variations in
- vehicles transporting long objects
lanes
ground relief
which exceed the line;
The system may detect vehicles driving
The system will not detect vehicles
- the actual length of tall vehicles
on an adjacent lane when:
hidden due to variations in ground relief
(e.g. L) outside the radar detection
or those located outside of the camera
area (construction machine, agricul-
- you drive into a bend (e.g. K);
and radar detection areas when driving
tural equipment towing vehicle, etc.)
- you are driving on a road with narrow
uphill or downhill.
;
lanes;
- vehicles insufficiently centred in the
Vehicles outside the camera and
- the speed of the vehicle on the ad-
lane;
radar detection areas.
jacent lane is slower and if one of
- narrow vehicles which are very close
these vehicles is located too close to
The system will react late or not at all
(e.g. M).
the lane of the other.
if the detected vehicles are outside the
camera and radar detection areas, par-
The system may incorrectly trigger
ticularly in the following cases:
vehicle slowing or braking.
2.110
ADAPTIVE CRUISE CONTROL (11/13)
12
P
13
N
Q
Stationary and slow moving
- vehicles in front12 which change
Non-detection of fixed obstacles
vehicles
lane, revealing a stationary vehi-
and objects of a small size
cle 13 (e.g. P).
When your speed is over approximately
The system cannot detect:
31 mph (50 km/h), the system does
- pedestrians, bikes, scooters, etc. ;
not detect:
- animals;
- stationary vehicles (e.g N);
- fixed obstacles (toll barriers, walls,
- very slow moving vehicles.
etc.) (e.g. Q).
When your speed is less than approxi-
These are not taken into account by the
mately 31 mph (50 km/h), the system
Always be ready to take control
system. They do not trigger any alert or
may not react or may react very late
of your vehicle when you come
reaction by the system.
to:
upon stationary or very slow
- stationary vehicles (e.g N);
moving vehicles (e.g. N).
– very slow moving vehicles;
The adaptive cruise control does
not trigger an emergency stop and
its braking capability is limited.
2.111
ADAPTIVE CRUISE CONTROL (12/13)
This function is an additional driving aid. It can under no circumstances replace the driver’s responsibility to respect
speed limits and safe distances and to be vigilant.
The driver must always be in control of the vehicle.
The driver must always adapt their speed to the surroundings and driving conditions, regardless of system indications.
Except for lines delimiting lanes, traffic indicators (traffic lights, signs, pedestrian crossings etc.) are not recognised by the
system. These do not trigger any alert or reaction by the system.
The system should under no circumstances be taken to be an obstacle detector or an anti-collision system.
The adaptive cruise control must only be used on a motorway (or multi-lane road separated by a barrier).
System servicing/repairs
- In the event of an impact, the radar and/or camera alignment may be changed and its operation may consequently be af-
fected. Deactivate the system and consult an authorised dealer.
- Any work in the proximity of the radar and/or camera (replacements, repairs, windscreen modifications, paintwork etc.) must
be carried out by a qualified professional.
Only an authorised dealer is qualified to service the system.
Deactivating the function
You must disable the function if:
- the vehicle is travelling on a windy road;
- the vehicle is being towed (breakdowns);
- the vehicle is towing a trailer or a caravan;
- the vehicle is being driven in a tunnel or close to a metallic structure;
- the vehicle arrives at a toll point, a roadwork area or on a narrow lane;
- the vehicle is being driven up or down a very steep slope;
- the visibility is poor (glaring sun, fog etc.);
- the vehicle is being driven on a slippery road surface (rain, snow, gravel, etc.);
- the weather conditions are poor (rain, snow, side winds, etc.);
- the radar area has been damaged (impacts etc.) ;
- the camera area has been damaged (e.g. on the inside or outside of the windscreen);
- the windscreen is cracked or distorted.
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
2.112
ADAPTIVE CRUISE CONTROL (13/13)
In the event of system disturbance
Some conditions can disturb or damage the operation of the system, such as:
- the windscreen or radar area is obscured (by dirt, ice, snow, condensation, number plate etc.);
- a complex environment (tunnel etc.);
- poor weather conditions (snow, heavy rain, hail, black ice, etc.);
- poor visibility (night, fog etc.);
- poor contrast between the vehicle preceding it and the surrounding area (e.g. white vehicle in a snowy area etc.) ;
- being dazzled (glaring sun, lights of vehicles travelling in the opposite direction etc.);
- narrow, winding or undulating road (tight bends etc.) ;
- a slower vehicle with a significant difference in speed;
- use of mats not adapted to the vehicle. On the driver’s side, only use mats suitable for the vehicle, attached with the pre-
fitted components, and check the fitting regularly. Do not lay one mat on top of another. There is a risk of wedging the
pedals.
In these cases, the system may wrongly intervene.
Risk of unwanted braking or acceleration.
Many unforeseen situations may affect the system operation. Certain objects or vehicles that can appear in the camera or
radar detection zone may be interpreted by the system incorrectly, possibly leading to inappropriate acceleration or braking.
You should always be attentive to sudden events that might occur while you are driving. Always keep your vehicle
under control by keeping your feet near the pedals, so that you are ready to act in any event.
2.113
PARKING DISTANCE CONTROL (1/7)
Depending on the vehicle, the system
Location of the ultrasonic
detects obstacles to the front, the rear
sensors 1
and the sides of the vehicle.
Ensure that the ultrasonic sensors indi-
The parking distance control system
cated by the arrows 1 are not obscured
1
is only activated when the vehicle is
(by dirt, mud, snow, a badly fitted/at-
driven at a speed below approximately
tached number plate), impacted, mod-
6 mph (10 km/h).
ified (including paintwork) or obstructed
The function does not take into account
by any accessory fitted to the rear and/
towing or carrying systems that are not
or, depending on the vehicle, to the
recognised by the system.
front or sides of your vehicle.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately
20 to
Operating principle
30 centimetres from the obstacle.
Ultrasonic sensors, indicated
by
arrows 1, are fitted in the bumpers to
measure the distance between the ve-
hicle and an obstacle.
This function is an additional driving aid.
Under no circumstances should it replace the driver’s care or responsibil-
ity whilst reversing.
The driver should always be ready for sudden incidents while driving: always
ensure that there are no small, narrow moving obstacles (such as a child, animal,
pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.
2.114
PARKING DISTANCE CONTROL (2/7)
Note: for vehicles fitted with the “360°
2
camera” function ➥ 2.71, analysis of the
C
vehicle surroundings (areas A and B)
is not displayed in “Bird’s eye view” or
“Side view” mode.
Operation
Most objects located less near the
front, rear and sides of the vehicle are
detected.
Depending on the distance of the ob-
stacle, the frequency of the beep will
be higher while approaching it, and
A
B
will become a continuous beep around
20 cm away for obstacles to the sides,
Note: the display 2 shows the vehicle
and around 30 cm for obstacles to the
surroundings and emits beeps.
front or rear. The green, orange (or
It is necessary to travel a few metres
yellow depending on the vehicle) and
before the side detection is activated.
red zones will be shown on the C dis-
play.
If all areas have a grey background, the
An impact to the under-
whole area around the vehicle is being
Note: in the event of a change in tra-
side of the vehicle while
monitored:
jectory during a manoeuvre, the risk of
manoeuvring
(e.g. strik-
collision with an obstacle may be sig-
ing a post, raised kerb or
- A: analysis of the vehicle surround-
nalled late.
other street furniture) may result in
ings in progress;
damage to the vehicle (e.g. defor-
- B: analysis of the vehicle surround-
mation of an axle).
ings carried out.
To avoid any risk of accident, have
your vehicle checked by an ap-
proved dealer.
2.115
PARKING DISTANCE CONTROL (3/7)
If a side obstacle is detected:
4
D
- the beeps become faster and then
sound continuously as the obstacle
gets nearer. Green, orange and red
zones will be displayed on the dis-
play D;
- if there is no risk of collision, no beep
will sound when approaching the ob-
stacle. Green, orange and red zones
will be displayed interspersed on the
display D.
3
Note: in the event of a change in tra-
jectory during a manoeuvre, the risk of
collision with an obstacle may be sig-
nalled late.
Detection of obstacles to the side
Activation/deactivation
Depending on the direction of the
Vehicles fitted with a multimedia
wheels, the system determines the tra-
screen 4
jectory of the vehicle and notifies the
driver of any risk or otherwise of a col-
To activate or deactivate the various
lision with an obstacle 3 to the side of
zones covered by the ultrasonic detec-
the vehicle.
tors from the multimedia screen, refer
to the multimedia instructions.
Select “ON” or “OFF”.
An impact to the underside of the vehicle while manoeuvring (e.g. striking a post, raised kerb or other street furniture)
may result in damage to the vehicle (e.g. deformation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved Dealer.
2.116
PARKING DISTANCE CONTROL (4/7)
Vehicles not fitted with a multimedia
screen
With the vehicle stopped, press the 6
switch to deactivate parking distance
control. The switch warning light illu-
minates. Press again on the 6 switch
to activate the function. The switch 5
warning light goes out.
5
Adjustment
6
Vehicles fitted with a multimedia
screen 4
Depending on the vehicle, with the
engine running, some settings can be
System sound
adjusted from the multimedia screen 4.
Enables the system sound
to
be
Please refer to the multimedia instruc-
chosen.
tions for further information.
Deactivating the system sound
Parking distance control audio
Activate or deactivate the parking dis-
volume
tance control sound.
Adjust the volume of the parking dis-
Note: if you deactivate the sound, you
tance control by pressing + or -.
will no longer be notified with beeps
when approaching an obstacle.
When the vehicle is travelling at a
speed below approximately 6 mph
(10 km/h), some noises (motorcy-
cle, lorry, pneumatic drill etc.) may
trigger the beeping sound of the
parking distance control.
2.117
PARKING DISTANCE CONTROL (5/7)
- select “BIP VOLUME” to adjust the
- when an operating fault is detected.
Park Assist volume using the 8 or 9
Note: if the vehicle is fitted with a
control.
towbar recognised by the system, only
the rear Park Assist function is deacti-
vated.
Deactivating the parking
distance control manually
You must disable the function if:
Operating faults
- if towing, carrying or trailer equip-
When the system detects an operating
ment that is unrecognised by the
fault, a beep sounds for approximately
7
8
system is present in front of the ul-
three seconds each time reverse gear
trasonic sensors;
is selected and the message “Check
- in the event of damage to the ultra-
parking distance control” appears on
sonic sensors.
the instrument panel. Consult an ap-
proved dealer.
10
9
Parking distance control
Vehicles not fitted with a multimedia
automatic deactivation
screen
The system deactivates:
- With the vehicle stopped, press the 7
- when the vehicle speed is above
switch as many times as required to
approximately 6 mph (10 km/h);
reach the “Vehicle” tab;
- depending on the model, when the
An impact to the under-
– press the 8 or 9 control repeatedly
vehicle is stationary for more than
side of the vehicle while
to reach the “Settings” menu. Press
approximately 5 seconds and an ob-
manoeuvring
(e.g. strik-
the switch 10 OK;
stacle is detected (such as when in
ing a post, raised kerb or
– press the 8 or 9 control repeatedly
a traffic jam, etc.);
other street furniture) may result in
to reach the “PARKING ASSIST”
- when the vehicle is in neutral on
damage to the vehicle (e.g. defor-
menu. Press the switch 10 OK;
manual gearboxes, or in position N
mation of an axle).
or P on automatic gearboxes;
To avoid any risk of accident, have
your vehicle checked by an ap-
proved dealer.
2.118
PARKING DISTANCE CONTROL (6/7)
System servicing/repairs
- In the event of an impact, the alignment of the sensors may be altered and their operation may consequently be affected.
Deactivate the function and consult an authorised dealer.
- Any work in the area where the sensors are located (repairs, replacements, etc.) must be carried out by a qualified profes-
sional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disrupt or damage the operation of the system, for example:
- poor weather conditions (rain, snow, hail, black ice, etc.);
- in the event of exposure to strong electromagnetic waves (under high-voltage lines, etc.);
- some types of noise (motorcycle, lorry, pneumatic drill etc.);
- fitting an unsuitable towing ball or hook.
Risk of false alarms or absence of warnings
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
2.119
PARKING DISTANCE CONTROL (7/7)
Limitation of the system operation
- The area around the sensors must be kept clean and free of any modifications in order to ensure the proper operation of the
system.
- Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
- The system may not detect objects that are too close to the vehicle.
- The system may not provide a warning when the other vehicles or objects are travelling at a significantly different speed.
- During a change in trajectory, during a manoeuvre, the system may report obstacles with a delay.
- When the vehicle is towing a trailer, the rear Park Assist system must be deactivated
Deactivating the function
You must disable the function if:
- the area around the sensors has been damaged (rear bumper);
- the vehicle is equipped with a towing device that is not recognised by the system (ball, hook, adapter, etc.).
2.120
REVERSING CAMERA (1/2)
2
1
3
4
C
B
A
Operation
Fixed clearance gauge 3
4 moving guide line:
When the vehicle is reversing, the
The fixed clearance gauge comprises
This is shown in blue on the multime-
camera 1 on the luggage compart-
coloured markers A, B and C indicating
dia screen 2. It indicates the vehicle tra-
ment lid transmits a view of the area
the distance behind the vehicle:
jectory according to the position of the
surrounding the rear of the vehicle to
steering wheel.
- A(red) approximately 30 centimetres
the multimedia display 2 accompanied
from the vehicle;
by two guiding lines 3 and 4 (fixed and
- B(yellow) approximately 70 centime-
Special feature
mobile).
tres from the vehicle;
Make sure that the camera is not ob-
This system uses several guidelines for
- C(green) approximately 150 centi-
scured (by dirt, mud, snow, condensa-
its operation (mobile for trajectory and
metres from the vehicle.
tion etc.).
fixed for distance). When the red zone
This gauge remains fixed and indicates
is reached, use the bumper image to
the vehicle trajectory if the wheels are
stop accurately.
in line with the vehicle.
2.121
REVERSING CAMERA (2/2)
2
The screen shows a reverse mirror
image.
Settings
This function is an additional
The frames are a representation
With the vehicle stationary and the
aid. It cannot, therefore,
projected on a flat surface. This in-
engine running, from the multime-
under any circumstances
formation is to not be taken into ac-
dia screen 2 you can add or remove
replace the vigilance or the
count when superimposed on a
the guide lines and adjust the camera
responsibility of the driver.
vertical object or an object on the
image settings (brightness, contrast
The driver should always be ready
ground.
etc.). Please refer to the multimedia in-
for sudden incidents while driv-
structions for further information.
Objects which appear on the edge
ing: always ensure that there are
of the screen may be deformed.
no small, narrow moving obstacles
In very bright light (snow, vehicle in
(such as a child, animal, pushchair,
sunshine, etc.), the camera vision
bicycle, stone, post, etc.) in the blind
may be adversely affected.
spot when manoeuvring.
If the boot is open or poorly closed,
the message
“WARNING: Boot
Open” appears and the camera dis-
play disappears.
2.122
ASSISTED PARKING (1/5)
1
3
A
2
Using ultrasonic detectors as indicated
Switching on
Special features
by the 3 arrows installed in the vehicle
With the vehicle stationary or driving
Ensure that the ultrasonic sensors indi-
bumpers, this function helps to find ac-
at less than approximately
19 mph
cated by the 3 arrows are not obscured
cessible parking spaces and assists in
(30 km/h):
(by dirt, mud, snow, a badly fitted/at-
the parking manoeuvre.
tached number plate), impacted, modi-
- press switch 2. The indicator light in
Remove your hands from the steering
fied (including paintwork) or obstructed
switch 2 lights up and display A ap-
wheel, you only control:
by any accessory fitted to the front or
pears on the multimedia screen 1;
rear of your vehicle.
- the accelerator pedal;
- set the direction indicators to the
- the brake pedal;
side of the vehicle where you want to
park.
- the gear lever.
At any time, you can regain control by
using the steering wheel.
2.123
ASSISTED PARKING (2/5)
Note: when starting the vehicle, or after
Operation
1
having successfully completed parallel
parking using the system, the default
Parking
manoeuvre proposed by the system is
As long as the vehicle speed is less
assistance in exiting a parallel parking
than 19 mph (30 km/h), the system
space. In other cases, the default ma-
searches for available parking spaces
noeuvre can be set from the multimedia
on the side of the vehicle chosen by the
screen 1. Please refer to the multime-
driver.
dia instructions for further information.
Note: if parking spaces are available
on the other side of the vehicle, set the
direction indicators to the other direc-
tion to enable the system to search for
spaces.
Once a space has been found, it is dis-
played on the multimedia screen, indi-
Choice of manoeuvre
cated by a small letter “P”. Drive slowly,
with the direction indicators activated
The system can perform four types of
on the side where the space is avail-
manoeuvres:
able, until the message “Stop” is dis-
- parallel parking;
played and a beep sounds.
- perpendicular parking;
- angle parking;
- moving out of a parallel parking
space.
From the 1 multimedia screen, select
the manoeuvre to carry out.
The system start up is accompa-
nied by activation of the parking dis-
tance control and, on those vehicles
equipped, the reversing camera or
360° camera to help the driver vis-
ualise the manoeuvre. ➥ 2.114,
➥ 2.121 and ➥ 2.71.
2.124
ASSISTED PARKING (3/5)
The space is then indicated on the mul-
- Release the steering wheel;
timedia screen by a capital letter “P”.
1
- carry out manoeuvres at the front
- Stop the vehicle;
and rear by following the instructions
shown on the multimedia screen 1
- select reverse gear.
and using the parking distance con-
trol system alerts.
The indicator light
lights up
on the instrument panel and a beep
Your speed should not exceed around 4
sounds.
mph (7 km/h).
- Release the steering wheel;
Once the vehicle is in a position to exit
- follow the instructions shown on the
the parking space, the
warning
multifunction screen 1.
2
light disappears from the instrument
Your speed should not exceed around 4
panel and a sound signal and message
mph (7 km/h).
appear on the multimedia screen 1 to
confirm that the manoeuvre is com-
Exiting a parallel parking space
plete.
Once the warning light
on the
instrument panel goes off and a beep
- Briefly press the 2 switch;
sounds, the manoeuvre has been com-
- select “Exit parallel parking space”
pleted.
mode;
- activate the direction indicators on
the side you wish to go out of;
- press and hold switch 2 (approx. two
seconds).
This function is an addi-
The indicator light
lights up
tional driving aid.
on the instrument panel and a beep
Therefore, it can under no
sounds.
When manoeuvring, the
circumstances replace the
steering wheel may turn
driver’s vigilance and responsibility
quickly: do not put your
during manoeuvres (the driver must
hands inside, and make
always be ready to brake).
sure that nothing is caught inside.
2.125
ASSISTED PARKING (4/5)
The warning light on the 2 switch turns
Cancelling the manoeuvre
1
off, the
warning light disappears
The manoeuvre is cancelled in the fol-
from the instrument panel and a sound
lowing cases:
signal confirms that the manoeuvre has
- the vehicle speed has exceeded 4
been suspended. The reason for sus-
mph (7 km/h);
pending the manoeuvre will be dis-
- by pressing switch 2;
played on the multimedia screen 1.
- you have performed more than ten
Make sure:
forwards/backwards movements in
- you have released the steering
one manoeuvre;
wheel;
- the parking distance control sensors
2
and
are dirty or blocked;
- that all doors and the boot are closed;
- the vehicle wheels have skidded;
and
- the manoeuvre has been suspended
- that no obstacles are in the way of
Suspending/Resuming the
for too long.
the direction of movement;
manoeuvre
The 2 switch warning light and the
and
The manoeuvre is suspended in the fol-
- that the engine is started.
warning light disappear from the
lowing circumstances:
If the warning light on the 2 switch
instrument panel and a sound signal
- you take control of the wheel;
flashes, this indicates that the system
confirms that the manoeuvre has been
is once again available to resume the
cancelled. The reason for cancelling
- the vehicle is stationary for too long;
manoeuvre.
the manoeuvre will be displayed on the
- an obstacle in the direction of move-
multimedia screen 1.
To resume the manoeuvre, press and
ment prevents the manoeuvre from
hold the 2 switch. The 2 switch warning
being completed;
- the engine stops;
light appears and
warning light
is displayed on the instrument panel.
- a door or the luggage compartment
is opened.
Follow the instructions shown on the
multimedia screen 1.
2.126
ASSISTED PARKING (5/5)
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care
and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies
with the applicable traffic regulations in your location.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow
moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, towing equipment, etc.) in the blind spot when
manoeuvring.
System servicing/repairs
- In the event of an impact, the alignment of the sensors may be changed and their operation may consequently be affected.
Deactivate the function and consult an authorised dealer.
- Any work in the area where the sensors are located (repairs, replacements, exterior trim modifications, etc.) must be carried
out by a qualified professional.
Only an authorised dealer is qualified to service the system.
In the event of system disturbance
Certain conditions may disrupt or impair operation of the system, such as poor weather conditions (snow, hail, ice, etc.).
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
Risk of erroneous false alarms.
Limitations of the system operation
- The system cannot detect objects located in the sensor blind spots.
- Always visually check that the parking space proposed by the system is still available and contains no obstacles.
- The system should not be used when towing a trailer or when there is a towing or load carrying system on the vehicle or on
surrounding vehicles.
2.127
AUTOMATIC TRANSMISSION (1/4)
5
6
1
3
2
4

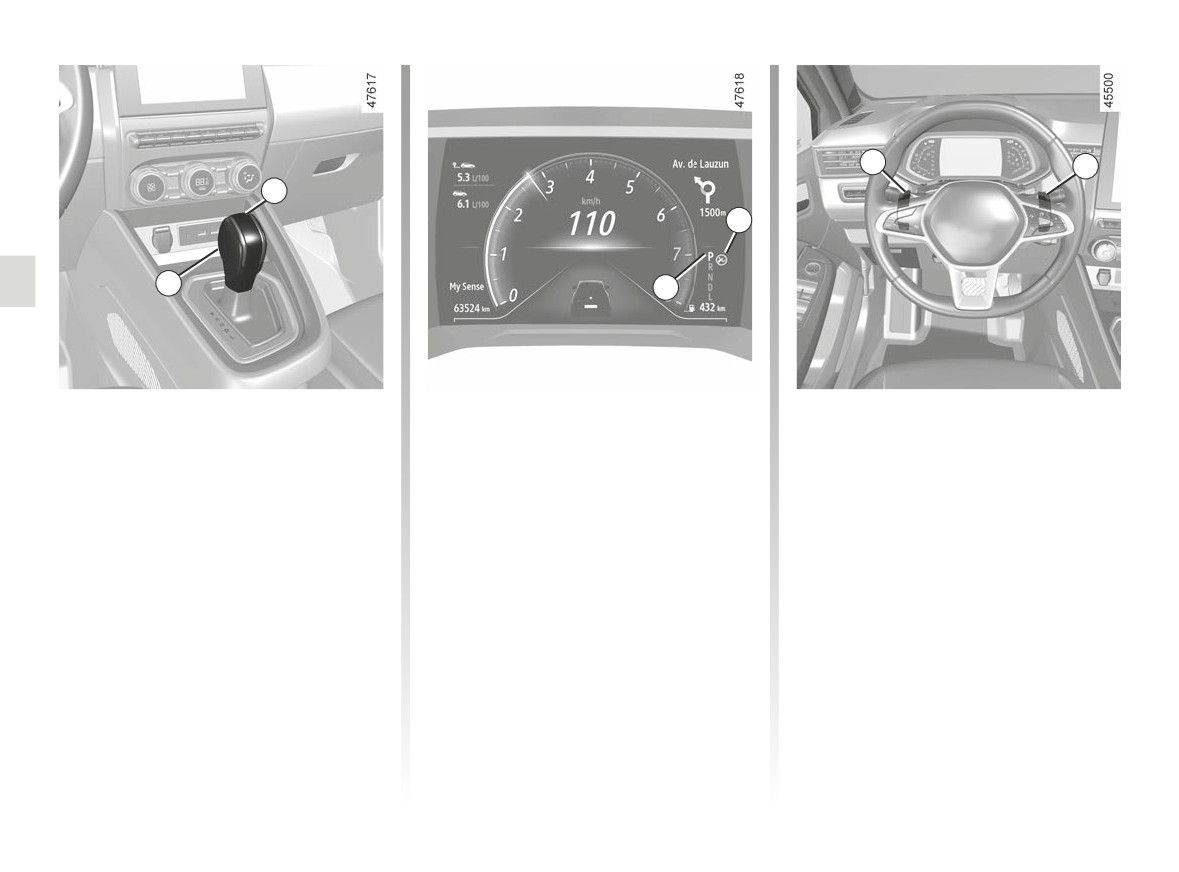

Selector lever 1
Operation
Gear changing paddles 5
P: park
With gear lever 1 in position P, start the
and 6
R: reverse
engine.
Depending on the vehicle, you can use
N: Neutral
paddles 5 and 6 to change gear when
To move out of position P, you must de-
D: automatic mode
the lever is in position D.
press the brake pedal before pressing
L: “Low” mode (depending on the ve-
5: Change to a lower gear.
the unlocking button 2.
hicle)
6: Change to a higher gear.
With your foot on the brake pedal (warn-

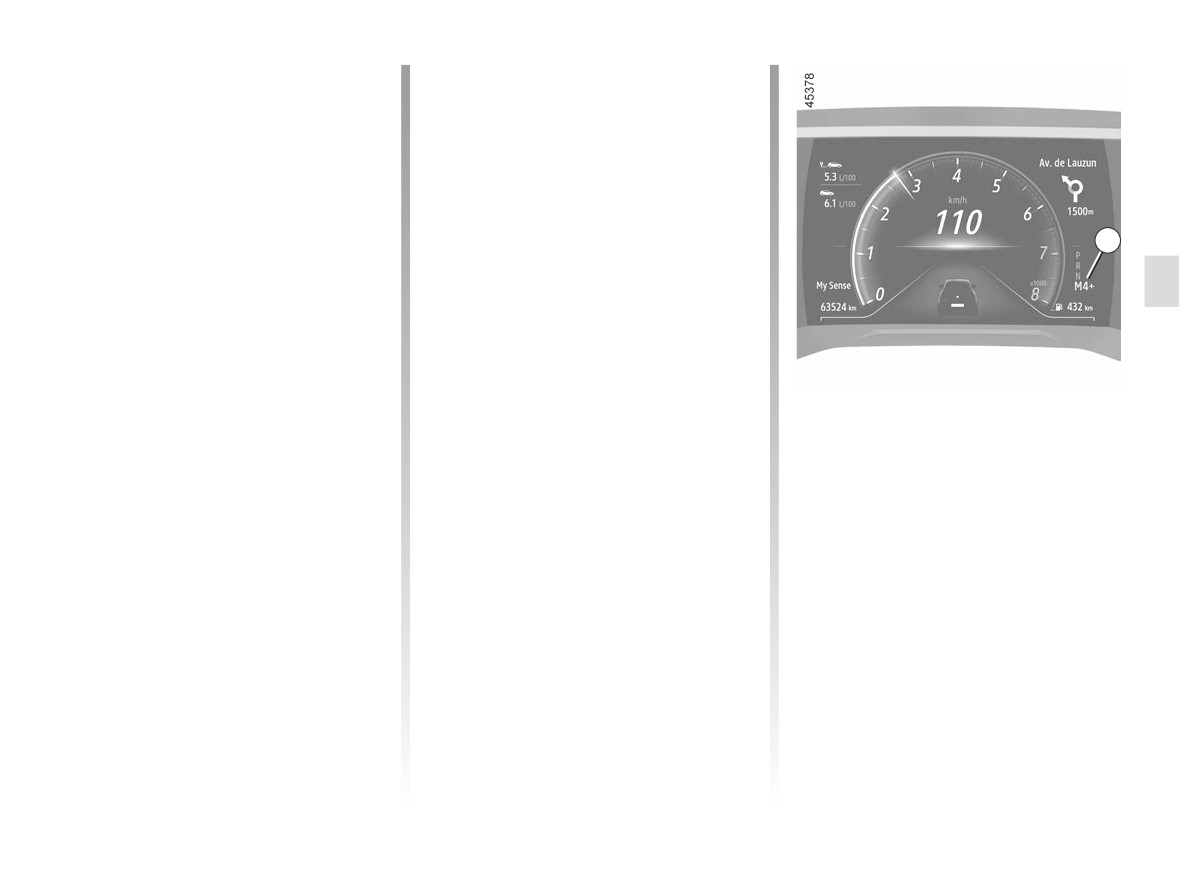

The 4 display on the instrument panel
Positions P, N, L and R cannot be ac-
ing light 3 disappears from the display),
indicates the gear lever position en-
cessed using the paddles.
shift out of P position, release the lock-
gaged 1.
ing button 2 and engage D position.
Note: press the 2 button to:
Only engage D or R when the vehi-
- exit position P;
cle is stopped, with your foot on the
- switch from position D, L or N to R or
brake and the accelerator pedal re-
P;
leased.
– switch from position D to L.
2.128
AUTOMATIC TRANSMISSION (2/4)
Driving in automatic mode
Driving in manual mode
Put lever 1 into position D.
When driving in position D you can
switch to manual driving mode using
In most road conditions you will en-
paddles 5 and 6 on the steering wheel.
counter, you will not need to touch your
Depending on the vehicle, two manual
lever again: the gears will change au-
driving modes are available:
tomatically at the right time and at the
most suitable engine speed because
- a “temporary” manual mode which
the automatic system takes into ac-
can be used to force a gear change
7
count the vehicle load and road contour
by a brief press on one of the pad-
and adjusts itself to the particular driv-
dles. Driving mode D and the gear
ing style you have chosen.
engaged will appear on the instru-
ment panel.
Economical driving
Note: the gearbox returns to auto-
When driving, always leave the lever
matic mode D automatically if the
in position D, keeping the accelerator
gear engaged is not optimal or if the
pedal lightly depressed to ensure auto-
Note: return to automatic mode by
paddles have not been used for a
matic gear changes at a lower engine
pressing and holding the right-hand
certain length of time.
speed.
paddle. Automatic mode D is dis-
- a permanent manual mode ac-
played on the instrument panel.
Accelerating and overtaking
tivated by pressing and holding
In all situations:
either of the paddles. Driving mode
Depress the accelerator pedal firmly
- to move down through the gears,
M and the gear engaged will appear
and fully (so that it goes beyond the
press the left-hand paddle;
on the 7 display on the instrument
kickdown point).
- to move up through the gears, press
panel.
the right-hand paddle.
This will enable you to change down
to the optimum gear within the
Note: depending on the display, the +
engine range.
and - or
and
indicators
will suggest moving up or down a gear.
2.129















Content      ..     10      11      12      13     ..
