Renault Trafic (2018 year). Instruction

5.23

RADIO FREQUENCY REMOTE CONTROL: battery

Do not dispose of your used

batteries in the countryside.

Give them to an organisa-

tion that collects and recy-

cles used batteries.

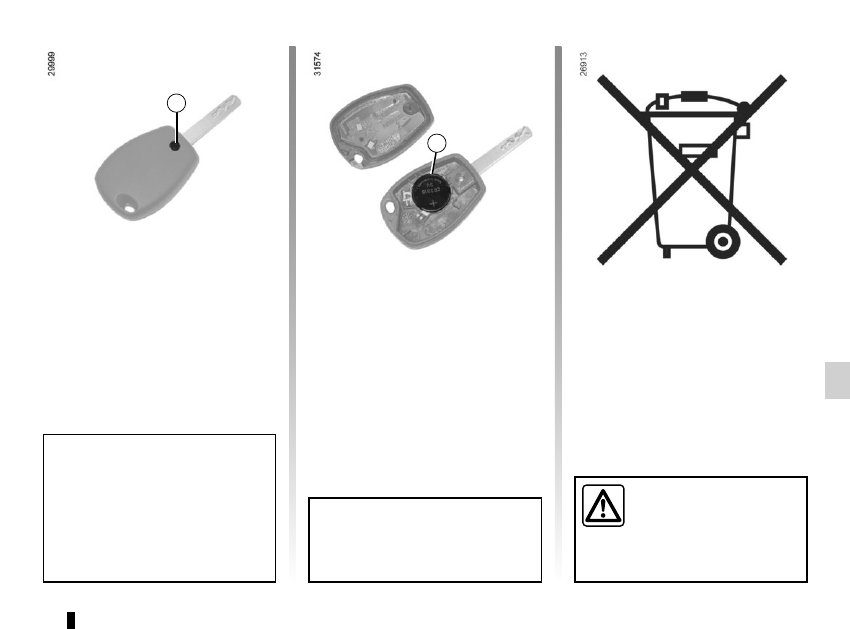

Replacing the remote control

battery

Undo screw 1 to remove the remote

control cover.

Replace battery 2 according to the di-

rection marked on the cover.
Note: It is not advisable to touch the

electronic circuit in the key cover when

replacing the battery.

When refitting, ensure that the cover

is correctly clipped on and the screw

tightened.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years.
Check that there is no dye on the

battery: risk of an incorrect electri-

cal contact.

5.24

Operating faults

If the battery is too weak to ensure cor-

rect operation, you can still start (insert

the RENAULT card in the card reader)

and lock/unlock the vehicle (refer to the

information on "Locking/unlocking the

doors" in Section 1).

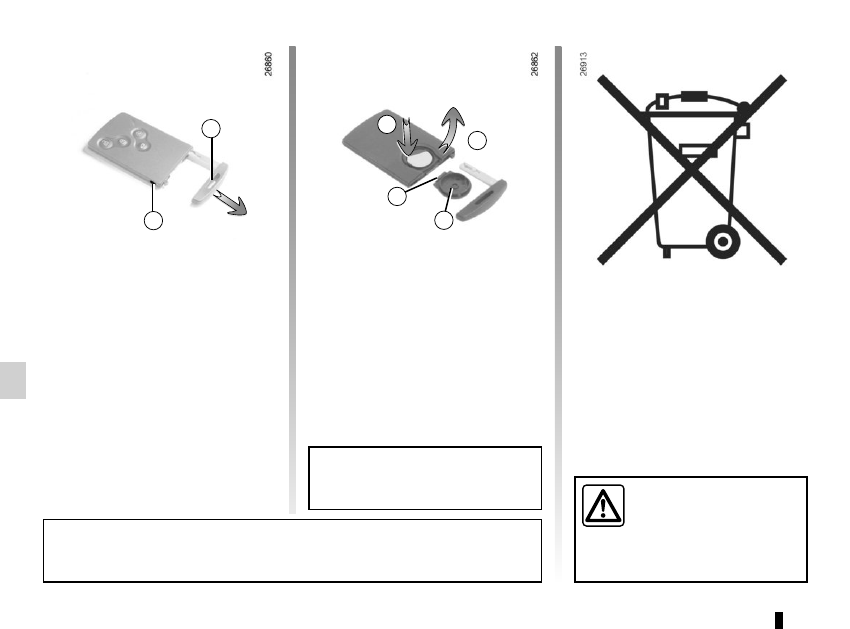

RENAULT CARD: battery

Replacing the battery

When the message “KEYCARD

BATTERY LOW” appears on the instru-

ment panel, replace the RENAULT card

battery, press button 1 pulling on emer-

gency key 2, then unclip the cover 3

using tab 4.

Remove the battery by pressing on one

side (movement A) and by lifting the

other (movement B) then replace it, en-

suring the polarity and model, shown

on cover 3 are respected.

Do not throw away your

used batteries; give them to

an organisation responsible

for collecting and recycling

batteries.

When refitting, proceed in the reverse

order, then press one of the buttons on

the card four times, close to the vehicle:

the next time the vehicle is started, the

message will disappear.

Note: it is not advisable to touch the

electronic circuit or contacts on the

RENAULT card when replacing the bat-

tery.

The batteries are available from approved Dealers, and their service life approxi-

mately two years. Check that there is no dye on the battery: risk of an incorrect

electrical contact.

Check that the cover is clipped shut.

5.25

BATTERY: breakdown recovery

(1/2)

To avoid all risk of sparks:

– Ensure that any power consumers

(courtesy lights, etc.) are switched

off before disconnecting or recon-

necting a battery;

– when charging, stop the charger

before connecting or disconnecting

the battery;

– do not place metal objects on the

battery as this could create a short

circuit between the terminals;

– always wait at least one minute after

the engine has been switched off

before disconnecting a battery;

– make sure that you reconnect the

battery terminals after refitting.

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Do not disconnect the battery when the

engine is running. Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.

Special procedures may be

required to charge some

batteries. Contact your ap-

proved dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well venti-

lated area. Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
Please note when working close to

the engine that it may be hot. In ad-

dition, the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.
Risk of injury.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

5.26

BATTERY: breakdown recovery

(2/2)

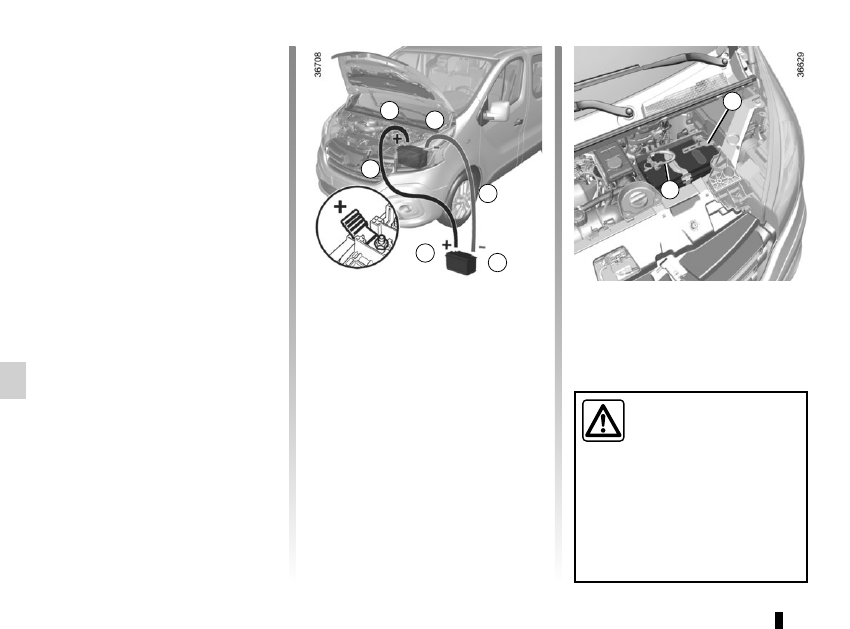

Depending on the vehicle, unclip the

battery cover.
Connect the positive cable A to the

support on the (+) terminal 1, then to the

(+) terminal 4 of the battery supplying

the current.
Connect the negative cable B to the (–)

terminal 3 of the battery supplying the

current and then to the (–) terminal 2 of

the discharged battery.
Start the engine, and as soon as it starts

running, disconnect cables A and B in

reverse order ( 2 - 3 - 4 - 1 ).

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.
The two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.
Ensure that there is no risk of contact

between the two vehicles (risk of short

circuiting when the positive terminals

are connected) and that the discharged

battery is properly connected. Switch

off your vehicle ignition.
Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.
Risk of injury and/or damage to

the vehicle.

5.27

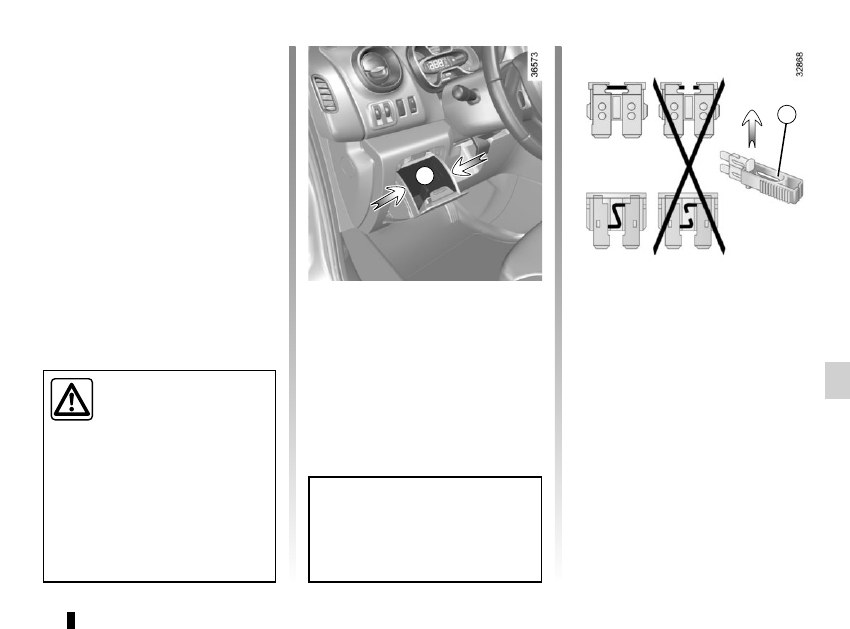

Clip 1
Remove the fuse using tweezers 1, lo-

cated at the back of flap A.

To remove the fuse from the tweezers,

slide the fuse to the side.

It is not advisable to use the free fuse

locations.

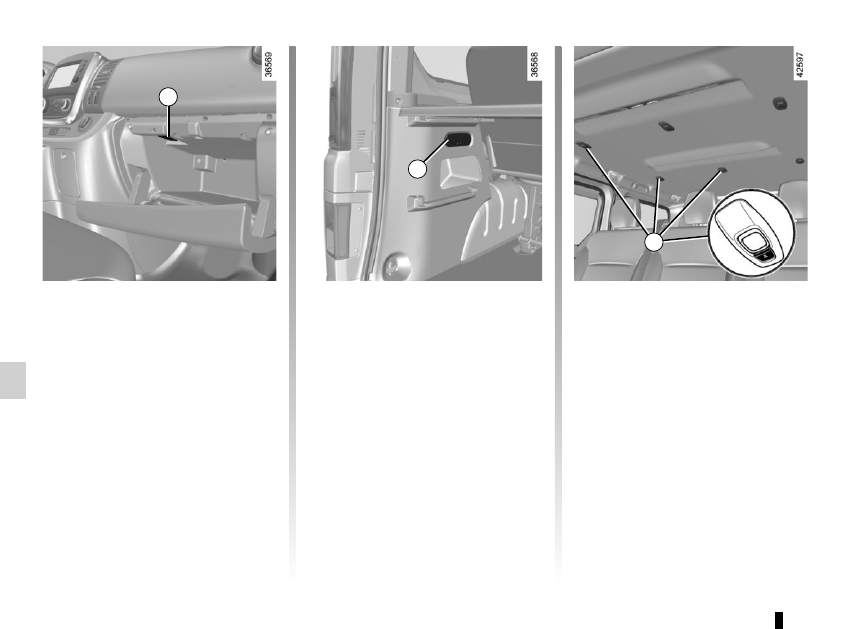

Fuses in passenger compartment A

If any electrical equipment does not

work, check the condition of the fuses.

Unclip the storage compartment A by

pressing on either side and pulling to-

wards you.

FUSES

(1/3)

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

Check the fuse in question

and replace it, if neces-

sary, by a fuse of the same

rating.

If a fuse is fitted with too high a

rating, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

5.28

FUSES

(2/3)

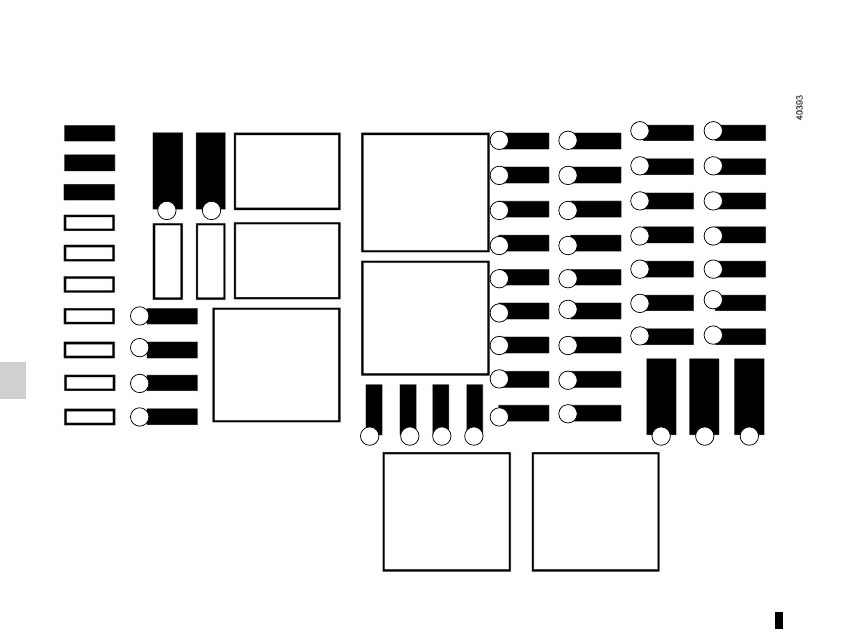

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

5.29

No.

Allocation

APC load for vehicle with

RENAULT card

Adjustment

+ battery for vehicles with

RENAULT card

Additional heating and air

conditioning

Supplementary passenger

compartment heating

Electric door mirrors,

supplementary central unit

adjustment

Heated door mirror

Radio, multimedia, rear-view

mirror, diagnostic socket

Pre-equipment, towbar socket

Timed battery, passenger

compartment unit

Right-hand daytime running

light, front side lights, right-hand

main beam headlight, left-hand

dipped beam headlight

Hazard warning lights, direction

indicator lights

FUSES

(3/3)

No.

Allocation

Central locking of opening

elements

Left-hand daytime running light,

rear side light, left-hand main

beam headlight, right-hand

dipped beam headlight

Registration plate lighting, front

and rear fog lights

Alarm, horn, lighting and wiper

stalks

Instrument panel

Heater

Rear screen wiper, screenwash

pump, horn

General APC load

Reversing lights

Brake switch

Injection, starting

Airbag, steering column lock

Passenger side window control

Power-assisted steering

Brake lights

No.

Allocation

APC load for vehicle with

RENAULT card

General service

Cigarette lighter, accessories

socket

Heater

Brake light, ABS, transponder

Interior lighting, air-conditioning

Starting for vehicles with

RENAULT card

Rear windscreen wiper

Electromagnetic notification

Accessories socket in the

loading area

Driver’s side window control

motor

Rear accessories socket

BCM starting

Heated seats

Tachograph

Front windscreen wiper

Heating, air conditioning system

5.30

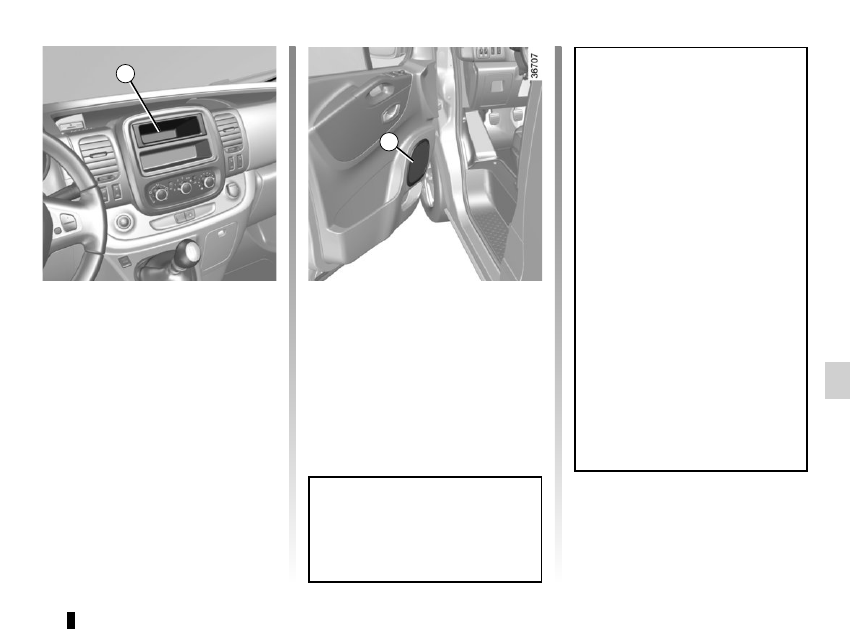

ACCESSORIES

Electrical and electronic accessories

Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-

sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.

Connect accessories with a maximum power of 120 Watts only. Fire hazard. When several accessory sockets are

used at the same time, the total power of the connected accessories must not exceed 180 watts.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.

If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

Using the diagnostic socket

The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems.

For your safety we recommend that you use only electronic accessories approved by the manufacturer, consult an Approved

Dealer. Serious accident risk.

Use of transmitting/receiving devices (telephones, CB equipment etc.).

Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the

vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform

to the legislation in force concerning the use of such equipment.

Fitting aftermarket accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.

Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-

larly. Do not lay one mat on top of another. There is a risk of wedging the pedals.

5.31

WINDSCREEN WIPER BLADES

(1/2)

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

–

Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

Check the condition of the wiper

blades. You are responsible for their

service life:
– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

To refit

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

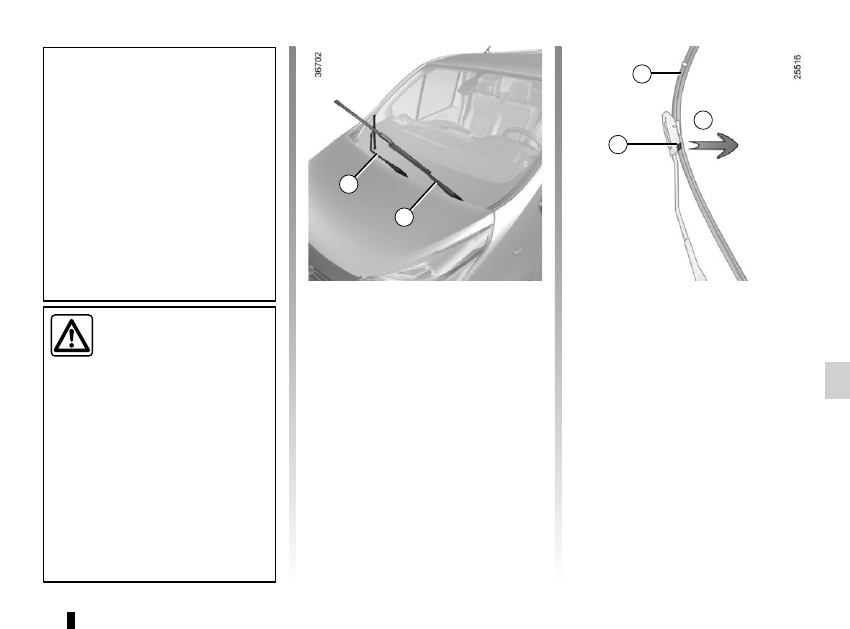

Raise the windscreen wiper stalk fully:

the front windscreen wiper blades will

settle down onto the bonnet.

Replacing windscreen wiper

blades

With the ignition on and the engine

stopped:

– lower the windscreen wiper stalk

fully: they stop slightly away from the

bonnet;

– lift the wiper arms 1 and 2;
– pull the tab 4 (movement A) and

push the blade 3 upwards.

5.32

WINDSCREEN WIPER BLADES

(2/2)

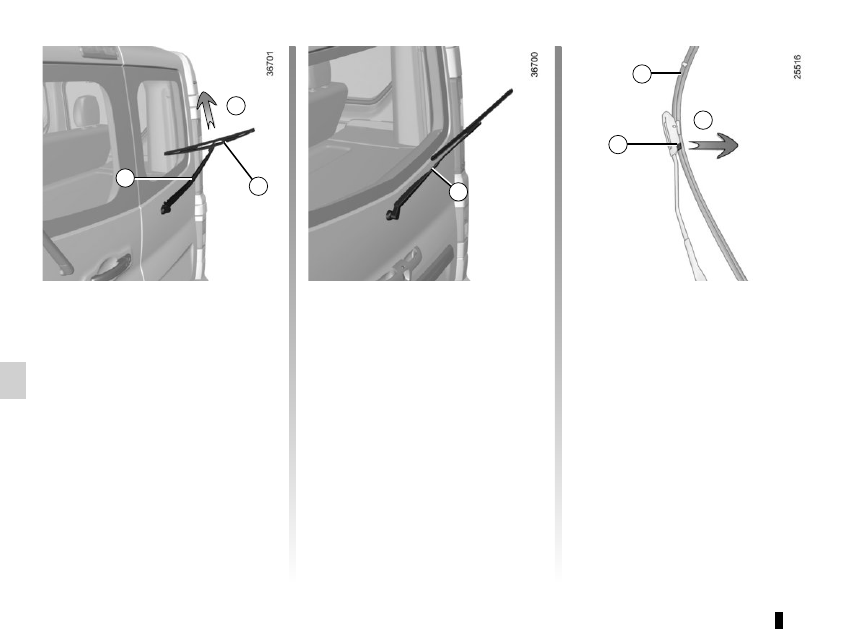

Rear screen wiper blade on

rear hinged doors

– Lift wiper arm 5;
– pivot the blade 6 until some resist-

ance is met;

– pull the blade to release it (move-

ment C).

To refit

Proceed in the reverse order to re-

moval. Make sure that the blade is cor-

rectly locked in position.

Rear windscreen wiper blade

on tailgate

– Lift the wiper arm 7;
– pull the tab 9 (movement B) and

push the blade 8 upwards.

5.33

TOWING: breakdown recovery

(1/2)

The steering wheel must be un-

locked and the ignition key must be

in position M (ignition on) to provide

brake lights and hazard warning

lights on the towed vehicle. At night

the vehicle must have its lights on.
Unhitch the trailer, etc., if one is

being towed.
You must observe the towing regu-

lations which apply in the country in

which you are driving: do not exceed

the towing weight for your vehicle.
Contact an approved dealer.
Never use the drive shafts or axles.
These towing points may only be used

for traction: never use them for lifting

the vehicle directly or indirectly.

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

– A vehicle must not be towed if it is

not fit to be driven.

– Do not accelerate or brake sud-

denly when towing, as this may

result in damage being caused to

the vehicle.

– When towing a vehicle, do not

exceed 15 mph (25 km/h).

– Do not push the vehicle if the

steering column is locked.

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

Do not remove the key from

the ignition switch or the

card from the reader during

towing.

5.34

TOWING: breakdown recovery

(2/2)

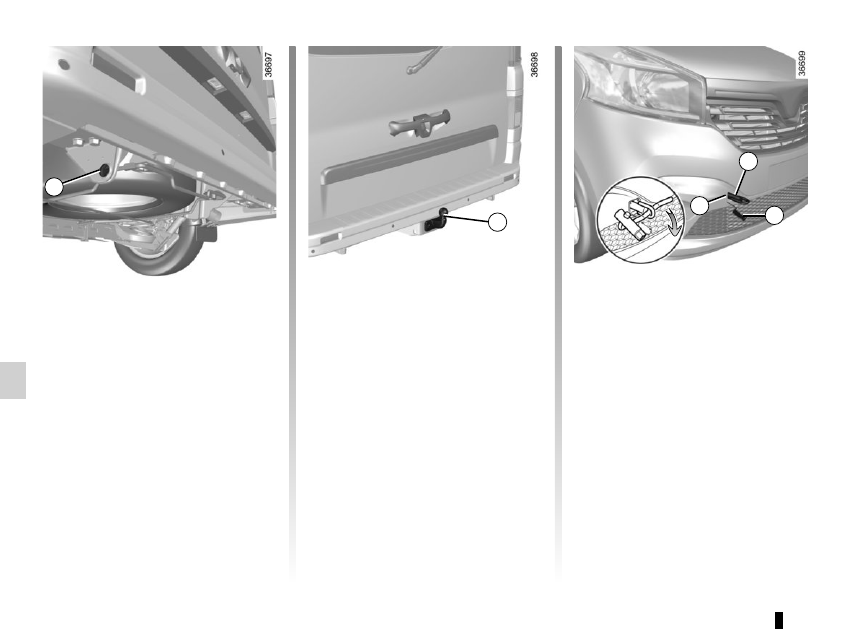

Rear towing point 2

(Vehicle without towing equipment)

Rear towing point 3

(Vehicle with towing equipment)
To assemble the towbar ball, please

consult the equipment assembly in-

structions.

Front towing point 6

Unclip the cover 5 by inserting a flat-

blade screwdriver or similar under the

cover.
Tighten the tow eye 4 fully: as much

as possible by hand at first, then finish

tightening it using the wheelbrace.
Only use the towing eye 4 stored with

the tools. Please refer to the informa-

tion on “Tools” in Section 5.

Use only

At the rear:

– for vehicles without towing equip-

ment, towing point 2;

– for vehicles with towing equip-

ment, towing point 3 (towbar ball);

At the front:

– At the front, tow eye 6 (from the

tool kit) and towing point 6.

5.35

FITTING A RADIO

Radio location 1

Unclip the cover blanking the radio lo-

cation 1. The connections are found

behind the cover: aerial, + and – supply,

and speaker wires.

Speakers

Turn the grilles 2 to gain access to the

speaker’s wiring.

– In all cases, it is very important to

follow the manufacturer’s instruc-

tions carefully.

– The specifications of the brack-

ets and wires (available from our

network) vary depending on the

equipment level of your vehicle

and the type of radio.

Consult an approved Dealer to

find out the correct part number.

– No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

dealers: an incorrectly connected

system may result in damage

being caused to the electrical

equipment and/or the compo-

nents connected to it.

To use this equipment, consult the

instructions for the equipment which

should be kept with the other vehi-

cle documentation.

5.36

OPERATING FAULTS

(1/7)

The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved Dealer as soon as possible.

Using the RENAULT card

POSSIBLE CAUSES

WHAT TO DO

The RENAULT card does not lock or

unlock the doors.

Card battery is flat.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the in-

formation on “Locking, unlocking the open-

ing elements” in Section 1 and “Starting,

stopping the engine” in Section 2).

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the equipment or use the in-

tegrated key (refer to the information on

“Locking, unlocking the opening elements”

in Section 1).

Vehicle located in a high electromag-

netic radiation zone.
Vehicle battery flat.

Use the key integrated in the card (refer to

the information on “Locking, unlocking the

opening elements” in Section 1).

The vehicle is started.

With the engine running, the card’s locking/

unlocking device is blocked. Turn off the ig-

nition.

5.37

The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved dealer as soon as possible.

Using the remote control

POSSIBLE CAUSES

ACTION REQUIRED

The remote control does not lock or

unlock the doors.

The remote control battery is flat.

Use the emergency key.

Use of appliances operating on the same

frequency as the remote control (mobile

phone, etc.).

Stop using the devices or use the key.

Vehicle located in a high electromagnetic

radiation zone.

Discharged battery.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the

information on “Locking/unlocking the

doors” in Section 1 and “Starting/Stopping

the engine” in Section 2).

The vehicle is started.

With the engine running, the key’s locking/

unlocking device is blocked. Turn off the

ignition.

OPERATING FAULTS

(2/7)

Renault Trafic (2018 year). Instruction - part 16
