Renault Talisman (2016 year). Instruction - part 8





The following operating conditions:
–  driving for long periods when the low

fuel level warning light is lit;

–  using leaded petrol;
–  using fuel or lubrication additives

which are not approved.

Or operating faults such as:
–  faulty ignition system, running out of

fuel or disconnected spark plugs re-

sulting in the engine misfiring or cut-

ting out when driving;

–  loss of power,
as they may cause the catalytic con-

verter to overheat and thus reduce its

efficiency,  or damage it irreparably

and cause heat damage to the vehi-


If you notice any of the above operating

faults, have the necessary repairs car-

ried out as soon as possible by an ap-

proved Dealer.
These faults may be avoided by regu-

larly taking your vehicle to an approved

Dealer at the intervals specified in the

Maintenance document.

Starting problems

To avoid damaging the catalytic con-

verter, do not keep trying to start the

engine (using the start button, or by

pushing or towing the vehicle) without

having identified and corrected the

starting fault.
If the fault cannot be identified, do not

keep trying to start the engine, but con-

tact an approved Dealer.

Do not park the vehicle or

run the engine in locations

where combustible sub-

stances or materials such as

grass or leaves can come into con-

tact with the hot exhaust system.



Diesel engine speed

Diesel engines are fitted with an injec-

tion pump which prevents the engine

speed being exceeded irrespective of

the gear selected.
If the message “Check antipollution

system” is displayed along with warn-

ing lights




, consult an

authorised dealer immediately.
When driving, depending on the fuel

grade used, it is possible that white

smoke may be emitted.
This is due to the exhaust particle filter

being cleaned automatically, and does

not affect the way the vehicle runs.

Running out of fuel

If the tank has been completely

drained, the system must be reprimed

after the tank is refilled: see information

on the “fuel tank” in section 1 before re-

starting the engine.

Do not park the vehicle or

run the engine in locations

where combustible sub-

stances or materials such

as grass or leaves can come into

contact with the hot exhaust system.

Precautions to be taken in


To avoid any faults in icy weather:
–  ensure that the battery is always fully


–  always keep the diesel tank rela-

tively full to avoid water vapour con-

densing in it and accumulating at the

bottom of the tank.



Selecting reverse gear

Vehicles with manual gearbox: follow

the grid drawn on knob 1, and depend-

ing on the vehicle, lift ring against the

gear lever knob to select reverse.
Vehicle with automatic gearbox: refer

to the information on the “Automatic

gearbox” in Section 2.
The reversing lights will come on as

soon as reverse gear is selected with

the ignition on.

An impact to the under-

side of the vehicle while

manoeuvring (e.g.: strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g.: defor-

mation of the rear axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.





To indicate that the electronic parking

brake is released, a beep sounds and

the message “Apply parking brake” ap-

pears on the instrument panel:
–  with the engine running: when the

driver’s door is opened;

–  with the engine switched off (eg.

when the engine stalls): when a front

door is opened.

In this case, pull and release switch 1 to

apply the assisted parking brake.

Assisted release of the parking

The brake will be released as soon as

the vehicle starts and accelerates.

Assisted operation

The electronic parking brake immobi-

lises the vehicle when stopping the

engine (and not when the engine

is on standby for vehicles fitted

with the Stop and Start function)

Please refer to “Starting, stopping the

engine” and “Stop and Start function” in

Section 2.
In all other instances, eg. engine stall-

ing, the assisted parking brake is not

applied automatically. Manual mode

must be used.
For certain country-specific model ver-

sions, the assisted brake application

function is not activated. Refer to the

information on “Manual operation”.

To confirm that the electronic parking

brake is applied, the message “Parking

brake on” and warning light



on the instrument panel and warning

light 2 on the switch 1 light up.
After the engine is switched off, indi-

cator light 2 goes out several minutes

after the electronic parking brake has

been applied and indicator light



goes out when the vehicle is locked.

Before leaving the vehicle,

check that the electronic

parking brake is fully ap-

plied. Warning light 2 on

switch  1 and warning light



on the instrument panel light up to

show that the parking brake is ap-

plied but go out when the doors are







Special cases

To park on a slope or while towing a

trailer, for example, pull switch 1 for

a few seconds to gain the maximum


To park the vehicle without applying the

electronic parking brake (if there is a

risk of freezing, for example):

–  with the engine running, while si-

multaneously depressing the brake

pedal and the switch 1, stop the

engine (not standby for vehicles

fitted with Stop and Start);

–  with a gear or position P engaged,

release the brake pedal and the

switch 1.

For vehicles fitted with a Stop and Start

function, with the engine on standby,

the electronic parking brake is automat-

ically activated if the driver unfastens

their seat belt and opens the driver’s

door or gets out of their seat.

Brief stop

To manually activate the electronic

parking brake, (when stopping at a red

light, or stopping when the engine is

running etc.) : pull and release switch 1

The brake is released as soon as the

vehicle is started up again.

Manual operation

You can apply the electronic parking

brake manually.

Applying the electronic parking


Pull switch 1. Warning light 2 and warn-

ing light


 on the instrument panel

light up.

Releasing the assisted parking


With the ignition on, depress the brake

pedal then press switch 1: indicator

lights 2 and


 go out.

Special feature related to

the Stop and Start function:

if the driver’s seat is unfas-

tened  before the engine

goes into standby due to the Stop

and Start function, make sure that

the parking brake is applied: the

indicator light


 on the instru-

ment panel confirms this. Risk of

loss of immobilisation.




Operating faults

–  If there is a fault, the



light illuminates on the instrument

panel accompanied by the “Check

parking brake” message and, in

some cases, the




Please contact an authorised dealer

as soon as possible.

–  If there is an electronic parking brake

fault, the warning light



on, along with the message “Braking

system fault”, a beep and, in some

cases, the warning light



This means that you must stop as

soon as traffic conditions allow.

Versions with an automatic


For safety reasons, automatic release

is deactivated when the driver’s door

is open or not shut properly and the

engine is running (in order to prevent

the vehicle from moving without the

driver). The “Release parking brake

manually” message appears on the

instrument panel when the driver de-

presses the accelerator.



It is therefore essential to

immobilise the vehicle by

engaging first gear (manual

gearbox) or position P (au-

tomatic gearbox). If the slope re-

quires it, chock the vehicle.

Never leave your vehicle

without moving the selector

lever to position P. This is

because when the vehicle

is stationary with the engine running

and a gear engaged, the vehicle

may begin to move if you acceler-

There is a risk of accidents.

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

In the event of the message

“Electric failure DANGER”

or “Check battery”, manu-

ally activate the electronic

parking brake by pulling switch 1 (or

position the gear lever in P for au-

tomatic gearboxes) before stopping

the engine.
Risk of loss of immobilisation of the

Contact an authorised dealer.





Gear change indicator 2
Depending on the vehicle, to obtain op-

timum consumption levels, a warning

light on the instrument panel lets you

know the best time to move up or down

a gear:


 move up a gear;

 move down a gear.

If you regularly follow this indicator, you

will reduce your vehicle’s fuel consump-


Fuel consumption is accredited in ac-

cordance with a standard regulatory

method. Identical for all manufactur-

ers, this enables vehicles to be com-

pared with one another. Consumption

in real time depends on vehicle usage

conditions, the equipment fitted and the

user’s driving style. To optimise fuel

consumption, please refer to the follow-

ing advice.
Depending on the vehicle, you will have

various functions which enable you to

lower your fuel consumption:

–  the rev counter;

–  gear change indicator;

–  the driving style indicator;

–  the journey record and eco-driving

advice via the multimedia screen;

– ECO mode.
If fitted on the vehicle, the navigation

system provides additional information.

On the instrument panel

The information display can be organ-

ised and customised based on the in-

strument panel customisation style se-

lected from the multimedia screen.

Rev counter with ECO zone 1
Driving in the ECO zone helps you op-

timise fuel consumption under most cir-








If you regularly follow this indicator, you

will reduce your vehicle’s fuel consump-


On the multifunction screen

Journey record
Once the engine is switched off, you

will see “Journey record” displayed on

the screen 4, enabling you to view in-

formation relating to your last journey.

Driving style indicator 3
Informs you about the driving style

adopted in real time. You will be notified

by indicator 3.
The more petals there are on indica-

tor 3, the smoother and more economi-

cal your driving.
If you regularly monitor this indicator,

you will reduce your vehicle’s fuel con-

To activate/deactivate the driving style

indicator, please see the multimedia

system instructions.

This indicates:

–  average fuel consumption;

–  number of miles/kilometres travelled;

– number of miles/kilometres saved.

This corresponds to driving without

fuel consumption (deceleration and/

or foot off the accelerator pedal).

An overall rating from 0 to 100 is dis-

played to let you assess your eco driv-

ing performance. The higher the rating,

the lower the fuel consumption.

Eco advice is given to help improve

your performance.
With your favourite journeys saved,

you can compare your performance

between trips and the performance of

other vehicle users.

For more information, please see the

multimedia system instructions.






ECO mode

ECO mode is a function which opti-

mises fuel consumption. This acts on

all power consuming elements (engine

power, switching gears for vehicles

fitted with an automatic gearbox, heat-

ing and/or air conditioning, etc.).
Limiting acceleration enables low fuel

consumption in urban and surrounding

areas. The air conditioning and heating

limiter enables you to save fuel without

affecting your heating comfort.

Activating the function
The function can be activated:
–  by pressing switch 4;
–  using the central control 5 (please

refer to the information on “Multi-

Sense” in Section 3);

–  Depending on the vehicle, from the

navigation menu on the multimedia

screen (please refer to the multime-

dia instructions).

The warning light

 comes on on

the instrument panel to confirm activa-


Disabling the  function
Press switch 4.

The warning light

 goes out on

the instrument panel to confirm deac-


While driving, it is possible to leave the

ECO mode temporarily in order to im-

prove engine performance.
To do this, press the accelerator pedal

firmly and fully.
ECO mode is reactivated when you

take pressure off the accelerator pedal.


–  Do not overrev the engine in the in-

termediate gears.

  You should always use the highest

gear possible.

–  Avoid sudden acceleration.

–  Brake as little as possible. If you an-

ticipate an obstacle or bend in ad-

vance, you may then simply release

the accelerator pedal.

– Do not try to maintain the same

speed up a hill, accelerate no more

than you would on flat ground. Keep

your foot in the same position on the

accelerator pedal.

–  Double declutching and accelerating

before switching off are unnecessary

in modern vehicles.

Obstructions to the driver

On the driver’s side, only

use mats suitable for the

vehicle, attached with the

pre-fitted components, and check

the fitting regularly. Do not lay one

mat on top of another.

There is a risk of wedging the




–  Bad weather, flooded roads:

Do not drive through

floods if the water is

above the lower edge of

the wheel rims.

Driving advice, Eco-driving

–  Drive carefully for the first few miles

until the engine reaches its normal

operating temperature, rather than

let it warm up while the vehicle is sta-


–  Speed is expensive.

–  Dynamic driving with a lot of frequent

acceleration and braking is expen-

sive on fuel in comparison to the time





–  In vehicles fitted with air conditio-

ning, it is normal to observe an in-

crease in fuel consumption (espe-

cially in urban conditions) when it is

used. For vehicles fitted with manual

air conditioning, switch off the system

when it is not required.
Recommendations for reducing

consumption and therefore help-

ing to preserve the environment:
If the vehicle has been parked in the

sun, open the doors for a few mo-

ments to let the hot air escape before

starting the engine.

– Do not leave an empty roof rack

fitted to the vehicle.

–  It is better to fit a trailer for bulky ob-


–  When towing a caravan, fit a wind

deflector and adjust it carefully.

–  Avoid using the car for door-to-door

calls (short journeys with long waits

in between) because the engine

never reaches its normal operating

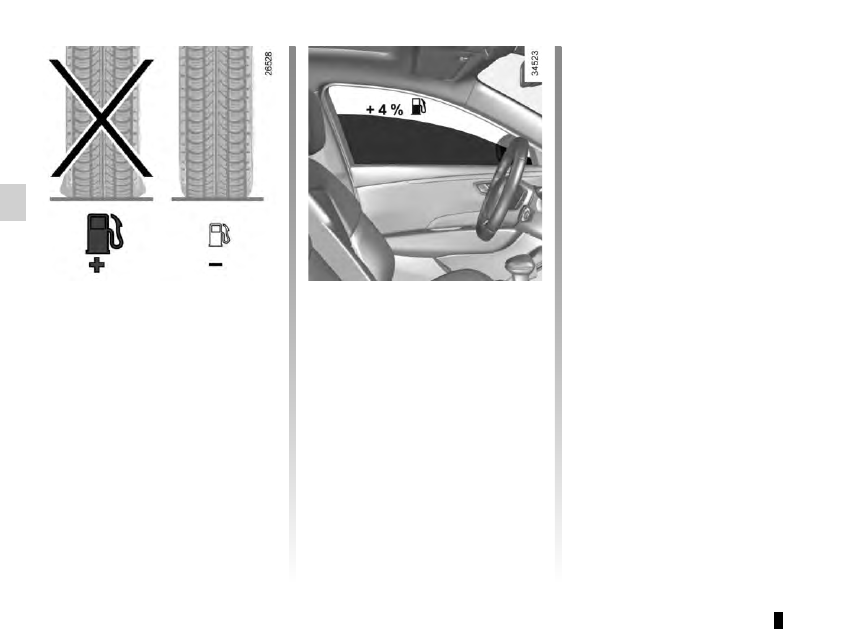

–  An underinflated tyre increases fuel


–  Opt for the highest speed pressure

or the pressure recommended to op-

timise fuel consumption indicated

on edge of the driver’s door (please

refer to the information on “Tyre infla-

tion pressure” in Section 4).

–  The use of non-recommended tyres

can increase fuel consumption.

Advice on use
–  Favour the ECO mode.

–  Electricity is fuel; switch off all the

electrical components which are

not really needed. However (safety

first), keep your lights on when the

visibility is bad (“see and be seen”).

–  Use the air vents. Driving with the

windows open at 60 mph (100 km/h)

will increase fuel consumption by


–  Never fill the fuel tank right to the

brim to avoid overflow.



Your vehicle complies with criteria for

recycling and recovering vehicles at the

end of their service life which will come

into force in 2015.
Some parts of your vehicle have there-

fore been designed to facilitate future

These parts are easy to remove so

that they can be recovered and reproc-

essed by recycling companies.
By virtue of its design, moderate fuel

consumption and initial settings, your

vehicle also conforms to current anti-

pollution regulations. The manufac-

turer is actively striving to reduce pol-

lutant exhaust gas emissions and to

save energy. But the fuel consumption

of your vehicle and the level of pollutant

exhaust gas emissions are also your

responsibility. Ensure that it is main-

tained and used correctly.


It is important to remember that fail-

ure to respect antipollution regulations

could lead to legal action being taken

against the vehicle owner.

In addition, replacing engine, fuel

supply system and exhaust compo-

nents with parts other than those origi-

nally recommended by the manufac-

turer may alter your vehicle so that it

no longer complies with anti-pollution

Have your vehicle adjusted and

checked by an authorised dealer, in ac-

cordance with the instructions given in

your maintenance schedule: they will

have all the equipment necessary for

ensuring that your vehicle is maintained

to its original standard.

Engine adjustments

 Spark plugs: for optimum condi-

tions of use, output and performance

the specifications laid down by our

Design Department must be strictly


  If the spark plugs have to be changed,

use the make, type and gap specified

for your vehicle’s engine. Contact an

authorised dealer for this.

  Air filter, fuel filter: a choked ele-

ment will reduce efficiency. It must

be replaced.

  Ignition and idle speed: no adjust-

ment is needed.

Exhaust gas monitoring


The exhaust gas monitoring system will

detect any operating faults in the vehi-

cle’s antipollution system.

If this system malfunctions, toxic sub-

stances may be released into the at-

mosphere or damage may occur.


This warning light on the in-

strument panel will indicate if

there are any faults in the system:

This lights up when the ignition is

switched on and goes out when the

engine is started.
–  If it lights up continuously, consult an

approved Dealer as soon as possi-


–  if it flashes, reduce the engine speed

until the light stops flashing. Contact

an authorised dealer as soon as pos-





Your vehicle has been designed to

emit fewer greenhouse gases (CO2)

while in use, and therefore to consume

less fuel (e.g. 140 g/km, equivalent to

1494.6 mpg (5.3 l/100 km) for a diesel

Our vehicles are also equipped with a

particle filter system including a cata-

lytic converter, an oxygen sensor and

an active carbon filter (the latter pre-

vents vapour from the fuel tank being

released into the open air).
For certain diesel vehicles, this system

also has a particle filter to reduce the

volume of soot particles emitted.

Please make your own

contribution towards

protecting the environment


–  Worn parts replaced in the course of

routine vehicle maintenance (vehi-

cle battery, oil filter, air filter, batter-

ies, etc.) and oil containers (empty or

filled with used oil) must be disposed

of through specialist organisations.

–  At the end of the vehicle’s service

life, it should be sent to approved

centres to ensure that it is recycled.

–  In all cases, comply with local legis-



Your vehicle is 85% recyclable and

95% recoverable.
To achieve these objectives, many of

the vehicle components have been de-

signed to enable them to be recycled.

The materials and structures have

been carefully designed to allow these

components to be easily removed and

reprocessed by specialist companies.
In order to preserve raw material re-

sources, this vehicle incorporates nu-

merous parts made from recycled plas-

tics or renewable materials (vegetable

or animal-derived materials such as

cotton or wool).

Your vehicle has been designed with

respect for the environment in mind for

its entire service life: during production,

use and at the end of its life.

This commitment is illustrated by the

Renault eco² signature.


Your vehicle has been manufactured at

a factory which complies with a policy

to reduce the environmental impact

on the surrounding areas (reduction of

water and energy consumption, visual

and noise pollution, atmospheric emis-

sions and waste water; sorting and re-

using waste).




If the vehicle is equipped with the func-

tion, this system monitors the tyre pres-


Operating principle

Each wheel (except for the emergency

spare wheel) has a sensor in the infla-

tion valve which periodically measures

the tyre pressure.

The system displays the current pres-

sures on the instrument panel 1 and

alerts the driver in the event of insuffi-

cient pressure.



Resetting procedure
With the ignition on:
–  repeatedly and briefly press control 2

to select the tyre pressure display

and, depending on the vehicle, the

«Tyre pressure» function;

–  press and hold (around 3 seconds)

the button 2 to launch the reset. The

flashing tyres followed by the mes-

sages «Learning TP initiated» and

then «Tyres location in progress» in-

dicates that the reset request for the

tyre pressure reference value has

been acknowledged.

Reset can take several minutes of driv-

If the resetting is followed by short trips,

the message “Tyres location in pro-

gress” can remain displayed after suc-

cessive restarts.

The standard tyre pressure cannot be

less than that recommended and indi-

cated on the door frame.


Resetting the standard level

for the tyre pressures

This should be done:

– when the standard tyre pressure

needs to be changed to adapt to

usage conditions (empty, carrying a

load, motorway driving, etc.);

–  after swapping a wheel (however

this practice is not recommended);

–  after changing a wheel.
It should always be done after checking

the tyre pressure of all four tyres when

Tyre pressures must correspond to the

current usage of the vehicle (empty,

carrying a load, motorway driving, etc.).

Resetting can also be done from the

multifunction screen 3 if your vehi-

cle is fitted with a navigation system.

Select the menu “Vehicle”, “Tyre






The display 1 and the warning light 4

 on the instrument panel warn

you of any tyre pressure faults (flat tyre,

punctured tyre, system fault, etc.).




For your safety, the warning


 requires you

to stop immediately as soon

as traffic conditions allow.

The sudden loss of pressure in a tyre (burst tyre, etc.) cannot be detected by the




A wheel B is shown, depending on the

vehicle, in red or white accompanied

by the warning light 4

 fixed, the

message “Puncture” and a beep.

This message appears along with  the


 warning light. They indicate that

the affected wheel is punctured or se-

verely underinflated. Replace it or con-

tact an approved dealer if it is punc-

tured. Top up the tyre pressure if the

wheel is deflated.

“Check tyre pressure sensors”

A wheel A disappears, the warning

light  4

 flashes for several sec-

onds then comes on continuously and

the message “Check tyre pressure sen-

sors” appears.

This message appears along with  the


 warning light. They indicate that

at least one wheel is not fitted with sen-

sors (e.g. emergency spare wheel).

Otherwise, consult an authorised


“Adjust tyre pressure”

A wheel B is shown, depending on the

vehicle, in orange or white accompa-

nied by the warning light 4


and the message “Adjust tyre pres-

sure”. They indicate that a wheel is de-


Check and, if necessary, readjust the

pressures of the four wheels when cold.

The warning light 4

 goes off after

a few minutes’ driving.


Tyre repair product and

inflation kit

Because the valves are specially desi-

gned, only use equipment approved by

the approved network. Please refer to

“Tyre inflation kit” in Section 5.

Replacing wheels/tyres

This system requires specific equip-

ment (wheels, tyres, hubcaps, etc.).

Please see the information on “Tyres”

in Section 5.
Contact an Approved Dealer to replace

the tyres and to find out about acces-

sories compatible with the system and

available from your dealer network: the

use of any other accessory could affect

the correct operation of the system.

Emergency spare wheel

If the vehicle is equipped with an emer- -

gency spare wheel, it will not have a




Changing a wheel

The system may take seve-

ral minutes depending on

use for the new wheel po-

sitions and pressures to be recogni-

sed; check the tyre pressures after

all operations.

This function is an additio-

nal driving aid.

However, the function is

not intended to replace the

driver. It cannot, therefore, under

any circumstances replace the vi-

gilance or the responsibility of the

driver. Check the tyre pressures, in-

cluding the emergency spare wheel,

once a month.

“Tyres location in progress”
This message “Tyres location in pro-

gress” appears when driving if one or

more wheels have been fitted with sen-

sors not recognised by Renault.
Consult an approved dealer

Readjustment of tyre


The tyre pressures should be ad-

justed when cold (please refer to the

label located on the edge of the driver’s

door). If the tyre pressures cannot be

checked when the tyres are cold, the

recommended pressures should be in-

creased by 0.2 to 0.3 bar (3 PSI).

Never deflate a hot tyre.








Content   ..  6  7  8  9   ..
