Peugeot 2008 (2016 year). Instruction - part 8





111

5

Driving

2008_en_Chap05_conduite_ed01-2016

In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.

In the event of a malfunction of
the system, when reverse gear
is engaged this warning lamp

is displayed in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
workshop.

Operating fault

The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by PEUGEOT).

Front parking sensors*

In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than 3 seconds
in forward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).

* Available only with the Park Assist system.

The sound emitted by the speaker (front or
rear) indicates whether the obstacle is in front
or behind.

Deactivation / Activation of the
front and rear parking sensors

The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.

112

Driving

2008_en_Chap05_conduite_ed01-2016

Reversing camera

Opening the tailgate causes the display
to disappear.

The reversing camera is activated automatically
when reverse gear is engaged.
Depending on version, the image is displayed
in the touch screen or the instrument panel.

High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens.

The superimposed representation of guide
lines helps with the manoeuvre.
They are represented by lines marked "on
the ground" and do not allow the position of
the vehicle to be determined relative to tall
obstacles (for example: other vehicles, ...).

The reversing camera cannot in any
circumstances be a substitute for
vigilance on the part of the driver.

The reversing camera function may be
completed with parking sensors.

The blue lines represent the general direction
of the vehicle (the difference corresponds to
the width of your vehicle without the mirrors).
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
bumper.
The green lines represent distances of about 1
and 2 metres beyond the edge of your vehicle's
rear bumper.
The turquoise blue curves represent the
maximum turning circle.

Clean the reversing camera regularly using a
soft, dry cloth.

Some deformation of the image is
normal.
It is normal to be able to see part of
the number plate at the bottom of the
screen.

113

5

Driving

2008_en_Chap05_conduite_ed01-2016

Park Assist

The system detects a parking space and then provides assistance with the parallel parking manoeuvres.
It controls the steering and provides visual and audible information to the driver.
The driver manages the accelerator, brakes, gears and the clutch in the case of a manual gearbox.

The Park Assist system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
The driver must remain in control of
their vehicle ensuring that the space
remains clear during the manoeuvre.
In some circumstances, the sensors
may not detect small obstacles located
in their blind spots.

Changing tyre sizes (out-size tyres,
winter tyres, ...) can interfere with
the correct operation of the parking
assistance system.

During a manoeuvre the steering wheel
turns quickly: do not hold the steering
wheel, do not place your hand between
the spokes of the steering wheel and
take care with loose and bulky clothing,
scarves, handbags... There is a risk of
injury.

For entry into a parking space (parallel
parking) the system does not detect
spaces which are clearly much smaller
or larger than the size of the vehicle.
This "parking assistance" system
is activated automatically during
manoeuvres; it is therefore possible
that a symbol comes on in the screen,
accompanied by an audible signal,
without affecting the manoeuvre.

The system provides assistance in entering and
exiting a parking space when parallel parking.

The driver can take back control of the steering
at any time by grasping the wheel.

The selection of the type of manoeuvre
(entering or exiting a parallel parking
space) prevents a change to STOP
mode of Stop & Start.
In STOP mode, this selection restarts
the engine.

114

Driving

2008_en_Chap05_conduite_ed01-2016

Entering a parallel parking space

F  Position your vehicle before this space.

To activate the Park Assist system:

F  Operate the direction indicator on the

parking side.

F  Move forwards alongside the parking

space at a speed below 12 mph (20 km/h)
to measure it, keeping at a distance of
between 0.5 and 1.5 metres from the row of
parked vehicles.

Once measurement is complete, if the space is
large enough a message indicates that parking
is possible.

F  Move your vehicle forward until a new

message is displayed.

F  Select reverse and release the steering

wheel.

F  Press this control to activate the system.
The indicator lamp in the control remains off.

A message is displayed in the screen.
F  Select the enter parking space manoeuvre.


The indicator lamp in the control comes on.

F  When you have identified a free space,

reduce the speed of the vehicle to a
maximum of 12 mph (20 km/h).

115

5

Driving

2008_en_Chap05_conduite_ed01-2016

The assisted parking manoeuvre is in progress.
Without exceeding 5 mph (8 km/h), continue
the manoeuvres following the information given
by the "parking assistance" system, until the
end of manoeuvre message is displayed.
The indicator lamp in the control goes off,
accompanied by a audible signal.

Exit from a parallel parking space

With the vehicle stationary, to activate the Park
Assist system:

F  When you want to exit from a parallel

parking space, start the engine.

The assisted exit from parking manoeuvre is in
progress.
Without exceeding 5 mph (8 km/h), continue the
manoeuvres following the information given by
the "parking assistance" system, until the end of
manoeuvre message is displayed.
The manoeuvre is complete once the front wheels
of the vehicle are out of the parking space.
The indicator lamp in the control goes off,
accompanied by a audible signal.

F  Press this control.
The indicator lamp in the control remains off.

A message is displayed in the screen.

F  Select the exit parking space manoeuvre.


The indicator lamp in the control comes on.

F  Operate the direction indicator on the exit

from parking side.



The direction indicator warning lamp
flashes in the instrument panel throughout
the manoeuvre, whatever the position of
the stalk.

F  Select a forward or reverse gear then

release the steering wheel.

The driver takes back control of the vehicle's
steering.

The driver takes back control of the vehicle's
steering.

116

Driving

2008_en_Chap05_conduite_ed01-2016

In bad weather and in winter, ensure
that the sensors are not covered by
road dirt, ice or snow.
In the event of a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.

If the system is deactivated during a
manoeuvre, the drive should reactivate
it manually to repeat the measurement.

If the lateral distance between your vehicle
and the space is too great, the system may
not be able to measure the space.
Anything projecting beyond the envelope
of the vehicle (long or wide load) is not
taken into account by the Park Assist
system during a manoeuvre.

Deactivation

A message is displayed in the screen.

The driver then takes back control of the
vehicle's steering.

The system is deactivated automatically:

on switching off the ignition,

if the engine stalls,

if no manoeuvre is started within 5 minutes
of selection of the type of manoeuvre,

after a prolonged stop of the vehicle during
a manoeuvre,

if the road wheel anti-spin regulation (ASR)
is triggered,

if the speed of the vehicle exceeds the
stated limit,

when the driver interrupts movement of the
steering wheel,

if the driver presses the Park Assist
control,

if correct positioning of the vehicle is not
possible (too many manoeuvres needed to
insert or extract the vehicle),

if the driver's door is open,

if one of the front wheels encounters an
obstacle.

Switching off

The system is switched off automatically:

when towing a trailer,

if the driver's door is opened,

if the speed of the vehicle is above 42 mph
(70 km/h).

To switch the system of for a prolonged period,
contact a PEUGEOT dealer or a qualified
workshop.

Operating faults

In the event of a fault with the system,
this warning lamp is displayed in the

instrument panel and/or a message appears in the
screen, accompanied by an audible signal (short beep).
The indicator lamp in the control flashes for a few
seconds. If the problem occurs while using the system,
the indicator lamp goes off.

In the event of a fault with
the power steering, these
warning lamps come on in
the instrument panel.

Contact a PEUGEOT dealer or a qualified
workshop.

117

6

Visibility

2008_en_Chap06_visibilite_ed01-2016

Lighting

Main lighting

The vehicle has various exterior lamps:

sidelamps, to be seen,

dipped beam headlamps to see without
dazzling other drivers,

main beam headlamps to see clearly when
the road is clear.

Additional lighting

Other lamps are fitted to meet particular driving
conditions:

a rear foglamp to better signal the
presence of the vehicle in foggy conditions,

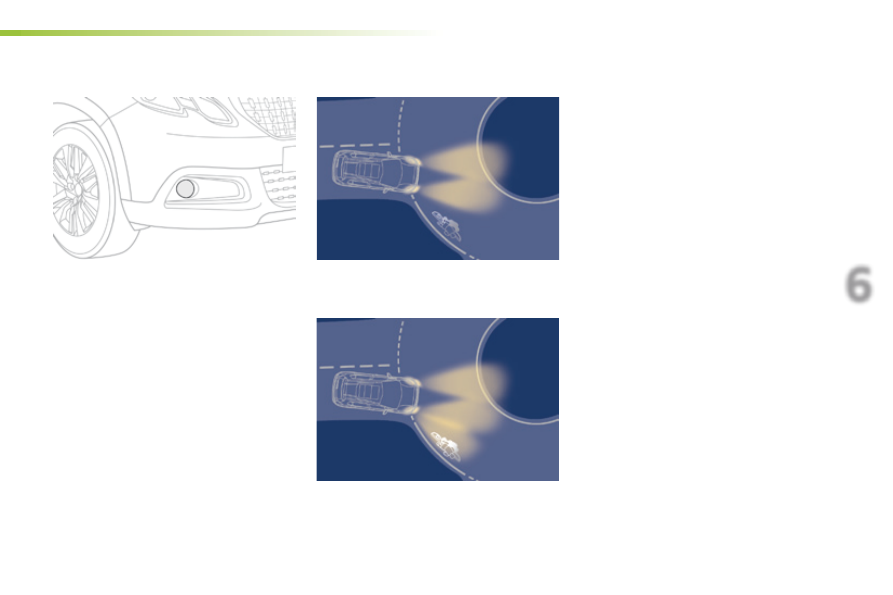

front foglamps with cornering lighting,

daytime running lamps to be seen during
the day,

guide-me-home and welcome lighting for
leaving and entering the vehicle.

Automatic lighting
functions

Various automatic lighting functions are also
available depending on options:

guide-me-home lighting,

cornering lighting,

welcome lighting,

daytime running lamps,

automatic illumination of headlamps.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

118

Visibility

2008_en_Chap06_visibilite_ed01-2016

Model without AUTO lighting

Model with AUTO lighting

Selection ring for main lighting
mode

Turn the ring to align the desired symbol with
the marking.

Lighting off (ignition off) / Front daytime
running lamps (engine running).

Automatic illumination of headlamps.

Sidelamps only.

Dipped or main beam headlamps.

Dipping the headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.

Display

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.

119

6

Visibility

2008_en_Chap06_visibilite_ed01-2016

Foglamps selection ring

The foglamps operate with dipped and main beam headlamps.

Front foglamps and rear
foglamp

When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F  Turn the ring rearwards to switch off

the foglamps, the sidelamps will then
switch off.

Rotate and release the ring:
F  forwards a first time to switch on the front

foglamps,

F  forwards a second time to switch on the

rear foglamp,

F  rearwards a first time to switch off the rear

foglamp,

F  rearwards a second time to switch off the

front foglamps.

Rear foglamp only

F  To switch it on, turn the ring forwards.
When the lighting is switched off automatically
(with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
F  To switch it off, turn the ring rearwards.

120

Visibility

2008_en_Chap06_visibilite_ed01-2016

In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.

Switching on the lamps
after the ignition is
switched off

To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of 30 minutes to
avoid discharging the battery.

Switching off the lamps
when the ignition is
switched off

On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.

121

6

Visibility

2008_en_Chap06_visibilite_ed01-2016

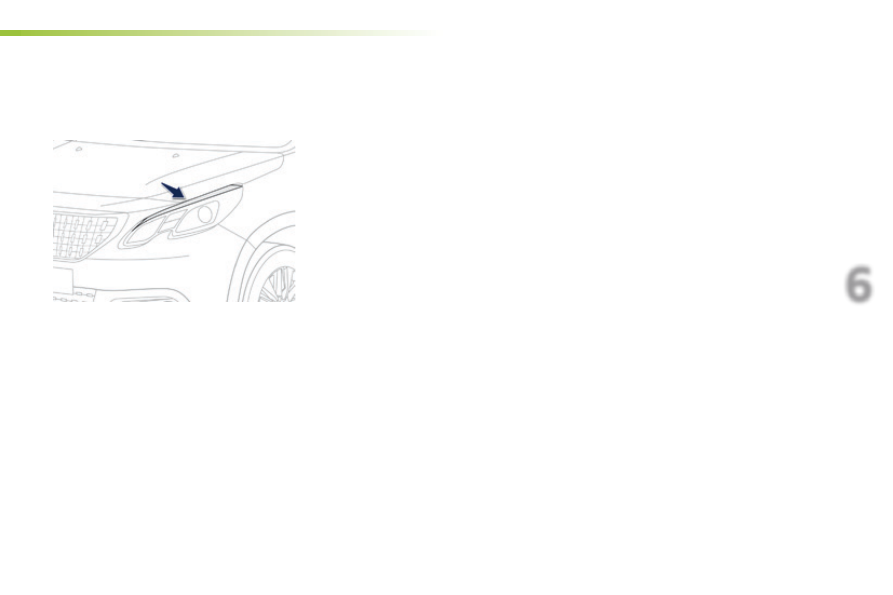

Daytime running lamps

Daytime lighting, compulsory in certain
countries, which comes on automatically when
the engine is started making the vehicle more
visible to other users.

LED lamps

They come on when the engine is started.
Depending on the country of sale, they are
used for:

daytime running lamps* in day mode and
sidelamps in night mode (they are brighter
when daytime running lamps),

or

sidelamps in day and night mode.

*  Function that can be set in the vehicle

configuration menu.

This function is assured:

in countries where it is imposed by
regulations,



by illumination of the dipped beam
headlamps with the sidelamps and number
plate lamps; this function cannot be
deactivated.

for other countries where it is provided,



by the use of dedicated lamps (LEDs); this
function can be activated or deactivated via
the vehicle configuration menu.

The lighting control stalk must be placed in
the "0" or "AUTO" (day mode) position.
Deactivation of the daytime running lamps is
effective after operation of the lighting control
stalk or after the next engine start; activation is
effective immediately.

The instruments and controls (instrument
panel, touch screen, air conditioning control
panel, ...) are not illuminated, except in night
mode with manual or automatic illumination of
headlamps.

122

Visibility

2008_en_Chap06_visibilite_ed01-2016

Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.

Manual guide-me-home
lighting

On

F  With the ignition off, "flash" the headlamps

using the lighting stalk.

F  A further "headlamp flash" switches the

function off.

Off

The manual guide-me-home lighting switches
off automatically after a set time.

Parking lamps

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F  Within one minute of switching off the

ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).

Manual guide-me-home lighting
is also available from the remote
control lighting button (refer to the
corresponding section).

This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.

123

6

Visibility

2008_en_Chap06_visibilite_ed01-2016

The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of
external light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.

Automatic illumination of headlamps

Switching on

F  Turn the ring to the "AUTO" position.

Activation of the function is accompanied
by a message in the screen.

Switching off

F  Turn the ring to another position.

Deactivation of the function is
accompanied by a message in the screen.

Automatic guide-me-home
lighting

Association with the automatic lighting provides
the guide-me-home lighting with the following
additional options:

selection of the lighting duration of 15, 30
or 60 seconds,

automatic activation of guide-me-home
lighting when the automatic illumination of
headlamps is in operation.

Operating fault

In the event of a fault with the
sunshine sensor, the lighting
comes on, this warning lamp

is displayed in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.

In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.

Programming

Settings for the guide-me-home lighting can be
adjusted in the touch screen.

Press the MENU button for access to
the different menus.

Select the "Driving" menu.

Display the secondary page.

Select "Vehicle settings".

Select the "Lighting" tab.

Modify the settings for the "Guide-
me-home lighting
" function.

124

Visibility

2008_en_Chap06_visibilite_ed01-2016

Headlamp adjustment

To avoid causing a nuisance to other road
users, the headlamp beams should be adjusted
according to the load in the vehicle.
0.  1 or 2 people in the front seats.
-

Intermediate setting

1.  5 people.
-.

5 people + maximum authorised load.

2.  Driver + maximum authorised load.

The initial setting is position "0".

Travelling abroad

If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a
qualified workshop.

125

6

Visibility

2008_en_Chap06_visibilite_ed01-2016

With dipped or main beams, this function
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres...).

Cornering lighting

with cornering lighting

without cornering lighting

Switching on

This function starts:

when the corresponding direction indicator
is switched on,

or

from a certain angle of rotation of the
steering wheel.

Switching off

The system does not operate:

below a certain angle of rotation of the
steering wheel,

above 25 mph (40 km/h),

when reverse gear is engaged.

126

Visibility

2008_en_Chap06_visibilite_ed01-2016

Windscreen wash

Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
wipers, operate for a pre-determined time.

Wiper controls

Programming

Various automatic wiper control modes are also
available according to the following options:

automatic rain sensitive windscreen wipers,

rear wiping on engaging reverse gear.

Manual controls

The wipers are controlled directly by the
driver.

The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.

Windscreen wipers

Wiping speed:

Model without AUTO wiping

Model with AUTO wiping

Fast (heavy rain).

Normal (moderate rain).

Intermittent (proportional to the
speed of the vehicle).

Park.

Single wipe (press down and
release).

Automatic (press down and
release).
Single wipe (pull the stalk
briefly towards you).















Content   ..  6  7  8  9   ..
