Peugeot 2008 (2016 year). Instruction - part 3





1

31

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Oil level

Low oil level

F  Identify the engine oil filler cap.
F  Open the filler cap.
F  Add engine oil with exceeding mark A.
F  Fit the filler cap.

Dipstick

For more information on the underbonnet
and the engine oil dipstick, refer to the
corresponding section.
There are 2 marks on the dipstick:

A = max; never exceed this
level,

B = min; top up the level via
the oil filler cap, using the
grade of oil suited to your
engine.

Checking

F  Open the bonnet and secure it with the

stay.

F  Pull the dipstick out and wipe it with a clean

cloth.

F  Return the dipstick to its tube and then pull

it out again to check the level against the
mark.

F  Return the dipstick to its tube.

Advice

Take care when working under the
bonnet, as some parts of the engine
can be very hot (risk of burns) and the
cooling fan can start at any time (even
with the ignition switched off).
If a level is found to be very low, have
the corresponding system checked
by a PEUGEOT dealer or a qualified
workshop.
A check of the engine oil level is only
valid if the vehicle is on level ground
and the engine has been off for at least
30 minutes.
Oil grade: the oil used must meet
the specification given in the
manufacturer's servicing and warranty
booklet.

32

Monitoring

Electronic oil level indicator

The check is done for a few seconds after
switching on the ignition, with a message in the
display or screen (depending on version).
It is only valid if the vehicle is on level ground
and the engine has been off for at least
30 minutes.

It is normal to top-up the engine oil
level between services (or oil changes).
PEUGEOT recommends that you check
the oil level and top-up if necessary,
every 3 000 miles (5 000 km).

Fault

This is indicated by the flashing of "OIL_ _" or
by the display of a dedicated message in the
instrument panel. Contact a PEUGEOT dealer
or a qualified workshop.

Level correct

Level incorrect

This is indicated by the flashing of "OIL" or
by the display of a dedicated message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.

1

33

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Coolant temperature
gauge

With the engine running, when the needle is:

in zone A, the temperature is correct,

in zone B, the temperature is too high;
the maximum temperature and the
central STOP warning lamps come on,
accompanied by an audible signal and a
warning message in the screen.

You MUST stop as soon as it is safe to
do so.
Wait a few minutes before switching off the
engine.
Contact a PEUGEOT dealer or a qualified
workshop.

After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
F  wait for the engine to cool,
F  unscrew the cap slightly to allow the

pressure to drop,

F  when the pressure has dropped, remove

the cap,

F  top up the level to the "MAX" mark.

Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).

34

Monitoring

Touch screen

For reasons of safety, the driver
should only carry out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.

It gives access to:

menus for adjusting settings for vehicle
functions and systems,

audio and display configuration menus,

audio system and telephone controls and
the display of associated information.

And, depending on equipment, it allows:

the display of alert messages and the
visual parking sensors information,

access to the controls for the navigation
system and Internet services, and the
display of associated information.

General operation

Recommendations

It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.

State of indicator lamps

Some buttons contain an indicator lamp that
gives the state of the corresponding function.
Green indicator: you have switched on the
corresponding function.
Orange indicator: you have switched off the
corresponding function.

Principles

Press the "MENU" button for access to the
different menus, then press the virtual buttons
in the touch screen.
Each menu is displayed over one or two pages
(primary page and secondary page).

Use this button to go to the
secondary page.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

Use this button to return to the
primary page.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

Use this button to quit.

1

35

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Menus

Press this button for access to the
different menus.

Navigation
Depending on trim level, navigation
can be not available, an option or
standard.
See the "Audio equipment and
telematics" section.

Radio Media
See the "Audio equipment and telematics" section.

Settings
Allows configuration of the display
and the system.
Gives access to interactive help
for the vehicle's main systems and
warning lamps.

Connected services
These services can be not available,
an option or standard.
See the "Audio equipment and
telematics" section.

Telephone
See the "Audio equipment and telematics" section.

Driving
Allows access to the trip computer and,
depending on version, the adjustment
of settings for certain functions.
See the corresponding section.

1.  Volume / mute.
See the "Audio equipment and telematics" section.

36

Monitoring

"Settings" menu

The functions available through this menu are detailed in the table below.

Button

Corresponding function

Comments

Audio settings

Adjustment of volume, balance...

Turn off screen

Turns the screen off.

Color schemes

Choice of a color scheme.

Interactive help

Access to the interactive user guide.

System Settings

Choice of units:

temperature (°Celsius or °Fahrenheit)

distance and fuel consumption (l/100 km, mpg or km/l).

Time/Date

Setting the date and time.

Languages

Choice of language used.

Screen settings

Adjustment of the screen (brightness) and display settings (scrolling of text, animations...)

Calculator

Calendar

1

37

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

"Driving" menu

The functions accessible from this menu are detailed in the table below.

Button

Corresponding function

Comments

Vehicle settings

The functions with settings that can be adjusted are grouped together under these tabs:
- "Driving assistance"

●  "Automatic rear wiper in reverse" (Activation of rear wiper coupled to reverse gear; see

the corresponding section)

- "Lighting"

●  "Guide-me-home lighting" (Automatic guide me home lighting; see the corresponding

section),

●  "LED daytime running lamps" (see the corresponding section),
●  "Mood lighting" (Interior mood lighting; see the corresponding section).

Select or deselect the tabs at the bottom of the screen to display the functions required.

Speed settings

Memorisation of speeds for use with the speed limiter or cruise control.

Under-inflation initialisation

Initialisation of the under-inflation detection system.

38

Monitoring

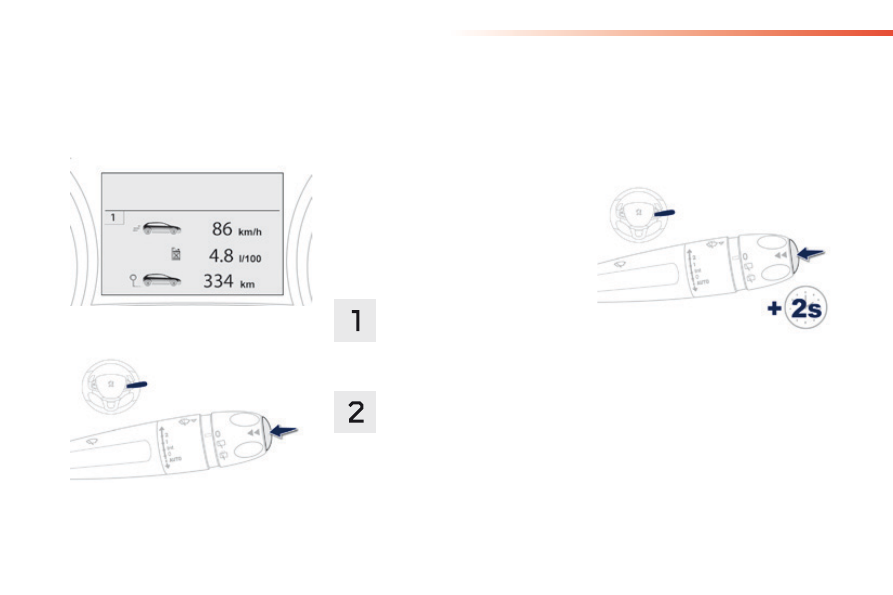

System that gives you information on the current journey (range, fuel consumption…).

Trip computer

Instrument panel

Information display

F  Press the button on the end of the wiper

control stalk to display the various tabs in
succession.

The current information tab with:
●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

- Trip

"1" with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the first trip.

- Trip

"2" with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the second trip.

Trip reset

F  When the trip required is displayed, press

the control for more than two seconds
or use the left hand thumb wheel of the
steering mounted controls.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

1

39

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Touch screen

The current fuel consumption tab
with:
●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

The trip "1" tab with:
●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the first trip.

The trip "2" tab with:
●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the second trip.

F  Press the MENU button for

access to the different menus.

F  Select the "Driving" menu to

display the various tabs.

F  Select the desired tab using your finger.

Information display

Trip reset

F  When the desired trip is

displayed, press the reset
button.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

40

Monitoring

Stop & Start time
counter

(minutes / seconds or hours /
minutes)

If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop.

This function is only displayed from
20 mph (30 km/h).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

Trip computer

Range

(miles or km)
The distance which can still be
travelled with the fuel remaining
in the tank (related to the
average fuel consumption over
the last few miles (kilometres)
travelled).

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Current fuel consumption

(mpg or l/100 km or km/l)
Calculated over the last few seconds.

Average fuel consumption

(mpg or l/100 km or km/l)
Calculated since the last trip reset.

Average speed

(mph or km/h)
Calculated since the last trip reset.

Distance travelled

(miles or km)
Calculated since the last trip
reset.

If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.

A few definitions

1

41

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

System that measures the distance travelled
(daily, for example) since it was last reset by
the driver.

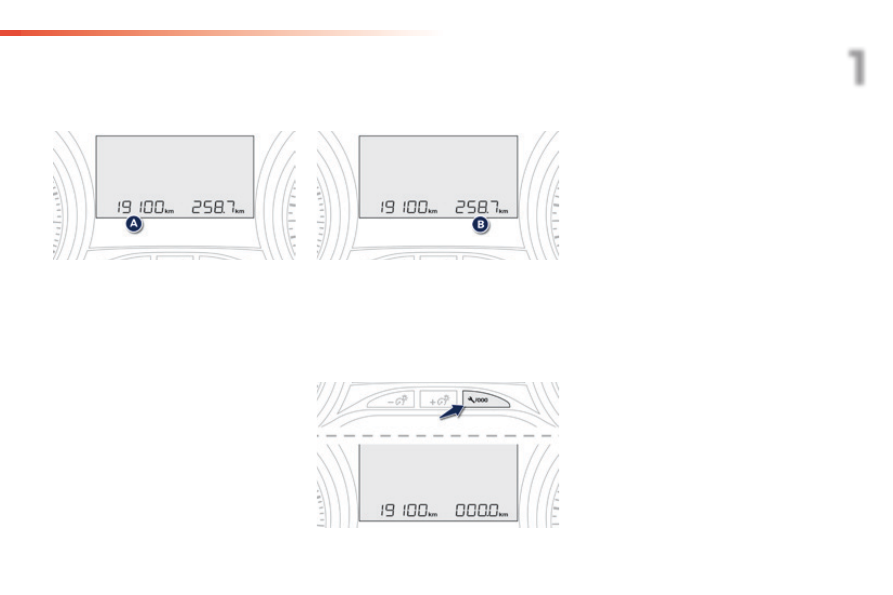

The trip recorder is displayed in zone B of the
instrument panel screen.

Trip recorder

System that measures the total distance
travelled by the vehicle during its life.
The total distance is displayed in zone A of the
instrument panel screen.

Distance recorders

Odometer

Resetting the trip
recorder

With the trip mileage displayed, press this
button for a few seconds.

42

Monitoring

Instrument panel

F  Each press of this button moves between

the following settings:
- hours,
- minutes,
-  12 or 24 hour format.

Setting the date and time

Press the MENU button for access to
the different menus.

Select "Adjust time" or "Adjust date".

Modify the setting using the virtual
keypad then press on "Confirm".

Touch screen

Select the "Settings" menu.

Press on "Confirm" to save the
modifications and quit the menu.

Display the secondary page.

In the secondary page select "Time/
Date
".

43

2

Access

2008_en_Chap02_ouvertures_ed01-2016

System for the central unlocking or locking
of the vehicle using the door lock or from a
distance.
It is also used to locate and start the vehicle, as
well as providing protection against theft.

Remote control key

Unlocking the vehicle

F  Turn the key in the driver's door lock

towards the front of the vehicle to unlock it.

Using the remote control

F  Press the open padlock to unlock

the vehicle.

Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately 2 seconds.
According to version, the door mirrors
unfold at the same time.
Unlocking with the key does not
deactivate the alarm.

F  Press this button to unfold the key.

A.  Unfolding / Folding.
B. Unlocking.


Disarming the alarm.

C. Locking.


Locating the vehicle.



Arming the alarm.

D.  Guide-me-home lighting.

Unfolding the key

Using the key

44

Access

2008_en_Chap02_ouvertures_ed01-2016

Locking is confirmed by fixed
lighting of the direction indicators for
approximately 2 seconds.
According to version, the door mirrors
fold at the same time.

As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.

Locking the vehicle

Using the remote control

F  Press the closed padlock to lock

the vehicle.

F  Turn the key in the driver's door lock

towards the rear to lock the vehicle.

Maintaining the locking action (key or remote
control) automatically closes the windows.

If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
itself again automatically after about
30 seconds unless a door is opened.

When the key is in the ignition switch,
its locking/unlocking functions are
deactivated.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.

Using the key

45

2

Access

2008_en_Chap02_ouvertures_ed01-2016

Folding the key

F  A press switches on the vehicle's

lighting and flashes the direction
indicators for a few seconds to
help you locate your vehicle in a
car park.

Locating your vehicle

If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

The original key contains a coded electronic
chip. When the ignition is switched on, starting
is only possible if the code is detected and
recognised.
This protection against theft locks the engine
management system a few moments after the
ignition is switched off and prevents starting of
the engine following a break-in.

Guide-me-home
lighting

Make a long press on this button to
operate the guide-me-home lighting
(switching on the sidelamps, dipped
beams and number plate lamps).

A second press before the end of the timed
period cancels the guide-me-home lighting.

Electronic engine immobiliser

In the event of a fault, you are
informed by illumination of the
warning lamp, an audible signal and
the display of a message.

In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.

Keep away from your vehicle, the
label attached to the keys given to you
on acquisition of the vehicle. It will
help in finding the original code for
replacement of the key.

F  Press this button before folding the key.

Advice

46

Access

2008_en_Chap02_ouvertures_ed01-2016

Changing the battery

Battery ref.: CR1620 / 3 volts.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Remote control problem

Reinitialisation

F  Switch off the ignition.
F  Turn the key to position 2 (Ignition).
F  Press the closed padlock immediately for a

few seconds.

F  Switch off the ignition and remove the key

from the ignition switch.

The remote control is fully operational again.

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F  First of all, use the key in the lock to unlock

or lock your vehicle.

F  Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.

If the battery is flat, you are informed
by lighting of this warning lamp in the
instrument panel, an audible signal
and a message in the screen.

F  Unclip the cover using a screwdriver in the

cutout.

F  Remove the cover.
F  Extract the flat battery from its location.
F  Place the new battery into its location

observing the original direction.

F  Clip the cover in place.















Content   ..  1  2  3  4   ..
