Nissan GT-R (2007-2014 year). SEAT BELT. Service Manual





SB-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SB

A

B

SB

N

O

P

CONTENTS

SEAT BELT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ..............................
..

2

Precaution for Battery Service  ..................................

3

Precaution for Seat Belt Service  ...............................

3

REMOVAL AND INSTALLATION ................

4

FRONT SEAT BELT ............................................

4

SEAT BELT RETRACTOR ..........................................

4

SEAT BELT RETRACTOR : Inspection  ....................

4

SEAT BELT RETRACTOR : Exploded View .............

6

SEAT BELT RETRACTOR : Removal and Instal-
lation ........................................................................
..

6

SEAT BELT BUCKLE  .................................................

7

SEAT BELT BUCKLE : Inspection  ............................

7

SEAT BELT BUCKLE : Exploded View  ....................

7

SEAT BELT BUCKLE : Removal and Installation .....

8

REAR SEAT BELT .............................................

9

SEAT BELT RETRACTOR  .........................................

9

SEAT BELT RETRACTOR : Inspection  ...................

9

SEAT BELT RETRACTOR : Exploded View  ...........

11

SEAT BELT RETRACTOR : Removal and Instal-
lation ........................................................................

11

SEAT BELT BUCKLE ................................................

11

SEAT BELT BUCKLE : Inspection  ..........................

11

SEAT BELT BUCKLE : Exploded View  ...................

12

SEAT BELT BUCKLE : Removal and Installation ....

12

LATCH SYSTEM FOR CHILDREN ...................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

TOP TETHER STRAP CHILD RESTRAINT  .....

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

Revision: 2012 November

2014 GT-R

SB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009160068

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions Necessary for Steering Wheel Rotation After Battery Disconnection

INFOID:0000000009160069

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition switch to the LOCK position,

then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Revision: 2012 November

2014 GT-R

PRECAUTIONS

SB-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Battery Service

INFOID:0000000009160070

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Precaution for Seat Belt Service

INFOID:0000000009160071

CAUTION:

• Before removing the front seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect

the battery negative terminal and wait at 3 minutes or more.

• Never use electrical test equipment for front seat belt pre-tensioner connector.
• After replacing or reinstalling front seat belt pre-tensioner assembly, or reconnecting front seat belt

pre-tensioner connector, check the system function. Refer to

SRC-8, "Diagnosis Description"

.

• Never use disassembled buckle or seat belt assembly.
• Replace anchor bolts if they are deformed or worn out.
• Never oil tongue and buckle.
• If any component of seat belt assembly is questionable, never repair. Replace the entire seat belt

assembly.

• If webbing is cut, frayed or damaged, replace seat belt assembly.
• When replacing seat belt assembly, use a Genuine NISSAN seat belt assembly.

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioners
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The front seat belt pre-tensioner must be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

Revision: 2012 November

2014 GT-R

SB-4

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

REMOVAL AND INSTALLATION

FRONT SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000009160072

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. If not
to do so could result in serious personal injury in an accident. Seat belt assemblies not in use during
a collision should also be replaced if either damage or improper operation was noted. Seat belt pre-
tensioners should be replaced even if the seat belts were not in use during a frontal collision in which
the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp for proper operation as per the following:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate.

b.

Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2.

If the air bag warning lamp is blinking, perform self-diagnosis with CONSULT and air bag warning lamp.
Refer to

SRC-8, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4.

Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Check that guide
swivels freely and that webbing lays flat and does not bind in guide. Check that height adjuster operates
properly and holds securely.

5.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of the upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

Inspect the front seat belt through-anchor

1.

Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2.

Fix the seat belt at the center pillar webbing opening with a clip or other device.

3.

Pass a thin wire through the through-anchor webbing opening. Hold both ends of the wire and pull it
tightly while moving it up and down several times along the webbing opening surface to remove dirt
stuck there.

4.

Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean
cloth.

5.

Apply tape at the point where the webbing contacts the through-anchor webbing opening.
NOTE:
Apply the tape so that there is no slack or wrinkling.

6.

Remove the clip fixing the seat belt and check that the webbing returns smoothly.

6.

Repeat steps above if necessary to check the other seat belts.

Revision: 2012 November

2014 GT-R

FRONT SEAT BELT

SB-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.

1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the front seat belt retractor. Refer to

SB-6, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.
• The webbing can be pulled out when the angle (A) is 15

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

PHIA0954J

Revision: 2012 November

2014 GT-R

SB-6

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000009160073

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009160074

REMOVAL

CAUTION:

Before removal or installation, always turn the ignition switch OFF and disconnect the battery nega-
tive terminal, then wait for at 3 minutes or more.

1.

Remove the kicking plate inner and the rear side finisher. Refer to

INT-15, "Removal and Installation"

2.

Remove the outer anchor.
• Remove the outer anchor cover.
• Remove the outer anchor mounting anchor bolt.

3.

Remove the shoulder anchor.
• Remove the shoulder anchor cover.
• Remove the shoulder anchor mounting anchor bolt.

4.

Remove the rear pillar finisher. Refer to

INT-15, "Removal and Installation"

5.

Remove the seat belt pre-tensioner retractor.

1.

Anchor bolt

2.

Seat belt pre-tensioner retractor

3.

Seat belt pre-tensioner connector

4.

Plastic washer

5.

Shoulder anchor

6.

Spacer

7.

Seat belt extension

8.

Retaining washer

9.

Sholder anchor bracket

10. Anchor cover

11.

Outer anchor

12. Spring washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0733GB

Revision: 2012 November

2014 GT-R

FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

• Disconnect the seat belt pre-tensioner connector.

CAUTION:

• To disconnect or connect the seat belt pre-tensioner

connector, insert a screwdriver wrapped with tape into
the cutout, and raise the lock to disconnect the connec-
tor.

• Connect the connector while raising the lock, and push

the lock into the connector.

• After installing the connector, check that the lock is

pushed securely into it.

• Remove the seat belt pre-tensioner retractor mounting anchor bolt and screw.

6.

Remove the shoulder anchor bracket.
Remove the shoulder anchor bracket mounting bolts.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009160075

Post-accident inspection

After a collision, check all parts of the installed seat belt assembly (including the retractor). Then, check the
installed seat belt portion for damage or deformation. When a collision occurs, damage/deformation is
detected, or operation is not normal, NISSAN recommends replacement of seat belt assembly. If replacement
is not performed, serious personal injury may occur.
If the following conditions occur, replace the seat belt:
• When the seat belt is damaged
• When the installed seat belt portion is damaged (before installing a new seat belt, check the installed portion

for damage or deformation)

• When an air bag is deployed in an accident whether it is used or not (only for models with seat belt pre-ten-

sioner)

• When the seat belt does not operate normally

Preliminary check

1.

Using the seat belt warning lamp, check that the seat belt buckle switch works normally.
When the ignition switch is turned ON with the seat belt not in use, the seat belt warning lamp turns ON.
When the seat belt is fastened, the seat belt warning lamp turns OFF.

2.

Check that anchor bolts on the seat belt retractor and buckle are securely tightened.

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009160076

PHIA0953J

NNHIA0047GB

Revision: 2012 November

2014 GT-R

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009160077

REMOVAL

1.

Remove the front seat from the vehicle. Refer to

SE-49, "Removal and Installation"

2.

Remove the seat belt buckle.
• Remove the seat cushion inner finisher. Refer to

SE-50, "Disassembly and Assembly"

• Disconnect the seat belt buckle switch connector and remove the harness clamp.
• Remove the seat belt buckle mounting anchor bolt.

INSTALLATION

Install in the reverse order of removal.

1.

Seat belt buckle switch connector

2.

Anchor bolt

3.

Wave washer

4.

Plain washer

5.

Seat belt buckle

6.

Spacer

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

Revision: 2012 November

2014 GT-R

REAR SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000009160078

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. If not
to do so could result in serious personal injury in an accident. Seat belt assemblies not in use during
a collision should also be replaced if either damage or improper operation was noted. Seat belt pre-
tensioners should be replaced even if the seat belts were not in use during a frontal collision in which
the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

3.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

Revision: 2012 November

2014 GT-R

SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.
1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the rear seat belt retractor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.
• The webbing can be pulled out when the angle (A) is 15

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

PHIA0962J

Revision: 2012 November

2014 GT-R

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000009160079

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009160080

REMOVAL

1.

Remove the inner anchor.
• Remove rear seat cushion. Refer to

SE-56, "Removal and Installation"

• Remove the inner anchor mounting anchor bolts.

2.

Remove the seat belt retractor.
• Remove rear seatback. Refer to

SE-56, "Removal and Installation"

• Remove the kicking plate inners (LH/RH), rear side finishers (LH/RH), and rear pillar finishers (LH/RH).

Refer to

INT-15, "Removal and Installation"

• Remove rear parcel shelf. Refer to

INT-19, "Removal and Installation"

• Remove the rear seat belt escutcheon from the rear parcel shelf.
• Remove the insulator.
• Remove the mounting anchor bolts, and then remove the seat belt retractor.
• Remove the retractor cover.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009160081

Post-accident inspection

After a collision, check all parts of the installed seat belt assembly (including the retractor). Then, check the
installed seat belt portion for damage or deformation. When a collision occurs, damage/deformation is

1.

Insulator

2.

Anchor bolt

3.

Seat belt retractor

4.

Retractor cover

5.

Seat belt buckle

6.

Inner anchor

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNHIA0048GB

Revision: 2012 November

2014 GT-R

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

detected, or operation is not normal, NISSAN recommends replacement of seat belt assembly. If replacement
is not performed, serious personal injury may occur.
If the following conditions occur, replace the seat belt:
• When the seat belt is damaged
• When the installed seat belt portion is damaged (before installing a new seat belt, check the installed portion

for damage or deformation)

• When the seat belt does not operate normally

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009160082

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009160083

REMOVAL

Remove the seat belt buckle.
• Remove rear seat cushion. Refer to

SE-56, "Removal and Installation"

• Remove the seat belt buckle mounting anchor bolts.

INSTALLATION

Install in the reverse order of removal.

1.

Insulator

2.

Anchor bolt

3.

Seat belt retractor

4.

Retractor cover

5.

Seat belt buckle

6.

Inner anchor

7.

Retaining washer

Refer to

GI-4, "Components"

 for symbols in the figure.

NNHIA0048GB

Revision: 2012 November

2014 GT-R

LATCH SYSTEM FOR CHILDREN

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

Exploded View

INFOID:0000000009160084

Removal and Installation

INFOID:0000000009160085

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.

1.

Remove the rear seat cushion. Refer to

SE-56, "Removal and Installation"

.

2.

Remove the mounting anchor bolts, and then remove LATCH (Lower Anchor and Tether for Children) sys-
tem.

INSTALLATION

Install in the reverse order of removal.

1.

LATCH system

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0734GB

Revision: 2012 November

2014 GT-R

SB-14

< REMOVAL AND INSTALLATION >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

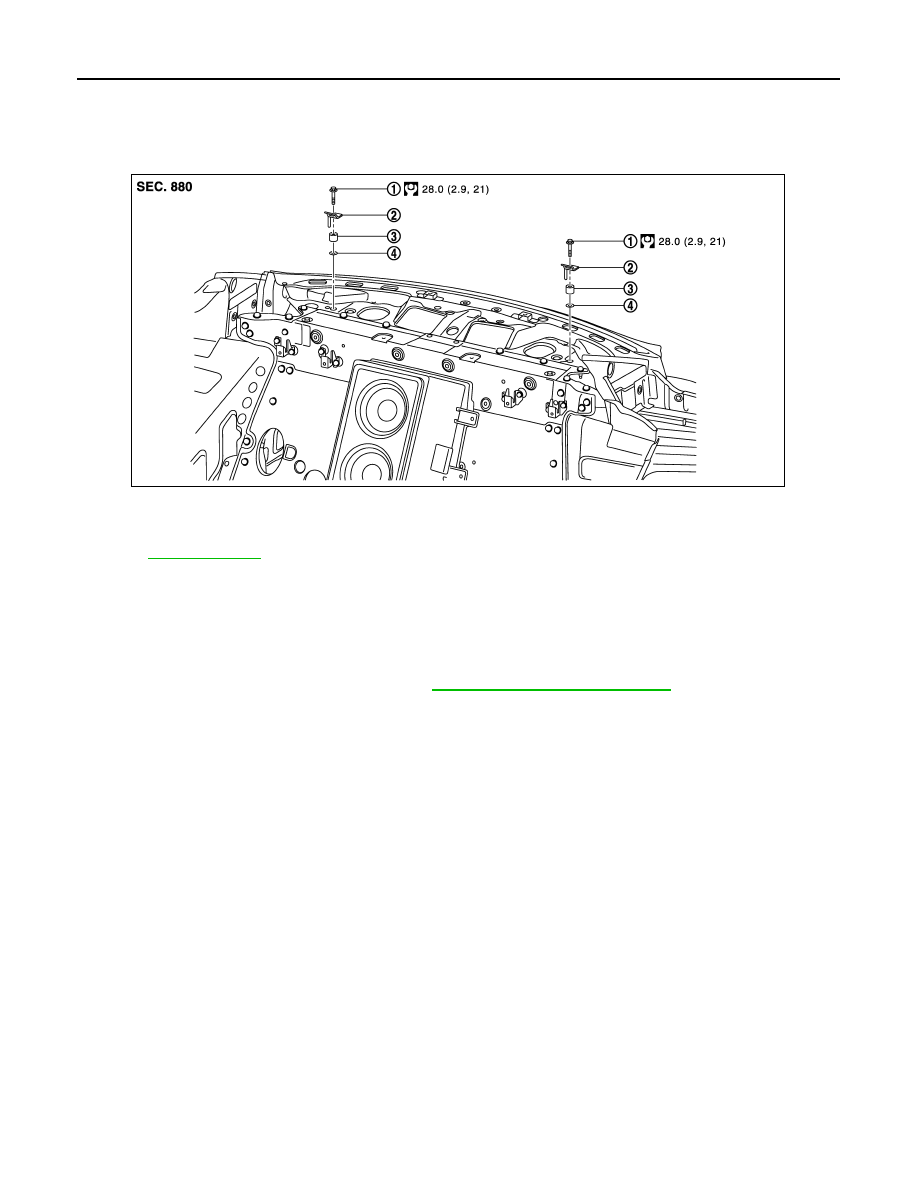

Exploded View

INFOID:0000000009160086

Removal and Installation

INFOID:0000000009160087

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.
1.

Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

2.

Remove the mounting anchor bolts, and then remove the top tether strap child restraint.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Anchor plate

3.

Spacer

4.

Fiber washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0735GB

Revision: 2012 November

2014 GT-R



















///////////////////////////////////////
