Nissan GT-R (2007-2014 year). REAR SUSPENSION. Service Manual

RSU-1

SUSPENSION

SECTION

RSU

RSU

CONTENTS

REAR SUSPENSION

SYMPTOM DIAGNOSIS ...............................

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .............................

NVH Troubleshooting Chart ......................................

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Working Range at a Regular Deal-
ership ........................................................................

Aluminum Die-Casting Parts Handling ......................

General Precautions .................................................

PERIODIC MAINTENANCE ..........................

REAR SUSPENSION ASSEMBLY .....................

Inspection ..................................................................

WHEEL ALIGNMENT ..........................................

Inspection ..................................................................

Adjustment ................................................................

REMOVAL AND INSTALLATION ................

REAR COIL SPRING AND SHOCK ABSORB-
ER ........................................................................

Exploded View ..........................................................

Disposal ....................................................................

SUSPENSION ARM ............................................

Exploded View ..........................................................

RADIUS ROD .....................................................

Exploded View ..........................................................

FRONT LOWER LINK .......................................

Exploded View .........................................................

REAR LOWER LINK .........................................

Exploded View .........................................................

REAR STABILIZER ..........................................

Exploded View .........................................................

UNIT REMOVAL AND INSTALLATION ......

REAR SUSPENSION MEMBER .......................

Exploded View .........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

EXCEPT TRACK PACK-SPECIFIC SUSPENSION ....

EXCEPT TRACK PACK-SPECIFIC SUSPEN-
SION : Wheel Alignment ..........................................

TRACK PACK-SPECIFIC SUSPENSION .................

TRACK PACK-SPECIFIC SUSPENSION : Wheel
Alignment .................................................................

Revision: 2012 November

2014 GT-R

RSU-2

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009163924

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference

rk i

rec

rfo

rme

-R ce

rti

fie

d NIS

SAN d

eal

rk i

rec

rfo

rme

-R ce

rti

fie

d NIS

SAN d

eal

—

rk i

rec

rfo

rme

-R ce

rti

fie

d NIS

SAN d

eal

rk i

rec

rfo

rme

-R ce

rti

fie

d NIS

SAN d

eal

rk i

rec

rfo

rme

-R ce

rti

fie

d NIS

SAN d

eal

NVH in DLN

section.

NVH in DLN

section.

NVH

RAX and RSU sections.

NVH in WT

section.

NVH in WT

section.

NVH in RAX

section.

NVH in BR

section.

NVH in ST

section.

Possible cause and SUSPECTED PARTS

pro

r i

lat

ion

k ab

rbe

r de

rma

tio

or d

ion

g o

ora

Part

s interference

tig

Inc

rre

whe

l al

ign

ent

iliz

er bar fat

igu

PROP

ELLER SHAFT

DIFFERENTIAL

REAR AXLE AND REA

SUSPENSION

TIRE

ROAD WHEEL

IVE SHAF

BRAKE

STEERING

Symptom

REAR SUSPENSION

Noise

Shake

Vibration

Shimmy

Judder

Poor quality ride or
handling

Revision: 2012 November

2014 GT-R

PRECAUTIONS

RSU-3

< PRECAUTION >

RSU

PRECAUTION

PRECAUTIONS

Precaution for Working Range at a Regular Dealership

INFOID:0000000009180202

CAUTION:

The service items unmentioned on this manual are recommended to be performed by a GT-R certified
NISSAN dealer. Because those service items require special equipment and a GT-R certified technical
staff who completed special training.

Aluminum Die-Casting Parts Handling

INFOID:0000000009163925

PROHIBITION OF WELDING OR BEATING REPAIR

• Material made of aluminum die-casting parts is heat-treated and looses strength when being exposed to

welding heat. Do not perform welding repair for cracks, damage or others.

• For aluminum die-casting parts deformation, do not perform repair by beating. Always repair by replacement

as an assembly.

CRACK CHECK

When the vehicle is damaged, always perform a visual deformation check and a crack check.

Crack Check Procedures

For a crack check, use dye penetrant inspection fluid (pre-cleaning fluid, penetrant fluid and developer fluid).

CAUTION:

Always perform a crack check in accordance with the procedures specified by the manufacturer of the
dye penetrant inspection fluid.
1.

Spray pre-cleaning fluid on the checking surface for cleaning.

Spray penetrant fluid on the checking surface and wait until the penetrant fluid soaks into any cracks.

Wipe off excessive penetrant fluid, and then also lightly wipe off penetrant fluid using a wet cloth.

Spray developer fluid on the checking surface.

Cracks, if any, are dyed red in color.

STRAY CURRENT CORROSION

• Corrosion occurs to aluminum die-casting parts by the stray current corrosion phenomenon, when directly

contacting other parts made of steel. Always apply anti-stray current corrosion paint (primer) on the mount-
ing surface.

• Clean mounting surface to prevent any foreign matter, steel powder or others from being mixed in. Always

apply the specified adhesive when installing.

• Corrosion by stray current corrosion may occur when installing with any other bolts than the specified bolt.

Always use the specified bolt that is surface treated.

• When loosening the specified bolt that is tightened, the treated surface may peel. Never reuse the specified

bolt that is tightened once.

TIGHTENING TORQUE CONTROL

Material made of aluminum die-casting parts is soft in term of hardness. Tightening torque must be controlled
exactly as specified. Always use a torque wrench to install any part to the specified tightening torque.

WARNING:

Never use a power tool to remove or tighten bolts for aluminum die-casting part to prevent damage to
aluminum die-casting parts.

General Precautions

INFOID:0000000009163926

CAUTION:

After finishing servicing, check that all the tools and waste are stored in a customary place.

Revision: 2012 November

2014 GT-R

RSU-4

< PERIODIC MAINTENANCE >

REAR SUSPENSION ASSEMBLY

PERIODIC MAINTENANCE

REAR SUSPENSION ASSEMBLY

Inspection

INFOID:0000000009163930

MOUNTING INSPECTION

Check the mounting conditions (looseness, backlash) of each component and component conditions (wear,
damage) are normal.

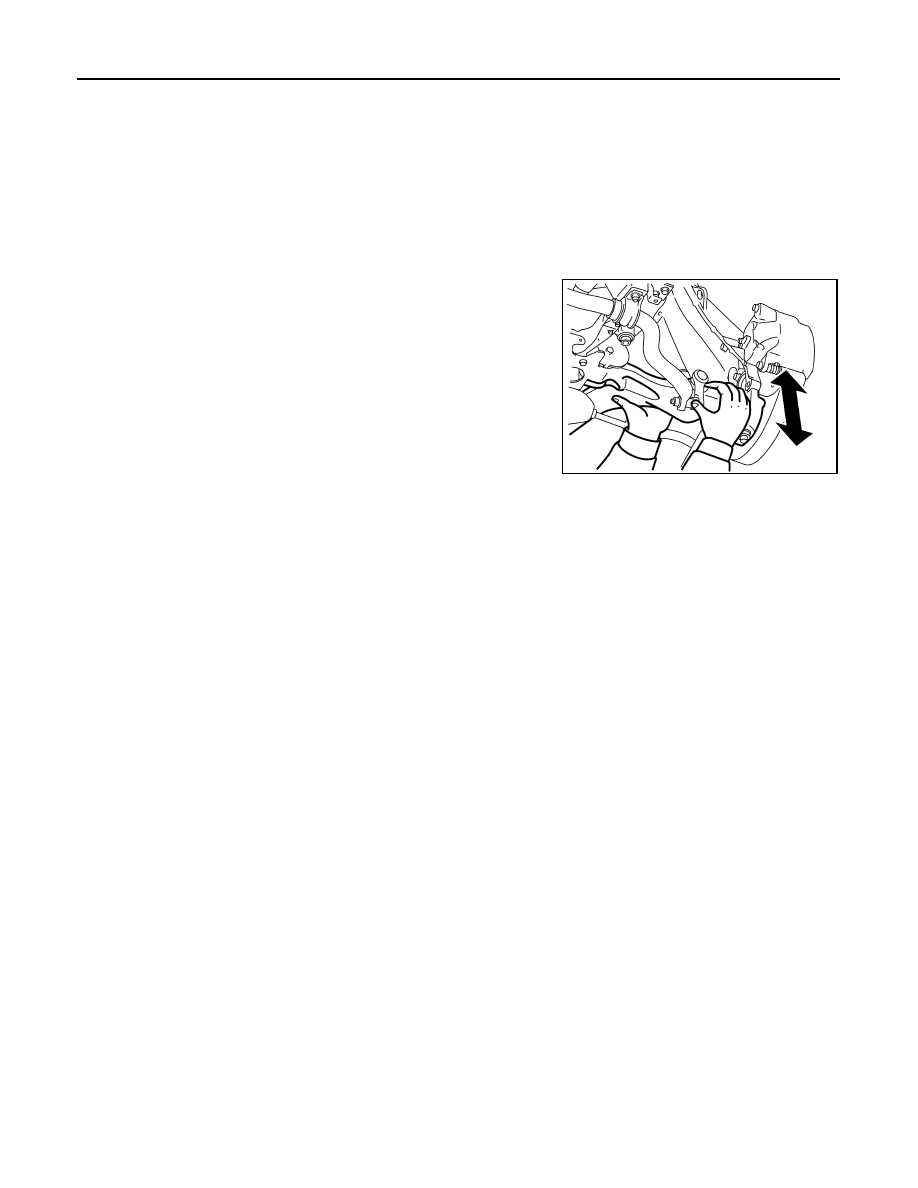

Ball Joint Axial End Play

Move axle side of suspension arm in the axial direction by hand.
Check there is no end play.

CAUTION:

• Never depress brake pedal when measuring.
• Never perform with tires on level ground.
• Be careful not to damage ball joint boot. Never damage the

installation position by applying excessive force.

SHOCK ABSORBER

Check for oil leakage and damage. Replace it if necessary.

Axial end play

: 0 mm (0 in)

JSEIA0444ZZ

Revision: 2012 November

2014 GT-R

WHEEL ALIGNMENT

RSU-5

< PERIODIC MAINTENANCE >

RSU

WHEEL ALIGNMENT

Inspection

INFOID:0000000009163931

DESCRIPTION

Measure wheel alignment under unladen conditions.
NOTE:
“Unladen conditions” means that fuel, engine coolant, and lubricant are full. Jack, hand tools and mats are in
designated positions.

PRELIMINARY CHECK

Check the following:
• Tires for improper pressure and wear.
• Wheel bearing axial end play. Refer to

RAX-4, "Inspection"

• Ball joint axial end play of suspension arm.
• Shock absorber operation.
• Each mounting point of axle and suspension for looseness and deformation.
• Each of front lower link, rear lower link, radius rod, rear suspension member, suspension arm and shock

absorber for cracks, deformation, and other damage.

• Vehicle height (posture).

GENERAL INFORMATION AND RECOMMENDATIONS

• A four-wheel thrust alignment should be performed.
- This type of alignment is recommended for any NISSAN/INFINITI vehicle.
- The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is

centered.

- The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.
- The rack should be checked to ensure that it is level.
• Make sure the machine is properly calibrated.
- Your alignment equipment should be regularly calibrated in order to give correct information.
- Check with the manufacturer of your specific equipment for their recommended Service/Calibration Sched-

ule.

ALIGNMENT PROCESS

IMPORTANT:
Use only the alignment specifications listed in this Service Manual.
• When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or

minus, Go/No Go). Do not use these indicators.

- The alignment specifications programmed into your machine that operate these indicators may not be cor-

rect.

- This may result in an ERROR.
• See instructions in the alignment machine.

Adjustment

INFOID:0000000009163932

CAUTION:

• This work is recommended to be performed by GT-R certified NISSAN dealer.
• Adjust wheel alignment with the vehicle in customer's regular use condition (e.g. normal stock

items), with the fuel in full-tank condition, and with no one in the vehicle.

• To adjust wheel alignment, set tire pressure at 250 kPa (2.5 kg/cm

, 36 psi). After adjusting wheel

alignment, adjust tire pressure to the specified value. Refer to

WT-13, "Tire"

TOE-IN

Remove rear diffuser. Refer to

EXT-41, "REAR DIFFUSER : Exploded View"

Revision: 2012 November

2014 GT-R

RSU-6

< PERIODIC MAINTENANCE >

WHEEL ALIGNMENT

Adjust using the adjust bolt (2) of rear lower link (1).

CAUTION:

• Always evenly adjust both toe-in alternately and adjust

the difference between the left and right to the standard.

• Always hold the adjust bolt firmly when tightening nut.
• Always adjust to toe-in. The toe changes, depending on an attitude change or a permanent set of

bush. Accordingly, the state of the front wheels change to toe-out and the rear wheels, toe-in. If
the wheels change to toe-out, tire partial wear is accelerated and local heating may be acceler-
ated in the inner side of tires.

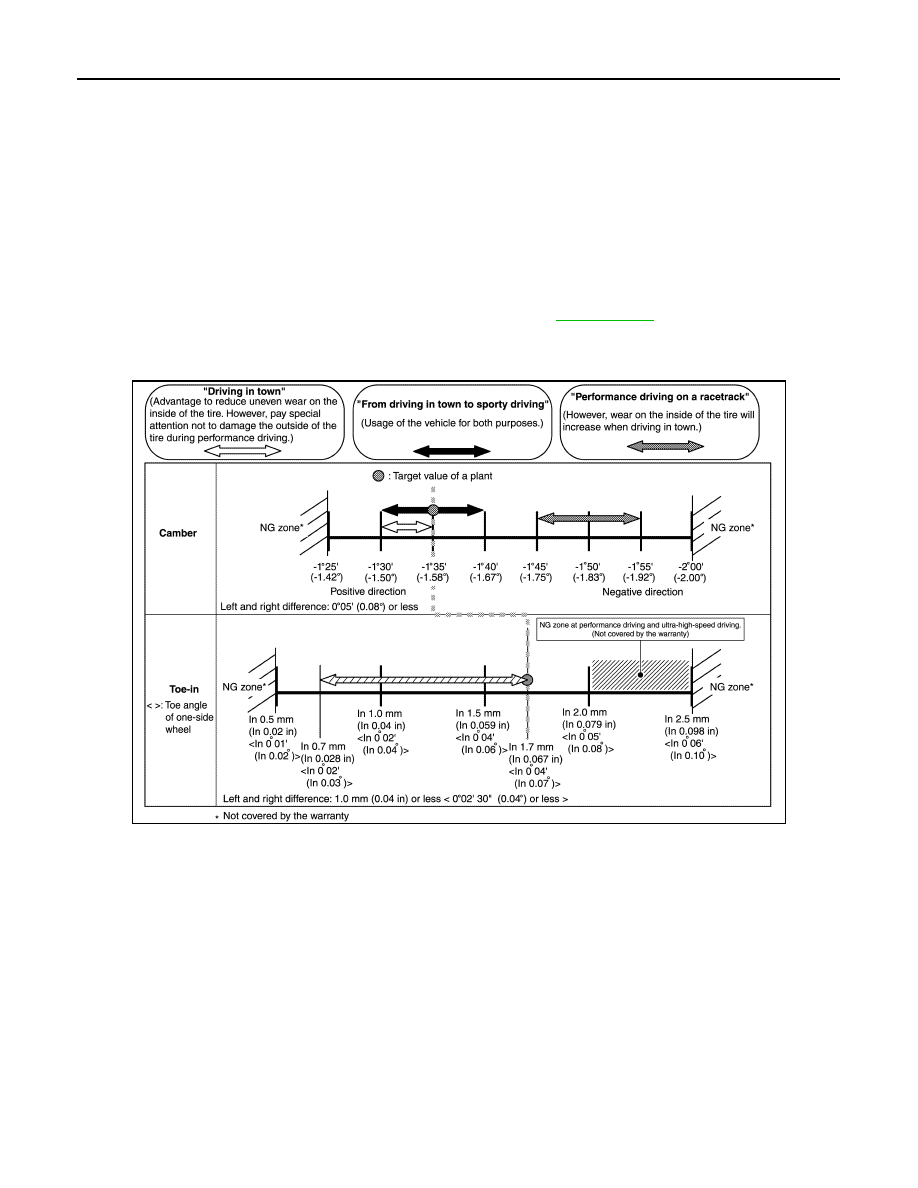

• Engaging in performance driving on a racetrack and ultra-high-speed driving, be sure to adjust

toe-in to 2.0 mm (0.079 in) or less. If used beyond this range, it is not covered by the warranty.

CAMBER

Remove rear diffuser. Refer to

EXT-41, "REAR DIFFUSER : Exploded View"

Adjust using the adjust bolt (2) of front lower link (1).

CAUTION:

• Always hold the adjust bolt firmly when tightening nut.
• Always check toe-in after adjusting camber.

Toe-in

: Refer to

RSU-14, "EXCEPT TRACK PACK-

SPECIFIC SUSPENSION : Wheel Align-
ment"

(Except track pack-specific suspen-

sion),

RSU-15, "TRACK PACK-SPECIFIC

SUSPENSION : Wheel Alignment"

(Track

pack-specific suspension).

NNEIB0011ZZ

Camber

: Refer to

RSU-14, "EXCEPT TRACK PACK-

SPECIFIC SUSPENSION : Wheel Alignment"

(Except track pack-specific suspension),

RSU-15, "TRACK PACK-SPECIFIC SUSPEN-
SION : Wheel Alignment"

(Track pack-spe-

cific suspension).

NNEIB0004ZZ

Revision: 2012 November

2014 GT-R

REAR COIL SPRING AND SHOCK ABSORBER

RSU-7

< REMOVAL AND INSTALLATION >

RSU

REMOVAL AND INSTALLATION

REAR COIL SPRING AND SHOCK ABSORBER

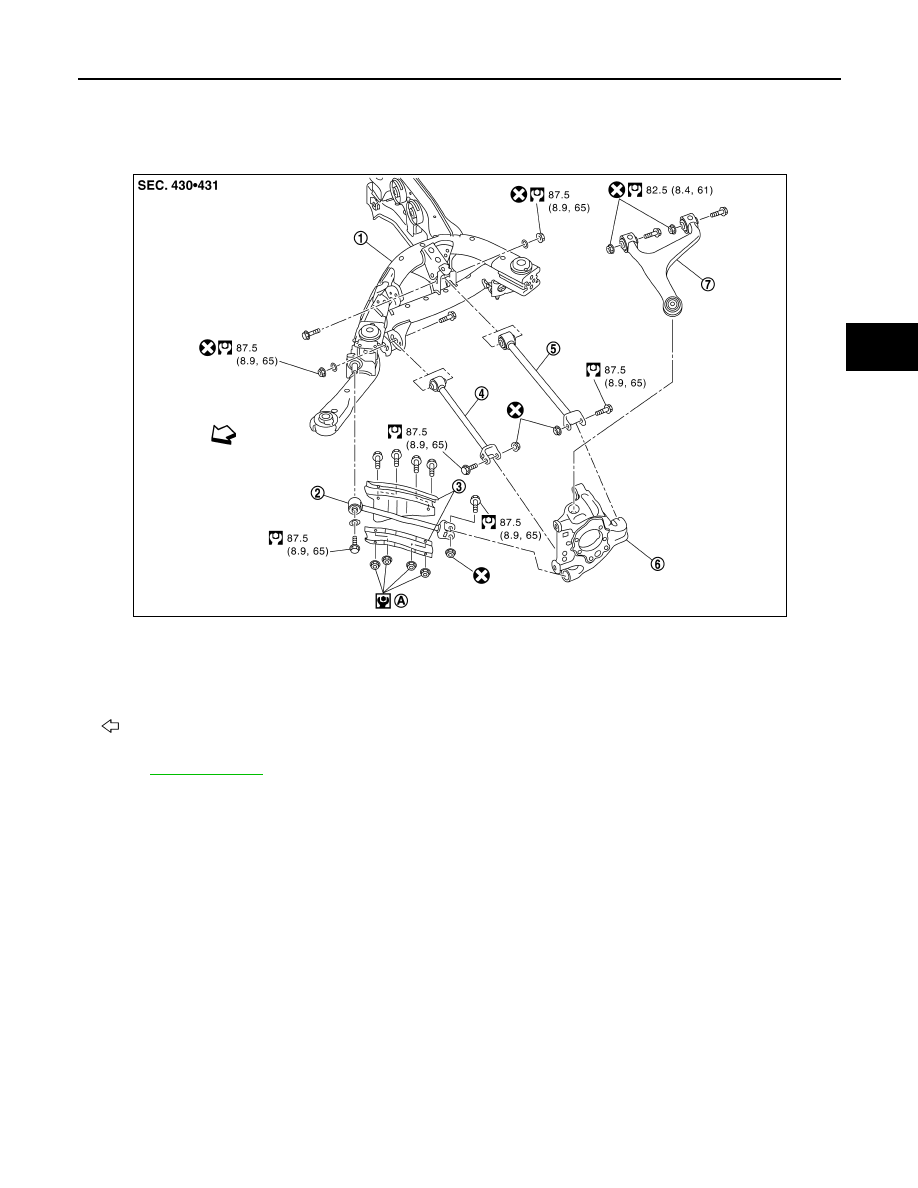

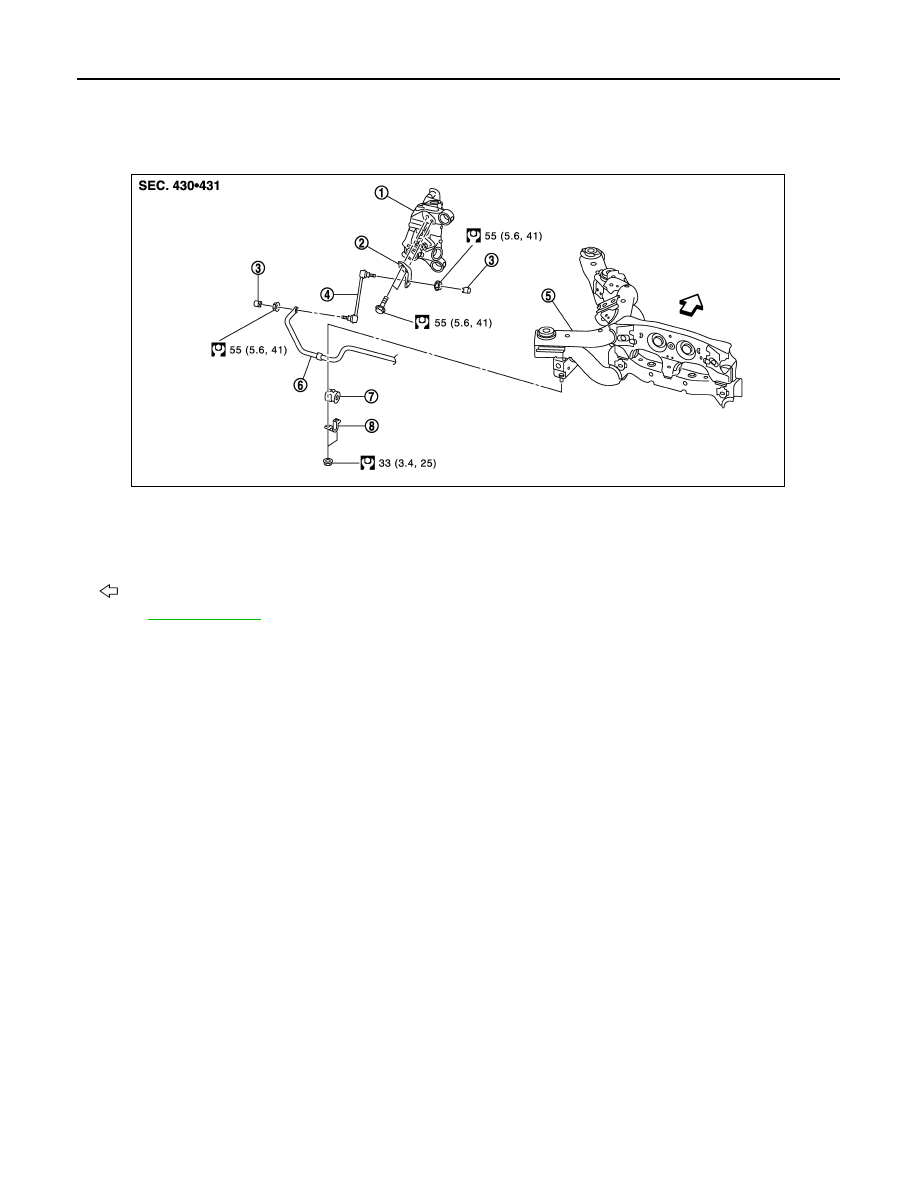

Exploded View

INFOID:0000000009163933

Disposal

INFOID:0000000009163937

Set shock absorber horizontally with the piston rod fully extended.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction (

• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

Cap

Piston rod lock nut

Vehicle body

Mounting seal

Mount insulator

Rubber seat

Bound bumper

Coil spring*

Shock absorber

*: To replace, all of four coil springs must be replaced together as a set. (Vehicles with track pack-specific suspension)

Refer to

GI-4, "Components"

for the symbols in the figure.

JPEIB0126GB

: 20 – 30 mm (0.79 – 1.18 in)

NNEIB0021ZZ

Revision: 2012 November

2014 GT-R

RSU-8

< REMOVAL AND INSTALLATION >

SUSPENSION ARM

SUSPENSION ARM

Exploded View

INFOID:0000000009163938

Rear suspension member

Radius rod

Brake air guide*

Front lower link

Rear lower link

Axle housing

Suspension arm

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

for the symbols in the figure.

JSEIA0478GB

Revision: 2012 November

2014 GT-R

RADIUS ROD

RSU-9

< REMOVAL AND INSTALLATION >

RSU

RADIUS ROD

Exploded View

INFOID:0000000009163941

Rear suspension member

Radius rod

Brake air guide*

Front lower link

Rear lower link

Axle housing

Suspension arm

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

for the symbols in the figure.

JSEIA0478GB

Revision: 2012 November

2014 GT-R

RSU-10

< REMOVAL AND INSTALLATION >

FRONT LOWER LINK

FRONT LOWER LINK

Exploded View

INFOID:0000000009163944

Rear suspension member

Radius rod

Brake air guide*

Front lower link

Rear lower link

Axle housing

Suspension arm

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

for the symbols in the figure.

JSEIA0478GB

Revision: 2012 November

2014 GT-R

REAR LOWER LINK

RSU-11

< REMOVAL AND INSTALLATION >

RSU

REAR LOWER LINK

Exploded View

INFOID:0000000009163947

Rear suspension member

Radius rod

Brake air guide*

Front lower link

Rear lower link

Axle housing

Suspension arm

Tightening is recommended to be performed by GT-R certified NISSAN dealer.

: Vehicle front

*: With brake air guide

Refer to

GI-4, "Components"

for the symbols in the figure.

JSEIA0478GB

Revision: 2012 November

2014 GT-R

RSU-12

< REMOVAL AND INSTALLATION >

REAR STABILIZER

REAR STABILIZER

Exploded View

INFOID:0000000009163950

Axle housing

Stabilizer connecting rod mounting
bracket

Cap

Stabilizer connecting rod

Rear suspension member

Stabilizer bar

Stabilizer bushing

Stabilizer clamp

: Vehicle front

Refer to

GI-4, "Components"

for the symbols in the figure.

JPEIB0129GB

Revision: 2012 November

2014 GT-R

REAR SUSPENSION MEMBER

RSU-13

< UNIT REMOVAL AND INSTALLATION >

RSU

UNIT REMOVAL AND INSTALLATION

REAR SUSPENSION MEMBER

Exploded View

INFOID:0000000009163953

Rear suspension member

Mount insulator

Transmission assembly

Transmission mount stay

Refer to

GI-4, "Components"

for the symbols in the figure.

NNEIB0002GB

Revision: 2012 November

2014 GT-R

RSU-14

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

EXCEPT TRACK PACK-SPECIFIC SUSPENSION

EXCEPT TRACK PACK-SPECIFIC SUSPENSION : Wheel Alignment

INFOID:0000000009163956

CAUTION:

• This work is recommended to be performed by GT-R certified NISSAN dealer.
• Adjust wheel alignment with the vehicle in customer's regular use condition (e.g. normal stock

items), with the fuel in full-tank condition, and with no one in the vehicle.

• To adjust wheel alignment, set tire pressure at 250 kPa (2.5 kg/cm

, 36 psi). After adjusting wheel

alignment, adjust tire pressure to the specified value. Refer to

WT-13, "Tire"

CAMBER, TOE-IN

Setting guide depending on the customer’s driving

• Adjust wheel alignment to the customer’s driving style.
• Never set to toe-out.
- Always adjust to toe-in. If the wheels change to toe-out, tire partial wear is accelerated and local heating may

be accelerated in the inner side of tires.

- For the above reasons, always adjust to toe-in for the vehicle of a customer who drives on a racetrack.
- Engaging in performance driving on a racetrack and ultra-high-speed driving, be sure to adjust toe-in to 2.0

mm (0.079 in) or less. If used beyond this range, it is not covered by the warranty.

• When driving on a racetrack, recommend to adjust the alignment to the “Performance driving on a racetrack”

setting. If the negative camber angle is insufficient driving on a technical course including many tight turns
may result in wear on the outside of the tire and this can cause an accident. [To avoid uneven wear, servicing
the vehicle after performance driving (at the customer's expense) is recommended to result the alignment to
the original setting.]

• Wheel alignment can be changed in process of time and mileage, as suspension parts do not adjust to each

other up to the mileage of about 1,000 miles or 2,000 km.

• Remarks for up to the mileage of 1,000 miles or 2,000 km
- Toe angle of one-side wheel: See reference value.

TRACK PACK-SPECIFIC SUSPENSION

JSEIA0487GB

Revision: 2012 November

2014 GT-R

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

RSU

TRACK PACK-SPECIFIC SUSPENSION : Wheel Alignment

INFOID:0000000009163957

CAUTION:

• This work is recommended to be performed by GT-R certified NISSAN dealer.
• Adjust wheel alignment with the vehicle in customer's regular use condition (e.g. normal stock

items), with the fuel in full-tank condition, and with no one in the vehicle.

• To adjust wheel alignment, set tire pressure at 250 kPa (2.5 bar, 2.5 bar, 2.5 kg/cm

, 36 psi). After

adjusting wheel alignment, adjust tire pressure to the specified value. Refer to

WT-13, "Tire"

CAMBER, TOE-IN

Setting guide depending on the customer’s driving

be accelerated in the inner side of tires.

mm (0.079 in) or less. If used beyond this range, it is not covered by the warranty.

• Insufficient negative camber during hard cornering on a racetrack may result in tire wear. Therefore, recom-

mend the customer to adjust negative camber angle in the negative direction when driving on a racetrack.
[To avoid uneven wear, recommend the customer to have the camber angle aligned in the positive direction
at an inspection after performance driving (at customer's expense).]

• Wheel alignment can be changed in process of time and mileage, as suspension parts do not adjust to each

other up to the mileage of about 1,000 miles or 2,000 km.

• Remarks for up to the mileage of 1,000 miles or 2,000 km
- Toe angle of one-side wheel: See reference value.
• Each part of the suspension may not conform during a normal driving because of the adoption of a hard rate

coil spring and a high damping shock absorber.

JSEIA0635GB

Revision: 2012 November

2014 GT-R

///////////////////////////////////////
