6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

Replace the tires if the treadwear indica-
tors are showing on a tire.

When to replace your vehicle’s tires

Tires should be replaced if:

The treadwear indicators are showing on

a tire.

You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage.

A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage.

If you are not sure, consult with any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not

obvious.

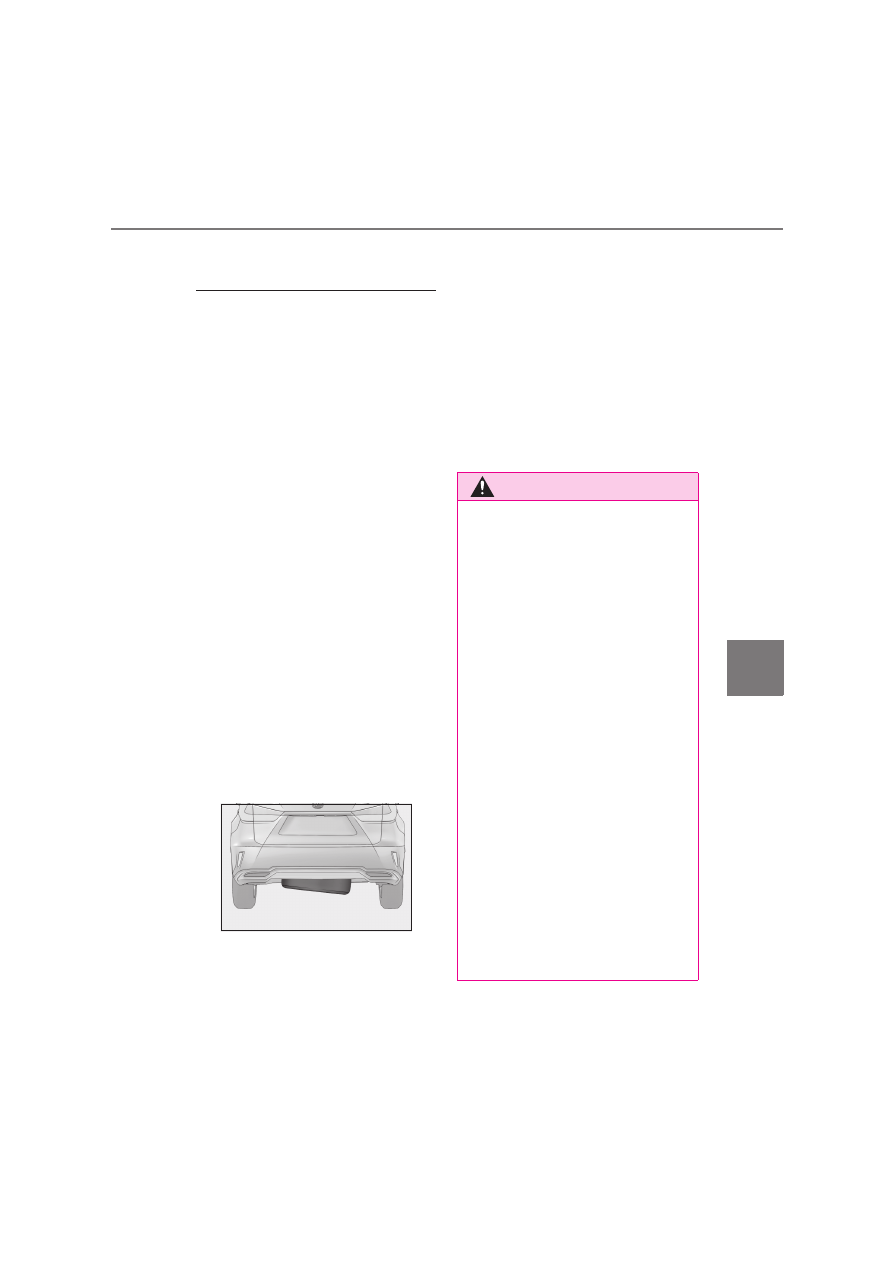

Proper storage of the spare tire

(RX350L)

As an improperly stored spare tire may

cause damage to the wire cable that holds

it, check that the spare tire is stored prop-

erly on a daily basis.

If the stored spare tire appears to be

slanted or rattles while driving, the spare

tire may not be properly stored. Store the

spare tire again by performing the follow-

ing tire change procedure correctly:

1

If the spare tire is slanted, the hoist

assembly may be stuck in the wheel

opening. If the spare tire rattles while

driving, it may not be fully raised. Lower

the spare tire to the ground and make

sure that the hoist assembly is perpen-

dicular to the wheel opening.

2

Raise the tire slowly and steadily until a

click is heard and the jack handle skips.

If the spare tire cannot be lowered, the wire

cable may be severed. Have the vehicle

inspected at any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer.

If the tread on snow tires wears down

below 4 mm (0.16 in.)

The effectiveness of the tires as snow tires is

lost.

WARNING

When inspecting or replacing tires

Observe the following precautions to

prevent accidents.

Failure to do so may cause damage to

parts of the drive train as well as danger-

ous handling characteristics, which may

lead to an accident resulting in death or

serious injury.

Do not mix tires of different makes,

models or tread patterns.

Also, do not mix tires of remarkably

different treadwear.

Do not use tire sizes other than those

recommended by Lexus.

Do not mix differently constructed

tires (radial, bias-belted or bias-ply

tires).

Do not mix summer, all season and

snow tires.

Do not use tires that have been used

on another vehicle.

Do not use tires if you do not know

how they were used previously.

Vehicles with a compact spare tire: Do

not tow if your vehicle has a compact

spare tire installed.

480

6-3. Do-it-yourself maintenance

Vehicles with a compact spare tire
or an emergency puncture repair kit

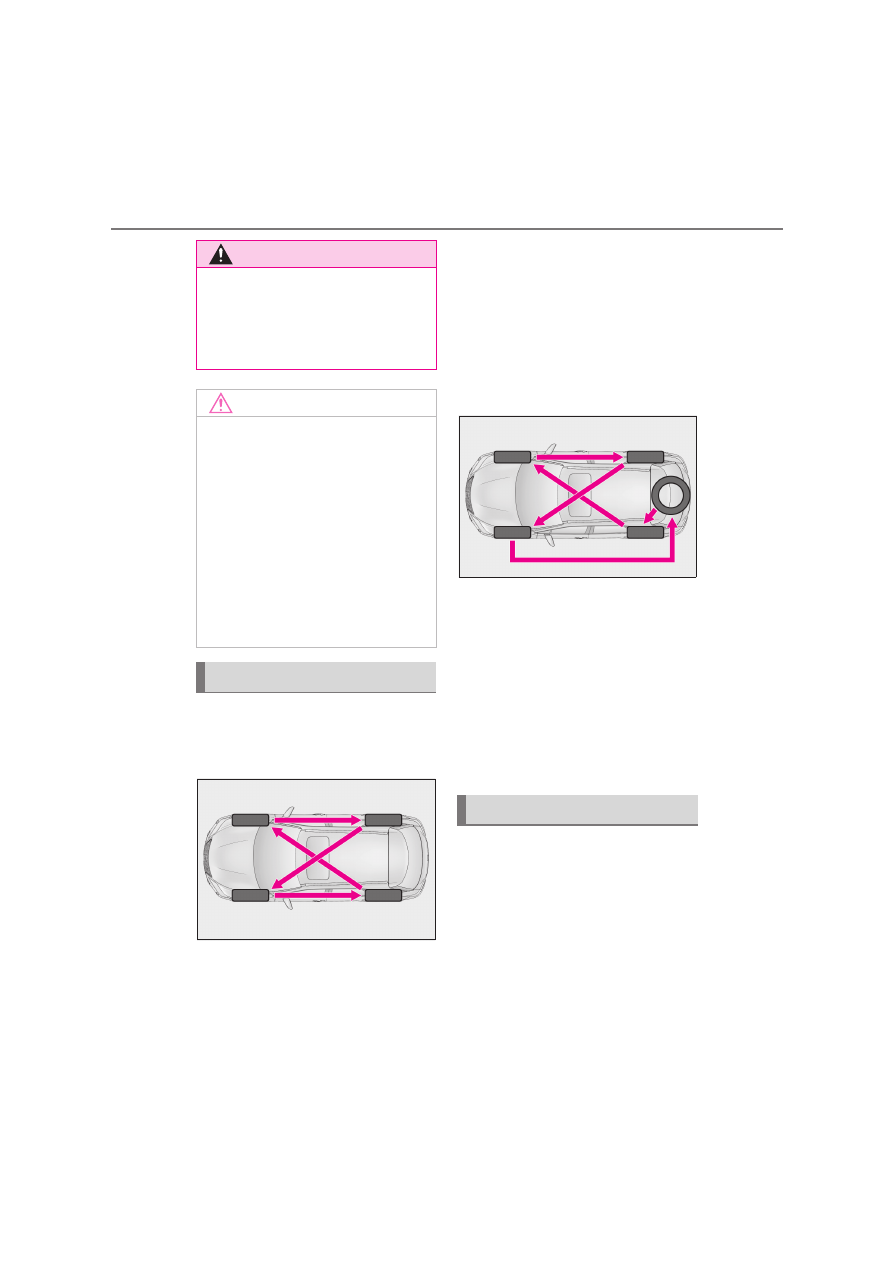

Rotate the tires in the order shown.

To equalize tire wear and help extend tire
life, Lexus recommends that you rotate
your tires approximately at the following
intervals:

2WD models:
Every 10000 km (6000 miles)
AWD models:
Every 5000 km (3000 miles)
Do not fail to initialize the tire pressure
warning system after tire rotation.

Vehicles with a full-size spare tire

Rotate the tires in the order shown.

To equalize tire wear and help extend tire
life, Lexus recommends that you rotate
your tires approximately at the following
intervals:
2WD models:
Every 10000 km (6000 miles)
AWD models:
Every 5000 km (3000 miles)
Do not fail to initialize the tire pressure
warning system after tire rotation.

Your vehicle is equipped with a tire
pressure warning system that uses tire
pressure warning valves and transmit-
ters to detect low tire inflation pressure
before serious problems arise.

The tire pressure detected by the
tire pressure warning system can be
displayed on the multi-information
display. (

P.91)

WARNING

Vehicles with an emergency tire punc-

ture repair kit: Do not tow anything if a

tire that has been repaired using the

emergency tire puncture repair kit is

installed. The load on the tire may

cause unexpected damage to the tire.

NOTICE

Driving on rough roads

Take particular care when driving on

roads with loose surfaces or potholes.

These conditions may cause losses in tire

inflation pressure, reducing the cushion-

ing ability of the tires. In addition, driving

on rough roads may cause damage to

the tires themselves, as well as the vehi-

cle’s wheels and body.

If tire inflation pressure of each tire

becomes low while driving

Do not continue driving, or your tires

and/or wheels may be ruined.

Tire rotation

Tire pressure warning system

481

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

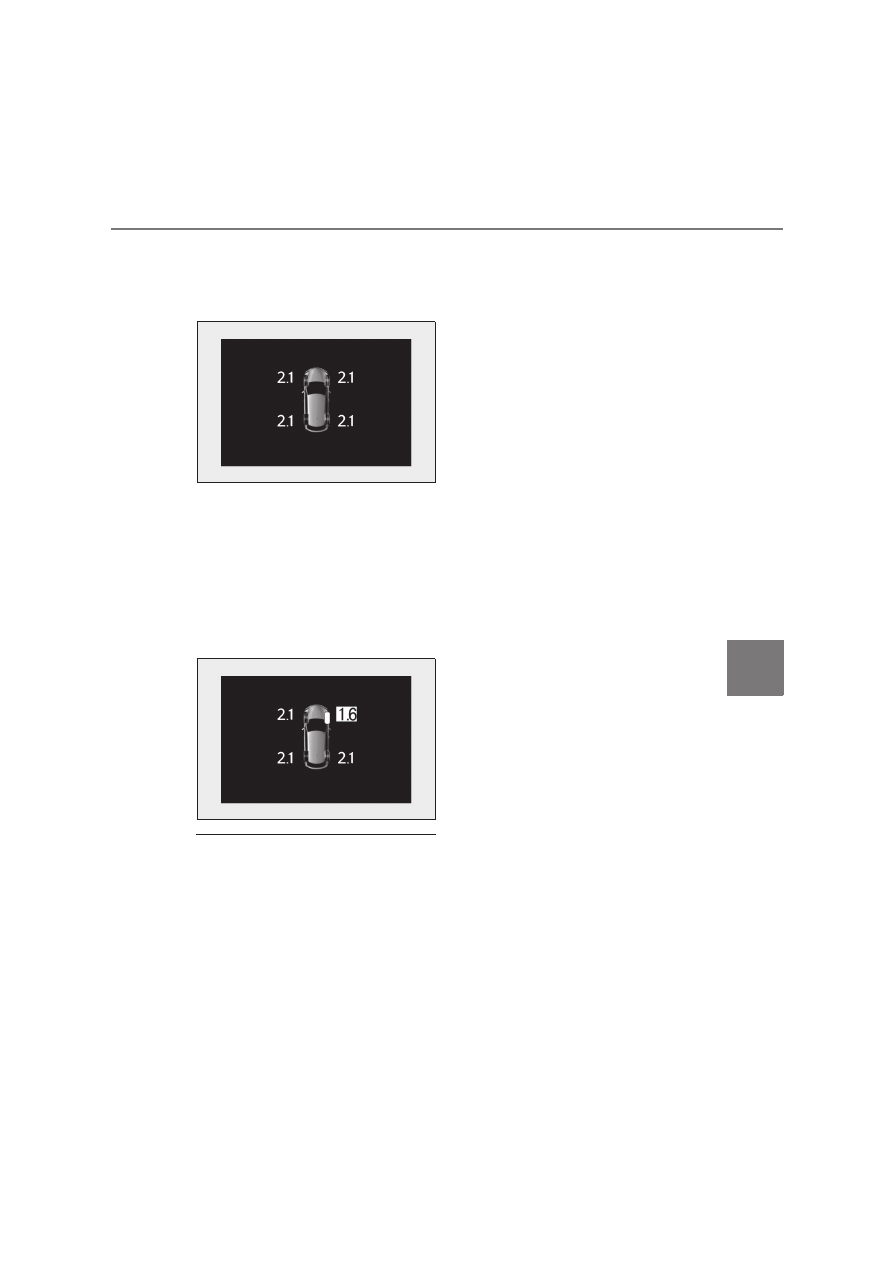

The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-infor-
mation display.

If the tire pressure drops below a
predetermined level, the driver is
warned by a screen display and a
warning light. (

P.531)

The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-infor-
mation display.

Routine tire inflation pressure checks

The tire pressure warning system does not

replace routine tire inflation pressure

checks. Make sure to check tire inflation

pressure as part of your routine of daily

vehicle checks.

Situations in which the tire pressure

warning system may not operate prop-

erly

In the following cases, the tire pressure

warning system may not operate prop-

erly.

• If non-genuine Lexus wheels are used.

• A tire has been replaced with a tire that is

not an OE (Original Equipment) tire.

• A tire has been replaced with a tire that is

not of the specified size.

• Tire chains, etc. are equipped.

• If a window tint that affects the radio wave

signals is installed.

• If there is a lot of snow or ice on the vehi-

cle, particularly around the wheels or

wheel housings.

• If the tire inflation pressure is extremely

higher than the specified level.

• If wheel without the tire pressure warning

valve and transmitter is used.

• If the ID code on the tire pressure warn-

ing valves and transmitters is not regis-

tered in the tire pressure warning

computer.

Performance may be affected in the fol-

lowing situations.

• Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

• When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

If tire position information is not correctly

displayed due to the radio wave conditions,

the display may be corrected by driving and

changing the radio wave conditions.

When the vehicle is parked, the time

taken for the warning to start or go off

could be extended.

When tire inflation pressure declines rap-

idly for example when a tire has burst, the

warning may not function.

Warning performance of the tire pres-

sure warning system

The warning of the tire pressure warning

system will change in accordance with the

conditions under which it was initialized. For

this reason, the system may give a warning

even if the tire pressure does not reach a

low enough level, or if the pressure is higher

than the pressure that was adjusted to when

the system was initialized.

495

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

When replacing tires or wheels, tire
pressure warning valves and transmit-
ters must also be installed.
When new tire pressure warning
valves and transmitters are installed,
new ID codes must be registered in the
tire pressure warning computer and
the tire pressure warning system must
be initialized. Have tire pressure warn-
ing valve and transmitter ID codes reg-
istered by any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer. (

P.498)

Replacing tires and wheels

If the ID code of the tire pressure warning

valve and transmitter is not registered, the

tire pressure warning system will not work

properly. After driving for about 10 minutes,

the tire pressure warning light blinks for 1

minute and stays on to indicate a system

malfunction.

Installing tire pressure warning
valves and transmitters

NOTICE

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

When removing or fitting the wheels,

tires or the tire pressure warning

valves and transmitters, contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer as the tire pressure warning

valves and transmitters may be dam-

aged if not handled correctly.

Make sure to install the tire valve caps.

If the tire valve caps are not installed,

water could enter the tire pressure

warning valves and the tire pressure

warning valves could be bound.

When replacing tire valve caps, do not

use tire valve caps other than those

specified. The cap may become stuck.

496

6-3. Do-it-yourself maintenance

The tire pressure warning system
must be initialized in the following
circumstances:

When the tire inflation pressure is
changed such as when changing
traveling speed.

When the tire inflation pressure is
changed such as when the tire size
is changed.

When rotating the tires.

When the tire pressure warning system
is initialized, the current tire inflation
pressure is set as the benchmark pres-
sure.

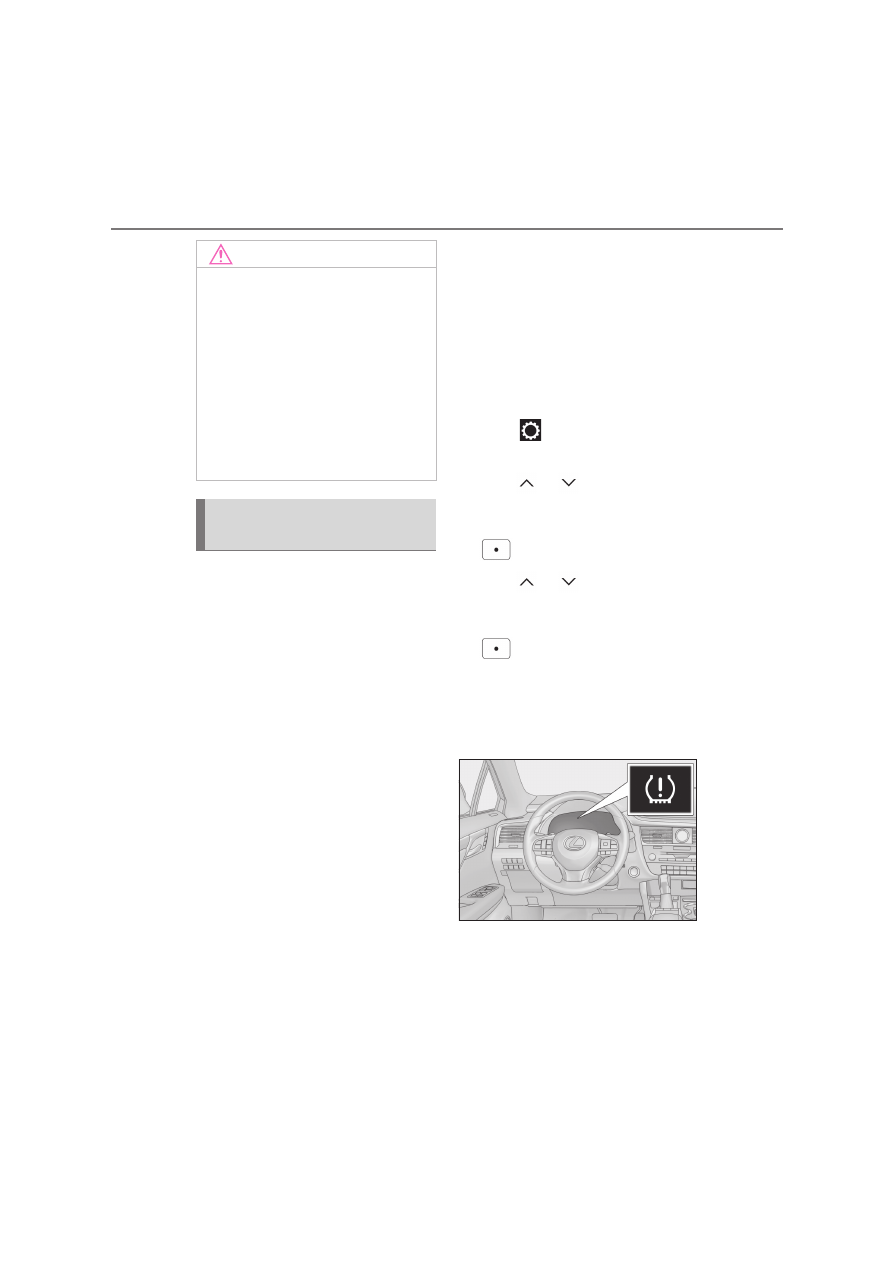

How to initialize the tire pressure
warning system

1

Park the vehicle in a safe place and
turn the engine switch off.

Initialization cannot be performed while

the vehicle is moving.

2

Adjust the tire inflation pressure to
the specified cold tire inflation pres-
sure level.

Make sure to adjust the tire pressure to the

specified cold tire inflation pressure level.

The tire pressure warning system will oper-

ate based on this pressure level.

3

Turn the engine switch to IGNI-
TION ON mode.

4

Select

 on the multi-information

display.

5

Press

 or

 of the meter con-

trol switch, select the “Vehicle Set-
tings” screen and then press the

.

6

Press

 or

 of the meter con-

trol switch, select the “TPMS”
screen and then press and hold the

 until the tire pressure warn-

ing light blinks slowly 3 times.

“- -” will be displayed for inflation pressure

of each tire on the multi-information dis-

play while the tire pressure warning system

determines the position of each tire.

7

Drive the vehicle at approximately
40 km/h (25 mph) or more for
approximately 10 to 30 minutes
until the inflation pressure of each

NOTICE

To avoid damage to the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer or other

qualified service shop as soon as possi-

ble. After use of liquid sealant, make sure

to replace the tire pressure warning valve

and transmitter when repairing or

replacing the tire. (

P.495)

Initializing the tire pressure
warning system

497

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

tire is displayed on the multi-infor-
mation display.

When position of each tire is determined,

the inflation pressure of each tire will be

displayed on the multi-information display.
If tire inflation pressure becomes low

before the inflation pressure is displayed,

the tire pressure warning light will come

on.
Depending on the vehicle and driving con-

ditions, initialization may take up to

approximately 1 hour to complete.

Initializing the tire pressure warning sys-

tem

Initialize the system with the tire inflation

pressure adjusted to the specified level.

If you press the tire pressure warning

reset switch accidentally

If initialization is performed, adjust the tire

inflation pressure to the specified level and

initialize the tire pressure warning system

again.

Initialization procedure

Make sure to carry out initialization after

adjusting the tire inflation pressure.

Also, make sure the tires are cold before

carrying out initialization or tire inflation

pressure adjustment.

If you have accidentally turned the engine

switch off during initialization, it is not

necessary to restart the initialization

again as initialization will restart automat-

ically when the engine switch has been

turned to IGNITION ON mode for the

next time.

If you accidentally restart the initialization

when initialization is not necessary, adjust

the tire inflation pressure to the specified

level when the tires are cold, and conduct

initialization again.

While the position of each tire is being

determined and the inflation pressures

are not being displayed on the

multi-information display, if the inflation

pressure of a tire drops, the tire pressure

warning light will come on.

When initialization of the tire pressure

warning system has failed

Initialization may take longer to complete if

the vehicle is driven on an unpaved road.

When performing initialization, drive on a

paved road if possible. Depending on the

driving environment and condition of the

tires, initialization will be completed in

approximately 10 to 30 minutes. If initializa-

tion is not complete after driving approxi-

mately 10 to 30 minutes, continue driving

for a while.
If the inflation pressure of each tire is not

displayed after driving for approximately 1

hour, perform the following procedure.

Park the vehicle in a safe place for

approximately 20 minutes. Then drive

straight (with occasional left and right

turns) at approximately 40 km/h (25

mph) or more for approximately 10 to 30

minutes.

However, in the following situations, the tire

inflation pressure will not be recorded and

the system will not operate properly. Per-

form initialization again.

When operating the tire pressure warn-

ing reset switch, the tire pressure warning

light does not blink 3 times.

After performing initialization, the tire

pressure warning light blinks for 1 minute

then stays on while driving.

If the inflation pressure of each tire is still not

displayed, have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer.

WARNING

When initializing the tire pressure

warning system

Do not initializing tire inflation pressure

without first adjusting the tire inflation

pressure to the specified level. Other-

wise, the tire pressure warning light may

not come on even if the tire inflation pres-

sure is low, or it may come on when the

tire inflation pressure is actually normal.

498

6-3. Do-it-yourself maintenance

The tire pressure warning valve and
transmitter is equipped with a unique
ID code. When replacing a tire pres-
sure warning valve and transmitter, it is
necessary to register the ID code.
Have the ID code registered by any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Effects of incorrect tire inflation pres-

sure

Driving with incorrect tire inflation pressure

may result in the following:

Reduced fuel economy

Reduced driving comfort and poor han-

dling

Reduced tire life due to wear

Reduced safety

Damage to the drive train

If a tire needs frequent inflating, have it

checked by any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

Instructions for checking tire inflation

pressure

When checking tire inflation pressure,

observe the following:

Check only when the tires are cold.

If your vehicle has been parked for at

least 3 hours or has not been driven for

more than 1.5 km or 1 mile, you will get an

accurate cold tire inflation pressure read-

ing.

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly

inflated based only on its appearance.

It is normal for the tire inflation pressure

to be higher after driving as heat is gen-

erated in the tire. Do not reduce tire infla-

tion pressure after driving.

Passengers and luggage weight should

be placed so that the vehicle is balanced.

Registering ID codes

Tire inflation pressure

Make sure to maintain proper tire
inflation pressure. Tire inflation
pressure should be checked at least
once per month. However, Lexus
recommends that tire inflation
pressure be checked once every
two weeks.

499

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

When replacing wheels, care should
be taken to ensure that they are equiv-
alent to those removed in load capac-
ity, diameter, rim width and inset

*

.

Replacement wheels are available at
any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

*

: Conventionally referred to as offset.

Lexus does not recommend using the
following:

Wheels of different sizes or types

Used wheels

Bent wheels that have been straight-
ened

When replacing wheels

The wheels of your vehicle are equipped

with tire pressure warning valves and trans-

mitters that allow the tire pressure warning

system to provide advance warning in the

event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pres-

sure warning valves and transmitters must

be installed. (

P.495)

WARNING

Proper inflation is critical to save tire

performance

Keep your tires properly inflated.

If the tires are not properly inflated, the

following conditions may occur which

could lead to an accident resulting in

death or serious injury:

Excessive wear

Uneven wear

Poor handling

Possibility of blowouts resulting from

overheated tires

Air leaking from between tire and

wheel

Wheel deformation and/or tire dam-

age

Greater possibility of tire damage

while driving (due to road hazards,

expansion joints, sharp edges in the

road, etc.)

NOTICE

When inspecting and adjusting tire

inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or mois-

ture may get into the valve and cause an

air leak, resulting in decreased tire infla-

tion pressure.

Wheels

If a wheel is bent, cracked or heavily
corroded, it should be replaced.
Otherwise, the tire may separate
from the wheel or cause a loss of
handling control.

Wheel selection

500

6-3. Do-it-yourself maintenance

Use only Lexus wheel nuts and
wrenches designed for use with
your aluminum wheels.

When rotating, repairing or chang-
ing your tires, check that the wheel
nuts are still tight after driving 1600
km (1000 miles).

Be careful not to damage the alumi-
num wheels when using tire chains.

Use only Lexus genuine balance
weights or equivalent and a plastic
or rubber hammer when balancing
your wheels.

WARNING

When replacing wheels

Do not use wheels that are a different

size from those recommended in the

Owner’s Manual, as this may result in a

loss of handling control.

Never use an inner tube in a leaking

wheel which is designed for a tubeless

tire.

Doing so may result in an accident,

causing death or serious injury.

Use of defective wheels prohibited

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air

during driving, possibly causing an acci-

dent.

NOTICE

Replacing tire pressure warning

valves and transmitters

Because tire repair or replacement

may affect the tire pressure warning

valves and transmitters, make sure to

have tires serviced by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer or

other qualified service shop. In addi-

tion, make sure to purchase your tire

pressure warning valves and transmit-

ters at any authorized Lexus retailer or

Lexus authorized repairer, or any relia-

ble repairer.

Ensure that only genuine Lexus wheels

are used on your vehicle.

Tire pressure warning valves and trans-

mitters may not work properly with

non-genuine wheels.

Aluminum wheel precautions

501

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

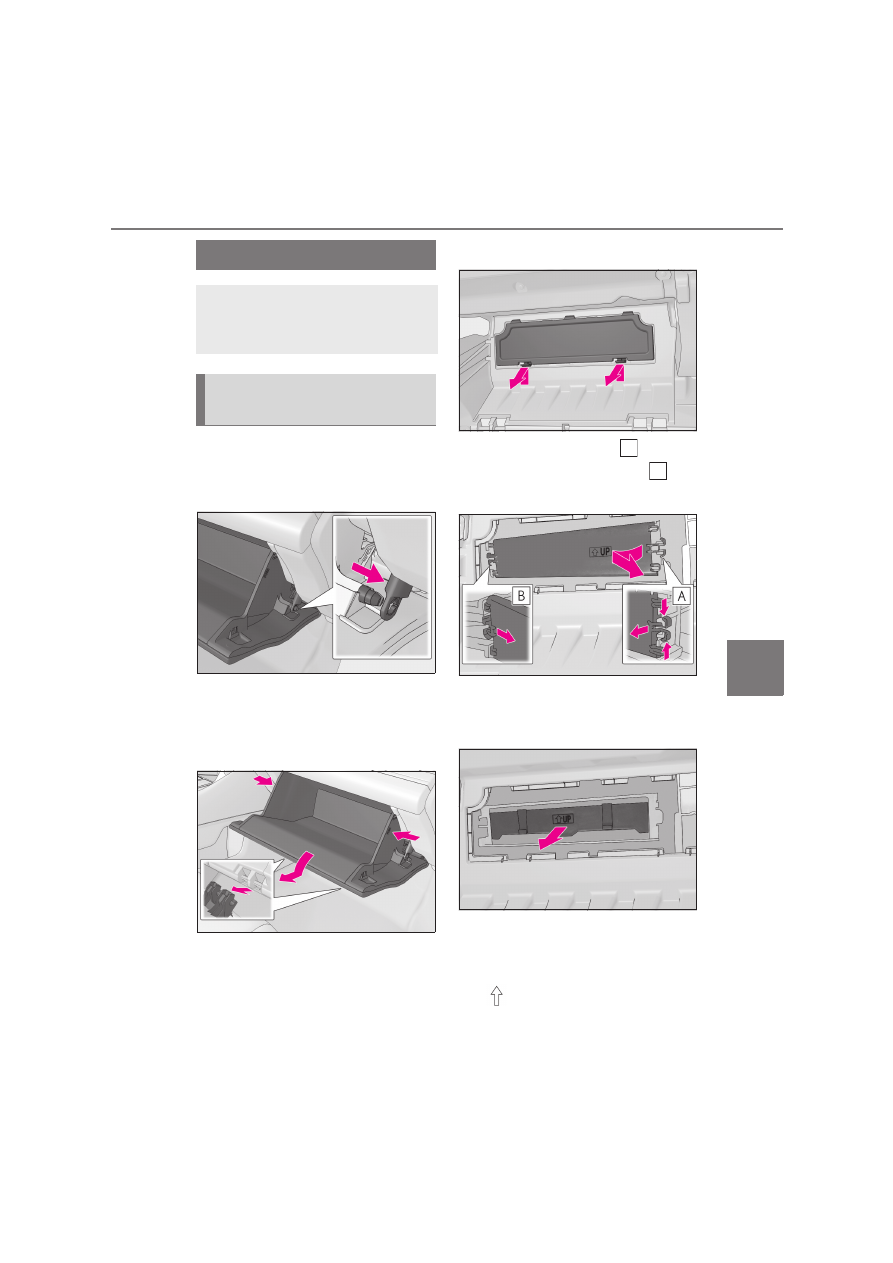

1

Turn the engine switch off.

2

Open the glove box. Slide off the
damper.

3

Push in the glove box on the vehi-
cle’s outer side to disconnect the
claws. Then pull out the glove box
and disconnect the lower claws.

4

Remove the cover.

5

Unlock the filter cover ( ), pull the
filter cover out of the claws ( ),
and remove the filter cover.

6

Remove the filter case.

There may be foreign objects on top of the

air conditioning filter.

7

Remove the air conditioning filter
from the filter case and replace it
with a new one.

The “

UP” marks shown on the filter

Air conditioning filter

The air conditioning filter must be
changed regularly to maintain air
conditioning efficiency.

Removing the air conditioning
filter

A

B

502

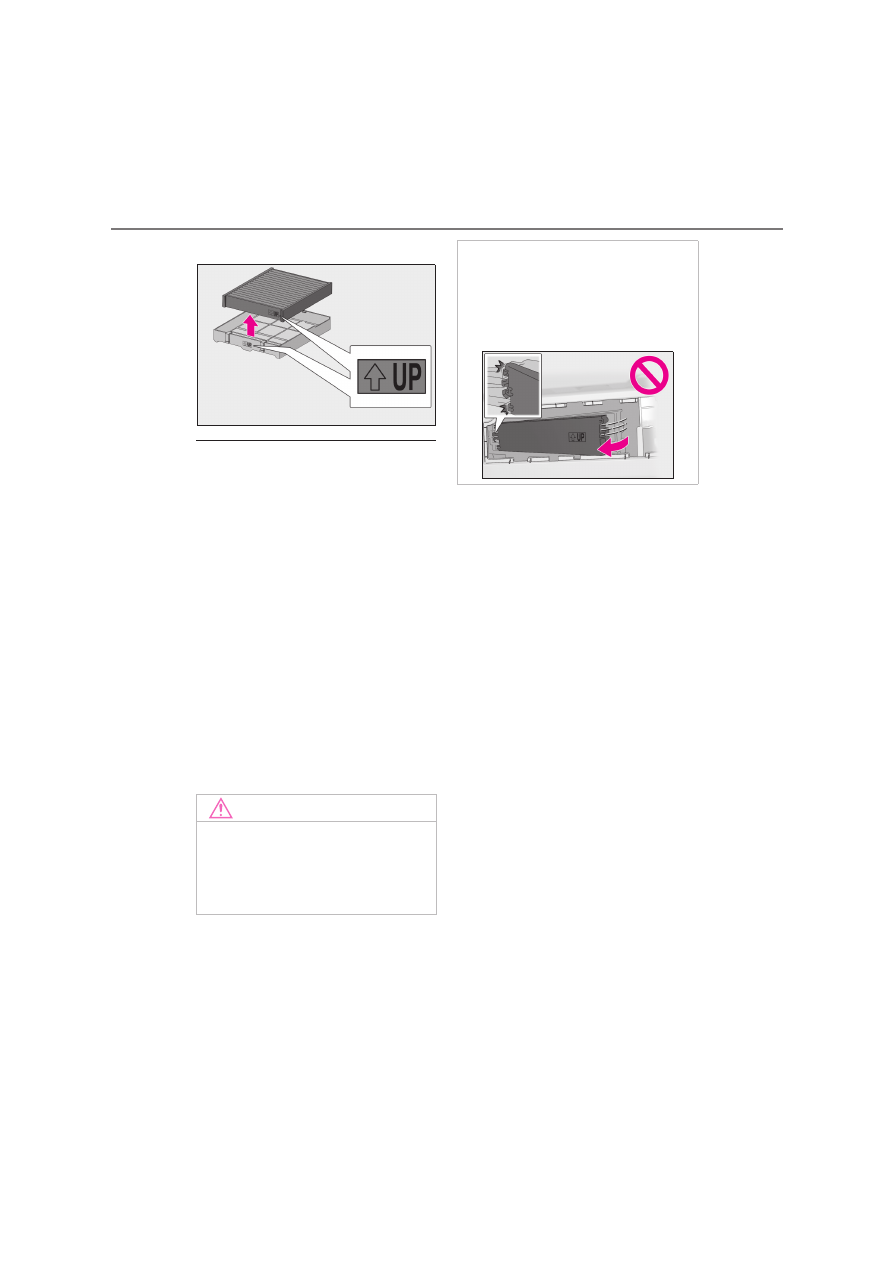

6-3. Do-it-yourself maintenance

and the filter case should be pointing up.

Checking interval

Inspect and replace the air conditioning fil-

ter according to the maintenance schedule.

In dusty areas or areas with heavy traffic

flow, early replacement may be required.

(For scheduled maintenance information,

please refer to the “Lexus Service Booklet”

or “Lexus Warranty Booklet”.)

If air flow from the vents decreases dra-

matically

The filter may be clogged. Check the filter

and replace if necessary.

Air conditioning filter with deodorizing

function

When fragrances are placed in your vehi-

cle, the deodorizing effect may become

significantly weakened in a short period.

When an air conditioning odor comes out

continuously, replace the air conditioning

filter.

NOTICE

When using the air conditioning sys-

tem

Make sure that a filter is always installed.

Using the air conditioning system without

a filter may cause damage to the system.

To prevent damage to the filter cover

When moving the filter cover in the

direction of arrow to release the fitting,

pay attention not to apply excessive force

to the claws. Otherwise, the claws may

be damaged.

503

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

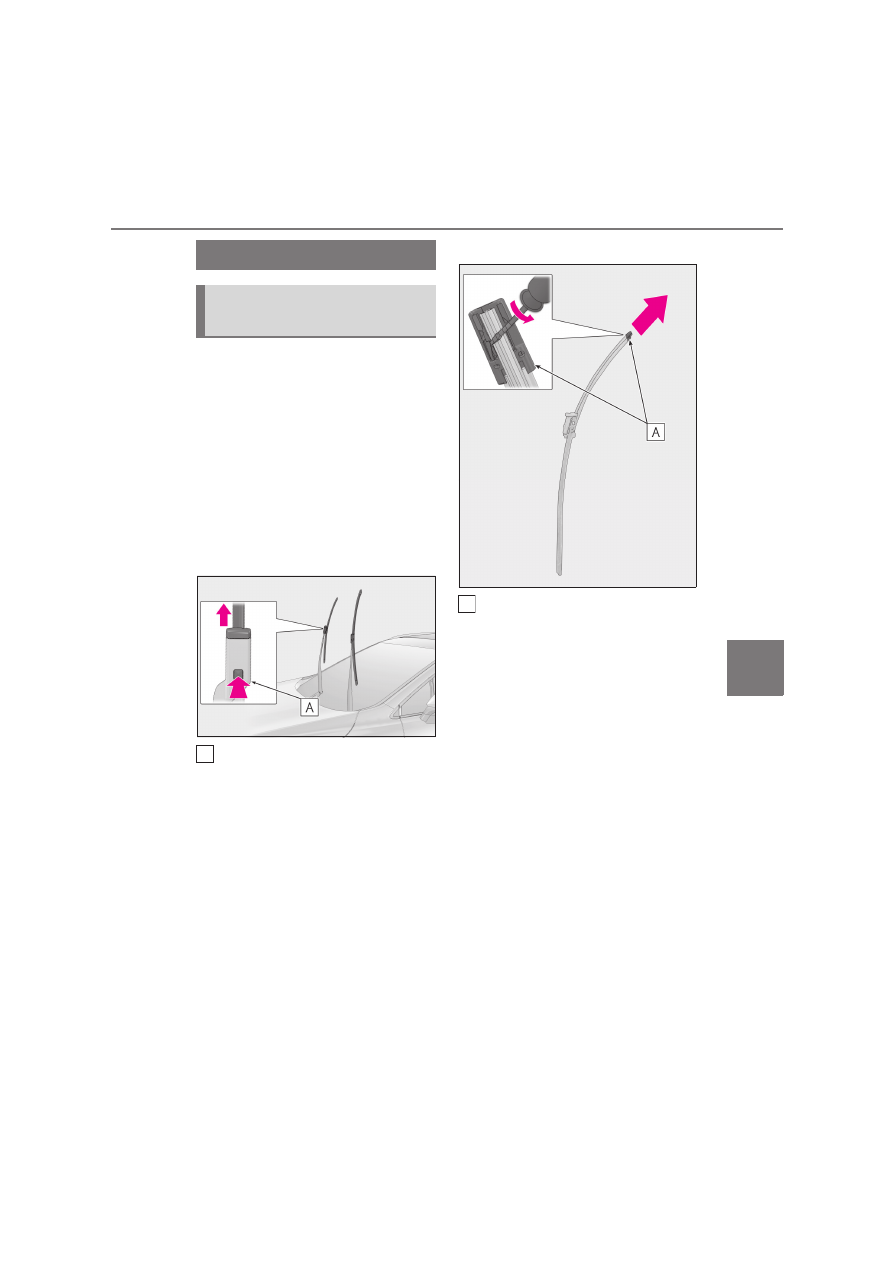

1

Change the rest position of the
windshield wipers to the service
position using the wiper lever and
then lift a windshield wiper.
(

P.287)

2

While pressing and holding the
wiper blade lock release button,
remove the wiper blade.

When performing this operation, make

sure to hold the hook portion of the wiper

arm securely.

Hook portion

3

While disengaging the cap lock,
using a tool such as a flathead
screwdriver if necessary, remove
the wiper insert.

Hold the cap on the end of the wiper insert

when removing the wiper insert. (The cap

is integrated into the wiper insert.)
If using a screwdriver, make sure to wrap its

tip with tape to protect the wiper blade.

Cap lock

4

Install a new wiper insert.

Make sure to push the wiper insert firmly

until the cap lock is engaged.
After installation, check that the cap lock is

locked securely.

5

Install the wiper blade to the wiper
arm.

Make sure to push the wiper blade until it is

locked.
When performing this operation, make

sure to hold the hook portion of the wiper

arm securely.
After installation, check that the wiper

blade is locked securely.

6

After replacing the wiper inserts,
place the windshield wipers on the
windshield and lower them to the
retracted position. (

P.288)

Do not drive the vehicle with the wind-

shield wipers lifted.

Windshield wiper inserts

Replacing a windshield wiper
insert

A

A

504

6-3. Do-it-yourself maintenance

Replacing the rear wiper insert

Have the rear wiper insert replaced by any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer.

Handling of the windshield wiper blades

and inserts

Improper handling of the windshield wiper

blades and inserts may cause them to be

damaged. If it is difficult to follow the wiper

blade and insert replacement procedure

precisely, contact any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

If the electronic key battery is depleted

The following symptoms may occur:

The smart entry & start system and wire-

less remote control will not function

properly.

The operational range will be reduced.

When the card key battery needs to be

replaced (if equipped)

The battery for the card key is available only

at your Lexus dealer. Your Lexus dealer can

replace the battery for you.

Flathead screwdriver

Lithium battery CR2032

Use a CR2032 lithium battery

Batteries can be purchased at any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer, local electrical appliance shops

or camera stores.

Replace only with the same or equivalent

type recommended by the manufacturer.

Dispose of used batteries according to

the local laws.

Electronic key battery

Replace the battery with a new one
if it is depleted.

You will need the following items:

505

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

1

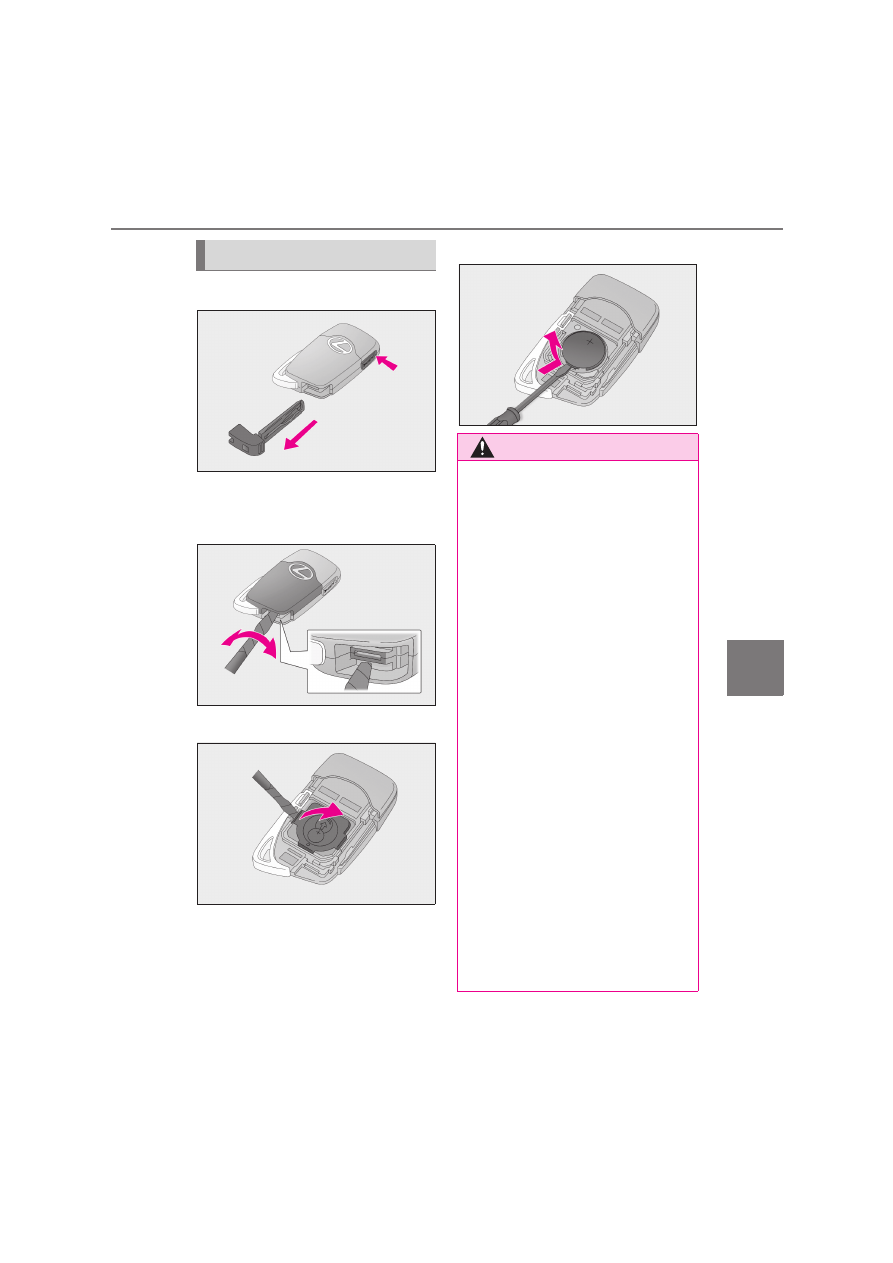

Take out the mechanical key.

2

Remove the cover.

To prevent damage to the key, cover the tip

of the flathead screwdriver with a tape.

3

Remove the battery cover.

4

Remove the depleted battery.

Insert a new battery with the “+” terminal

facing up.

Replacing the battery

WARNING

Battery precautions

Observe the following precautions.

Failure to do so may result in death or

serious injury.

Do not swallow the battery. Doing so

may cause chemical burns.

A coin battery or button battery is

used in the electronic key. If a battery is

swallowed, it may cause severe chemi-

cal burns in as little as 2 hours and may

result in death or serious injury.

Keep away new and removed batteries

from children.

If the cover cannot be firmly closed,

stop using the electronic key and stow

the key in the place where children

cannot reach, and then contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

If you accidentally swallow a battery or

put a battery into a part of your body,

get emergency medical attention

immediately.

To prevent battery explosion or leak-

age of flammable liquid or gas

Replace the battery with a new battery

of the same type. If a wrong type of

battery is used, it may explode.

506

6-3. Do-it-yourself maintenance

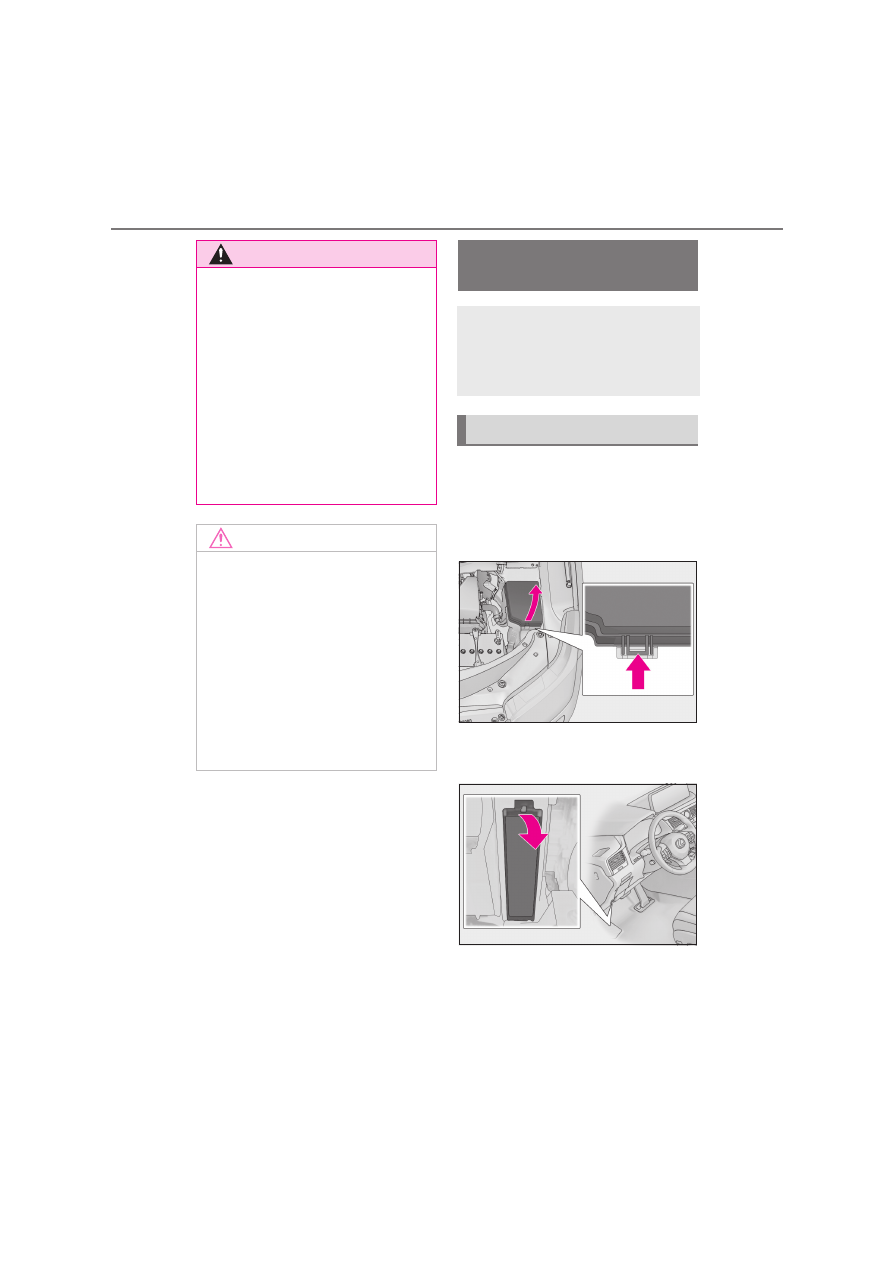

1

Turn the engine switch off.

2

Open the fuse box cover.

Engine compartment

Push the tab in and lift the lid off.

Left side instrument panel

Remove the lid.

3

Remove the fuse with the pullout
tool.

WARNING

Do not expose batteries to extremely

low pressure due to high altitude or

extremely high temperatures.

Do not burn, break or cut a battery.

Certification for the smart entry &

start system

CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUC-

TIONS

NOTICE

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

Always work with dry hands.

Moisture may cause the battery to

rust.

Do not touch or move any other com-

ponent inside the remote control.

Do not bend either of the battery ter-

minals.

Checking and replacing
fuses

If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.

Checking and replacing fuses

507

6

6-3. Do-it-yourself maintenance

Ma
inte
na

nc

e and care

Only some fuses can be removed
using the pullout tool.

4

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.

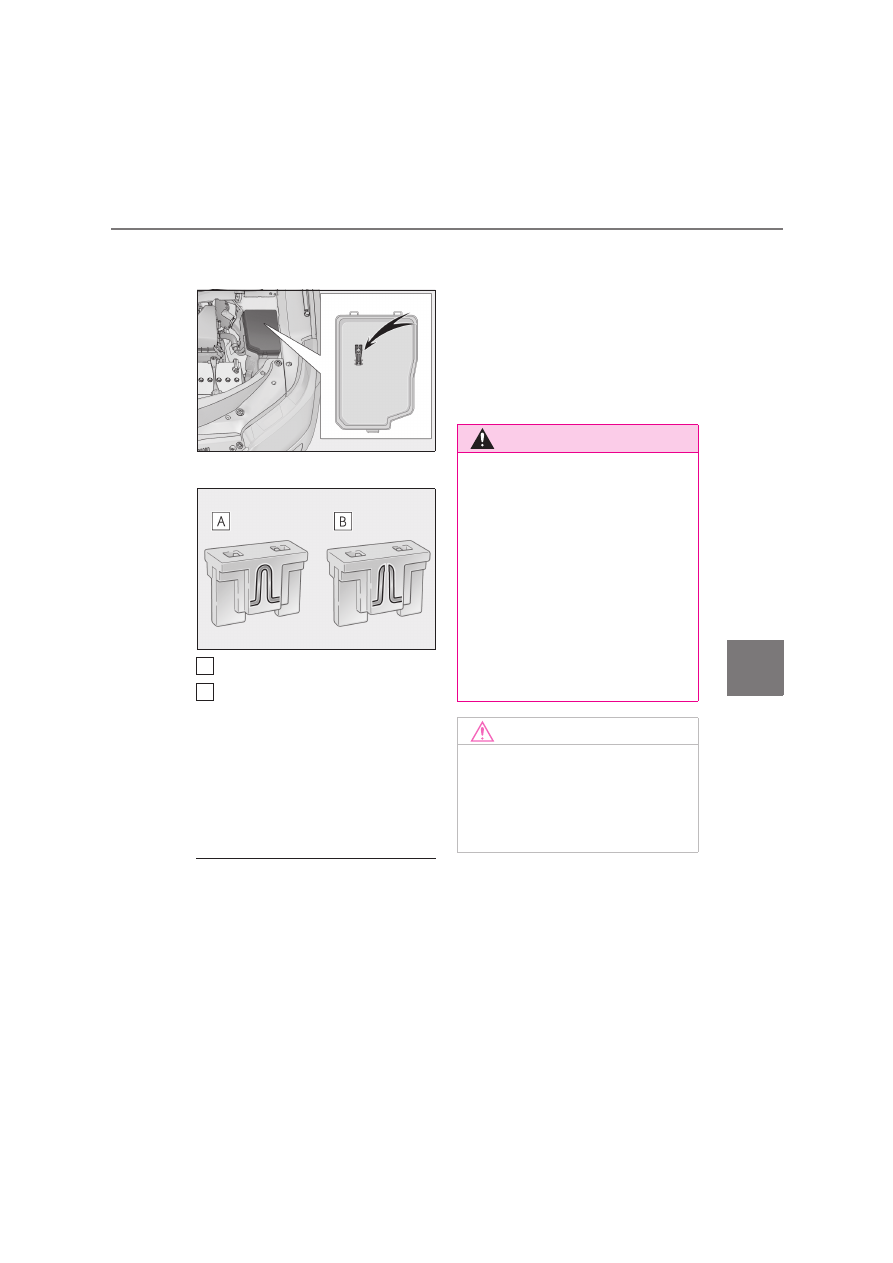

Many types of fuse are used on this vehicle.
This illustration shows a common type of
fuse used on this vehicle.

After a fuse is replaced

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (

P.508)

If the replaced fuse blows again, have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

Because certain bulbs are connected to cir-

cuits designed to prevent overload,

non-genuine parts or parts not designed for

this vehicle may be unusable.

A
B

WARNING

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

Do not modify the fuses or fuse boxes.

NOTICE

Before replacing fuses

Have the cause of electrical overload

determined and repaired by any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer as soon

as possible.















Content      ..     21      22      23      24     ..
