Lexus RX L (2022 year). Manual in english - page 16





366

4-5. Using the driving support systems

If a battery terminal has been discon-

nected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 35 km/h (22 mph) or more.

Sensor detection information

The following situations may occur dur-

ing use.

• The sensor's detection areas are limited

to the areas around the vehicle front and

rear bumpers.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the buzzer if

buzzers for other systems are sounding.

Conditions under which the function

may not function correctly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

There is dirt, snow or ice on a sensor.

(Cleaning the sensors will resolve this

problem.)

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

A sensor is covered in any way.

When a sensor or the area around a sen-

sor is extremely hot or cold.

On an extremely bumpy road, on an

incline, on gravel, or on grass.

The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

There is another vehicle equipped with

parking assist sensors in the vicinity.

A sensor is coated with a sheet of spray

or heavy rain.

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road.

If the vehicle is significantly tilted.

The vehicle is approaching a tall or

curved curb.

If objects draw too close to the sensor.

Objects which may not be properly

detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

Wires, fences, ropes, etc.

Cotton, snow and other materials that

absorb sound waves

Sharply-angled objects

Low objects

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

367

4

4-5. Using the driving support systems

Driving

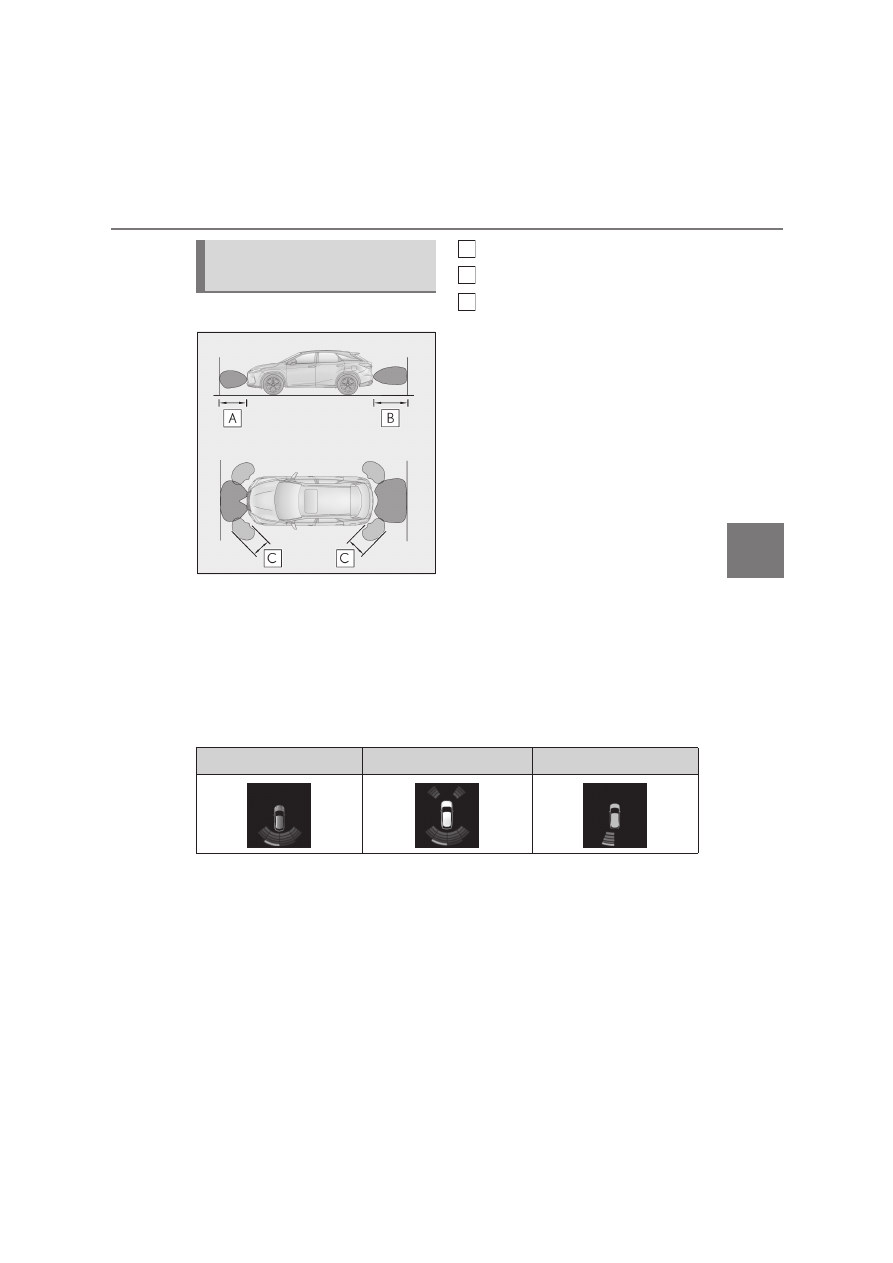

Detection range of the sensors

Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 60 cm (2.0 ft.)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect objects that are extremely close to
the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

Multi-information display, head-up display (if equipped) and Center Display

When an object is detected by a sensor, the approximate distance to the object will
be displayed on the multi-information display, Center Display, and head-up display
(if equipped). (As the distance to the object becomes short, the distance segments
may blink.)

Approximate distance to object: 150 cm (4.9 ft.) to 60 cm (2.0 ft.)

*

 (Rear center

sensor)

*

: Automatic buzzer mute function is enabled. (

P.369)

Approximate distance to object: 100 cm (3.3 ft.) to 60 cm (2.0 ft.)

*

 (Front

center sensor)

Sensor detection display, object
distance

A
B
C

Multi-information display

Center Display

Head-up display

368

4-5. Using the driving support systems

*

: Automatic buzzer mute function is enabled. (

P.369)

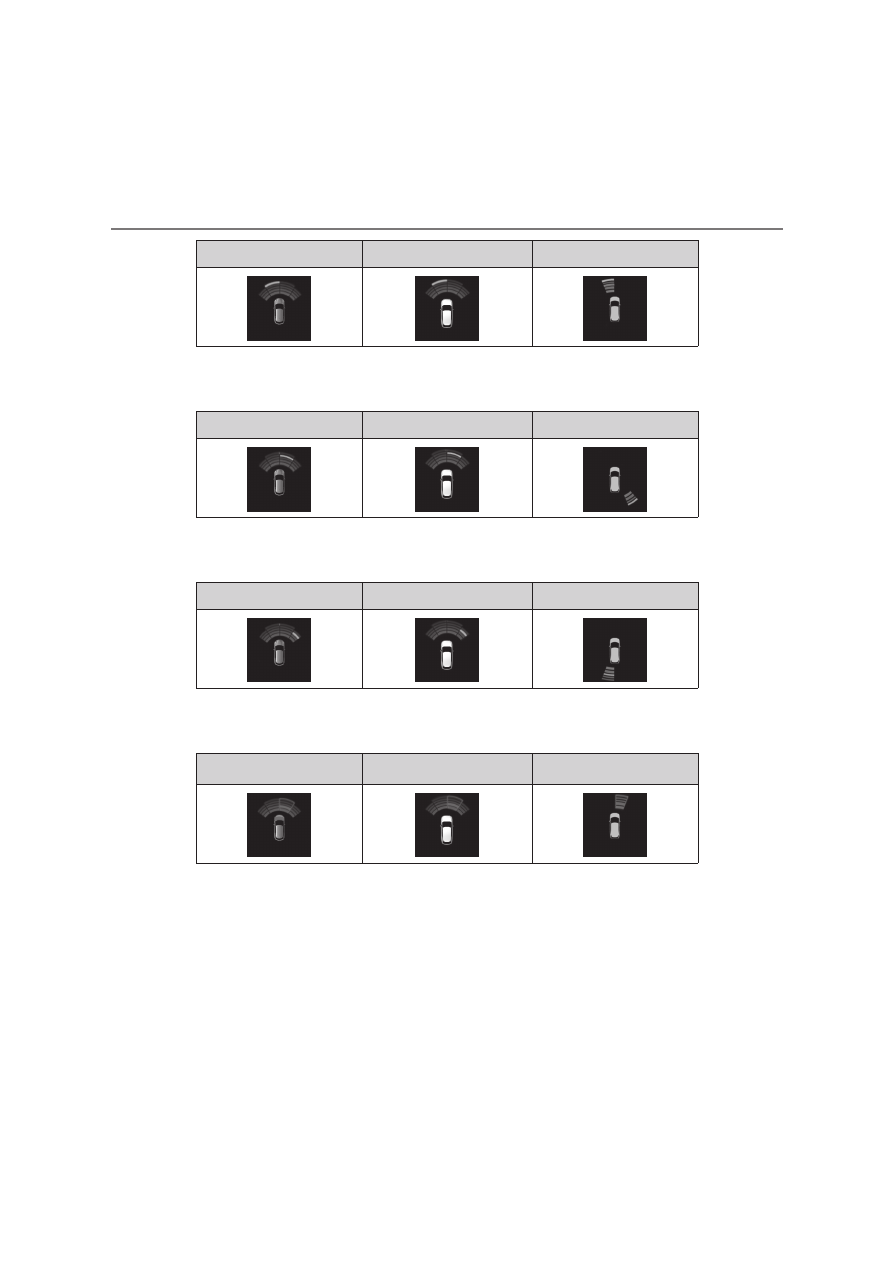

Approximate distance to object: 60 cm (2.0 ft.) to 45 cm (1.5 ft.)

*

*

: Automatic buzzer mute function is enabled. (

P.369)

Approximate distance to object: 45 cm (1.5 ft.) to 30 cm (1.0 ft.)

*

*

: Automatic buzzer mute function is enabled. (

P.369)

Approximate distance to object: 30 cm (1.0 ft.) to 15 cm (0.5 ft.)

*1

*1

: Automatic buzzer mute function is disabled. (

P.369)

*2

: The distance segments will blink slowly.

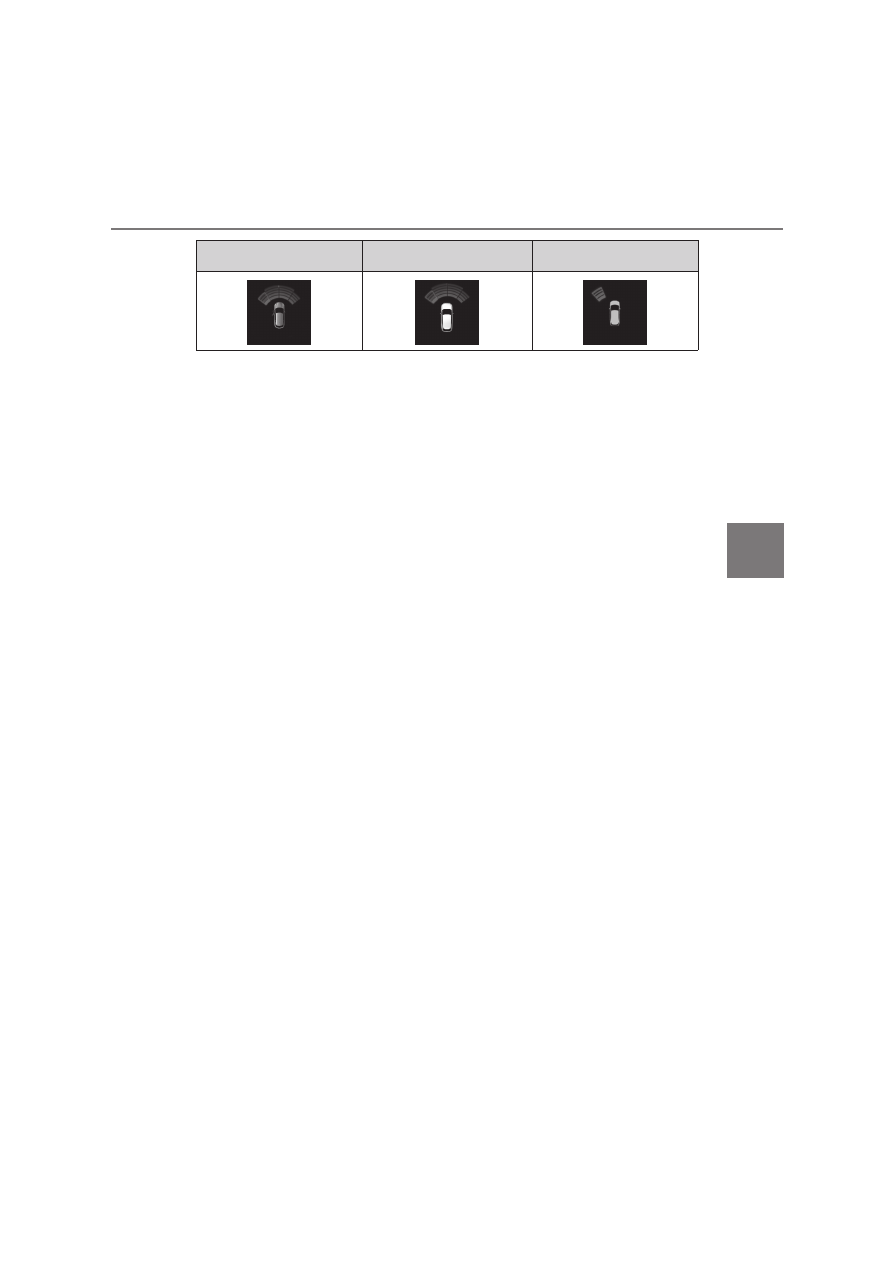

Approximate distance to object: Less than 15 cm (0.5 ft.)

*1

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

*2

Center Display

*2

Head-up display

369

4

4-5. Using the driving support systems

Driving

*1

: Automatic buzzer mute function is disabled. (

P.369)

*2

: The distance segments will blink rapidly.

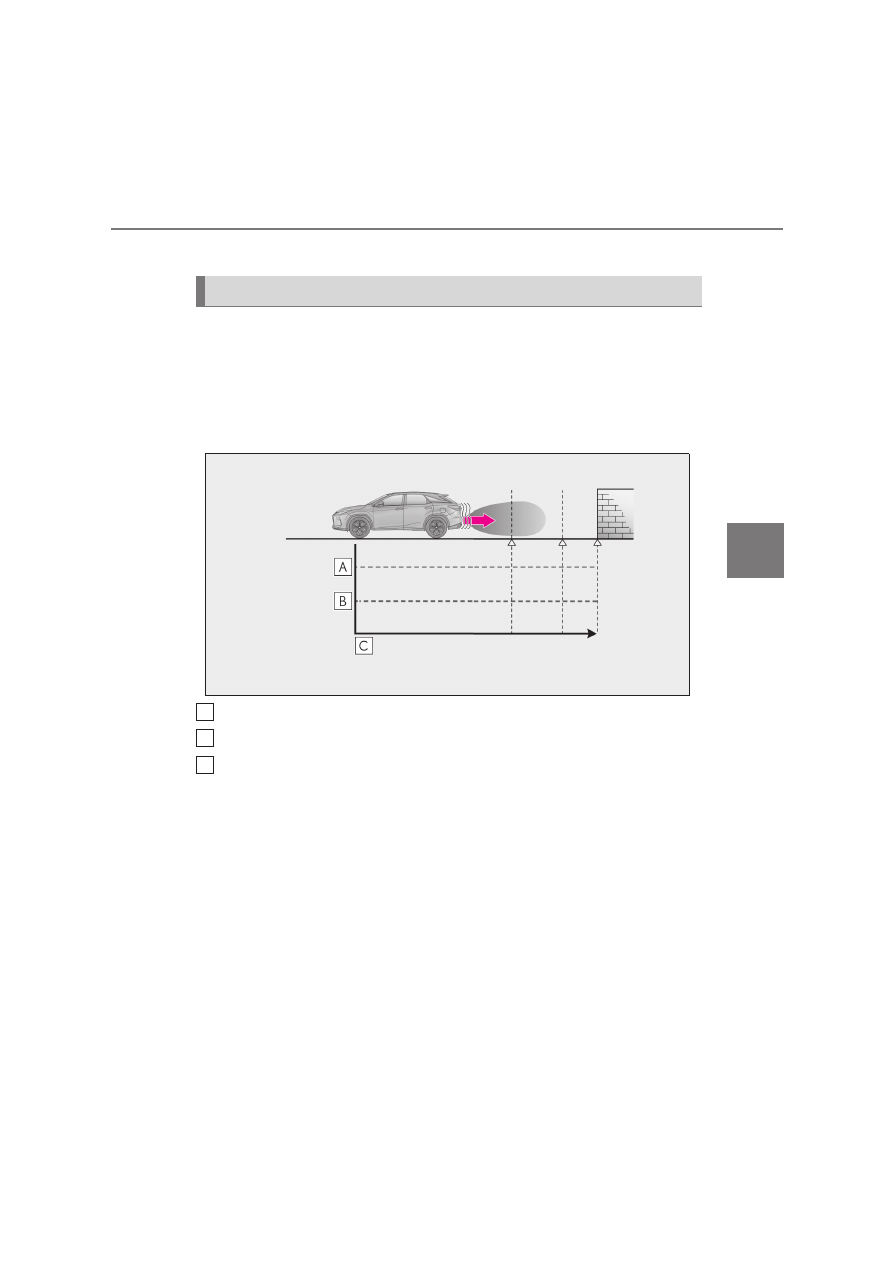

Buzzer operation and distance to
an object

A buzzer sounds when the sensors are
operating.

The buzzer beeps faster as the vehi-
cle approaches an object. When the
vehicle comes within the following
distance of the object, the buzzer
sounds continuously:

Approximately 30 cm (1.0 ft.)

When 2 or more objects are
detected simultaneously, the buzzer
sounds for the nearest object. If one
or more objects come within
approximately 30 cm (1.0 ft.) of the
vehicle, the buzzer will repeat a long
tone, followed by fast beeps.

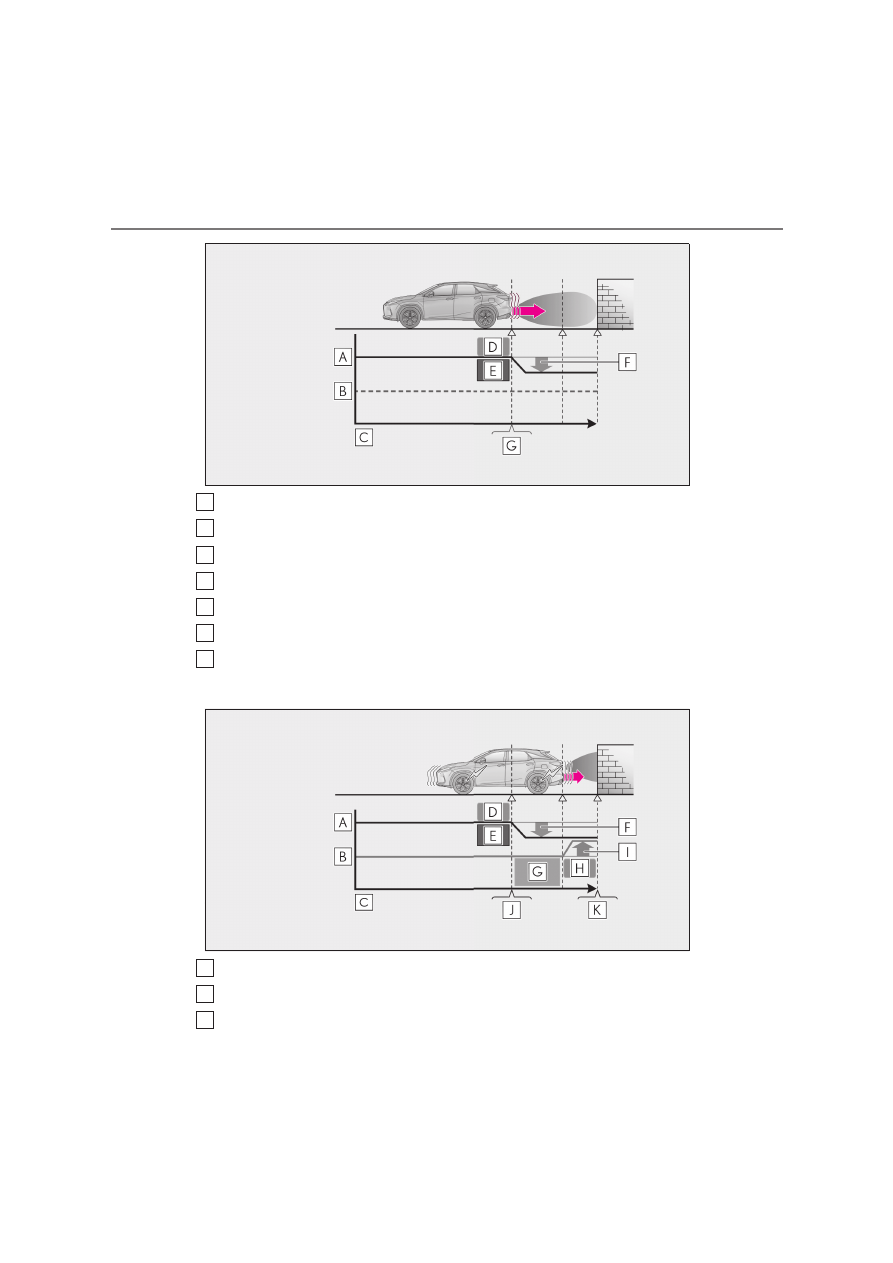

Automatic buzzer mute function:
After a buzzer begins sounding, if
the distance between the vehicle
and the detected object does not
become shorter, the buzzer will be
muted automatically. (However, if
the distance between the vehicle
and object is 30 cm (1.0 ft.) or less,
this function will not operate.)

The buzzer sounds volume can be
adjusted. (

P.361)

Multi-information display

*2

Center Display

*2

Head-up display

370

4-5. Using the driving support systems

*

: If  equipped

Meter control switches

Turning the RCTA function on/off.
When the RCTA function is disabled, the
RCTA OFF indicator illuminates.

Outside rear view mirror indicators

When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

Center Display

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (

P.372) for the detected

side will be displayed on the Center Dis-
play. This illustration shows an example of a
vehicle approaching from both sides of the
vehicle.

RCTA buzzer

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound.

Use the meter control switches to ena-
ble/disable the RCTA function.
(

P.92)

Vehicles without the Lexus parking
assist-sensor

1

Press

 or

 to select

.

2

Press

 or

 to select “RCTA”

and then press

.

When the RCTA function is disabled, the
RCTA OFF indicator (

P.82) illuminates

on the multi-information display. (Each
time the engine switch is turned off then
changed to IGNITION ON mode, the
RCTA function will be enabled automati-
cally.)

Vehicles with the Lexus parking
assist-sensor

1

Press

 or

 to select

.

2

Press

 or

 to select “PKSA”

and then press

.

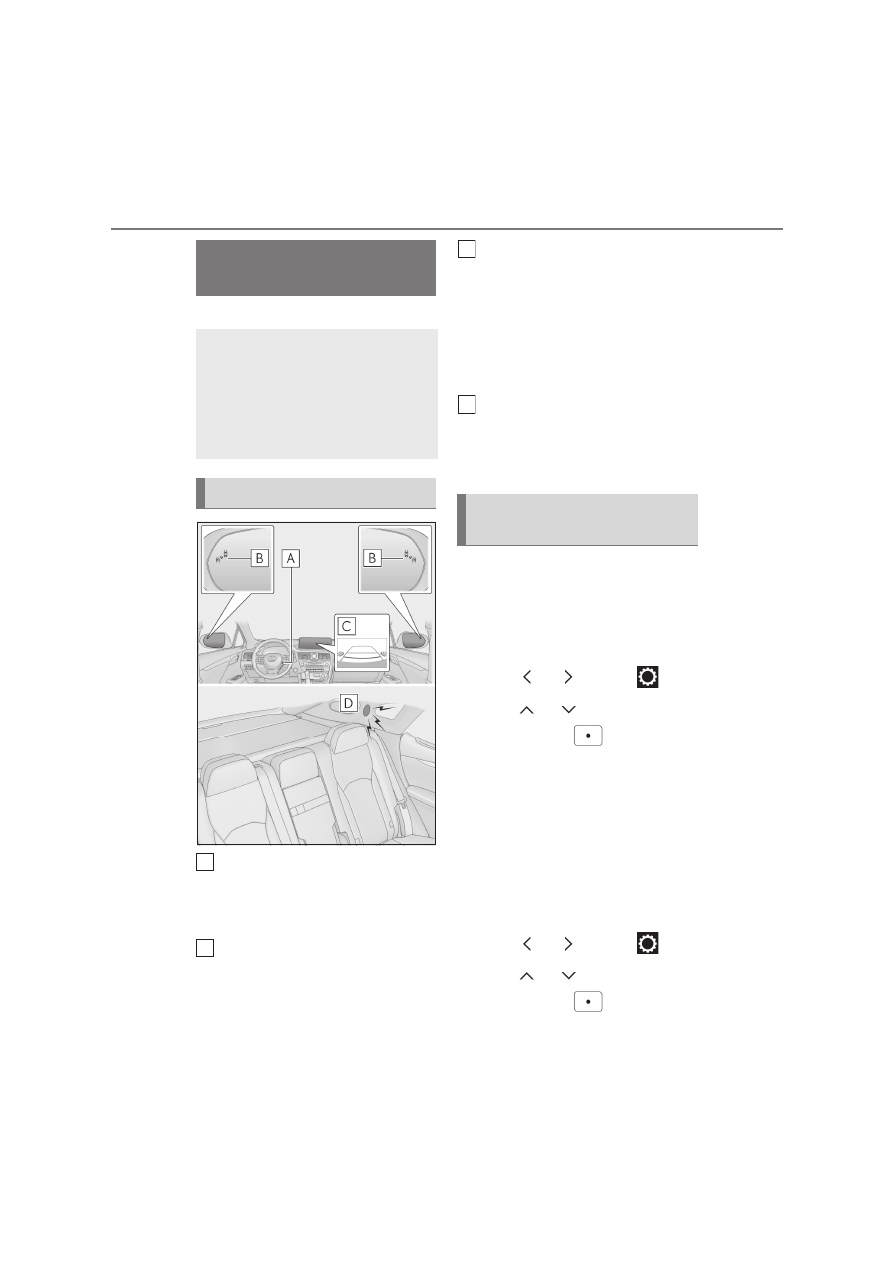

RCTA (Rear crossing traffic
alert) function

*

The RCTA function uses the BSM
rear side radar sensors installed
behind the rear bumper. This func-
tion is intended to assist the driver
in checking areas that are not easily
visible when backing up.

System components

A

B

Turning the RCTA function
on/off

C

D

371

4

4-5. Using the driving support systems

Driving

3

Press

 or

 to select “RCTA”

and then press

.

When the RCTA function is disabled, the
RCTA OFF indicator (

P.82) illuminates

on the multi-information display. (Each
time the engine switch is turned off then
changed to IGNITION ON mode, the
RCTA function will be enabled automati-
cally.)

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

When “Rear Cross Traffic Alert Una-

vailable” is shown on the multi-informa-

tion display

Water, ice, snow, mud, etc., may be attached

to the rear bumper around the sensors.

(

P.358) Removing the water, ice, snow,

mud, etc., from the attached to the rear

bumper around the sensors to return the

function to normal.
Additionally, the function may not operate

normally when driving in extremely hot or

cold environments.

Rear side radar sensors

P.358

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles approaching
from the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.

WARNING

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The RCTA function is only a supplemen-

tary function which alerts the driver that a

vehicle is approaching from the right or

left at the rear of the vehicle. As the

RCTA function may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of safety

is necessary. Over reliance on this func-

tion may lead to an accident resulting

death or serious injury.

NOTICE

Before using the RCTA function

Do not place objects near the sensors.

 RCTA function

372

4-5. Using the driving support systems

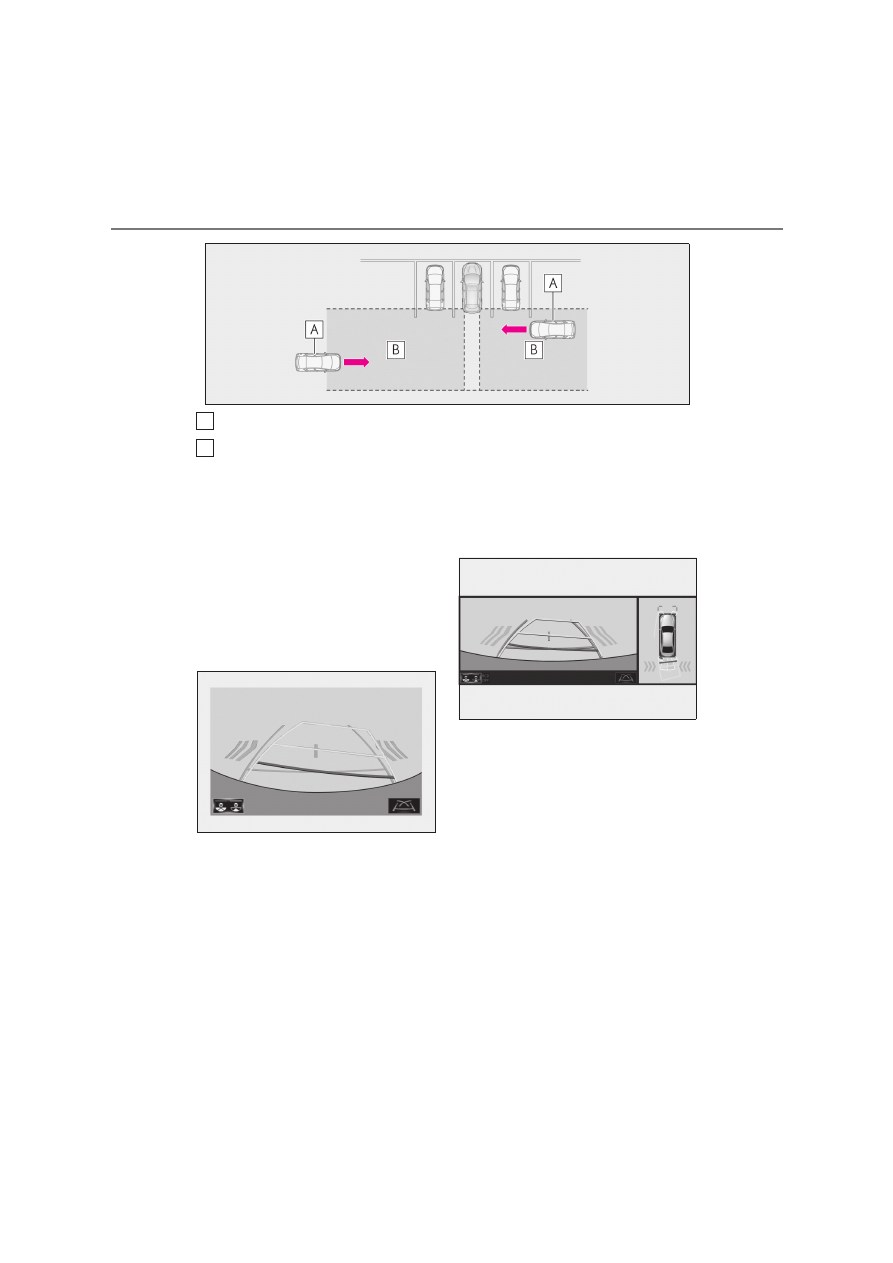

Approaching vehicles
Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Center Display.

Example (Lexus parking assist mon-
itor) (if equipped): Vehicles are
approaching from both sides of the
vehicle

Example (Panoramic view monitor)
(if equipped): Vehicles are
approaching from both sides of the
vehicle

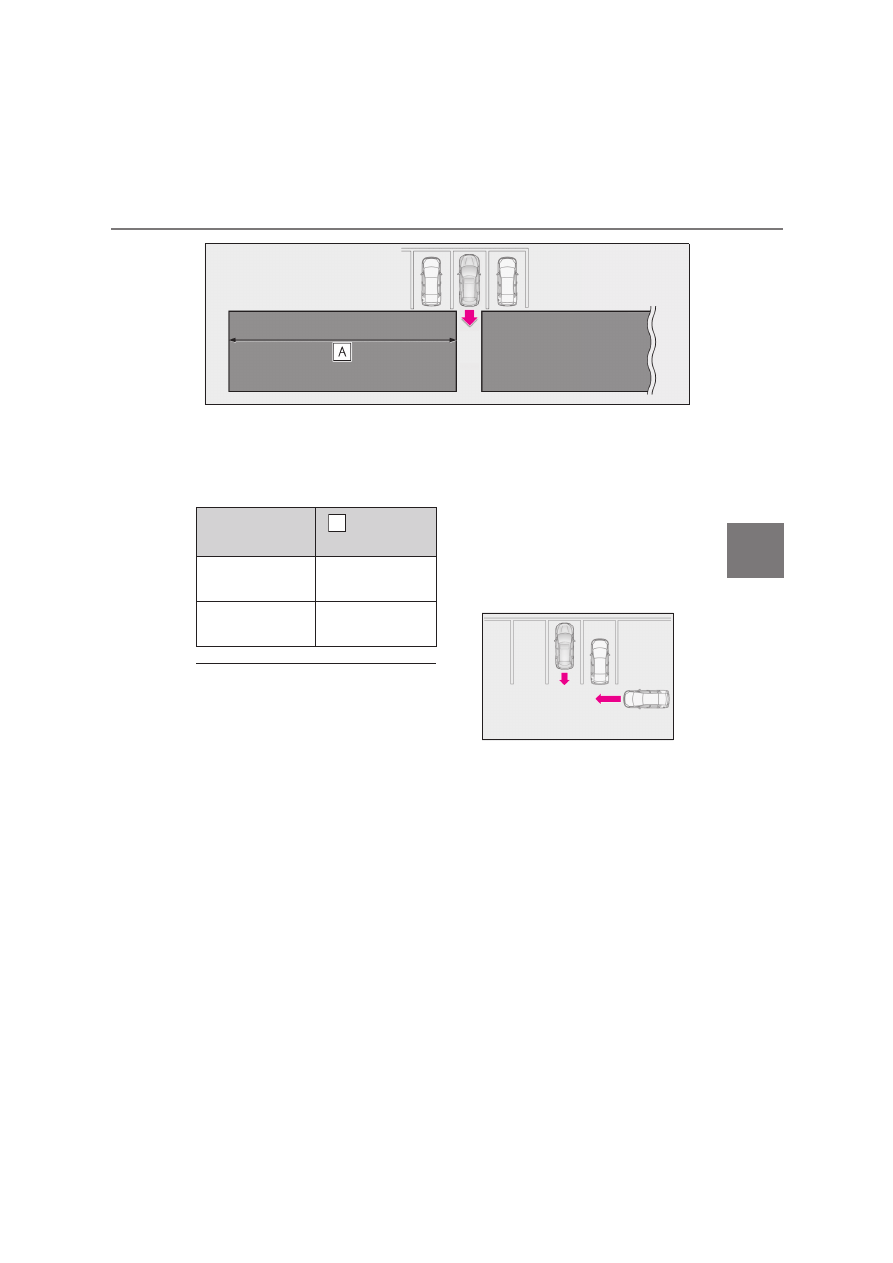

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

A
B

373

4

4-5. Using the driving support systems

Driving

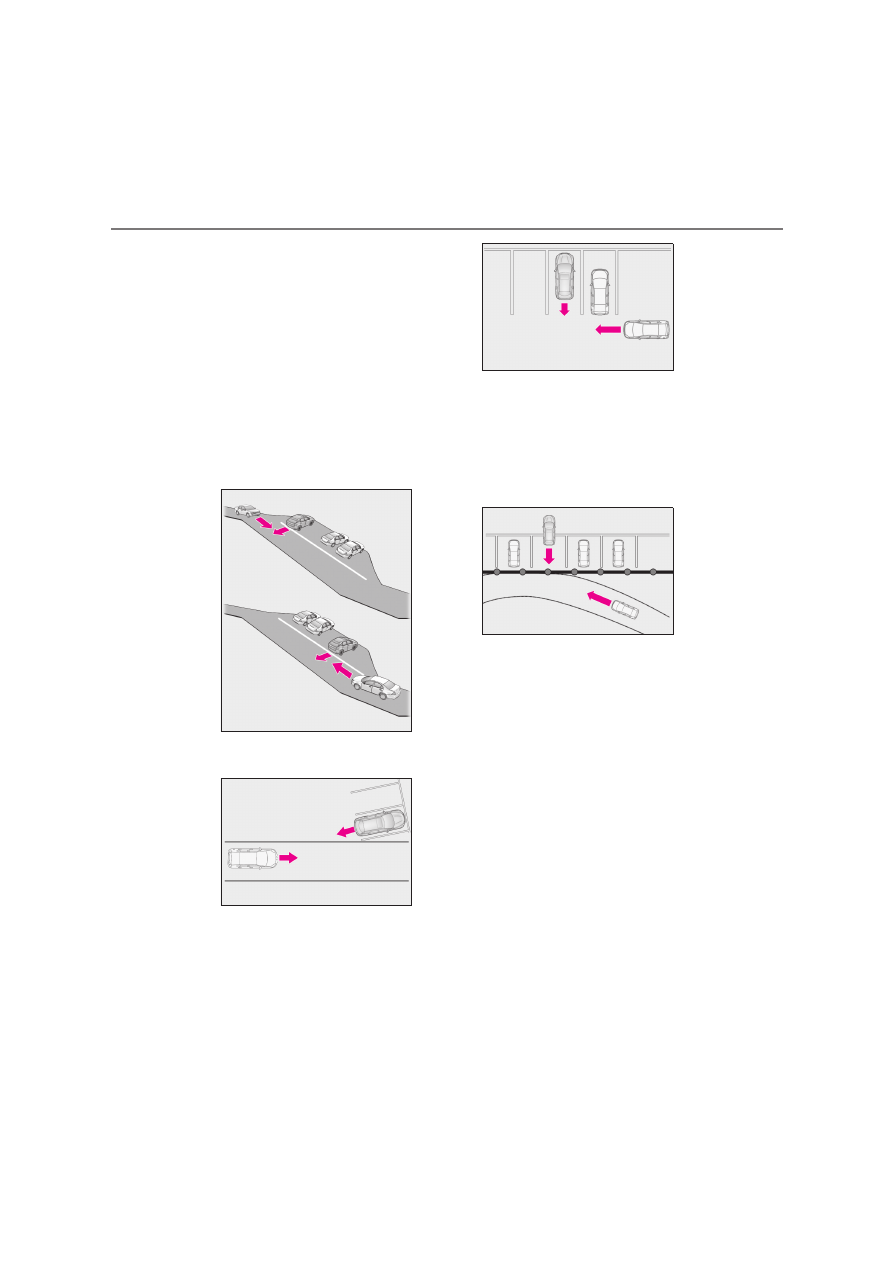

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

The engine switch is in IGNITION ON

mode.

The RCTA function is on.

The shift lever is in R.

The vehicle speed is less than approxi-

mately 8 km/h (5 mph).

The approaching vehicle speed is

between approximately 8 km/h (5 mph)

and 28 km/h (18 mph).

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (

P.361)

Use the meter control switches to change

settings. (

P.92)

Conditions under which the RCTA func-

tion will not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

Vehicles approaching from directly

behind

Vehicles backing up in a parking space

next to your vehicle

Vehicles that the sensors cannot detect

due to obstructions

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Small motorcycles, bicycles, pedestrians,
etc.

*

Vehicles moving away from your vehicle

Vehicles approaching from the parking
spaces next to your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the RCTA func-

tion may not function correctly

The RCTA function may not detect vehi-

cles correctly in the following situations:

• When a sensor is misaligned due to a

strong impact to the sensor or its sur-

Approaching vehi-

cle speed

 Approximate

alert distance

28 km/h (18 mph)

(fast)

20 m (65 ft.)

8 km/h (5 mph)

(slow)

5.5 m (18 ft.)

A

374

4-5. Using the driving support systems

rounding area

• When mud, snow, ice, a sticker, etc. is

covering a sensor or its surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• If a vehicle is approaching the rear of

your vehicle rapidly

• When a towing eyelet is installed to the

rear of the vehicle.

• When backing up on a slope with a sharp

change in grade

• When backing out of a shallow angle

parking spot

• Immediately after the RCTA function is

turned on

• Immediately after the engine is started

with the RCTA function on

• When the sensors cannot detect a vehi-

cle due to obstructions

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When a vehicle passes by the side of your

vehicle

• When the parking space faces a street

and vehicles are being driven on the

street

• When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

• When a towing eyelet is installed to the

rear of the vehicle

375

4

4-5. Using the driving support systems

Driving

*

: If  equipped

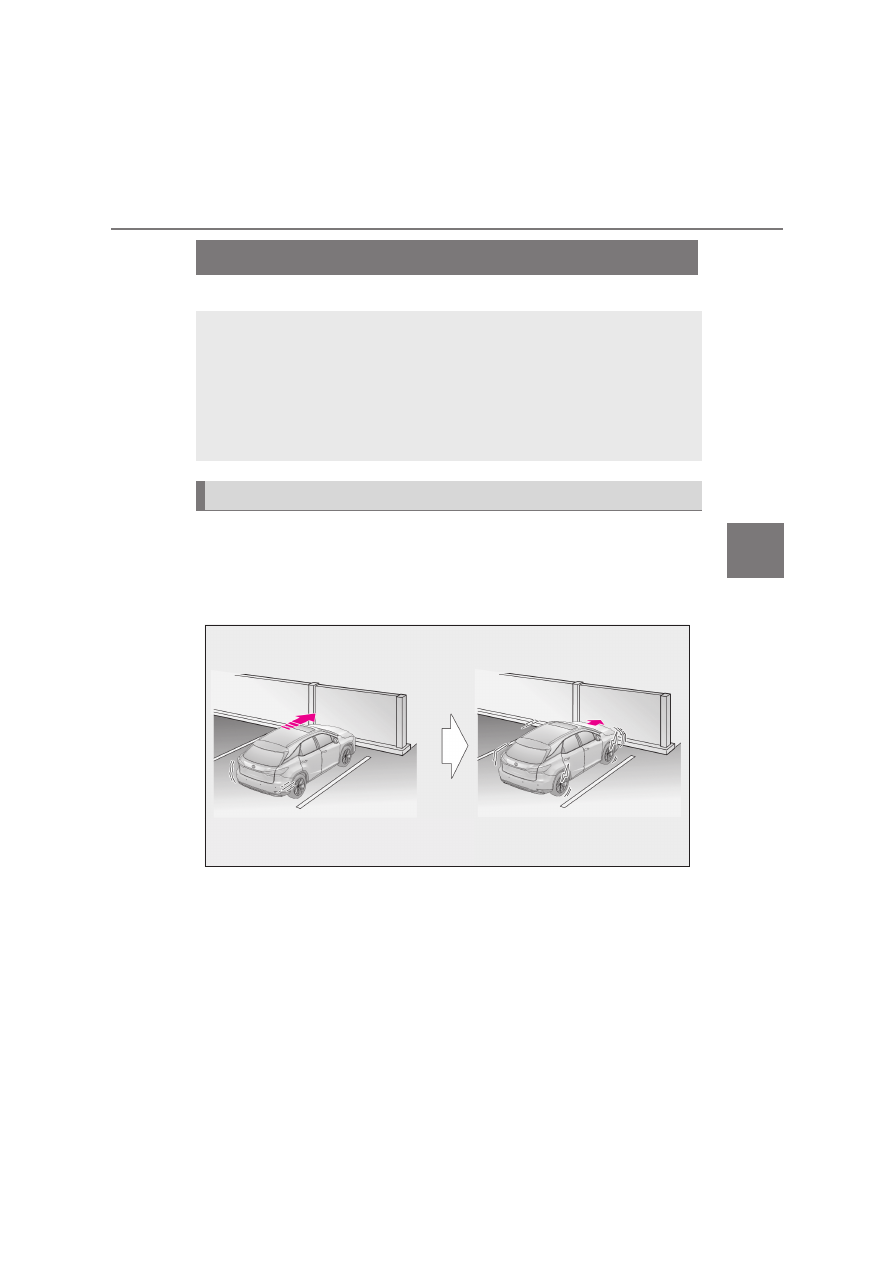

Parking Support Brake function
(static objects) (if equipped)

Ultrasonic sensors are used to detect
static objects, such as a wall, in the
detection area when driving at a low
speed or backing up. (

P.381)

Parking Support Brake function
(rear-crossing vehicles) (if
equipped)

Rear radar sensors are used to detect
approaching vehicles in the detection
area behind the vehicle when backing
up. (

P.387)

The Parking Support Brake can be
enabled/disabled on the multi-informa-
tion display. All of the Parking Support
Brake functions (static objects and
rear-crossing vehicles) are ena-

PKSB (Parking Support
Brake)

*

The Parking Support Brake system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object is high, a
warning operates to urge the driver
to take evasive action. If the system
determines that the possibility of a
collision with a detected object is
extremely high, the brakes are
automatically applied to help avoid
the collision or help reduce the
impact of the collision.

PKSB (Parking Support Brake)
system

WARNING

Limitations of the Parking Support

Brake system

Do not overly rely on the system, as

doing so may lead to an accident.

The driver is solely responsible for safe

driving. Always drive carefully, taking

care to observe your surroundings.

The Parking Support Brake system is

designed to provide support to lessen

the severity of collisions. However, it

may not operate in some situations.

The Parking Support Brake system is

not designed to stop the vehicle com-

pletely. Additionally, even if the system

has stopped the vehicle, it is necessary

to depress the brake pedal immedi-

ately as brake control will be canceled

after approximately 2 seconds.

NOTICE

If “Parking Support Brake Unavaila-

ble” is displayed on the multi-informa-

tion display and the PKSB OFF

indicator is flashing

If this message is displayed immediately

after the engine switch is changed to

IGNITION ON mode, operate the vehi-

cle carefully, paying attention to your

surroundings. It may be necessary to

drive the vehicle for a certain amount of

time before the system returns to normal.

(If the system is not return to normal after

driving for a while, clean the sensors and

their surrounding area on the bumpers.)

Enabling/Disabling the Parking
Support Brake

376

4-5. Using the driving support systems

bled/disabled simultaneously.
Use the meter control switches to ena-
ble/disable the parking support brake.
(

P.92)

1

Press

 or

 to select

.

2

Press

 or

 to select



and then press

.

When the Parking Support Brake is disa-

bled, the PKSB OFF indicator (

P.82)

illuminates on the multi-information dis-

play.
To re-enable the system when it was disa-
bled, select

 on the multi-information

display, select

 and turn it on. If the

system is disabled, it will remain off even if

the engine switch is turned to IGNITION

ON mode after the engine switch has

been turned off.

If the engine output restriction control or
brake control operates, a buzzer will sound
and a message will be displayed on the
Center Display and multi-information dis-
play, to alert the driver. On vehicles with a
head-up display, the head-up display (if
equipped) will display the same message
as the multi-information display.
Depending on the situation, engine output
restriction control will operate to either
limit acceleration or restrict output as
much as possible.

Engine output restriction control is
operating (acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.

Center Display (Panoramic view monitor)
(If equipped): No warning displayed
Multi-information display: “Object
Detected Acceleration Reduced”
PKSB OFF indicator: Not illuminated
Buzzer: Does not sound

Engine output restriction control is
operating (output restricted as
much as possible)

The system has determined that stron-
ger-than-normal brake operation is neces-
sary.
Center Display (Panoramic view monitor)
(If equipped): “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep

Brake control is operating

The system determined that emergency
braking is necessary.
Center Display (Panoramic view monitor)
(If equipped): “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep

Vehicle stopped by system opera-
tion

The vehicle has been stopped by brake
control operation.
Center Display (Panoramic view monitor)
(If equipped): “Press Brake Pedal”
Multi-information display: “Switch to
Brake” (If the accelerator pedal is not
depressed, “Press Brake Pedal” will be dis-
played.)
PKSB OFF indicator: Illuminated

Displays and buzzers for engine
output restriction control and
brake control

377

4

4-5. Using the driving support systems

Driving

Buzzer: Short beep

If the Parking Support Brake determines that a collision with a detected object is
possible, the engine output will be restricted to restrain any increase in the vehicle
speed. (Engine output restriction control: See figure 2.)
Additionally, if the accelerator pedal continues to be depressed, the brakes will be
applied automatically to reduce the vehicle speed. (Brake control: See figure 3.)

Figure 1 When the PKSB (Parking Support Brake) is disabled

Engine output
Braking force
Time

Figure 2 When engine output restriction control operates

System overview

A
B
C

378

4-5. Using the driving support systems

Engine output
Braking force
Time
Engine output restriction control begins operating
System determines that possibility of collision with detected object is high
Engine output reduced
Example: Multi-information display: “BRAKE!”

Figure 3 When brake control operates

Engine output
Braking force
Time

A
B
C
D

E
F

G

A
B
C

379

4

4-5. Using the driving support systems

Driving

Engine output restriction control begins operating
System determines that possibility of collision with detected object is high
Engine output reduced
System determines that possibility of collision with detected object is extremely
high
Brake control begins operating
Brake control strength increased
Example: Multi-information display: “BRAKE!”
Example: Multi-information display: “Switch to Brake”

If the Parking Support Brake has oper-

ated

If the vehicle is stopped due to operation of

the Parking Support Brake, the Parking

Support Brake will be disabled and the

PKSB OFF indicator will illuminate. If the

Parking Support Brake operates unneces-

sarily, brake control can be canceled by

depressing the brake pedal or waiting for

approximately 2 seconds for it to automati-

cally be canceled. Then, the vehicle can be

operated by depressing the accelerator

pedal.

Re-enabling the Parking Support Brake

To re-enable the Parking Support Brake

when it has been disabled due to system

operation perform any of the following

operations.
At this time, the PKSB OFF indicator will

turn off. (

P.84)

Turn the PKSB (Parking Support Brake)

on (

P.375)

The shift lever is in P.

Drive with no operation targets in the

traveling direction of the vehicle

Change the traveling direction of the

vehicle

If “Parking Support Brake Unavailable”

is displayed on the multi-information

display and the PKSB OFF indicator is

flashing

If this message is displayed only when the

shift lever is in any position other than R, a

sensor on the front or rear bumper may

be dirty. Clean the sensors and their sur-

rounding area on the bumpers.

Initialization may not have been per-

formed after a battery terminal was dis-

connected and reconnected. Initialize the

system. (

P.380)

If this message continues to be displayed

even after initialization, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

If “Parking Assist Unavailable” and

“Parking Assist Unavailable Clean

Parking Assist Sensor” are displayed on

the multi-information display and the

PKSB OFF indicator is flashing

A sensor may be covered with ice, snow,

dirt, etc. Remove the ice, snow, dirt, etc.,

from the sensor to return the system to

normal.

If this message is shown even after

removing dirt from the sensor, or shown

when the sensor was not dirty to begin

with, have the vehicle inspected by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

A sensor may be frozen. Once the ice

melts, the system will return to normal.

Water may be continuously flowing over

the sensor surface, such as in a heavy

rain. When the system determines that it

is normal, the system will return to nor-

D

E
F

G

H

I

J

K

380

4-5. Using the driving support systems

mal.

If a battery terminal has been discon-

nected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 35 km/h (22 mph) or more.

Additionally, for vehicles with the Parking

Support Brake function, turn the steering

wheel fully to the left and right with the vehi-

cle stopped.

381

4

4-5. Using the driving support systems

Driving

*

: If  equipped

This function will operate in situations such as the following if an object is detected
in the traveling direction of the vehicle.

When traveling at a low speed and the brake pedal is not depressed, or is
depressed late

Parking Support Brake function (static objects)

*

If the sensors detect a static object, such as a wall, in the travelling direction of
the vehicle and the system determines that a collision may occur due to the
vehicle suddenly moving forward due to an accidental accelerator pedal oper-
ation, the vehicle moving the unintended direction due to the wrong shift lever
position, or while parking or traveling at low speeds, the system will operate to
lessen the impact with the detected static object and reduce the resulting
damage.

Examples of function operation















Content      ..     14      15      16      17     ..
