You can change the warning beep volume and Center Display operating condi-
tions.

Press the “MENU” button on the Remote Touch. (

Select “Setup” on the “Menu” screen.
Select “Vehicle” on the “Setup” screen.

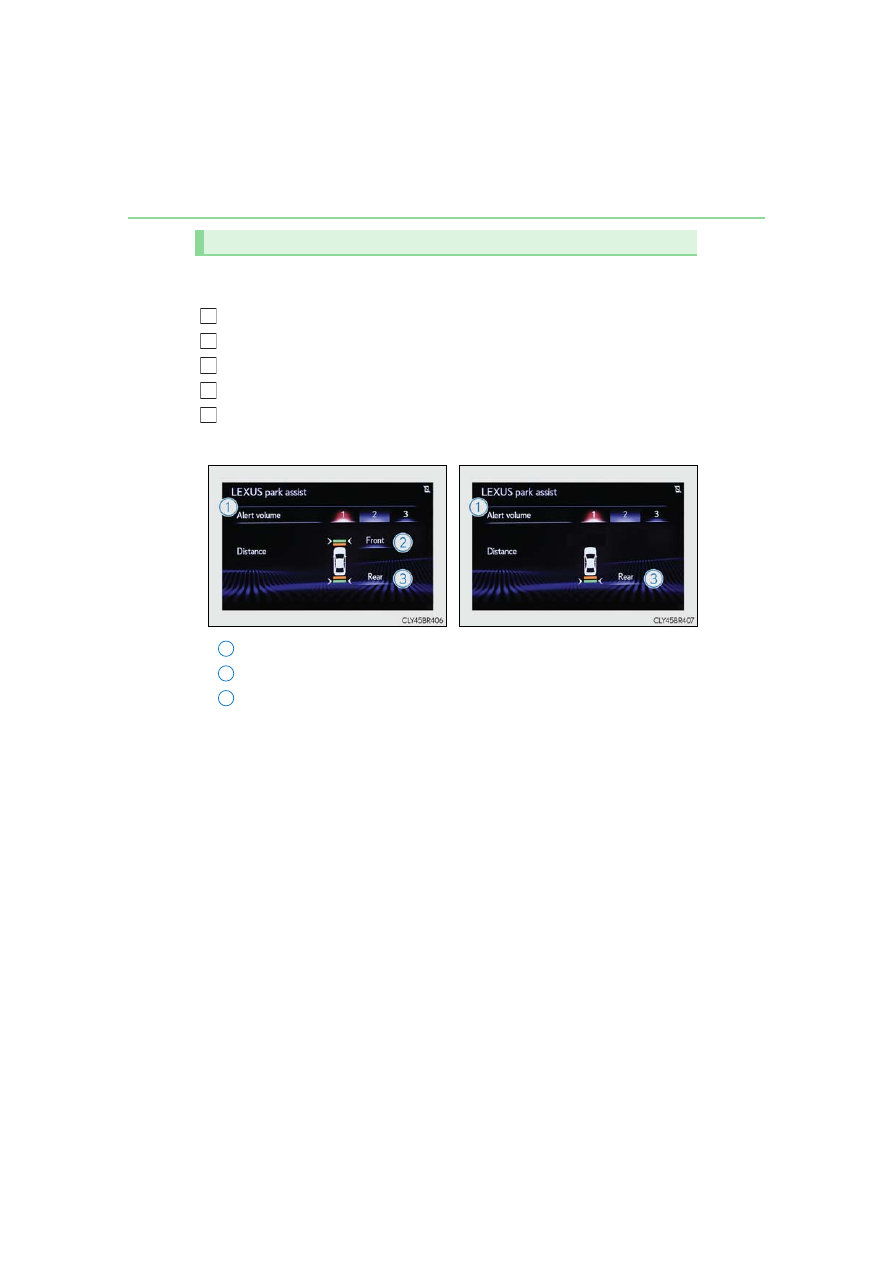

Select “LEXUS Park Assist” on the vehicle settings screen.
Select the desired button.

The alert volume can be adjusted.
Front center sensor display and tone indication can be set.
Rear center sensor display and tone indication can be set.

Setting up intuitive parking assist

2
3
4
5



RC350/RC300



RC F

2
3

287

4-5. Using the driving support systems

iving

RC F_U

■

The intuitive parking assist can be operated when

●

Front center sensors (

RC350/RC300

• The engine switch is in IGNITION ON mode.

• The shift lever is in a position other than P or R.

• The vehicle speed is less than about 6 mph (10 km/h).

●

Front corner sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in a position other than P.

• The vehicle speed is less than about 6 mph (10 km/h).

(At any speed when the shift lever is in R)

●

Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in R.

■

Muting the buzzer sound

●

To mute the buzzer sound:

The buzzer can be temporarily muted by pressing “OK” of the meter control switches

while an obstacle detection display is shown on the multi-information display.

●

To cancel the mute:

Mute will be automatically canceled in the following situations.
• When the shift position is changed (except shifting from D to N, or N to D).

• When the vehicle speed has reached or exceeded 6 mph (10 km/h) with the shift

position in D.

• When the intuitive parking assist is turned off once and turned on again.

• When the engine switch is turned off once and turned to IGNITION ON mode

again.

■

If a message is displayed on the multi-information display
P. 463

288

4-5. Using the driving support systems

RC F_U

WARNING

■

When using the intuitive parking assist
Observe the following precautions.

Failing to do so may result in the vehicle being unable to be driven safely and possibly

cause an accident.

●

Do not use the sensor at speeds in excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reaction times are limited. When moving forward or

reversing, check the areas surrounding the vehicle (especially the sides of the vehi-

cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.

●

Do not install accessories within the sensors’ detection areas.

■

Limitations of the sensors

●

RC350/RC300: The detection areas of the sensors are limited to the areas around

the vehicle’s front and rear bumpers.

●

RC F: The detection areas of the sensors are limited to the areas around the vehicle’s

front corners and the rear bumpers.

●

Certain vehicle conditions and surrounding environments, such as the following, may

affect the ability of the sensors to correctly detect objects. Pay particular attention in

the following situations. Failure to do so may result in the vehicle being driven

unsafely, possibly leading to an accident.
• When there is dirt, snow or ice on a sensor (Cleaning the sensor will resolve this

problem.)

• When the sensor is frozen (Thawing the area will resolve this problem.)

In especially cold weather, if a sensor is frozen the screen may show an abnormal

display, or objects may not be detected

• When a sensor is covered in any way

• When the vehicle is leaning considerably to one side

• When driving on an extremely bumpy road, incline, gravel, or grass

• When the vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,

air brakes of large vehicles, or other loud noises producing ultrasonic waves

• When there is another vehicle equipped with parking assist sensor in the vicinity

• When the sensor is coated with a sheet of spray or heavy rain

• When the vehicle is equipped with a fender pole or wireless antenna

• When a towing eyelet is installed

• When a bumper or sensor receives a strong impact

• When the vehicle is approaching a tall or curved curb

• When driving in harsh sunlight or intense cold weather

• When an object is directly under a bumper

• When objects become too close to the sensors

• When a non-genuine Lexus suspension (lowered suspension, etc.) is installed

In addition to the situations above, there are instances in which, because of their

shape, signs and other objects may be judged by the sensor to be closer than they

are.

289

4-5. Using the driving support systems

iving

RC F_U

WARNING

●

The shape of an object may prevent the sensor from detecting it. Pay particular atten-

tion to the following:
• Wires, fences, ropes, etc.

• Cotton, snow and other materials that absorb sound waves

• Sharply-angled objects

• Low objects

• Tall objects with upper sections projecting outwards in the direction of your vehi-

cle

• People, animals and other moving objects

• People wearing certain types of clothing

●

The following situations may occur when using the Lexus parking assist-sensor.
• Depending on the shape of the object and other factors, the detection distance

may be shortened, or detection may not be possible.

• Objects may not be detected if they are too close to a sensor.

• There will be a short delay between the detection of an object and display of the

detection. Even at slow speeds, there is a possibility that the object will come

within a sensor’s detection area before the display is shown and a warning beep

sounds.

• Thin posts or objects lower than a sensor may not be detected when approached,

even if they have been detected once.

• It might be difficult to hear beeps due to the volume of the audio system or air flow

noise of the air conditioning system.

NOTICE

■

When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor mal-

function etc. Have the vehicle checked by your Lexus dealer.

●

The intuitive parking assist operation display flashes, and a beep sounds when no

obstacles are detected.

●

If the area around a sensor collides with something, or is subjected to strong impact.

●

If the bumper or grille collides with something.

●

If the display flashes or is displayed continuously and a buzzer does not sound, except

when the mute function has been turned on.

●

If a display error occurs, first check the sensor.

If the error occurs even when there is no ice, snow or mud on the sensor, it is likely that

the sensor is malfunctioning.

■

Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

290

4-5. Using the driving support systems

RC F_U

The Blind Spot Monitor is a system that has 2 functions:

●

The BSM (Blind Spot Monitor) function
Assists the driver in making a decision when changing lanes

●

The RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up

These functions use same sensors.

BSM (Blind Spot Monitor)



: If equipped

Summary of the Blind Spot Monitor

291

4-5. Using the driving support systems

iving

RC F_U

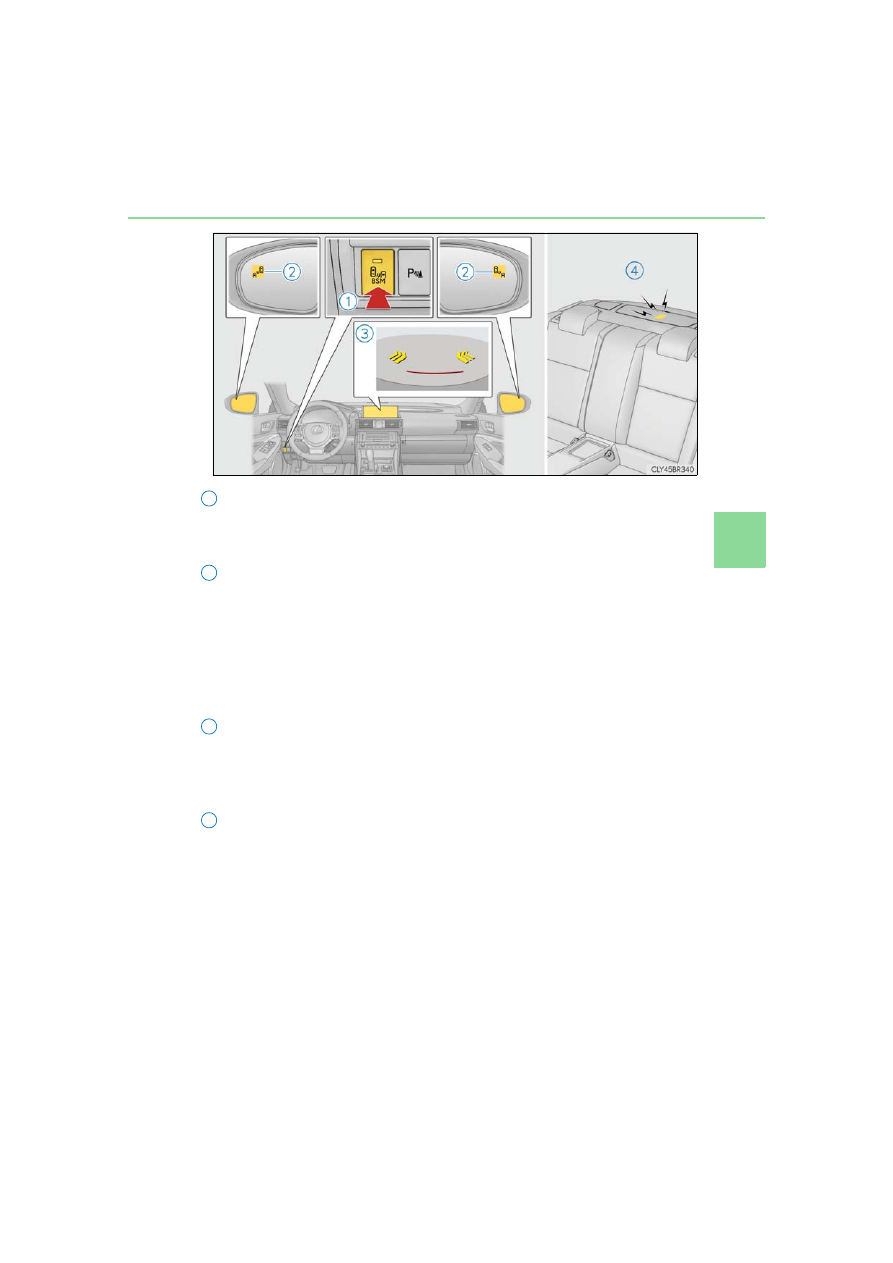

BSM main switch

This switch is for both the BSM function and RCTA function.

Pressing the switch turns the system on or off. When the switch is turned on, the indi-

cator on the switch illuminates.

Outside rear view mirror indicators

BSM function:

When a vehicle is detected in a blind spot of the outside rear view mirrors or

approaching rapidly from behind into a blind spot, the outside rear view mirror indi-

cator on the detected side will illuminate. If the turn signal lever is operated toward

the detected side, the outside rear view mirror indicator will flash.
RCTA function:

When a vehicle approaching from the right or left at the rear of the vehicle is

detected, both outside rear view mirror indicators will flash.

Center Display

If a vehicle approaching from the right or left at the rear of the vehicle is detected, the

RCTA icon (

P. 297) for the detected side will be displayed on the Center Display.

This illustration shows an example of a vehicle approaching from both sides of the

vehicle.

RCTA buzzer

If a vehicle approaching from the right or left at the rear of the vehicle is detected, a

buzzer will sound. The buzzer also sounds for approximately 1 second immediately

after the BSM main switch is operated to turn the system on.

292

4-5. Using the driving support systems

RC F_U

■

Outside rear view mirror indicator visibility
In strong sunlight, the outside rear view mirror indicator may be difficult to see.

■

Hearing the RCTA buzzer
The RCTA buzzer may be difficult to hear over loud noises, such as if the audio system

volume is high.

■

When there is a malfunction in the Blind Spot Monitor
If a system malfunction is detected due to any of the following, a warning message will be

displayed: (

P. 460)

●

A sensor is malfunctioning

●

A sensor is dirty or covered with snow or a sticker

●

The outside temperature is extremely high or low

●

Sensor voltage is abnormal

●

A sensor is misaligned

WARNING

■

Handling the radar sensor

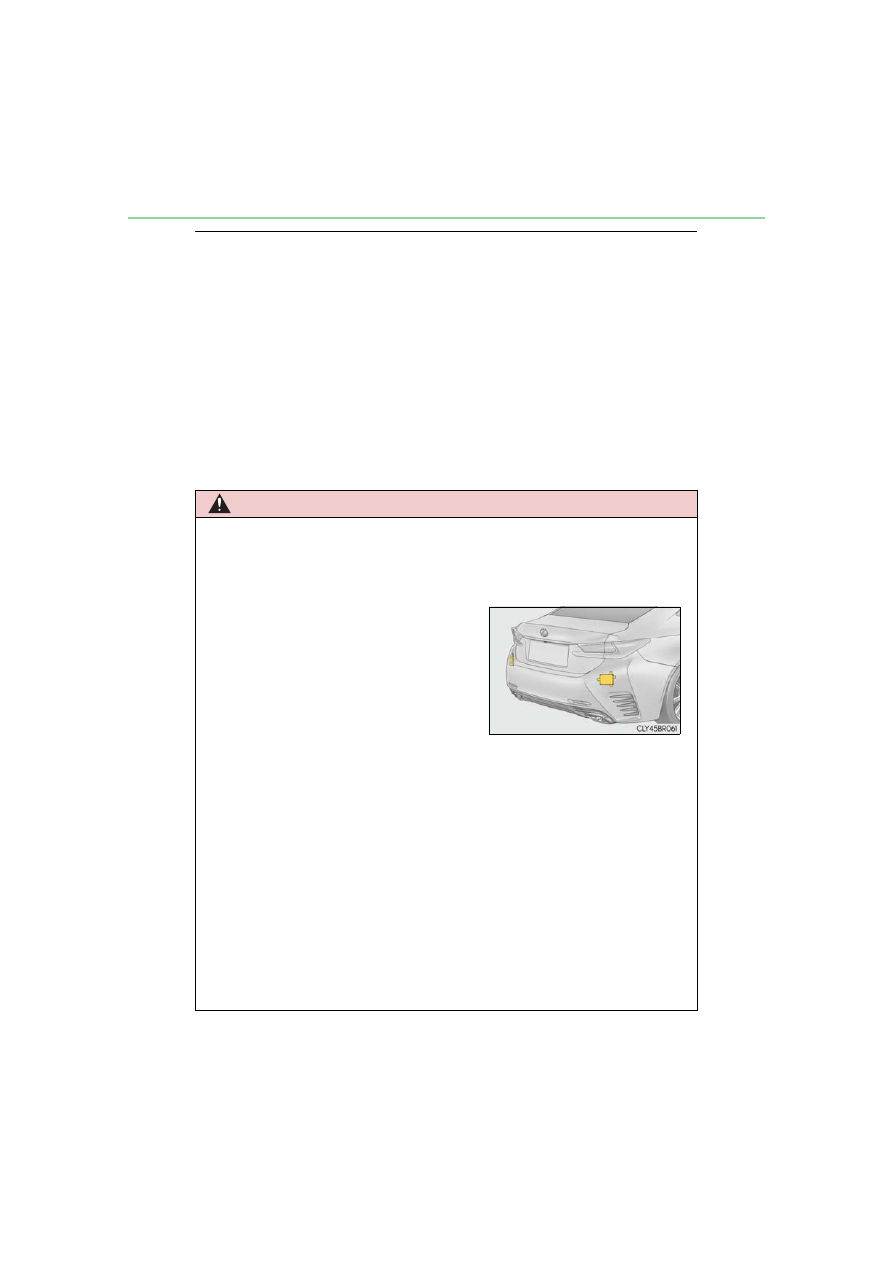

Blind Spot Monitor sensors are installed behind the left and right sides of the rear

bumper respectively. Observe the following to ensure the Blind Spot Monitor can

function correctly.

●

Do not subject a sensor or its surrounding area on the rear bumper to a strong

impact.

If a sensor is moved even slightly off position, the system may malfunction and vehi-

cles may not be detected correctly.

In the following situations, have your vehicle inspected by your Lexus dealer.
• A sensor or its surrounding area is subject to a strong impact.

• If the surrounding area of a sensor is scratched or dented, or part of them has

become disconnected.

●

Do not disassemble the sensor.

●

Do not attach stickers to the sensor or surrounding area on the rear bumper.

●

Do not modify the sensor or surrounding area on the rear bumper.

●

Do not paint the rear bumper any color other than an official Lexus color.

●

Keep the sensors and the surrounding areas

on the rear bumper clean at all times.

If a sensor or its surrounding area on the rear

bumper is dirty or covered with snow, the

Blind Spot Monitor may not operate and a

warning message (

P. 471) will be displayed.

In this situation, clear off the dirt or snow and

drive the vehicle with the operation condi-

tions of the BSM function (

P. 295) satisfied

for approximately 10 minutes. If the warning

message does not disappear, have the vehicle

inspected by your Lexus dealer.

293

4-5. Using the driving support systems

iving

RC F_U

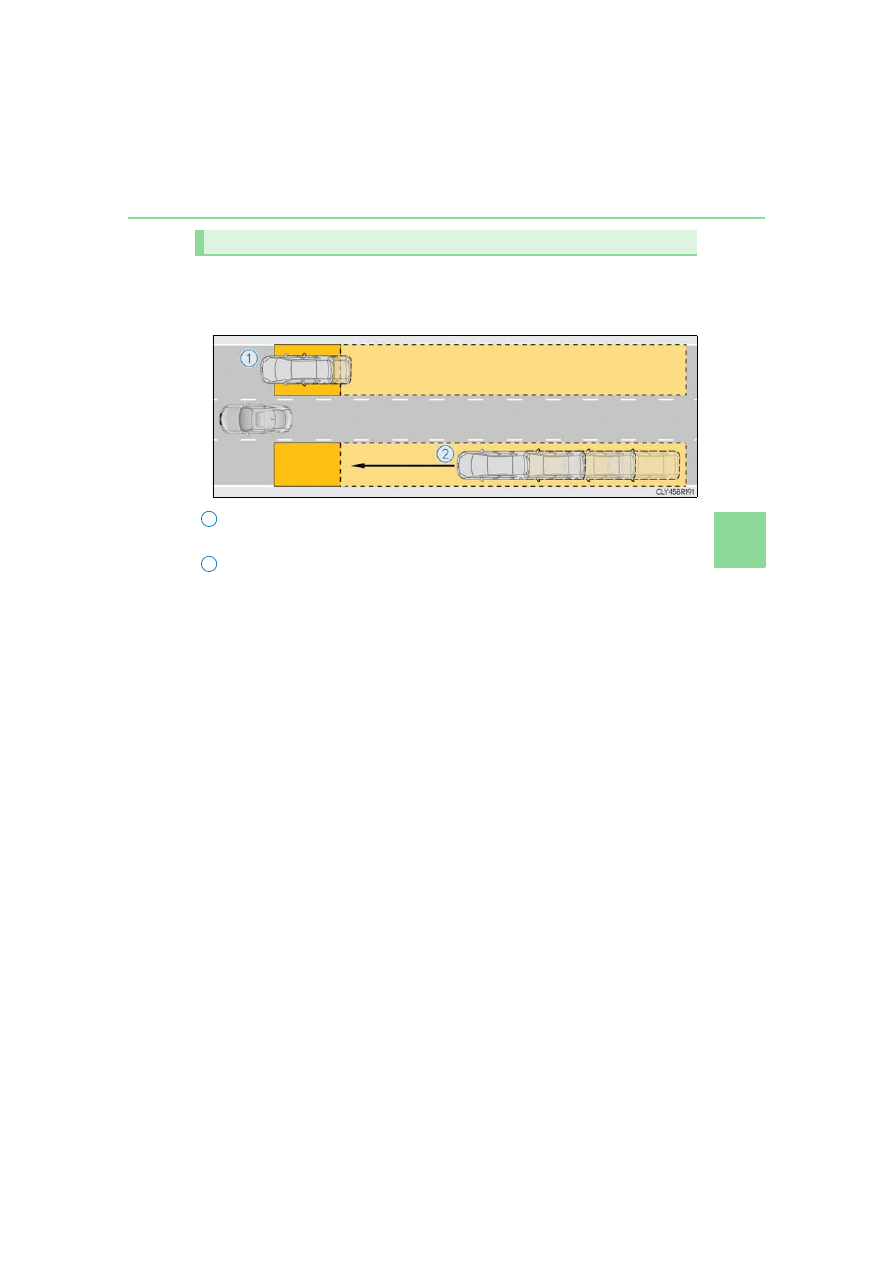

The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the
indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

BSM function

294

4-5. Using the driving support systems

RC F_U

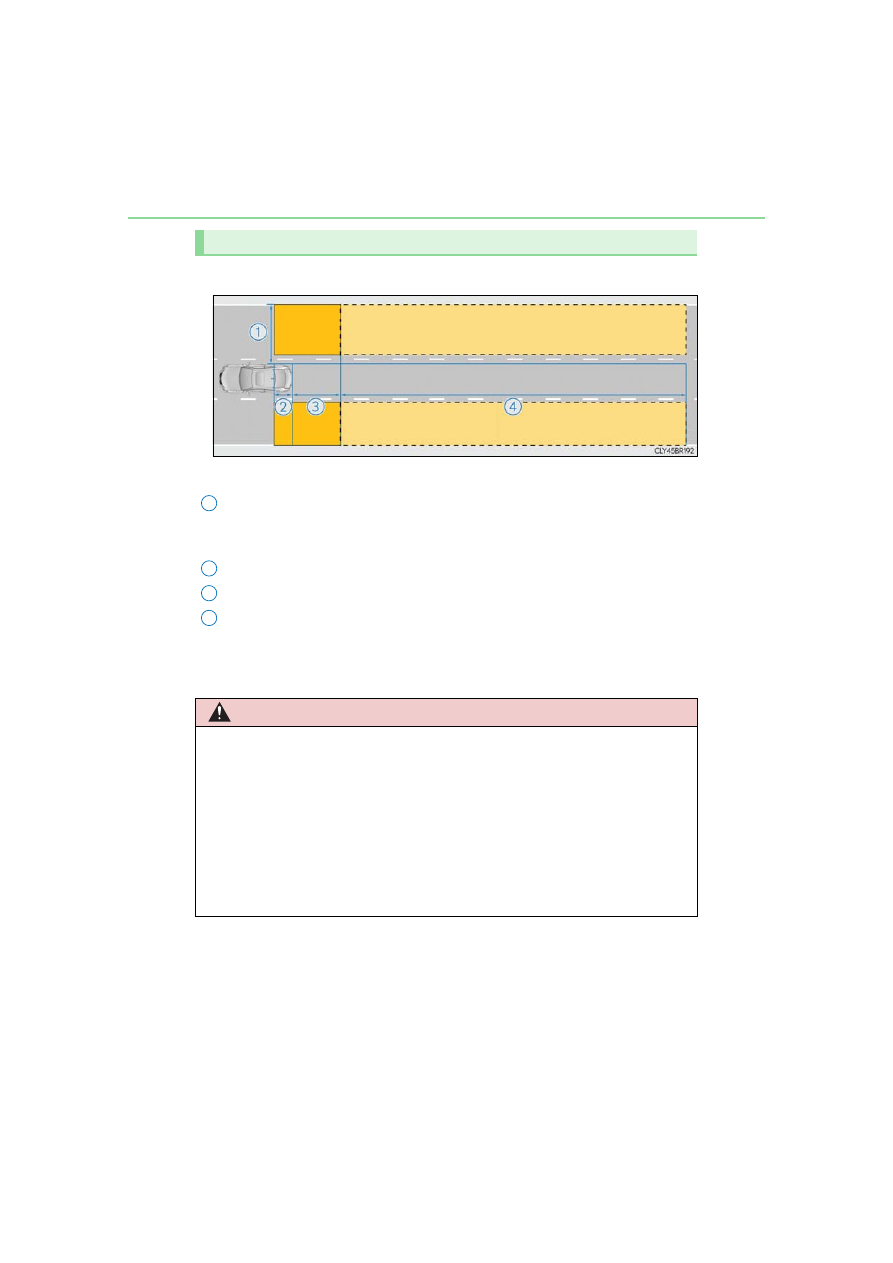

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror
indicator to illuminate or flash.

BSM function detection areas

WARNING

■

Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking care to

observe your surroundings.
The BSM function is a supplementary function which alerts the driver that a vehicle is in

a blind spot of the outside rear view mirrors or is approaching rapidly from behind into

a blind spot. Do not overly rely on the BSM function. As the function cannot judge if it is

safe to change lanes, over reliance could lead to an accident resulting in death or seri-

ous injury.
As the system may not function correctly under certain conditions, the driver’s own

visual confirmation of safety is necessary.

2
3
4

295

4-5. Using the driving support systems

iving

RC F_U

■

The BSM function is operational when
The BSM function is operational when all of the following conditions are met:

●

The BSM main switch is on.

●

The shift lever is in a position other than R.

●

The vehicle speed is greater than approximately 10 mph (16 km/h).

■

The BSM function will detect a vehicle when
The BSM function will detect a vehicle present in the detection area in the following situ-

ations:

●

A vehicle in an adjacent lane overtakes your vehicle.

●

Another vehicle enters the detection area when it changes lanes.

■

Conditions under which the BSM function will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles and/or

objects:

●

Small motorcycles, bicycles, pedestrians, etc.

●

Vehicles traveling in the opposite direction

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

●

Following vehicles that are in the same lane

●

Vehicles traveling 2 lanes away from your vehicle

: Depending on the conditions, detection of a vehicle and/or object may occur.

296

4-5. Using the driving support systems

RC F_U

■

Conditions under which the BSM function may not function correctly

●

The BSM function may not detect vehicles correctly in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-

ing area

• When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area on

the rear bumper

• When driving on a road surface that is wet with standing water during bad weather,

such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between each vehicle

• When the distance between your vehicle and a following vehicle is short

• When there is a significant difference in speed between your vehicle and the vehicle

that enters the detection area

• When the difference in speed between your vehicle and another vehicle is changing

• When a vehicle enters a detection area traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehicle remains in the detection area

• When driving up and down consecutive steep inclines, such as hills, dips in the road,

etc.

• When driving on roads with sharp bends, consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when driving on the edge of a lane, and the vehicle

in an adjacent lane is far away from your vehicle

• When a bicycle carrier or other accessory is installed to the rear of the vehicle

• When there is a significant difference in height between your vehicle and the vehicle

that enters the detection area

• Immediately after the BSM main switch is turned on

●

Instances of the BSM function unnecessarily detecting a vehicle and/or object may

increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-

ing area

• When the distance between your vehicle and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive steep inclines, such as hills, dips in the road,

etc.

• When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehicle

traveling in a lane other than the adjacent lanes enters the detection area

• When driving on roads with sharp bends, consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle and a following vehicle is short

• When a bicycle carrier or other accessory is installed to the rear of the vehicle

297

4-5. Using the driving support systems

iving

RC F_U

■

Operation of the RCTA function
The RCTA function uses radar sensors to detect vehicles approaching from
the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sound-
ing a buzzer.

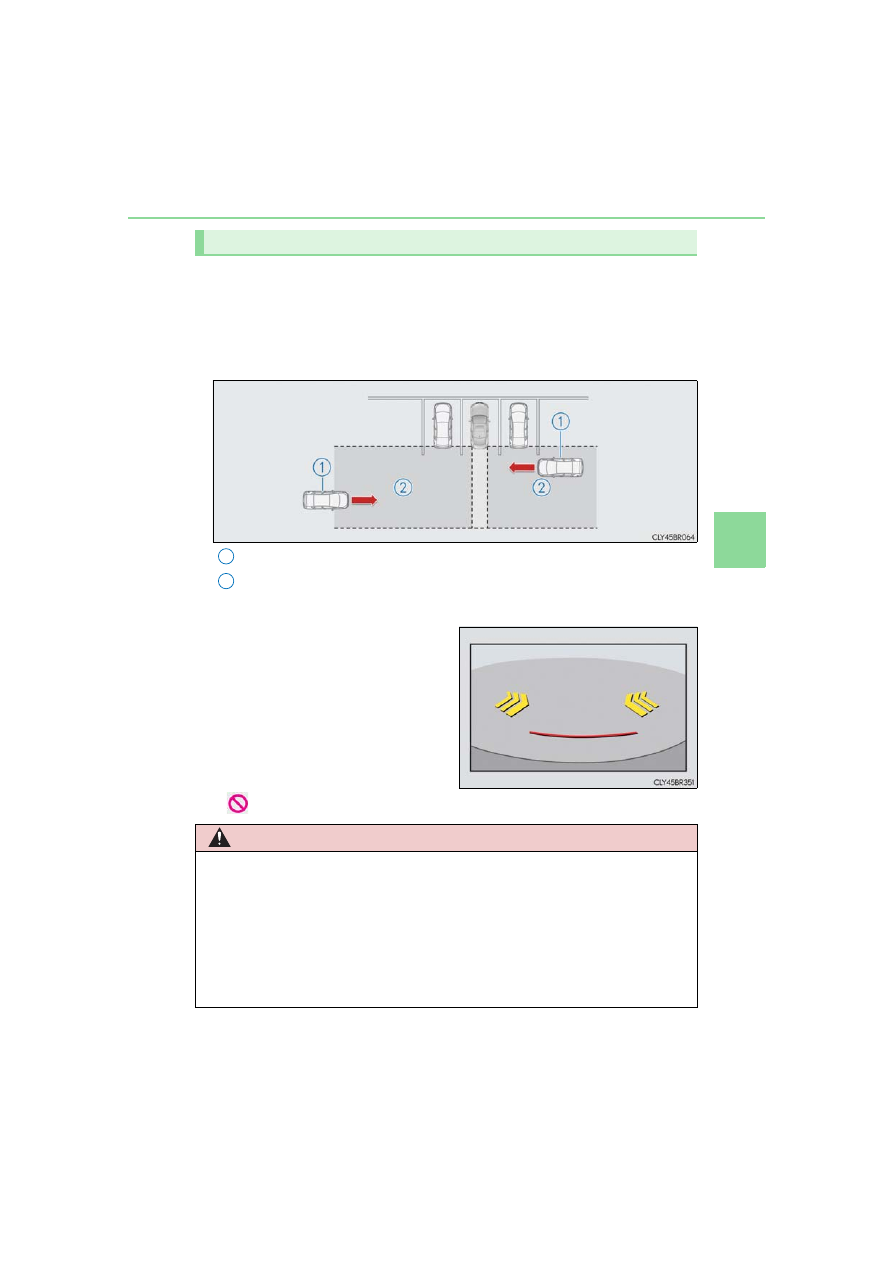

Approaching vehicles
Detection areas of approaching vehicles

■

RCTA icon display
When a vehicle approaching from
the right or left at the rear of the
vehicle is detected, the following will
be displayed on the Center Display.
This illustration shows an example of
a vehicle approaching from both
sides of the vehicle.

:The RCTA function is malfunctioning (

P. 292)

RCTA function

WARNING

■

Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking care to

observe your surroundings.
The RCTA function is only a supplementary function which alerts the driver that a vehi-

cle is approaching from the right or left at the rear of the vehicle. As the RCTA function

may not function correctly under certain conditions, the driver’s own visual confirma-

tion of safety is necessary. Over reliance on this function may lead to an accident

resulting death or serious injury.

298

4-5. Using the driving support systems

RC F_U

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of faster vehicles approaching from farther away.
Example:

■

The RCTA function is operational when
The RCTA function operates when all of the following conditions are met:

●

The BSM main switch is on.

●

The shift lever is in R.

●

The vehicle speed is less than approximately 5 mph (8 km/h).

●

The approaching vehicle speed is between approximately 5 mph (8 km/h) and 18 mph

(28 km/h).

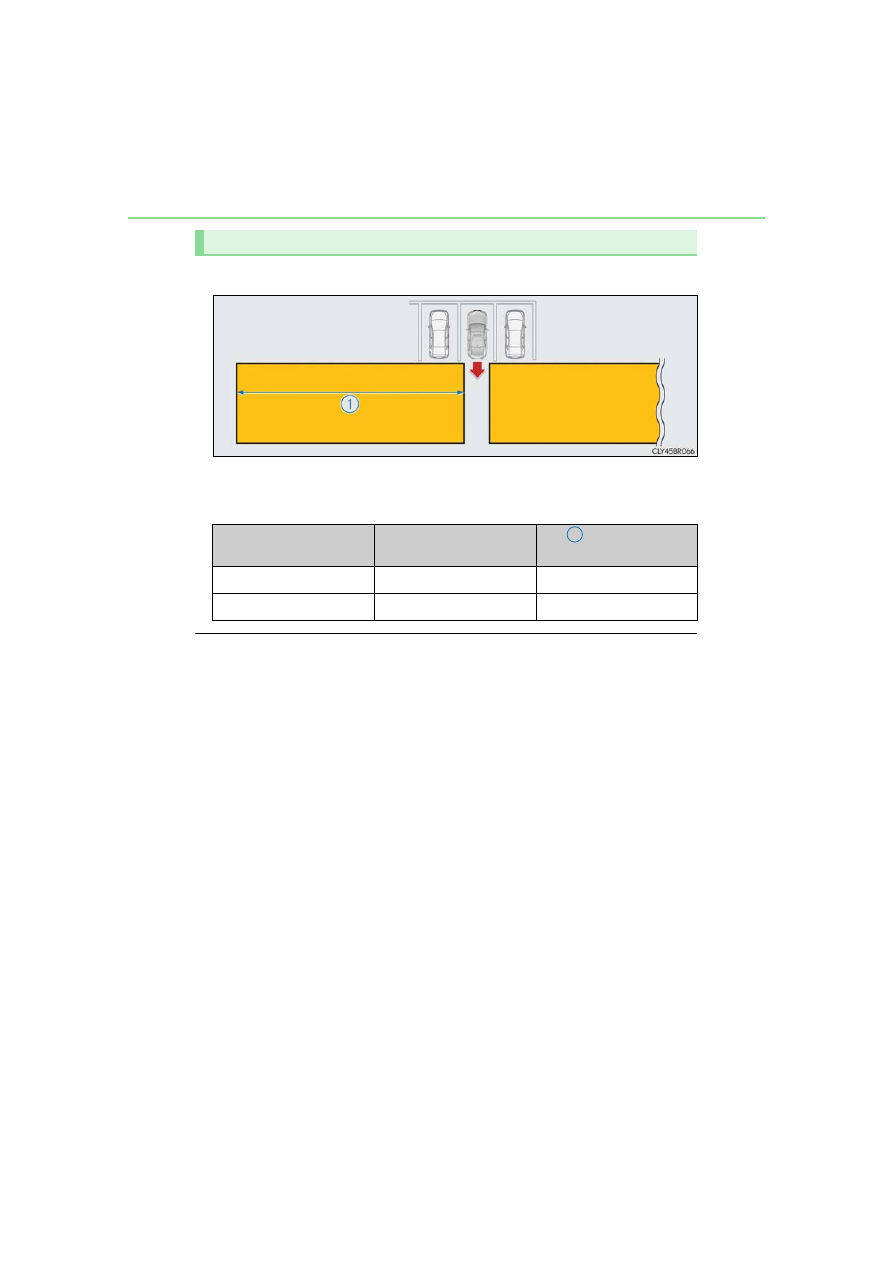

RCTA function detection areas

Approaching vehicle

Speed

Approximate

alert distance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

299

4-5. Using the driving support systems

iving

RC F_U

■

Conditions under which the RCTA function will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles and/or

objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

●

Small motorcycles, bicycles, pedestrians, etc.

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

: Depending on the conditions, detection of a vehicle and/or object may occur.

■

Conditions under which the RCTA function may not function correctly

●

The RCTA function may not detect vehicles correctly in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-

ing area

• When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area on

the rear bumper

• When driving on a road surface that is wet with standing water during bad weather,

such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between each vehicle

• When a vehicle is approaching at high speed

●

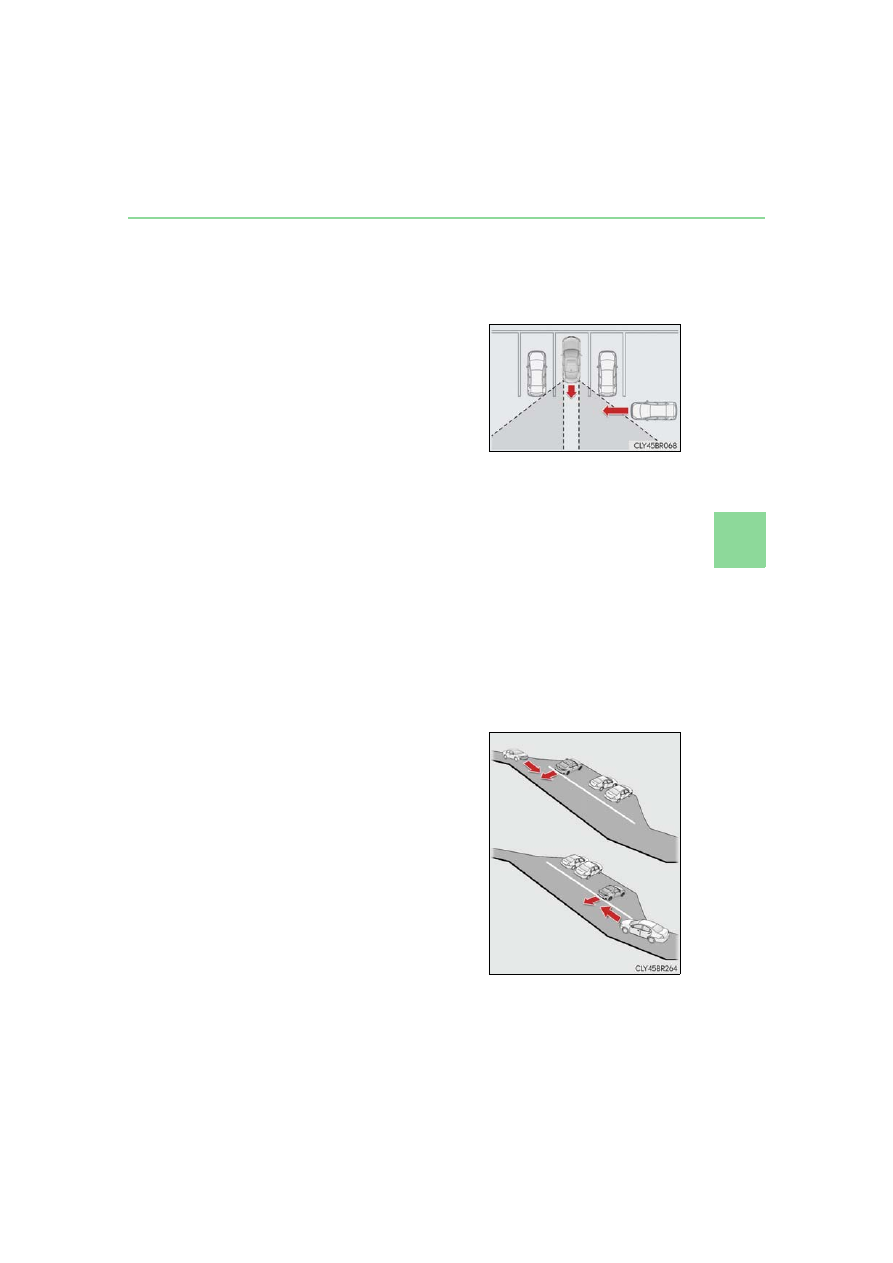

Vehicles that the sensors cannot detect due to

obstructions

• When backing up on a slope with a sharp

change in grade

300

4-5. Using the driving support systems

RC F_U

• Immediately after the BSM main switch is turned on

• Immediately after the engine is started with the BSM main switch on

●

Instances of the RCTA function unnecessarily detecting a vehicle and/or object may

increase in the following situations:
• When a vehicle passes by the side of your vehicle

• When the distance between your vehicle and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may reflect electrical waves toward the rear of

the vehicle, is short

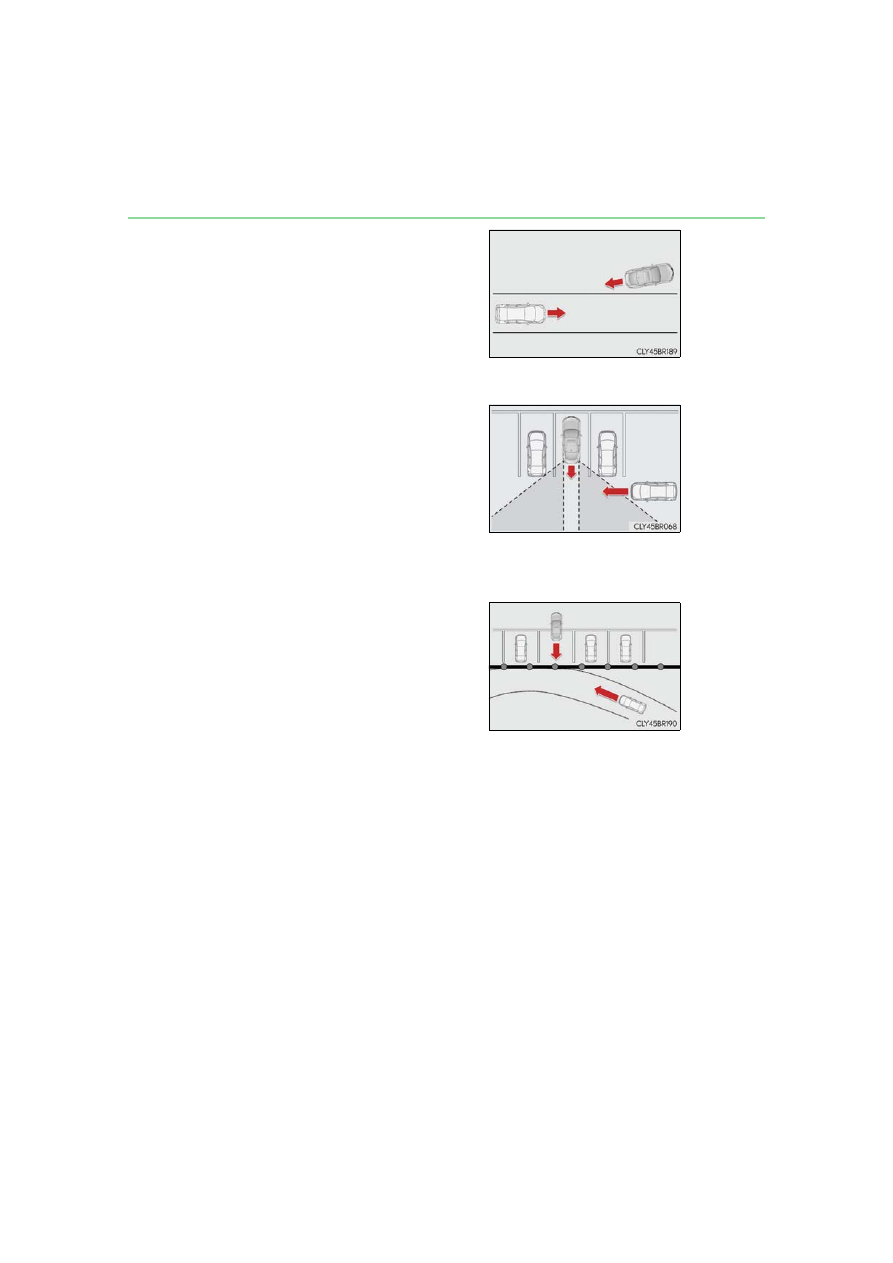

• When backing out of a shallow angle park-

ing spot

• When the sensors cannot detect a vehicle

due to obstructions

• When the parking space faces a street and

vehicles are being driven on the street

301

4-5. Using the driving support systems

iving

RC F_U



RC350/RC300 (vehicles without Adaptive Variable Suspension System)

Normal mode
Provides an optimal balance of fuel economy, quietness, and dynamic perfor-
mance. Suitable for city driving.

Press the switch to change the driving mode to normal mode when Eco drive mode or

sport mode is selected.

Eco drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel econ-
omy through moderate throttle characteristics and by controlling the opera-
tion of the air conditioning system (heating/cooling).

When not in Eco drive mode, if the driving mode select switch is turned to the left, the

Eco drive mode indicator will come on.

Sport mode
Controls the transmission and engine to provide quick, powerful acceleration.
This mode also changes the steering feel, making it suitable for when agile
driving response is desired, such as when driving on roads with many curves.

When not in sport mode, if the driving mode select switch is turned to the right, the

“SPORT” indicator will comes on.

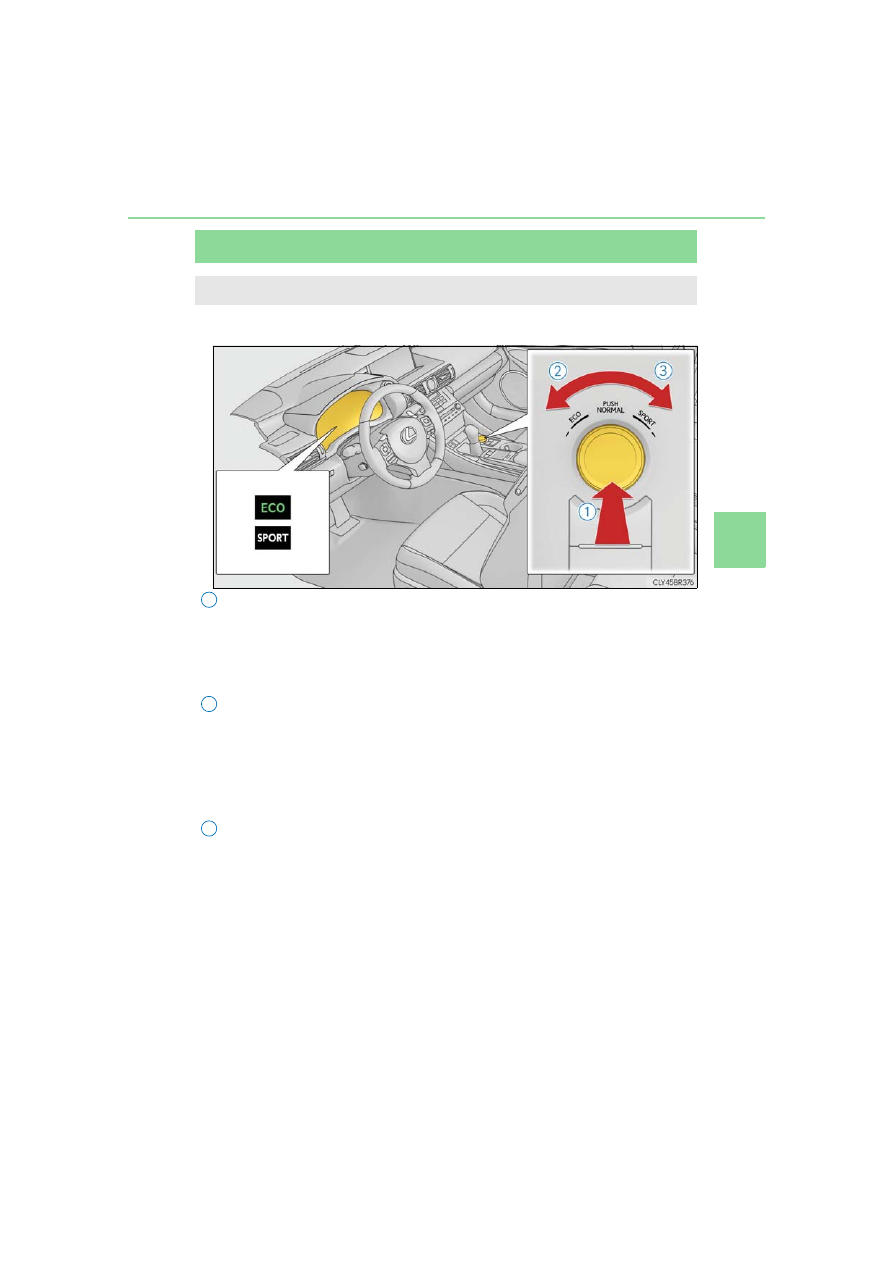

Driving mode select switch

The driving modes can be selected to suit driving condition.

Content .. 16 17 18 19 ..
