LEXUS ES 350 (2019 year). Instruction - part 20




6-3. Do-it-yourself maintenance

Fuse box (


Engine oil filler cap (


Engine oil level dipstick (


Battery (


Brake fluid reservoir (


Radiator (


Electric cooling fan

Condenser (


Engine coolant reservoir (


Washer fluid tank (


With the engine at operating tempera-
ture and turned off, check the oil level

on the dipstick.

Checking the engine oil


Park the vehicle on level ground.

After warming up the engine and turning it

Engine compartment








Checking and adding the engine


6-3. Do-it-yourself maintenance


Maintenance and


off, wait more than 5 minutes for the oil to

drain back into the bottom of the engine.


Holding a rag under the end, pull
the dipstick out.


Wipe the dipstick clean.


Reinsert the dipstick fully.


Holding a rag under the end, pull
the dipstick out and check the oil




The shape of the dipstick may differ
depending on the type of vehicle or


Wipe the dipstick and reinsert it

Checking the oil type and prepar-
ing the items needed

Make sure to check the oil type and

prepare the items needed before add-
ing oil.
 Engine oil selection


 Oil quantity (Low

 Full)

1.9 qt. (1.8 L, 1.6 Imp.qt.)

 Item

Clean funnel

Adding engine oil

If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.


Remove the oil filler cap by turning
it counterclockwise.


Add engine oil slowly, checking the


Install the oil filler cap by turning it

Engine oil consumption

A certain amount of engine oil will be con-

sumed while driving. In the following situa-

tions, oil consumption may increase, and

engine oil may need to be refilled in

between oil maintenance intervals.

When the engine is new, for example

directly after purchasing the vehicle or

after replacing the engine

If low quality oil or oil of an inappropriate

viscosity is used



6-3. Do-it-yourself maintenance

When driving at high engine speeds or

with a heavy load, or when driving while

accelerating or decelerating frequently

When leaving the engine idling for a long

time, or when driving frequently through

heavy traffic

After changing the engine oil

The engine oil maintenance data should be

reset. Perform the following procedures:


While the vehicle is stopped, press

 of the meter control switches.




 of the meter control

switches, and select





 of the meter control

switches, select “Vehicle Settings”, and

then press “OK”.




 of the meter control

switches, select “Oil Maintenance”, and

then press “OK”.


Select “Yes” and then press “OK”.

A message will be displayed on the multi-

information display.

The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold.

Reservoir cap

“F” line

“L” line

If the level is on or below the “L” line, add
coolant up to the “F” line. (


Coolant selection

Only use “Toyota Super Long Life Coolant”

or a similar high quality ethylene glycol

based non-silicate, non-amine, non-nitrite,

and non-borate coolant with long-life

hybrid organic acid technology.


Used engine oil

Used engine oil contains potentially

harmful contaminants which may

cause skin disorders such as inflamma-

tion and skin cancer, so care should be

taken to avoid prolonged and

repeated contact. To remove used

engine oil from your skin, wash thor-

oughly with soap and water.

Dispose of used oil and filters only in a

safe and acceptable manner. Do not

dispose of used oil and filters in house-

hold trash, in sewers or onto the


Call your Lexus dealer, service station

or auto parts store for information

concerning recycling or disposal.

Do not leave used engine oil within the

reach of children.


To prevent serious engine damage

Check the oil level on a regular basis.

When replacing the engine oil

Be careful not to spill engine oil on the

vehicle components.

Avoid overfilling, or the engine could

be damaged.

Check the oil level on the dipstick

every time you refill the vehicle.

Be sure the engine oil filler cap is prop-

erly tightened.

Checking the engine coolant



6-3. Do-it-yourself maintenance


Maintenance and



“Toyota Super Long Life Coolant” is a mix-

ture of 50% coolant and 50% deionized

water. (Minimum temperature: -31°F [-


“Toyota Super Long Life Coolant” is a mix-

ture of 55% coolant and 45% deionized

water. (Minimum temperature: -44°F [-

For more details about engine coolant, con-

tact your Lexus dealer.

If the coolant level drops within a short

time of replenishing

Visually check the radiator, hoses, engine

coolant reservoir cap, drain cock and water


If you cannot find a leak, have your Lexus

dealer test the cap and check for leaks in

the cooling system.

Check the radiator and condenser and

clear away any foreign objects.
If either of the above parts is extremely
dirty or you are not sure of their condi-
tion, have your vehicle inspected by
your Lexus dealer.

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.

Adding fluid

Make sure to check the fluid type and
prepare the necessary items.
 Fluid type

FMVSS No.116 DOT 3 or SAE J1703
brake fluid
FMVSS No.116 DOT 4 or SAE J1704
brake fluid

 Item

Clean funnel


When the engine is hot

Do not remove the engine coolant reser-

voir cap or the radiator cap. (


The cooling system may be under pres-

sure and may spray hot coolant if the cap

is removed, causing serious injuries, such

as burns.


When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct mixture

of water and antifreeze must be used to

provide proper lubrication, corrosion

protection and cooling. Be sure to read

the antifreeze or coolant label.

If you spill coolant

Be sure to wash it off with water to pre-

vent it from damaging parts or paint.

Checking the radiator and con-


When the engine is hot

Do not touch the radiator or condenser

as they may be hot and cause serious

injuries, such as burns.

Checking and adding the brake


6-3. Do-it-yourself maintenance

Brake fluid can absorb moisture from

the air

Excess moisture in the brake fluid can cause

a dangerous loss of braking efficiency. Use

only newly opened brake fluid.

Check the battery as follows.

Battery exterior

Make sure that the battery terminals
are not corroded and that there are no
loose connections, cracks, or loose


Hold-down clamp

Before recharging

When recharging, the battery produces

hydrogen gas which is flammable and

explosive. Therefore, observe the following

precautions before recharging:

If recharging with the battery installed on

the vehicle, be sure to disconnect the

ground cable.

Make sure the power switch on the char-

ger is off when connecting and discon-

necting the charger cables to the battery.

After recharging/reconnecting the bat-


The engine may not start. Follow the pro-

cedure below to initialize the system.


Shift the shift lever to P.


Open and close any of the doors.


Restart the engine.

Unlocking the doors using the smart

access system with push-button start may

not be possible immediately after recon-

necting the battery. If this happens, use

the wireless remote control or the

mechanical key to lock/unlock the doors.

Start the engine with the engine switch in

ACCESSORY mode. The engine may

not start with the engine switch turned off.

However, the engine will operate nor-

mally from the second attempt.

The engine switch mode is recorded by

the vehicle. If the battery is reconnected,

the vehicle will return the engine switch

mode to the status it was in before the

battery was disconnected. Make sure to


When filling the reservoir

Take care as brake fluid can harm your

hands and eyes and damage painted sur-


If fluid gets on your hands or in your eyes,

flush the affected area with clean water

If you still experience discomfort, see a



If the fluid level is low or high

It is normal for the brake fluid level to go

down slightly as the brake pads wear out

or when the fluid level in the accumulator

is high.

If the reservoir needs frequent refilling,

there may be a serious problem.

Checking the battery



6-3. Do-it-yourself maintenance


Maintenance and


turn off the power before disconnect the

battery. Take extra care when connecting

the battery if the engine switch mode

prior to discharge is unknown.

If the engine will not start even after multiple
attempts at all methods above, contact your
Lexus dealer.

If any washer does not work or “Wind-
shield Washer Fluid Low” is shown on
the multi-information display, the
washer tank may be empty. Add


Chemicals in the battery

Battery contains poisonous and corro-

sive sulfuric acid and may produce

hydrogen gas which is flammable and

explosive. To reduce the risk of death or

serious injury, take the following precau-

tions while working on or near the bat-


Do not cause sparks by touching the

battery terminals with tools.

Do not smoke or light a match near the


Avoid contact with eyes, skin and


Never inhale or swallow electrolyte.

Wear protective safety glasses when

working near the battery.

Keep children away from the battery.

Where to safely charge the battery

Always charge the battery in an open

area. Do not charge the battery in a

garage or closed room where there is

insufficient ventilation.

How to recharge the battery

Only perform a slow charge (5 A or

less). The battery may explode if charged

at a quicker rate.

Emergency measures regarding


If electrolyte gets in your eyes

Flush your eyes with clean water for at

least 15 minutes and get immediate

medical attention. If possible, continue

to apply water with a sponge or cloth

while traveling to the nearest medical


If electrolyte gets on your skin

Wash the affected area thoroughly. If

you feel pain or burning, get medical

attention immediately.

If electrolyte gets on your clothes

It can soak through clothing on to your

skin. Immediately take off the clothing

and follow the procedure above if nec-


If you accidentally swallow electrolyte

Drink a large quantity of water or milk.

Get emergency medical attention


When there is insufficient battery


Do not use if there is insufficient fluid in

the battery. There is a possible danger

that the battery may explode.


When recharging the battery

Never recharge the battery while the

engine is running. Also, be sure all acces-

sories are turned off.

When adding distilled water

Avoid overfilling. Water spilled during

battery recharging may cause corrosion.

Adding the washer fluid


6-3. Do-it-yourself maintenance

washer fluid.

Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.
Check the spare tire condition and
pressure if not rotated.

New tread

Worn tread

Treadwear indicator

The location of treadwear indicators is
shown by a “TWI” or “

” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indica-


When adding washer fluid

Do not add washer fluid when the engine

is hot or running as washer fluid contains

alcohol and may catch fire if spilled on

the engine etc.


Do not use any fluid other than

washer fluid

Do not use soapy water or engine anti-

freeze instead of washer fluid.

Doing so may cause streaking on the

vehicle’s painted surfaces, as well as

damaging the pump leading to problems

of the washer fluid not spraying.

Diluting washer fluid

Dilute washer fluid with water as neces-


Refer to the freezing temperatures listed

on the label of the washer fluid bottle.


Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.

Checking tires



6-3. Do-it-yourself maintenance


Maintenance and


tors are showing on a tire.

When to replace your vehicle’s tires

Tires should be replaced if:

• The treadwear indicators are showing on

a tire.

• You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage

• A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage

If you are not sure, consult your Lexus

Vehicles with 17-inch tires:

The wheel angle differs from vehicles
equipped with 18-inch/19-inch tires. There-
fore, 18-inch/19-inch tires cannot be
installed, as sufficient gaps with surrounding
parts cannot be ensured.

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not


Low profile tires (18-inch/19-inch tires)

Generally, low profile tires will wear more

rapidly and tire grip performance will be

reduced on snowy and/or icy roads when

compared to standard tires. Be sure to use

snow tires on snowy and/or icy roads and

drive carefully at a speed appropriate for

road and weather conditions.

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2 of the

Gross Axle Weight Ratings (GAWR) of

either the front axle or the rear axle, which-

ever is greater.
For the GAWR, see the Certification Label.

For the maximum load of the tire, see the

load limit at maximum cold tire inflation

pressure mentioned on the sidewall of the

tire. (


Tire types

Summer tires

Summer tires are high-speed perfor-

mance tires best suited to highway driv-

ing under dry conditions. Since summer

tires do not have the same traction per-

formance as snow tires, summer tires are

inadequate for driving on snow-covered

or icy roads. For driving on snow-covered

roads or icy roads, the use of snow tires is

recommended. When installing snow

tires, be sure to replace all four tires.

All season tires

All season tires are designed to provide

better traction in snow and to be ade-

quate for driving in most winter condi-

tions as well as for use year-round. All

season tires, however, do not have ade-

quate traction performance compared

with snow tires in heavy or loose snow.

Also, all season tires fall short in accelera-

tion and handling performance com-

pared with summer tires in highway


Snow tires

For driving on snow-covered roads or icy

roads, we recommend using snow tires. If

you need snow tires, select tires of the

same size, construction and load capacity

as the originally installed tires. Since your

vehicle has radial tires as original equip-

ment, make sure your snow tires also

have radial construction. Do not install

studded tires without first checking local

regulations for possible restrictions.

Snow tires should be installed on all

wheels. (


If the tread on snow tires wears down

below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is



6-3. Do-it-yourself maintenance

Rotate the tires in the order shown.

To equalize tire wear and extend tire life,
Lexus recommends that tire rotation is car-
ried out at the same interval as tire inspec-
Do not fail to initialize the tire pressure
warning system after tire rotation.

When rotating the tires

Make sure that the engine switch is off. If the

tires are rotated while the engine switch is in

IGNITION ON mode, the tire position

information will not be updated.
If this accidentally occurs, either turn the

engine switch to off and then to IGNITION

ON mode, or initialize the system after

checking that the tire pressure is properly



When inspecting or replacing tires

Observe the following precautions to

prevent accidents.

Failure to do so may cause damage to

parts of the drivetrain as well as danger-

ous handling characteristics, which may

lead to an accident resulting in death or

serious injury.

Do not mix tires of different makes,

models or tread patterns.

Also, do not mix tires of remarkably

different treadwear.

Do not use tire sizes other than those

recommended by Lexus.

Do not mix differently constructed

tires (radial, bias-belted or bias-ply


Do not tow if your vehicle has a com-

pact spare tire installed.

Do not mix summer, all season and

snow tires.

Do not use tires that have been used

on another vehicle.

Do not use tires if you do not know

how they were used previously.


Driving on rough roads

Take particular care when driving on

roads with loose surfaces or potholes.

These conditions may cause losses in tire

inflation pressure, reducing the cushion-

ing ability of the tires. In addition, driving

on rough roads may cause damage to

the tires themselves, as well as the vehi-

cle’s wheels and body.

Low profile tires (18-inch/19-inch


Low profile tires may cause greater dam-

age than usual to the tire wheel when

sustaining impact from the road surface.

Therefore, pay attention to the following:

Be sure to use proper tire inflation

pressure. If tires are under-inflated,

they may be damaged more severely.

Avoid potholes, uneven pavement,

curbs and other road hazards. Failure

to do so may lead to severe tire and

wheel damage.

If tire inflation pressure of each tire

becomes low while driving

Do not continue driving, or your tires

and/or wheels may be ruined.

Tire rotation


6-3. Do-it-yourself maintenance


Maintenance and


Your vehicle is equipped with a tire
pressure warning system that uses tire
pressure warning valves and transmit-
ters to detect low tire inflation pressure
before serious problems arise.
 If the tire pressure drops below a

predetermined level, the driver is
warned by a screen display and a
warning light. (


 The tire pressure detected by the

tire pressure warning system can be
displayed on the multi-information
display. (


The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-infor-
mation display.

Routine tire inflation pressure checks

The tire pressure warning system does not

replace routine tire inflation pressure

checks. Make sure to check tire inflation

pressure as part of your routine of daily

vehicle checks.

Tire inflation pressure

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

Situations in which the tire pressure

warning system may not operate prop-


In the following cases, the tire pressure

warning system may not operate prop-


• If non-genuine Lexus wheels are used.

• A tire has been replaced with a tire that is

not an OE (Original Equipment) tire.

• A tire has been replaced with a tire that is

not of the specified size.

• Tire chains etc. are equipped.

• An auxiliary-supported run-flat tire is


• If a window tint that affects the radio wave

signals is installed.

• If there is a lot of snow or ice on the vehi-

cle, particularly around the wheels or

wheel housings.

• If the tire inflation pressure is extremely

higher than the specified level.

• If wheel without tire pressure warning

valves and transmitters are used.

• If the ID code on the tire pressure warn-

ing valves and transmitters is not regis-

tered in the tire pressure warning


Performance may be affected in the fol-

lowing situations.

• Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

• When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

If tire position information is not correctly
displayed due to the radio wave conditions,
the display may be corrected by driving and
changing the radio wave conditions.

When the vehicle is parked, the time

taken for the warning to start or go off

could be extended.

When tire inflation pressure declines rap-

idly for example when a tire has burst, the

warning may not function.

Tire pressure warning system


6-3. Do-it-yourself maintenance

Warning performance of the tire pres-

sure warning system

The warning of the tire pressure warning

system will change in accordance with driv-

ing conditions. For this reason, the system

may give a warning even if the tire pressure

does not reach a low enough level, or if the

pressure is higher than the pressure that

was adjusted to when the system was initial-

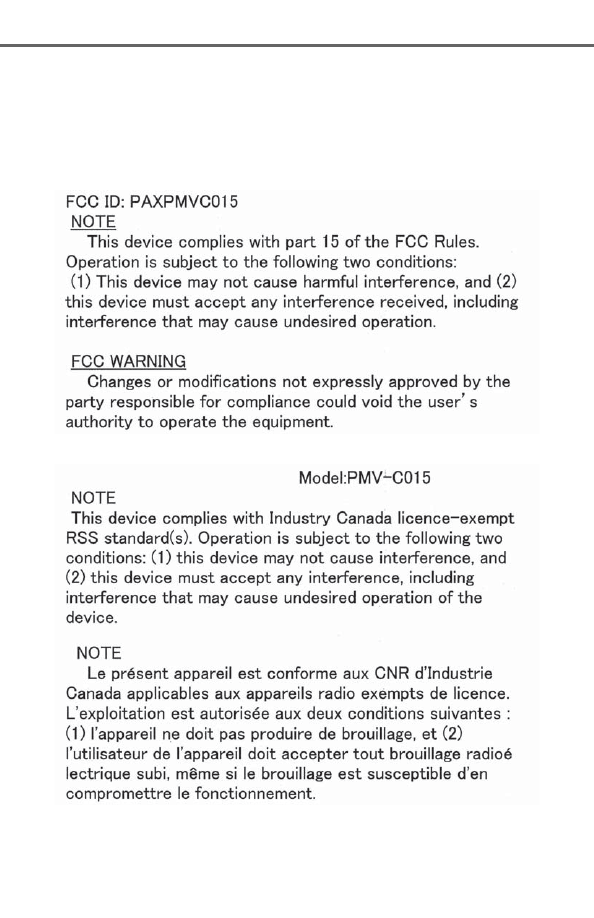

Tire pressure warning system certification

For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

For vehicles sold in Canada


6-3. Do-it-yourself maintenance


Maintenance and


When replacing tires or wheels, tire
pressure warning valves and transmit-
ters must also be installed.
When new tire pressure warning
valves and transmitters are installed,
new ID codes must be registered in the
tire pressure warning computer and
the tire pressure warning system must
be initialized. (


When replacing the tires and wheels

If the ID code of the tire pressure warning

valve and transmitter is not registered, the

tire pressure warning system will not work

properly. After driving for about 20 min-

utes, the tire pressure warning light blinks

for 1 minute and stays on to indicate a sys-

tem malfunction.

The tire pressure warning system
must be initialized in the following

 When rotating the tires.
 When the tire inflation pressure is

changed when changing traveling

 When the tire inflation pressure is

changed such as when changing tire
size. (When there are multiple spec-
ified pressures)

 After registering the ID codes.



When the tire pressure warning system
is initialized, the current tire inflation
pressure is set as the benchmark pres-

How to initialize the tire pressure
warning system


Park the vehicle in a safe place and
stop the engine for 20 minutes or

Initialization cannot be performed while

the vehicle is moving.


Adjust the tire inflation pressure to
the specified cold tire inflation pres-
sure level.

Make sure to adjust the tire pressure to the

specified cold tire inflation pressure level.

The tire pressure warning system will oper-

ate based on this pressure level.


Start the engine. (





 of the meter con-

trol switches and select


Installing tire pressure warning
valves and transmitters


Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

When removing or fitting the wheels,

tires or the tire pressure warning

valves and transmitters, contact your

Lexus dealer as the tire pressure warn-

ing valves and transmitters may be

damaged if not handled correctly.

Make sure to install the tire valve caps.

If the tire valve caps are not installed,

water could enter the tire pressure

warning valves and the tire pressure

warning valves could be bound.

When replacing tire valve caps, do not

use tire valve caps other than those

specified. The cap may become stuck.

Initializing the tire pressure
warning system


6-3. Do-it-yourself maintenance




 of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.




 of the meter con-

trol switches and select “TPWS”,
then press “OK”.




 of the meter con-

trol switches and select “Set Pres-
sure”. Then press and hold “OK”
until the tire pressure warning light
starts blinking.

A message is displayed on the multi-infor-

mation display. Also, “--” is displayed for

inflation pressure of each tire on the multi-

information display while the tire pressure

warning system determines the position.


Drive at approximately 25 mph
(40 km/h) or more for approxi-
mately 10 to 30 minutes.

When initialization is complete, the infla-

tion pressure of each tire will be displayed

on the multi-information display.
Even if the vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more, initial-

ization can be completed by driving for a

long time. However, if initialization does not

complete after driving for 1 hour or more,

park the vehicle in a safe place for approxi-

mately 20 minutes and then drive the vehi-

cle again.

When initializing

Initialization is performed while driving at

a vehicle speed of approximately 25 mph

(40 km/h) or more.

Make sure to carry out initialization after

adjusting the tire inflation pressure.

Also, make sure the tires are cold before

carrying out initialization or tire inflation

pressure adjustment.

The tire pressure warning system can be

initialized by yourself, but depending on

the driving conditions and driving envi-

ronment, initialization may take some

time to complete.

The initialization operation

If you have accidentally turned the engine

switch off during initialization, it is not

necessary to manually restart the initial-

ization again, as initialization will restart

automatically the next time the engine

switch is turned to IGNITION ON mode.

If you accidentally perform initialization

when initialization is not necessary, adjust

the tire inflation pressure to the specified

level when the tires are cold, and conduct

initialization again.

While the position of each tire is being

determined and the inflation pressures

are not being displayed on the multi-

information display, if the inflation pres-

sure of a tire drops, the tire pressure

warning light will come on.

If the tire pressure warning system is not

initialized properly

In the following situations, initialization

may take longer than usual to be com-

pleted or may not be possible. Normally,

initialization completes within approxi-

mately 30 minutes.

• Vehicle is not driven at approximately 25

mph (40 km/h) or more

• Vehicle is driven on unpaved roads

• Vehicle is driven near other vehicles and

system cannot recognize tire pressure

warning valve and transmitters of your

vehicle over those of other vehicles

If initialization does not complete after driv-
ing for 1 hour or more, park the vehicle in a
safe place for approximately 20 minutes
and then drive the vehicle again.

If the vehicle is reversed during initializa-


6-3. Do-it-yourself maintenance


Maintenance and


tion, the data up to that point is reset, so

perform the initialization procedure

again from the beginning.

In the following situations, initialization

will not be started or was not completed

properly and the system will not operate

properly. Perform the initialization proce-

dure again.

• If, when attempting to start initialization,

the tire pressure warning light does not

blink 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ini-

tialization, the tire pressure warning light

blinks for approximately 1 minute and

then illuminates.

If initialization cannot be completed after
performing the above procedure, contact
your Lexus dealer.

Every tire pressure warning valve and
transmitter has a unique ID code.
When replacing a tire pressure warn-
ing valve and transmitter, it is necessary
to register the ID code.
When registering the ID codes, per-
form the following procedure.


Park the vehicle in a safe place, wait
for approximately 20 minutes, and
then start the engine. (





 of the meter con-

trol switches and select





 of the meter con-

trol switches and select “Vehicle
Settings”, and then press “OK”.




 of the meter con-

trol switches and select “TPWS”,
and then press “OK”.




 of the meter con-

trol switches and select “Change
Wheel Set”. Then press and hold
“OK” until the tire pressure warning
light starts slowly blinking 3 times.

Then a message will be displayed on the

multi-information display.
When registration is being performed, the

tire pressure warning light will blink for

approximately 1 minute then illuminate and

“--” will be displayed for the inflation pres-

sure of each tire on the multi-information



Drive at approximately 25 mph
(40 km/h) or more for approxi-
mately 10 to 30 minutes.

Registration is complete when the tire

pressure warning light turns off and the

inflation pressure of each tire is displayed

on the multi-information display.
Even if the vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more, regis-

tration can be completed by driving for a

long time. However, if registration does not


When initializing the tire pressure

warning system

Do not initialize tire inflation pressure

without first adjusting the tire inflation

pressure to the specified level. Other-

wise, the tire pressure warning light may

not come on even if the tire inflation pres-

sure is low, or it may come on when the

tire inflation pressure is actually normal.

Registering ID codes


6-3. Do-it-yourself maintenance

complete after driving for 1 hour or more,

perform the procedure again from the



Initialize the tire pressure warning
system. (


When registering ID codes

ID code registration is performed while

driving at a vehicle speed of approxi-

mately 25 mph (40 km/h) or more.

Before performing ID code registration,

make sure that no wheels with tire pres-

sure warning valve and transmitters

installed are near the vehicle.

Make sure to initialize the tire pressure

warning system after registering the ID

codes. If the system is initialized before

registering the ID codes, the initialized

values will be invalid.

ID codes can be registered by yourself,

but depending on the driving conditions

and driving environment, registration

may take some time to complete.

Canceling ID code registration

To cancel ID code registration after it has

been started, turn the engine switch off

before driving the vehicle.

If the vehicle is driven after ID code regis-

tration is started, to cancel registration,

perform the ID code registration start

procedure again and turn the engine

switch off before driving.

If ID code registration has been canceled,

the tire pressure warning light will blink

for approximately 1 minute when the

engine switch is turned to IGNITION

ON mode and then illuminate. The tire

pressure warning system will be opera-

tional when the tire pressure warning

light turns off.

If the warning light does not turn off even

after several minutes have elapsed, ID

code registration may not have been can-

celed correctly. To cancel registration,

perform the ID code registration start

procedure again and then turn the engine

switch off before driving.

If ID codes are not registered properly

In the following situations, ID code regis-

tration may take longer than usual to be

completed or may not be possible. Nor-

mally, registration completes within

approximately 30 minutes.

• Vehicle is not parked for approximately

20 minutes or more before driving

• Vehicle is not driven at approximately 25

mph (40 km/h) or more

• Vehicle is driven on unpaved roads

• Vehicle is driven near other vehicles and

system cannot recognize tire pressure

warning valve and transmitters of your

vehicle over those of other vehicles

• Wheel with tire pressure warning valve

and transmitter installed is inside or near

the vehicle

If registration does not complete after driv-
ing for 1 hour or more, perform the ID code
registration procedure again from the

If the vehicle is reversed during registra-

tion, the data up to that point is reset, so

perform the registration procedure again

from the beginning.

In the following situations, ID code regis-

tration will not be started or was not com-

pleted properly and the system will not

operate properly. Perform the ID code

registration procedure again.

• If, when attempting to start ID code regis-

tration, the tire pressure warning light

does not blink slowly 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ID

code registration, the tire pressure warn-

ing light blinks for approximately 1 minute

and then illuminates.

If ID code registration cannot be com-

pleted after performing the above proce-

dure, contact your Lexus dealer.


6-3. Do-it-yourself maintenance


Maintenance and


The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.


Tire valve

Tire pressure gauge


Remove the tire valve cap.


Press the tip of the tire pressure
gauge onto the tire valve.


Read the pressure using the gauge


If the tire inflation pressure is not at
the recommended level, adjust the
If you add too much air, press the
center of the valve to deflate.


After completing the tire inflation
pressure measurement and adjust-
ment, apply soapy water to the
valve and check for leakage.


Put the tire valve cap back on.

Tire inflation pressure check interval

You should check tire inflation pressure

every two weeks, or at least once a month.

Do not forget to check the spare.

Effects of incorrect tire inflation pres-


Driving with incorrect tire inflation pressure

may result in the following:

Reduced fuel economy

Reduced driving comfort and poor han-


Reduced tire life due to wear

Reduced safety

Damage to the drivetrain

If a tire needs frequent inflating, have it

checked by your Lexus dealer.

Instructions for checking tire inflation


When checking tire inflation pressure,

observe the following:

Check only when the tires are cold.

If your vehicle has been parked for at

least 3 hours or has not been driven for

Tire inflation pressure

Checking the specified tire infla-
tion pressure

Inspection and adjustment pro-










Content   ..  18  19  20  21   ..
