EAU00002
INTRODUCTION
Congratulations on your purchase of the Yamaha Road Star Warrior™. This model is
the result of Yamaha’s vast experience in the production of fine sporting, touring, and
pacesetting racing machines. It represents the high degree of craftsmanship and
reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic
maintenance of this motorcycle. If you have any questions concerning the operation
or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the emis-
sions standards for clean air applicable at the date of manufacture. Yamaha has met
these standards without reducing the performance or economy of operation of the
motorcycle. To maintain these high standards, it is important that you and your
Yamaha dealer pay close attention to the recommended maintenance schedules and
operating instructions contained within this manual.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00003
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the
WARNING
motorcycle operator, a bystander or a person inspecting or repairing the motorcycle.
A CAUTION indicates special precautions that must be taken to avoid damage to the
CAUTION:
motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.
NOTE:
_
This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
_

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT MANUAL INFORMATION
EW000000
WARNING
_
PLEASE READ THIS MANUAL AND THE “YOU AND YOUR MOTORCYCLE: RIDING
TIPS” BOOKLET CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTOR-
CYCLE. DO NOT ATTEMPT TO OPERATE THIS MOTORCYCLE UNTIL YOU HAVE AT-
TAINED ADEQUATE KNOWLEDGE OF ITS CONTROLS AND OPERATING FEATURES
AND UNTIL YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES.
REGULAR INSPECTIONS AND CAREFUL MAINTENANCE, ALONG WITH GOOD RIDING
SKILLS, WILL ENSURE THAT YOU SAFELY ENJOY THE CAPABILITIES AND THE RELI-
ABILITY OF THIS MOTORCYCLE.
_

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TABLE OF CONTENTS
1
SAFETY INFORMATION
1
2
DESCRIPTION
2
3
INSTRUMENT AND CONTROL FUNCTIONS
3
4
PRE-OPERATION CHECKS
4
5
OPERATION AND IMPORTANT RIDING POINTS
5
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6
7
MOTORCYCLE CARE AND STORAGE
7
8
SPECIFICATIONS
8
9
CONSUMER INFORMATION
9
INDEX

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Safe riding
1-1
Protective apparel
1-3
1
Modifications
1-3
Loading and accessories
1-3
Gasoline and exhaust gas
1-5
Location of important labels
1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU04193
SAFETY INFORMATION
MOTORCYCLES ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE
DEPENDENT UPON THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE
OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW THE FOLLOWING REQUIREMENTS
1
BEFORE RIDING THIS MOTORCYCLE.
HE OR SHE SHOULD:
1. OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.
2. OBSERVE THE WARNINGS AND MAINTENANCE REQUIREMENTS IN THE OWNER’S MANU-
AL.
3. OBTAIN QUALIFIED TRAINING IN SAFE AND PROPER RIDING TECHNIQUES.
4. OBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECESSARY BY MECHANICAL CONDITIONS.
Safe riding
1. Always make pre-operation checks. Careful checks may help prevent an accident.
2. This motorcycle is designed to carry the operator and a passenger.
3. The failure of motorists to detect and recognize motorcycles in traffic is the predominating cause of
automobile/motorcycle accidents. Many accidents have been caused by an automobile driver who
did not see the motorcycle. Making yourself conspicuous appears to be very effective in reducing the
chance of this type of accident.
Therefore:
a. Wear a brightly colored jacket.
b. Use extra caution when you are approaching and passing through intersections, since intersec-
tions are the most likely places for motorcycle accidents to occur.
c. Ride where other motorists can see you. Avoid riding in another motorist’s blind spot.
1-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
4.
Many accidents involve inexperienced operators. In fact, many operators who have been involved in
accidents do not even have a current motorcycle license.
a. Make sure that you are qualified and that you only lend your motorcycle to other qualified opera-
1
tors.
b. Know your skills and limits. Staying within your limits may help you to avoid an accident.
c. We recommend that you practice riding your motorcycle where there is no traffic until you have
become thoroughly familiar with the motorcycle and all of its controls.
5.
Many accidents have been caused by error of the motorcycle operator. A typical error made by the
operator is veering wide on a turn due to EXCESSIVE SPEED or undercornering (insufficient lean
angle for the speed).
a. Always obey the speed limit and never travel faster than warranted by road and traffic conditions.
b. Always signal before turning or changing lanes. Make sure that other motorists can see you.
6.
The posture of the operator and passenger is important for proper control.
a. The operator should keep both hands on the handlebar and both feet on the operator footrests
during operation to maintain control of the motorcycle.
b. The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, with
both hands and keep both feet on the passenger footrests.
c. Never carry a passenger unless he or she can firmly place both feet on the passenger footrests.
7.
Never ride under the influence of alcohol or other drugs.
8.
This motorcycle is designed for on-road use only. It is not suitable for off-road use.
1-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Protective apparel
The majority of fatalities from motorcycle accidents are the result of head injuries. The use of a safety
helmet is the single most critical factor in the prevention or reduction of head injuries.
1
1. Always wear an approved helmet.
2. Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vi-
sion that could delay seeing a hazard.
3. The use of a jacket, heavy boots, trousers, gloves, etc., is effective in preventing or reducing abra-
sions or lacerations.
4. Never wear loose-fitting clothes, otherwise they could catch on the control levers, footrests, or wheels
and cause injury or an accident.
5. Never touch the engine or exhaust system during or after operation. They become very hot and can
cause burns. Always wear protective clothing that covers your legs, ankles, and feet.
6. A passenger should also observe the above precautions.
Modifications
Modifications made to this motorcycle not approved by Yamaha, or the removal of original equipment,
may render the motorcycle unsafe for use and may cause severe personal injury. Modifications may
also make your motorcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your motorcycle can adversely affect stability and handling if the
weight distribution of the motorcycle is changed. To avoid the possibility of an accident, use extreme
caution when adding cargo or accessories to your motorcycle. Use extra care when riding a
motorcycle that has added cargo or accessories. Here are some general guidelines to follow if loading
cargo or adding accessories to your motorcycle:
1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Loading
The total weight of the operator, passenger, accessories and cargo must not exceed the maximum
load limit of 408 lb (185 kg). When loading within this weight limit, keep the following in mind:
1
1. Cargo and accessory weight should be kept as low and close to the motorcycle as possible. Make
sure to distribute the weight as evenly as possible on both sides of the motorcycle to minimize imbal-
ance or instability.
2. Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely
attached to the motorcycle before riding. Check accessory mounts and cargo restraints frequently.
3. Never attach any large or heavy items to the handlebar, front fork, or front fender. These items, in-
cluding such cargo as sleeping bags, duffel bags, or tents, can create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have been specifically designed for use on this motorcycle. Since
Yamaha cannot test all other accessories that may be available, you must personally be responsible
for the proper selection, installation and use of non-Yamaha accessories. Use extreme caution when
selecting and installing any accessories.
Keep the following guidelines in mind, as well as those provided under “Loading” when mounting
accessories.
1. Never install accessories or carry cargo that would impair the performance of your motorcycle. Care-
fully inspect the accessory before using it to make sure that it does not in any way reduce ground
clearance or cornering clearance, limit suspension travel, steering travel or control operation, or ob-
scure lights or reflectors.
1-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
a. Accessories fitted to the handlebar or the front fork area can create instability due to improper
weight distribution or aerodynamic changes. If accessories are added to the handlebar or front
fork area, they must be as lightweight as possible and should be kept to a minimum.
1
b. Bulky or large accessories may seriously affect the stability of the motorcycle due to aerodynamic
effects. Wind may attempt to lift the motorcycle, or the motorcycle may become unstable in cross
winds. These accessories may also cause instability when passing or being passed by large ve-
hicles.
c. Certain accessories can displace the operator from his or her normal riding position. This improp-
er position limits the freedom of movement of the operator and may limit control ability, therefore,
such accessories are not recommended.
2. Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the
motorcycle’s electrical system, an electric failure could result, which could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas
1. GASOLINE IS HIGHLY FLAMMABLE:
a. Always turn the engine off when refueling.
b. Take care not to spill any gasoline on the engine or exhaust system when refueling.
c. Never refuel while smoking or in the vicinity of an open flame.

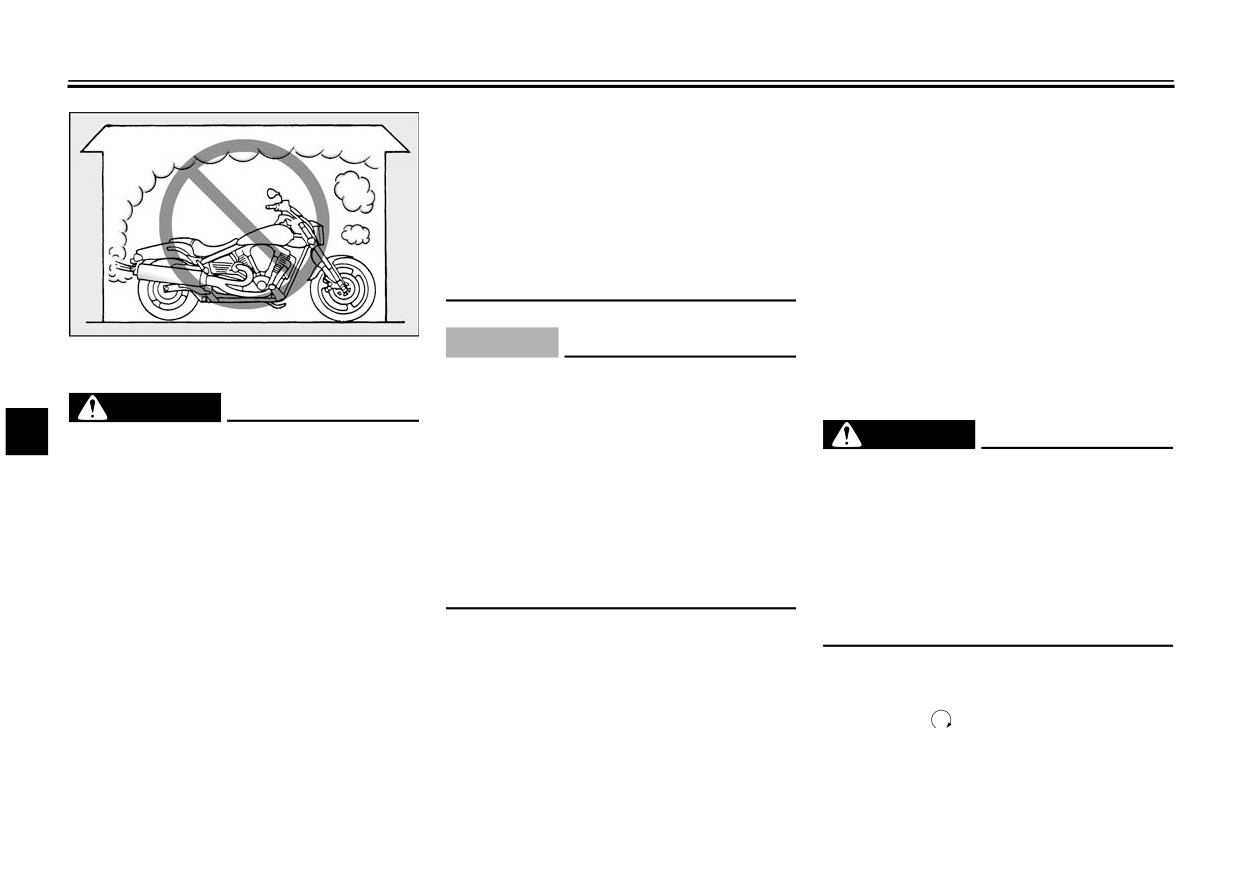

2. Never start the engine or let it run for any length of time in a closed area. The exhaust fumes are poi-
sonous and may cause loss of consciousness and death within a short time. Always operate your
motorcycle in an area that has adequate ventilation.
3. Always turn the engine off before leaving the motorcycle unattended and remove the key from the
main switch. When parking the motorcycle, note the following:
1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
a. The engine and exhaust system may be hot, therefore, park the motorcycle in a place where pe-
destrians or children are not likely to touch these hot areas.
b. Do not park the motorcycle on a slope or soft ground, otherwise it may fall over.
1
c. Do not park the motorcycle near a flammable source (e.g., a kerosene heater, or near an open
flame), otherwise it could catch fire.
4. When transporting the motorcycle in another vehicle, make sure that it is kept upright. If the motor-
cycle should lean over, gasoline may leak out of the fuel tank.
5. If you should swallow any gasoline, inhale a lot of gasoline vapor, or allow gasoline to get into your
eyes, see your doctor immediately. If any gasoline spills on your skin or clothing, immediately wash
the affected area with soap and water and change your clothes.
1-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
EAU02977

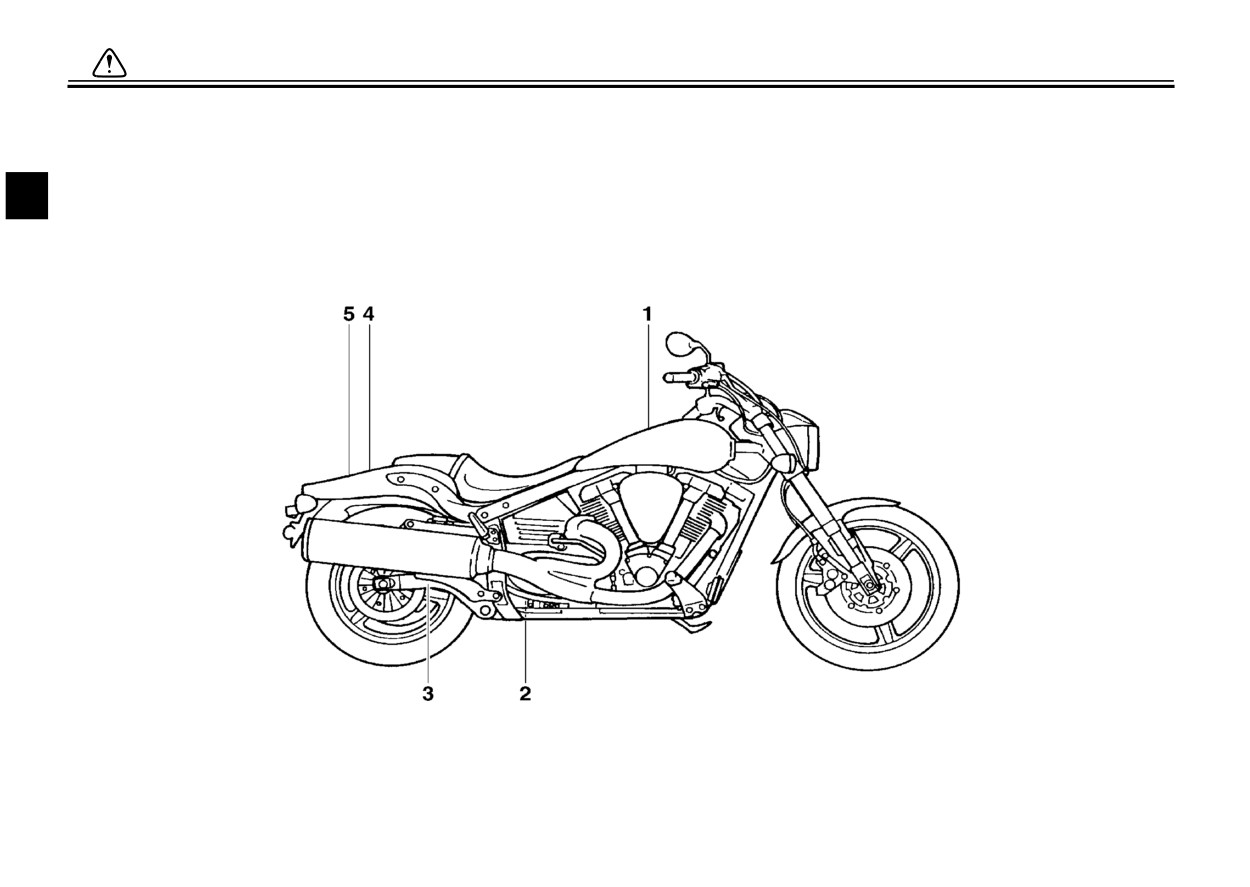

Location of important labels
Please read the following important labels carefully before operating this motorcycle.
1
1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

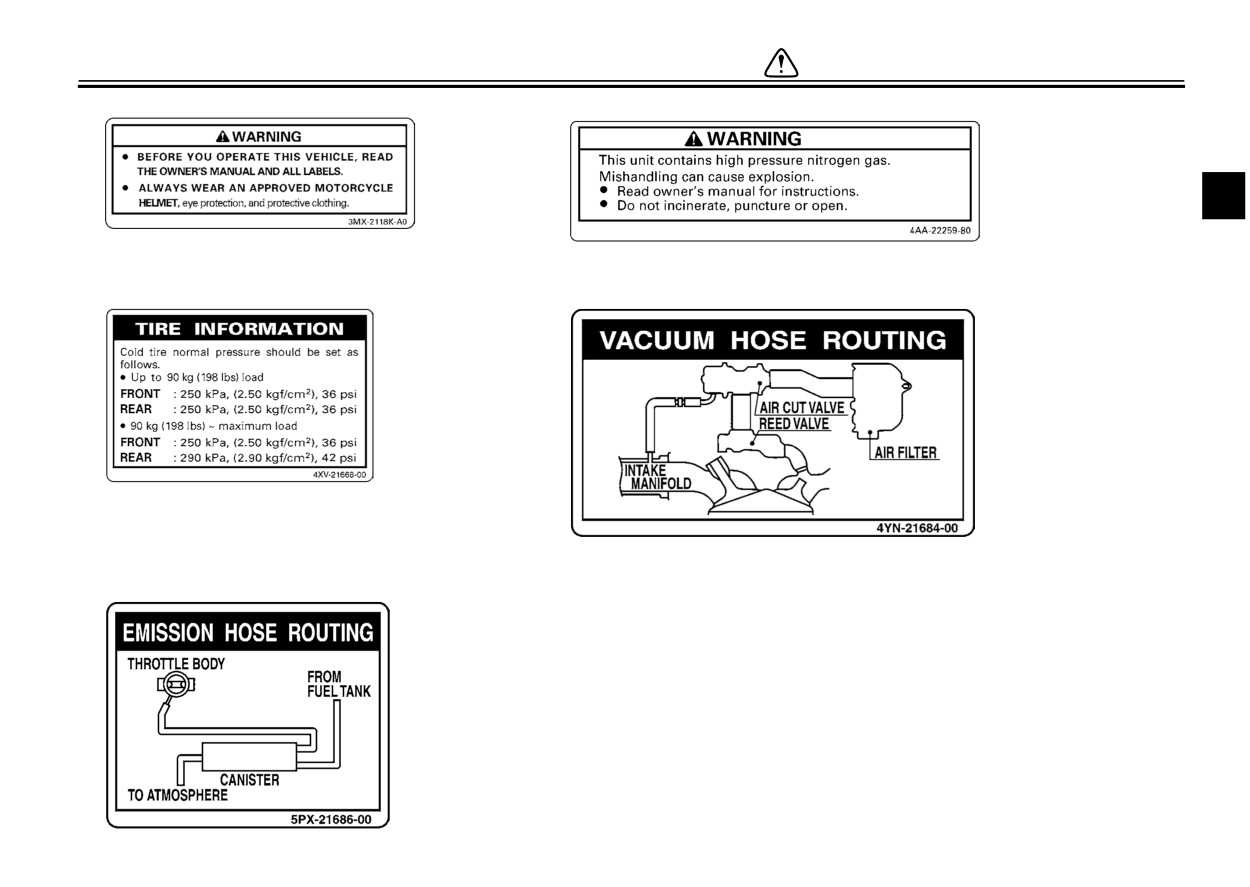

SAFETY INFORMATION
1
2
1
California only
3
4
California only
5
1-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION
Left view
2-1
Right view
2-2
Controls and instruments
2-3
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00026
DESCRIPTION
Left view
2

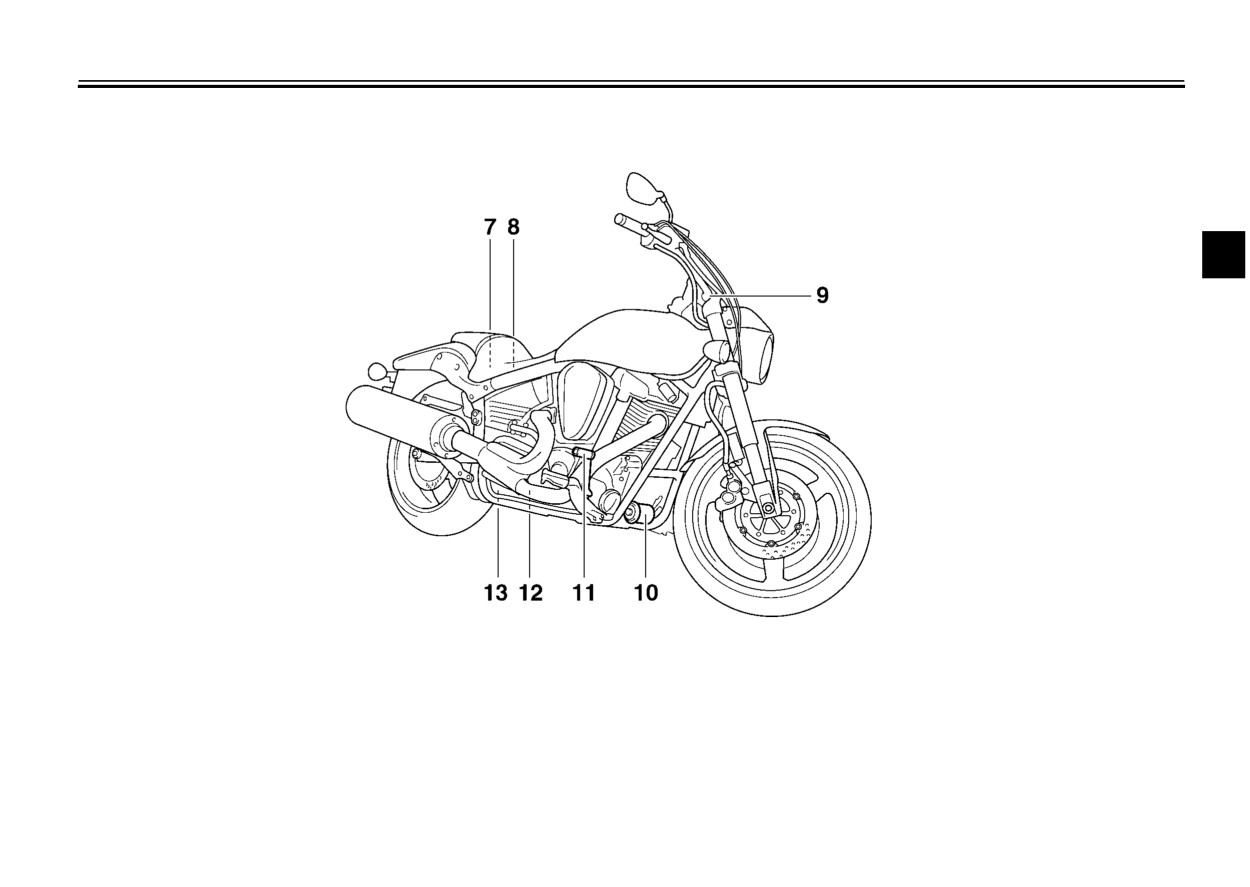

1. Engine oil drain bolt (crankcase)
(page 6-11)
4. Helmet holder
(page 3-11)
2. Shift pedal
(page 3-7)
5. Fuses
(page 6-37)
3. Fuel tank cap
(page 3-9)
6. Owner’s tool kit
(page 6-2)
2-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

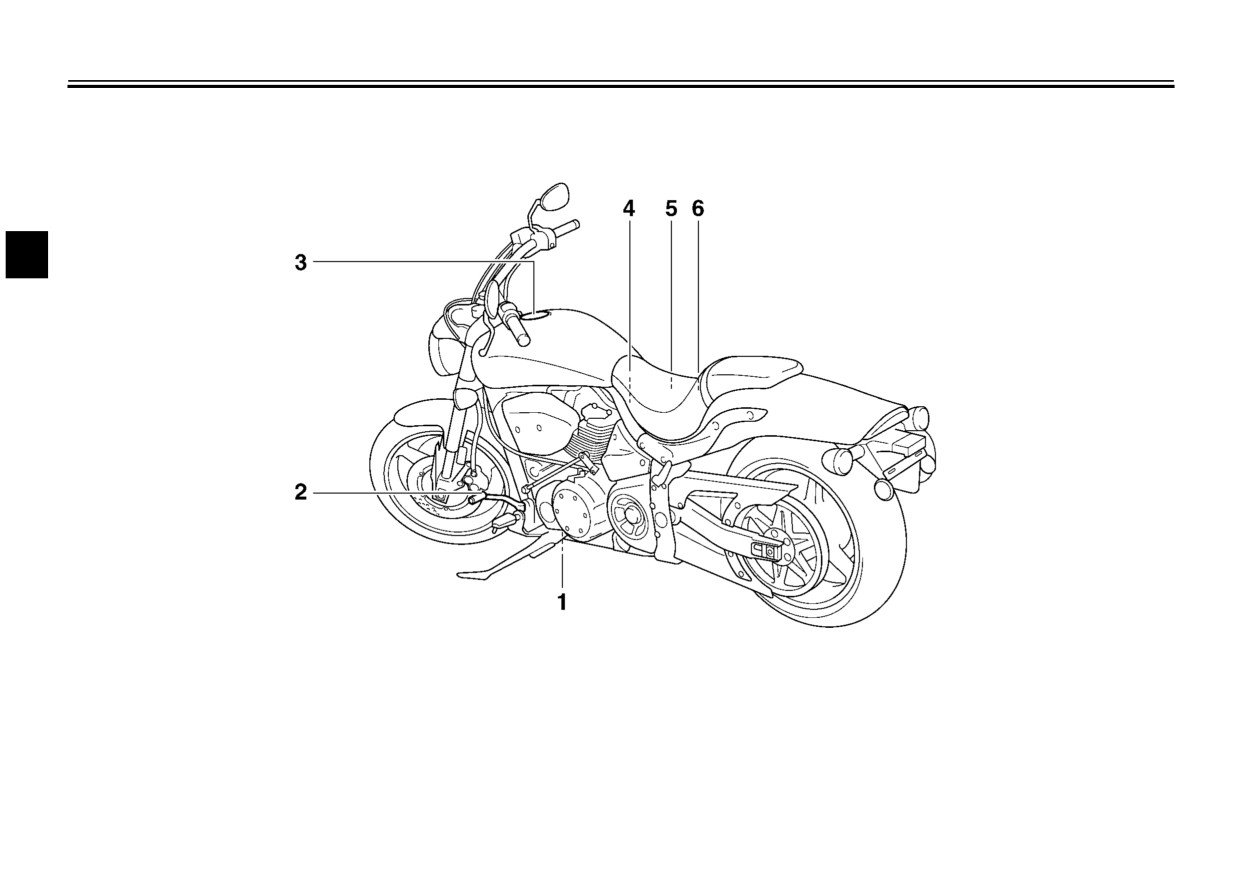

Right view
2
7. Battery
(page 6-35)
11. Brake pedal
(page 3-8)
8. Engine oil filler cap
(page 6-9)
12. Engine oil drain bolt (oil tank)
(page 6-10)
9. Front fork spring preload adjusting bolt
(page 3-12)
13. Shock absorber assembly spring
10. Engine oil filter cartridge
(page 6-11)
preload adjusting nut
(page 3-13)
2-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

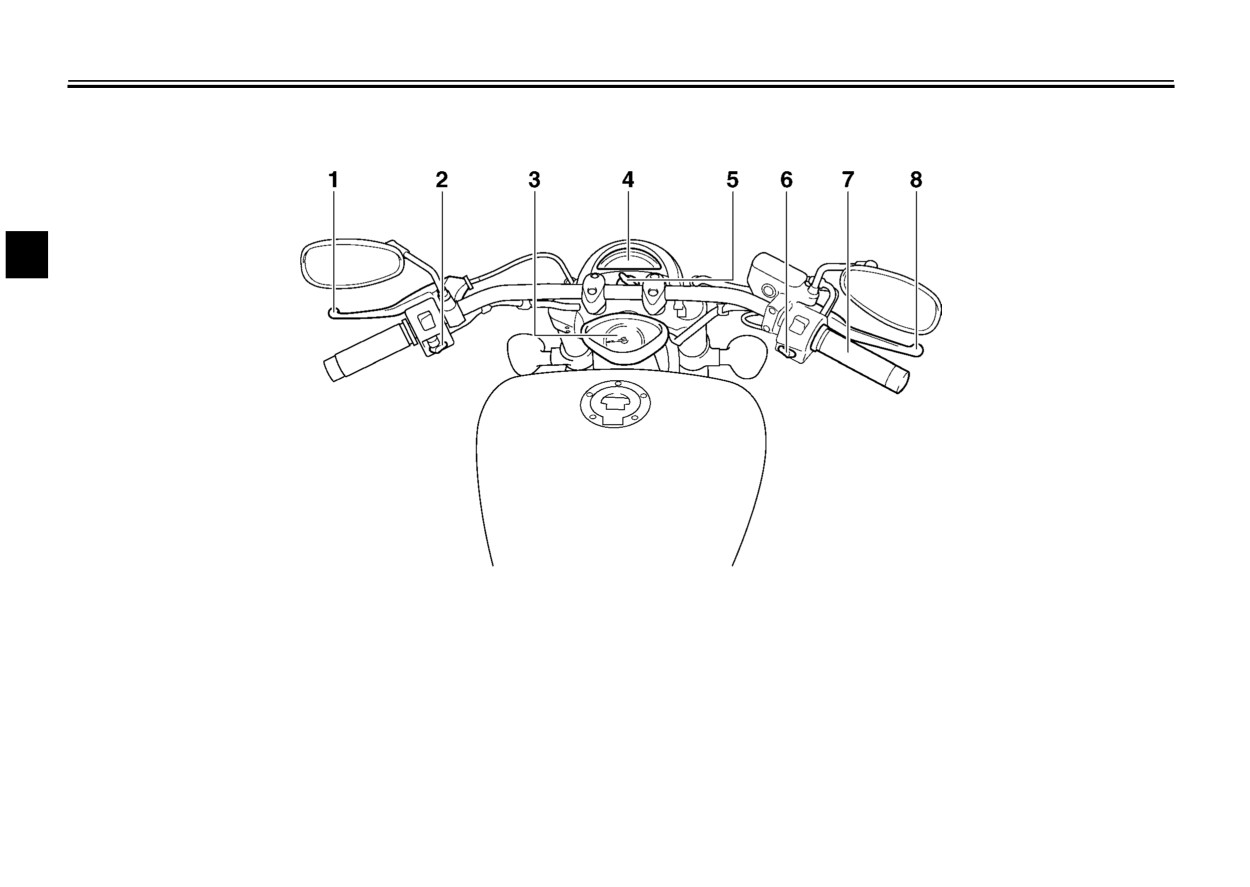

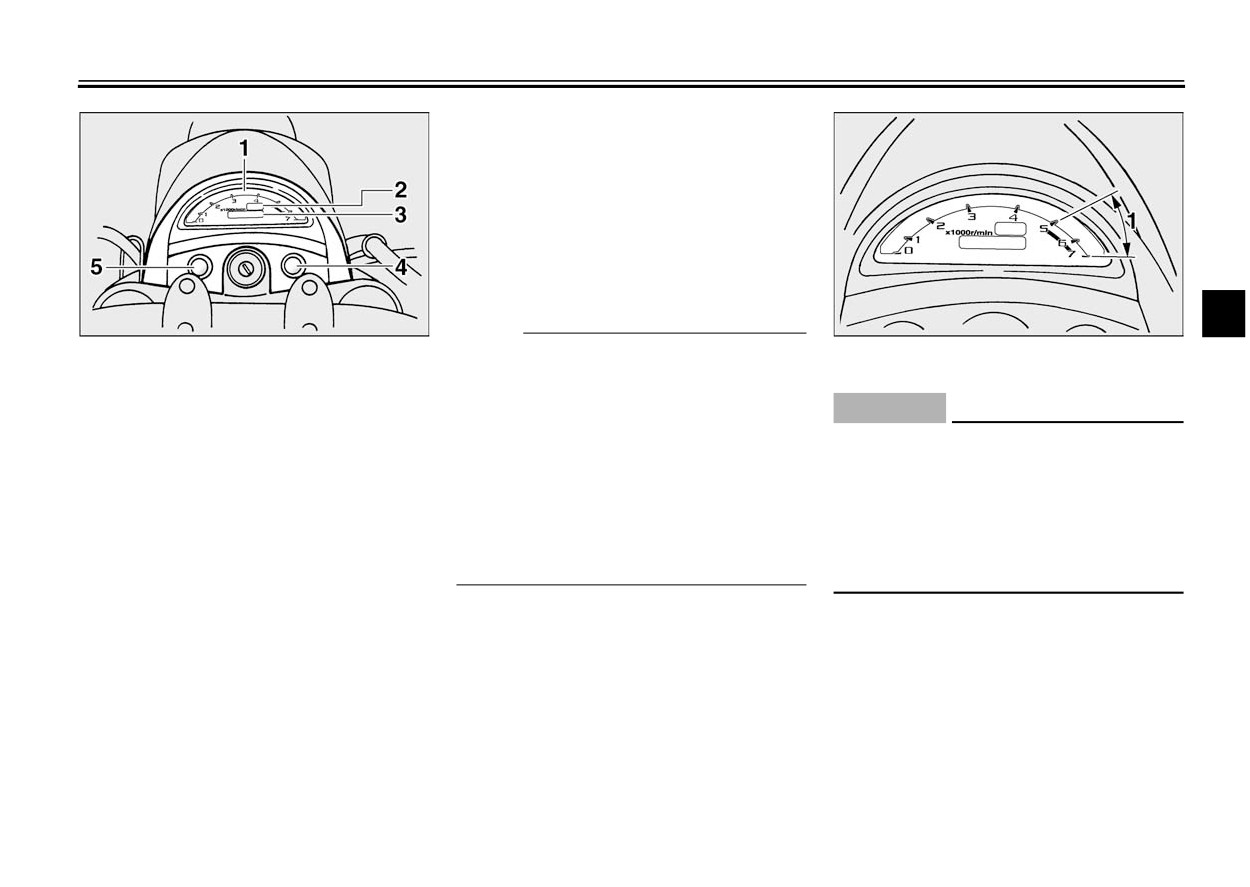

Controls and instruments
2
1. Clutch lever
(page 3-7)
6. Right handlebar switches
(page 3-7)
2. Left handlebar switches
(page 3-6)
7. Throttle grip
(page 6-18)
3. Speedometer
(page 3-3)
8. Brake lever
(page 3-8)
4. Tachometer unit
(page 3-4)
5. Main switch/steering lock
(page 3-1)
2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock
3-1
Indicator and warning lights
3-2
Speedometer
3-3
Tachometer unit
3-4
Handlebar switches
3-6
Clutch lever
3-7
3
Shift pedal
3-7
Brake lever
3-8
Brake pedal
3-8
Fuel tank cap
3-9
Fuel
3-9
Seat
3-11
Helmet holder
3-11
Adjusting the front fork
3-12
Adjusting the shock absorber assembly
3-13
Sidestand
3-15
Ignition circuit cut-off system
3-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
EAU04437
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and position lights
come on, and the engine can be start-
ed. The key cannot be removed.
3
NOTE:
_
The headlight comes on automatically
when the engine is started and stays
EAU00029
EAU00040
on until the key is turned to “OFF”, even
Main switch/steering lock
LOCK
if the engine stalls.

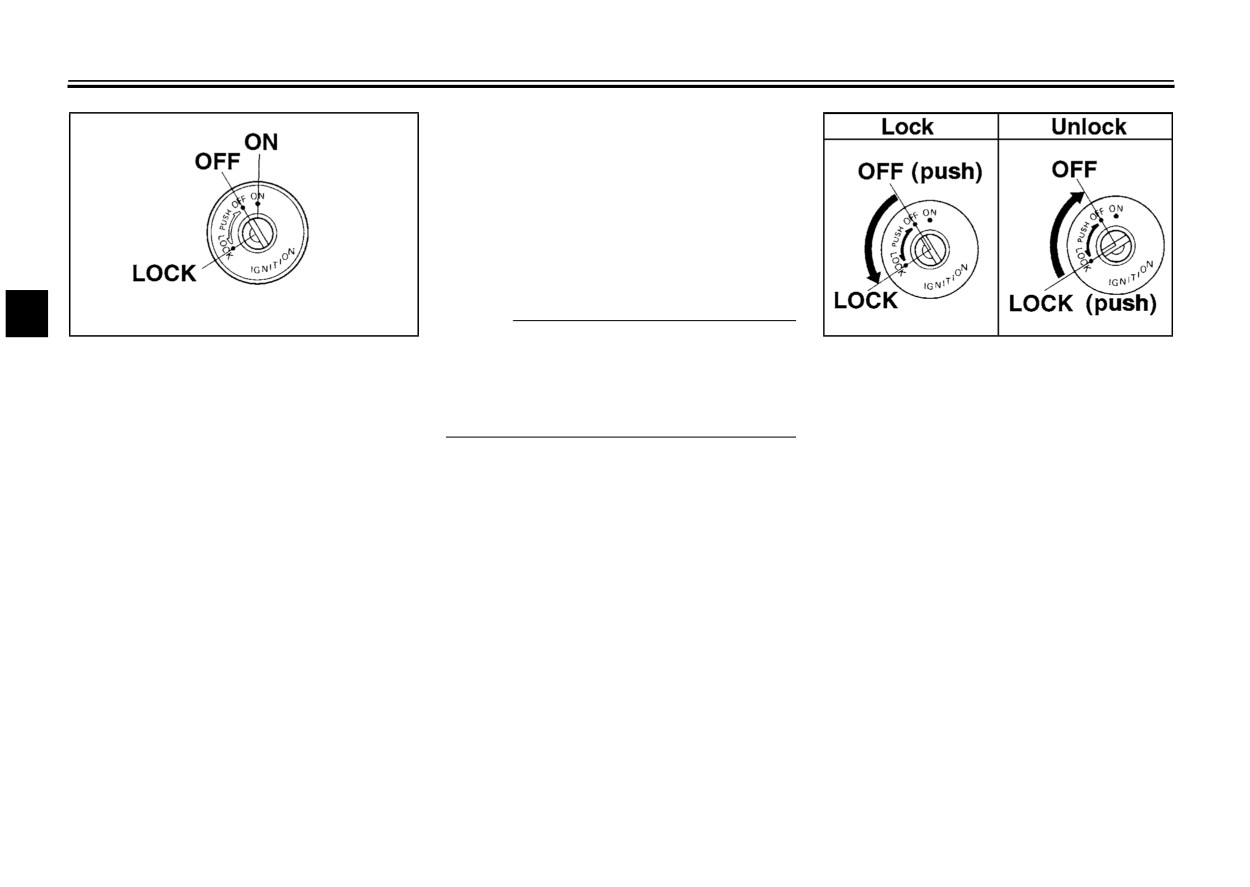

The main switch/steering lock controls
The steering is locked, and all electrical
_
the ignition and lighting systems, and is
systems are off. The key can be re-
EAU00038
moved.
used to lock the steering. The various
OFF
positions are described below.
All electrical systems are off. The key
To lock the steering
can be removed.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
3-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU04121

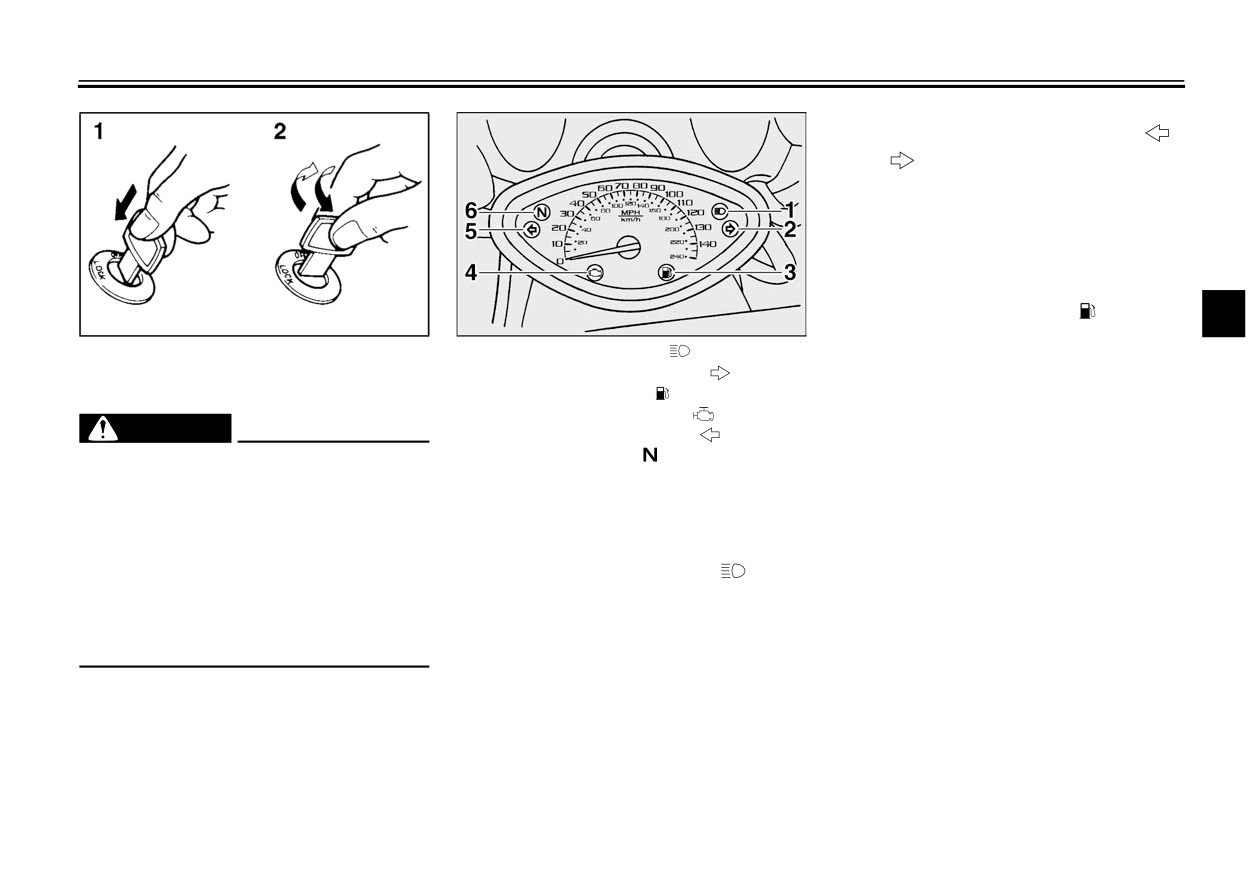

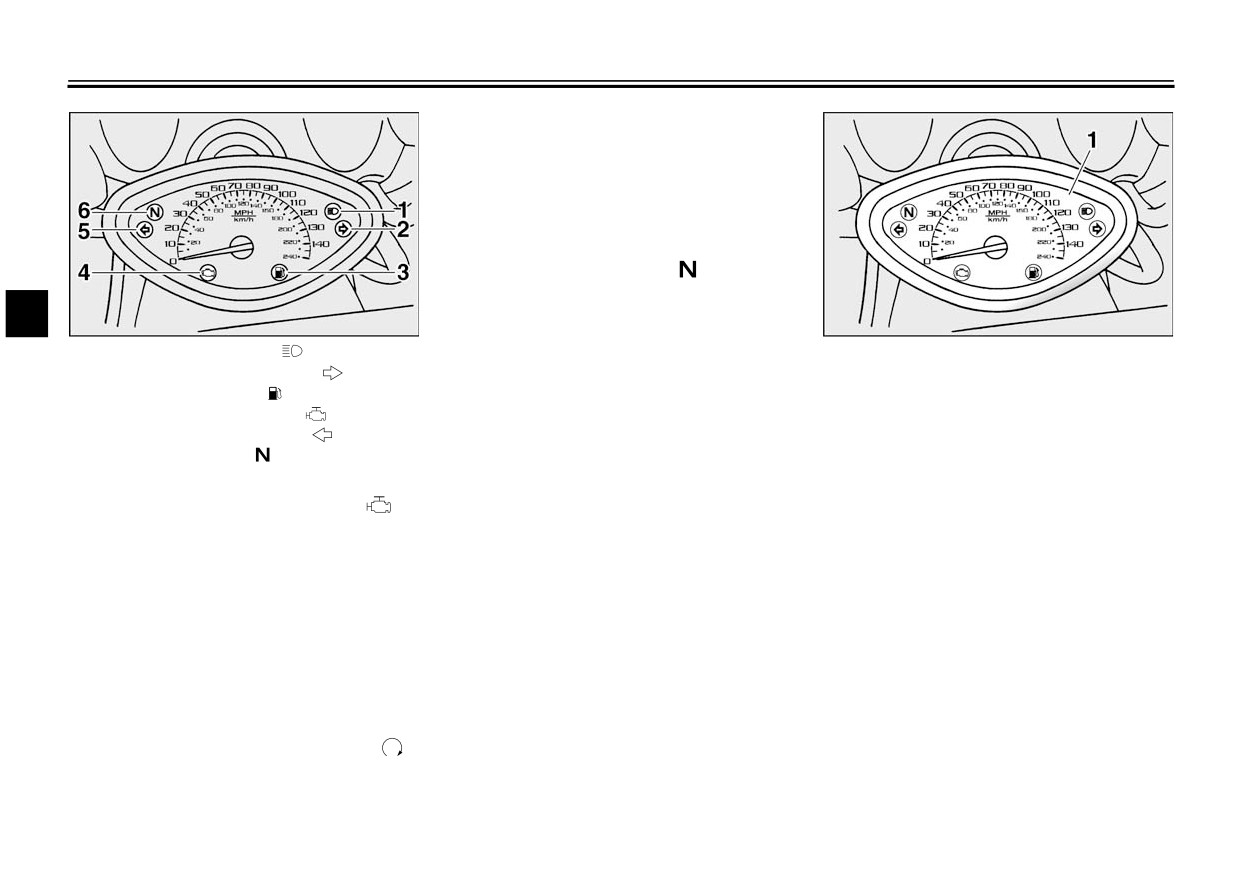

Turn signal indicator lights
and “
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU04303
Fuel level warning light “
3
This warning light comes on when the
1. Push.
1. High beam indicator light “
fuel level drops below approximately
2. Turn.
2. Right turn signal indicator light “
3. Fuel level warning light “
0.8 US gal (0.7 Imp gal, 3.0 L). When
EW000016
4. Engine trouble warning light “
this occurs, refuel as soon as possible.
WARNING
5. Left turn signal indicator light “
_
The electrical circuit of the warning light
Never turn the key to
“OFF” or
6. Neutral indicator light “
can be checked according to the fol-
“LOCK” while the motorcycle is
EAU03034
lowing procedure.
Indicator and warning lights
moving, otherwise the electrical
1. Turn the key to “ON”.
systems will be switched off, which
EAU00063
2. If the warning light does not come
may result in loss of control or an
High beam indicator light “
on for a few seconds, then go off,
accident. Make sure that the motor-
This indicator light comes on when the
have a Yamaha dealer check the
cycle is stopped before turning the
high beam of the headlight is switched
electrical circuit.
key to “OFF” or “LOCK”.
on.
_
3-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
2. Turn the key to “ON”. If the warn-
ing light does not come on, have a
Yamaha dealer check the electri-
cal circuit.
EAU00061
Neutral indicator light “
This indicator light comes on when the
3
transmission is in the neutral position.
1. High beam indicator light “
1. Speedometer
2. Right turn signal indicator light “
EAU04031
3. Fuel level warning light “
Speedometer
4. Engine trouble warning light “
5. Left turn signal indicator light “
The speedometer
shows
the
riding
6. Neutral indicator light “
speed.
EAU04240
Engine trouble warning light “
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Set the engine stop switch to “
”.
3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
a fuel reserve tripmeter
(which
shows the distance traveled since
the fuel level warning light came
on)
a meter lighting control
a clock
a self diagnosis device
3
_
NOTE:
1. Tachometer
Be sure to turn the key to “ON”
1. Tachometer red zone
2. Clock
before using the “SELECT” and
ECA00123
3. Odometer/tripmeter/fuel reserve tripmeter
“RESET” buttons.
CAUTION:
4. “RESET” button
_
5. “SELECT” button
To switch the odometer, the trip-
Do not operate the engine in the ta-
EAU04436
meters and the fuel reserve trip-
chometer red zone. If operated in
Tachometer unit
meter
displays
between
the red zone, the tachometer seg-
The electric tachometer allows the rider
kilometers and miles, press the
ments will start flashing to notify the
to monitor the engine speed and keep it
“SELECT” button for at least two
rider.
within the ideal power range.
seconds.
Red zone: 5,000 r/min and above
_
The tachometer unit is equipped with
_
the following:
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
3-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Odometer and tripmeter modes
To reset a tripmeter, select it by push-
Clock mode
Pushing the “SELECT” button switches
ing the
“SELECT” button, and then
To set the clock:
the display between the odometer
push the “RESET” button for at least
1. Push the “SELECT” button and
mode “ODO” and the tripmeter modes
one second. If you do not reset the fuel
“RESET” button together for at
“TRIP 1” and “TRIP 2” in the following
reserve tripmeter manually, it will reset
least two seconds.
order:
itself automatically and the display will
2. When the hour digits start flashing,
ODO → TRIP 1 → TRIP 2 → ODO
return to the prior mode after refueling
push the “RESET” button to set
3
If the fuel level warning light comes on
and traveling 3 mi (5 km).
the hours.
(see page 3-2), the odometer display
3. Push the “SELECT” button, and
will automatically change to the fuel re-
Meter lighting control mode
the minute digits will start flashing.
serve tripmeter mode “TRIP F” and
1. Turn the key to “OFF”.
4. Push the “RESET” button to set
start counting the distance traveled
2. Push and hold the “SELECT” but-
the minutes.
from that point. In that case, pushing
ton.
5. Push the “SELECT” button and
the “SELECT” button switches the dis-
3. Turn the key to “ON”, and then after
then release it to start the clock.
play between the various tripmeter and
five seconds, release the “SELECT”
NOTE:
_
odometer modes in the following order:
button.
After setting the clock, be sure to
TRIP F → TRIP 1 → TRIP 2 → ODO →
4. Push the “RESET” button to select
push the “SELECT” button before
TRIP F
the desired brightness.
turning the key to “OFF”, other-
5. Push the “SELECT” button to set the
wise the clock will not be set.
brightness level.
To set the clock after the battery
6. Turn the key to “OFF”.
has been disconnected, first set
NOTE:
the time to 1:00 AM, and then set
_
When adjusting the meter lighting, the
the clock to the correct time.
_
odometer display will indicate the
brightness level.
_
3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU04218
Self diagnosis device
Turn signal switch “
/
This model is equipped with a self-di-
To signal a right-hand turn, push this
agnosis device for various electrical cir-
switch to “
”. To signal a left-hand
cuits.
turn, push this switch to “
”. When
If any of those circuits are defective,
released, the switch returns to the cen-
the clock display will indicate a two-dig-
ter position.
it error code (e.g., 11, 12, 13).
Since this model is equipped with a
If the clock display indicates such an
3
self-canceling system, the turn signal
error code, note the code number, and
1.
Dimmer switch “
/
lights will self-cancel after the motor-
then have a Yamaha dealer check the
2.
Turn signal switch “
/
cycle has traveled both about 490 ft
motorcycle.
3.
Horn switch “
(150 m) and for approximately 15 sec-
ECA00122
EAU00118
onds. However, the turn signal lights
CAUTION:

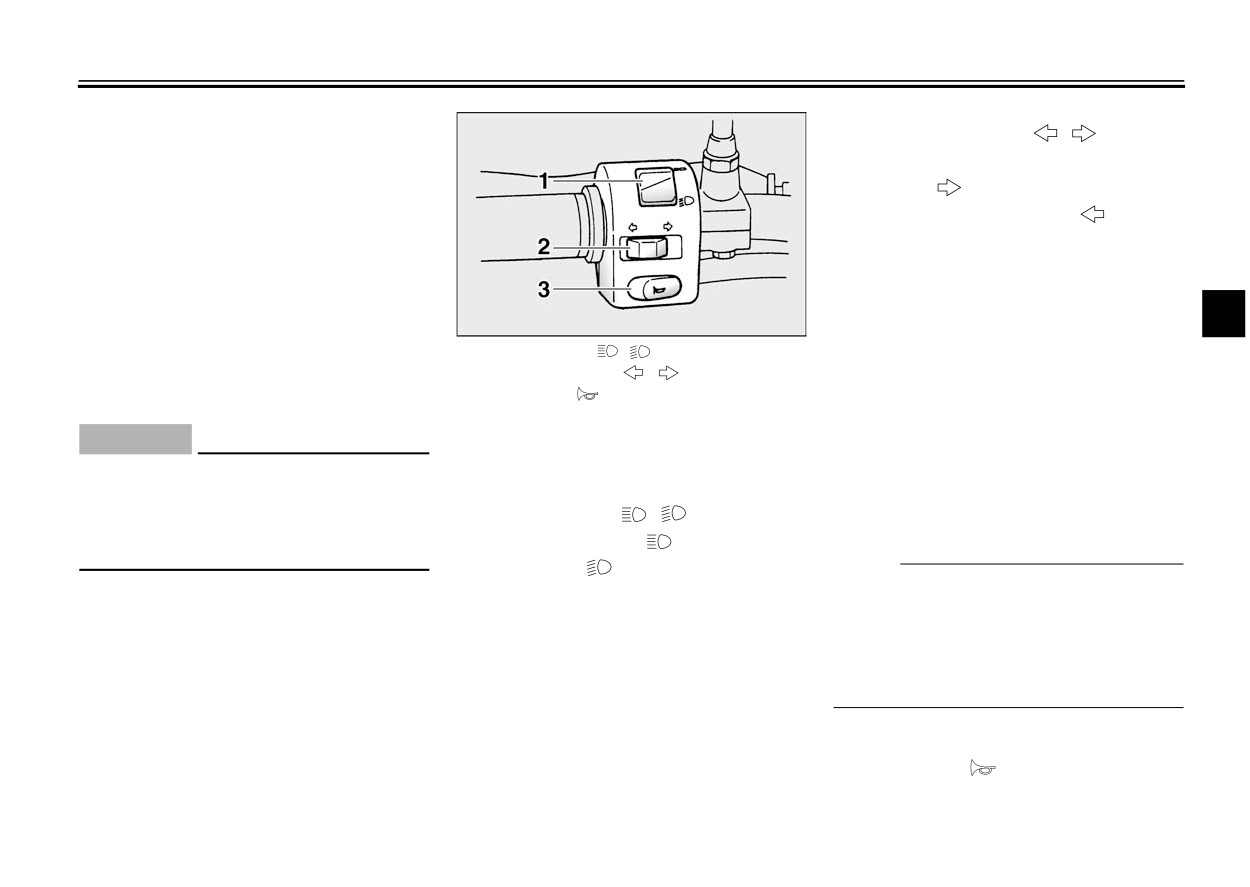

Handlebar switches
_
can also be canceled manually by
If the clock display indicates an er-
pushing the switch in after it has re-
ror code, the motorcycle should be
EAU03888
Dimmer switch “
/
turned to the center position.
checked as soon as possible in or-
Set this switch to “
” for the high
der to avoid engine damage.
NOTE:
_
_
beam and to “
” for the low beam.
The self-canceling system only oper-
ates when the motorcycle is moving, so
that the turn signal lights will not self-
cancel while you are stopped at an in-
tersection.
_
EAU00129
Horn switch “
Press this switch to sound the horn.
3-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3

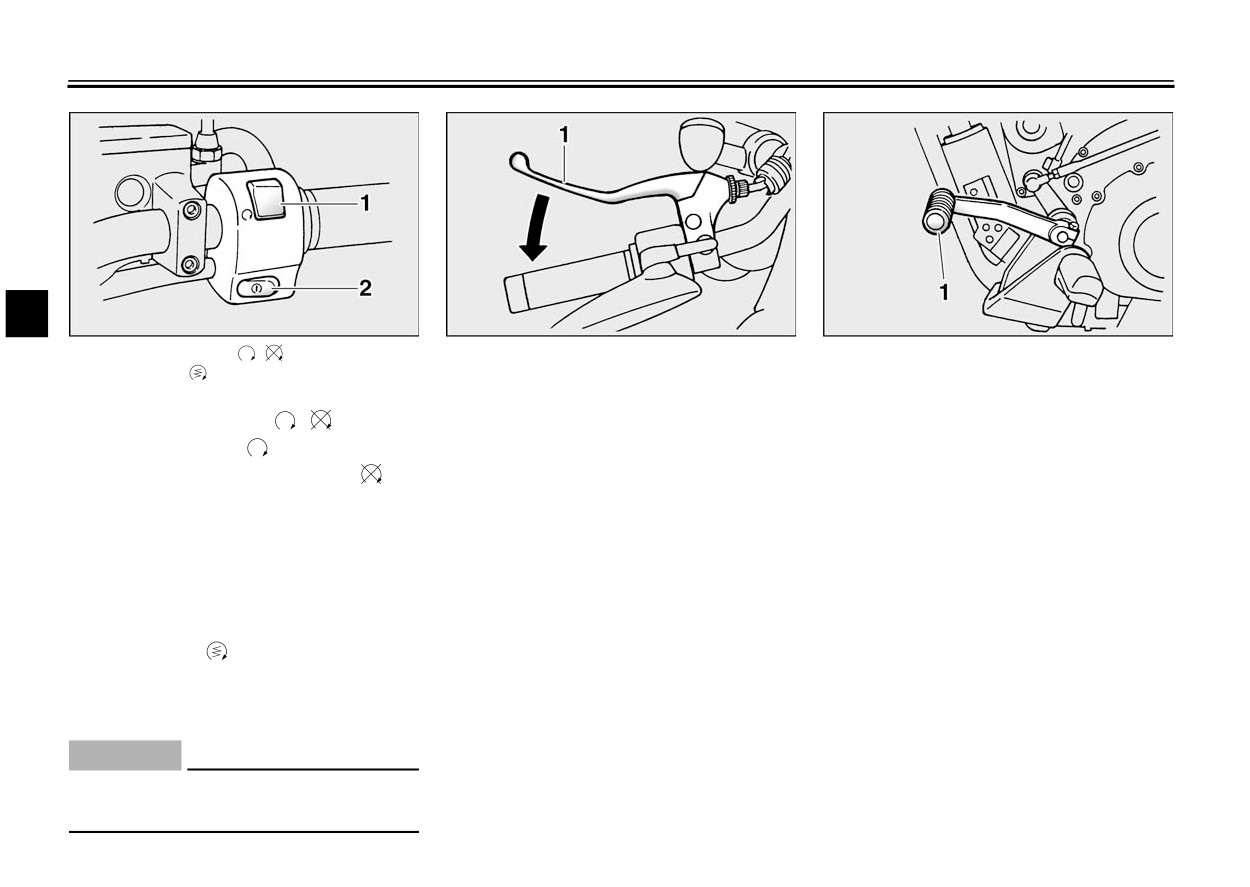

1. Engine stop switch “
/
1. Clutch lever
1. Shift pedal
2. Start switch “
EAU00152
EAU00157
EAU03890

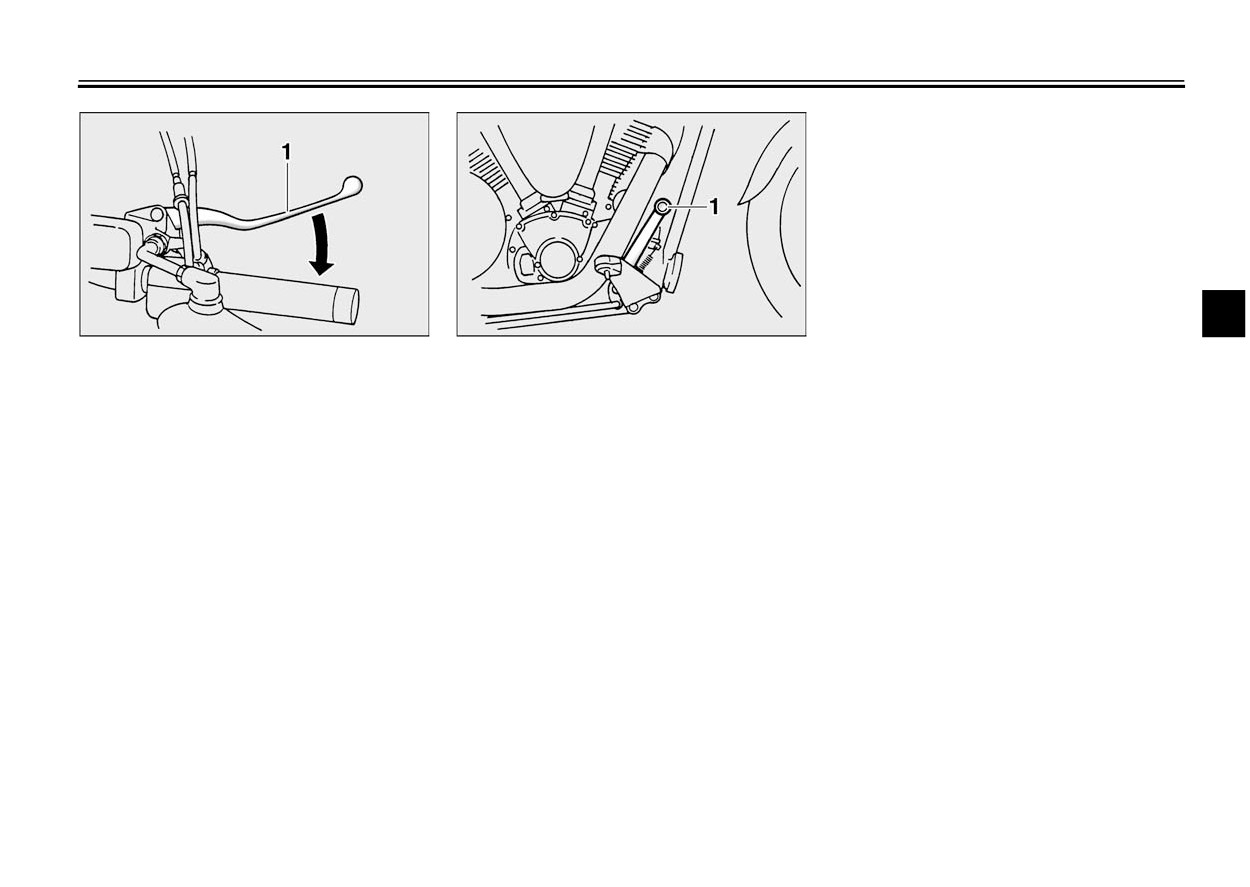

Clutch lever
Shift pedal
Engine stop switch “
/
The clutch lever is located at the left

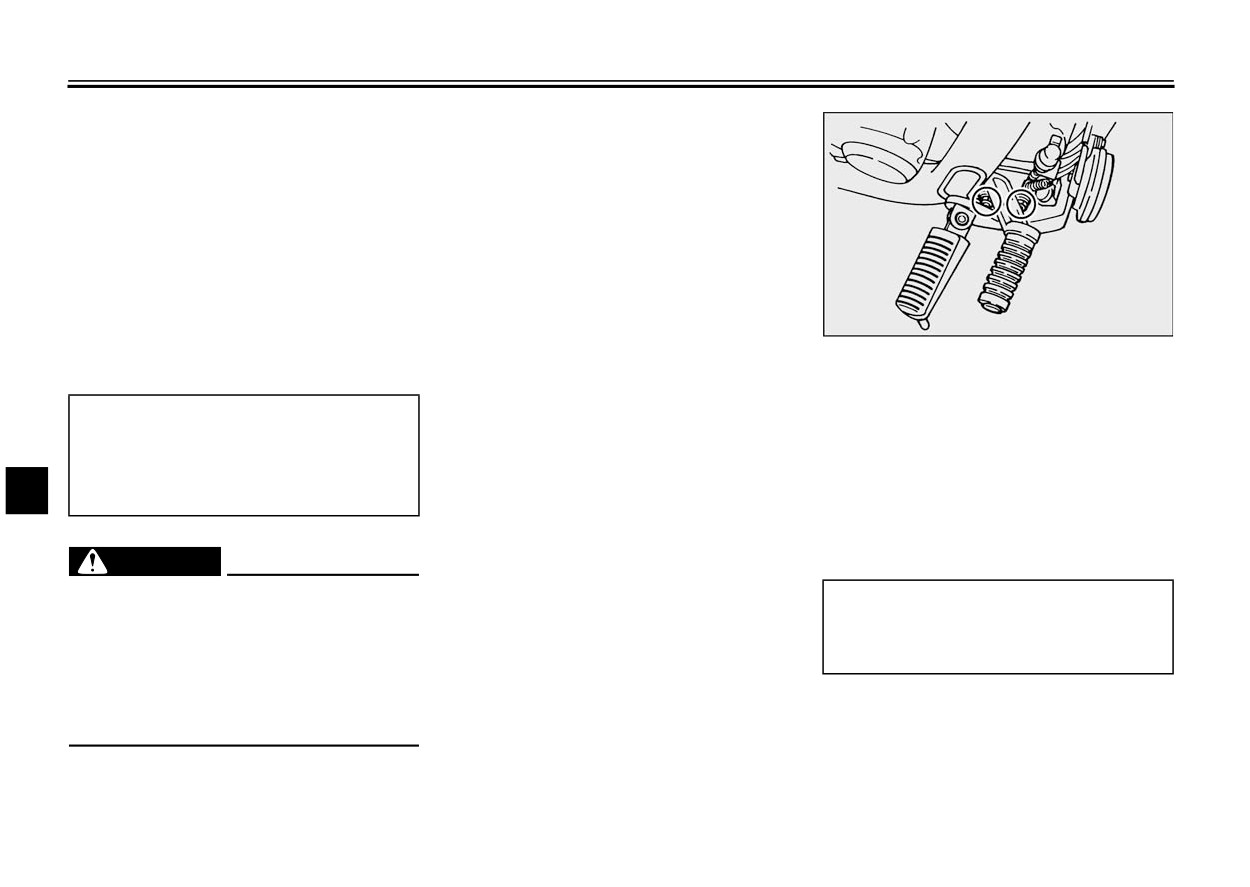

The shift pedal is located on the left
Set this switch to “
” before starting
handlebar grip. To disengage the
side of the engine and is used in com-
the engine. Set this switch to “
” to
clutch, pull the lever toward the handle-
bination with the clutch lever when
stop the engine in case of an emergen-
bar grip. To engage the clutch, release
shifting the gears of the 5-speed con-
cy, such as when the motorcycle over-
the lever. The lever should be pulled
stant-mesh transmission equipped on
turns or when the throttle cable is
rapidly and released slowly for smooth
this motorcycle.
stuck.
clutch operation.
The clutch lever is equipped with a
EAU00143
Start switch “
clutch switch, which is part of the ignition
Push this switch to crank the engine
circuit cut-off system. (See page 3-15
with the starter.
for an explanation of the ignition circuit
EC000005
cut-off system.)
CAUTION:
_
See page 5-1 for starting instruc-
tions prior to starting the engine.
_
3-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3
1. Brake lever
1. Brake pedal
EAU00158
EAU00162
Brake lever
Brake pedal
The brake lever is located at the right
The brake pedal is on the right side of
handlebar grip. To apply the front
the motorcycle. To apply the rear
brake, pull the lever toward the handle-
brake, press down on the brake pedal.
bar grip.
3-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS

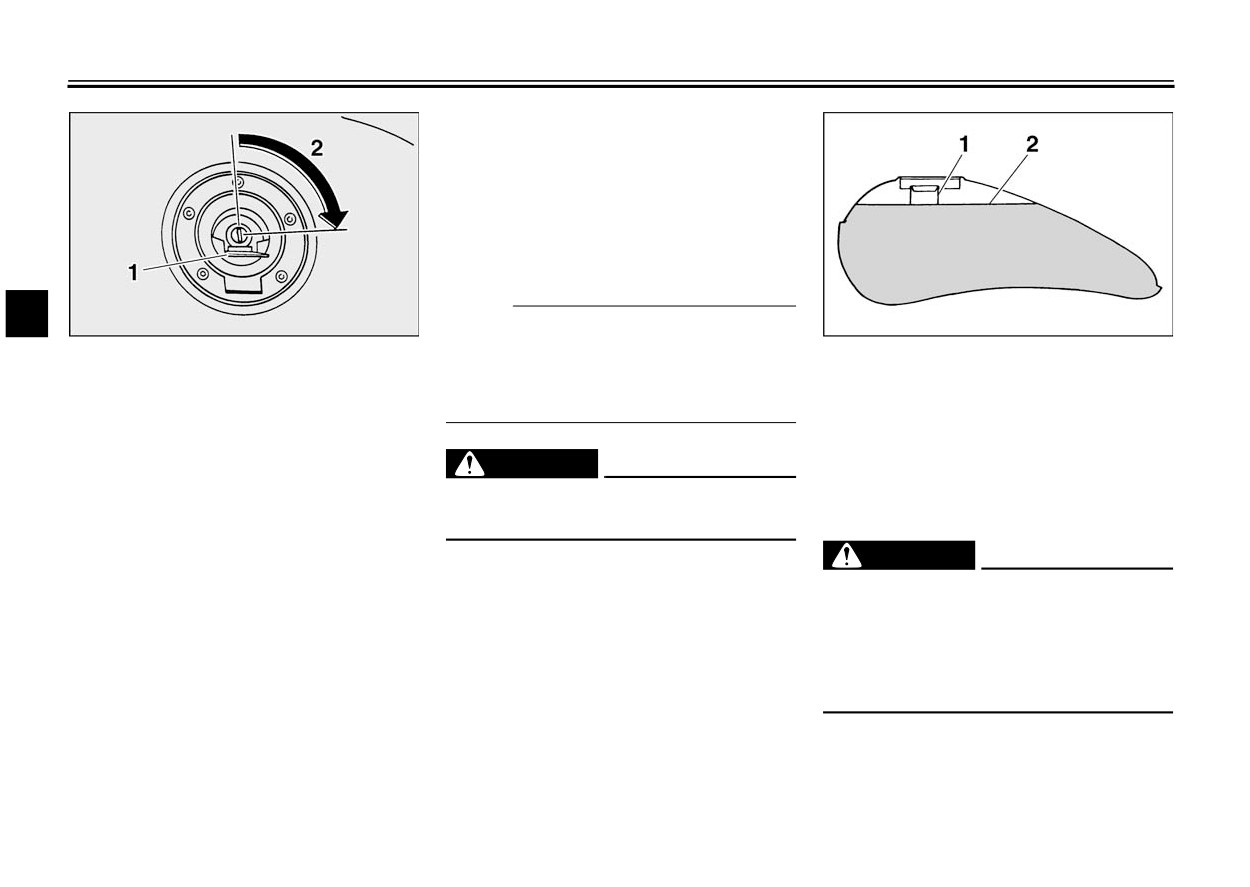

To close the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock.
2. Remove the key, and then close
the lock cover.
NOTE:
_
3
The fuel tank cap cannot be closed un-
1. Fuel tank cap lock cover
less the key is in the lock. In addition,
1. Fuel tank filler tube
2. Unlock.
2. Fuel level
the key cannot be removed if the cap is
EAU04068
not properly closed and locked.
EAU03753
Fuel tank cap
_
Fuel
EWA00025
Make sure that there is sufficient fuel in
WARNING
To open the fuel tank cap
_
the tank. Fill the fuel tank to the bottom
Make sure that the fuel tank cap is
Open the fuel tank cap lock cover, in-
of the filler tube as shown.
properly closed before riding.
EW000130
sert the key into the lock, and then turn
_
it 1/4 turn clockwise. The lock will be re-
WARNING
_
leased and the fuel tank cap can be
Do not overfill the fuel tank, oth-
opened.
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot
engine.
_
3-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU00185
Your Yamaha engine has been de-
CAUTION:
signed to use regular unleaded gaso-
_
Immediately wipe off spilled fuel
line with a pump octane number
with a clean, dry, soft cloth, since
[(R+M)/2] of 86 or higher, or a research
fuel may deteriorate painted surfac-
octane number of
91 or higher. If
es or plastic parts.
knocking (or pinging) occurs, use a
_
EAU04265*
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
3
Recommended fuel:
will extend spark plug life and reduce
UNLEADED GASOLINE ONLY
maintenance costs.
Fuel tank capacity:
Total amount:
Gasohol
4.0 US gal (3.3 Imp gal, 15.0 L)
There are two types of gasohol: gaso-
Amount remaining when the fuel
hol containing ethanol and that contain-
level warning light comes on:
ing methanol. Gasohol containing
0.8 US gal (0.7 Imp gal, 3.0 L)
ethanol can be used if the ethanol con-
tent does not exceed 10%. Gasohol
ECA00104
containing methanol is not recom-
CAUTION:
_
mended by Yamaha because it can
Use only unleaded gasoline. The
cause damage to the fuel system or ve-
use of leaded gasoline will cause se-
hicle performance problems.
vere damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
_
3-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3
1. Seat lock
1. Projection
1. Helmet holder
2. Unlock.
2. Seat holder
EAU00263*
EAU01319
Helmet holder
To install the seat
Seat
1. Insert the projection on the rear of
The helmet holder is located under the
the seat into the seat holder as
seat.
To remove the seat
shown.
1. Insert the key into the seat lock,
2. Push the front of the seat down to
To secure a helmet to the helmet
and then turn it counterclockwise.
lock it in place.
holder
2. While holding the key in that posi-
3. Remove the key.
1. Remove the seat.
tion, lift the front of the seat up,
2. Attach the helmet to the helmet
and then pull the seat off.
NOTE:
_
holder, and then securely install
Make sure that the seat is properly se-
the seat.
cured before riding.
_
3-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EW000030
WARNING
_
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident.
_
To release the helmet from the
3
helmet holder

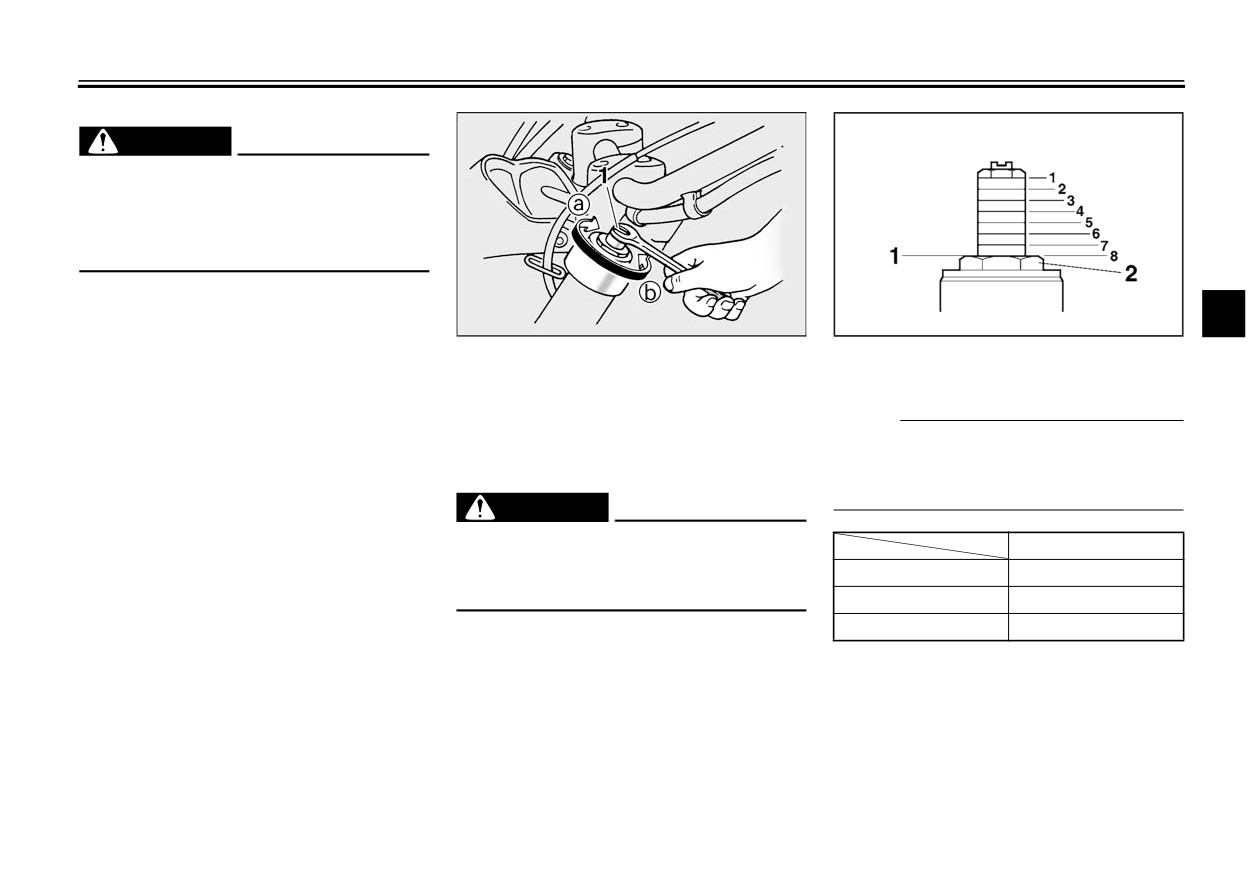

1. Spring preload adjusting bolt
1. Current setting
Remove the seat, remove the helmet
2. Front fork cap bolt
EAU00285
from the helmet holder, and then install
Adjusting the front fork
_
NOTE:
the seat.
This front fork is equipped with spring
Align the appropriate groove on the ad-
preload adjusting bolts.
justing mechanism with the top of the
EW000035
front fork cap bolt.
WARNING
_
_
CI-10E
Always adjust both fork legs equal-
Setting
ly, otherwise poor handling and loss
Minimum (soft)
8
of stability may result.
Standard
5
_
Adjust the spring preload as follows.
Maximum (hard)
1
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection a. To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction b.
3-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3

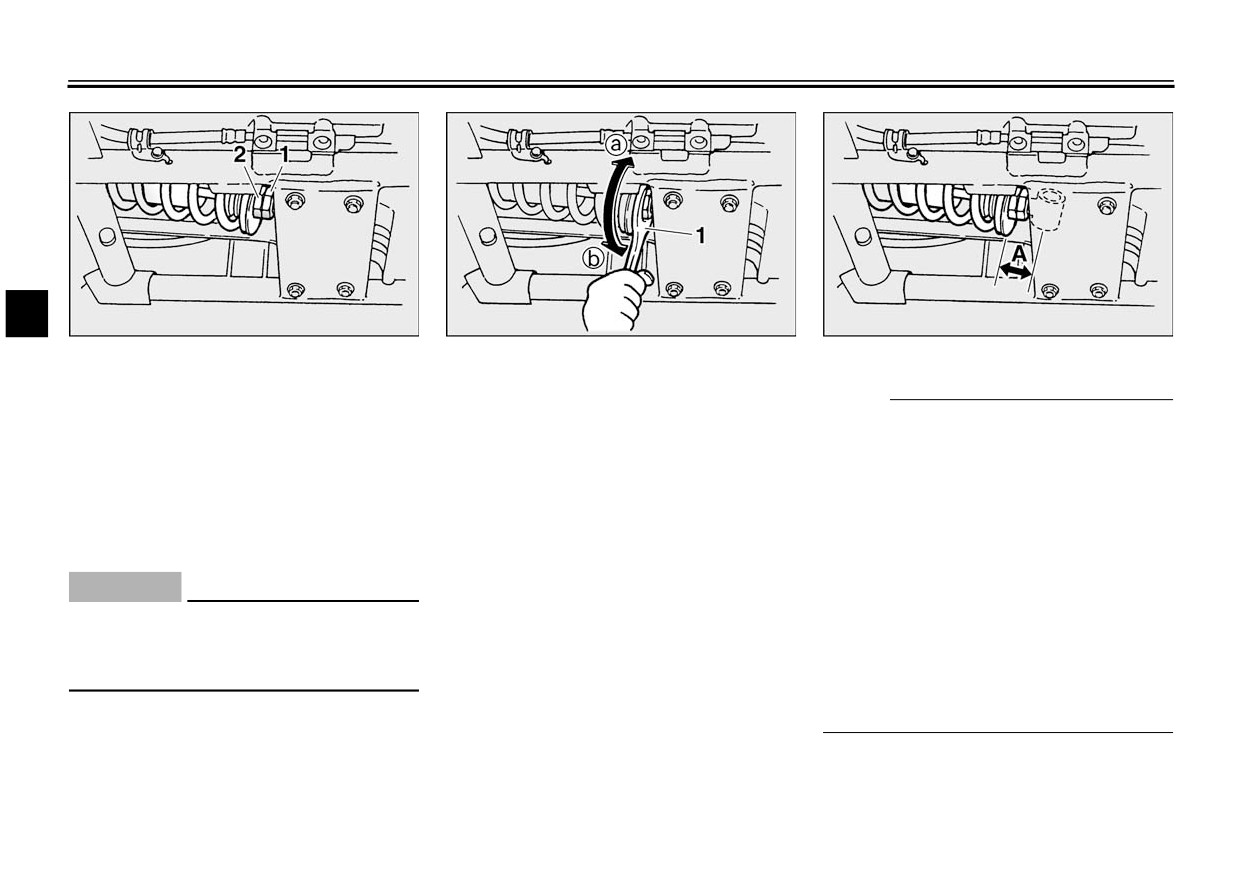

1. Locknut
1. Special wrench
A. Distance A
2. Spring preload adjusting nut
2.
To increase the spring preload
EAUB0007
_
NOTE:
and thereby harden the suspen-
Use the special wrench included in
Adjusting the shock absorber
sion, turn the adjusting nut in di-
the owner’s tool kit to make the ad-
assembly
rection a. To decrease the spring
justment.
This shock absorber assembly is
preload and thereby soften the
The spring preload setting is deter-
equipped with a spring preload adjust-
suspension, turn the adjusting nut
mined by measuring distance A,
ing nut.
in direction b.
shown in the illustration. The long-
EC000015
er distance A is, the higher the
CAUTION:
_
spring preload; the shorter dis-
Never attempt to turn an adjusting
tance A is, the lower the spring
mechanism beyond the maximum
preload. With each complete turn
or minimum settings.
_
of the adjusting nut, distance A
Adjust the spring preload as follows.
changes by 1.0 mm.
_
1. Loosen the locknut.
3-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU00315
Spring preload:
WARNING
_
Minimum (soft):
This shock absorber contains high-
Distance A = 1.59 in (40.5 mm)
ly pressurized nitrogen gas. For
Standard:
proper handling, read and under-
Distance A = 1.67 in (42.5 mm)
stand the following information be-
Maximum (hard):
fore handling the shock absorber.
Distance A = 2.03 in (51.5 mm)
The manufacturer cannot be held re-
3
sponsible for property damage or
3. Tighten the locknut to the speci-
personal injury that may result from
fied torque.
improper handling.
Do not tamper with or attempt to
Tightening torque:
open the gas cylinder.
Locknut:
Do not subject the shock ab-
2.5 ft·lb (3.5 m·kgf, 35 Nm)
sorber to an open flame or other
ECA00076
high heat sources, otherwise it
CAUTION:
may explode due to excessive
_
Always tighten the locknut against
gas pressure.
the adjusting nut, and then tighten
Do not deform or damage the
the locknut to the specified torque.
gas cylinder in any way, as this
_
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
_
3-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU00330
EW000044
EAU03720

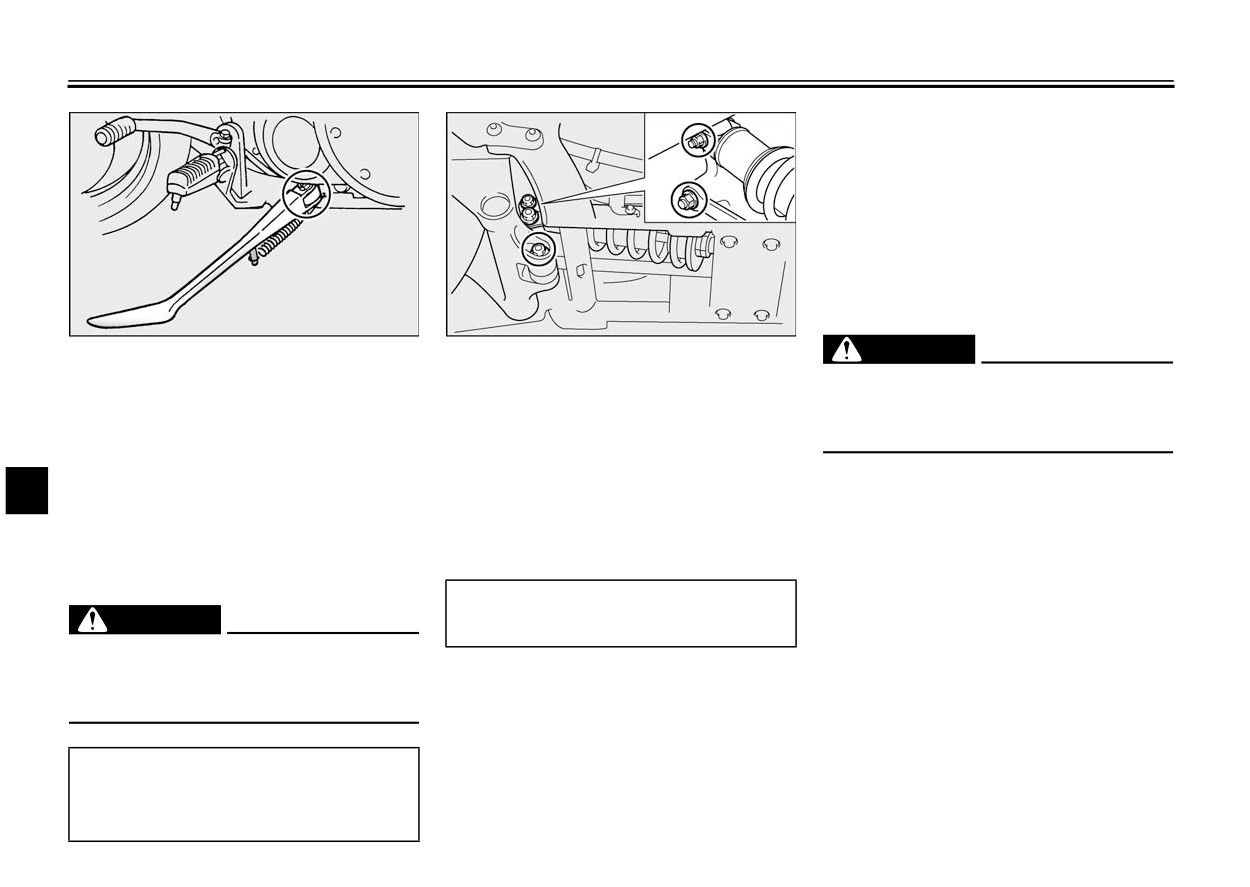

Sidestand
Ignition circuit cut-off system
WARNING
_
The sidestand is located on the left side
The ignition circuit cut-off system (com-
The motorcycle must not be ridden
of the frame. Raise the sidestand or
prising the sidestand switch, clutch
with the sidestand down, or if the
lower it with your foot while holding the
switch and neutral switch) has the fol-
sidestand cannot be properly
motorcycle upright.
lowing functions.
moved up (or does not stay up), oth-
It prevents starting when the trans-
erwise the sidestand could contact
NOTE:_
mission is in gear and the side-
the ground and distract the opera-
3
The built-in sidestand switch is part of
stand is up, but the clutch lever is
tor, resulting in a possible loss of
the ignition circuit cut-off system, which
not pulled.
control. Yamaha’s ignition circuit
cuts the ignition in certain situations.
It prevents starting when the trans-
cut-off system has been designed to
(See further down for an explanation of
mission is in gear and the clutch
assist the operator in fulfilling the
the ignition circuit cut-off system.)
_
responsibility of raising the side-
lever is pulled, but the sidestand is
still down.
stand before starting off. Therefore,
It cuts the running engine when
check this system regularly as de-
the transmission is in gear and the
scribed below and have a Yamaha
sidestand is moved down.
dealer repair it if it does not function
Periodically check the operation of the
properly.
_
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
_
3-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
CD-01E
NOTE:
With the engine turned off:
This check is most reliable if performed with
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
”.
a warmed-up engine.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
YES
NO
The motorcycle should not be ridden until
3
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The clutch switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The system is OK. The motorcycle can be ridden.
3-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
Pre-operation check list
4-1
4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU01114
PRE-OPERATION CHECKS
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM
CHECKS
PAGE
Check fuel level in fuel tank.
Fuel
Refuel if necessary.
3-9
Check fuel line for leakage.
4
Check oil level in engine.
Engine oil
If necessary, add recommended oil to specified level.
6-9-6-10
Check vehicle for oil leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check lever free play.
Front brake
Adjust if necessary.
6-24, 6-26-6-28
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake
Check fluid level in reservoir.
6-25-6-28
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
Lubricate cable if necessary.
Clutch
6-23-6-24
Check lever free play.
Adjust if necessary.
Make sure that operation is smooth.
Throttle grip
Check free play.
6-18
If necessary, have Yamaha dealer make adjustment or lubricate.
4-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
ITEM
CHECKS
PAGE
Make sure that operation is smooth.
Control cables
6-31
Lubricate if necessary.
Check for damage.
Check tire condition and tread depth.
Wheels and tires
6-19-6-22
Check air pressure.
Correct if necessary.
Make sure that operation is smooth.
Brake and shift pedals
6-31
Lubricate pedal pivoting points if necessary.
Make sure that operation is smooth.
Brake and clutch levers
6-32
Lubricate lever pivoting points if necessary.
Make sure that operation is smooth.
Sidestand
6-33
4
Lubricate pivot if necessary.
Make sure that all nuts, bolts and screws are properly tightened.
Chassis fasteners
Tighten if necessary.
Instruments, lights, signals
Check operation.
and switches
Correct if necessary.
Check operation of ignition circuit cut-off system.
Sidestand switch
3-15
If system is defective, have Yamaha dealer check vehicle.
NOTE:
_
Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
_
EWA00033
WARNING
_
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the motorcycle.
_
4-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00372
OPERATION AND IMPORTANT RIDING POINTS
EAU03951*
Before starting out, make sure
Starting and warming up a
that the sidestand is up. If the
cold engine
sidestand is not raised com-
pletely, it could contact the
In order for the ignition circuit cut-off
ground and distract the opera-
system to enable starting, one of the
tor, resulting in a possible loss
following conditions must be met:
of control.
The transmission is in the neutral
_
position.
EAU00376
The transmission is in gear with
CAUTION:
_
the clutch lever pulled and the
Make sure not to store personal
EAU00373
sidestand up.

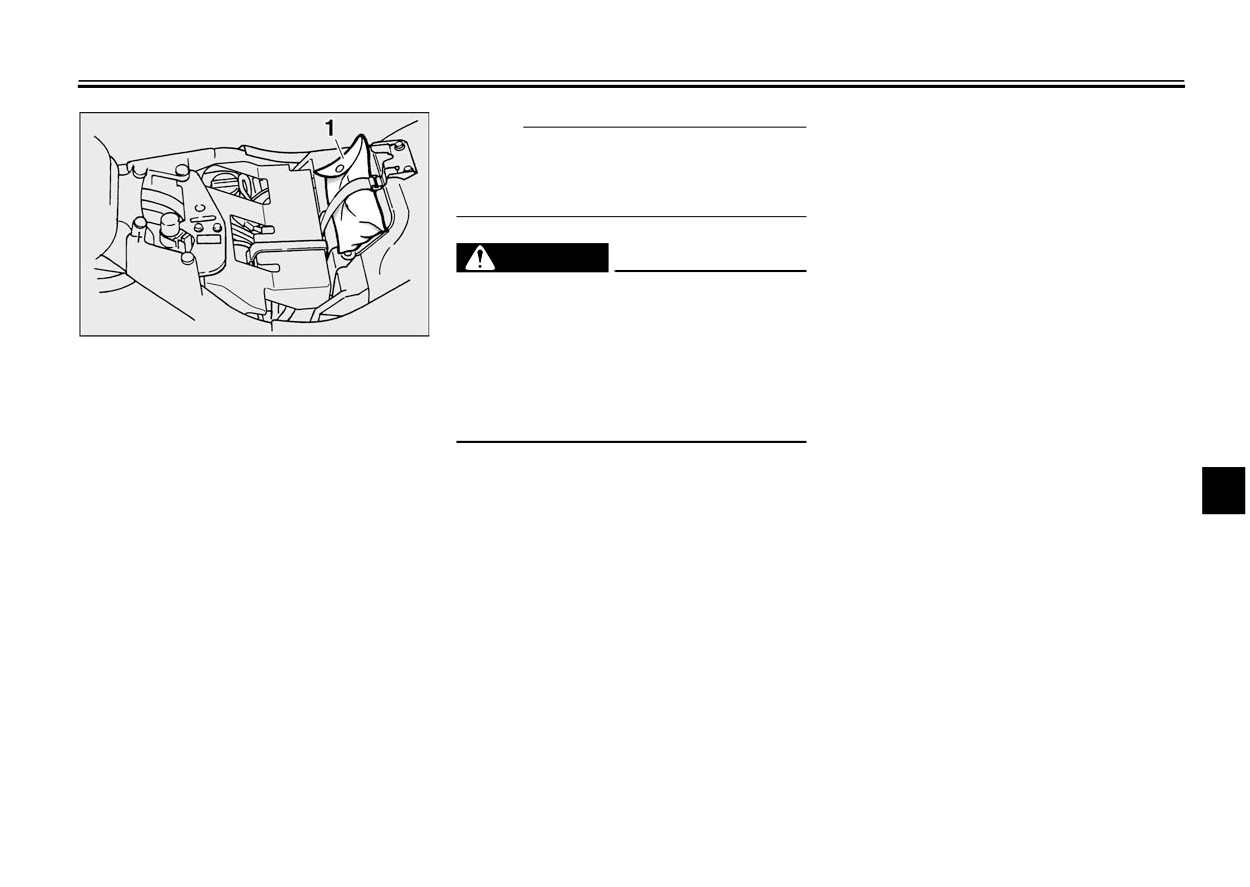

items near the air cleaner in-
WARNING
EW000054
_
5
take, otherwise air intake will be
Become thoroughly familiar
WARNING
_
blocked and performance will
with all operating controls and
Before starting the engine,
suffer.
their functions before riding.
check the function of the igni-
Make sure not to put anything
Consult a Yamaha dealer re-
tion circuit cut-off system ac-
near the battery and its termi-
garding any control or function
cording to the procedure
nals, otherwise electrical failure
that you do not thoroughly un-
described on page 3-16.
and acid corrosion may result.
derstand.
Never ride with the sidestand
_
Never start the engine or operate
down.
_
it in a closed area for any length
1.
Turn the key to “ON” and make
of time. Exhaust fumes are poi-
sure that the engine stop switch is
sonous, and inhaling them can
set to “
”.
cause loss of consciousness
and death within a short time. Al-
ways make sure that there is ad-
equate ventilation.
5-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
ECA00083*
NOTE:
_
CAUTION:
If the engine fails to start, release the
_
The fuel level warning light and en-
start switch, wait a few seconds, and
gine trouble warning light should
then try again. Each starting attempt
come on for a few seconds, then go
should be as short as possible to pre-
off. If a warning light does not go off,
serve the battery. Do not crank the en-
see pages 3-2 and 3-3 for the corre-
gine more than 10 seconds on any one
sponding warning light circuit
attempt.
_
check.
ECA00055
_
CAUTION:
2. Shift the transmission into the neu-
_
tral position.
For maximum engine life, always
warm the engine up before starting
5
NOTE:_
off. Never accelerate hard when the
When the transmission is in the neutral
engine is cold!
position, the neutral indicator light
_
should be on, otherwise have a
NOTE:_
Yamaha dealer check the electrical cir-
The engine is warm when it quickly re-
cuit.
sponds to the throttle.
_
_
3. Start the engine by pushing the
start switch.
5-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EC000048
EAU02988
To start out and accelerate
CAUTION:
_
1.
Pull the clutch lever to disengage
Even with the transmission in
the clutch.
the neutral position, do not
2.
Shift the transmission into first
coast for long periods of time
gear. The neutral indicator light
with the engine off, and do not
should go out.
tow the motorcycle for long dis-
3.
Open the throttle gradually, and at
tances. The transmission is
the same time, release the clutch
properly lubricated only when

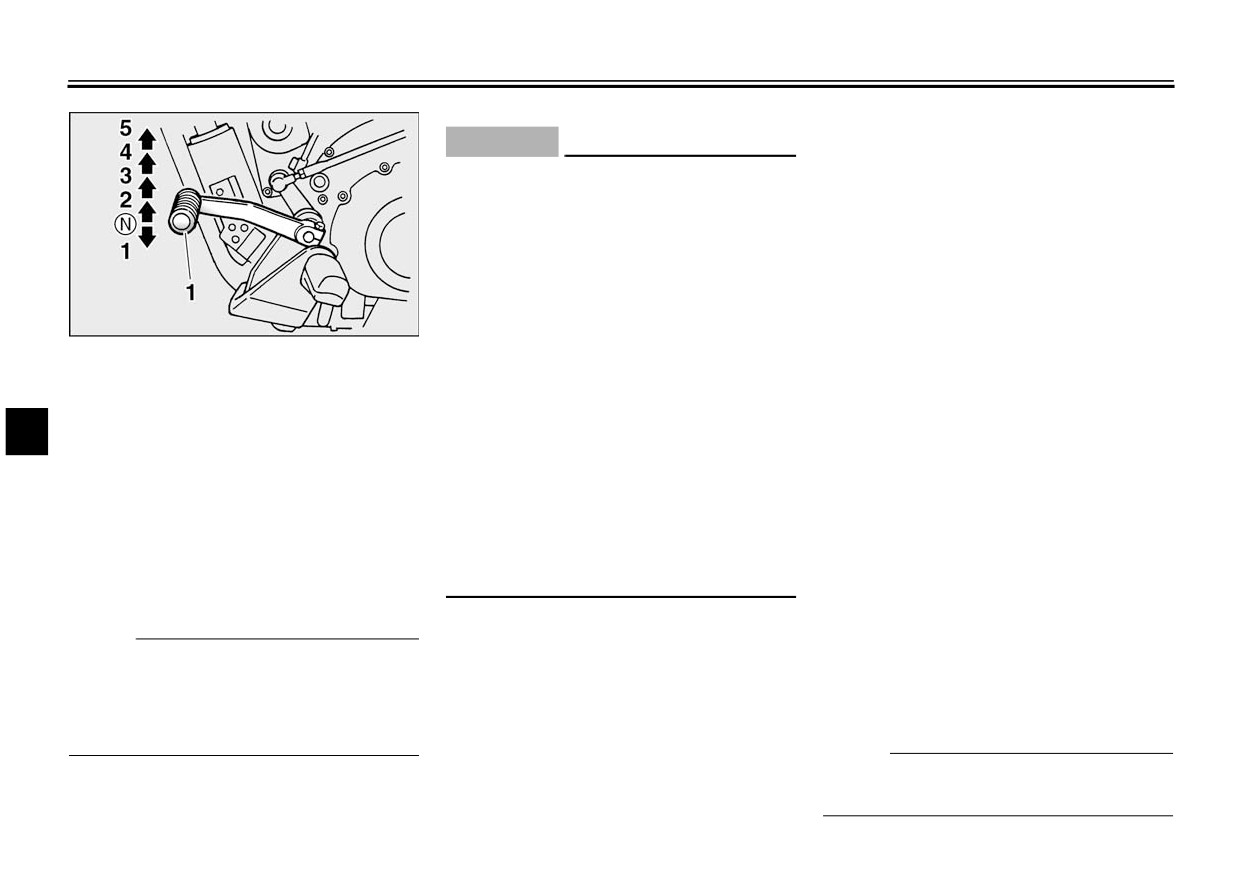

1. Shift pedal
lever slowly.
the engine is running. Inade-
N. Neutral position
4.
At the recommended shift points
quate lubrication may damage
EAU00423
shown in the table on page 5-4,
the transmission.
Shifting
5
close the throttle, and at the same
Always use the clutch while
Shifting gears
lets
you
control the
time, quickly pull the clutch lever
changing gears to avoid dam-
amount of engine power available for
in.
aging the engine, transmission,
starting off, accelerating, climbing hills,
5.
Shift the transmission into second
and drive train, which are not
etc.
gear. (Make sure not to shift the
designed to withstand the
The gear positions are shown in the il-
transmission into the neutral posi-
shock of forced shifting.
lustration.
_
tion.)
6.
Open the throttle part way and
_
NOTE:
gradually release the clutch lever.
To shift the transmission into the neu-
7.
Follow the same procedure when
tral position, press the shift pedal down
shifting to the next higher gear.
repeatedly until it reaches the end of its
travel, and then slightly raise it.
_
_
NOTE:
Always shift gears at the recommend-
ed shift points.
_
5-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EAU00427
EAU02974
To decelerate
Recommended shift points
1. Apply both the front and the rear
The recommended shift points during
brakes to slow the motorcycle.
acceleration and deceleration are
2. Shift the transmission into first
shown in the table below.
CF-04E
gear when the motorcycle reaches
Acceleration
Deceleration
16 mi/h (25 km/h). If the engine is
shift point
shift point
about to stall or runs very roughly,
mi/h (km/h)
mi/h (km/h)
pull the clutch lever in and use the
1st
→ 2nd
13 (20)
16 (25)
2nd → 3rd
19 (30)
16 (25)
brakes to stop the motorcycle.
3rd
→ 4th
25 (40)
16 (25)
3. Shift the transmission into the neu-
4th
→ 5th
31 (50)
16 (25)
tral position when the motorcycle
is almost completely stopped. The
5
neutral indicator light should come
on.
5-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EAU01128
EAU03749*
EAU00461
Engine break-in
0-600 mi (0-1,000 km)
Parking
There is never a more important period
Avoid prolonged operation above
When parking, stop the engine, and
in the life of your engine than the period
2,500 r/min.
then remove the key from the main
between 0 and 1,000 mi (1,600 km).
switch.
600-1,000 mi (1,000-1,600 km)
EW000058
For this reason, you should read the
Avoid prolonged operation above
following material carefully.
WARNING
_
3,500 r/min.
Since the engine is brand new, do not
Since the engine and exhaust
ECA00026*
put an excessive load on it for the first
system can become very hot,
CAUTION:
1,000 mi (1,600 km). The various parts
_
park in a place where pedestri-
After 600 mi (1,000 km) of operation,
in the engine wear and polish them-
ans or children are not likely to
the engine oil and transfer case oil
selves to the correct operating clear-
touch them.
must be changed, and the oil filter
5
ances. During this period, prolonged
Do not park on a slope or on
cartridge replaced.
full-throttle operation or any condition
soft ground, otherwise the
_
that might result in engine overheating
motorcycle may overturn.
_
1,000 mi (1,600 km) and beyond
must be avoided.
EC000062
The vehicle can now be operated nor-
CAUTION:
mally.
_
Never park in an area where there
EC000053
are fire hazards such as grass or
CAUTION:
_
other flammable materials.
Keep the engine speed out of
_
the tachometer red zone.
If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
_
5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
Periodic maintenance
6-1
Drive belt slack
6-29
Owner’s tool kit
6-2
Checking and lubricating the cables
6-31
Periodic maintenance chart for the emission
Checking and lubricating the throttle grip and
control system
6-3
cable
6-31
General maintenance and lubrication chart
6-4
Checking and lubricating the brake and
Checking the spark plugs
6-7
shift pedals
6-31
Canister (for California only)
6-8
Checking and lubricating the brake and
clutch levers
6-32
Engine oil and oil filter cartridge
6-9
Checking and lubricating the sidestand
6-33
Transfer case oil
6-13
Lubricating the rear suspension
6-33
Replacing the air filter elements
6-13
Checking the front fork
6-33
Adjusting the throttle cable free play
6-18
Checking the steering
6-34
Adjusting the valve clearance
6-19
Checking the wheel bearings
6-35
6
Tires
6-19
Battery
6-35
Cast wheels
6-22
Replacing the fuses
6-37
Accessories and replacement parts
6-23

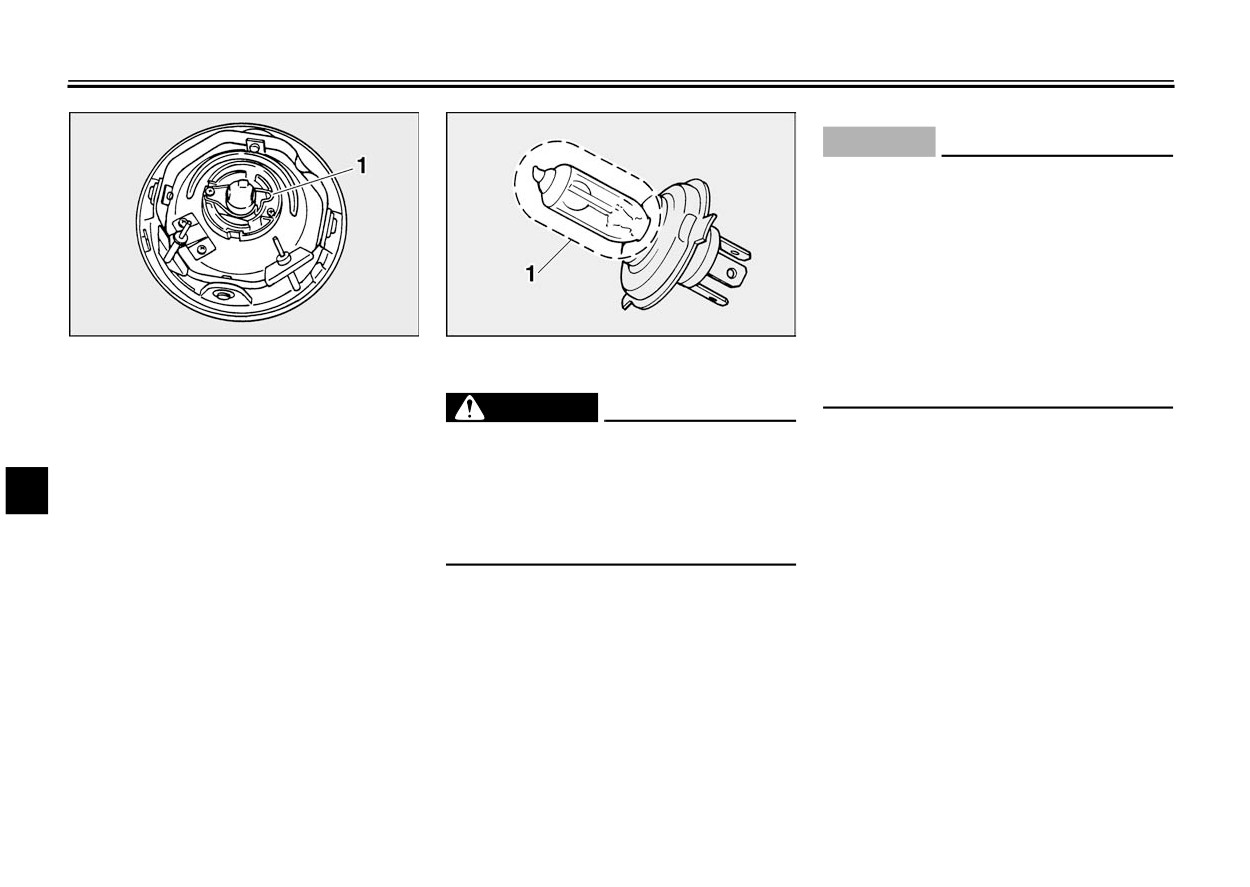

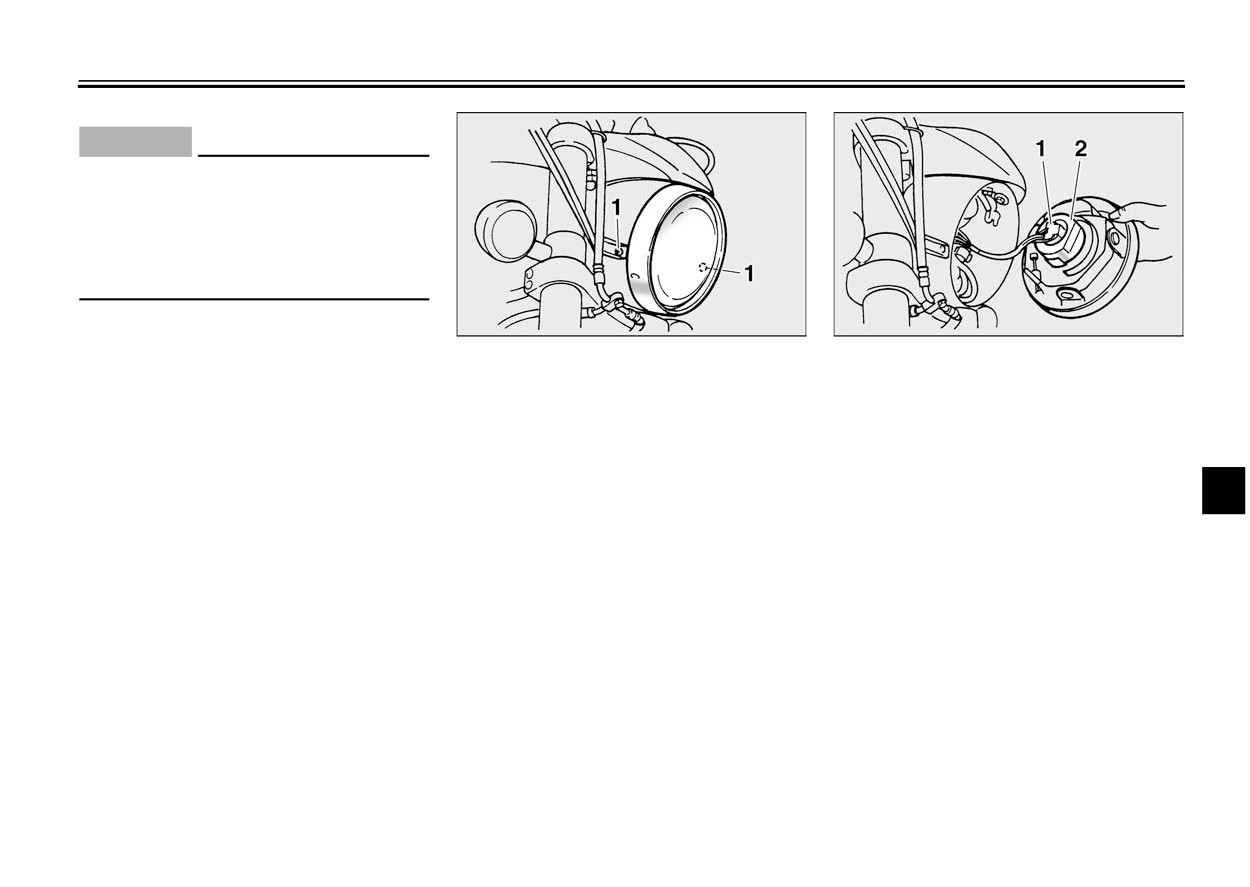

Replacing the headlight bulb
6-38

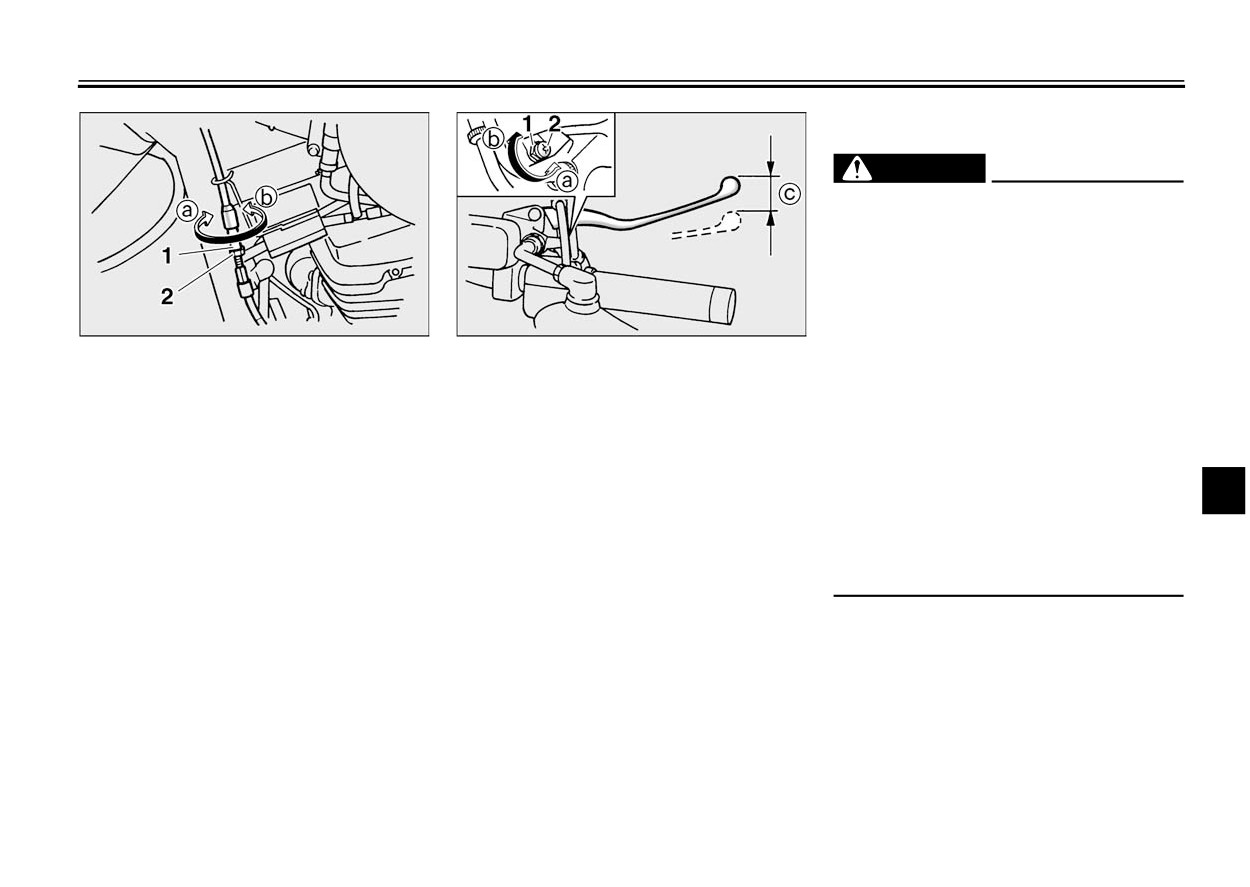

Adjusting the clutch lever free play
6-23
Tail/brake light
6-40

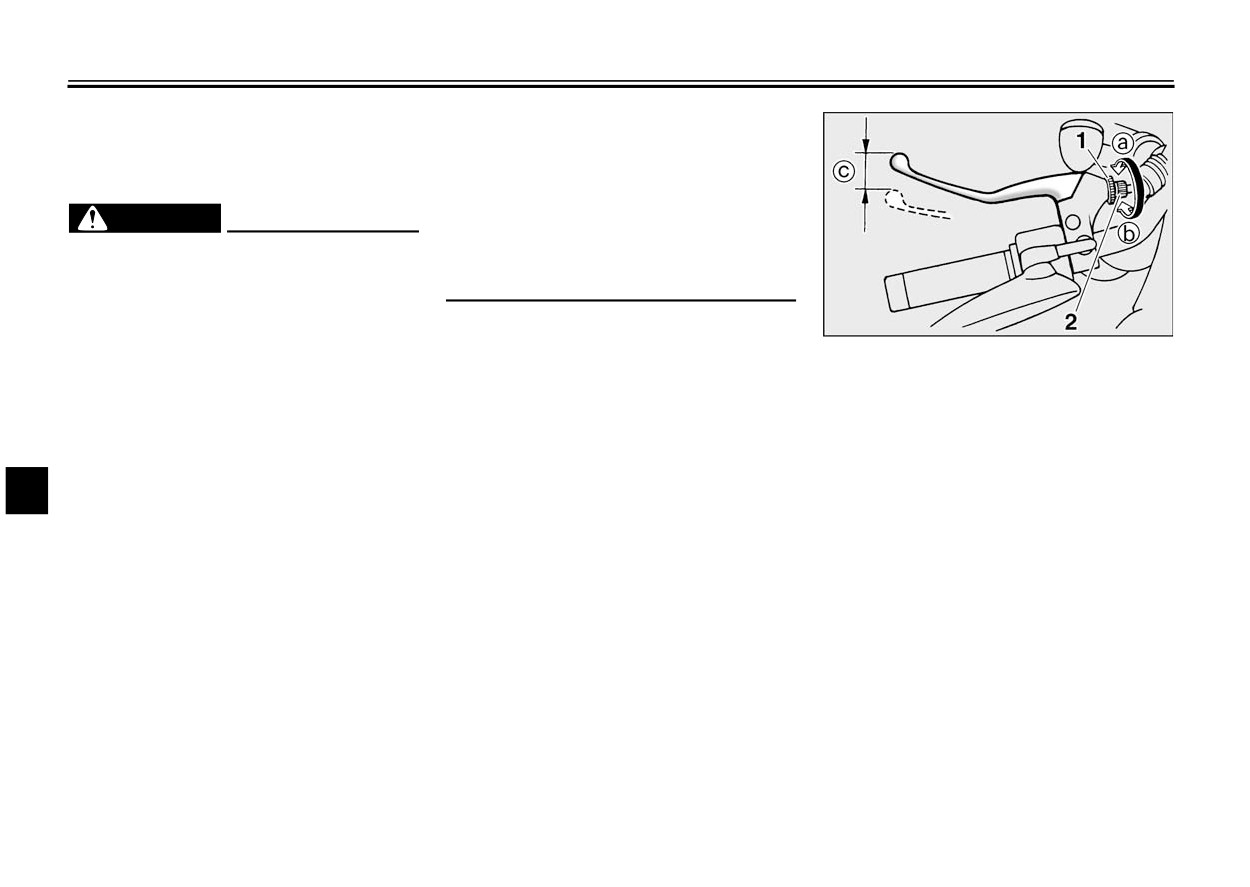

Adjusting the brake lever free play
6-24
Replacing a turn signal light bulb
6-40
Adjusting the brake pedal position
6-25
License plate light
6-41
Adjusting the rear brake light switch
6-25
Supporting the motorcycle
6-41
Checking the front and rear brake pads
6-26
Troubleshooting
6-42
Checking the brake fluid level
6-27
Troubleshooting chart
6-43
Changing the brake fluid
6-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00462
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01790
TROL ARE GROUPED SEPARATE-
Safety is an obligation of the owner.
LY. THESE SERVICES REQUIRE
Periodic inspection, adjustment and lu-
SPECIALIZED DATA, KNOWLEDGE,
brication will keep your vehicle in the
AND EQUIPMENT. YAMAHA DEAL-
safest and most efficient condition pos-
ERS ARE TRAINED AND EQUIPPED
sible. The most important points of
TO PERFORM THESE PARTICULAR
motorcycle inspection, adjustment, and
SERVICES.
lubrication are explained on the follow-
ing pages.
Maintenance, replacement, or repair
of the emission control devices and
EAU00467
systems may be performed by any
PERIODIC MAINTENANCE
repair establishment or individual
PROPER PERIODIC MAINTENANCE
that is certified (if applicable).
OF YOUR MOTORCYCLE IS IMPOR-
EW000060
6
TANT IN ORDER TO ENJOY LONG,
WARNING
PLEASURABLE SERVICE. ESPE-
_
If you are not familiar with motor-
CIALLY IMPORTANT ARE THE
cycle maintenance work, have a
MAINTENANCE SERVICES RELAT-
Yamaha dealer do it for you.
ED TO EMISSIONS CONTROL.
_
THESE CONTROLS NOT ONLY
FUNCTION TO ENSURE CLEANER
AIR, BUT ARE ALSO VITAL TO
PROPER ENGINE OPERATION AND
MAXIMUM PERFORMANCE. IN THE
FOLLOWING PERIODIC MAINTE-
NANCE CHARTS, THE SERVICES
RELATED TO EMISSIONS CON-
6-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
NOTE:
_
If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
_
EW000062
WARNING
_
Modifications not approved by
Yamaha may cause loss of perfor-
mance, excessive emissions, and
1. Owner’s tool kit
render the vehicle unsafe for use.
EAU03983
Consult a Yamaha dealer before at-
Owner’s tool kit
tempting any changes.
The owner’s tool kit is located under
_
the seat. (See page 3-11 for seat re-
moval and installation procedures.)
6
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
6-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00471
Periodic maintenance chart for the emission control system
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
Check valve clearance when engine is
1
Valve clearance
cold.
Every 16,000 mi (25,000 km)
Adjust if necessary.
Check condition.
Adjust gap and clean.
2
Spark plugs
Replace at 8,000 mi (13,000 km) or
Replace.
Replace.
12 months and thereafter every
8,000 mi (13,000 km) or 12 months.
Check ventilation hose for cracks or
Crankcase
3
damage.
ventilation system
Replace if necessary.
Check fuel hose for cracks or damage.
4
Fuel line
6
Replace if necessary.
Check for leakage.
5
Exhaust system
Retighten if necessary.
Replace gasket(s) if necessary.
Check and adjust engine idle speed and
Electrical Fuel
6
synchronization.
Injection System
Adjust cable free play.
Evaporative
Emission control
Check control system for damage.
7
*
system (For
Replace if necessary.
California only)
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
6-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00472
General maintenance and lubrication chart
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
TYPE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
1
Engine oil
Change.
See page 8-1.
Engine oil filter
2
Replace.
-
cartridge
Air filter elements
Check condition and for
3
(See NOTE on
damage.
-
page 6-6.)
Replace if necessary.
Check operation and fluid
leakage. (See NOTE page
Replace
4
Front brake
-
6-6.)
brake fluid.
Correct if necessary.
Check operation and fluid
leakage. (See NOTE page
Replace
6
5
Rear brake
-
6-6.)
brake fluid.
Correct if necessary.
Check operation and free
6
Clutch
play.
-
Correct if necessary.
Check vehicle for leakage.
SAE 80 API “GL-4”
7
Transfer case oil
Replace every 16,000 mi
Change.
Check.
Change.
hypoid gear oil
(25,000 km) or 24 months.
Yamaha chain and
Apply chain lube
8
Control cables
cable lube or engine oil
thoroughly.
10W-30
Check bearing assembly
for looseness.
Rear arm pivot
Lithium-soap-based
9
*
Moderately repack every
Repack.
bearing
grease
16,000 mi (25,000 km) or
24 months.
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
6-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
TYPE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
Lithium-soap-based
Brake and clutch
Lubricate.
10
grease
lever pivot shafts
Apply grease lightly.
(all-purpose grease)
Brake pedal
Lithium-soap-based
Lubricate.
11
and shift
grease
Apply grease lightly.
pedal shafts
(all-purpose grease)
Check operation and
Lithium-soap-based
12
Sidestand pivot
lubricate.
grease
Apply grease lightly.
(all-purpose grease)
Check and clean or
13
Sidestand switch
-
replace if necessary.
Check operation and for
14
Front fork
-
leakage.
Check bearing assembly
for looseness.
Lithium-soap-based
6
Steering
15
Moderately repack every
grease
Repack.
bearings
16,000 mi (25,000 km) or
(all-purpose grease)
24 months.
Check bearings for
16
Wheel bearings
-
smooth rotation.
Rear suspen-
Lubricate.
Lithium-soap-based
17
sion link pivots
Apply grease lightly.
grease
Check belt tension.
18
*
Drive belt
-
Every 2,500 mi (4,000 km)
Adjust if necessary.
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
6-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU03907
NOTE:
_
From 24,000 mi (37,000 km) or 36 months, repeat the maintenance intervals starting from 4,000 mi (7,000 km) or 6 months.
_
EAU04443
_
NOTE:
Air filters
• This model’s air filters are equipped with disposable oil-coated paper elements, which must not be cleaned with com-
pressed air to avoid damaging them.
• The air filter elements need to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid
levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
• Replace the brake hoses every four years and if cracked or damaged.
6
_
6-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01639
If a spark plug shows signs of electrode
Checking the spark plugs
erosion and excessive carbon or other
The spark plugs are important engine
deposits, it should be replaced.
components, which should be checked
periodically, preferably by a Yamaha
Specified spark plug:
dealer. Since heat and deposits will
DPR7EA-9/NGK or
cause any spark plug to slowly erode,
X22EPR-U9/DENSO
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,

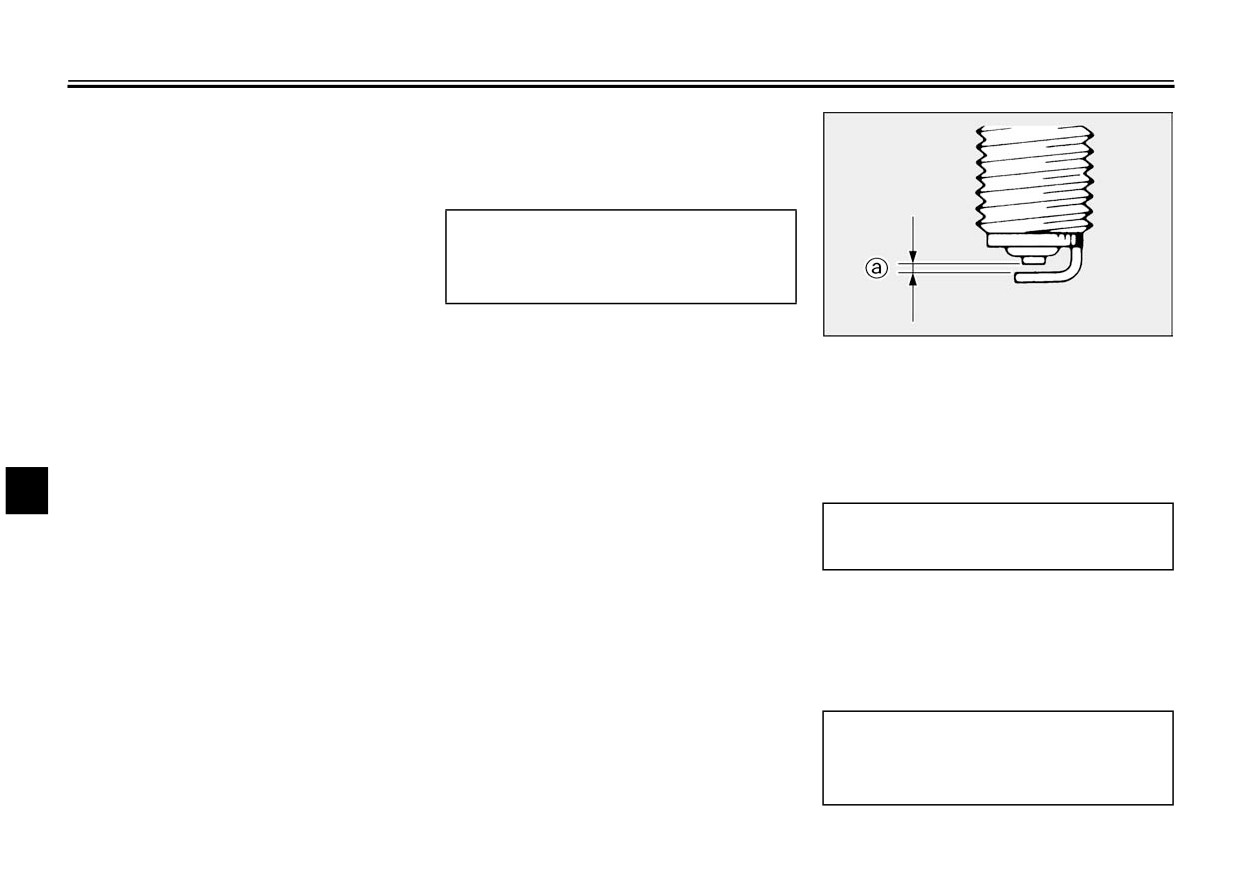

a. Spark plug gap
the condition of the spark plugs can re-
Before installing a spark plug, the spark
veal the condition of the engine.
plug gap should be measured with a
The porcelain insulator around the cen-
wire thickness gauge and, if necessary,
ter electrode of each spark plug should
adjusted to specification.
6
be a medium-to-light tan (the ideal col-
or when the motorcycle is ridden nor-
Spark plug gap:
mally), and all spark plugs installed in
0.03-0.04 in (0.8-0.9 mm)
the engine should have the same color.
If any spark plug shows a distinctly dif-
Clean the surface of the spark plug
ferent color, the engine could be defec-
gasket and its mating surface, and then
tive. Do not attempt to diagnose such
wipe off any grime from the spark plug
problems yourself. Instead, have a
threads.
Yamaha dealer check the motorcycle.
Tightening torque:
Spark plug:
12.7 ft·lb (1.75 m·kgf, 17.5 Nm)
6-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
NOTE:
_
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4-1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
_
ECA00021
CAUTION:
_
Do not use any tools to remove or
EAU00499
install the spark plug cap, otherwise

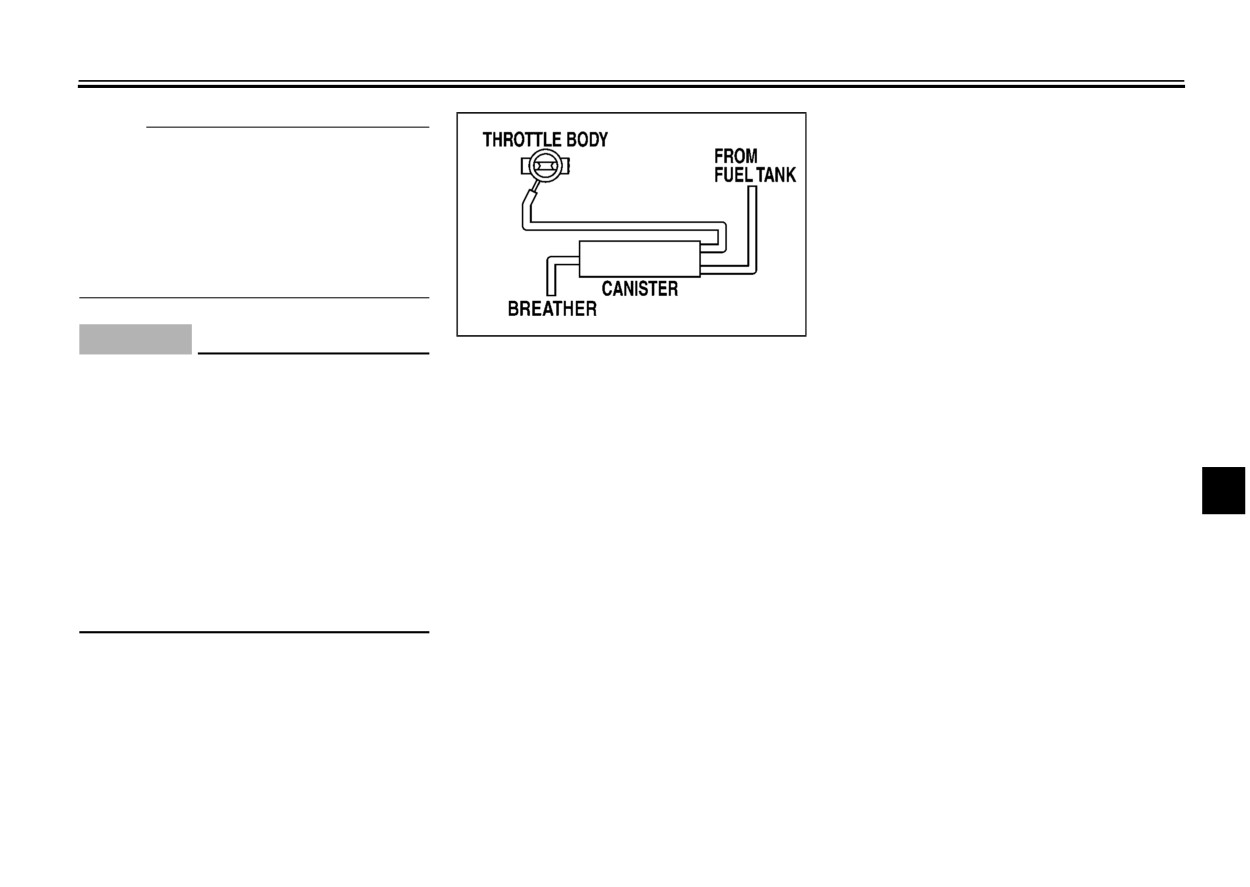

Canister (for California only)
the ignition coil coupler may get
This model is equipped with a canister
damaged. The spark plug cap may
to prevent the discharging of fuel vapor
be difficult to remove because the
into the atmosphere. Before operating
6
rubber seal on the end of the cap fits
this motorcycle, make sure to check
tightly. To remove the spark plug
the following:
cap, simply twist it back and forth
Check each hose connection.
while pulling it out; to install it, twist
Check each hose and canister for
it back and forth while pushing it in.
cracks or damage. Replace if
_
damaged.
Make sure that the canister
breather is not blocked, and if nec-
essary, clean it.
6-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
NOTE:
_
Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading.
_
2. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
3. Start the engine, warm it up until

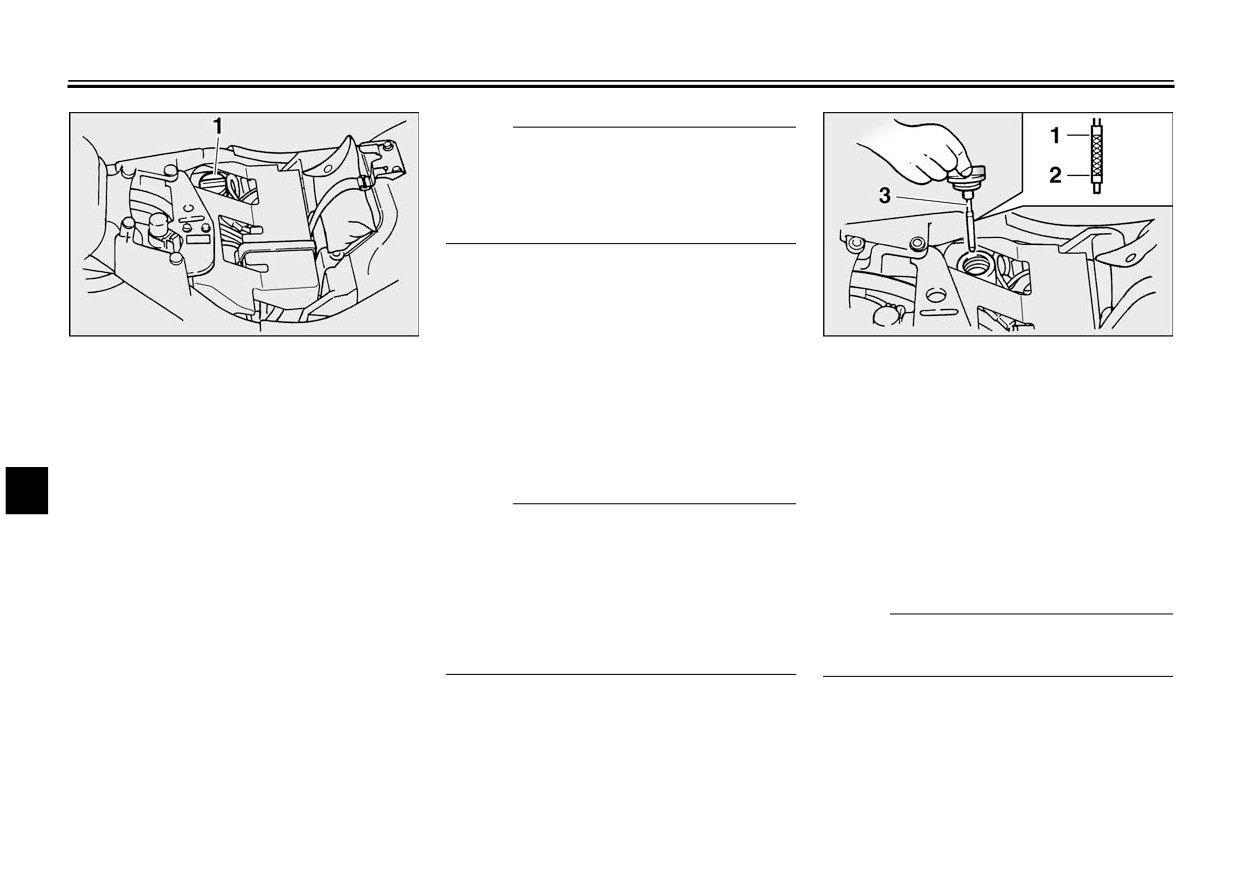

1. Engine oil filler cap
1. Maximum level mark
the engine oil has reached a nor-
2. Minimum level mark
EAU04212*
3. Dipstick
Engine oil and oil filter
mal temperature of 140 °F (60 °C),
let it continue to idle for ten sec-
4. Wait a few minutes until the oil set-
cartridge
onds, and then turn the engine off.
tles, remove the oil filler cap, wipe
The engine oil level should be checked
the dipstick clean, insert it back
6
before each ride. In addition, the oil
NOTE:_
into the oil filler hole
(without
must be changed and the oil filter car-
To achieve the proper engine oil tem-
screwing it in), and then remove it
tridge replaced at the intervals speci-
perature for an accurate oil level read-
again to check the oil level.
fied in the periodic maintenance and
ing, the engine must have first
lubrication chart.
completely cooled down, and then
NOTE:_
warmed up again for several minutes to
The engine oil should be between the
To check the engine oil level
normal operating temperature.
minimum and maximum level marks.
_
_
1. Place the motorcycle on a level
5. If the engine oil is below the mini-
surface and hold it in an upright
mum level mark, add sufficient oil
position.
of the recommended type to raise
it to the correct level.
6-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
_
NOTE:
_
NOTE:
When adding oil, be careful not to over-
Skip steps 5-9 if the oil filter cartridge is
fill the engine oil tank; the oil level rises
not being replaced.
_
faster starting from the half level por-
tion on the dipstick.
_
6. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
7. Install the seat.
1. Engine oil drain bolt (oil tank)
ECA00027
To change the engine oil (with or
CAUTION:
_
without oil filter cartridge replace-
Make sure that the oil filler cap is se-
ment)
curely tightened, otherwise oil may
1. Remove the seat. (See page 3-11
seep out when the engine is run-
for seat removal and installation
6
ning.
_
procedures.)
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the oil tank
to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the oil tank.
6-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

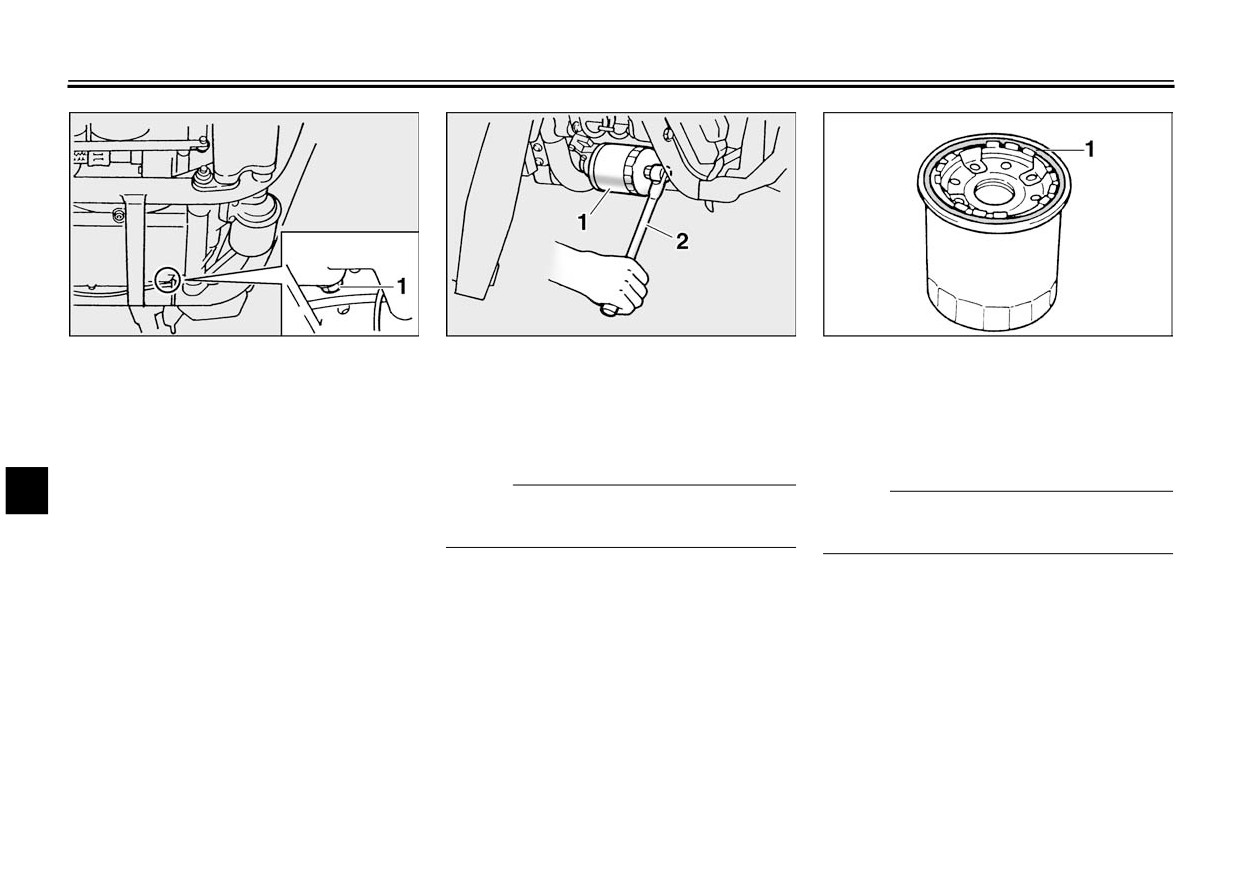

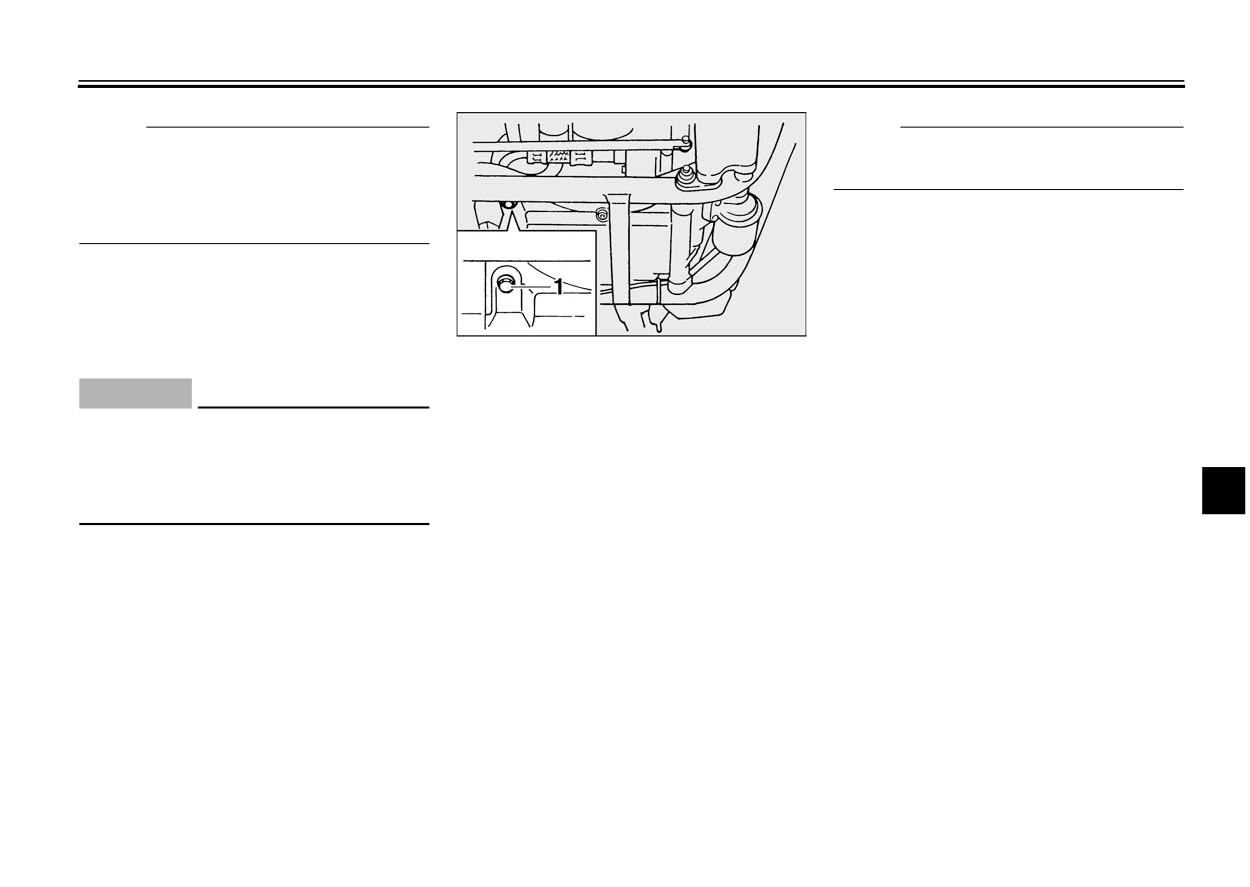

1. Engine oil drain bolt (crankcase)
1. Oil filter cartridge
1. O-ring
2. Oil filter wrench
5. Place an oil pan under the engine
8. Apply a thin coat of engine oil to
7. Remove the oil filter cartridge with
to collect the used oil.
the O-ring of the new oil filter car-
an oil filter wrench.
6. Remove the engine oil drain bolt to
tridge.
drain the oil from the crankcase.
NOTE:_
NOTE:
6
_
An oil filter wrench is available at a
Make sure that the O-ring is properly
Yamaha dealer.
seated.
_
_
6-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA00105
11. Pour only 2.6 US qt (2.2 Imp qt,
2.5 L) of the specified amount of
CAUTION:
_
recommended engine oil through
In order to prevent clutch slip-
the filler hole, insert the dipstick,
page (since the engine oil also
and then tighten the oil filler cap.
lubricates the clutch), do not
12. Start the engine, rev it several
mix any chemical additives with
times, and then turn it off.
the oil or use oils of grade “CD”
13. Remove the engine oil filler cap,
or higher. In addition, do not
and then gradually fill the oil tank
use oils labeled “ENERGY CON-

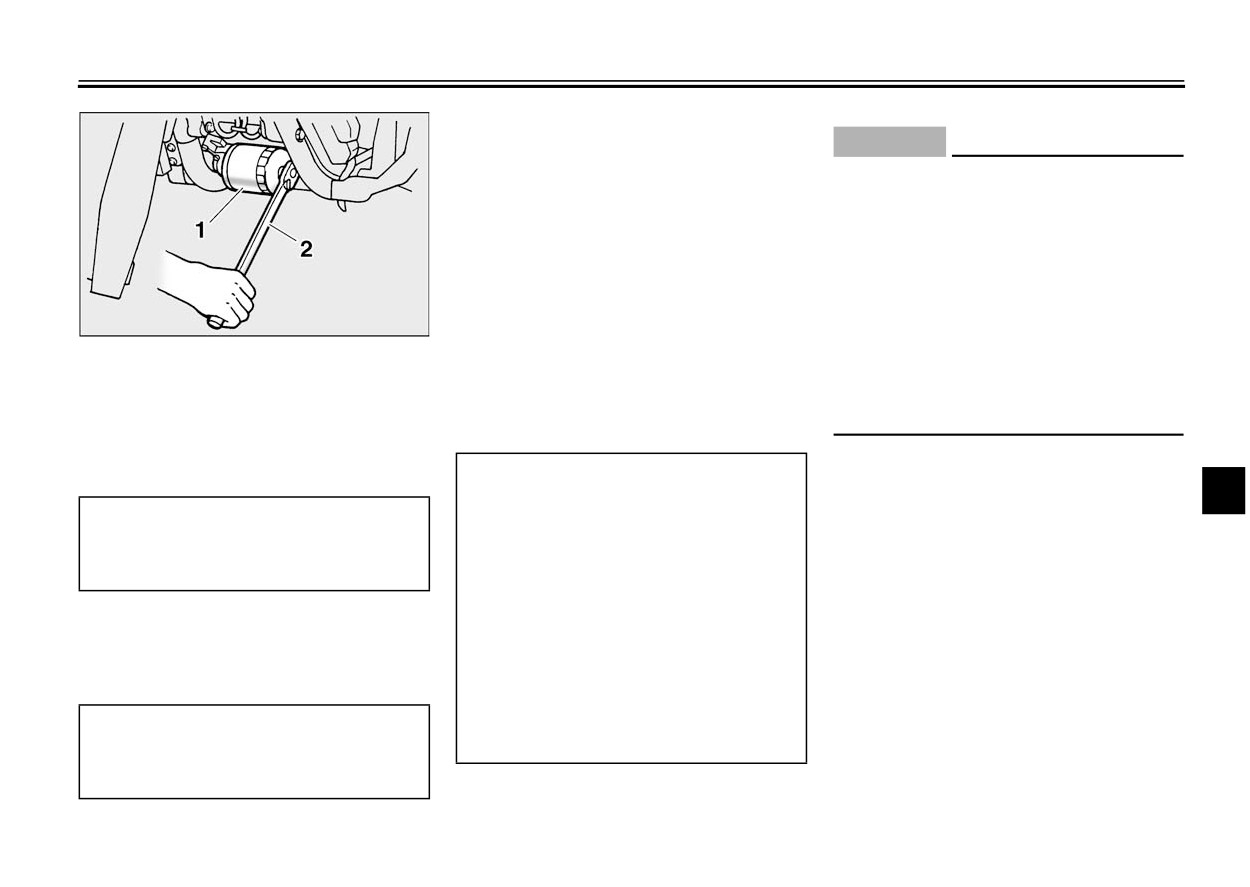

1. Oil filter cartridge
with the remaining oil quantity
SERVING II” or higher.
2. Torque wrench
while regularly checking the
oil
Make sure that no foreign mate-
9. Install the new oil filter cartridge,
level on the dipstick.
rial enters the crankcase.
and then tighten it to the specified
_
14.
Install the engine oil filler cap.
torque with a torque wrench.
Recommended engine oil:
15.
Start the engine, and then let it idle
6
See page 8-1.
for several minutes while checking
Tightening torque:
Oil quantity:
it for oil leakage. If oil is leaking,
Oil filter cartridge:
Without oil filter cartridge
immediately turn the engine off
12 ft·lb (1.7 m·kgf, 17 Nm)
replacement:
and check for the cause.
3.9 US qt (3.3 Imp qt, 3.7 L)
10. Install the engine oil drain bolts,
16.
Turn the engine off, and then
With oil filter cartridge
and then tighten them to the spec-
check the oil level and correct it if
replacement:
ified torque.
necessary.
4.3 US qt (3.6 Imp qt, 4.1 L)
17.
Install the seat.
Total amount (dry engine):
Tightening torque:
5.3 US qt (4.4 Imp qt, 5.0 L)
Engine oil drain bolt:
31 ft·lb (4.3 m·kgf, 43 Nm)
6-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU04439*
EAU04447*
Transfer case oil
Replacing the air filter
Have the transfer case oil level
elements
checked and the oil changed by a
This motorcycle is equipped with two
Yamaha dealer at the intervals speci-
air filter elements, one of which is locat-
fied in the periodic maintenance and lu-
ed in the air filter case, the other is lo-
brication chart.
cated in the silencer case.
The air filter elements should be re-
placed at the intervals specified in the

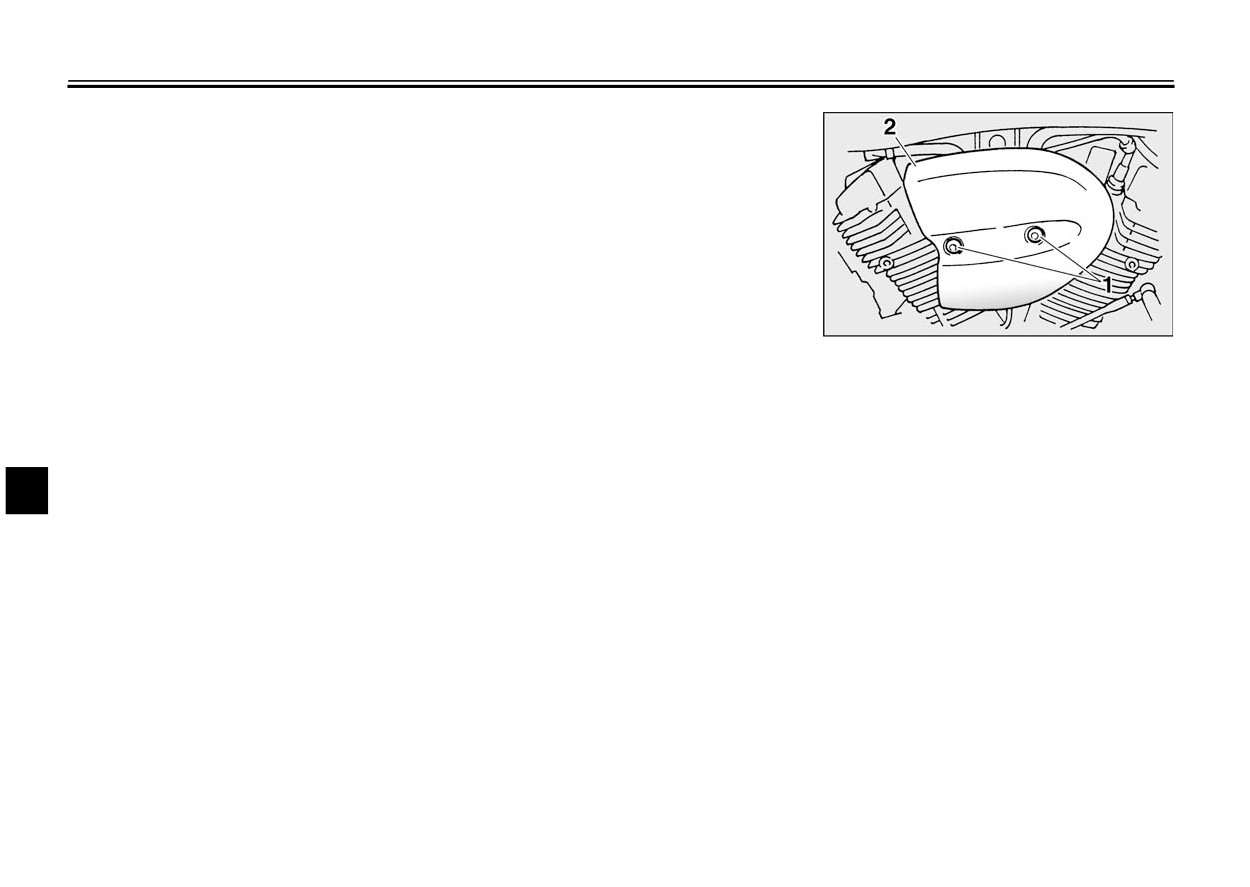

1. Bolt (× 2)
periodic maintenance and lubrication
2. Air induction system cover
chart. Replace the air filter elements
2. Remove the air induction system
more frequently if you are riding in un-
cover by removing the bolts.
usually wet or dusty areas.
6
Air filter case element
To replace the air filter element
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
6-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

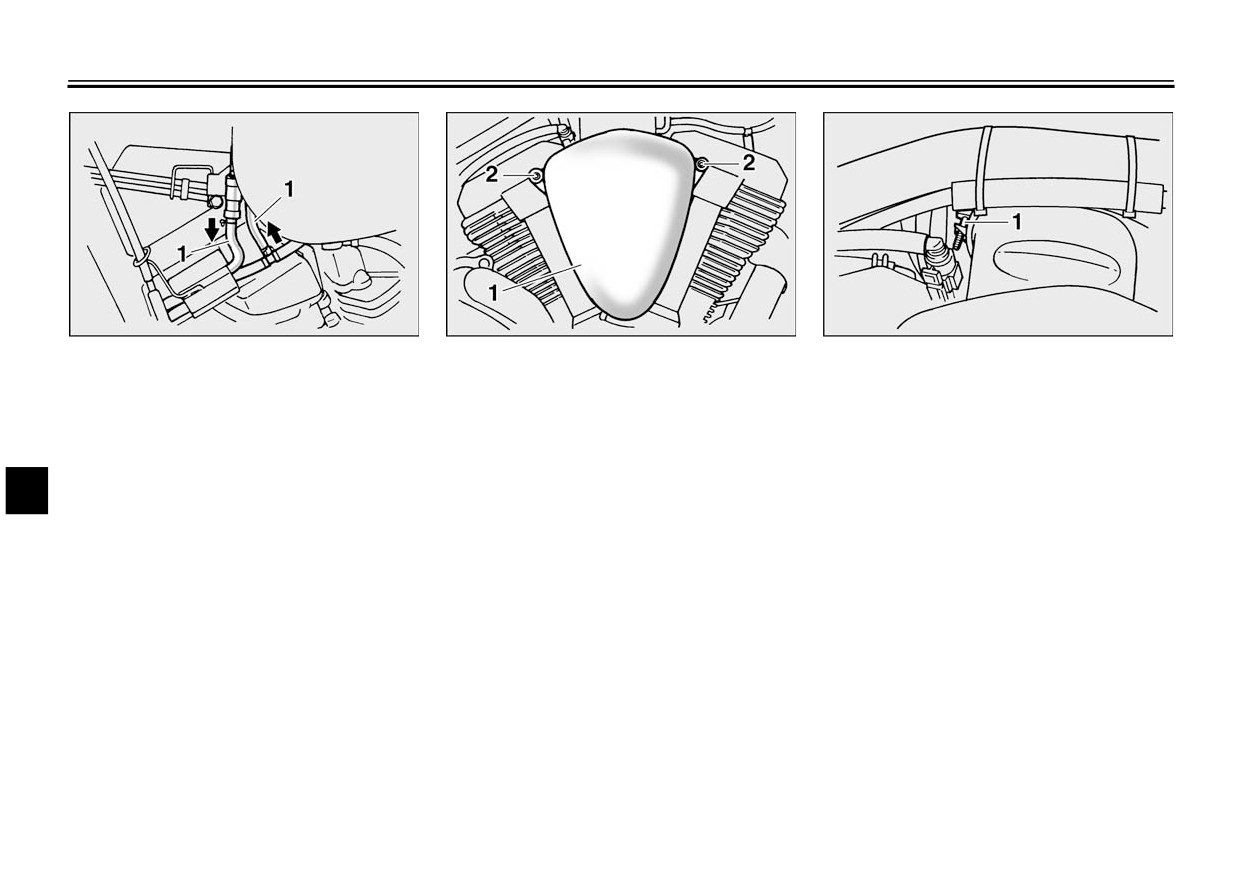

1. Fuel hose A
1. Nut (× 2)
1. Fuel hose B
3. Remove the fuel tank as follows.
b. Remove the nuts.
c. Disconnect fuel hose B from the
a. Disconnect fuel hose A from the
joint as shown.
ECA00121
joint as shown.
CAUTION:
_
6
Place a towel or cloth under the
fuel hose joints when discon-
necting hoses A and B to pre-
vent fuel from spilling onto the
vehicle.
Make sure that no foreign mate-
rial enters the fuel hose joints
when the hoses are disconnect-
ed.
_
6-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

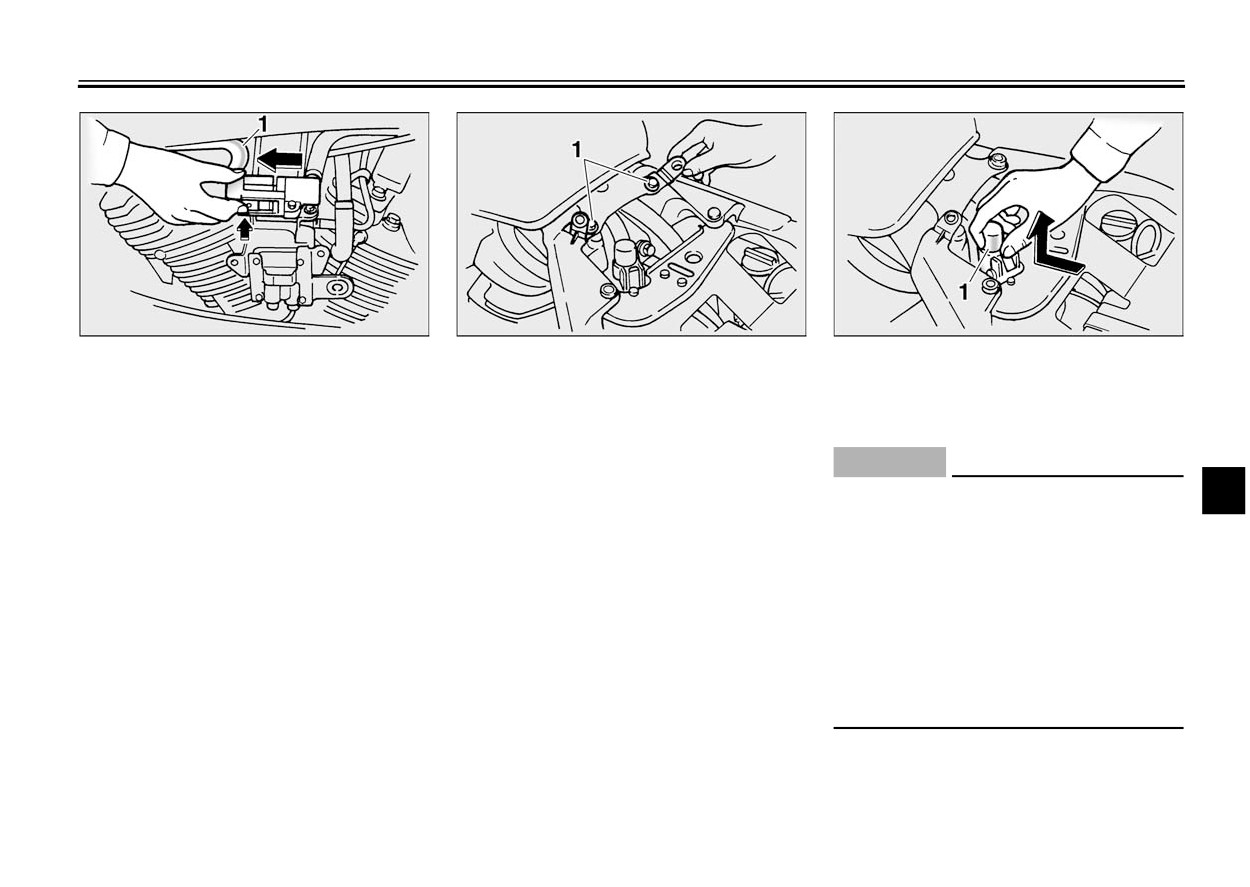

1. Hose (× 2)
1. Air filter case
1. Air filter joint clamp screw
2. Bolt (× 2)
d. Remove the hoses as shown, and
5. Loosen the air filter joint clamp
4. Remove the air filter case bolts.
then remove the fuel tank by pull-
screw, and then pull off the air filter
ing it upward.
case.
6
6-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

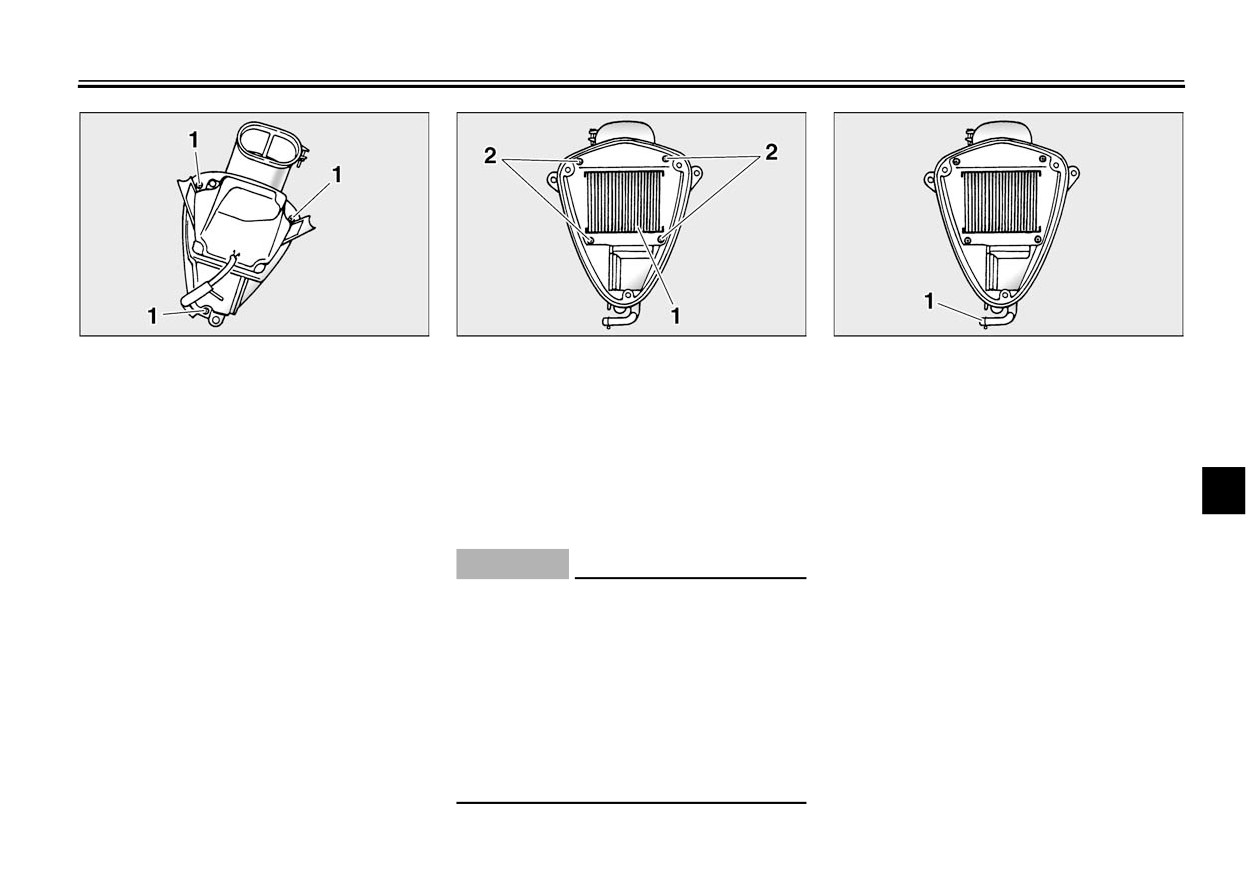

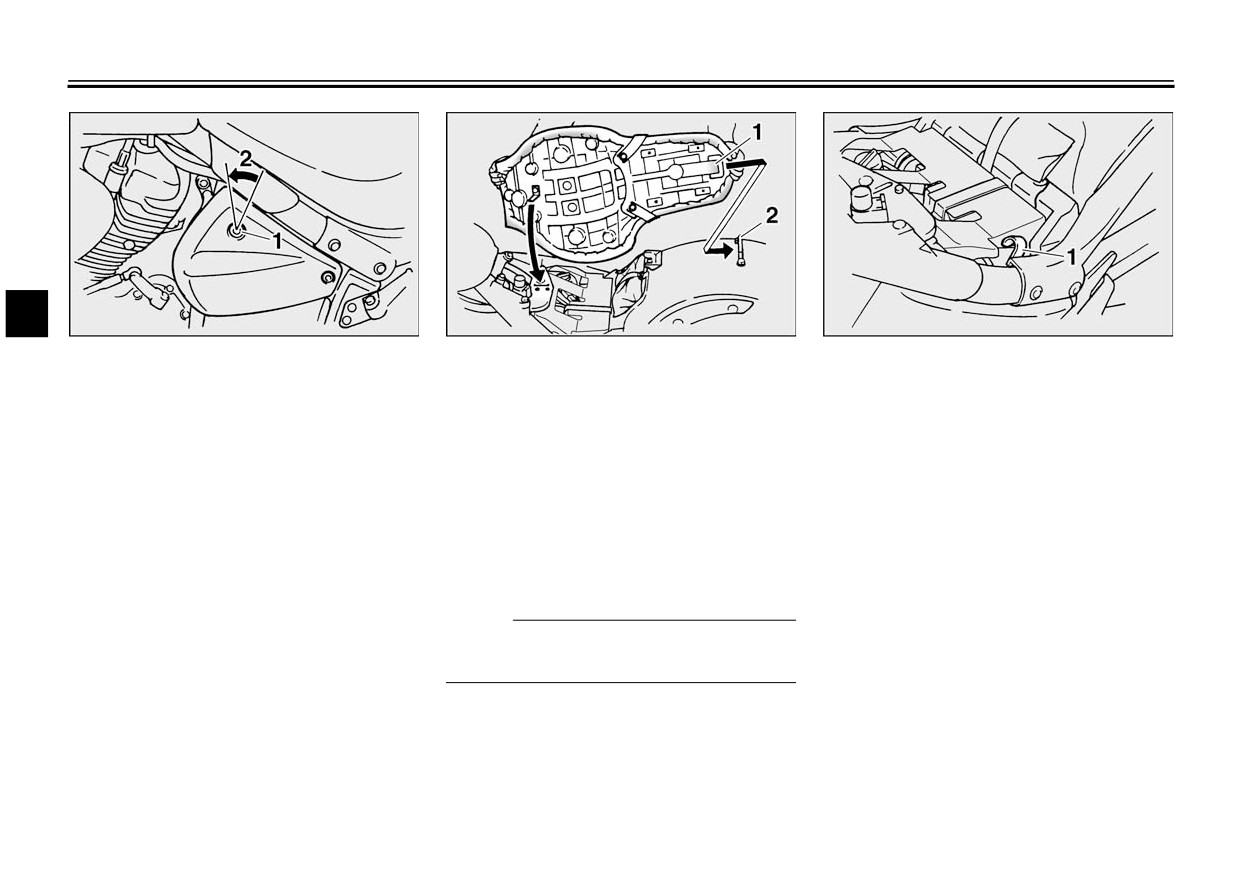

1. Screw (× 3)
1. Air filter element
1. Air filter check hose
2. Screw (× 4)
6.
Remove the air filter case cover by
9.
Remove the clamp from the check
7. Remove the air filter element by
removing the screws.
hose, and then remove the plug to
removing the screws.
drain any accumulated water.
8. Install a new air filter element by
10.
Install the plug and the clamp.
inserting it into the air filter case,
6
11.
Install the air filter case cover by
then installing the screws.
installing the screws.
EC000082*
12.
Install the air filter case by pushing
CAUTION:
_
it onto the air filter joint, and then
Make sure that the air filter ele-
tightening the air filter joint clamp
ment is properly seated in the
screw.
air filter case.
13.
Install the air filter case by install-
The engine should never be op-
ing the bolts.
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
_
6-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
b. Install the nuts.
c. Connect fuel hose A.
15. Install the air induction system
cover by installing the bolts.
16. Install the seat.
Silencer case air filter element
To replace the air filter element
1.
Remove the fuel tank. (See steps
1-3 under
“Air
filter
case
ele-

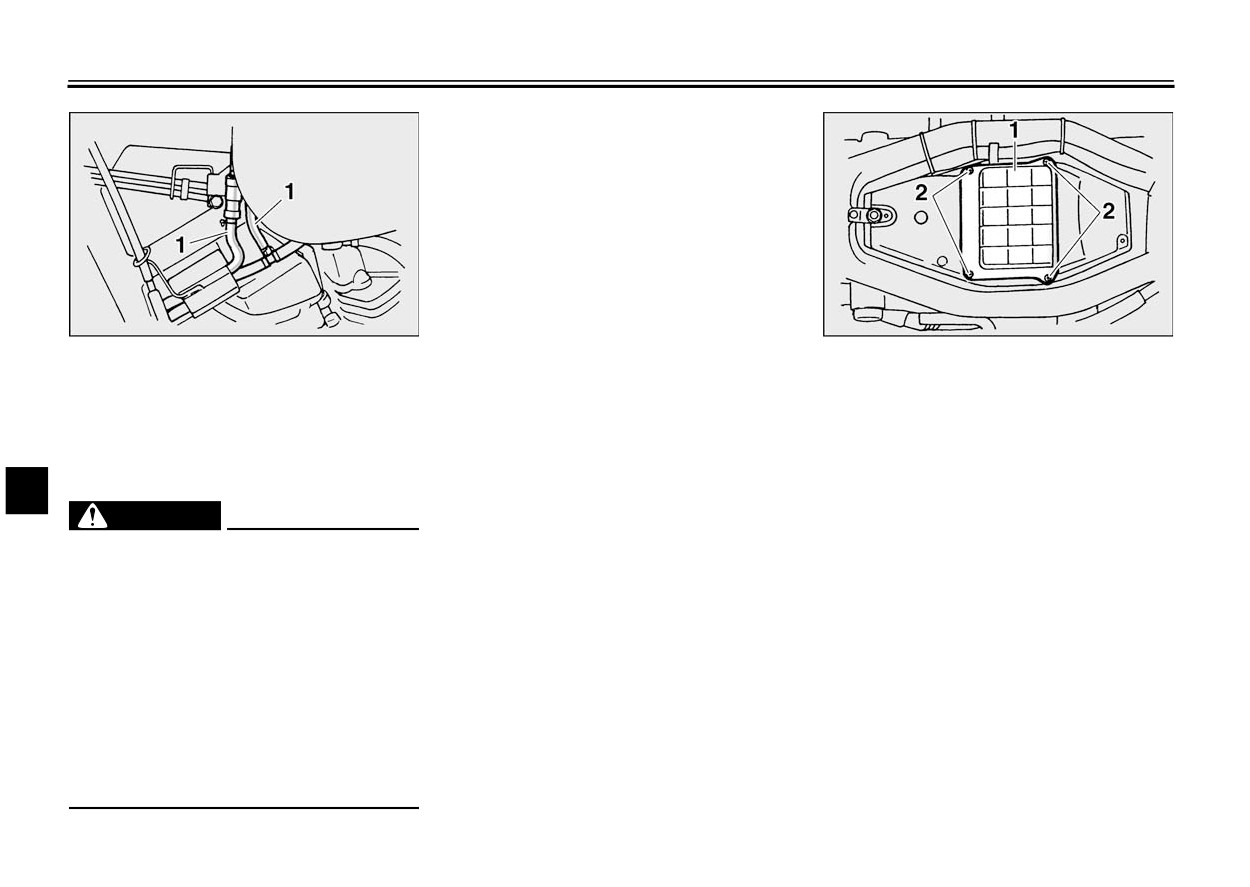

1. Hose (× 2)
1. Silencer air filter case cover
ment”.)
2. Screw (× 4)
14.
Install the fuel tank as follows.
2.
Remove the silencer air filter case
a. Place the fuel tank in the original
cover by removing the screws.
position, and then connect fuel
hose B and the hoses shown.
6
EW000072
WARNING
_
Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine but have a Yamaha
dealer replace the hose, other-
wise fuel may leak.
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
_
6-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
5. Install the silencer air filter case
cover by installing the screws.
6. Install the fuel tank. (See step 14
under “Air filter case element”.)

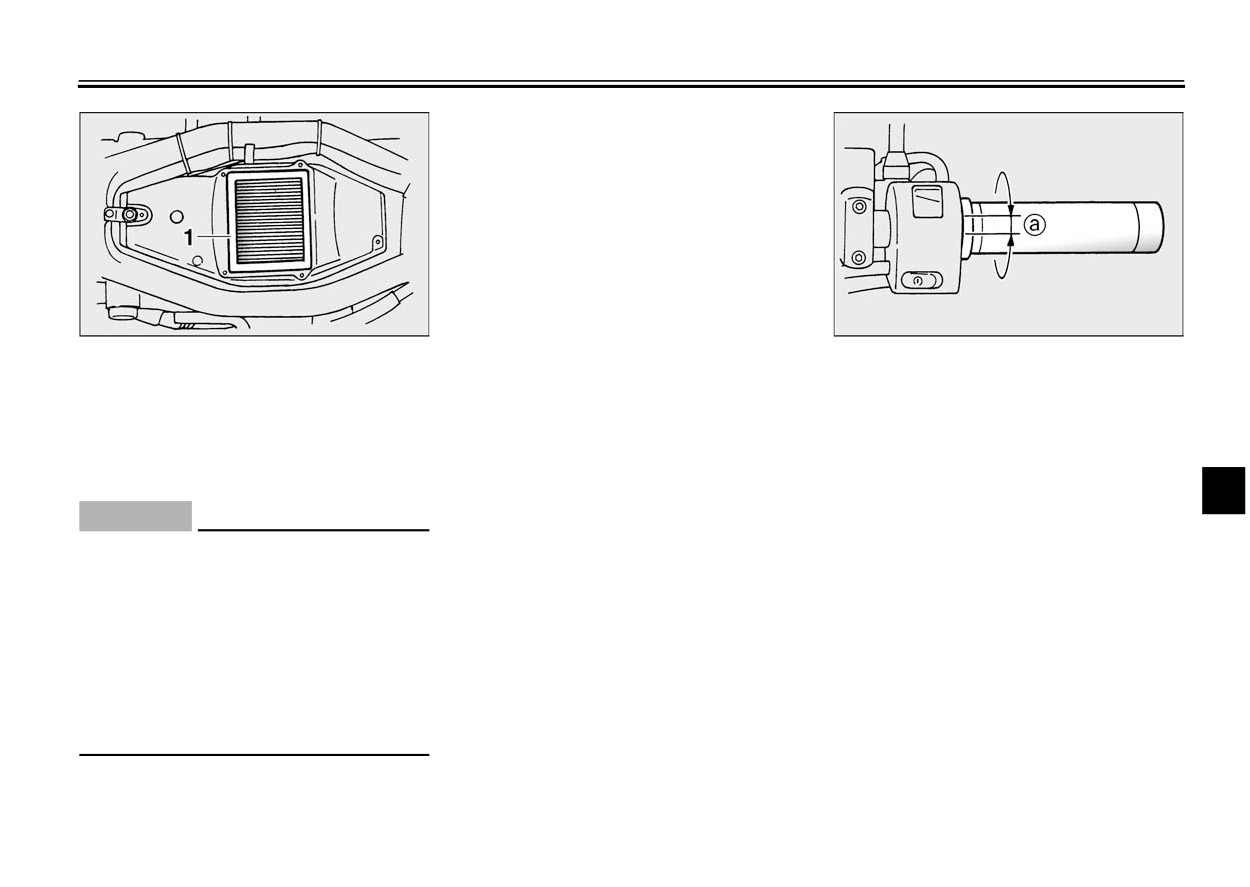

1. Silencer air filter element
a. Throttle cable free play
EAU00635
3. Remove the silencer air filter ele-
Adjusting the throttle cable
ment.
free play
4. Install a new air filter element by
inserting it into the air filter case.
The throttle cable free play should
EC000082*
measure 0.16-0.24 in (4-6 mm) at the
6
CAUTION:
throttle grip. Periodically check the
_
Make sure that the air filter ele-
throttle cable free play and, if neces-
ment is properly seated in the
sary, have a Yamaha dealer adjust it.
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
_
6-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00637
EAU03581
CE-22E
Adjusting the valve clearance
Tires
Tire air pressure
(measured on cold tires)
The valve clearance changes with use,
To maximize the performance, durabil-
Load*
Front
Rear
resulting in improper air-fuel mixture
ity, and safe operation of your motor-
36 psi
36 psi
and/or engine noise. To prevent this
cycle, note the following points
Up to 198 lb (90 kg)
(2.50 kgf/cm2,
(2.50 kgf/cm2,
250 kPa)
250 kPa)
from occurring, the valve clearance
regarding the specified tires.
36 psi
42 psi
must be adjusted by a Yamaha dealer
198 lb (90 kg)-
(2.50 kgf/cm2,
(2.90 kgf/cm2,
maximum
at the intervals specified in the periodic
Tire air pressure
250 kPa)
290 kPa)
maintenance and lubrication chart.
The tire air pressure should be
36 psi
36 psi
High-speed riding
(2.50 kgf/cm2,
(2.50 kgf/cm2,
checked and, if necessary, adjusted
250 kPa)
250 kPa)
before each ride.
CE-16E
EW000082
Maximum load*
408 lb (185 kg)
WARNING
* Total weight of rider, passenger, cargo and
_
accessories
The tire air pressure must be
6
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
_
6-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EW000083
EW000094
WARNING
WARNING
_
_
Proper loading of your motorcycle
It is dangerous to ride with a
is important for several characteris-
worn-out tire. When a tire tread
tics of your motorcycle, such as
begins to show crosswise lines,
handling, braking, performance and
have a Yamaha dealer replace
safety. Do not carry loosely packed
the tire immediately.
items that can shift. Securely pack
The replacement of all wheel-
your heaviest items close to the
and brake-related parts, includ-

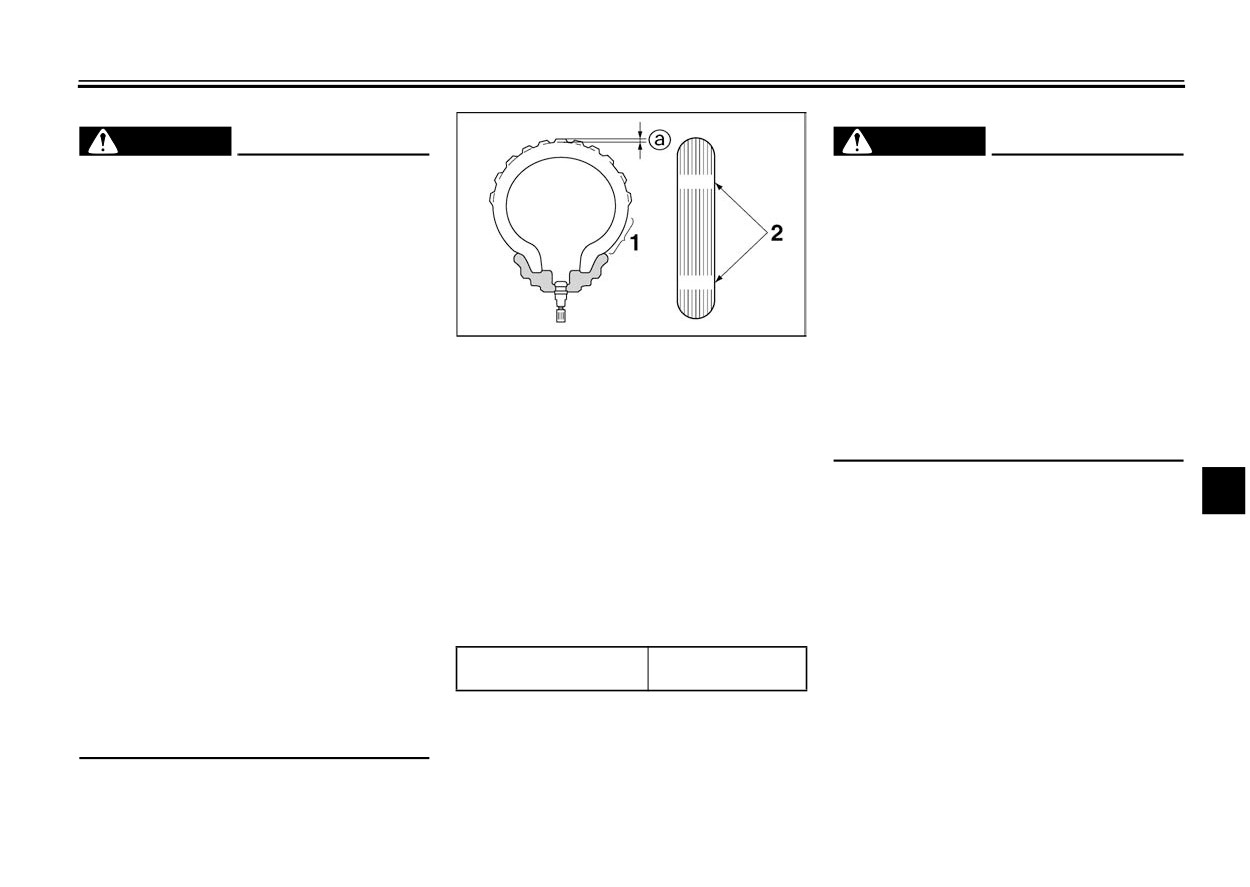

1. Tire sidewall
center of the motorcycle, and dis-
ing the tires, should be left to a
2. Tire wear indicator
tribute the weight evenly from side
a. Tire tread depth
Yamaha dealer, who has the
to side. Properly adjust the suspen-
necessary professional knowl-
Tire inspection
sion for your load, and check the
edge and experience.
Always check the tires before operating
_
condition and pressure of your tires.
the motorcycle. If a tire tread shows
6
NEVER OVERLOAD YOUR MOTOR-
crosswise lines (minimum tread depth),
CYCLE. Make sure that the total
if the tire has a nail or glass fragments
weight of the cargo, rider, passen-
in it, or if the sidewall is cracked, con-
ger, and accessories (cowling, sad-
tact a Yamaha dealer immediately and
dlebags, etc. if approved for this
have the tire replaced.
model) does not exceed the maxi-
CE-09E
mum load of the motorcycle. Opera-
Minimum tire tread depth
0.04 in (1.0 mm)
(front and rear)
tion of an overloaded motorcycle
could cause tire damage, an acci-
dent, or even injury.
_
6-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EW000080
CE-10E
FRONT
WARNING
_
Manufacturer
Size
Model
The front and rear tires should
120/70 ZR18 (59W)
Bridgestone
BT020FG
be of the same make and de-
120/70 ZR18 M/C (59W)
sign, otherwise the handling
120/70 ZR18 (59W)
Dunlop
D220FST
characteristics of the motor-
120/70 ZR18 M/C (59W)
cycle cannot be guaranteed.
REAR
After extensive tests, only the
Manufacturer
Size
Model
tires listed below have been ap-
200/50 ZR17 (75W)
1. Tire air valve
Bridgestone
BT020R
proved for this model by
200/50 ZR17 M/C (75W)
2. Tire air valve core
Yamaha Motor Co., Ltd.
200/50 ZR17 (75W)
3. Tire air valve cap with seal
Dunlop
D220ST
200/50 ZR17 M/C (75W)
Always make sure that the valve
Tire information
caps are securely installed to
CE-14E
This motorcycle is equipped with cast
FRONT & REAR
prevent air pressure leakage.
wheels and tubeless tires with valves.
Tire air valve
TR412
6
Use only the tire valves and
Valve core
#9000A (original)
valve cores listed below to
avoid tire deflation during a
high-speed ride.
_
6-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00684
EAU03773
Cast wheels
WARNING
_
To maximize the performance, durabil-
This motorcycle is fitted with super-
ity, and safe operation of your motor-
high-speed tires. Note the following
cycle, note the following points
points in order to make the most ef-
regarding the specified wheels.
ficient use of these tires.
The wheel rims should be checked
Use only the specified replace-
for cracks, bends or warpage be-
ment tires. Other tires may run
fore each ride. If any damage is
the danger of bursting at super
found, have a Yamaha dealer re-
high speeds.
place the wheel. Do not attempt
Brand-new tires can have a rela-
even the smallest repair to the
tively poor grip on certain road
wheel. A deformed or cracked
surfaces until they have been
wheel must be replaced.
“broken in”. Therefore, it is ad-
The wheel should be balanced
6
visable before doing any high-
whenever either the tire or wheel
speed riding to ride conserva-
has been changed or replaced. An
tively for approximately
60 mi
unbalanced wheel can result in
(100 km) after installing a new
poor performance, adverse han-
tire.
dling characteristics, and a short-
The tires must be warmed up
ened tire life.
before a high-speed run.
Ride at moderate speeds after
Always adjust the tire air pres-
changing a tire since the tire sur-
sure according to the operating
face must first be “broken in” for it
conditions.
_
to develop its optimal characteris-
tics.
6-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00691
Since Yamaha cannot control the
Accessories and replacement
quality of accessories or parts man-
parts
ufactured by other companies,
EW000098
Yamaha cannot be held liable for
WARNING
_
any consequences caused by the
This motorcycle is not designed to
use of items which have not been
pull a trailer or to be attached to a
approved by Yamaha.
sidecar. The accessories or replace-
_
ment parts you choose for your
1.
Locknut
motorcycle should be designed spe-
2.
Clutch lever free play adjusting bolt
cifically for this model, and they
c.
Clutch lever free play
must be securely mounted to main-
EAU00694
tain the inherent stability of the orig-
Adjusting the clutch lever free
inal design. Genuine Yamaha Parts
play
6
and Accessories are designed and
The clutch lever free play should mea-
tested to be compatible with your
sure 0.4-0.6 in (10-15 mm) as shown.
motorcycle. Please consider Genu-
Periodically check the clutch lever free
ine Yamaha Parts and Accessories
play and, if necessary, adjust it as fol-
before making a purchase. Use of
lows.
non-Yamaha-approved accessories
1. Loosen the locknut at the clutch le-
or replacement parts may cause
ver.
loss of handling stability and riding
2. To increase the clutch lever free
safety.
play, turn the adjusting bolt in di-
rection a. To decrease the clutch
lever free play, turn the adjusting
bolt in direction b.
6-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
3.
Tighten the locknut.
EW000099
WARNING
_
After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
A soft or spongy feeling in the
brake lever can indicate the
1. Clutch lever free play adjusting nut
1. Locknut
presence of air in the hydraulic
2. Locknut
2. Brake lever free play adjusting bolt
c. Brake lever free play
system. If there is air in the hy-
3.
If the specified clutch lever free
draulic system, have a Yamaha
EAU00696
play could be obtained as de-
Adjusting the brake lever free
dealer bleed the system before
scribed above, tighten the locknut
operating the motorcycle. Air in
play
and skip the rest of the procedure,
6
the hydraulic system will dimin-
The brake lever free play should mea-
otherwise proceed as follows.
ish the braking performance,
4.
Fully turn the adjusting bolt at the
sure 0.08-0.2 in (2-5 mm) as shown.
which may result in loss of con-
clutch lever in direction a to loos-
Periodically check the brake lever free
trol and an accident.
en the clutch cable.
play and, if necessary, adjust it as fol-
_
5.
Loosen the locknut at the crank-
lows.
case.
1. Loosen the locknut at the brake le-
6.
To increase the clutch lever free
ver.
play, turn the adjusting nut in di-
2. To increase the brake lever free
rection a. To decrease the clutch
play, turn the adjusting bolt in di-
lever free play, turn the adjusting
rection a. To decrease the brake
nut in direction b.
lever free play, turn the adjusting
7.
Tighten the locknut at the clutch
bolt in direction b.
lever and the crankcase.
6-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EW000109
WARNING
_
A soft or spongy feeling in the brake
pedal can indicate the presence of
air in the hydraulic system. If there
is air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the motorcycle. Air in
the hydraulic system will diminish

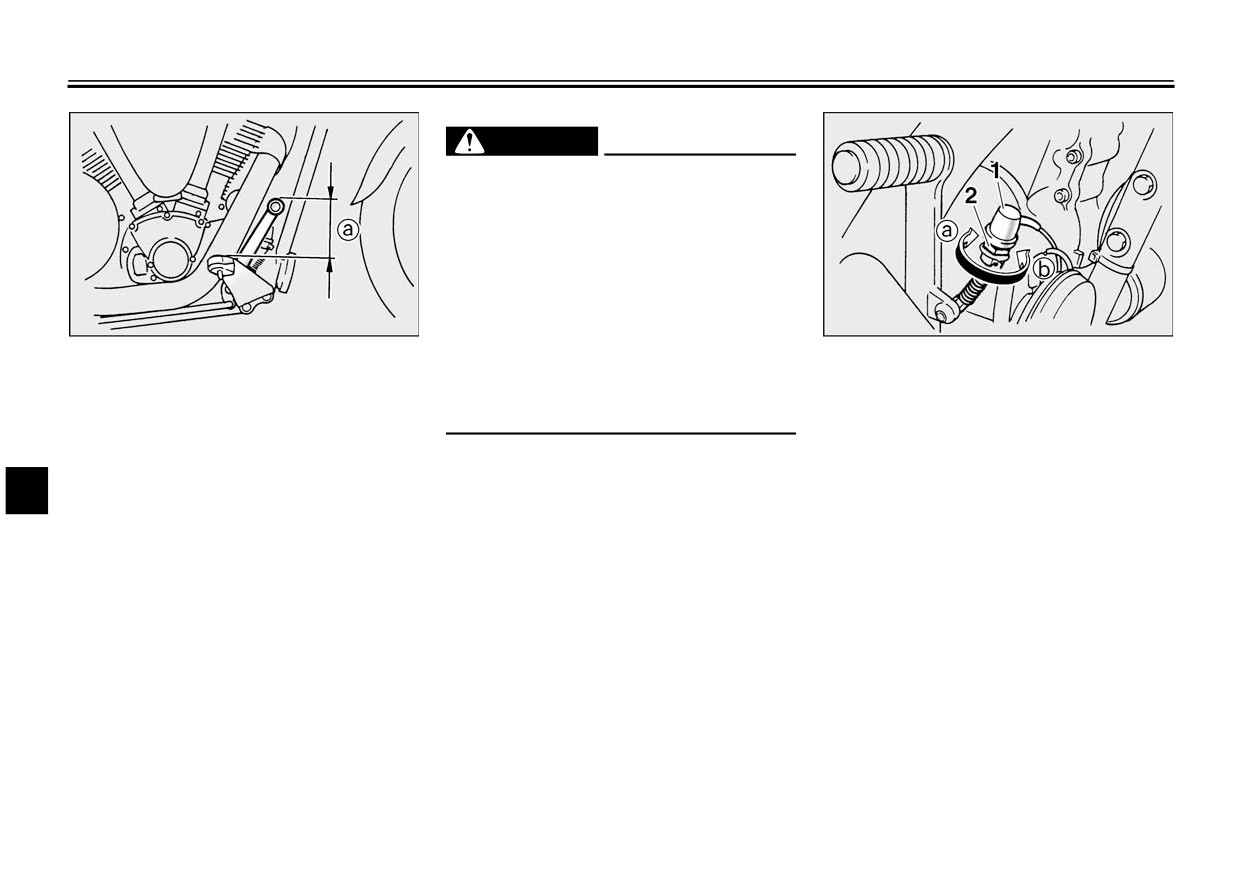

a. Distance between brake pedal and footrest
1. Rear brake light switch
the braking performance, which
2. Rear brake light switch adjusting nut
EAU01746
may result in loss of control and an
Adjusting the brake pedal
EAU00713
accident.
Adjusting the rear brake light
position
_
switch
The top of the brake pedal should be po-
The rear brake light switch, which is ac-
6
sitioned approximately 3.0 in (80 mm)
tivated by the brake pedal, is properly
above the top of the footrest as shown.
adjusted when the brake light comes
Periodically check the brake pedal posi-
on just before braking takes effect. If
tion and, if necessary, have a Yamaha
necessary, adjust the brake light switch
dealer adjust it.
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction a. To
make the brake light come on later,
turn the adjusting nut in direction b.
6-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00721
Front
Rear

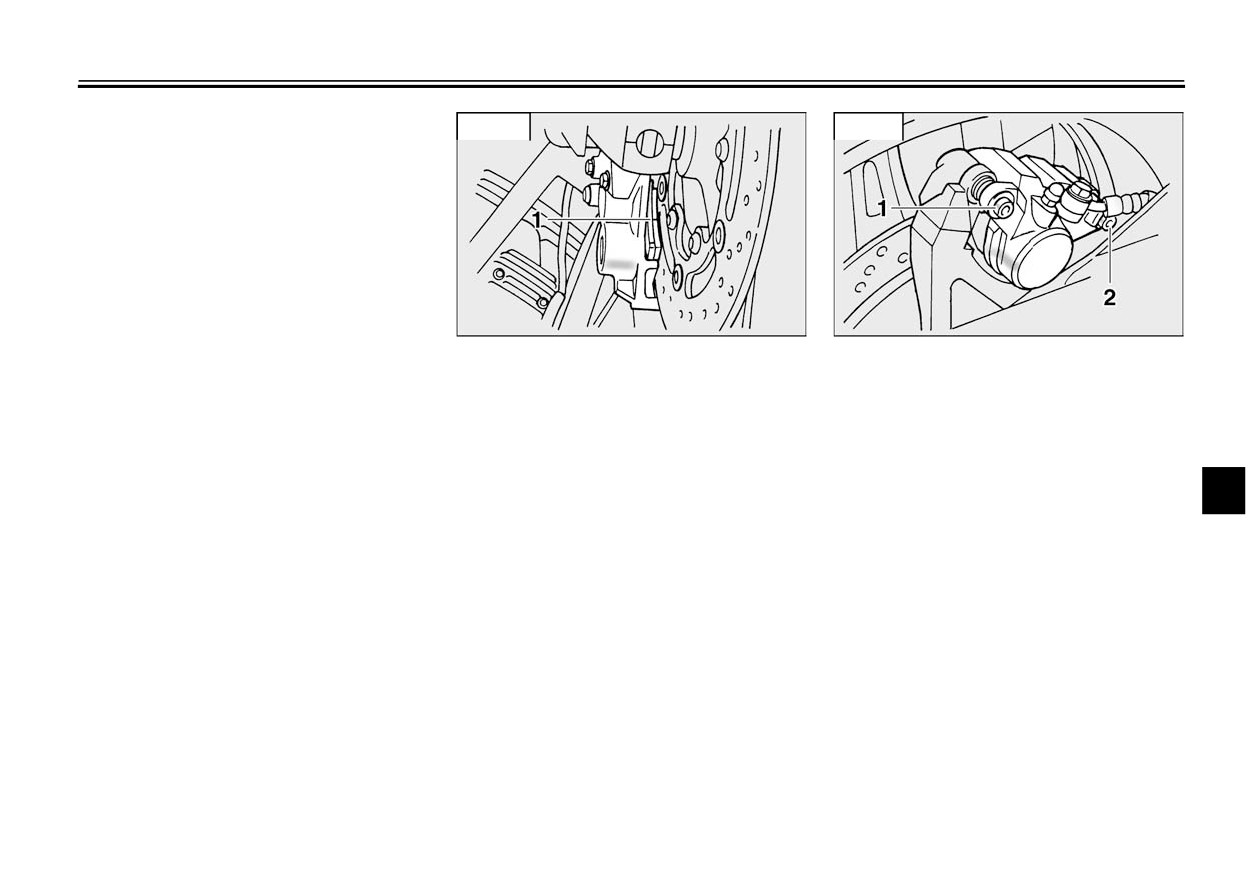

Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
1. Brake pad wear indicator groove
1. Brake caliper bolt A
2. Brake caliper bolt B
EAU00725
Front brake pads
EAU04434
Rear brake pads
Each front brake pad is provided with a
1. Remove brake caliper bolt A, loos-
wear indicator groove, which allows
en brake caliper bolt B, and then
you to check the brake pad wear with-
6
tilt the caliper forward.
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
6-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
Front
Rear

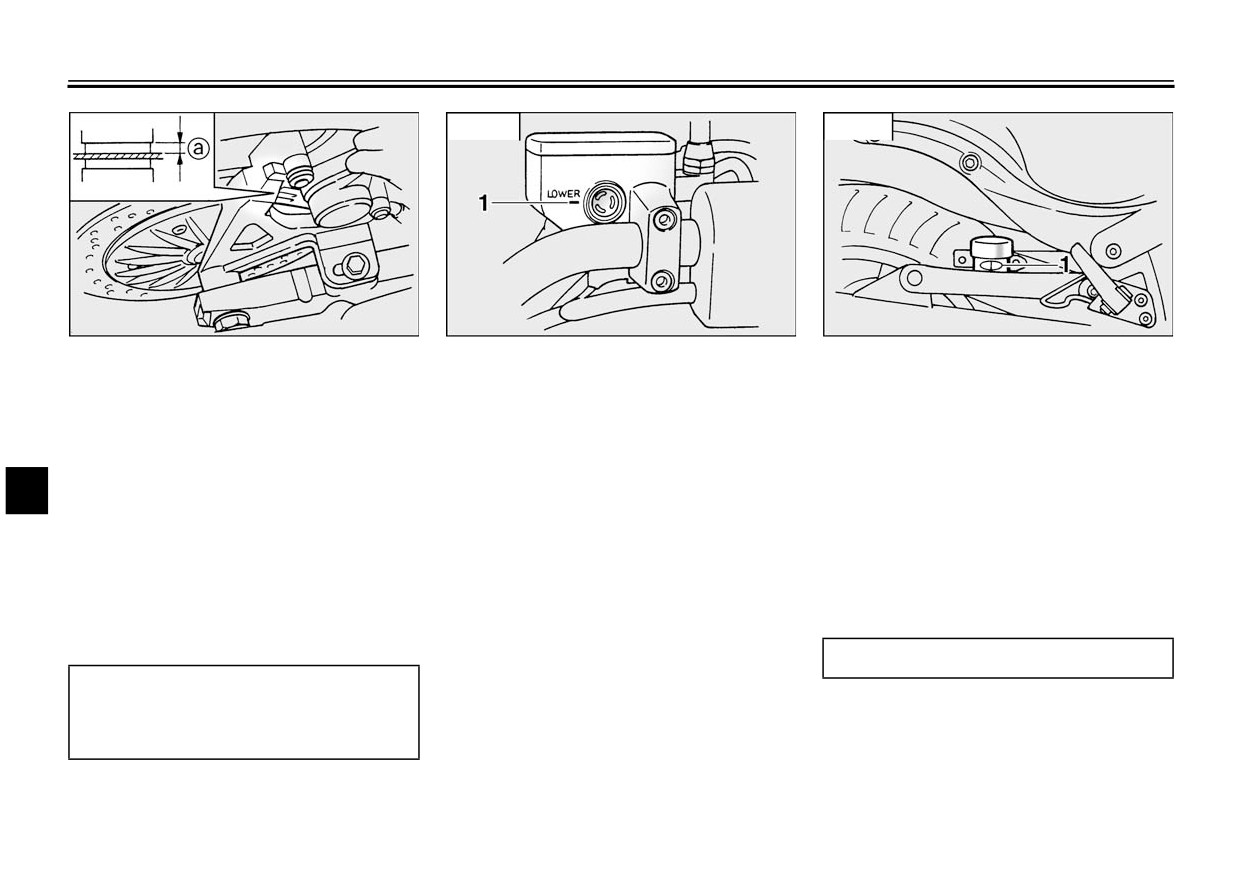

a. Lining thickness
1. Minimum level mark
1. Minimum level mark
EAU03294
2. Check each brake pad for damage
Observe these precautions:
Checking the brake fluid level
and measure the lining thickness.
When checking the fluid level,
Insufficient brake fluid may allow air to
If a brake pad is damaged or if the
make sure that the top of the brake
enter the brake system, possibly caus-
lining thickness is less than
fluid reservoir is level.
6
ing it to become ineffective.
0.03 mm (0.8 in), have a Yamaha
Use only the recommended quali-
Before riding, check that the brake fluid
dealer replace the brake pads as a
ty brake fluid, otherwise the rubber
is above the minimum level mark and
set.
seals may deteriorate, causing
replenish if necessary. A low brake flu-
3. Install brake caliper bolt A, then
leakage and poor braking perfor-
id level may indicate worn brake pads
tighten both caliper bolts to the
mance.
and/or brake system leakage. If the
specified torque.
brake level is low, be sure to check the
Recommended brake fluid: DOT 4
brake pads for wear and the brake sys-
Tightening torque:
tem for leakage.
Refill with the same type of brake
Brake caliper bolt:
fluid. Mixing fluids may result in a
19.5 ft·lbf (2.7 m·kgf, 27 Nm)
harmful chemical reaction and
lead to poor braking performance.
6-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU03976
Be careful that water does not en-
Changing the brake fluid
ter the brake fluid reservoir when
Have a Yamaha dealer change the
refilling. Water will significantly
brake fluid at the intervals specified in
lower the boiling point of the fluid
the NOTE after the periodic mainte-
and may result in vapor lock.
nance and lubrication chart. In addition,
Brake fluid may deteriorate paint-
have the oil seals of the master cylin-
ed surfaces or plastic parts. Al-
ders and calipers as well as the brake
ways clean up spilled fluid
hoses replaced at the intervals listed
immediately.
below or whenever they are damaged
As the brake pads wear, it is nor-
or leaking.
mal for the brake fluid level to
Oil seals: Replace every two
gradually go down. However, if the
years.
brake fluid level goes down sud-
Brake hoses: Replace every four
denly, have a Yamaha dealer
years.
6
check the cause.
6-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

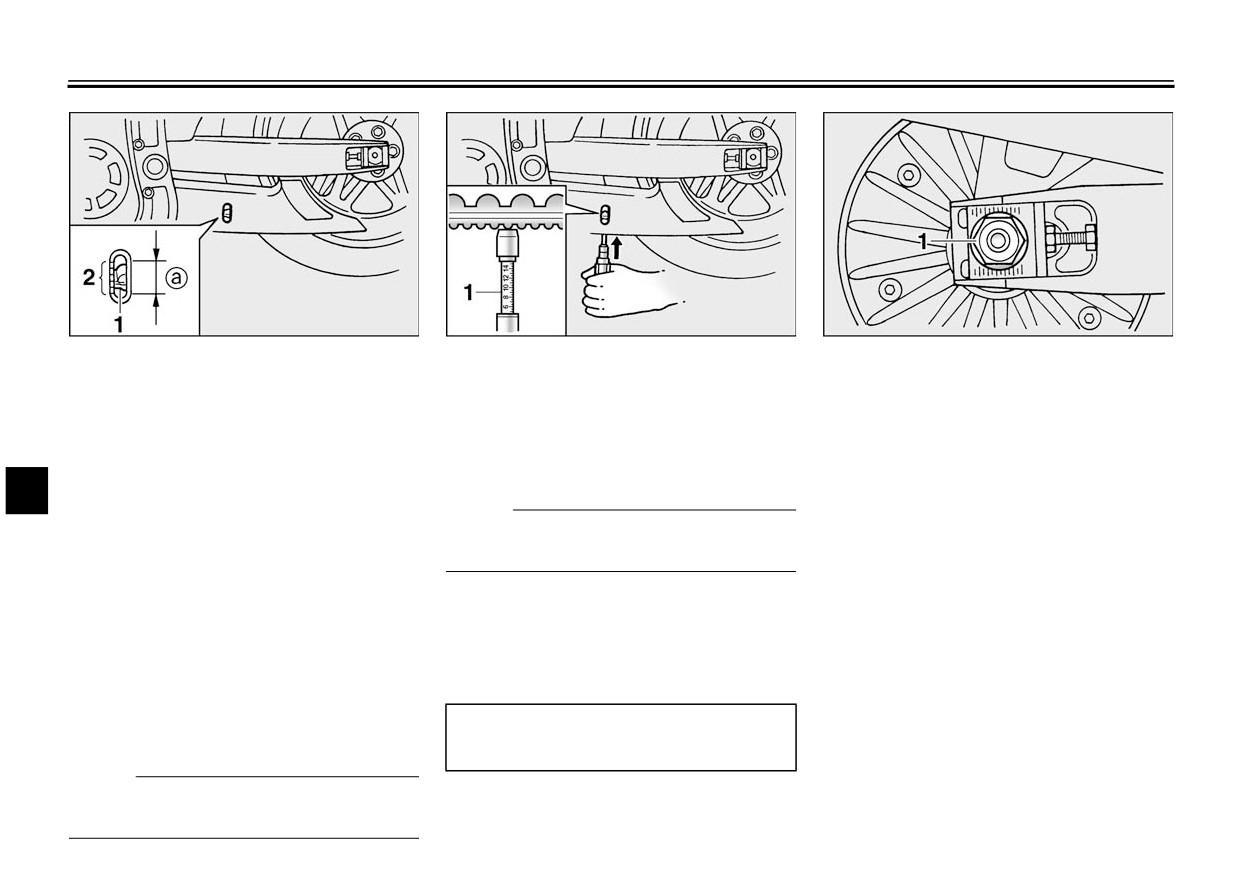

1. Drive belt
1. Belt tension gauge
1. Axle nut
2. Marks
EAU01748*
3. Note the position of the drive belt
a. Drive belt slack
To adjust the drive belt slack
with a force of 10 lb (4.5 kgf, 45 N)
EAU01830*
1.
Loosen the axle nut and the brake
applied to the belt with a belt ten-
Drive belt slack
caliper bracket bolt.
sion gauge as shown.
The drive belt slack should be checked
6
and adjusted at the intervals specified
NOTE:
in the periodic maintenance and lubri-
A belt tension gauge is available at a
cation chart.
Yamaha dealer.
To check the drive belt slack
4. Calculate the drive belt slack by
1. Place the motorcycle on the side-
subtracting the measurement not-
stand.
ed in step 2 from the measure-
2. Note the current position of the
ment noted in step 3.
drive belt using the marks near the
drive belt check hole.
Drive belt slack:
0.2-0.3 in (6-8 mm)
NOTE:_
The marks near the drive belt check
5. If the drive belt slack is incorrect,
hole are 0.2 in (5 mm) apart.
adjust it as follows.
_
6-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA00025
CAUTION:
_
Improper drive belt slack will over-
load the engine. Keep the drive belt
slack within the specified range.
_
4. Tighten the locknuts, the axle nut
and the brake caliper bracket bolt
to the specified torques.

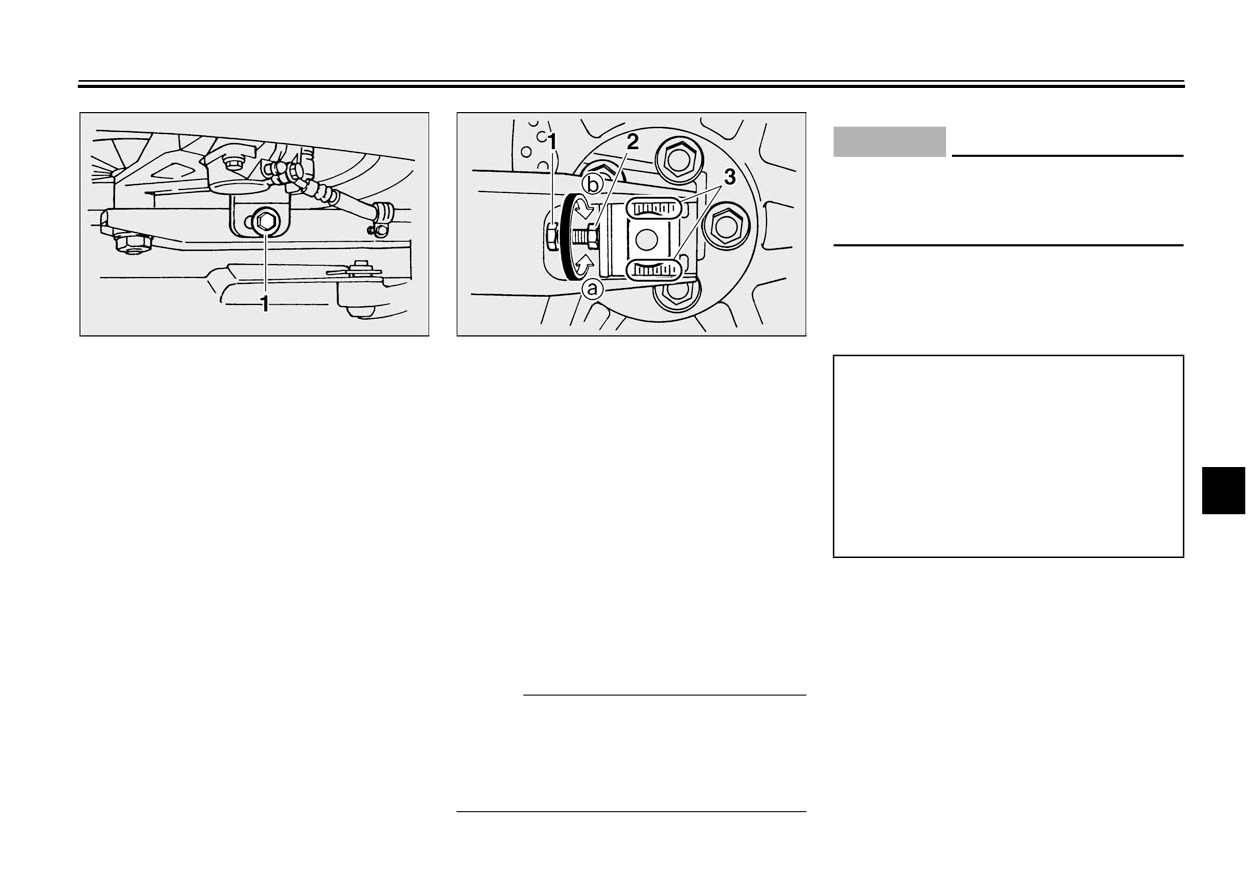

1.
Brake caliper bracket bolt
1. Locknut (× 2)
2. Drive belt slack adjusting bolt (× 2)
Tightening torques:
3. Alignment marks
Locknut:
2. Loosen the locknut on each side of
11.6 ft·lb (1.6 m·kgf, 16 Nm)
the swingarm.
Axle nut:
3. To tighten the drive belt, turn the
108.5 ft·lb (15.0 m·kgf, 150 Nm)
6
adjusting bolt on each side of the
Brake caliper bracket bolt:
swingarm in direction a. To loos-
21.7 ft·lb (3.0 m·kgf, 30 Nm)
en the drive belt, turn the adjusting
bolt on each side of the swingarm
in direction b, and then push the
rear wheel forward.
NOTE:
_
Using the alignment marks on each
side of the swingarm, make sure that
both belt pullers are in the same posi-
tion for proper wheel alignment.
_
6-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

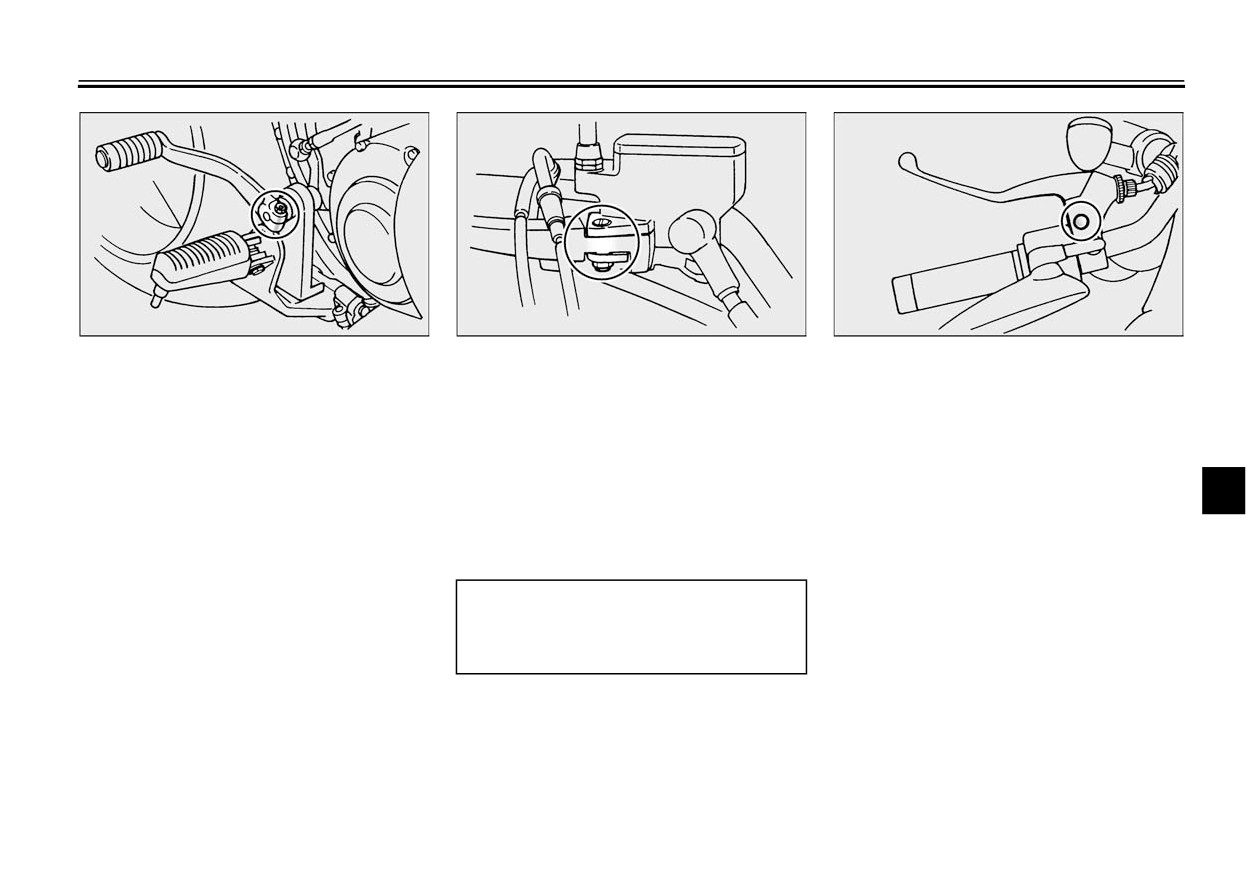

EAU03297
EAU04034
Checking and lubricating the
Checking and lubricating the
cables
throttle grip and cable
The operation of all control cables and
The operation of the throttle grip should
the condition of the cables should be
be checked before each ride. In addi-
checked before each ride, and the ca-
tion, the cable should be lubricated or
bles and cable ends should be lubricat-
replaced at the intervals specified in
ed if necessary. If a cable is damaged
the periodic maintenance chart.
or does not move smoothly, have a
Yamaha dealer check or replace it.
EAU03370
Checking and lubricating the
Recommended lubricant:
brake and shift pedals
Yamaha Chain and Cable Lube
or engine oil SAE 10W-30
The operation of the brake and shift
6
(API SE)
pedals should be checked before each
ride, and the pedal pivots should be lu-
EW000111
bricated if necessary.
WARNING
_
Damage to the outer housing of ca-
Recommended lubricant:
bles may result in internal rusting
Lithium-soap-based grease
and cause interference with cable
(all-purpose grease)
movement. Replace damaged ca-
bles as soon as possible to prevent
unsafe conditions.
_
6-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU03164
Checking and lubricating the
brake and clutch levers
The operation of the brake and clutch
levers should be checked before each
6
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
6-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU02939
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
_
EAU03165
EAU04282
Securely support the motorcycle so
Checking and lubricating the
Lubricating the rear
that there is no danger of it falling
sidestand
suspension
over.
_
The operation of the sidestand should
The pivoting points of the rear suspen-
Check the inner tubes for scratches,
6
be checked before each ride, and the
sion must be lubricated at the intervals
damage and excessive oil leakage.
sidestand pivot and metal-to-metal
specified in the periodic maintenance
contact surfaces should be lubricated if
and lubrication chart.
necessary.
EW000113
Recommended lubricant:
WARNING
Lithium-soap-based grease
_
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
_
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
6-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00794

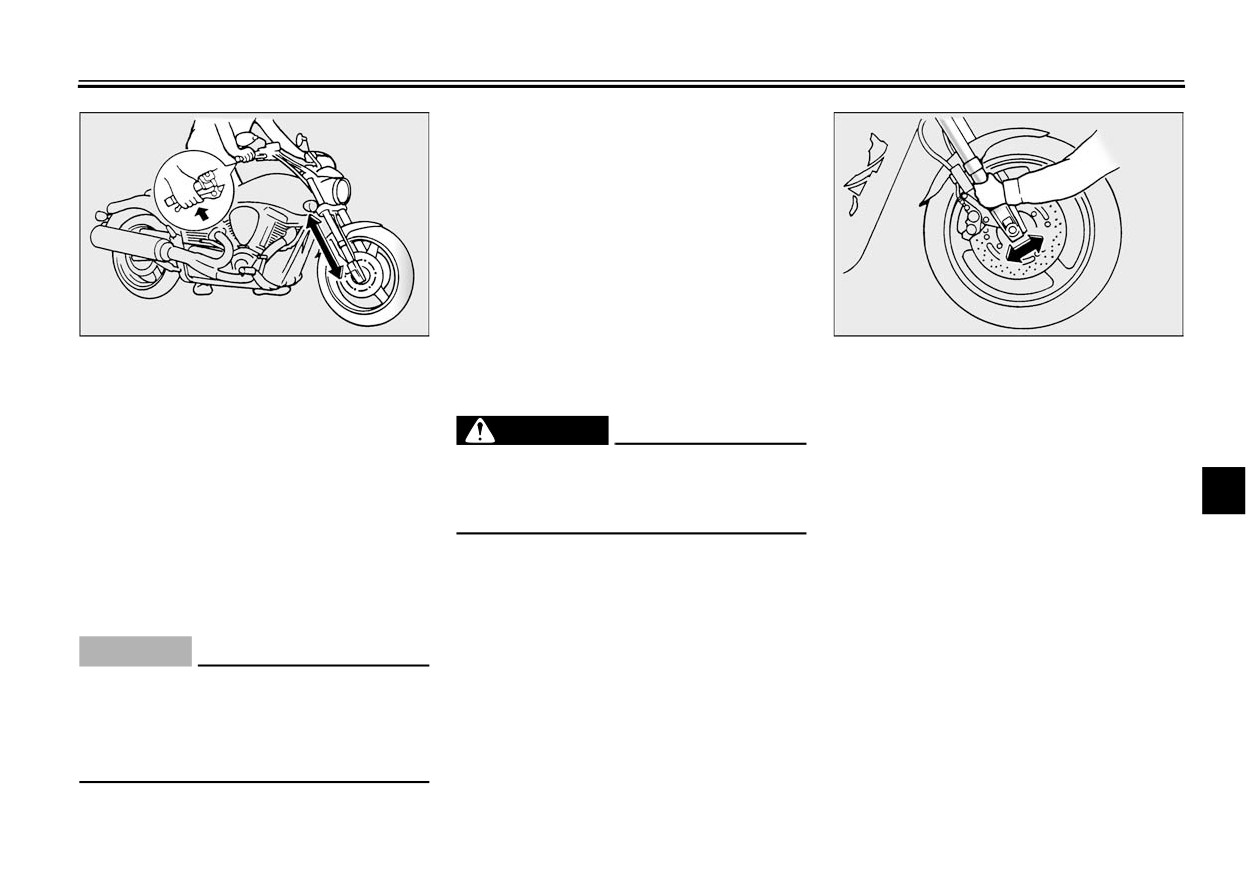

Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
To check the operation
ground.
2.
Hold the lower ends of the front
EW000115
1. Place the motorcycle on a level
fork legs and try to move them for-
WARNING
surface and hold it in an upright
_
ward and backward. If any free
Securely support the motorcycle so
position.
play can be felt, have a Yamaha
that there is no danger of it falling
6
2. While applying the front brake,
dealer check or repair the steer-
over.
push down hard on the handle-
ing.
_
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:
_
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
_
6-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01144
EW000116
Checking the wheel bearings
WARNING
_
The front and rear wheel bearings must
Electrolyte is poisonous and
be checked at the intervals specified in
dangerous since it contains sul-
the periodic maintenance and lubrica-
furic acid, which causes severe
tion chart. If there is play in the wheel
burns. Avoid any contact with
hub or if the wheel does not turn
skin, eyes or clothing and al-
smoothly, have a Yamaha
dealer
ways shield your eyes when
check the wheel bearings.
working near batteries. In case

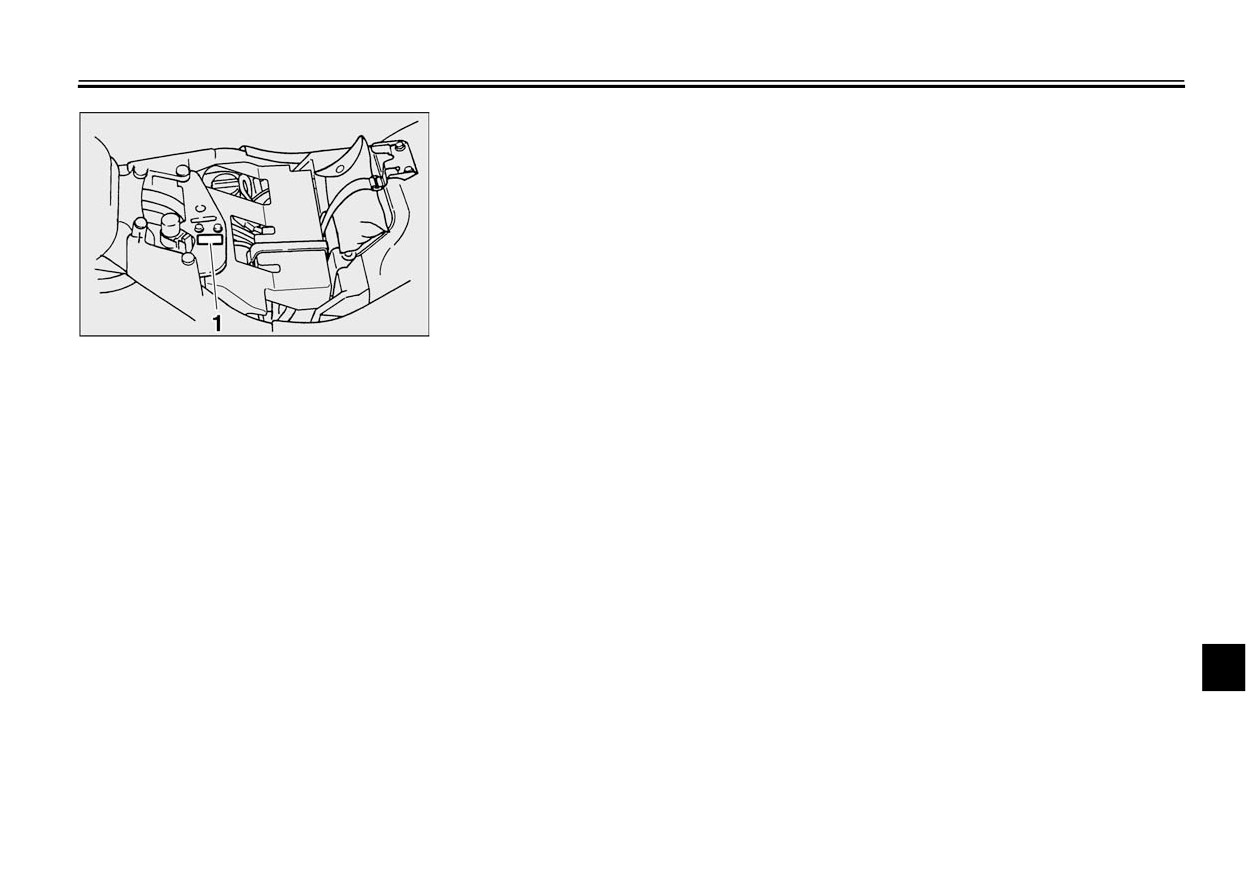

1. Battery
of contact, administer the fol-
EAU00800
lowing FIRST AID.
Battery
• EXTERNAL: Flush with plenty
of water.
This motorcycle is equipped with a
• INTERNAL: Drink large quan-
sealed-type (MF) battery, which does
tities of water or milk and im-
6
not require any maintenance. There is
mediately call a physician.
no need to check the electrolyte or to
• EYES: Flush with water for
add distilled water.
15 minutes and seek prompt
EC000101
medical attention.
CAUTION:
_
Batteries produce explosive hy-
Never attempt to remove the battery
drogen gas. Therefore, keep
cell seals, as this would permanent-
sparks, flames, cigarettes, etc.,
ly damage the battery.
away from the battery and pro-
_
vide sufficient ventilation when
charging it in an enclosed space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
_
6-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EC000102
To charge the battery
Have a Yamaha dealer charge the bat-
CAUTION:
_
tery as soon as possible if it seems to
Always keep the battery
have discharged. Keep in mind that the
charged. Storing a discharged
battery tends to discharge more quickly
battery can cause permanent
if the motorcycle is equipped with op-
battery damage.
tional electrical accessories.
To charge a sealed-type (MF)
battery, a special
(constant-
To store the battery
voltage) battery charger is re-
1. If the motorcycle will not be used
quired. Using a conventional
for more than one month, remove
battery charger will damage the
the battery, fully charge it, and
battery. If you do not have ac-
then place it in a cool, dry place.
cess to a sealed-type (MF) bat-
2. If the battery will be stored for
tery charger, have a Yamaha
6
more than two months, check it at
dealer charge your battery.
_
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
6-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR

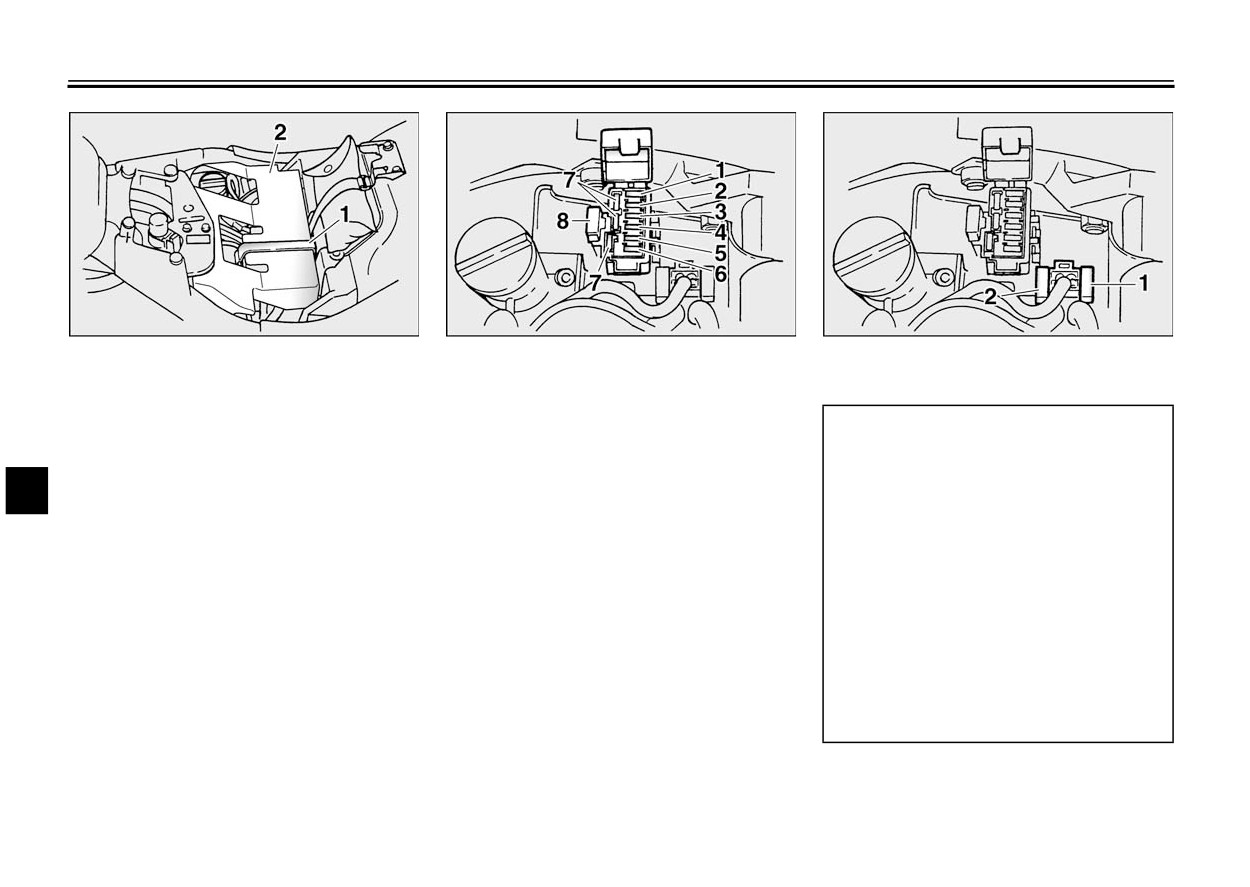

1. Battery band
1. Headlight fuse
1.
Main fuse
2. Battery cover
2. Signaling system fuse
2.
Spare main fuse
3. Ignition fuse
EAU04450
4. Electronic Fuel Injection System fuse
Replacing the fuses
Specified fuses:
5. Backup fuse (odometer and clock)
The main fuse and the fuse box, which
6. Auto-decompression fuse
Main fuse:
30 A
contains the fuses for the individual cir-
7. Spare fuse (× 3)
Headlight fuse:
15 A
6
8. ECU fuse
cuits, are located under the seat. (See
Signaling system fuse:
10 A
page 3-11 for seat removal and instal-
2. Turn the key to “OFF” and turn off
Ignition fuse:
10 A
lation procedures.)
the electrical circuit in question.
Electronic Fuel Injection
If a fuse is blown, replace it as follows.
3. Remove the blown fuse, and then
System fuse:
15 A
1. Unhook the battery band, and then
install a new fuse of the specified
ECU fuse:
10 A
remove the battery cover.
amperage.
Auto-decompression
fuse:
15 A
Backup fuse (odometer
and clock)
7.5 A
6-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EC000103
CAUTION:
_
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
_
4. Turn the key to “ON” and turn on
the electrical circuit in question to
1. Screw (× 2)
1. Headlight coupler
check if the device operates.
2. Headlight bulb cover
EAU04189
5. If the fuse immediately blows
Replacing the headlight bulb
2. Disconnect the headlight coupler,
again, have a Yamaha dealer
This motorcycle is equipped with a
and then remove the bulb cover.
check the electrical system.
quartz bulb headlight. If the headlight
6. Install the battery cover, and then
bulb burns out, replace it as follows.
6
hook the battery band onto the
1. Remove the headlight unit by re-
holder.
moving the screws.
6-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EC000105
CAUTION:
_
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight

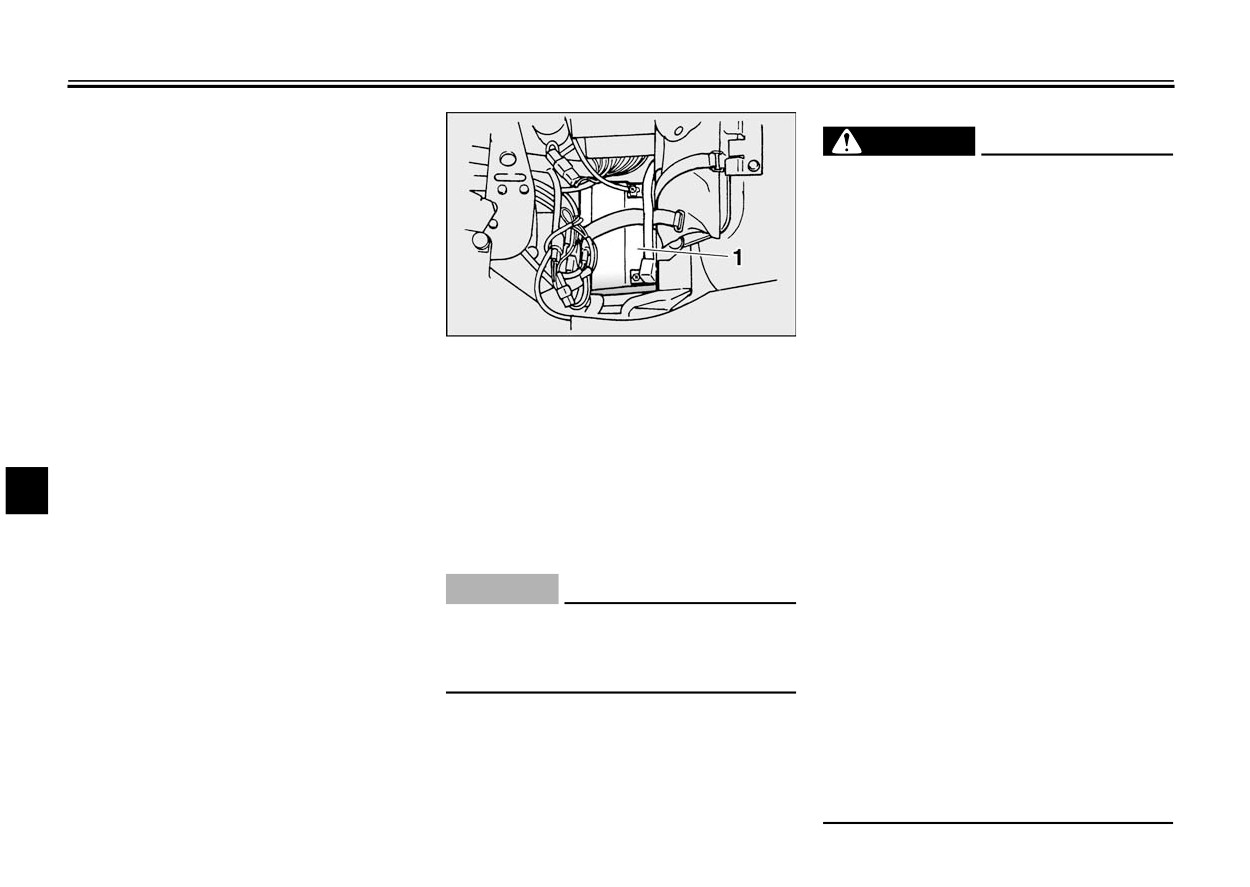

1. Headlight bulb holder
1. Do not touch this area.
bulb using a cloth moistened with
EW000119
3. Unhook the headlight bulb holder,
alcohol or thinner.
WARNING
_
and then remove the defective
_
5. Install the headlight bulb cover,
bulb.
Headlight bulbs get very hot. There-
and then connect the coupler.
fore, keep flammable products away
6. Install the headlight unit by install-
6
from a lit headlight bulb, and do not
ing the screws.
touch the bulb until it has cooled
7. Have a Yamaha dealer adjust the
down.
_
headlight beam if necessary.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
6-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU03730
Tail/brake light
This motorcycle is equipped with an
LED type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.

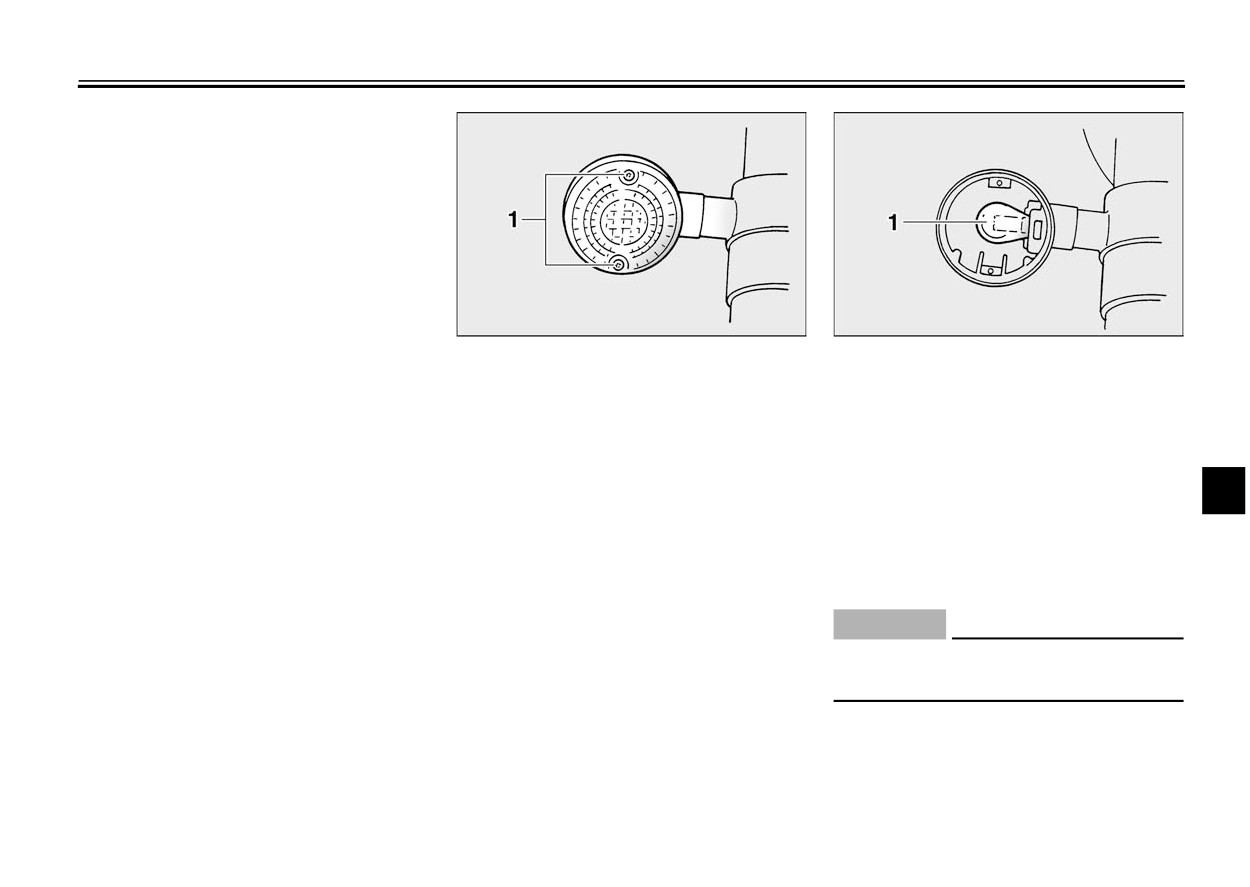

1. Screw (× 2)
1. Turn signal light bulb
EAU03218
2. Remove the defective bulb by
Replacing a turn signal light
pushing it in and turning it counter-
bulb
clockwise.
1. Remove the turn signal lens by re-
3. Insert a new bulb into the socket,
moving the screws.
push it in, and then turn it clock-
6
wise until it stops.
4. Install the lens by installing the
screws.
EC000108
CAUTION:
_
Do not overtighten the screws, oth-
erwise the lens may break.
_
6-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU03730*
EAU01579
To service the rear wheel
License plate light
Supporting the motorcycle
Raise the rear wheel off the ground by
If the license plate light does not come
Since this model is not equipped with a
using a motorcycle stand or, if a motor-
on, have a Yamaha dealer check the
centerstand, follow these precautions
cycle stand is not available, by placing
electrical circuit or replace the bulb.
when removing the front and rear
a jack either under each side of the
wheel or performing other mainte-
frame in front of the rear wheel or under
nance requiring the motorcycle to
each side of the swingarm.
stand upright. Check that the motor-
cycle is in a stable and level position
before starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
6
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
6-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01008
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
6
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
6-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01297
Troubleshooting chart
EW000125
WARNING
_
Keep away open flames and do not smoke while checking or working on the fuel system.
_
1. Fuel
There is enough fuel.
Check the compression.
Check the fuel level in
the fuel tank.
The engine does not start.
There is no fuel.
Supply fuel.
Check the compression.
2. Compression
There is compression.
Check the ignition.
Operate the electric starter.
Have a Yamaha dealer
6
There is no compression.
check the vehicle.
3. Ignition
Wipe off with a dry cloth and correct the
Open the throttle halfway and operate
Wet
spark plug gaps, or replace the spark plugs.
the electric starter.
Remove the spark plugs
and check the electrodes.
The engine does not start.
Dry
Have a Yamaha dealer check the vehicle.
Check the battery.
4. Battery
The engine turns over
The battery is good.
quickly.
The engine does not start.
Operate the electric starter.
Have a Yamaha dealer
The engine turns over
Check the battery lead connections,
check the vehicle.
slowly.
and charge the battery if necessary.
6-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
Care
7-1
Storage
7-4
7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU04449*
MOTORCYCLE CARE AND STORAGE
Before cleaning
Cleaning
ECA00010
1.
Cover the muffler outlet with a
plastic bag after the engine has
CAUTION:
_
cooled down.
Avoid using strong acidic wheel
2.
Make sure that all caps and covers
cleaners, especially on spoked
as well as all electrical couplers
wheels. If such products are
and connectors, including the
used on hard-to-remove dirt, do
spark plug caps, are tightly in-
not leave the cleaner on the af-
stalled.
fected area any longer than in-
3.
Remove extremely stubborn dirt,
structed. Also, thoroughly rinse
Care
like oil burnt onto the crankcase,
the area off with water, immedi-
While the open design of a motorcycle
with a degreasing agent and a
ately dry it, and then apply a
reveals the attractiveness of the tech-
brush, but never apply such prod-
corrosion protection spray.
nology, it also makes it more vulnera-
ucts onto seals, gaskets, the drive
Improper cleaning can damage
ble. Rust and corrosion can develop
belt and wheel axles. Always rinse
windshields, cowlings, panels
even if high-quality components are
the dirt and degreaser off with wa-
and other plastic parts. Use
7
used. A rusty exhaust pipe may go un-
ter.
only a soft, clean cloth or
noticed on a car, however, it detracts
sponge with mild detergent and
from the overall appearance of a
water to clean plastic.
motorcycle. Frequent and proper care
Do not use any harsh chemical
does not only comply with the terms of
products on plastic parts. Be
the warranty, but it will also keep your
sure to avoid using cloths or
motorcycle looking good, extend its life
sponges which have been in
and optimize its performance.
contact with strong or abrasive
cleaning products, solvent or
7-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
thinner, fuel (gasoline), rust re-
shield is scratched, use a quali-
1. Clean the motorcycle with cold
movers or inhibitors, brake flu-
ty plastic polishing compound
water and a mild detergent, after
id, antifreeze or electrolyte.
after washing.
the engine has cooled down.
_
ECA00012
Do not use high-pressure wash-
ers or steam-jet cleaners since
CAUTION:
After normal use
_
they cause water seepage and
Do not use warm water since it in-
Remove dirt with warm water, a mild
deterioration in the following ar-
creases the corrosive action of the
detergent, and a soft, clean sponge,
eas: seals (of wheel and swing-
salt.
and then rinse thoroughly with clean
_
arm bearings, fork and brakes),
water. Use a toothbrush or bottlebrush
2.
After drying the motorcycle, apply
electric components (couplers,
for hard-to-reach areas. Stubborn dirt
a corrosion protection spray on all
connectors,
instruments,
and insects will come off more easily if
metal, including chrome- and nick-
switches and lights), breather
the area is covered with a wet cloth for
el-plated, surfaces to prevent cor-
hoses and vents.
a few minutes before cleaning.
rosion.
For motorcycles equipped with
a windshield: Do not use strong
After riding in the rain, near the sea or
cleaners or hard sponges as
on salt-sprayed roads
they will cause dulling or
7
Since sea salt or salt sprayed on roads
scratching. Some cleaning
during winter are extremely corrosive in
compounds for plastic may
combination with water, carry out the
leave scratches on the wind-
following steps after each ride in the
shield. Test the product on a
rain, near the sea or on salt-sprayed
small hidden part of the wind-
roads.
shield to make sure that it does
not leave any marks. If the wind-
NOTE:
_
Salt sprayed on roads in the winter may
remain well into spring.
_
7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
EWA00001
ECA00033
After cleaning
1.
Dry the motorcycle with a chamois
WARNING
CAUTION:
_
_
or an absorbing cloth.
Make sure that there is no oil or
Apply spray oil and wax spar-
2.
Use a chrome polish to shine
wax on the brakes or tires. If
ingly and make sure to wipe off
chrome, aluminum and stainless-
necessary, clean the brake
any excess.
steel parts, including the exhaust
discs and brake linings with a
Never apply oil or wax to the
system. (Even the thermally in-
regular brake disc cleaner or ac-
drive belt.
duced discoloring of stainless-
etone, and wash the tires with
Never apply oil or wax to any
steel exhaust systems can be re-
warm water and a mild deter-
rubber and plastic parts, but
moved through polishing.)
gent.
treat them with a suitable care
3.
To prevent corrosion, it is recom-
Before operating the motor-
product.
mended to apply a corrosion pro-
cycle, test its braking perfor-
Avoid using abrasive polishing
tection spray on all metal,
mance and cornering behavior.
compounds as they will wear
_
including chrome- and nickel-plat-
away the paint.
_
ed, surfaces.
4.
Use spray oil as a universal clean-
_
NOTE:
7
Consult a Yamaha dealer for advice on
er to remove any remaining dirt.
what products to use.
5.
Touch up minor paint damage
_
caused by stones, etc.
6.
Wax all painted and chrome-plat-
ed surfaces. Avoid combination
cleaner waxes, many of which
contain abrasives that may mar
the paint or protective finish.
7.
Let the motorcycle dry completely
before storing or covering it.
7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
Long-term
a. Remove the spark plug caps and
Before storing your motorcycle for
spark plugs.
several months:
b. Pour a teaspoonful of engine oil
1.
Follow all the instructions in the
into each spark plug bore.
“Care” section of this chapter.
c.
Install the spark plug caps onto the
2.
Fill up the fuel tank and add fuel
spark plugs, and then place the
stabilizer (if available) to prevent
spark plugs on the cylinder head
the fuel tank from rusting and the
so that the electrodes are ground-
fuel from deteriorating.
ed. (This will limit sparking during
3.
Perform the following steps to pro-
the next step.)
Storage
tect the cylinders, piston rings, etc.
d. Turn the engine over several times
from corrosion.
with the starter. (This will coat the
Short-term
cylinder walls with oil.)
Always store your motorcycle in a cool,
e. Remove the spark plug caps from
dry place and, if necessary, protect it
the spark plugs, and then install
against dust with a porous cover.
the spark plugs and the spark plug
ECA00014
7
caps.
CAUTION:
EWA00003
_
Storing the motorcycle in a
WARNING
_
poorly ventilated room or cover-
To prevent damage or injury from
ing it with a tarp, while it is still
sparking, make sure to ground the
wet, will allow water and humid-
spark plug electrodes while turning
ity to seep in and cause rust.
the engine over.
To prevent corrosion, avoid
_
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
_
7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
4.
Lubricate all control cables and
NOTE:
_
the pivoting points of all levers and
Make any necessary repairs
before
pedals as well as of the sidestand/
storing the motorcycle.
centerstand.
5.
Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6.
Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7.
Remove the battery and fully
7
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 30 °F (0 °C) or more than
90 °F (30 °C)]. For more informa-
tion on storing the battery, see
page 6-36.
7-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU01038
SPECIFICATIONS
Specifications
CS-01E
Model
XV1700PC(C)
Engine oil
Dimensions
Type
YAMALUBE 4 (20W-40) or
SAE 20W-40
Overall length
93.9 in (2,385 mm)
Recommended engine oil
Overall width
37.6 in (955 mm)
classification
API Service SE, SF, SG or
Overall height
44.1 in (1,120 mm)
higher
Seat height
28.5 in (725 mm)
CAUTION:
Wheelbase
65.6 in (1,665 mm)
Be sure to use motor oils that do not contain anti-friction
Ground clearance
6.1 in (155 mm)
modifiers. Passenger car motor oils
(often labeled
Minimum turning radius
133.9 in (3,400 mm)
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
Basic weight (with oil and full
ing in reduced component life and poor engine performance.
fuel tank)
650 lb (295 kg)
Engine
Quantity
Engine type
Air-cooled 4-stroke, OHV
Without oil filter cartridge
Cylinder arrangement
V-type 2-cylinder
replacement
3.9 US qt (3.3 lmp qt, 3.7 L)
Displacement
1,670 cm3
With oil filter cartridge
replacement
4.3 US qt (3.6 lmp qt, 4.1 L)
Bore × Stroke
3.82 × 4.45 in (97 × 113 mm)
8
Total amount (dry engine)
5.3 US qt (4.4 lmp qt, 5.0 L)
Compression ratio
8.36:1
Starting system
Electric starter
Lubrication system
Dry sump
8-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Transfer case oil
Gear ratio
Type
SAE80 API “GL-4” hypoid gear
1st
2.375
oil
2nd
1.579
Quantity
0.42 US qt (0.35 lmp qt, 0.4 L)
3rd
1.160
Air filters
Oil-coated paper element
4th
0.935
Fuel
5th
0.800
Type
UNLEADED GASOLINE ONLY
Chassis
Fuel tank capacity
4.0 US gal (3.3 lmp gal, 15.0 L)
Frame type
Double cradle
Amount remaining when the
Caster angle
29.5°
fuel level warning light
comes on
0.8 US gal (0.7 lmp gal, 3.0 L)
Trail
5.12 in (130 mm)
Spark plug
Tire
Manufacturer/model
NGK / DPR7EA-9 or
Front
DENSO / X22EPR-U9
Type
Tubeless tire
Gap
0.03-0.04 in (0.8-0.9 mm)
Size
120/70 ZR18 (59W)
Clutch type
Wet, multiple-disc
120/70 ZR18 M/C (59W)
Transmission
Manufacturer/
Primary reduction system
Spur gear
model
Dunlop / D220FST
Bridgestone / BT020FG
8
Primary reduction ratio
1.532
Secondary reduction system
Belt drive
Rear
Secondary reduction ratio
2.393
Type
Tubeless tire
Transmission type
Constant mesh 5-speed
Size
200/50 ZR17 (75W)
Operation
Left foot
200/50 ZR17 M/C (75W)
Manufacturer/
model
Dunlop / D220ST
Bridgestone / BT020R
8-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Maximum load*
408 lb (185 kg)
Brakes
Tire air pressure
Front
(measured on cold tires)
Type
Dual disc brake
Up to 198 lb (90 kg)*
Operation
Right hand
Front
36 psi (2.50 kgf/cm2, 250 kPa)
Fluid
DOT 4
Rear
36 psi (2.50 kgf/cm2, 250 kPa)
Rear
198 lb (90 kg)-maximum*
Type
Single disc brake
Front
36 psi (2.50 kgf/cm2, 250 kPa)
Operation
Right foot
Rear
42 psi (2.90 kgf/cm2, 290 kPa)
Fluid
DOT 4
High-speed riding
Suspension
Front
36 psi (2.50 kgf/cm2, 250 kPa)
Front
Telescopic fork
Rear
36 psi (2.50 kgf/cm2, 250 kPa)
Rear
Swingarm (link suspension)
* Total weight of rider, passenger, cargo and accessories
Spring/Shock absorber
Wheels
Front
Coil spring / oil damper
Front
Rear
Coil spring / gas-oil damper
Type
Cast wheel
Wheel travel
Size
18 × MT 3.50
Front
5.3 in (135 mm)
8
18 M/C × MT 3.50
Rear
4.3 in (110 mm)
Rear
Electrical
Type
Cast wheel
Ignition system
T.C.I. (digital)
Size
17 × MT 6.00
Charging system
17 M/C × MT 6.00
Type
A.C. magneto
Standard output
14 V, 31 A @ 5,000 r/min
8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Battery
Auto-decompression fuse
15 A
Model
GT14B-4
Backup fuse (odometer and
clock)
7.5 A
Voltage, capacity
12 V, 12 Ah
Headlight type
Quartz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight
12 V, 60/55 W × 1
Tail/brake light
LED
License plate light
12 V, 5 W × 2
Front turn signal/
position light
12 V, 23/8 W × 2
Rear turn signal light
12 V, 23 W × 2
Meter lighting
LED
Neutral indicator light
LED
High beam indicator light
LED
Turn signal indicator light
LED
Fuel level warning light
LED
Engine trouble warning light
LED
Fuses
8
Main fuse
30 A
Ignition fuse
10 A
Signaling system fuse
10 A
Headlight fuse
15 A
Electronic Fuel Injection
System fuse
15 A
ECU fuse
10 A
8-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
Identification numbers
9-1
Key identification number
9-1
Vehicle identification number
9-1
Model label
9-2
Reporting safety defects
9-3
Motorcycle noise regulation
9-4
Maintenance record
9-5
YAMAHA MOTOR CORPORATION, U.S.A. STREET AND
ENDURO MOTORCYCLE LIMITED WARRANTY
9-7
YAMAHA EXTENDED SERVICE (Y.E.S.)
9-9
9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU01039
CONSUMER INFORMATION
EAU02944
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.

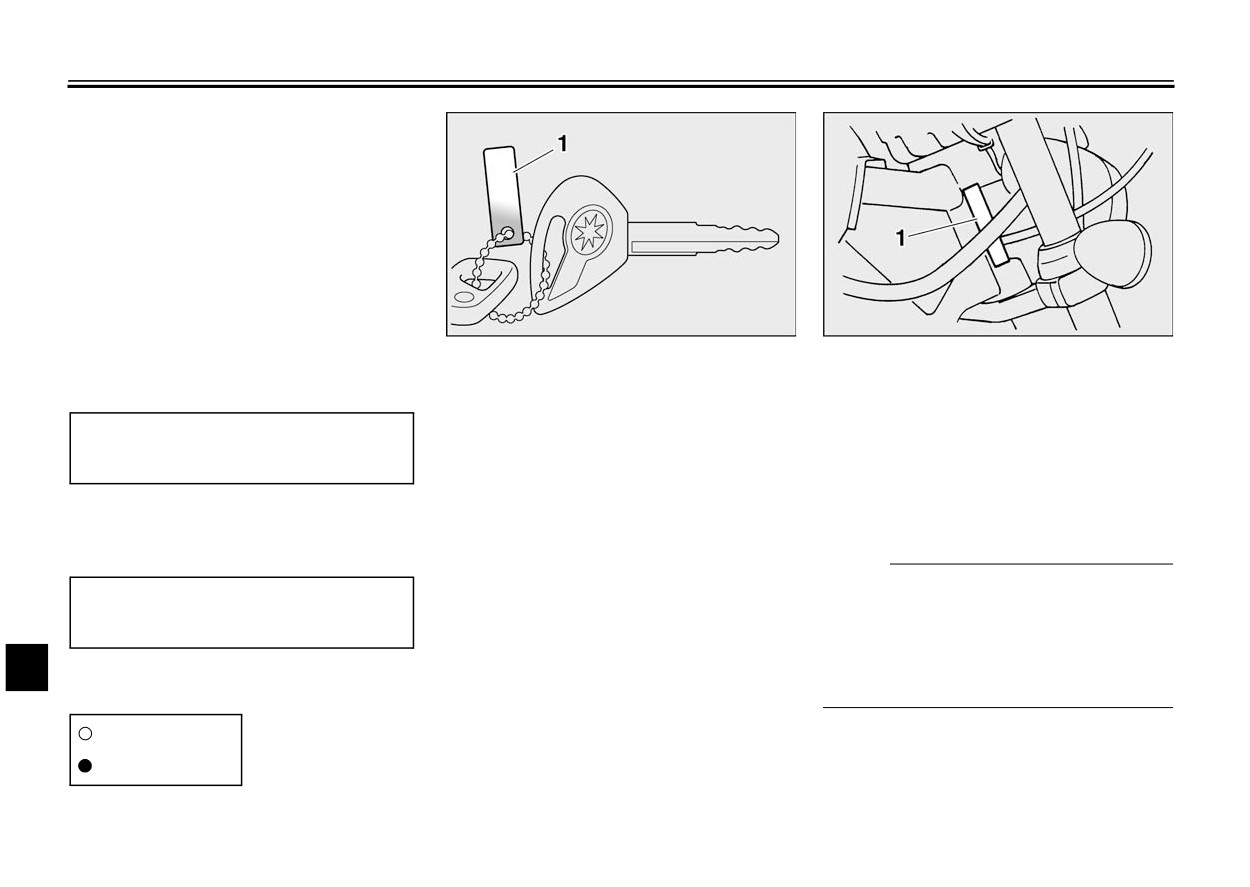

1. Key identification number
1. Vehicle identification number
1. KEY IDENTIFICATION NUMBER:
EAU01041
EAU01043
CA-02E
Key identification number
Vehicle identification number
The key identification number is
The vehicle identification number is
stamped into the key tag. Record this
stamped into the steering head pipe.
number in the space provided and use
Record this number in the space pro-
it for reference when ordering a new
vided.
2. VEHICLE IDENTIFICATION
key.
NUMBER:
NOTE:
_
CA-02E
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
9
cycle with the licensing authority in
3. MODEL LABEL INFORMATION:
your area.
CA-01E
_
9-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
1. Model label
EAU01050
Model label
The model label is affixed to the frame
under the seat. (See page 3-11 for seat
removal and installation procedures.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
9
9-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
EAU01051
Reporting safety defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immedi-
ately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Yamaha Motor Corporation,
U.S.A. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group
of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems
between you, your dealer, or Yamaha Motor Corporation, U.S.A.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, D.C.
area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other informa-
tion about motor vehicle safety from the Hotline.
9
9-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
EAU01053
Motorcycle noise regulation
TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED:
Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other
than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new ve-
hicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of
the vehicle after such device or element of design has been removed or rendered inoperative by any person.
“AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE ACTS LISTED BELOW”.
These acts include tampering with the following systems; i.e., modification, removal, etc.
CL-01E
Muffler
Exhaust system
Exhaust pipe
Silencer
Air cleaner case
Intake system
Air cleaner element
Intake duct
9
9-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
EAU01325
Maintenance record
Copies of work orders and/or receipts for parts purchased and installed on your motorcycle will be required to document that
maintenance has been completed in accordance with the emissions warranty. The chart below is printed only as a reminder
that maintenance work is required. It is not acceptable proof of maintenance work.
CL-04E
Maintenance
Date of
Servicing dealer
Mileage
Remarks
interval
service
name and address
600 mi
(1,000 km) or
1 month
4,000 mi
( 7,000 km) or
6 months
8,000 mi
(13,000 km) or
12 months
12,000 mi
(19,000 km) or
18 months
16,000 mi
(25,000 km) or
24 months
9
20,000 mi
(31,000 km) or
30 months
24,000 mi
(37,000 km) or
36 months
9-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
Maintenance
Date of
Servicing dealer
Mileage
Remarks
interval
service
name and address
28,000 mi
(43,000 km) or
42 months
32,000 mi
(49,000 km) or
48 months
36,000 mi
(55,000 km) or
54 months
40,000 mi
(61,000 km) or
60 months
9
9-6



















///////////////////////////////////////
