Yamaha XV1900A MidnightStar. Service Manual - part 1





-------------------------------------------------------------------------------------------------------------------------------------------------------------

INTRODUCTION
EAU10100
Welcome to the Yamaha world of motorcycling!
As the owner of the XV1900A, you are benefiting from Yamaha’s vast experience and newest technology regarding the de-
sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your XV1900A. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT MANUAL INFORMATION
EAU10151
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the
WARNING
motorcycle operator, a bystander, or a person inspecting or repairing the motor-
cycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
CAUTION:
the motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle
is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your motorcycle
and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
EWA10030
WARNING
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.
*Product and specifications are subject to change without notice.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TABLE OF CONTENTS
SAFETY INFORMATION
1-1
PRE-OPERATION CHECKS
4-1
Checking the brake and clutch
Pre-operation check list
4-2
fluid levels
6-15
DESCRIPTION
2-1
Changing the brake and clutch

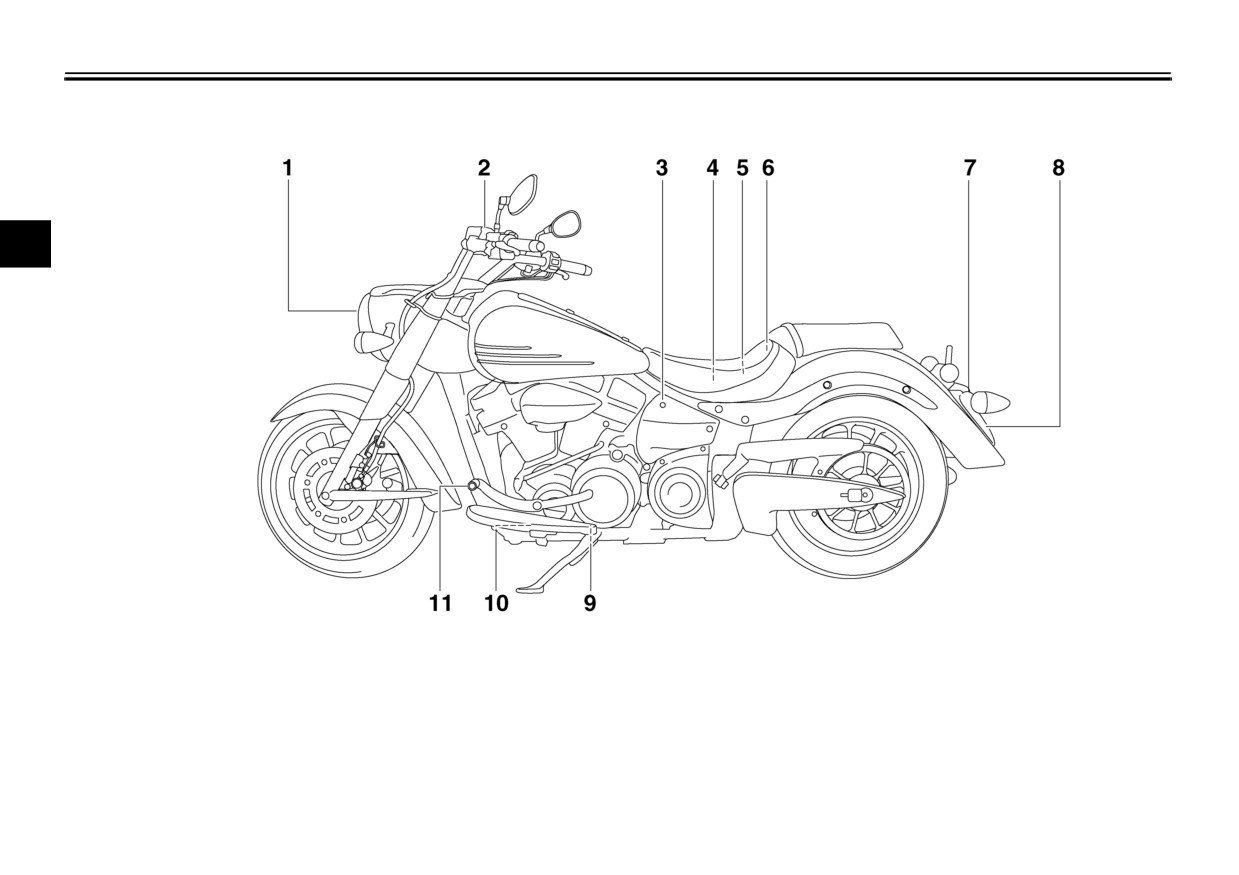

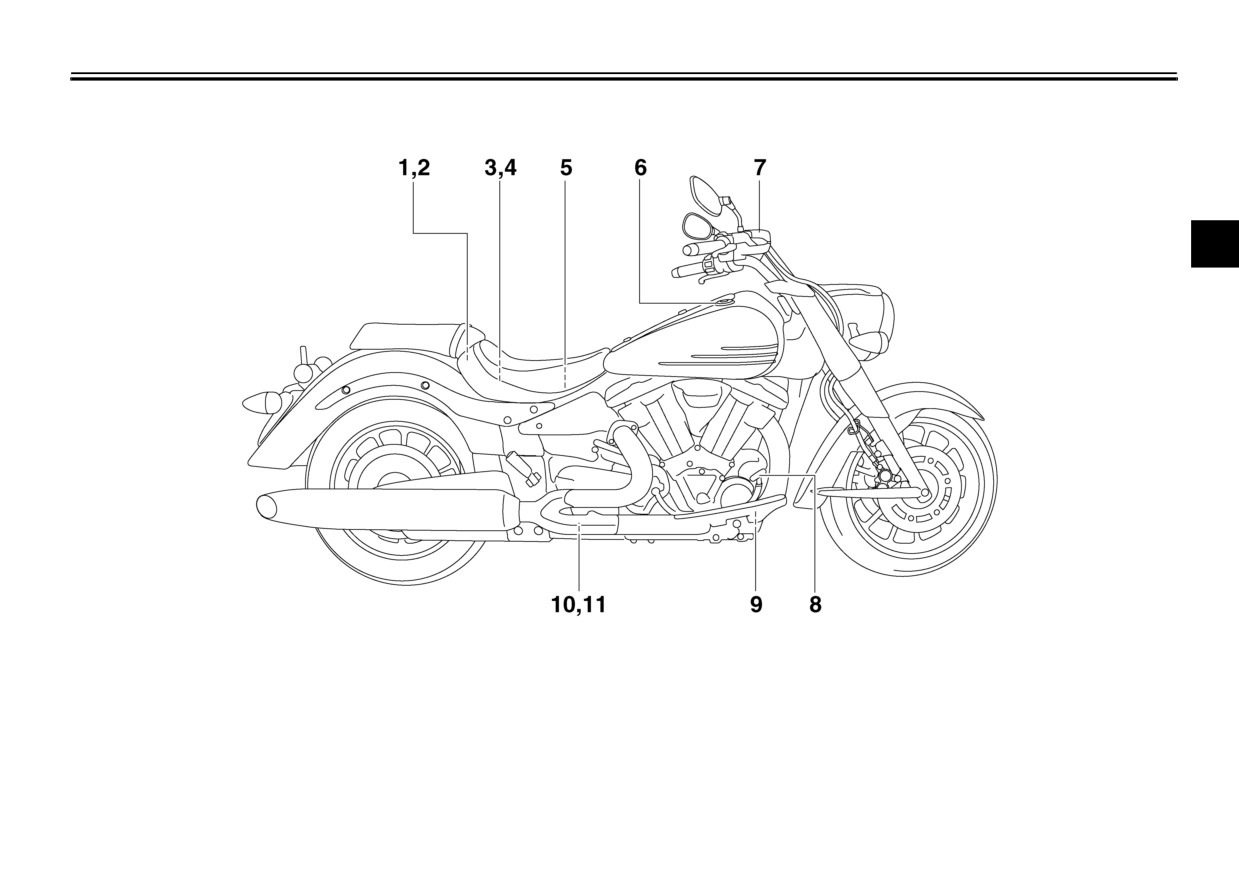

Left view
2-1
OPERATION AND IMPORTANT
fluids
6-16
Right view
2-2
RIDING POINTS
5-1
Drive belt slack
6-16

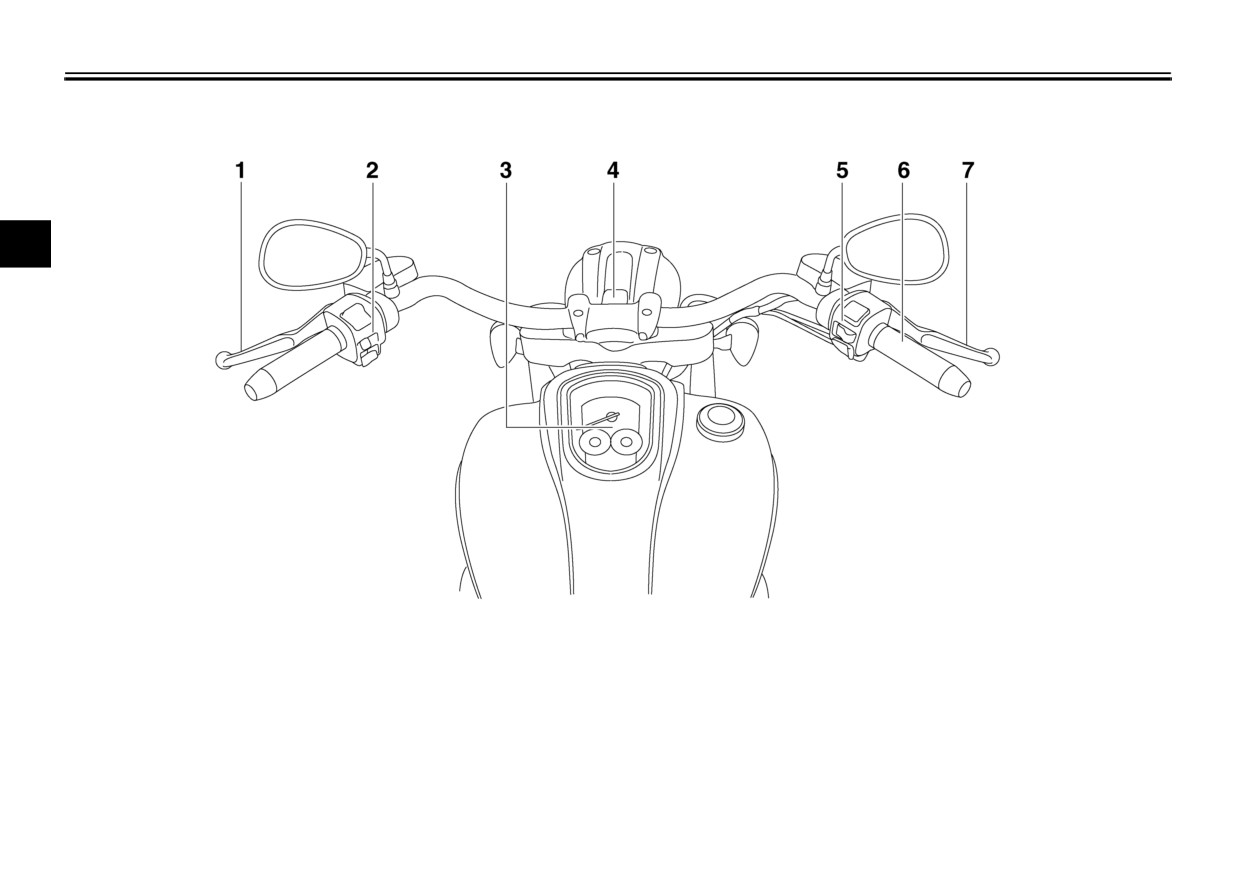

Controls and instruments
2-3
Starting the engine
5-1
Checking and lubricating the
Shifting
5-2
cables
6-17
INSTRUMENT AND CONTROL
Tips for reducing fuel
Checking and lubricating the
FUNCTIONS
3-1
consumption
5-3
throttle grip and cable
6-17
Immobilizer system
3-1
Engine break-in
5-3
Checking and lubricating the
Main switch/steering lock
3-2
Parking
5-4
brake and shift pedals
6-18
Indicator and warning lights
3-3
Checking and lubricating the

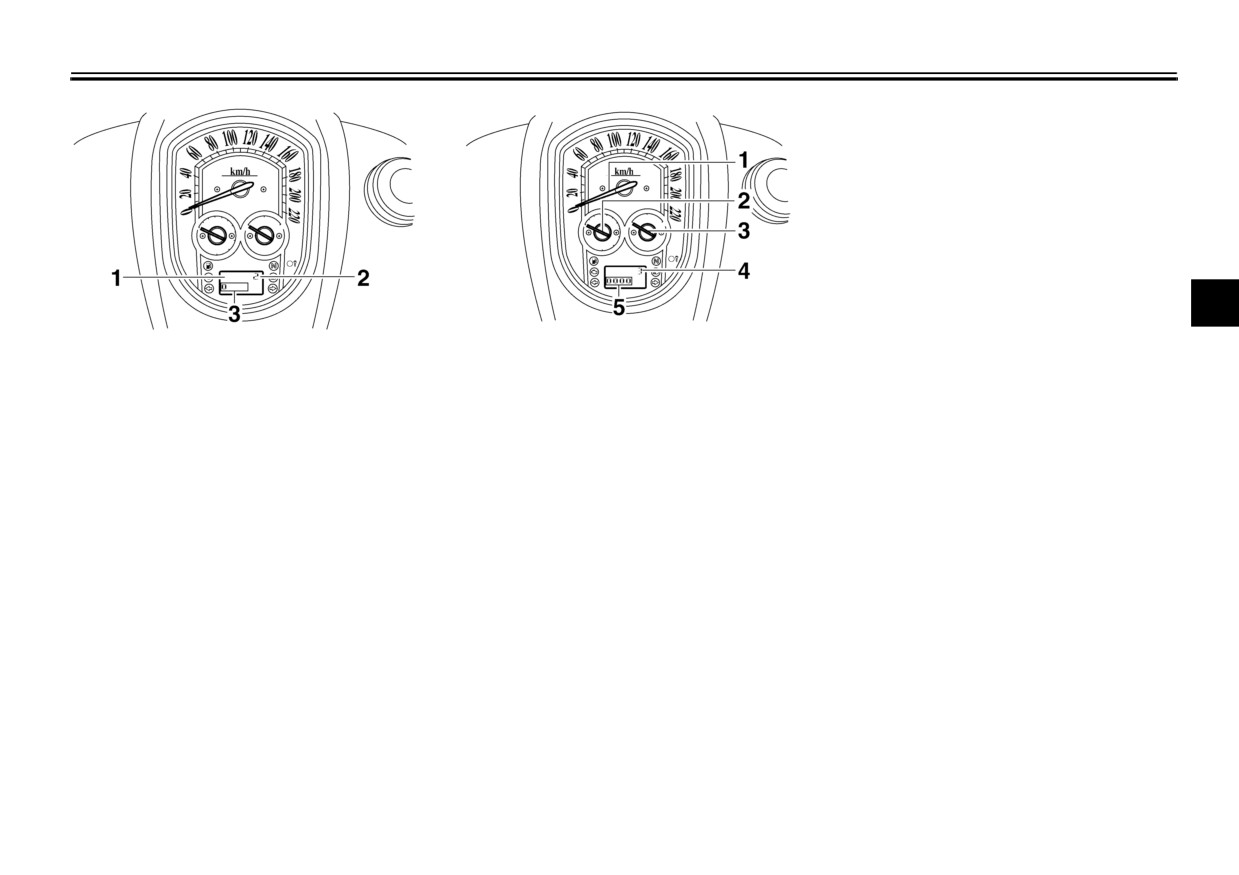

Multi-function meter unit
3-5
PERIODIC MAINTENANCE AND
brake and clutch levers
6-18
Anti-theft alarm (optional)
3-9
MINOR REPAIR
6-1
Checking and lubricating the
Handlebar switches
3-10
Owner’s tool kit
6-1
sidestand
6-19

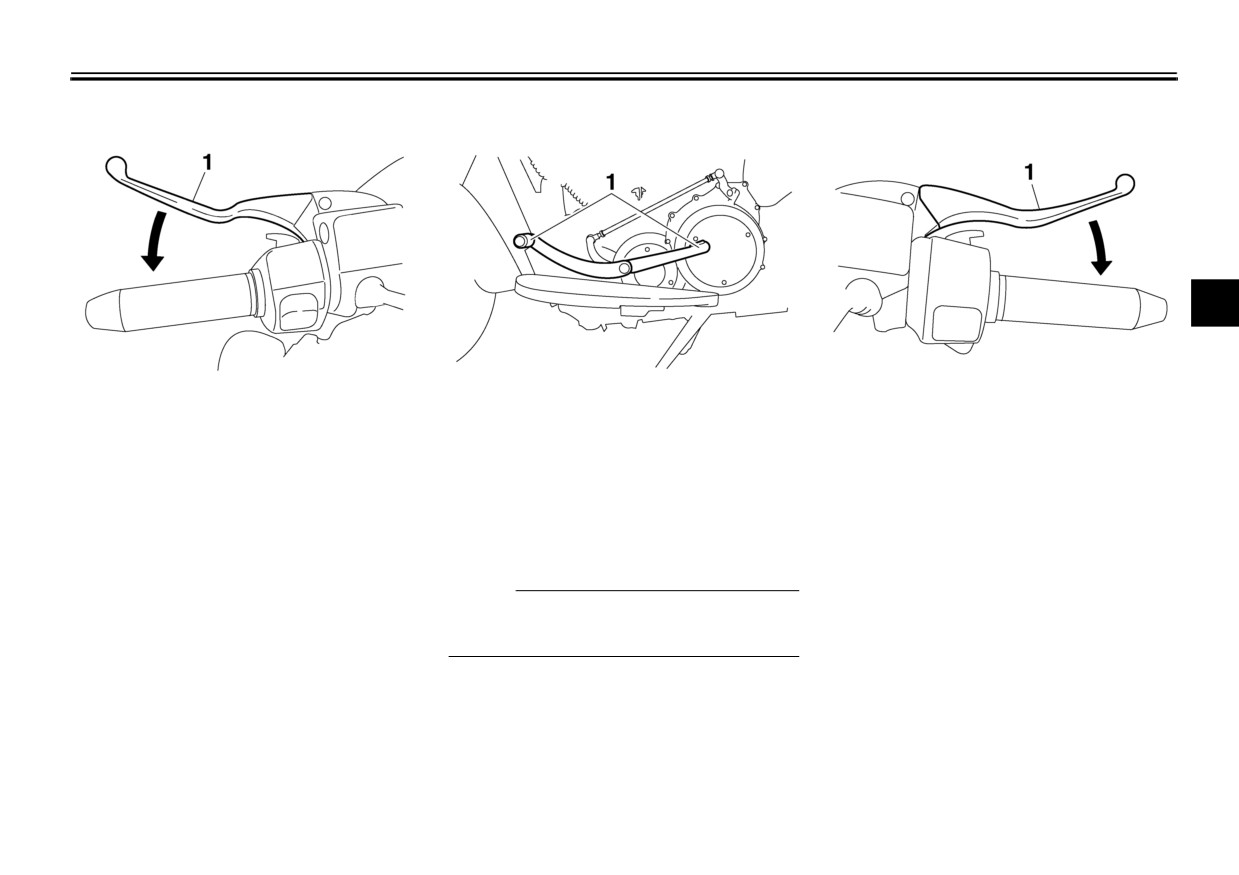

Clutch lever
3-11
Periodic maintenance and
Lubricating the rear suspension ... 6-19
Shift pedal
3-11
lubrication chart
6-2
Checking the front fork
6-20
Brake lever
3-11
Checking the spark plugs
6-5
Checking the steering
6-20
Brake pedal
3-12
Engine oil and oil filter cartridge
6-6
Checking the wheel bearings
6-21
Fuel tank cap
3-12
Transfer case oil
6-9
Battery
6-21
Fuel
3-13
Air filter element
6-9
Replacing the fuses
6-23
Fuel tank breather hose
3-14
Checking the throttle cable

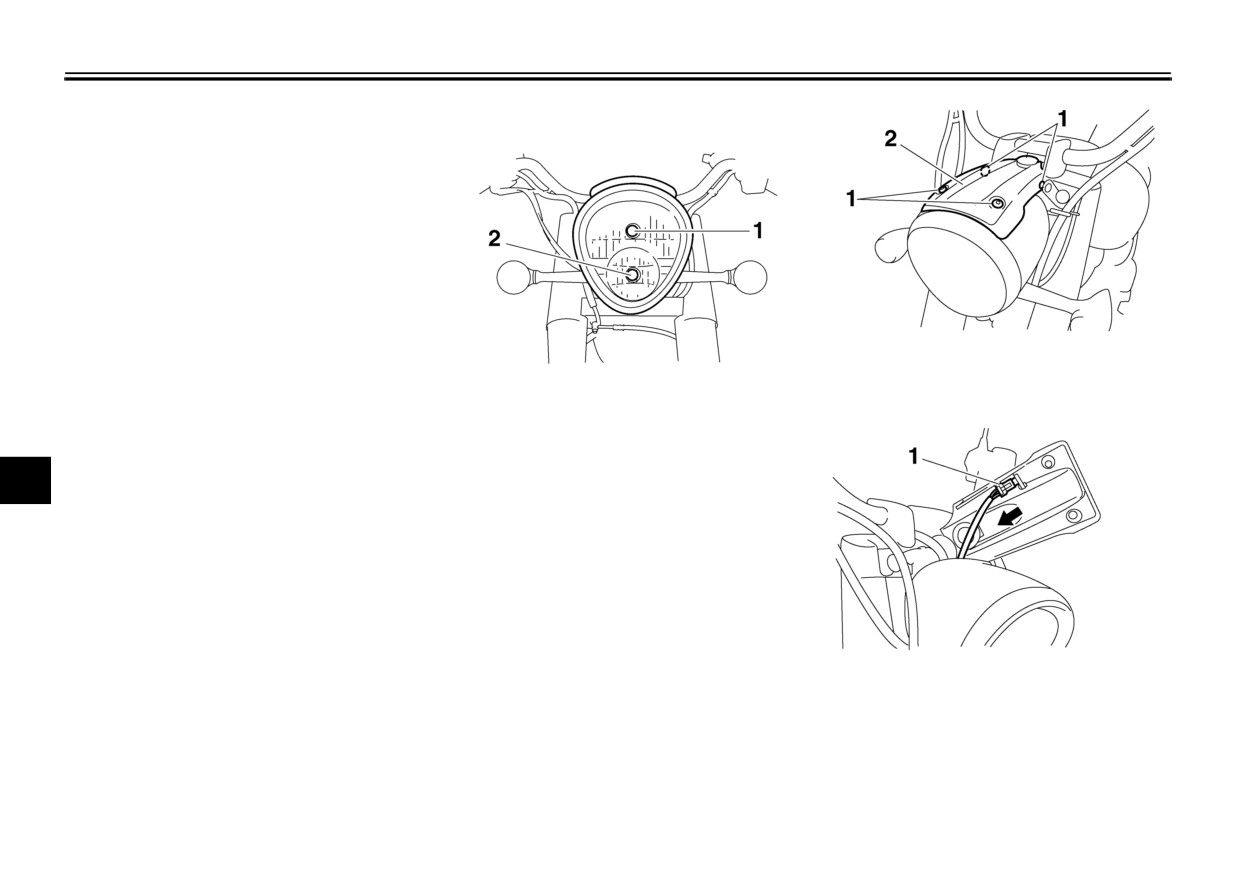

Replacing a headlight bulb
6-24
Catalytic converter
3-14
free play
6-10
Tail/brake light
6-27
Rider seat
3-14
Valve clearance
6-10
Replacing a turn signal light
Helmet holder
3-15
Tires
6-10
bulb
6-27
Adjusting the shock absorber
Cast wheels
6-13
License plate light
6-28
assembly
3-16
Clutch lever
6-13
Replacing an auxiliary light
EXUP system
3-18
Adjusting the rear brake light
bulb
6-28
Sidestand
3-18
switch
6-14
Supporting the motorcycle
6-29
Ignition circuit cut-off system
3-19

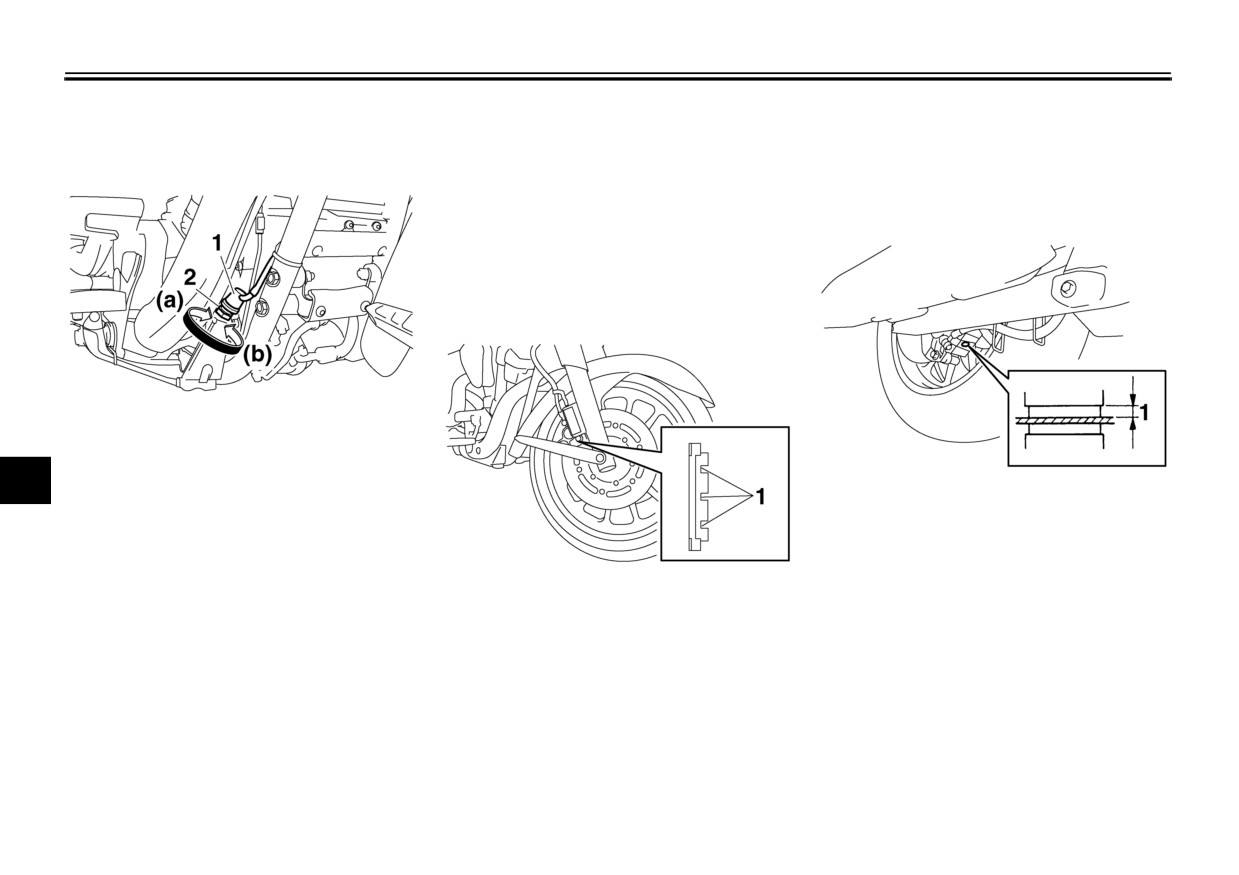

Checking the front and rear
Troubleshooting
6-29
Auxiliary DC connector
3-21
brake pads
6-14
Troubleshooting chart
6-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TABLE OF CONTENTS
MOTORCYCLE CARE AND
STORAGE
7-1
Care
7-1
Storage
7-3
SPECIFICATIONS
8-1
CONSUMER INFORMATION
9-1
Identification numbers
9-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
EAU10281
AND/OR WHEN MADE NECES-
• Ride where other motorists can
SARY BY MECHANICAL CONDI-
see you. Avoid riding in another
MOTORCYCLES ARE SINGLE
TIONS.
motorist’s blind spot.
TRACK VEHICLES. THEIR SAFE USE
1
Many accidents involve inexperi-
AND OPERATION ARE DEPENDENT
Safe riding
enced operators. In fact, many op-
UPON THE USE OF PROPER RIDING
Always make pre-operation
erators who have been involved in
TECHNIQUES AS WELL AS THE EX-
checks. Careful checks may help
accidents do not even have a cur-
PERTISE OF THE OPERATOR. EV-
prevent an accident.
rent motorcycle license.
ERY OPERATOR SHOULD KNOW
This motorcycle is designed to car-
• Make sure that you are qualified
THE FOLLOWING REQUIREMENTS
ry the operator and a passenger.
and that you only lend your
BEFORE RIDING THIS MOTOR-
The failure of motorists to detect
motorcycle to other qualified op-
CYCLE.
and recognize motorcycles in traf-
erators.
HE OR SHE SHOULD:
fic is the predominating cause of
• Know your skills and limits.
OBTAIN THOROUGH INSTRUC-
automobile/motorcycle accidents.
Staying within your limits may
TIONS FROM A COMPETENT
Many accidents have been caused
help you to avoid an accident.
SOURCE ON ALL ASPECTS OF
by an automobile driver who did
• We recommend that you prac-
MOTORCYCLE OPERATION.
not see the motorcycle. Making
tice riding your motorcycle
OBSERVE THE WARNINGS AND
yourself conspicuous appears to
where there is no traffic until you
MAINTENANCE
REQUIRE-
be very effective in reducing the
have become thoroughly famil-
MENTS IN THE OWNER’S MAN-
chance of this type of accident.
iar with the motorcycle and all of
UAL.
Therefore:
its controls.
OBTAIN QUALIFIED TRAINING
• Wear a brightly colored jacket.
Many accidents have been caused
IN SAFE AND PROPER RIDING
• Use extra caution when you are
by error of the motorcycle opera-
TECHNIQUES.
approaching and passing
tor. A typical error made by the op-
OBTAIN PROFESSIONAL TECH-
through intersections, since in-
erator is veering wide on a turn
NICAL SERVICE AS INDICATED
tersections are the most likely
BY THE OWNER’S MANUAL
places for motorcycle accidents
to occur.
1-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
due to EXCESSIVE SPEED or un-
This motorcycle is designed for on-
cause burns. Always wear protec-
dercornering (insufficient lean an-
road use only. It is not suitable for
tive clothing that covers your legs,
gle for the speed).
off-road use.
ankles, and feet.
• Always obey the speed limit and
A passenger should also observe
1
never travel faster than warrant-
Protective apparel
the above precautions.
ed by road and traffic conditions.
The majority of fatalities from motor-
• Always signal before turning or
cycle accidents are the result of head
Modifications
changing lanes. Make sure that
injuries. The use of a safety helmet is
Modifications made to this motorcycle
other motorists can see you.
the single most critical factor in the pre-
not approved by Yamaha, or the re-
The posture of the operator and
vention or reduction of head injuries.
moval of original equipment, may ren-
passenger is important for proper
Always wear an approved helmet.
der the motorcycle unsafe for use and
control.
Wear a face shield or goggles.
may cause severe personal injury.
• The operator should keep both
Wind in your unprotected eyes
Modifications may also make your
hands on the handlebar and
could contribute to an impairment
motorcycle illegal to use.
both feet on the operator foot-
of vision that could delay seeing a
rests during operation to main-
hazard.
Loading and accessories
tain control of the motorcycle.
The use of a jacket, heavy boots,
Adding accessories or cargo to your
• The passenger should always
trousers, gloves, etc., is effective in
motorcycle can adversely affect stabili-
hold onto the operator, the seat
preventing or reducing abrasions
ty and handling if the weight distribution
strap or grab bar, if equipped,
or lacerations.
of the motorcycle is changed. To avoid
with both hands and keep both
Never wear loose-fitting clothes,
the possibility of an accident, use ex-
feet on the passenger footrests.
otherwise they could catch on the
treme caution when adding cargo or
• Never carry a passenger unless
control levers, footrests, or wheels
accessories to your motorcycle. Use
he or she can firmly place both
and cause injury or an accident.
extra care when riding a motorcycle
feet on the passenger footrests.
Never touch the engine or exhaust
that has added cargo or accessories.
Never ride under the influence of
system during or after operation.
Here are some general guidelines to
alcohol or other drugs.
They become very hot and can
follow if loading cargo or adding acces-
sories to your motorcycle:
1-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Loading
bags, duffel bags, or tents, can
limit suspension travel, steering
The total weight of the operator, pas-
create unstable handling or a slow
travel or control operation, or ob-
senger, accessories and cargo must
steering response.
scure lights or reflectors.
1
not exceed the maximum load limit.
Accessories
Accessories fitted to the handle-
Genuine Yamaha accessories have
bar or the front fork area can
Maximum load:
been specifically designed for use on
create instability due to improper
204 kg (450 lb)
this motorcycle. Since Yamaha cannot
weight distribution or aerody-
test all other accessories that may be
namic changes. If accessories
When loading within this weight limit,
available, you must personally be re-
are added to the handlebar or
keep the following in mind:
sponsible for the proper selection, in-
front fork area, they must be as
Cargo and accessory weight
stallation and use of non-Yamaha
lightweight as possible and
should be kept as low and close to
accessories. Use extreme caution
should be kept to a minimum.
the motorcycle as possible. Make
when selecting and installing any ac-
Bulky or large accessories may
sure to distribute the weight as
cessories.
seriously affect the stability of
evenly as possible on both sides of
Keep the following guidelines in mind,
the motorcycle due to aerody-
the motorcycle to minimize imbal-
as well as those provided under “Load-
namic effects. Wind may at-
ance or instability.
ing” when mounting accessories.
tempt to lift the motorcycle, or
Shifting weights can create a sud-
Never install accessories or carry
the motorcycle may become un-
den imbalance. Make sure that ac-
cargo that would impair the perfor-
stable in cross winds. These ac-
cessories and cargo are securely
mance of your motorcycle. Care-
cessories may also cause
attached to the motorcycle before
fully inspect the accessory before
instability when passing or being
riding. Check accessory mounts
using it to make sure that it does
passed by large vehicles.
and cargo restraints frequently.
not in any way reduce ground
Certain accessories can dis-
Never attach any large or heavy
clearance or cornering clearance,
place the operator from his or
items to the handlebar, front fork,
her normal riding position. This
or front fender. These items, in-
improper position limits the free-
cluding such cargo as sleeping
dom of movement of the opera-
1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
tor and may limit control ability,
Always turn the engine off before
or clothing, immediately wash the
therefore, such accessories are
leaving the motorcycle unattended
affected area with soap and water
not recommended.
and remove the key from the main
and change your clothes.
Use caution when adding electri-
switch. When parking the motor-
1
cal accessories. If electrical acces-
cycle, note the following:
sories exceed the capacity of the
• The engine and exhaust system
motorcycle’s electrical system, an
may be hot, therefore, park the
electric failure could result, which
motorcycle in a place where pe-
could cause a dangerous loss of
destrians or children are not like-
lights or engine power.
ly to touch these hot areas.
• Do not park the motorcycle on a
Gasoline and exhaust gas
slope or soft ground, otherwise it
GASOLINE IS HIGHLY FLAMMA-
may fall over.
BLE:
• Do not park the motorcycle near
• Always turn the engine off when
a flammable source, (e.g., a ker-
refueling.
osene heater, or near an open
• Take care not to spill any gaso-
flame), otherwise it could catch
line on the engine or exhaust
fire.
system when refueling.
When transporting the motorcycle
• Never refuel while smoking or in
in another vehicle, make sure that
the vicinity of an open flame.
it is kept upright. If the motorcycle
Never start the engine or let it run
should lean over, gasoline may
for any length of time in a closed
leak out of the fuel tank.
area. The exhaust fumes are poi-
If you should swallow any gaso-
sonous and may cause loss of
line, inhale a lot of gasoline vapor,
consciousness and death within a
or allow gasoline to get into your
short time. Always operate your
eyes, see your doctor immediately.
motorcycle in an area that has ad-
If any gasoline spills on your skin
equate ventilation.
1-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION
EAU10410
Left view
2
1. Headlight (page 6-24)
9. Engine oil drain bolt B (crankcase) (page 6-6)
2. Clutch fluid reservoir (page 6-15)
10.Engine oil drain bolt A (crankcase) (page 6-6)
3. Seat lock (page 3-14)
11.Shift pedal (page 3-11)
4. Main fuse (page 6-23)
5. Battery (page 6-21)
6. Owner’s tool kit (page 6-1)
7. License plate light (page 6-28)
8. Tail/brake light (page 6-27)
2-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION
EAU10420
Right view
2
1. Helmet holder (page 3-15)
9. Engine oil filter cartridge (page 6-6)
2. Fuel injection system fuse (page 6-23)
10.Engine oil drain bolt (oil tank) (page 6-6)
3. Rear brake fluid reservoir (page 6-15)
11.Shock absorber assembly spring preload adjusting nut (page 3-16)
4. Fuse box (page 6-23)
5. Engine oil filler cap (page 6-6)
6. Fuel tank cap (page 3-12)
7. Front brake fluid reservoir (page 6-15)
8. Brake pedal (page 3-12)
2-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION
EAU10430
Controls and instruments
2
1. Clutch lever (page 3-11)
2. Left handlebar switches (page 3-10)
3. Multi-function meter unit (page 3-5)
4. Main switch/steering lock (page 3-2)
5. Right handlebar switches (page 3-10)
6. Throttle grip (page 6-10)
7. Brake lever (page 3-11)
2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU10972
an immobilizer system indicator
mended to use either standard
Immobilizer system
light (See page 3-3.)
key and keep the code re-regis-
The key with the red bow is used to reg-
tering key in a safe place.
ister codes in each standard key. Since
Do not submerse any key in wa-
re-registering is a difficult process, take
ter.
the vehicle along with all three keys to
Do not expose any key to exces-
a Yamaha dealer to have them re-reg-
sively high temperatures.
istered. Do not use the key with the red
Do not place any key close to
3
bow for driving. It should only be used
magnets (this includes, but not
for re-registering the standard keys. Al-
limited to, products such as
ways use a standard key for driving.
speakers, etc.).
ECA11820
1. Code re-registering key (red bow)
Do not place heavy items on any
2. Standard keys (black bow)
CAUTION:
key.
DO NOT LOSE THE CODE RE-
Do not grind any key or alter its
This vehicle is equipped with an immo-
REGISTERING KEY! CONTACT
shape.
bilizer system to help prevent theft by
YOUR DEALER IMMEDIATELY
Do not disassemble the plastic
re-registering codes in the standard
IF IT IS LOST! If the code re-reg-
part of any key.
keys. This system consists of the fol-
istering key is lost, registering
Do not put two keys of any im-
lowing.
new codes in the standard keys
mobilizer system on the same
a code re-registering key (with a
is impossible. The standard
key ring.
red bow)
keys can still be used to start
Keep the standard keys as well
two standard keys (with a black
the vehicle, however if code re-
as keys of other immobilizer
bow) that can be re-registered with
registering is required (i.e., if a
systems away from this vehi-
new codes
new standard key is made or all
cle’s code re-registering key.
a transponder (which is installed in
keys are lost) the entire immobi-
Keep other immobilizer system
the code re-registering key)
lizer system must be replaced.
keys away from the main switch
an immobilizer unit
Therefore, it is highly recom-
as they may cause signal inter-
an ECU
ference.
3-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU10471
EAU36870
To lock the steering
Main switch/steering lock
ON
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
NOTE:
3
The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
1. Push.
the engine stalls.
The main switch/steering lock controls
2. Turn.
the ignition and lighting systems, and is
1. Turn the handlebars all the way to
used to lock the steering.
EAU10660
the left.
OFF
NOTE:
2. Push the key in from the “OFF” po-
All electrical systems are off. The key
Be sure to use the standard key (black
sition, and then turn it to “LOCK”
can be removed.
bow) for regular use of the vehicle. To
while still pushing it.
minimize the risk of losing the code re-
EAU10680
3. Remove the key.
LOCK
registering key (red bow), keep it in a
The steering is locked, and all electrical
safe place and only use it for code re-
systems are off. The key can be re-
registering.
moved.
3-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU10941
EAU11003
To unlock the steering
(Parking)
Indicator and warning lights
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard lights and turn sig-
nal lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
3
key can be turned to “
”.
ECA11020
1. Push.
CAUTION:
1.
Neutral indicator light “
2. Turn.
Do not use the parking position for
2.
Immobilizer system indicator light
an extended length of time, other-
Push the key in, and then turn it to
3.
High beam indicator light “
wise the battery may discharge.
“OFF” while still pushing it.
4.
Right turn signal indicator light “
EWA10060
5.
Left turn signal indicator light “
WARNING
6.
Engine trouble warning light “
7.
Fuel level warning light “
Never turn the key to
“OFF” or
“LOCK” while the vehicle is moving,
EAU11030
otherwise the electrical systems will
Turn signal indicator lights “
” and
be switched off, which may result in
loss of control or an accident. Make
The corresponding indicator light flash-
sure that the vehicle is stopped be-
es when the turn signal switch is
fore turning the key to “OFF” or
pushed to the left or right.
“LOCK”.
EAU11060
Neutral indicator light “
This indicator light comes on when the
transmission is in the neutral position.
3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU11080
will flash eight times, and then go off for
When the key is turned to “OFF” and 30
High beam indicator light “
3.0 seconds. If this occurs, have a
seconds have passed, the indicator
This indicator light comes on when the
Yamaha dealer check the vehicle.
light will start flashing indicating the im-
high beam of the headlight is switched
mobilizer system is enabled. After 24
on.
hours have passed, the indicator light
EAU11530
Engine trouble warning light “
will stop flashing, however the immobi-
EAU11361
Fuel level warning light “
This warning light comes on or flashes
lizer system is still enabled.
This warning light comes on when the
when an electrical circuit monitoring the
This model is also equipped with a self-
3
fuel level drops below approximately
engine is defective. When this occurs,
diagnosis device for the immobilizer
3.0 L (0.79 US gal)
(0.66 Imp.gal).
have a Yamaha dealer check the self-
system. (See page 3-5 for an explana-
When this occurs, refuel as soon as
diagnosis system. (See page 3-5 for an
tion of the self-diagnosis device.)
possible.
explanation of the self-diagnosis de-
The electrical circuit of the warning light
vice.)
can be checked by turning the key to
The electrical circuit of the warning light
“ON”.
can be checked by turning the key to
If the warning light does not come on
“ON”. If the warning light does not come
for a few seconds, and then go off,
on for a few seconds, then go off, have
have a Yamaha dealer check the elec-
a Yamaha dealer check the electrical
trical circuit.
circuit.
NOTE:
EAU38620
This model is also equipped with a self-
Immobilizer system indicator light
diagnosis device for the fuel level de-
The electrical circuit of the indicator
tection circuit. If the fuel level detection
light can be checked by turning the key
circuit is defective, the following cycle
to “ON”.
will be repeated until the malfunction is
If the indicator light does not come on
corrected: The fuel level warning light
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
3-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU40730
an odometer (which shows the to-
Multi-function meter unit
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter
(which
shows the distance traveled on the
fuel reserve)
3
a clock
a self-diagnosis device
1. “SELECT” switch
a brightness control mode
2. “RESET” switch
1. Speedometer
NOTE:
2. Fuel gauge
Speedometer
Be sure to turn the key to “ON” be-
3. Odometer/tripmeter/fuel reserve tripme-
ter/clock
fore using the “SELECT” and “RE-
4. Tachometer
SET” switches, except for setting
the brightness control mode.
EWA12421
For the U.K. only: To switch the
WARNING
speedometer and odometer/trip-
Be sure to stop the vehicle before
meter displays between kilometers
making any setting changes to the
and miles, press the “SELECT”
multi-function meter unit.
switch for at least two seconds.
The multi-function meter unit is
equipped with the following:
1. Speedometer
a speedometer (which shows the
The speedometer
shows
the
riding
riding speed)
speed.
a tachometer (which shows the en-
gine speed)
a fuel gauge
3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
ECA10031
When the key is turned to “ON”, the
When the key is turned to “ON”, the fuel
CAUTION:
speedometer needle will sweep once
gauge needle will sweep once across
across the speed range and then return
Do not operate the engine in the ta-
the fuel level range and then return to
to zero in order to test the electrical cir-
chometer red zone.
the current amount in order to test the
cuit.
Red zone: 5000 r/min and above
electrical circuit.
NOTE:
Tachometer
Fuel gauge
Do not allow the fuel tank to empty
3
itself completely.
The fuel gauge does not indicate
the correct fuel level for the first 5
km/h (3 mi/h) after refueling.
Odometer, tripmeter, and clock
modes
1. Tachometer
1. Fuel gauge
2. Tachometer red zone
The fuel gauge indicates the amount of
The electric tachometer allows the rider
fuel in the fuel tank. The needle moves
to monitor the engine speed and keep it
towards “E” (Empty) as the fuel level
within the ideal power range.
decreases. When the needle reaches
When the key is turned to “ON”, the ta-
“E”, approximately 3.0 L (0.79 US gal)
chometer needle will sweep once
(0.66 Imp.gal) remain in the fuel tank. If
across the r/min range and then return
this occurs, refuel as soon as possible.
1. Odometer/tripmeter/fuel reserve tripme-
to zero r/min in order to test the electri-
ter/clock
cal circuit.
3-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Push the “SELECT” switch to switch
Clock mode
Self-diagnosis devices
the display between the odometer
This model is equipped with a self-diag-
mode “ODO”, the tripmeter modes
nosis device for various electrical cir-
“TRIP 1” and “TRIP 2” and the clock
cuits.
mode in the following order:
If any of those circuits are defective, the
ODO → TRIP 1 → TRIP 2 → Clock →
engine trouble warning light will come
ODO
on, and then the odometer/tripme-
If the fuel level warning light comes on
ter/clock display will indicate a two-digit
3
(see page 3-3), the odometer display
error code (e.g., 12, 13, 14).
will automatically change to the fuel re-
This model is also equipped with a self-
serve tripmeter mode
“F-TRIP” and
diagnosis device for the immobilizer
1. Clock
start counting the distance traveled
system.
from that point. In that case, push the
If any of the immobilizer system circuits
To set the clock:
“SELECT” switch to switch the display
are defective, the immobilizer system
1. Push the
“SELECT” switch to
between the various tripmeter, odome-
indicator light will flash, and then the
change the display to the clock
ter, and clock modes in the following or-
display will indicate a two-digit error
mode.
der:
code (e.g., 51, 52, 53).
2. Push the “SELECT” and “RESET”
F-TRIP → TRIP 1 → TRIP 2 → Clock
switches together for at least two
NOTE:
→ ODO → F-TRIP
seconds.
If the display indicates error code 52,
To reset a tripmeter, select it by push-
3. When the hour digits start flashing,
this could be caused by transponder in-
ing the
“SELECT” switch, and then
push the “RESET” switch to set the
terference. If this error code appears,
push the “RESET” switch for at least
hours.
try the following.
one second. If you do not reset the fuel
4. Push the “SELECT” switch, and
reserve tripmeter manually, it will reset
1. Use the code re-registering key to
the minute digits will start flashing.
itself automatically, and the display will
start the engine.
5. Push the “RESET” switch to set
return to the prior mode after refueling
the minutes.
and traveling 5 km (3 mi).
6. Push the “SELECT” switch and
then release it to start the clock.
3-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Brightness control mode
3. Turn the key to “ON”, and then re-
NOTE:
lease the “SELECT” switch after
Make sure there are no other immobi-
five seconds.
lizer keys close to the main switch, and
Item number “1” is displayed.
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
3
from starting.
2. If the engine starts, turn it off and
try starting the engine with the
1.
Multi-function meter unit panel
standard keys.
2.
LCD
3. If one or both of the standard keys
3.
Speedometer needle
do not start the engine, take the
4.
Tachometer needle
1.
Multi-function meter unit panel
vehicle, the code re-registering
5.
Fuel gauge needle
2.
Item number
key and both standard keys to a
3.
Brightness level
The brightness can be adjusted for the
Yamaha dealer and have the stan-
following:
4. Adjust the multi-function meter unit
dard keys re-registered.
the multi-function meter unit panel
panel brightness level by pushing
If the odometer/tripmeter/clock display
(item number “1”)
the “RESET” switch.
indicates any error codes, note the
the LCD (item number “2”)
5. Push the “SELECT” switch to se-
code number, and then have a Yamaha
the speedometer, tachometer, and
lect the LCD.
dealer check the vehicle.
ECA11590
the fuel gauge needles (item num-
Item number “2” is displayed.
ber “3”)
Adjust the LCD brightness level by
CAUTION:
Select the brightness control mode as
pushing the “RESET” switch.
If the display indicates an error
follows.
code, the vehicle should be checked
1. Turn the key to “OFF”.
as soon as possible in order to avoid
2. Push and hold the
“SELECT”
engine damage.
switch.
3-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
3
1. LCD
1. Speedometer needle
2. Item number
2. Tachometer needle
3. Brightness level
3. Fuel gauge needle
4. Item number
6. Push the “SELECT” switch to se-
5. Brightness level
lect the speedometer, tachometer,
and the fuel gauge needles.
7. Push the “SELECT” switch.
Item number “3” is displayed.
The odometer/tripmeter/clock dis-
Adjust the brightness level of the
play will return to the prior mode.
speedometer, tachometer, and the
fuel gauge needles by pushing the
“RESET” switch.
3-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU12345
EAU40750
EAU12710
Handlebar switches
Dimmer “
/
”/Pass “
” switch
Start switch “
Set this switch to “
” for the high
Push this switch to crank the engine
Left
beam and to “
” for the low beam.
with the starter.
ECA10050
To flash the high beam, press on the
CAUTION:
low-beam side
” of the dimmer
switch while the headlight is on low-
See page 5-1 for starting instruc-
beam.
tions prior to starting the engine.
3
EAU12460
EAU12733
Turn signal switch “
/
Hazard switch “
To signal a right-hand turn, push this
With the key in the “ON” or “
” posi-
switch to “
”. To signal a left-hand
tion, use this switch to turn on the haz-
1. Dimmer “
/
”/Pass “
” switch
turn, push this switch to “
”. When re-
ard lights (simultaneous flashing of all
2. Turn signal switch “
/
leased, the switch returns to the center
turn signal lights).
3. Horn switch “
position. To cancel the turn signal
The hazard lights are used in case of
lights, push the switch in after it has re-
Right
an emergency or to warn other drivers
turned to the center position.
when your vehicle is stopped where it
might be a traffic hazard.
EAU12500
ECA10061
Horn switch “
CAUTION:
Press this switch to sound the horn.
Do not use the hazard lights for an
EAU12660
extended length of time with the en-
Engine stop switch “
/
gine not running, otherwise the bat-
Set this switch to “
” before starting
tery may discharge.
the engine. Set this switch to “
” to
stop the engine in case of an emergen-
1. Engine stop switch “
/
cy, such as when the vehicle overturns
2. Hazard switch “
or when the throttle cable is stuck.
3. Start switch “
3-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU12820
EAU12880
EAU12890
Clutch lever
Shift pedal
Brake lever
3
1. Clutch lever
1. Shift pedal
1. Brake lever
The clutch lever is located at the left
The shift pedal is located on the left
The brake lever is located at the right
handlebar grip. To disengage the
side of the engine and is used in com-
handlebar grip. To apply the front
clutch, pull the lever toward the handle-
bination with the clutch lever when
brake, pull the lever toward the handle-
bar grip. To engage the clutch, release
shifting the gears of the 5-speed con-
bar grip.
the lever. The lever should be pulled
stant-mesh transmission equipped on
rapidly and released slowly for smooth
this motorcycle.
clutch operation.
NOTE:
The clutch lever is equipped with a
Use your toes or heel to shift up and
clutch switch, which is part of the igni-
your toes to shift down.
tion circuit cut-off system. (See page
3-19.)
3-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU12941
EAU13120
2. Turn the key counterclockwise to
Brake pedal
Fuel tank cap
the original position, remove it, and
then close the lock cover.
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
3
not properly installed and locked.
EWA10130
WARNING
1. Brake pedal
1. Fuel tank cap lock cover
Make sure that the fuel tank cap is
2. “
” mark
properly installed before riding.
The brake pedal is on the right side of
3. Unlock.
the motorcycle. To apply the rear
4. Lock.
brake, press down on the brake pedal.
To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the “
” mark
facing forward.
3-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU13210
ECA10070
curs, use a gasoline of a different
Fuel
CAUTION:
brand. Use of unleaded fuel will extend
Immediately wipe off spilled fuel
spark plug life and reduce maintenance
with a clean, dry, soft cloth, since
costs.
fuel may deteriorate painted surfac-
es or plastic parts.
EAU13390
3
Recommended fuel:
PREMIUM UNLEADED GASOLINE
1. Fuel tank filler tube
ONLY
2. Fuel level
Fuel tank capacity:
17.0 L (4.49 US gal) (3.74 Imp.gal)
Make sure that there is sufficient fuel in
Fuel reserve amount (when the fuel
the tank. Fill the fuel tank to the bottom
level warning light comes on):
of the filler tube as shown.
3.0 L (0.79 US gal) (0.66 Imp.gal)
EWA10880
WARNING
ECA11400
Do not overfill the fuel tank, oth-
CAUTION:
erwise it may overflow when the
Use only unleaded gasoline. The use
fuel warms up and expands.
of leaded gasoline will cause severe
Avoid spilling fuel on the hot en-
damage to internal engine parts,
gine.
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
3-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU13410
EAU13431
EAU34042
Fuel tank breather hose
Catalytic converter
Rider seat
This model is equipped with a catalytic
converter in the exhaust system.
To remove the rider seat
EWA10860
1. Insert the key into the seat lock,
WARNING
and then turn it counterclockwise.
The exhaust system is hot after op-
eration. Make sure that the exhaust
3
system has cooled down before do-
ing any maintenance work.
ECA10700
1. Fuel tank breather hose
CAUTION:
The following precautions must be
Before operating the motorcycle:
observed to prevent a fire hazard or
Check the fuel tank breather hose
other damages.
connection.
Use only unleaded gasoline.
1. Seat lock
Check the fuel tank breather hose
2. Unlock.
The use of leaded gasoline will
for cracks or damage, and replace
cause unrepairable damage to
it if damaged.
2. While holding the key in that posi-
the catalytic converter.
Make sure that the end of the fuel
tion, lift the front of the seat up, and
Never park the vehicle near pos-
tank breather hose is not blocked,
then pull the seat off.
sible fire hazards such as grass
and clean it if necessary.
or other materials that easily
To install the rider seat
burn.
1. Insert the projection on the rear of
Do not allow the engine to idle
the seat into the seat holder as
too long.
shown.
3-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU38341
Helmet holder
3
1. Projection
1. Helmet holding cable
2. Seat holder
2. Helmet
1. Helmet holder
2. Push the front of the seat down to
2. Helmet holding cable
3. Place the helmet on the left side of
lock it in place.
the vehicle, and then install the rid-
The helmet holder is located under the
3. Remove the key.
er seat.
rider seat. A helmet holding cable is
ECA15330
NOTE:
provided beside the owner’s tool kit to
CAUTION:
Make sure that the seat is properly se-
secure a helmet to the helmet holder.
Be sure to place the helmet on the
cured before riding.
left side of the vehicle. Some hel-
To secure a helmet to the helmet
mets may contact the muffler when
holder
placed on the right side because of
1. Remove the rider seat. (See page
their size or shape.
3-14.)
EWA10160
2. Pass the helmet holding cable
WARNING
through the buckle on the helmet
strap as shown, and then hook the
Never ride with a helmet attached to
cable loop over the helmet holder.
the helmet holder, since the helmet
may hit objects, causing loss of con-
trol and possibly an accident.
3-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU38401
To release the helmet from the hel-
load and thereby soften the sus-
Adjusting the shock absorber
met holder
pension, turn the adjusting nut in
assembly
Remove the rider seat, remove the hel-
direction (b).
met holding cable from the helmet hold-
This shock absorber assembly is
er and the helmet, and then install the
equipped with a spring preload adjust-
seat.
ing nut.
ECA10100
CAUTION:
3
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
Adjust the spring preload as follows.
1. Special wrench
NOTE:
To make the adjustment, use the
special wrench included in the ad-
ditional tool kit, which was handed
out separately at the purchase of
the vehicle.
The spring preload setting is deter-
mined by measuring distance A,
1. Locknut
2. Spring preload adjusting nut
shown in the illustration. The short-
er distance A is, the higher the
1. Loosen the locknut.
spring preload; the longer distance
2. To increase the spring preload and
A is, the lower the spring preload.
thereby harden the suspension,
turn the adjusting nut in direction
(a). To decrease the spring pre-
3-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
ECA10120
With each complete turn of the ad-
Always have a Yamaha dealer
CAUTION:
justing nut, distance A is changed
service the shock absorber.
by 2.0 mm (0.08 in).
Always tighten the locknut against
the adjusting nut, and then tighten
the locknut to the specified torque.
EWA10220
WARNING
This shock absorber contains highly
3
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
1. Distance A
sponsible for property damage or
personal injury that may result from
Spring preload:
Minimum (hard):
improper handling.
Distance A = 162 mm (6.38 in)
Do not tamper with or attempt to
Standard:
open the gas cylinder.
Distance A = 171 mm (6.73 in)
Do not subject the shock ab-
Maximum (soft):
sorber to an open flame or other
Distance A = 171 mm (6.73 in)
high heat sources, otherwise it
3. Tighten the locknut to the specified
may explode due to excessive
torque.
gas pressure.
Do not deform or damage the
Tightening torque:
gas cylinder in any way, as this
Locknut:
will result in poor damping per-
30 Nm (3.0 m·kgf, 22 ft·lbf)
formance.
3-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU15281
EAU15301
below and have a Yamaha dealer re-
EXUP system
Sidestand
pair it if it does not function proper-
This model is equipped with Yamaha’s
The sidestand is located on the left side
ly.
EXUP (EXhaust Ultimate Power valve)
of the frame. Raise the sidestand or
system. This system boosts engine
lower it with your foot while holding the
power by means of a valve that regu-
vehicle upright.
lates the diameter of the exhaust pipe.
NOTE:
The EXUP system valve is constantly
The built-in sidestand switch is part of
3
adjusted in accordance with the engine
the ignition circuit cut-off system, which
speed by a computer-controlled servo-
cuts the ignition in certain situations.
motor.
(See further down for an explanation of
ECA10191
the ignition circuit cut-off system.)
CAUTION:
EWA10240
The EXUP system has been set
and extensively tested at the
WARNING
Yamaha factory. Changing
The vehicle must not be ridden with
these settings without sufficient
the sidestand down, or if the side-
technical knowledge may result
stand cannot be properly moved up
in poor performance of or dam-
(or does not stay up), otherwise the
age to the engine.
sidestand could contact the ground
If the EXUP system cannot be
and distract the operator, resulting
heard when the main switch is
in a possible loss of control.
turned on, have a Yamaha deal-
Yamaha’s ignition circuit cut-off
er check it.
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
3-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU15311
Ignition circuit cut-off system
The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
3
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.
It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EWA10250
WARNING
If a malfunction is noted, have a
Yamaha dealer check the system be-
fore riding.
3-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
With the engine turned off:
NOTE:
1. Move the sidestand down.
This check is most reliable if performed with
2. Make sure that the engine stop switch is turned on.
a warmed-up engine.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
3
The neutral switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The clutch switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The system is OK. The motorcycle can be ridden.
3-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU38350
EWA12531
Auxiliary DC connector
WARNING
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC con-
nector is not being used.
3
1. Auxiliary DC connector
A 12-V accessory connected to the
auxiliary DC connector under the rider
seat can be used when the key is in the
“ON” position.
ECA15310
CAUTION:
The accessory connected to the
auxiliary DC connector should not
be used with the engine turned off,
and the load must never exceed 36
W (3 A), otherwise the battery may
discharge.
3-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
EAU15591
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
NOTE:
Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short
time; and the added safety it assures is more than worth the time involved.
EWA11150
4
WARNING
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.
4-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
EAU15603
Pre-operation check list
ITEM
CHECKS
PAGE
Check fuel level in fuel tank.
Fuel
Refuel if necessary.
3-13
Check fuel line for leakage.
Check oil level in oil tank.
Engine oil
If necessary, add recommended oil to specified level.
6-6
Check vehicle for oil leakage.
Transfer case oil
Check vehicle for oil leakage.
6-9
Check operation.
4
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Front brake
Replace if necessary.
6-14, 6-15
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Rear brake
Replace if necessary.
6-14, 6-15
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Clutch
Check fluid level in reservoir.
6-13, 6-15
If necessary, add recommended fluid to specified level.
Check hydraulic system for leakage.
Make sure that operation is smooth.
Check cable free play.
Throttle grip
6-10, 6-17
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.
4-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
ITEM
CHECKS
PAGE
Make sure that operation is smooth.
Control cables
6-17
Lubricate if necessary.
Check for damage.
Check tire condition and tread depth.
Wheels and tires
6-10, 6-13
Check air pressure.
Correct if necessary.
Make sure that operation is smooth.
Brake and shift pedals
6-18
Lubricate pedal pivoting points if necessary.
Make sure that operation is smooth.
Brake and clutch levers
6-18
Lubricate lever pivoting points if necessary.
4
Make sure that operation is smooth.
Sidestand
6-19
Lubricate pivot if necessary.
Make sure that all nuts, bolts and screws are properly tightened.
Chassis fasteners
Tighten if necessary.
Instruments, lights, signals
Check operation.
and switches
Correct if necessary.
Check operation of ignition circuit cut-off system.
Sidestand switch
3-18
If system is defective, have Yamaha dealer check vehicle.
4-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EAU15950
EAU36740
Immobilizer system indicator
Starting the engine
light
EWA10270
In order for the ignition circuit cut-off
If a warning or indicator light does
WARNING
system to enable starting, one of the
not go off, see page 3-3 for the corre-
Become thoroughly familiar
following conditions must be met:
sponding warning and indicator
with all operating controls and
The transmission is in the neutral
light circuit check.
their functions before riding.
position.
2. Shift the transmission into the neu-
Consult a Yamaha dealer re-
The transmission is in gear with
tral position.
garding any control or function
the clutch lever pulled and the sid-
that you do not thoroughly un-
estand up.
NOTE:
EWA10290
derstand.
When the transmission is in the neutral
WARNING
Never start the engine or oper-
position, the neutral indicator light
ate it in a closed area for any
Before starting the engine,
should be on, otherwise have a
5
length of time. Exhaust fumes
check the function of the igni-
Yamaha dealer check the electrical cir-
are poisonous, and inhaling
tion circuit cut-off system ac-
cuit.
them can cause loss of con-
cording to the procedure
sciousness and death within a
described on page 3-19.
3. Start the engine by pushing the
short time. Always make sure
Never ride with the sidestand
start switch.
that there is adequate ventila-
down.
NOTE:
tion.
1.
Turn the key to “ON” and make
If the engine fails to start, release the
Before starting out, make sure
sure that the engine stop switch is
start switch, wait a few seconds, and
that the sidestand is up. If the
set to “
”.
then try again. Each starting attempt
sidestand is not raised com-
ECA15070
should be as short as possible to pre-
pletely, it could contact the
CAUTION:
serve the battery. Do not crank the en-
ground and distract the opera-
The following warning lights and in-
gine more than 10 seconds on any one
tor, resulting in a possible loss
dicator light should come on for a
attempt.
of control.
few seconds, then go off.
Fuel level warning light
Engine trouble warning light
5-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
ECA11040
EAU16671
ECA10260
CAUTION:
Shifting
CAUTION:
For maximum engine life, never ac-
Even with the transmission in
celerate hard when the engine is
the neutral position, do not
cold!
coast for long periods of time
with the engine off, and do not
NOTE:
tow the motorcycle for long dis-
The engine is warm when it quickly re-
tances. The transmission is
sponds to the throttle.
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
1. Shift pedal
the transmission.
2. Neutral position
Always use the clutch while
5
changing gears to avoid damag-
Shifting gears
lets
you
control the
ing the engine, transmission,
amount of engine power available for
and drive train, which are not
starting off, accelerating, climbing hills,
designed to withstand the
etc.
shock of forced shifting.
The gear positions are shown in the il-
lustration.
NOTE:
To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
5-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EAU16810
EAU16841
ECA10891
Tips for reducing fuel con-
Engine break-in
CAUTION:
sumption
There is never a more important period
After 1000 km (600 mi) of operation,
Fuel consumption depends largely on
in the life of your engine than the period
the engine oil and transfer case oil
your riding style. Consider the following
between 0 and 1600 km (1000 mi). For
must be changed, and the oil filter
tips to reduce fuel consumption:
this reason, you should read the follow-
cartridge or element replaced.
Shift up swiftly, and avoid high en-
ing material carefully.
Since the engine is brand new, do not
1600 km (1000 mi) and beyond
gine speeds during acceleration.
put an excessive load on it for the first
The vehicle can now be operated nor-
Do not rev the engine while shifting
1600 km (1000 mi). The various parts in
mally.
down, and avoid high engine
ECA10310
speeds with no load on the engine.
the engine wear and polish themselves
CAUTION:
Turn the engine off instead of let-
to the correct operating clearances.
During this period, prolonged full-throt-
Keep the engine speed out of
ting it idle for an extended length of
the tachometer red zone.
5
time (e.g., in traffic jams, at traffic
tle operation or any condition that might
result in engine overheating must be
If any engine trouble should oc-
lights or at railroad crossings).
avoided.
cur during the engine break-in
period, immediately have a
EAU17111
Yamaha dealer check the vehi-
cle.
0-1000 km (0-600 mi)
Avoid prolonged operation above 2500
r/min.
1000-1600 km (600-1000 mi)
Avoid prolonged operation above 3000
r/min.
5-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATION AND IMPORTANT RIDING POINTS
EAU17212
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.
Do not park on a slope or on soft
5
ground, otherwise the vehicle
may overturn.
ECA10380
CAUTION:
Never park in an area where there
are fire hazards such as grass or
other flammable materials.
5-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17240
EAU17360
EWA10350
Owner’s tool kit
WARNING
Safety is an obligation of the owner. Pe-
Modifications not approved by
riodic inspection, adjustment and lubri-
Yamaha may cause loss of perfor-
cation will keep your vehicle in the
mance and render the vehicle un-
safest and most efficient condition pos-
safe for use. Consult a Yamaha
sible. The most important points of in-
dealer before attempting any chang-
spection, adjustment, and lubrication
es.
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
1. Owner’s tool kit
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
The owner’s tool kit is located under the
WEATHER, TERRAIN, GEOGRAPHI-
rider seat. (See page 3-14.)
CAL LOCATION, AND INDIVIDUAL
The service information included in this
6
USE, THE MAINTENANCE INTER-
manual and the tools provided in the
VALS MAY NEED TO BE SHORT-
owner’s tool kit are intended to assist
ENED.
you in the performance of preventive
EWA10320
maintenance and minor repairs. How-
WARNING
ever, additional tools such as a torque
If you are not familiar with mainte-
wrench may be necessary to perform
nance work, have a Yamaha dealer
certain maintenance work correctly.
do it for you.
NOTE:
If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
6-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17705
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.
From 50000 km, repeat the maintenance intervals starting from 10000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
ODOMETER READING (× 1000 km)
ANNUAL
NO.
ITEM
CHECK OR MAINTENANCE JOB
CHECK
1
10
20
30
40
1
Fuel line
Check fuel hoses for cracks or damage.
Check condition.
2
Spark plugs
Clean and regap.
6
Replace.
Check valve clearance.
3
Valves
Adjust.
4
Air filter element
Replace.
5
Clutch
Check operation, fluid level and vehicle for fluid leakage.
Check operation, fluid level and vehicle for fluid leakage.
6
Front brake
Replace brake pads.
Whenever worn to the limit
Check operation, fluid level and vehicle for fluid leakage.
7
Rear brake
Replace brake pads.
Whenever worn to the limit
Check for cracks or damage.
8
Brake hoses
Replace.
Every 4 years
9
*
Wheels
Check runout and for damage.
6-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ODOMETER READING (× 1000 km)
ANNUAL
NO.
ITEM
CHECK OR MAINTENANCE JOB
CHECK
1
10
20
30
40
• Check tread depth and for damage.
• Replace if necessary.
10
Tires
• Check air pressure.
• Correct if necessary.
11
Wheel bearings
• Check bearing for looseness or damage.
12
Swingarm
• Check operation and for excessive play.
• Check belt tension.
13
Drive belt
Every 4000 km
• Make sure that the rear wheel is properly aligned.
• Check bearing play and steering for roughness.
14
Steering bearings
• Lubricate with lithium-soap-based grease.
Every 50000 km
• Make sure that all nuts, bolts and screws are properly
15
Chassis fasteners
tightened.
• Check operation.
6
16
Sidestand
• Lubricate.
17
Sidestand switch
• Check operation.
18
Front fork
• Check operation and for oil leakage.
Shock absorber assem-
19
• Check operation and shock absorber for oil leakage.
bly
Rear suspension relay
• Check operation.
20
arm and connecting
arm pivoting points
• Lubricate with lithium-soap-based grease.
21
*
Fuel injection system
• Adjust synchronization.
• Change.
22
Engine oil
• Check oil level and vehicle for oil leakage.
Engine oil filter car-
23
• Replace.
tridge
6-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ODOMETER READING (× 1000 km)
ANNUAL
NO.
ITEM
CHECK OR MAINTENANCE JOB
CHECK
1
10
20
30
40
Check oil level.
24
Transfer case oil
Change.
Front and rear brake
25
Check operation.
switches
Moving parts and ca-
26
Lubricate.
bles
Check operation and free play.
Throttle grip housing
27
Adjust the throttle cable free play if necessary.
and cable
Lubricate the throttle grip housing and cable.
Muffler and exhaust
28
Check the screw clamp for looseness.
pipe
Lights, signals and
Check operation.
29
*
switches
Adjust headlight beam.
6
EAU36771
NOTE:
Air filter
• This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake and clutch service
• Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
• Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.
• Replace the brake and clutch hoses every four years and if cracked or damaged.
6-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU19642
Specified spark plug:
Tightening torque:
Checking the spark plugs
NGK/DPR8EA-9
Spark plug:
The spark plugs are important engine
DENSO/X24EPR-U9
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
components, which should be checked
periodically, preferably by a Yamaha
Before installing a spark plug, the spark
NOTE:
dealer. Since heat and deposits will
plug gap should be measured with a
If a torque wrench is not available when
cause any spark plug to slowly erode,
wire thickness gauge and, if necessary,
installing a spark plug, a good estimate
they should be removed and checked
adjusted to specification.
of the correct torque is 1/4-1/2 turn
in accordance with the periodic mainte-
past finger tight. However, the spark
nance and lubrication chart. In addition,
plug should be tightened to the speci-
the condition of the spark plugs can re-
fied torque as soon as possible.
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
6
and all spark plugs installed in the en-
gine should have the same color. If any
1. Spark plug gap
spark plug shows a distinctly different
color, the engine could be operating im-
Spark plug gap:
properly. Do not attempt to diagnose
0.8-0.9 mm (0.031-0.035 in)
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
Clean the surface of the spark
plug
If a spark plug shows signs of electrode
gasket and its mating surface, and then
erosion and excessive carbon or other
wipe off any grime from the spark plug
deposits, it should be replaced.
threads.
6-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU38361
Engine oil and oil filter car-
NOTE:
To achieve the proper engine oil tem-
tridge
perature for an accurate oil level read-
The engine oil level should be checked
ing, the engine must have first
before each ride. In addition, the oil
completely cooled down, and then
must be changed and the oil filter car-
warmed up again for several minutes to
tridge replaced at the intervals speci-
normal operating temperature.
fied in the periodic maintenance and
lubrication chart.
4. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
1. Maximum level mark
To check the engine oil level
the dipstick clean, insert it back
2. Minimum level mark
1. Place the vehicle on a level sur-
into the oil filler hole
(without
3. Dipstick
face and hold it in an upright posi-
screwing it in), and then remove it
tion.
5. If the engine oil is at or below the
again to check the oil level.
minimum level mark, add sufficient
NOTE:
NOTE:
6
oil of the recommended type to
Make sure that the vehicle is positioned
The engine oil should be between the
raise it to the correct level.
straight up when checking the oil level.
minimum and maximum level marks.
A slight tilt to the side can result in a
NOTE:
false reading.
When adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
2. Remove the rider seat. (See page
faster starting from the half level portion
3-14.)
on the dipstick.
3. Start the engine, warm it up until
the engine oil has reached a nor-
6. Insert the dipstick into the oil filler
mal temperature of 60 °C (140 °F),
hole, and then tighten the oil filler
let it continue to idle for ten sec-
cap.
onds, and then turn the engine off.
7. Install the rider seat.
1. Engine oil filler cap
6-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA10900
NOTE:
CAUTION:
Skip steps 7-9 if the oil filter cartridge is
Make sure that the oil filler cap is se-
not being replaced.
curely tightened, otherwise oil may
seep out when the engine is run-
7. Remove the oil filter cartridge with
ning.
an oil filter wrench.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Engine oil drain bolt (oil tank)
1.
Remove the rider seat. (See page
5. Place an oil pan under the engine
3-14.)
to collect the used oil.
2.
Start the engine, warm it up for
6. Remove engine oil drain bolts A
several minutes, and then turn it
and B to drain the oil from the
off.
crankcase.
6
3.
Place an oil pan under the oil tank
1. Oil filter cartridge
2. Oil filter wrench
to collect the used oil.
4.
Remove the engine oil filler cap
NOTE:
and drain bolt to drain the oil from
the oil tank.
An oil filter wrench is available at a
Yamaha dealer.
8. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
1. Engine oil drain bolt A (crankcase)
2. Engine oil drain bolt B (crankcase)
6-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
11. Pour only 2.5 L (2.6 US qt) (2.2
Imp.qt) of the specified amount of
recommended engine oil through
the filler hole, insert the dipstick,
and then tighten the oil filler cap.
12. Start the engine, rev it several
times, and then turn it off.
13. Remove the engine oil filler cap,
and then gradually fill the oil tank
with the remaining oil quantity
1. O-ring
1.
Oil filter cartridge
while regularly checking the oil lev-
2.
Torque wrench
el on the dipstick.
NOTE:
Tightening torque:
Make sure that the O-ring is properly
Oil filter cartridge:
Recommended engine oil:
seated.
17 Nm (1.7 m·kgf, 12 ft·lbf)
See page 8-1.
Oil quantity:
6
9.
Install the new oil filter cartridge
Without oil filter cartridge replace-
10. Install the engine oil drain bolts,
with an oil filter wrench, and then
ment:
and then tighten them to the spec-
tighten it to the specified torque
4.10 L (4.33 US qt) (3.61 Imp.qt)
ified torque.
with a torque wrench.
With oil filter cartridge replacement:
4.90 L (5.18 US qt) (4.31 Imp.qt)
Tightening torques:
Engine oil drain bolt A (crankcase):
ECA15080
43 Nm (4.3 m·kgf, 31 ft·lbf)
CAUTION:
Engine oil drain bolt B (crankcase):
In order to prevent clutch slip-
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt (oil tank):
page (since the engine oil also
43 Nm (4.3 m·kgf, 31 ft·lbf)
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
6-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU20051
EAU36762
er quality than specified. In
Transfer case oil
Air filter element
addition, do not use oils labeled
The transfer case must be checked for
The air filter element must be replaced
“ENERGY CONSERVING II” or
oil leakage before each ride. If any
at the intervals specified in the periodic
higher.
leakage is found, have a Yamaha deal-
maintenance and lubrication chart.
Make sure that no foreign mate-
er check and repair the vehicle. In addi-
Have a Yamaha dealer replace the air
rial enters the oil tank.
tion, the transfer case oil level should
filter element.
14.
Install the engine oil filler cap.
be checked and the oil must be
15.
Start the engine, and then let it idle
changed by a Yamaha dealer at the in-
for several minutes while checking
tervals specified in the periodic mainte-
it for oil leakage. If oil is leaking, im-
nance and lubrication chart.
mediately turn the engine off and
check for the cause.
16.
Turn the engine off, and then
check the oil level and correct it if
necessary.
6
17.
Install the rider seat.
6-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU21381
EAU21401
EAU21771
Checking the throttle cable
Valve clearance
Tires
free play
The valve clearance changes with use,
To maximize the performance, durabil-
resulting in improper air-fuel mixture
ity, and safe operation of your motor-
and/or engine noise. To prevent this
cycle, note the following points
from occurring, the valve clearance
regarding the specified tires.
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
Tire air pressure
maintenance and lubrication chart.
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
EWA10500
WARNING
1. Throttle cable free play
The tire air pressure must be
The throttle cable free play should mea-
checked and adjusted on cold
6
sure 4.0-6.0 mm (0.16-0.24 in) at the
tires (i.e., when the temperature
throttle grip. Periodically check the
of the tires equals the ambient
throttle cable free play and, if neces-
temperature).
sary, have a Yamaha dealer adjust it.
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
6-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
NEVER OVERLOAD THE
Tire inspection
Tire air pressure (measured on cold
tires):
MOTORCYCLE! Operation of an
0-90 kg (0-198 lb):
overloaded motorcycle may re-
Front:
sult in tire damage, loss of con-
250 kPa (36 psi) (2.50 kgf/cm²)
trol, or severe injury. Make sure
Rear:
that the total weight of rider,
280 kPa (41 psi) (2.80 kgf/cm²)
90-204 kg (198-450 lb):
passenger, cargo, and accesso-
Front:
ries does not exceed the speci-
250 kPa (36 psi) (2.50 kgf/cm²)
fied maximum load for the
Rear:
vehicle.
280 kPa (41 psi) (2.80 kgf/cm²)
Do not carry along loosely
High-speed riding:
1. Tire sidewall
Front:
packed items, which can shift
2. Tire tread depth
250 kPa (36 psi) (2.50 kgf/cm²)
during a ride.
Rear:
The tires must be checked before each
Securely pack the heaviest
280 kPa (41 psi) (2.80 kgf/cm²)
ride. If the center tread depth reaches
items close to the center of the
Maximum load*:
the specified limit, if the tire has a nail or
6
motorcycle and distribute the
204 kg (450 lb)
glass fragments in it, or if the sidewall is
* Total weight of rider, passenger, car-
weight evenly on both sides.
cracked, have a Yamaha dealer re-
go and accessories
Adjust the suspension and tire
place the tire immediately.
air pressure with regard to the
EWA11020
load.
WARNING
Minimum tire tread depth (front and
Check the tire condition and air
rear):
Because loading has an enormous
pressure before each ride.
1.6 mm (0.06 in)
impact on the handling, braking,
performance and safety characteris-
NOTE:
tics of your motorcycle, you should
The tire tread depth limits may differ
keep the following precautions in
from country to country. Always comply
mind.
with the local regulations.
6-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EWA10470
This motorcycle is equipped with cast
Front tire:
WARNING
wheels and tubeless tires with valves.
Size:
EWA10480
Have a Yamaha dealer replace
130/70R18M/C 63H
WARNING
Manufacturer/model:
excessively worn tires. Besides
DUNLOP/D251F
being illegal, operating the vehi-
The front and rear tires should
Rear tire:
cle with excessively worn tires
be of the same make and de-
Size:
decreases riding stability and
sign, otherwise the handling
190/60R17M/C 78H
can lead to loss of control.
characteristics of the motor-
Manufacturer/model:
The replacement of all wheel
cycle cannot be guaranteed.
DUNLOP/D251
FRONT and REAR:
and brake related parts, includ-
After extensive tests, only the
Tire air valve:
ing the tires, should be left to a
tires listed below have been ap-
TR412
Yamaha dealer, who has the
proved for this model by
Valve core:
necessary professional knowl-
Yamaha Motor Co., Ltd.
#9100 (original)
edge and experience.
Always make sure that the valve
EWA10600
caps are securely installed to
6
WARNING
prevent air pressure leakage.
Tire information
Use only the tire valves and
This motorcycle is fitted with super-
valve cores listed below to
high-speed tires. Note the following
avoid tire deflation during a
points in order to make the most ef-
high-speed ride.
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
1. Tire air valve
surfaces until they have been
2. Tire air valve core
“broken in”. Therefore, it is ad-
3. Tire air valve cap with seal
visable before doing any high-
6-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU21960
EAU22072
speed riding to ride conserva-
Cast wheels
Clutch lever
tively for approximately 100 km
To maximize the performance, durabil-
Since this model is equipped with a hy-
(60 mi) after installing a new tire.
ity, and safe operation of your vehicle,
draulic clutch, adjusting the clutch lever
The tires must be warmed up
note the following points regarding the
free play is not needed. However, it is
before a high-speed run.
specified wheels.
necessary to check the clutch fluid level
Always adjust the tire air pres-
The wheel rims should be checked
and check the hydraulic system for
sure according to the operating
for cracks, bends or warpage be-
leakage before each ride. If the clutch
conditions.
fore each ride. If any damage is
lever free play does become excessive,
found, have a Yamaha dealer re-
and shifting becomes rough or clutch
place the wheel. Do not attempt
slippage occurs, causing poor acceler-
even the smallest repair to the
ation, there may be air in the clutch sys-
wheel. A deformed or cracked
tem. If there is air in the hydraulic
wheel must be replaced.
system, have a Yamaha dealer bleed
The wheel should be balanced
the system before operating the motor-
whenever either the tire or wheel
cycle.
6
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
6-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU22270
EAU22390
indicator grooves have almost disap-
Adjusting the rear brake light
Checking the front and rear
peared, have a Yamaha dealer replace
switch
brake pads
the brake pads as a set.
The front and rear brake pads must be
checked for wear at the intervals spec-
EAU22500
Rear brake pads
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
1. Rear brake light switch
2. Rear brake light switch adjusting nut
6
The rear brake light switch, which is ac-
1. Lining thickness
tivated by the brake pedal, is properly
Check each rear brake pad for damage
adjusted when the brake light comes
and measure the lining thickness. If a
on just before braking takes effect. If
brake pad is damaged or if the lining
necessary, adjust the brake light switch
1. Brake pad wear indicator groove
thickness is less than 0.8 mm (0.03 in),
as follows.
Each front brake pad is provided with
have a Yamaha dealer replace the
Turn the adjusting nut while holding the
wear indicator grooves, which allow
brake pads as a set.
rear brake light switch in place. To
you to check the brake pad wear with-
make the brake light come on earlier,
out having to disassemble the brake.
turn the adjusting nut in direction (a). To
To check the brake pad wear, check
make the brake light come on later, turn
the wear indicator grooves. If a brake
the adjusting nut in direction (b).
pad has worn to the point that the wear
6-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU38630
Clutch
Observe these precautions:
Checking the brake and clutch
When checking the brake and
fluid levels
clutch fluid levels, make sure that
the top of each reservoir is level.
Front brake
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
1. Minimum level mark
Recommended brake and clutch flu-
id:
Insufficient brake or clutch fluid may al-
DOT 4 brake fluid
low air to enter the brake or clutch sys-
1. Minimum level mark
tems, possibly causing them to become
Refill with the same type of brake
ineffective.
fluid. Mixing fluids may result in a
Rear brake
6
harmful chemical reaction and
NOTE:
lead to poor braking or clutch per-
The rear brake fluid reservoir is located
formance.
under the rider seat. (See page 3-14.)
Be careful that water does not en-
ter the brake or clutch fluid reser-
Before riding, check that the brake and
voir when refilling. Water will
clutch fluids are above the minimum
significantly lower the boiling point
level marks and replenish if necessary.
of the fluid and may result in vapor
A low brake or clutch fluid level may in-
lock.
dicate brake or clutch system leakage
Brake fluid may deteriorate paint-
and/or worn brake pads. If the brake or
1. Minimum level mark
ed surfaces or plastic parts. Al-
clutch levels are low, be sure to check
ways clean up spilled fluid
the brake or clutch systems for leakage
immediately.
and the brake pads for wear.
6-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU22750
EAU23040
As the brake pads wear, it is nor-
Changing the brake and
Drive belt slack
mal for the brake fluid level to grad-
clutch fluids
The drive belt slack should be checked
ually go down. However, if the
Have a Yamaha dealer change the
and adjusted at the intervals specified
brake fluid level goes down sud-
brake and clutch fluids at the intervals
in the periodic maintenance and lubri-
denly, have a Yamaha dealer
specified in the NOTE after the periodic
cation chart.
check the cause.
maintenance and lubrication chart. In
EAU38410
addition, have the oil seals of the brake
To check the drive belt slack
and clutch master cylinders and cali-
1. Place the vehicle on the sidestand.
pers as well as the brake and clutch
2. Note the current position of the
hoses replaced at the intervals listed
drive belt using the marks near the
below or whenever they are damaged
drive belt check hole.
or leaking.
Oil seals: Replace every two
NOTE:
years.
The marks near the drive belt check
6
Brake and clutch hoses: Replace
hole are 5.0 mm (0.2 in) apart.
every four years.
1. Drive belt
2. Marks
3. Drive belt slack
6-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU23100
EAU23111
3. Note the position of the drive belt
Checking and lubricating the
Checking and lubricating the
with a force of 45 N (4.5 kgf, 10 lbf)
cables
throttle grip and cable
applied to the belt with a belt ten-
sion gauge as shown.
The operation of all control cables and
The operation of the throttle grip should
the condition of the cables should be
be checked before each ride. In addi-
NOTE:
checked before each ride, and the ca-
tion, the cable should be lubricated at
A belt tension gauge is available at a
bles and cable ends should be lubricat-
the intervals specified in the periodic
Yamaha dealer.
ed if necessary. If a cable is damaged
maintenance chart.
or does not move smoothly, have a
Yamaha dealer check or replace it.
Recommended lubricant:
Engine oil
EWA10720
WARNING
6
Damage to the outer sheath may in-
terfere with proper cable operation
1. Belt tension gauge
and will cause the inner cable to
rust. Replace a damaged cable as
4. Calculate the drive belt slack by
soon as possible to prevent unsafe
subtracting the measurement not-
conditions.
ed in step 2 from the measurement
noted in step 3.
Drive belt slack:
7.5-13.0 mm (0.30-0.51 in)
5. If the drive belt slack is incorrect,
have a Yamaha dealer adjust it.
6-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU23131
EAU23140
Recommended lubricant:
Checking and lubricating the
Checking and lubricating the
Lithium-soap-based grease (all-pur-
brake and shift pedals
brake and clutch levers
pose grease)
Brake lever
Clutch lever
6
The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
The operation of the brake and clutch
bricated if necessary.
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
6-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU23200
EAU23250
Recommended lubricant:
Checking and lubricating the
Lubricating the rear suspen-
Lithium-soap-based grease (all-pur-
sidestand
sion
pose grease)
The operation of the sidestand should
The pivoting points of the rear suspen-
be checked before each ride, and the
sion must be lubricated at the intervals
sidestand pivot and metal-to-metal
specified in the periodic maintenance
6
contact surfaces should be lubricated if
and lubrication chart.
necessary.
EWA10730
Recommended lubricant:
WARNING
Lithium-soap-based grease
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
6-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU23271
EAU23280
Checking the front fork
Checking the steering
The condition and operation of the front
Worn or loose steering bearings may
fork must be checked as follows at the
cause danger. Therefore, the operation
intervals specified in the periodic main-
of the steering must be checked as fol-
tenance and lubrication chart.
lows at the intervals specified in the pe-
riodic maintenance and lubrication
To check the condition
chart.
EWA10750
1. Place a stand under the engine to
WARNING
raise the front wheel off the
Securely support the vehicle so that
ECA10590
ground.
CAUTION:
EWA10750
there is no danger of it falling over.
WARNING
If any damage is found or the front
Check the inner tubes for scratches,
fork does not operate smoothly,
Securely support the vehicle so that
damage and excessive oil leakage.
have a Yamaha dealer check or re-
there is no danger of it falling over.
6
pair it.
To check the operation
2. Hold the lower ends of the front
1. Place the vehicle on a level sur-
fork legs and try to move them for-
face and hold it in an upright posi-
ward and backward. If any free
tion.
play can be felt, have a Yamaha
2. While applying the front brake,
dealer check or repair the steering.
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
6-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU23290
EAU33650
Checking the wheel bearings
Battery
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
1. Negative battery terminal
2. Positive battery terminal
3. Battery
This model is equipped with a sealed-
6
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
EWA10760
WARNING
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
6-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
working near batteries. In case
battery tends to discharge more quickly
If you do not have access to a
of contact, administer the fol-
if the vehicle is equipped with optional
sealed-type (MF) battery charg-
lowing FIRST AID.
electrical accessories.
er, have a Yamaha
dealer
• EXTERNAL: Flush with plenty
charge your battery.
of water.
To store the battery
• INTERNAL: Drink large quan-
1. If the vehicle will not be used for
tities of water or milk and im-
more than one month, remove the
mediately call a physician.
battery, fully charge it, and then
• EYES: Flush with water for 15
place it in a cool, dry place.
minutes and seek prompt
2. If the battery will be stored for more
medical attention.
than two months, check it at least
Batteries produce explosive hy-
once a month and fully charge it if
drogen gas. Therefore, keep
necessary.
sparks, flames, cigarettes, etc.,
3. Fully charge the battery before in-
away from the battery and pro-
stallation.
6
vide sufficient ventilation when
4. After installation, make sure that
charging it in an enclosed
the battery leads are properly con-
space.
nected to the battery terminals.
ECA10630
KEEP THIS AND ALL BATTER-
CAUTION:
IES OUT OF THE REACH OF
CHILDREN.
Always keep the battery
charged. Storing a discharged
battery can cause permanent
To charge the battery
battery damage.
Have a Yamaha dealer charge the bat-
To charge a sealed-type (MF)
tery as soon as possible if it seems to
battery, a special (constant-volt-
have discharged. Keep in mind that the
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
6-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU38372
Specified fuses:
Replacing the fuses
Main fuse:
The main fuse, the fuel injection system
50.0 A
fuse, and the fuse box, which contains
Headlight fuse:
the fuses for the individual circuits, are
20.0 A
located under the rider seat. (See page
Signaling system fuse:
10.0 A
3-14.)
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
1.
Fuse box
ECU fuse:
2.
Auxiliary DC connector fuse
10.0 A
3.
Signaling system fuse
Auxiliary DC connector fuse:
4.
Ignition fuse
3.0 A
5.
Backup fuse (for odometer and clock)
Parking lighting fuse:
10.0 A
6.
ECU fuse
Backup fuse:
7.
Headlight fuse
6
10.0 A
8.
Parking lighting fuse
1. Main fuse
9.
Spare fuse
2. Fuel injection system fuse
ECA10640
3. Fuel injection system spare fuse
CAUTION:
If a fuse is blown, replace it as follows.
4. Fuse box
1. Turn the key to “OFF” and turn off
Do not use a fuse of a higher amper-
the electrical circuit in question.
age rating than recommended to
2. Remove the blown fuse, and then
avoid causing extensive damage to
install a new fuse of the specified
the electrical system and possibly a
amperage.
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
6-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU41190
4. If the fuse immediately blows
Replacing a headlight bulb
again, have a Yamaha dealer
check the electrical system.
1. Bolt
2. Headlight cover
1. Low beam headlight bulb
2. High beam headlight bulb
2. Disconnect the coupler shown.
This model features a headlight
equipped with two quartz bulbs. If the
6
high beam or the low beam bulb burns
out, replace it as follows.
Removing the headlight unit
1. Remove the headlight cover by re-
moving the bolts.
1. Coupler
3. Remove the headlight unit by re-
moving the screws.
6-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA10650
2. Disconnect the headlight coupler,
CAUTION:
and then unhook the headlight
bulb holder.
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
1. Screw
be adversely affected. Thor-
oughly clean off any dirt and fin-
To replace the high beam headlight
gerprints on the headlight bulb
bulb
1. Headlight coupler
using a cloth moistened with al-
1. Remove the headlight bulb holder
2. Headlight bulb holder
cohol or thinner.
cover by turning it counterclock-
3. Remove the defective bulb.
6
Headlight lens
wise.
EWA10790
Do not affix any type of tinted
WARNING
film or stickers to the headlight
Headlight bulbs get very hot. There-
lens.
fore, keep flammable products away
Do not use a headlight bulb of a
from a lit headlight bulb, and do not
wattage higher than specified.
touch the bulb until it has cooled
down.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
1. Headlight bulb holder cover
6-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
1. Do not touch the glass part of the bulb.
1. Headlight coupler
cohol or thinner.
2. Headlight bulb
5. Connect the coupler, and then in-
Headlight lens
EWA10790
stall the headlight bulb holder cov-
Do not affix any type of tinted
WARNING
er by turning it clockwise.
film or stickers to the headlight
Headlight bulbs get very hot. There-
lens.
6
To replace the low beam headlight bulb
fore, keep flammable products away
Do not use a headlight bulb of a
1. Disconnect the headlight coupler,
from a lit headlight bulb, and do not
wattage higher than specified.
and then remove the defective
touch the bulb until it has cooled
bulb by turning it counterclock-
down.
wise.
2. Install the bulb by turning it clock-
wise.
ECA10650
CAUTION:
Take care not to damage the follow-
ing parts:
1. Do not touch the glass part of the bulb.
6-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU24180
EAU38380
3. Connect the headlight coupler.
Tail/brake light
Replacing a turn signal light
This model is equipped with an LED
bulb
Installing the headlight unit
type of tail/brake light.
1. Remove the turn signal light lens
1. Install the headlight unit by install-
If the tail/brake light does not come on,
by removing the screw, and then
ing the screws.
have a Yamaha dealer check it.
turning the lens counterclockwise.
2. Connect the coupler to the head-
light cover.
3. Install the headlight cover by in-
stalling the bolts.
4. Have a Yamaha dealer adjust the
headlight beam if necessary.
6
1. Screw
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by turning it clock-
wise, and then installing the screw.
ECA11190
CAUTION:
Do not overtighten the screw, other-
wise the lens may break.
6-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU24330
EAU40760
License plate light
Replacing an auxiliary light
If the license plate light does not come
bulb
on, have a Yamaha dealer check the
This model is equipped with two auxil-
electrical circuit or replace the bulb.
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the headlight unit. (See
page 6-24.)
2. Remove the auxiliary light socket
(together with the coupler) by turn-
1. Auxiliary light bulb
ing the socket counterclockwise.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6
6. Install the headlight unit.
1. Auxiliary light bulb socket
3. Remove the defective bulb by pull-
ing it out.
6-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU24350
EAU25850
a jack either under each side of the
Supporting the motorcycle
Troubleshooting
frame in front of the rear wheel or under
Since this model is not equipped with a
Although Yamaha motorcycles receive
each side of the swingarm.
centerstand, follow these precautions
a thorough inspection before shipment
when removing the front and rear
from the factory, trouble may occur dur-
wheel or performing other maintenance
ing operation. Any problem in the fuel,
requiring the motorcycle to stand up-
compression, or ignition systems, for
right. Check that the motorcycle is in a
example, can cause poor starting and
stable and level position before starting
loss of power.
any maintenance. A strong wooden
The following troubleshooting chart
box can be placed under the engine for
represents a quick and easy procedure
added stability.
for checking these vital systems your-
self. However, should your motorcycle
To service the front wheel
require any repair, take it to a Yamaha
1. Stabilize the rear of the motorcycle
dealer, whose skilled technicians have
by using a motorcycle stand or, if
the necessary tools, experience, and
6
an additional motorcycle stand is
know-how to service the motorcycle
not available, by placing a jack un-
properly.
der the frame in front of the rear
Use only genuine Yamaha replace-
wheel.
ment parts. Imitation parts may look like
2. Raise the front wheel off the
Yamaha parts, but they are often inferi-
ground by using a motorcycle
or, have a shorter service life and can
stand.
lead to expensive repair bills.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
6-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU25891
Troubleshooting chart
EWA10840
WARNING
Keep away open flames and do not smoke while checking or working on the fuel system.
1. Fuel
There is enough fuel.
Check the compression.
Check the fuel level in
the fuel tank.
The engine does not start.
There is no fuel.
Supply fuel.
Check the compression.
2. Compression
There is compression.
Check the ignition.
Operate the electric starter.
6
Have a Yamaha dealer
There is no compression.
check the vehicle.
3. Ignition
Wipe off with a dry cloth and correct the
Open the throttle halfway and operate
Wet
spark plug gaps, or replace the spark plugs.
the electric starter.
Remove the spark plugs
and check the electrodes.
The engine does not start.
Dry
Have a Yamaha dealer check the vehicle.
Check the battery.
4. Battery
The engine turns over
The battery is good.
quickly.
The engine does not start.
Operate the electric starter.
Have a Yamaha dealer
The engine turns over
Check the battery lead connections,
check the vehicle.
slowly.
and charge the battery if necessary.
6-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
EAU26071
ucts onto seals, gaskets, the drive
cleaning products, solvent or
Care
belt and wheel axles. Always rinse
thinner, fuel (gasoline), rust re-
While the open design of a motorcycle
the dirt and degreaser off with wa-
movers or inhibitors, brake flu-
reveals the attractiveness of the tech-
ter.
id, antifreeze or electrolyte.
nology, it also makes it more vulnera-
Do not use high-pressure wash-
ble. Rust and corrosion can develop
Cleaning
ers or steam-jet cleaners since
even if high-quality components are
ECA10770
they cause water seepage and
used. A rusty exhaust pipe may go un-
CAUTION:
deterioration in the following ar-
noticed on a car, however, it detracts
Avoid using strong acidic wheel
eas: seals (of wheel and swing-
from the overall appearance of a motor-
cleaners, especially on spoked
arm bearings, fork and brakes),
cycle. Frequent and proper care does
wheels. If such products are
electric components (couplers,
not only comply with the terms of the
used on hard-to-remove dirt, do
connectors,
instruments,
warranty, but it will also keep your
not leave the cleaner on the af-
switches and lights), breather
motorcycle looking good, extend its life
fected area any longer than in-
hoses and vents.
and optimize its performance.
structed. Also, thoroughly rinse
For motorcycles equipped with
the area off with water, immedi-
a windshield: Do not use strong
Before cleaning
ately dry it, and then apply a cor-
cleaners or hard sponges as
1. Cover the muffler outlet with a
rosion protection spray.
they will cause dulling or
7
plastic bag after the engine has
Improper cleaning can damage
scratching. Some cleaning com-
cooled down.
windshields, cowlings, panels
pounds for plastic may leave
2. Make sure that all caps and covers
and other plastic parts. Use only
scratches on the windshield.
as well as all electrical couplers
a soft, clean cloth or sponge
Test the product on a small hid-
and connectors, including the
with mild detergent and water to
den part of the windshield to
spark plug caps, are tightly in-
clean plastic.
make sure that it does not leave
stalled.
Do not use any harsh chemical
any marks. If the windshield is
3. Remove extremely stubborn dirt,
products on plastic parts. Be
scratched, use a quality plastic
like oil burnt onto the crankcase,
sure to avoid using cloths or
polishing compound after
with a degreasing agent and a
sponges which have been in
washing.
brush, but never apply such prod-
contact with strong or abrasive
7-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
ECA10790
After normal use
5.
Touch up minor paint damage
CAUTION:
Remove dirt with warm water, a mild
caused by stones, etc.
detergent, and a soft, clean sponge,
Do not use warm water since it in-
6.
Wax all painted and chrome-plat-
and then rinse thoroughly with clean
creases the corrosive action of the
ed surfaces. Avoid combination
water. Use a toothbrush or bottlebrush
salt.
cleaner waxes, many of which
for hard-to-reach areas. Stubborn dirt
contain abrasives that may mar
2. After drying the motorcycle, apply
and insects will come off more easily if
the paint or protective finish.
a corrosion protection spray on all
the area is covered with a wet cloth for
7.
Let the motorcycle dry completely
metal, including chrome- and nick-
a few minutes before cleaning.
before storing or covering it.
el-plated, surfaces to prevent cor-
EWA11130
rosion.
WARNING
After riding in the rain, near the sea or
on salt-sprayed roads
Make sure that there is no oil or
After cleaning
Since sea salt or salt sprayed on roads
wax on the brakes or tires.
1.
Dry the motorcycle with a chamois
during winter are extremely corrosive in
If necessary, clean the brake
or an absorbing cloth.
combination with water, carry out the
discs and brake linings with a
2.
Use a chrome polish to shine
following steps after each ride in the
regular brake disc cleaner or ac-
chrome, aluminum and stainless-
rain, near the sea or on salt-sprayed
etone, and wash the tires with
steel parts, including the exhaust
7
roads.
warm water and a mild deter-
system. (Even the thermally in-
gent. Before riding at higher
NOTE:
duced discoloring of stainless-
speeds, test the motorcycle’s
Salt sprayed on roads in the winter may
steel exhaust systems can be re-
braking performance and cor-
remain well into spring.
moved through polishing.)
nering behavior.
3.
To prevent corrosion, it is recom-
1. Clean the motorcycle with cold wa-
ECA10950
mended to apply a corrosion pro-
ter and a mild detergent, after the
CAUTION:
tection spray on all metal,
engine has cooled down.
including chrome- and nickel-plat-
Apply spray oil and wax spar-
ed, surfaces.
ingly and make sure to wipe off
4.
Use spray oil as a universal clean-
any excess.
er to remove any remaining dirt.
7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
EAU26280
Never apply oil or wax to the
3.
Perform the following steps to pro-
Storage
drive belt.
tect the cylinders, piston rings, etc.
Never apply oil or wax to any
from corrosion.
Short-term
rubber and plastic parts, but
a.
Remove the spark plug caps
Always store your motorcycle in a cool,
treat them with a suitable care
and spark plugs.
dry place and, if necessary, protect it
product.
b.
Pour a teaspoonful of engine oil
against dust with a porous cover.
Avoid using abrasive polishing
into each spark plug bore.
ECA10810
compounds as they will wear
c.
Install the spark plug caps onto
CAUTION:
away the paint.
the spark plugs, and then place
Storing the motorcycle in a
the spark plugs on the cylinder
poorly ventilated room or cover-
NOTE:
head so that the electrodes are
ing it with a tarp, while it is still
Consult a Yamaha dealer for advice on
grounded. (This will limit spark-
wet, will allow water and humid-
what products to use.
ing during the next step.)
ity to seep in and cause rust.
d.
Turn the engine over several
To prevent corrosion, avoid
times with the starter. (This will
damp cellars, stables (because
coat the cylinder walls with oil.)
of the presence of ammonia)
e.
Remove the spark plug caps
and areas where strong chemi-
from the spark plugs, and then
7
cals are stored.
install the spark plugs and the
spark plug caps.
EWA10950
Long-term
WARNING
Before storing your motorcycle for sev-
eral months:
To prevent damage or injury from
1. Follow all the instructions in the
sparking, make sure to ground the
“Care” section of this chapter.
spark plug electrodes while turning
2. Fill up the fuel tank and add fuel
the engine over.
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCYCLE CARE AND STORAGE
4.
Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5.
Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6.
Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7.
Remove the battery and fully
charge it. Store it in a cool, dry
7
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30°F) or more than 30
°C (90°F)]. For more information
on storing the battery, see page
6-21.
NOTE:
Make any necessary repairs before
storing the motorcycle.
7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Dimensions:
Engine oil:
Manufacturer/model:
Overall length:
Type:
DENSO/X24EPR-U9
2580 mm (101.6 in)
SAE20W40
Spark plug gap:
Overall width:
Recommended engine oil grade:
0.8-0.9 mm (0.031-0.035 in)
1100 mm (43.3 in)
API service SE, SF, SG type or higher
Clutch:
Overall height:
Engine oil quantity:
Clutch type:
1125 mm (44.3 in)
Without oil filter cartridge replacement:
Wet, multiple-disc
Seat height:
4.10 L (4.33 US qt) (3.61 Imp.qt)
Transmission:
735 mm (28.9 in)
With oil filter cartridge replacement:
Primary reduction system:
Wheelbase:
4.90 L (5.18 US qt) (4.31 Imp.qt)
Spur gear
1715 mm (67.5 in)
Transfer gear oil:
Primary reduction ratio:
Ground clearance:
Type:
72/51 (1.412)
155 mm (6.10 in)
SAE80 API GL-4 Hypoid gear oil
Secondary reduction system:
Minimum turning radius:
Quantity:
Belt drive
3480 mm (137.0 in)
0.55 L (0.58 US qt) (0.48 Imp.qt)
Secondary reduction ratio:
Weight:
Air filter:
70/31 (2.258)
With oil and fuel:
Air filter element:
Transmission type:
346.0 kg (763 lb)
Oil-coated paper element
Constant mesh 5-speed
Engine:
Fuel:
Operation:
Engine type:
Recommended fuel:
Left foot operation
Air cooled 4-stroke, OHV
Premium unleaded gasoline only
Gear ratio:
Cylinder arrangement:
Fuel tank capacity:
1st:
V-type 2-cylinder
17.0 L (4.49 US gal) (3.74 Imp.gal)
38/16 (2.375)
Displacement:
2nd:
Fuel reserve amount:
8
1854.0 cm³ (113.13 cu.in)
3.0 L (0.79 US gal) (0.66 Imp.gal)
33/21 (1.571)
Bore × stroke:
Fuel injector:
3rd:
100.0 × 118.0 mm (3.94 × 4.65 in)
29/25 (1.160)
Manufacturer:
Compression ratio:
4th:
NIPPON INJECTOR
9.48 :1
26/28 (0.929)
Model/quantity:
Starting system:
5th:
INP-101/2
Electric starter
24/30 (0.800)
Spark plug (s):
Lubrication system:
Chassis:
Manufacturer/model:
Dry sump
Frame type:
NGK/DPR8EA-9
Double cradle
8-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Caster angle:
Front:
Front suspension:
30.90 °
250 kPa (36 psi) (2.50 kgf/cm²)
Type:
Trail:
Rear:
Telescopic fork
152.0 mm (5.98 in)
280 kPa (41 psi) (2.80 kgf/cm²)
Spring/shock absorber type:
Front tire:
High-speed riding:
Coil spring/oil damper
Type:
Front:
Wheel travel:
Tubeless
250 kPa (36 psi) (2.50 kgf/cm²)
130.0 mm (5.12 in)
Size:
Rear:
Rear suspension:
130/70R18M/C 63H
280 kPa (41 psi) (2.80 kgf/cm²)
Type:
Manufacturer/model:
Front wheel:
Swingarm (link suspension)
DUNLOP/D251F
Wheel type:
Spring/shock absorber type:
Rear tire:
Cast wheel
Coil spring/gas-oil damper
Type:
Rim size:
Wheel travel:
Tubeless
18M/C x MT4.00
110.0 mm (4.33 in)
Size:
Rear wheel:
Electrical system:
190/60R17M/C 78H
Wheel type:
Ignition system:
Manufacturer/model:
Cast wheel
Transistorized coil ignition (digital)
DUNLOP/D251
Rim size:
Charging system:
Loading:
17M/C x MT5.50
AC magneto
Maximum load:
Front brake:
Battery:
204 kg (450 lb)
Type:
Model:
(Total weight of rider, passenger, cargo and
Dual disc brake
GT14B-4
accessories)
Operation:
Voltage, capacity:
8
Tire air pressure (measured on cold
Right hand operation
12 V, 12.0 Ah
tires):
Recommended fluid:
Headlight:
Loading condition:
DOT 4
Bulb type:
0-90 kg (0-198 lb)
Rear brake:
Halogen bulb
Front:
Type:
Bulb voltage, wattage × quantity:
250 kPa (36 psi) (2.50 kgf/cm²)
Single disc brake
Low beam headlight:
Rear:
Operation:
12 V, 51.0 W × 1
280 kPa (41 psi) (2.80 kgf/cm²)
Right foot operation
High beam headlight:
Loading condition:
Recommended fluid:
12 V, 55.0 W × 1
90-204 kg (198-450 lb)
DOT 4
Tail/brake light:
LED
8-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Front turn signal light:
ECU fuse:
12 V, 21.0 W × 2
10.0 A
Rear turn signal light:
Fuel injection system fuse:
12 V, 21.0 W × 2
15.0 A
Auxiliary light:
Auxiliary DC connector fuse:
12 V, 5.0 W × 2
3.0 A
License plate light:
Backup fuse:
12 V, 5.0 W
10.0 A
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:
Main fuse:
8
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 A
8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
EAU26351
EAU26381
EAU26400
Identification numbers
Key identification number
Vehicle identification number
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
1. Key identification number
1. Vehicle identification number
2. Code re-registering key (red bow)
The vehicle identification number is
3. Standard keys (black bow)
stamped into the steering head pipe.
VEHICLE IDENTIFICATION
The key identification number is
Record this number in the space pro-
NUMBER:
stamped into the key tag. Record this
vided.
number in the space provided and use
NOTE:
it for reference when ordering a new
The vehicle identification number is
key.
used to identify your motorcycle and
may be used to register your motor-
MODEL LABEL INFORMATION:
cycle with the licensing authority in your
9
area.
9-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSUMER INFORMATION
EAU26470
Model label
1. Model label
The model label is affixed to the frame
under the rider seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
9
9-2



















///////////////////////////////////////
