PRB08029 Brushless RTR Catamaran
Owner’s Manual
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to
the product, personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a
safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use
with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious
injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.
When handling and/or transporting your boat, always pick up the boat from the sides, keeping all moving parts pointed away from you.
Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside
your control. Interference can cause momentary loss of control.
Always operate your model in open spaces away from full-size vehicles, traffic and people.
Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).
Always keep all chemicals, small parts and anything electrical out of the reach of children.
Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture causes damage to unprotected electronics.
Never place any portion of the model in your mouth as it could cause serious injury or even death.
Never operate your model with low transmitter batteries.
Contents [ hide
1 Water-Resistant Boat with Waterproof
Electronics
2 General Precautions
3 Wet Conditions Maintenance
4 Specifications
5 Recommended Tools and Materials
6 Product Inspection
7 Boat Stand Assembly
8 Antenna Tube Installation
9 Canopy Removal
10 Installing the Battery Packs
11 Transmitter Functions
12 Installing the transmitter Batteries
13 Factory Reset
14 Low Voltage Cutoff (LVC)
15 Battery Chemistry
16 Getting Started
17 Receiver Antenna
17.1 Binding
17.2 Failsafe
17.3 Servo Travel
17.4 Control Check
17.5 Testing Your Boat in the Water
18 After Boating and Maintenance
19 Troubleshooting Guide
20 Limited Warranty
21 Warranty and Service Contact Information
22 Documents / Resources
22.1 Related Manuals / Resources
Water-Resistant Boat with Waterproof Electronics
Your new Horizon Hobby boat has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in calm, fresh water
conditions. While the entire boat is highly water-resistant, it is not completely waterproof and your boat should NOT be treated like a submarine. The various electronic components used in
the boat, such as the servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and require additional maintenance after use.
Metal parts, including the bearings, pins, screws and nuts, propeller, rudder, rudder mounts, prop struts, as well as the contacts in the electrical cables, will be susceptible to corrosion if
additional maintenance is not performed after running in wet conditions. To maximize the longterm performance of your boat and to keep the warranty intact, the procedures described in the
“Wet Conditions Maintenance” section must be performed regularly.
CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty.
General Precautions
Read the WET CONDITIONS MAINTENANCE procedures and make sure that you have all the tools you will need to properly maintain your boat.
Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.
Most transmitters are not water-resistant. Consult your transmitter’s manual or the manufacturer before operation.
Never operate your transmitter or boat when lightning is present.
Salt water is very conductive and highly corrosive. If you choose to run your boat in salt water, immediately rinse the boat in fresh water after each use. Operating your boat in salt
water is at the sole discretion of the modeler.
Wet Conditions Maintenance
Drain any water that has collected in the hull by removing the drain plug or canopy and tilting the boat in the appropriate direction to drain the water.
CAUTION: Always keep hands, fingers, tools and any loose or hanging objects away from rotating parts.
Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housings.
Remove all moving parts. Dry and lubricate parts after every 30 minutes of operation or if the boat becomes submerged.
NOTICE: Never use a pressure washer to clean your boat.
Use an air compressor or a can of compressed air to dry the boat and help remove any water that may have gotten into small crevices or corners.
Spray the bearings, fasteners and other metal parts with a water-displacing light oil or lubricant.
Let the boat air dry before you store it. Water (and oil) may continue to drip for a few hours.
Specifications

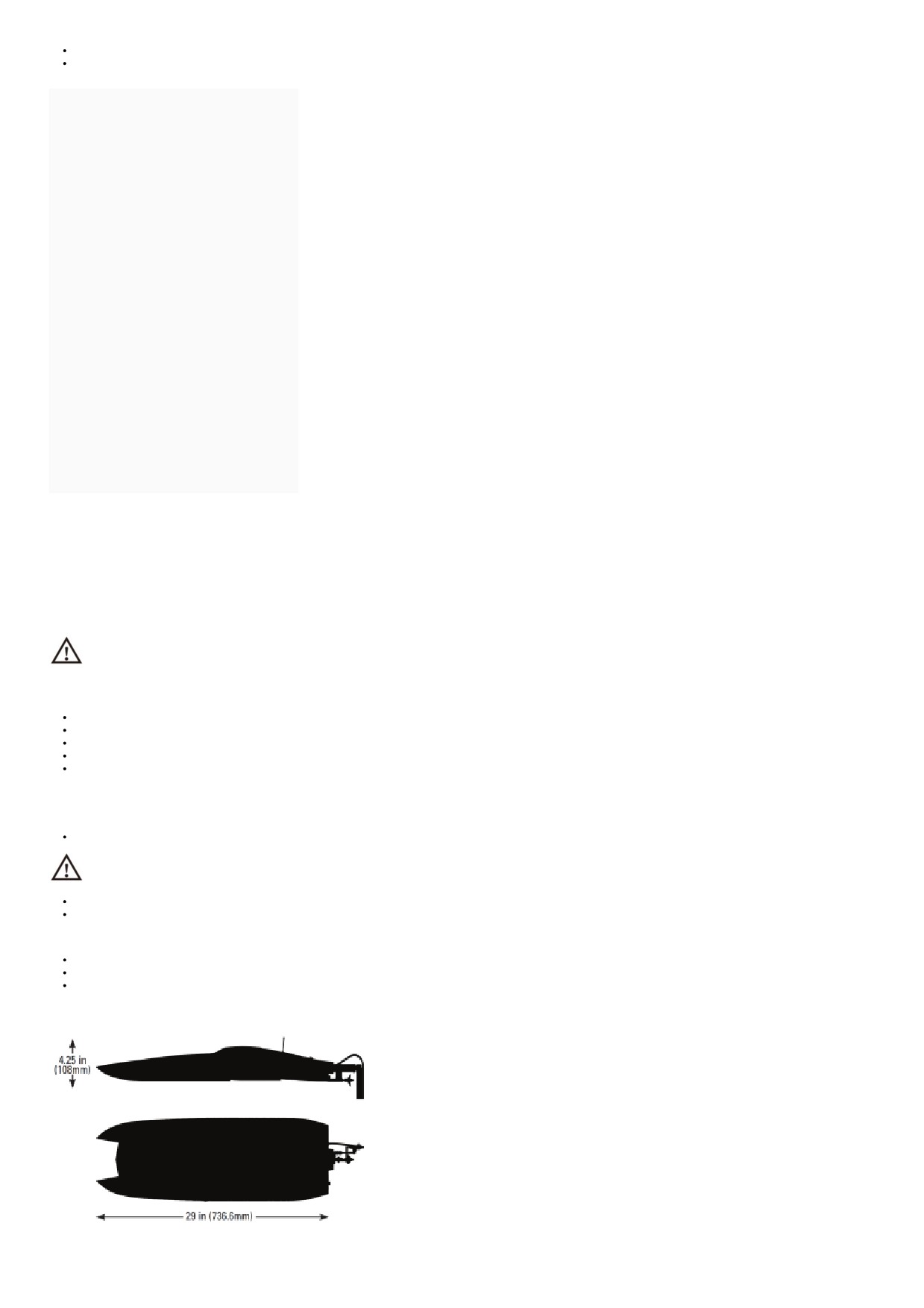

Length
29 in (736.6mm)
Height
4.25 in (108mm)
Transmitter
Spektrum™ SLT3 2.4GHz
Receiver
Spektrum™ SR315 3-CH ® DSMR
Hull Material
Fiberglass
2000Kv 6-Pole 3650
Motor
Marine Motor (DYNM3831)
ESC
120A BL Marine ESC 2-6S (DYNM3875)
Servo
3KG, Plastic Gear Servo, WP, 23T (SPMS603)
Recommended Tools and Materials
(2) Spektrum 7.4V 5000mAh 2S 100C Smart Hardcase LiPo Battery: IC5 (SPMX50002S100H5) -or-
(2) Spektrum 11.1V 5000mAh 3S 100C Smart Hardcase LiPo
Battery: IC5 (SPMX50003S100H5)
Spektrum Smart S2100 AC Charger, 2x100W (SPMXC1010)
Needle nose pliers
Paper towel
Rubbing alcohol
Open-end wrench: 10mm (2)
Nut driver: 4mm, 7mm, 8mm
Phillips screwdriver: #1
Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm
Clear tape (DYNM0102)
Dynamite® Marine Grease and Gun (DYNE4200)
Hook and Loop Tape Set, WP 4pcs (DYNK0300)
Product Inspection
Carefully remove the boat and radio transmitter from the box. Inspect the boat for damage. If your product is damaged, please contact the hobby shop where you purchased your boat, or
contact Horizon Hobby Product Support. Refer to the Warranty and Service Contact Information section for more info.
Boat Stand Assembly

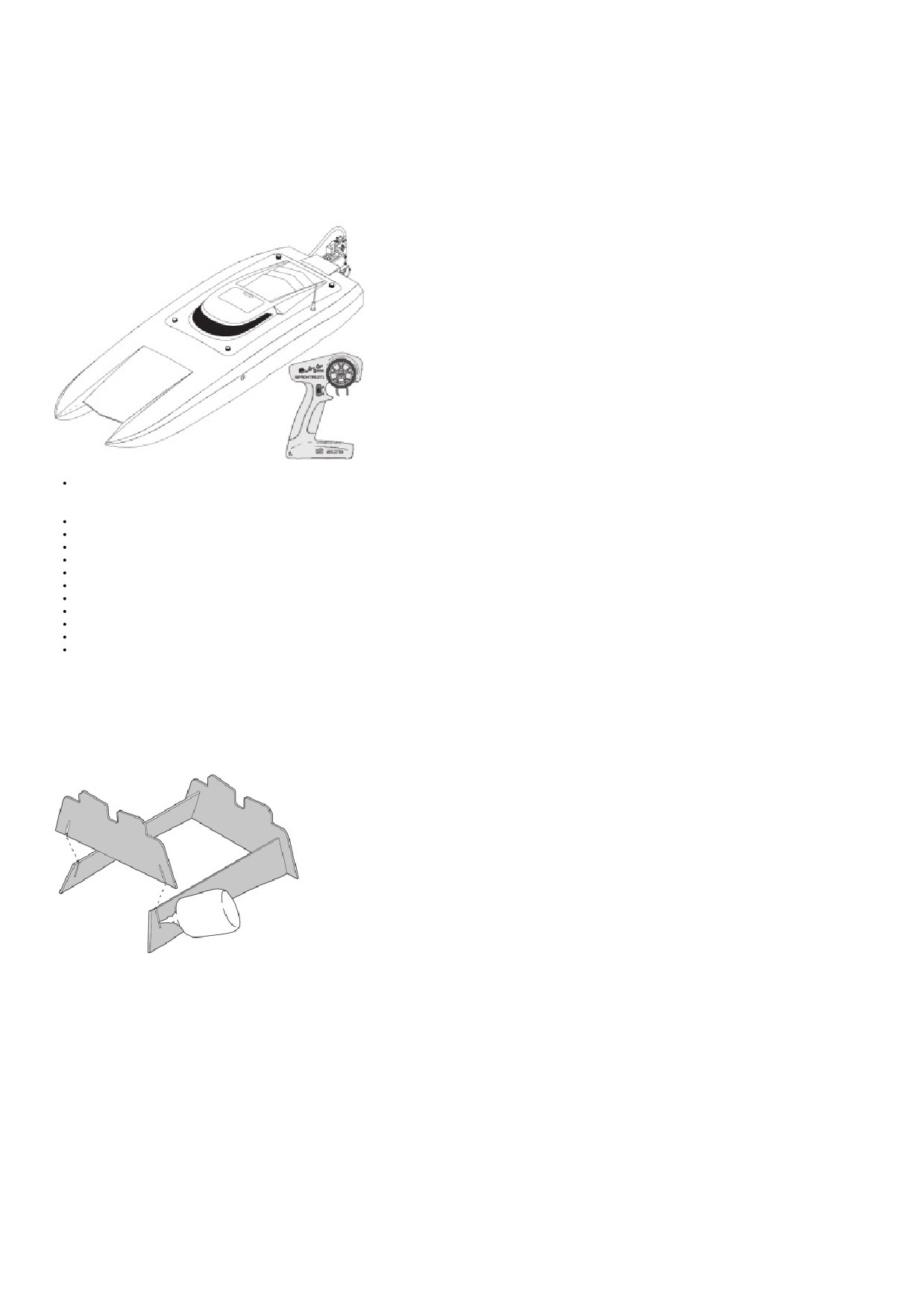

1. Attach the side stand pieces to the end pieces as shown.
2. Use medium CA or epoxy adhesive to secure the side stand to the ends.
3. Allow the adhesive to dry before placing your boat on the stand.
Antenna Tube Installation

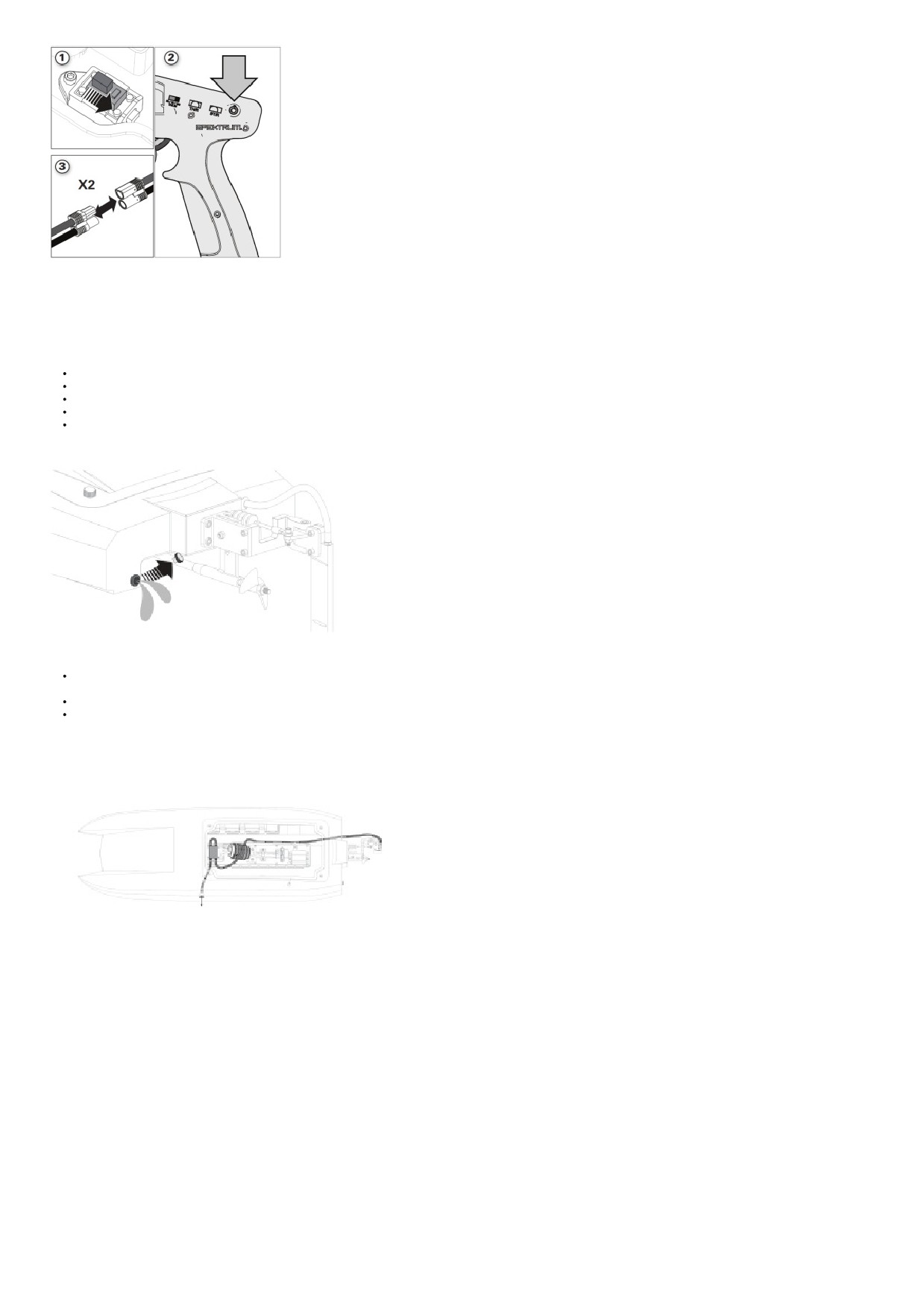

1. Carefully feed the end of the receiver antenna through the grommet inside the hull.
2. Pull the antenna wire out of the grommet toward the outside of the boat, then slide the antenna through the antenna tube.
3. Insert the tube into the grommet, then fit the cap onto the tube.
4. Slide the clear 20mm silicone cooling line over the grommet and hull and install the tube into the silicone cooling line. The antenna must be installed above the boat’s waterline to get
the best reception of your transmitter’s signal.
NOTICE: Do not cut or kink the receiver antenna or damage may result.
Canopy Removal
1. Loosen the 4 screws located at each corner of the canopy.
2. Remove the canopy from the hull starting with the 2 rear screws. Ensure that the 4 screws have disengaged from their bases before carefully lifting the canopy.
Installing the Battery Packs
The included electronics are rated for 2S-6S LiPo batteries; however, running the stock propeller nonstop on a 6S battery could overheat your electronics or damage your batteries. If you
run the stock propeller on 6S, we recommend using full throttle on straight line passes only. Return passes should be at half throttle to reduce the heat of the electronics. If you want to run
6S nonstop, use optional propellers (PRB282006 or PRB282027).

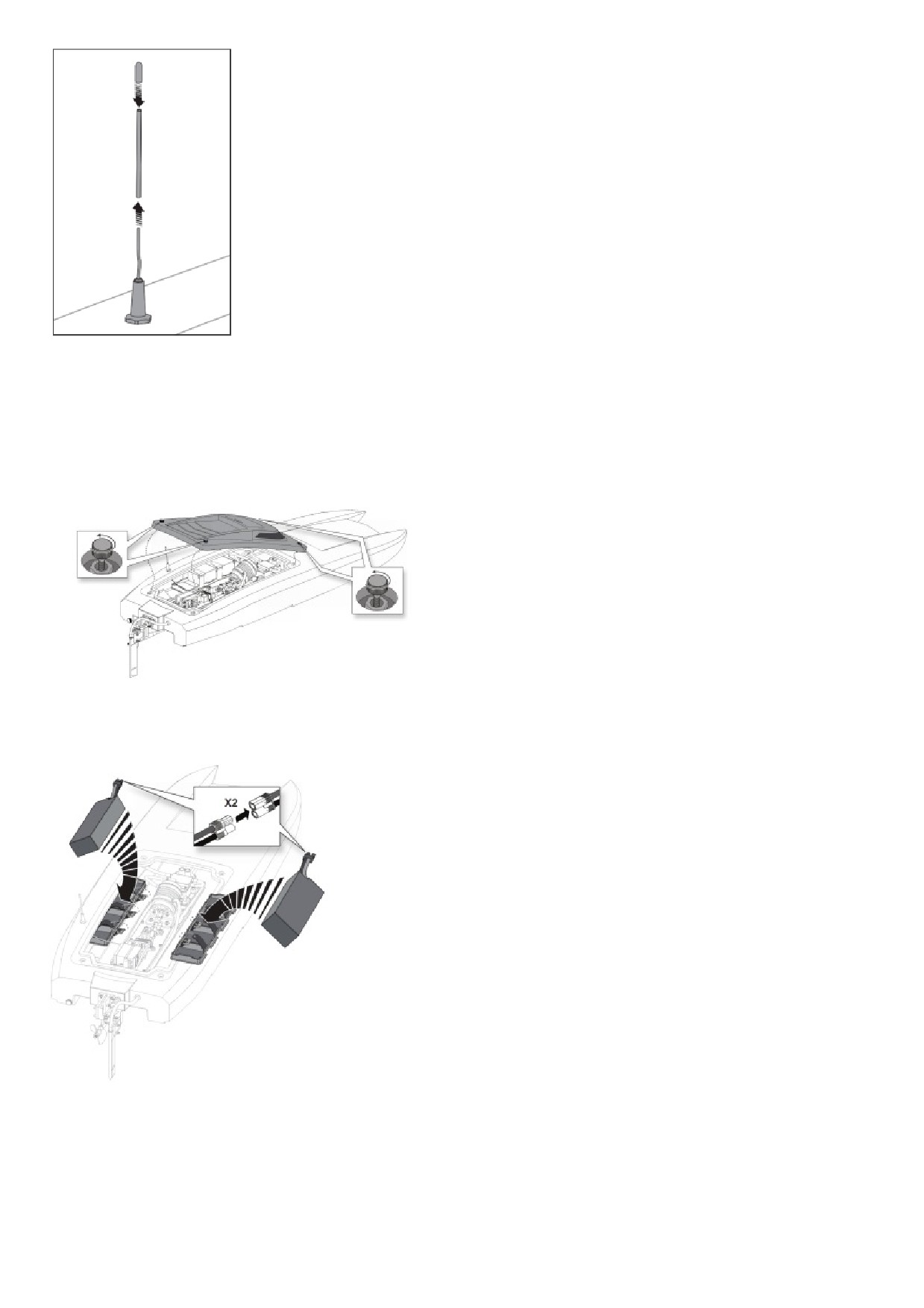

1. Install the 2 battery packs on the left and right sides of the boat hull. Secure the batteries with the included hook and loop straps. When running your boat in rough water, use
Waterproof Hook and Loop Tape (DYNK0300) between the batteries and the battery tray to secure the batteries more fully.
Tip: Place the batteries as far back in the battery trays as possible to achieve maximum speed and handling. If water and wind conditions are too strong, stabilize the boat by moving
the battery packs forward 1/4 inch at a time.
2. Connect each battery pack to the ESC power connectors.
The included propeller provides the best performance between 4S (14.8V) and 5S LiPo (18.5v). 5S configuration can be achieved by mounting a 3S LiPo (DYNB3811EC) on the left
side of the boat and a 2S, LiPo (DYNB3810EC) on the right side of the boat. The added weight of the 3S battery on the left side will counteract torque twist caused by the propeller
spinning at high RPM.
WARNING: When using 2 batteries in series, always make sure they are in roughly the same condition (age) and they have the same capacity (mAh) and discharge rate (C rating). Failure
to do so may cause damage to your batteries, potentially causing a fire.

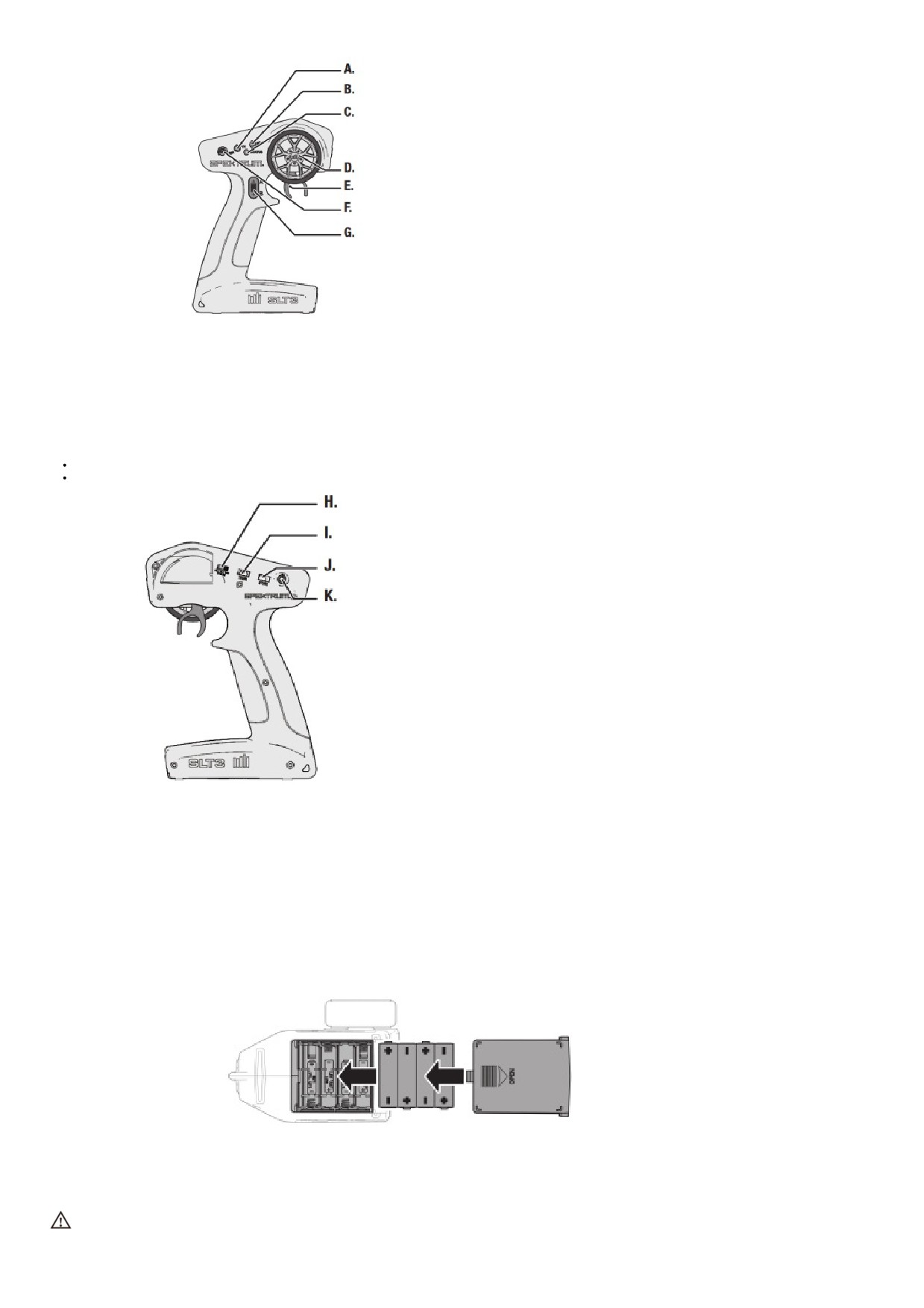

Transmitter Functions
Specifi cations
Power Supply: 4 AA Batteries
Operating Frequency: 2.4GHz
Transmit Power: <100mw
Control Protocol: SLT
Control: Proportional Steering and Throttle/Brake with Trim Knobs, Third Channel with 3 Position Momentary Switch
Auxiliary Functions: 3 Position Throttle Limit Switch, Steering Rate Knob to Change Steering Travel on-the-fly, Programmable Servo Travel for Steering and Throttle/Brake
A. Throttle Trim
Adjusts the throttle neutral point
B. Steering Trim
Adjusts the steering center point. Normally, the steering trim is adjusted until the vehicle tracks straight.
C. LED
Solid red lights: Indicates the power is ON and adequate battery power
Flashing red lights: Indicates the battery voltage is critically low. Replace batteries
D. Steering Wheel
E. Throttle/Brake
F. Steering Rate
On-The-Fly knob for travel adjustment on the steering
G. Channel 3
3 position momentary switch, middle position is neutral For programming press up for A button, press down for B button
H. Throttle Limit
Limits throttle output to 50/75/100%
Select 50% or 75% for less experienced drivers or when you are driving the vehicle in a small area.
I. Throttle (TH) Servo Reversing
Move the switch to reverse the throttle channel
J. Steering (ST) Servo Reversing
Move the switch to reverse the steering channel
K. Power Button
Installing the transmitter Batteries
This transmitter requires 4 AA batteries.
1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons
and/or damage to property.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to national regulations.
Factory Reset
There is a hidden mode if you want to reset the servo travel and calibration in the transmitter.
1. Hold full left and full brake while powering the transmitter ON to put the transmitter into programming mode.
The LED will flash 4 times then turns OFF to indicate factory reset.
2. Release the wheel and throttle trigger back to neutral and the LED will illuminate to indicate factory reset is complete.
3. Power the transmitter OFF.
Battery Charger
Choose a charger designed to charge the recommended (2) Spektrum 7.4V 5000mAh 2S 100C Smart Hardcase LiPo Battery: IC5 (SPMX50002S100H5), or (2) Spektrum 11.1V 5000mAh
3S 100C Smart Hardcase LiPo Battery: IC5 (SPMX50003S100H5)We recommend the Spektrum Smart S2100 AC Charger, 2x100W (SPMXC1010).
Refer to your charger manual for charging instructions and safety information.
NOTICE: Never charge a battery in the boat or damage may result.
Low Voltage Cutoff (LVC)
Discharging a Li-Po battery below 3V per cell may damage your battery.The included ESC protects the boat battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery
charge decreases too much, LVC removes power supplied to the motor. Power to the motor pulses, showing that some battery power is reserved for boat control and safe landing.
Disconnect and remove the Li-Po battery from the boat after use to prevent trickle discharge. Charge your Li-Po battery to about half capacity before storage. During storage, make sure the
battery charge does not fall below 3V per cell. LVC does not prevent the battery from overdischarge during storage.
NOTICE: Repeated operation to LVC will damage the battery.
Tip: Monitor your boat battery’s voltage before and after boating by using a Spektrum XBC100 Smart Battery Checker & Servo Driver (SPMXBC100, sold separately).
Battery Chemistry

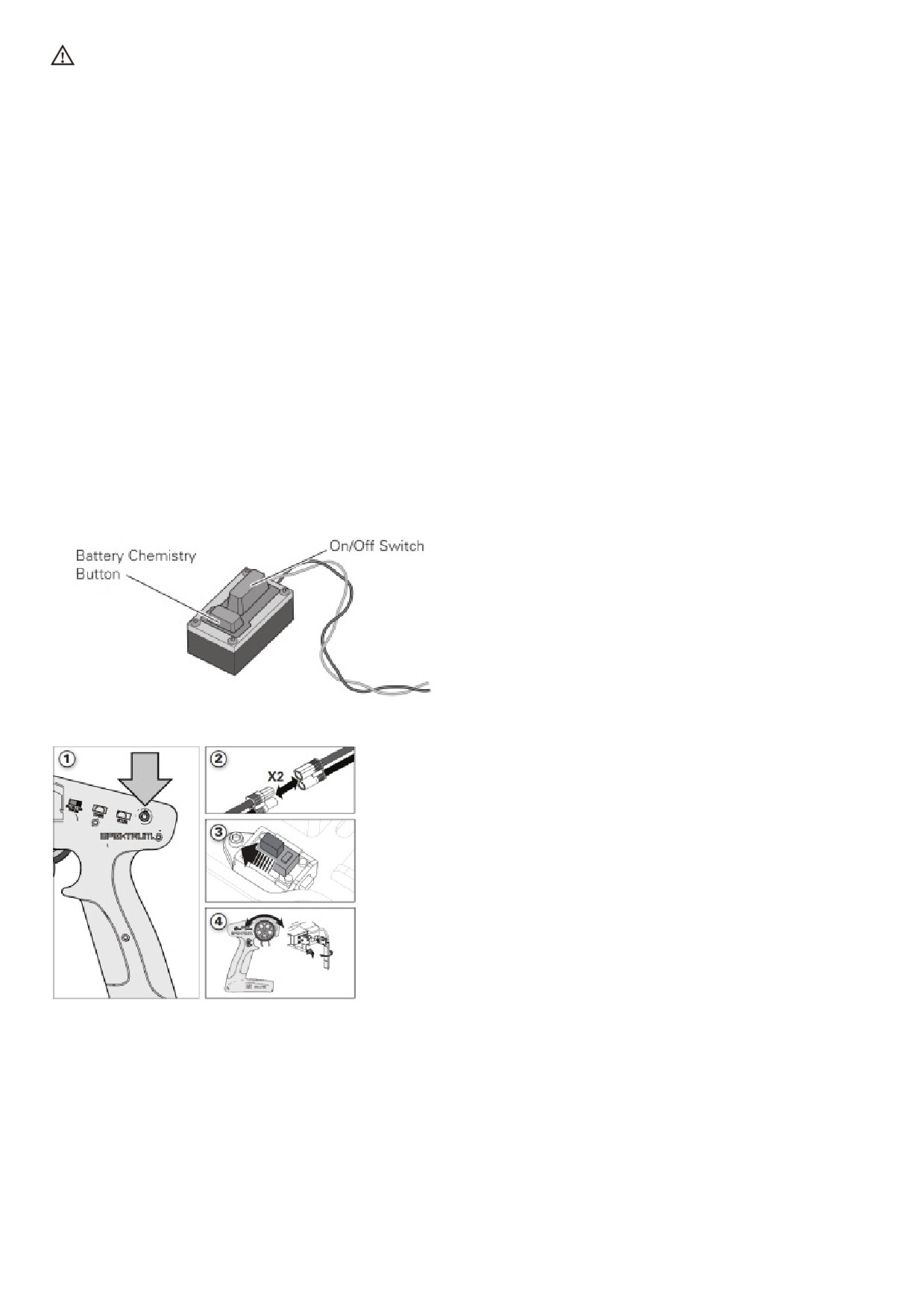

The ESC comes from the factory in Li-Po Mode. To change battery chemistry:
1. Keep the throttle at neutral and power ON the ESC.
2. Press and hold the Battery Chemistry Button on the power switch for 3 seconds. The LED flashes the current battery chemistry (red = Ni-MH or Ni-Cd; green = Li-Po).
3. Continue holding the Battery Chemistry Button for another 6 seconds. The ESC changes battery chemistry and the LED flashes the new battery chemistry.
4. Power OFF the ESC. The ESC saves the setting until it is changed.
Getting Started
1. Power on the transmitter.
2. Connect the two batteries to the EC5™ connectors on the ESC.
3. Power on the ESC switch. The ESC arming tones will sound.
4. Test the transmitter’s control of the boat with the boat on the display stand.
SPMSR315 Dual Protocol Receiver
Specifi cations
Type: Dual Protocol 3 Ch Receiver* (SLT/DSMR)
Dimensions (LxWxH): 32.5 x 21.5 x 12.4mm
Antenna Length: 90mm
Channels: 3
Weight: 6g
Band: 2.4GHz
Voltage Range: 3.5-9.6V
Bind Type: Bind Button
Failsafe: Hold the steering wheel and throttle trigger in the desired failsafe positions during binding
*SPMSR315 receivers included with the SLT3 transmitter include SLT and DSMR compatibility. If you have an SR315 receiver that was purchased by itself, you may need to install a
firmware update to make your SR315 SLT compatible.
Receiver Antenna
The SR315 receivers feature a coaxial antenna design for easy installation in almost any model. Think of the last 1 inch (32mm) on the tip of the antenna as the active portion of the
antenna, the coaxial portion leading up to it is just an extension. Install the antenna so the active portion is positioned as high as possible in the vehicle, and not “in the shadow” of any
carbon fiber or metal. The case of the receiver can accept an antenna tube directly, making optimal antenna placement easy (antenna tube not included).
WARNING: Do not kink, cut or damage the antenna wire. The antenna is made of a coaxial wire; if the outer sheath becomes damaged, the receiver will not work properly. If the
antenna is damaged in any way, replace the antenna before attempting to use the receiver.
Binding
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter.

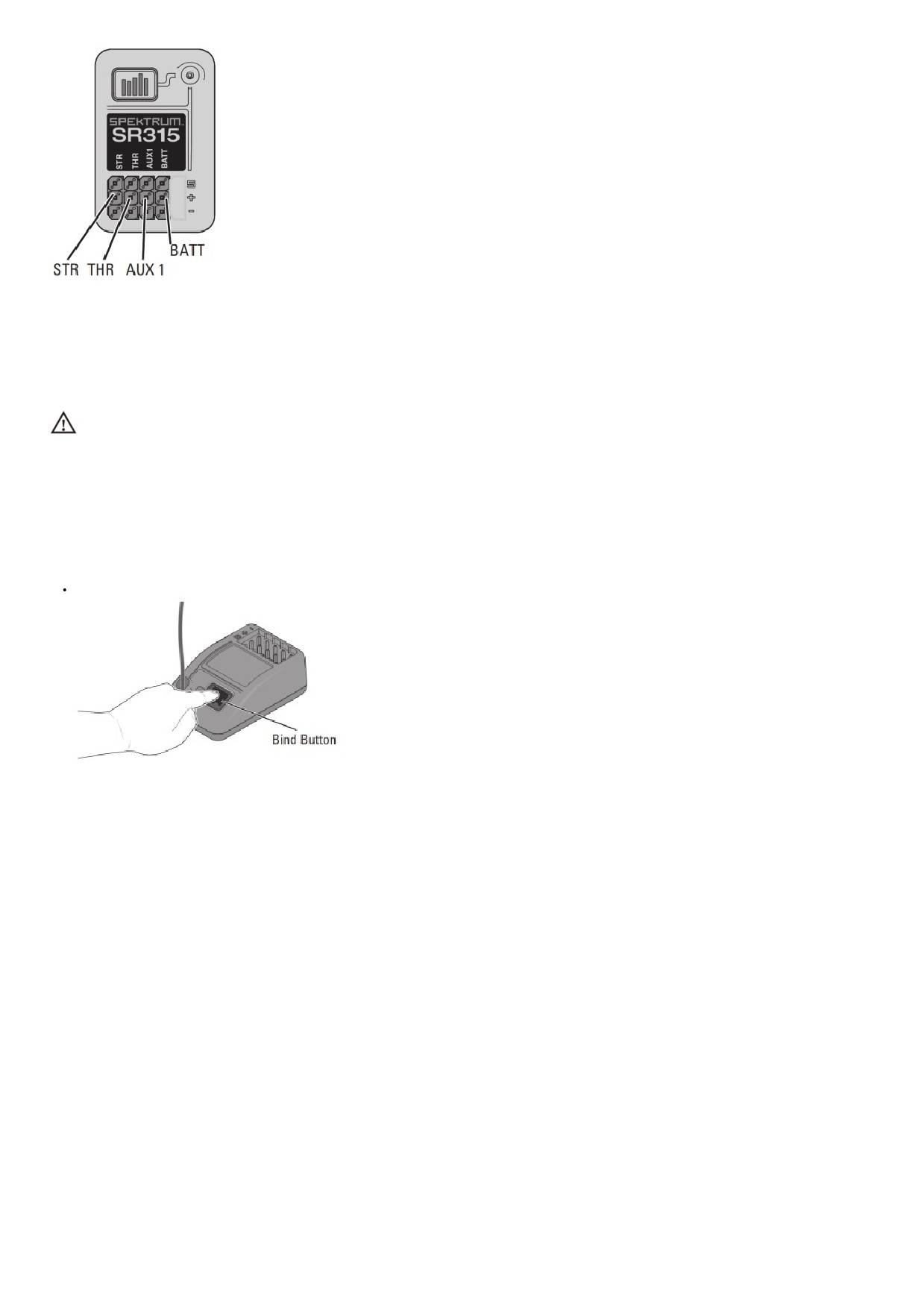

1. Press and hold the bind button, and Power ON the receiver; the orange LED will begin to flash.
2. Set the trims and control positions at the desired failsafe settings, and power ON the SLT3 transmitter. 3. When the orange LED on the SLT3 transmitter remains lit, it is connected to
SR315 receiver.
You must rebind when:
Different failsafe positions are desired e.g., when throttle or steering reversing has been changed. Binding the receiver to a different transmitter.
Failsafe
In the unlikely event that the radio connection is lost during use, the receiver will drive the servos to their preprogrammed failsafe positions as set during Binding.
If the receiver is powered on before powering on the transmitter, the receiver will enter this failsafe mode. When the transmitter is powered on, normal control is resumed.
IMPORTANT: Failsafe activates only in the event that signal is lost from the transmitter. Failsafe will NOT activate in the event that receiver battery power decreases below the
recommended minimums or power to the receiver is lost.
Servo Travel

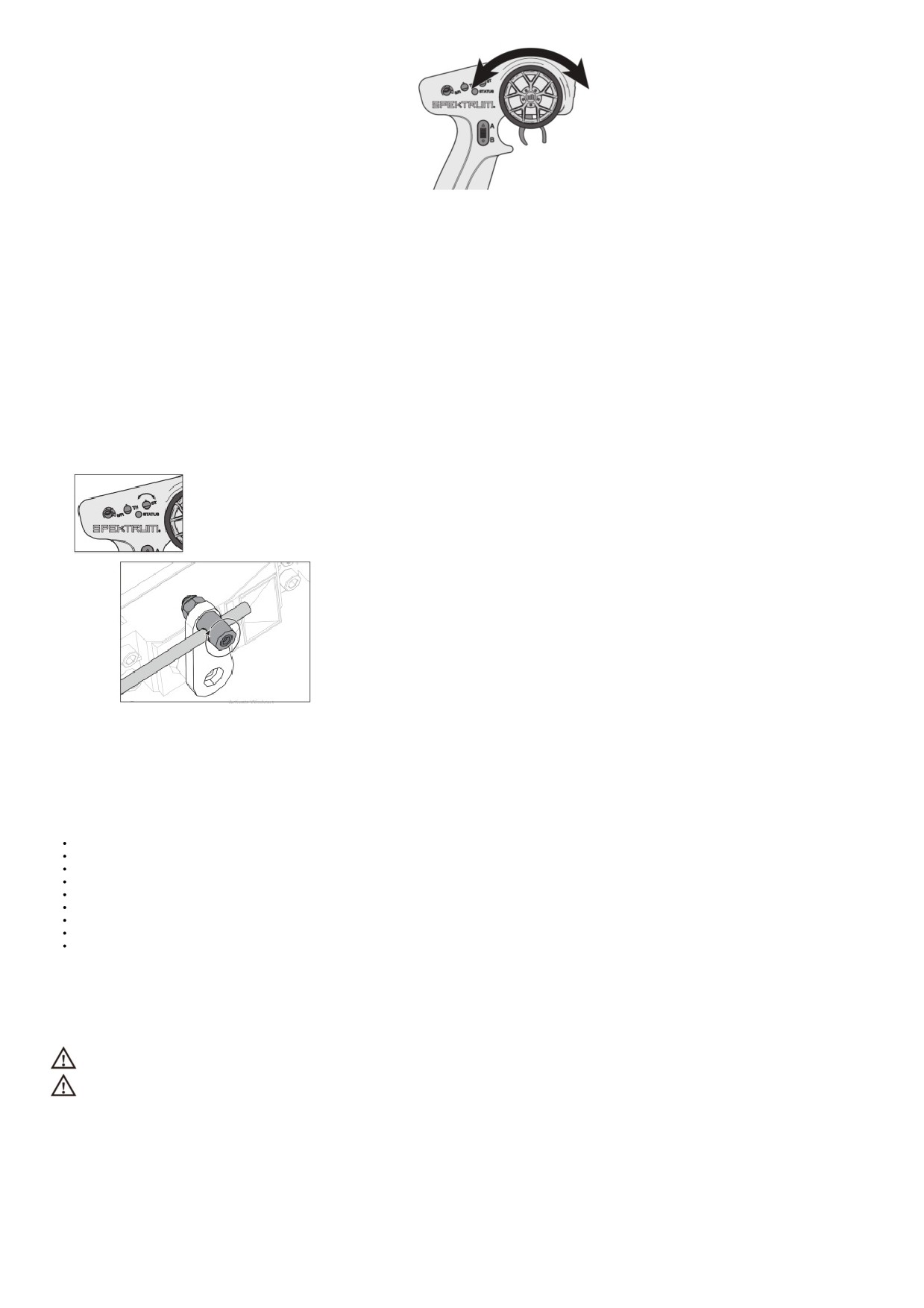

The servo travel on the Steering and Throttle channels can be adjusted through a special programming mode in the transmitter.
1. Begin with the transmitter binding process to the receiver complete. Power ON the receiver.
2. Hold full right and full brake while powering the transmitter ON to put the transmitter into programming mode. The LED on the transmitter will flash 4 times to indicate it is in
programming mode.
3. Turn and hold the wheel full left to set the travel limit for that direction, Press the A button to increase travel, press the B button to reduce travel. The LED will flash once with every
change. Return the wheel to center to set the travel value.
IMPORTANT: If the value has reached the maximum or minimum that can be accepted, the LED will not flash with further input.
4. Turn the wheel to the right and repeat the process to set the steering travel to the right.
5. For electric vehicles, power the Transmitter OFF to save the settings. Calibrate your ESC to the default throttle travel.
6. For fuel powered vehicles, set the throttle travel without the engine running; After setting steering travel, you can set throttle travel with the same process. Pull and hold full throttle,
adjust travel with the A and B buttons, return to center to set the value.
7. Push full brake, adjust travel with the A and B buttons, return to center 8. Power the transmitter OFF to save the values.
Control Check
IMPORTANT: Perform a control check at the beginning of each boating session, after repair or after installation of new batteries.
Ensure the receiver antenna is extended properly and all batteries are fully charged.
1. Power ON the transmitter and the boat. Do not install the boat canopy.
2. Place the boat securely on the boat stand.
NOTICE: Do not operate the engine without water cooling circulation or damage may result.
3. Check steering and throttle on the transmitter.
Testing Your Boat in the Water
Tip: Before placing your boat in the water, secure the canopy on the hull. Apply clear tape (DYNM0102) around the canopy seam, if desired.
1. Carefully place the boat in the water.
2. Operate the boat at slow speeds near the shoreline. Avoid objects in the water at all times. When the boat is moving forward, ensure water flows out of the coolant outlet. Remove any
blockage from the rudder inlet and coolant system or the motor and ESC (electronic speed control) may overheat.
3. Once you are comfortable operating the boat at slow speeds, it is safe to operate the boat farther from the shore.
4. If the boat does not go straight, adjust the steering trim dial on the transmitter.
Tip: If you are using excessive steering trim on your transmitter to make the boat drive straight, return the trim to neutral and mechanically center the rudder. To do this, use a 1.5mm
hex driver to loosen the set screw holding the push rod to the servo. Adjust the linkage in or out of the brass barrel until the rudder is centered. Tighten the set screw using a 1.5mm hex
driver.
5. Bring the boat back to shore when you notice the boat starting to lose speed.
6. Power off the ESC and disconnect the battery packs.
7. Allow the motor, ESC and battery packs to cool before charging the batteries or operating the boat again.
NOTICE: Always power OFF the receiver before powering OFF the transmitter. If the transmitter is powered OFF before the receiver, the receiver will enter failsafe mode.
Boating Tips
When running your boat for the first time, we recommend calm wind and water conditions so that you can learn how the boat responds to your control.
Maximum speeds are only achieved when the water conditions are smooth and there is little wind. A sharp turn, wind or waves can turn over a boat when it is moving quickly. Always pilot
your boat for the wind and water conditions so that the boat does not turn over.
Tip: Use Clear Flexible Marine Tape (DYNM0102) around the canopy when running your boat in rough water. Consult local laws and ordinances before choosing a location to pilot your
boat.
Avoid boating near:
watercraft
people (swimming areas, fishing areas)
stationary objects
waves, wakes
rapidly moving water
wildlife
floating debris
overhanging trees
vegetation
If the propeller and rudder are blocked with debris or vegetation, remove the boat from the water and remove the debris before continuing operation.
When making turns, decrease the throttle to reduce the probability of flipping the boat over. If necessary, adjust your steering input to decrease sensitivity.
Never operate your boat in less than 12 inches (30.5 cm) of water. If you need to retrieve your boat from the water, use fishing equipment or another boat.
NOTICE: When running at full speed in choppy waters, the prop may exit and re-enter the water repeatedly and very quickly, subjecting the propeller and flex shaft to some stress. Frequent
stress may damage the propeller and flex shaft.
CAUTION: Never operate your boat in extreme temperatures or turbulent water.
CAUTION: Never attempt to retrieve a downed boat by swimming.
When You Are Finished
1. Power off the receiver.
2. Power off the transmitter.
3. Disconnect and remove the batteries from the boat.
Tip: Always remove the canopy before storage or moisture may allow mold and mildew to grow in the boat.
After Boating and Maintenance
Drain water from inside the hull using the drain plug
Fully dry the inside and outside of the boat, including the water cooling lines and jacket around the motor. Remove the hatch before storing your boat
Repair any damage or wear to the boat
Lubricate the flex shaft using Pro Boat Marine Grease (DYNE4200)
Make note of lessons learned from the trimming of your boat, including water and wind conditions
Tip: The hook and loop strips in the boat retain water. To dry them, press on them with a dry cloth.
NOTICE: When you are finished boating, never leave the boat in direct sunlight or in a hot, enclosed area such as acar. Doing so can damage the boat.
Motor Care
Prolong motor life by preventing overheating conditions. Undue motor wear results from frequent turns stops and starts, pushing objects, boating in rough water or vegetation and
boating continuously at high speed.
Over-temperature protection is installed on the ESC to prevent circuit damage, but cannot protect the motor from excessive physical resistance.
Use Dynamite Precision Oiler (DYNE0100) to service the motor’s bearings. If the bearings get wet, use water displacement fluid then oil the bearings to prevent rust or seizure.
Water Cooling System
If water does not stream out of the water outlets while the boat is moving forward, immediately return the boat to shore and clean any obstructions or remove kinks from the water cooling
lines/system.
1. Disassemble and clean the water cooling system to remove blockage and prevent overheating.
2. Replace damaged parts.

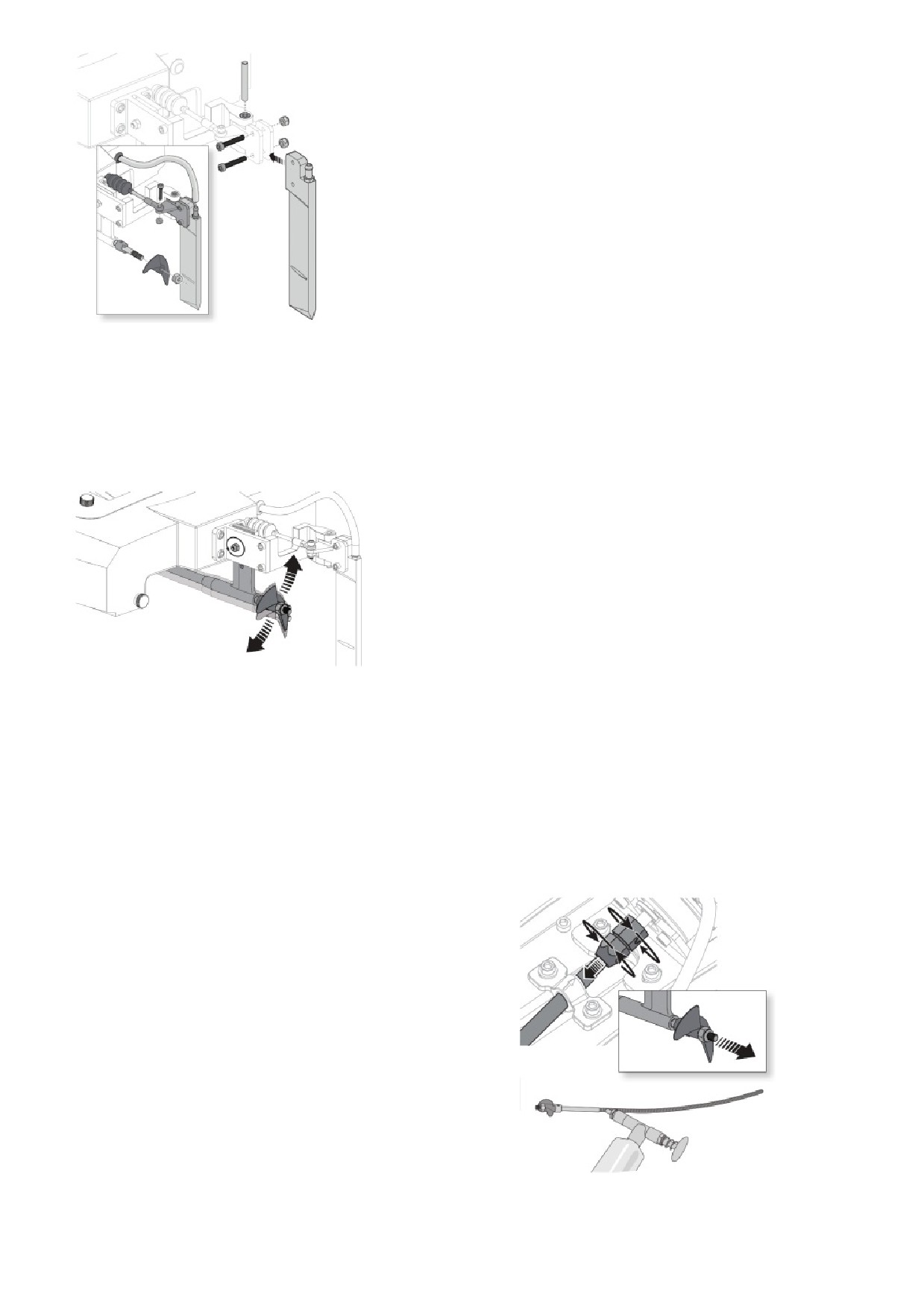

Rudder Service
1. Disconnect the water tube from the rudder.
2. Remove the nut, screw and linkage from the rudder arm.
3. Turn the rudder and loosen the set screw from the rudder pin.
4. Turn over the boat and lightly tap the rudder to remove the pin.
5. Assemble in reverse order.
Tip: Use a Nylon Breakaway Screw (PRB285000) as a replacement for the rudder breakaway bolt.
Propeller Service
1. Use an 8mm nut driver (DYN2805) to loosen the nut from the driveshaft. To secure the propeller while loosening the nut, hold the propeller.
2. Remove the nut and propeller from the driveshaft.
3. Assemble in reverse order. Correctly align the propeller with the drive dog on the driveshaft.
Propeller Strut Depth Adjustment
Raising the propeller strut increases speed but decreases handling. Lowering the propeller strut increases stability but decreases speed.
1. Use a 3 mm hex driver and 7mm open-end wrench to loosen the propeller strut bolt.
2. Slide the strut up or down to change the angle of the propeller in relation to the hull.
3. Once desired strut depth is achieved, tighten the nuts and bolts.
Drivetrain Lubrication
Always replace the drivetrain parts when they are damaged or show visible wear or injury and damage may result.
Lubricating the flex shaft is vital to the life of the drivetrain. The lubricant also acts as a water seal, keeping water from entering the hull through the stuffing tube.
Lubricate the flex shaft and propeller strut after every 30 minutes of operation and/or everytime you change the batteries.
1. Inside the hull, use 2 10mm open-end wrenches to loosen the collet nut from the flex shaft.
2. Slide the flex shaft out from the stuffing tube and drive strut at the rear of the boat.
3. Wipe the old lubricant and material from the flex shaft.
Tip: Use motor spray (DYN5500) to break down the grease buildup.
4. Lubricate the full length of the flex shaft assembly up to the drive dog using Dynamite Marine Grease (DYNE4200). Also apply grease to the collet threads.
5. Carefully reinstall the flex shaft in the drive strut, stuffing tube and collet. If the flex shaft is difficult to remove from (or install into) the collet, rotate the flex shaft to the right while pulling
it from (or inserting it into) the collet.
NOTICE: Do not rotate the flex shaft to the left inside the coupler.
Ensure there is a 2mm gap between the drive strut and drive dog to allow for flex shaft shrinkage under load.
NOTICE: Running the boat in saltwater could cause some parts to corrode. If you run the boat in saltwater, rinse it thoroughly in freshwater after each use and lubricate the
drive system.
NOTICE: Because of its corrosive effects, running RC boats in saltwater is at the discretion of the modeler.
Transmitter Programing
1. Pull and hold the Throttle Trigger to full throttle and turn the ESC on.
2. After 2 seconds a “-B-B” will sound. Wait another 5 seconds and the ESC will give a rising tone to indicate you have entered Programming Mode.
3. After entering Programming Mode, you will hear 4 tones in a loop indicating Programmable Items. Push the Throttle Trigger to full brake within 3 seconds after the tone sounds
matching the programmable item you want to select.
4. After selecting a programmable item, you will hear several tones in a loop indicating Programmable Values. Pull Throttle Trigger to full throttle to select the value matching the tone. The
ESC will give an alternating tone to indicate the item is selected.
5. Keep the trigger in Full Throttle to return to Step 3 and continue item selection. Move the throttle stick to full brake position within 2 seconds to exit the Program Mode.
The black-shaded setting is the factory default
Programmable Value
-B
Single Beep
B Long Beep
Programmable Items
B
B
B
-B
-B-B
-B-B-B
-B-B-B-B
B
-B
-B-B
-B-B-B
Running Mode -B
Forward Only
Forward/ Backward
Li-Po Cells -B-B
Auto Calc.
2s
3s
4s
5s
6s
Low Voltage Cutoff -B-B-B
None
2.8V/Cell
3.0V/
3.2V/Cell
3.4V/Cell
Timing -B-B-B-B
0.00°
3.75°
750°
11.25°
15.00°
18.75°
22.50°
26.25°
Troubleshooting Guide
Problem
Possible Cause
Solution
Boat will not respond to throttle but
Throttle channel is reversed
Reverse throttle channel on transmitter
responds to other controls
Damaged propeller, shaft or motor
Replace damaged parts
Extra noise or extra vibration
Propeller is out of balance
Balance or replace propeller
Boat battery charge is low
Completely recharge battery
Boat battery is damaged
Replace boat battery and follow battery instructions
Blocking or friction on shaft or propeller
Disassemble, lubricate and correctly align parts
Reduced runtime or boat underpowered Boat conditions may be too cold
Make sure the battery is warm (above 10° C [50° F]) before use
Battery capacity may be too low for conditions
Replace battery or use a larger capacity battery
Too little lubrication on driveshaft
Fully lubricate driveshaft
Vegetation or other obstacles block the propeller
Remove vegetation or obstacles from propeller
Move powered transmitter a few feet from boat, disconnect and reconnect batter
Transmitter is too near boat during binding process
to boat
Boat or transmitter is too close to large metal object, wireless source
Move the boat and transmitter to another location and attempt binding again
or another transmitter
Boat will not Bind (during binding) to
transmitter
Another compatible transmitter in bind mode within range of the
Power off all compatible transmitters except the one you are trying to bind
receiver
Boat battery/transmitter battery charge is too low
Replace/recharge batteries
ESC switch is off
Power on ESC switch
Move powered transmitter a few feet from boat, disconnect and reconnect batter
Transmitter is too near boat during connecting process
to boat
Boat or transmitter is too close to large metal object, wireless source
Boat will not connect (after binding) to
Move boat or transmitter to another location and attempt to connect again
or another transmitter
transmitter ransmi
Boat battery/transmitter battery charge is too low
Replace/recharge batteries
ESC switch is off
Power on ESC switch
Dry out the boat and ensure the hatch is fully closed on the hull before returning
Boat tends to dive in the water or takes
The boat hull is not completely closed
the boat to the water
on water
Center of gravity is too far forward
Move batteries back in the hull
Controls reversed
Transmitter settings are reversed
Do the Control Direction Test and adjust controls on transmitter appropriately
Motor overheats
Blocked water cooler lines
Clean, unkink or replace water lines
Motor power pulses then motor loses
Weather conditions might be too cold
Postpone until weather is warmer
power
Battery is old, worn out or damaged
Replace battery
Boat moves forward or backward
Throttle trim on transmitter not centered
Adjust throttle trim to center (12 o’clock)
without input from user
Boat does not drive straight
Steering trim on transmitter not centered
Adjust steering trim so vehicle drives straight
Steering rate not adjusted correctly
Adjusts steering rate (ST RATE) knob on transmitter to desired steering throw
No steering or lack of steering
Servo failed
Contact Horizon Product Support
ESC failed
Contact Horizon Product Support
No throttle or lack of throttle
Motor failed
Contact Horizon Product Support
ESC emits a continues tone when
Throttle trim not centered
Center throttle trim on transmitter
powered on
Limited Warranty
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use,
installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product
not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations or (vii) use that violates any applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be
defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase
is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN
ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY,
EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which
liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the
act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser
is advised to return the Product immediately in new and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Horizon reserves the right to change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your
local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance,
please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information
section to speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found
on our website or call Horizon to obtain a return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be
included, but are not designed to withstand the rigours of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as
Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at
http://www.horizonhobby.com/content/service-center_render-servicecenter. If you do not have internet access, please contact Orion Product Support to obtain an RMA number along
withinstructions for submitting your product for service. Whencalling Horizon, you will be asked to provide your completename, street address, email address and phone numberwhere you
can be reached during business hours. When sending products into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of
your original sales receipt must be included for warranty consideration. Be sure your name,address, and RMA number are clearly written on the outsideof the shipping carton.
NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a Li-Po battery, please contact the appropriate Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or
replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of
the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include
this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts
money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms
and Conditions found on our website http://www.horizonhobby.com/content/service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be
responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a
period of 60 days from notification, after which it will be discarded.
Warranty and Service Contact Information
Country of
Horizon Hobby
Phone Number/Email Address
Address
Purchase
Horizon Service Center
servicecenter.horizonhobby.com/RequestForm/
(Repairs and Repair Requests)
Horizon Product Support
productsupport@horizonhobby.com
2904 Research Rd Champaign, Illinois,
North America
(Product Technical Assistance)
877-504-0233
61822 USA
websales@horizonhobby.com
Sales
800-338-4639
Horizon Technischer Service
service@horizonhobby.eu
Hanskampring 9
European Union
Sales: Horizon Hobby GmbH
+49 (0) 4121 2655 100
D 22885 Barsbüttel, Germany
FCC Information:
FCC ID: BRWSPMSLT300
FCC ID: BRWSRIRVINGV1
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Horizon Hobby, LLC
2904 Research Rd.,
Champaign, IL 61822
Email: compliance@horizonhobby.com
Web: HorizonHobby.com
IC Information
IC: 6157A-SPMSLT300
IC: 6157A-SRIRVINGV1
CAN ICES-3 (B)/NMB-3(B)
This device contains license-exempt transmitter(s)/receivers(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to
the following 2 conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
EU Compliance Statement: Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following:
EU Radio Equipment Directive 2014/53/EU;
RoHS 2 Directive 2011/65/EU
RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863
The full text of the EU declaration of conformity is available at the following internet address: https://www.horizonhobby.com/content/supportrender-compliance.
Wireless Frequency Range and Wireless Output Power
SLT3 Transmitter
Max EIRP:16.3
Frequency Range:2403-2480MHz
SR315 Receiver
Max EIRP: -1.33dBm
Frequency Range: 2404-2476MHz
EU Manufacturer of Record:
Horizon Hobby, LLC
2904 Research Road
Champaign, IL 61822 USA
EU Importer of Record:
Horizon Hobby, GmbH
Hanskampring 9
22885 Barsbüttel Germany
WEEE NOTICE:
This appliance is labeled in accordance with European
Directive 2012/19/EU concerning waste of electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be
deposited at an appropriate facility to enable recovery and recycling.
Antenna Separation Distance
When operating your Spektrum transmitter, please be sure to maintain a separation distance of at least 5 cm between your body (excluding fi ngers, hands, wrists, ankles and feet) and the
antenna to meet RF exposure safety requirements as determined by FCC regulations. The following illustrations show the approximate 5 cm RF exposure area and typical hand placement
when operating your Spektrum transmitter.
65812 PRB
Created: 11/2020
Pro Boat, the Pro Boat logo, Veles, DSMR, EC5, Dynamite, Reaction, Passport and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum
trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
US 9,930,567. US 10,419,970. Other patents pending.
Documents / Resources
PROBOAT PRB08029 Brushless RTR Catamaran [pdf] Owner's Manual
PRB08029, Brushless RTR Catamaran
Related Manuals / Resources
hama 050543 Shredder HOME L10CD Instruction Manual
hama 050543 Shredder HOME X10CD Instruction Manual Machine setup Device head Intake shaft for paper and plastic
cards…
beurer Blood Pressure Monitor BC 54 Instruction Manual
beurer Blood Pressure Monitor BC 54 Instruction Manual Read these instructions for use carefully and keep them…
Pleasant Hearth Electric Log Set Insert with Fireback Instruction Manual
Pleasant Hearth Electric Log Set Insert with Fireback Safety Information Please read and understand this entire manual before…
Bissell 2035 Series Multiclean Wet + Dry Drum Vacuum User Guide
2035 Series Multiclean Wet + Dry Drum Vacuum MULTICLEAN WET + DRY bDbrbbubbmbbVbabcbuum USER GUIDE 2035 SERIES ATTENTION…
Manuals+,
home
privacy
