OPERATOR'S MANUAL
John Deere Machine Communication
Radio
OMPFP12436 ISSUE E2
(ENGLISH)
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents
are known to the State of California to cause cancer,
birth defects, and other reproductive harm.
If this product contains a gasoline engine:
WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
The State of California requires the above two warnings.
Additional Proposition 65 Warnings can be found in this manual.
John Deere Ag Management Solutions
LITHO IN THE USA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Introduction
www.StellarSupport.com
NOTE: Product functionality may not be fully represented in this document due to product changes occurring after the time of printing. Read the
latest Operator's Manual and Quick Reference Guide prior to operation. To obtain a copy, see your dealer or visit www.StellarSupport.com
OUO6050,0000FB1 -19-10AUG10-1/1
Read This Manual
• Original GreenStar Display and Mobile
Before operating display/software, familiarize yourself
Processor
with components and procedures required for safe
• GreenStar Displays
and proper operation.
• AutoTrac Universal Steering Kit
•
John Deere Machine Communication Radio
IMPORTANT: The following GreenStar components
are not weather-proof and should only be used
on vehicles equipped with a cab. Improper
use may void warranty.
JS56696,000094C -19-12DEC11-1/1
052912
PN=2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Contents
Page
Safety
Recognize Safety Information
05-1
Understand Signal Words
05-1
Follow Safety Instructions
05-1
Practice Safe Maintenance
05-2
Handle Electronic Components and
Brackets Safely
05-2
Avoid Electrical Power Lines
05-3
Regulatory Notifications to User
Information to User
10-1
United States
10-1
Canada
10-1
European Community
10-1
System Overview
Theory of Operation
15-1
Components
15-1
Configuring Radio
Create Network
20-1
Set My Name on Network
20-7
Verify Network Functionality
20-9
Reprogram Radio
Update Radio Software
25-1
Network Information
Network Tab
30-1
Network Diagnostics
30-2
Troubleshooting
Radio Troubleshooting
35-1
Cap Antenna Connections
35-2
Specifications
Radio Specifications
40-1
EC Declaration of Conformity
40-1
Original Instructions. All information, illustrations and specifications in this
manual are based on the latest information available at the time of publication.
The right is reserved to make changes at any time without notice.
COPYRIGHT © 2012
DEERE & COMPANY
Moline, Illinois
All rights reserved.
A John Deere ILLUSTRUCTION ® Manual
052912
i
PN=1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Contents
052912
ii
PN=2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Safety
Recognize Safety Information
This is a safety-alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
DX,ALERT -19-29SEP98-1/1
Understand Signal Words
A signal word—DANGER, WARNING, or CAUTION—is
used with the safety-alert symbol. DANGER identifies the
most serious hazards.
DANGER or WARNING safety signs are located near
specific hazards. General precautions are listed on
CAUTION safety signs. CAUTION also calls attention to
safety messages in this manual.
DX,SIGNAL -19-03MAR93-1/1
Follow Safety Instructions
Carefully read all safety messages in this manual and on
your machine safety signs. Keep safety signs in good
condition. Replace missing or damaged safety signs. Be
sure new equipment components and repair parts include
the current safety signs. Replacement safety signs are
available from your John Deere dealer.
There can be additional safety information contained on
parts and components sourced from suppliers that is not
reproduced in this operator's manual.
Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
Keep your machine in proper working condition.
If you do not understand any part of this manual and need
Unauthorized modifications to the machine may impair the
assistance, contact your John Deere dealer.
function and/or safety and affect machine life.
DX,READ -19-16JUN09-1/1
052912
05-1
PN=5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Safety
Practice Safe Maintenance
Understand service procedure before doing work. Keep
area clean and dry.
Never lubricate, service, or adjust machine while it is
moving. Keep hands, feet , and clothing from power-driven
parts. Disengage all power and operate controls to relieve
pressure. Lower equipment to the ground. Stop the
engine. Remove the key. Allow machine to cool.
Securely support any machine elements that must be
raised for service work.
Keep all parts in good condition and properly installed.
Fix damage immediately. Replace worn or broken parts.
Remove any buildup of grease, oil, or debris.
On self-propelled equipment, disconnect battery ground
cable (-) before making adjustments on electrical systems
or welding on machine.
On towed implements, disconnect wiring harnesses from
tractor before servicing electrical system components or
welding on machine.
DX,SERV -19-17FEB99-1/1
Handle Electronic Components and Brackets
Safely
Falling while installing or removing electronic components
mounted on equipment can cause serious injury. Use a
ladder or platform to easily reach each mounting location.
Use sturdy and secure footholds and handholds. Do not
install or remove components in wet or icy conditions.
If installing or servicing a RTK base station on a tower or
other tall structure, use a certified climber.
If installing or servicing a global positioning receiver mast
used on an implement, use proper lifting techniques and
wear proper protective equipment. The mast is heavy and
can be awkward to handle. Two people are required when
mounting locations are not accessible from the ground
or from a service platform.
DX,WW,RECEIVER -19-24AUG10-1/1
052912
05-2
PN=6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Safety
Avoid Electrical Power Lines
Avoid all low-hanging electrical lines while operating the
machine.
On some machines, the antenna may be high enough to
come in contact with low-hanging electrical lines. This can
result in severe electrical shock to the operator.
JS56696,0000A60 -19-15NOV11-1/1
052912
05-3
PN=7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Regulatory Notifications to User
Information to User
approval of John Deere Ag Management Solutions may
void the user’s authority to operate this device.
This device must be operated as supplied by John Deere
Ag Management Solutions. Any changes or modifications
made to these devices without the express written
CZ76372,00003A2 -19-12DEC11-1/1
United States
environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
This device complies with FCC Part 15. Operation is
used in accordance with the instruction manual, may cause
subject to the following two conditions:
harmful interference to radio communications. Operation
(1) This device may not cause harmful interference, and
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
(2) This device must accept any interference, including
required to correct the interference at their own expense.
interference that may cause undesired operation of the
This device has been found to be compliant to the
device.
requirements set forth in CFR 47 Sections 2.1091,
This equipment has been tested and found to comply with
and 15.247 (b) (4) addressing RF Exposure from radio
the limits for a Class A digital device, pursuant to Part 15
frequency devices as defined in Evaluating Compliance
of the FCC Rules. These limits are designed to provide
with FCC Guidelines for Human Exposure to Radio
reasonable protection against harmful interference
Frequency Electromagnetic Fields.
when the equipment is operated in a commercial
CZ76372,00003A3 -19-12DEC11-1/1
Canada
Antenna part number = PFP11422
This device complies with Industry Canada license-exempt
This Class A digital apparatus meets all the requirements
RSS standard(s). Operation is subject to the following
of the Canadian Interference-Causing Equipment
two conditions:
Regulations.
(1) This device may not cause harmful interference, and
This device complies with Health Canada’s Safety Code 6
(2) This device must accept any interference, including
/ IC RSS-210. The installer of this device should ensure
interference that may cause undesired operation of the
that RF radiation is not emitted in excess of the Health
device.
Canada’s requirement.
This device has been designated to operate with the
Information can be obtained at: http://www.hc-
antenna(s) listed below, and having a maximum gain of
sc.gc.ca/ewh-semt/pubs/radiation/radio_guidelignes_di-
5 dBi. Antennas not included in this list or having a gain
rect-eng.php
greater than 5 dBi are strictly prohibited for use with this
device. The required antenna impedance is 50 Ohms.
CZ76372,00003A4 -19-12DEC11-1/1
PC13686 —UN—13DEC11
European Community
This equipment operates in the 2402 to 2472 MHz
frequency range. Check with local authorities for the latest
status of national regulations for the 2.4 GHz wireless
bands. National regulations may require that operations
be limited to portions of the frequency ranges identified
above.
France
In France, the output power is restricted to 10 mW EIRP
Do NOT operate the Machine Communication Radio on
when the product is used outdoors in the 2454-2483.5
Channel C in France. Only use Channels A and B in
MHz band. This restriction only impacts Channel
France.
9
(Channel C). It does not affect Channel 1 (Channel A)
and Channel 5 (Channel B).
CZ76372,00004C3 -19-21MAY12-1/1
052912
10-1
PN=8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System Overview
Theory of Operation
are required within range of each other to form a network.
Additional nodes may spontaneously join or drop out
The John Deere Machine Communications Radio is a
without disrupting the network architecture.
2.4GHz radio which provides networking capability to
machines located in a field. At least two radios, or nodes,
CZ76372,00003A6 -19-12DEC11-1/1
Components

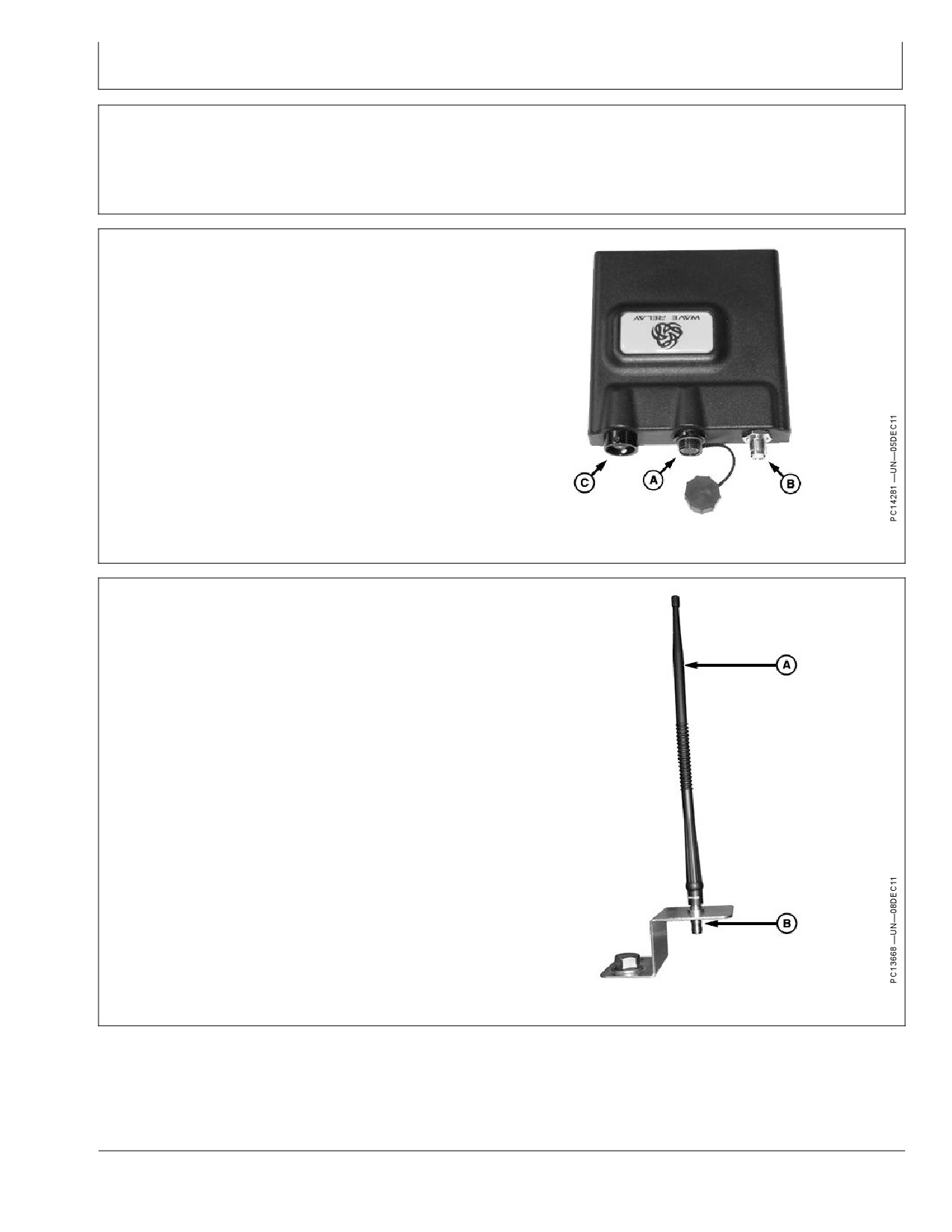

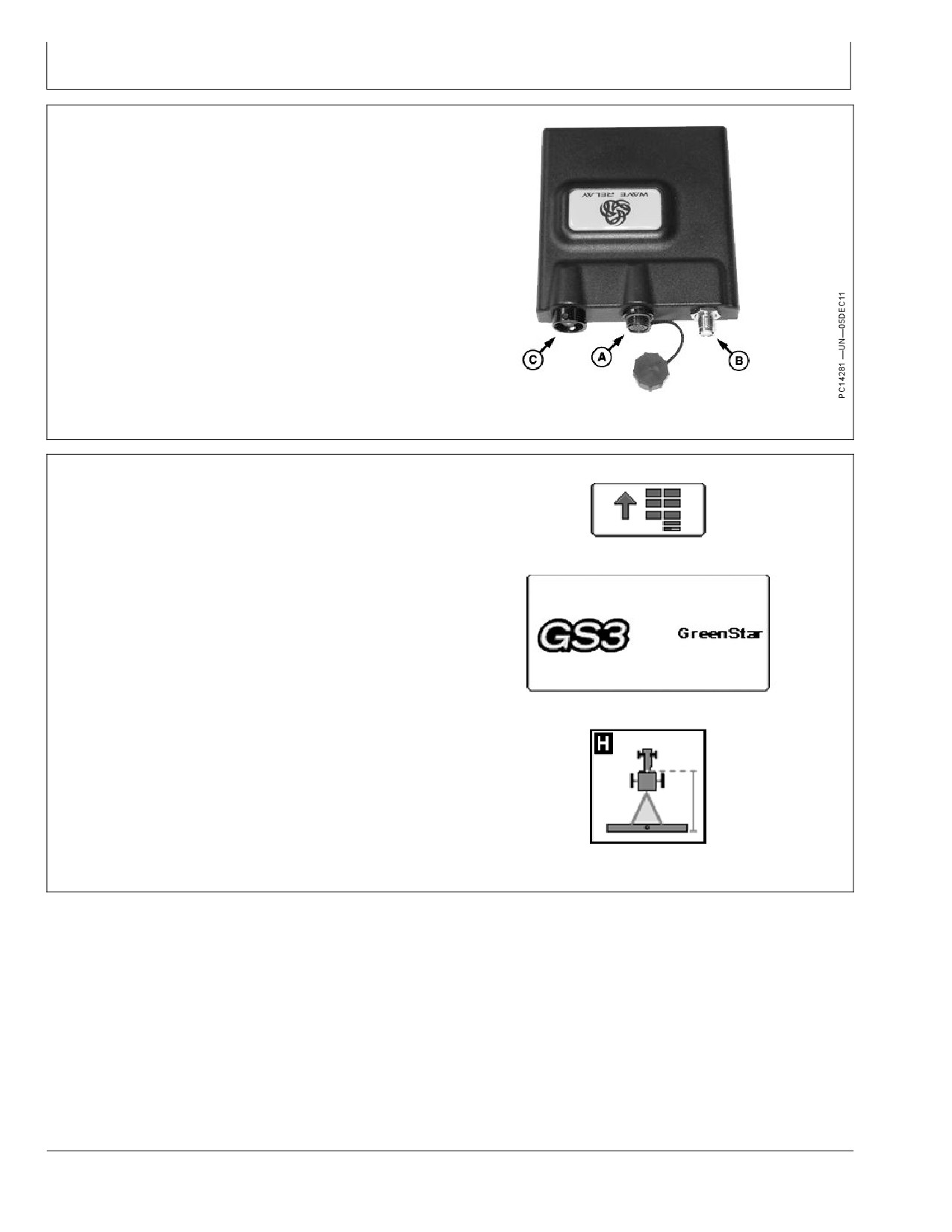

Radio
A—Power/Data (Ethernet)
C—LED
B—Antenna (Coax)
CZ76372,00003A7 -19-12DEC11-1/2
Antenna
A—Antenna
B—Coax Connector
CZ76372,00003A7 -19-12DEC11-2/2
052912
15-1
PN=9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
Create Network
1. Ensure that Power/Data cable is properly installed
(A). The LED (C) on radio will be green when radio
has power.
NOTE: MCR LED will blink until a network connection
has been established.
A—Power/Data (Ethernet)
C—LED
B—Antenna (Coax)
CZ76372,00003A8 -19-12DEC11-1/10
PC8663 —UN—05AUG05

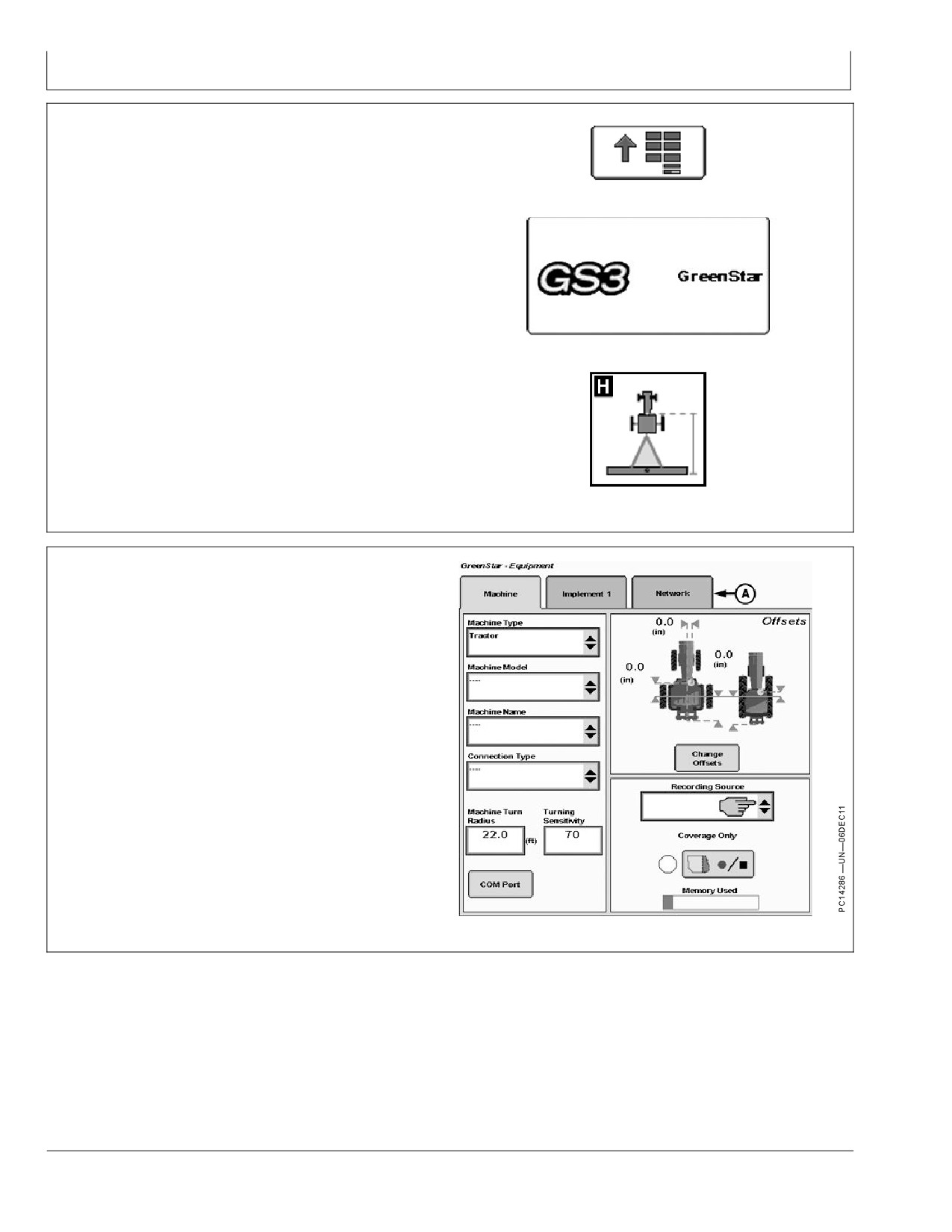

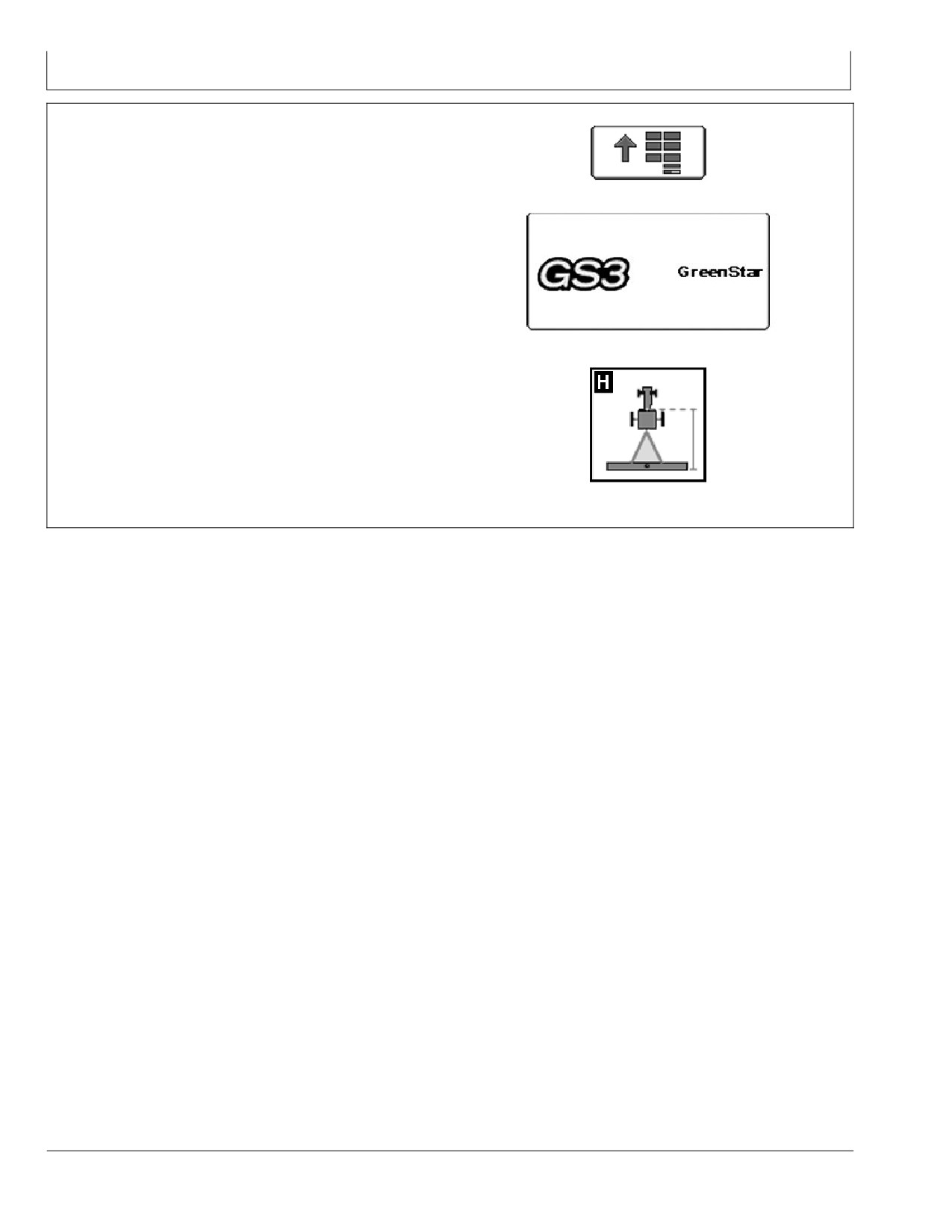

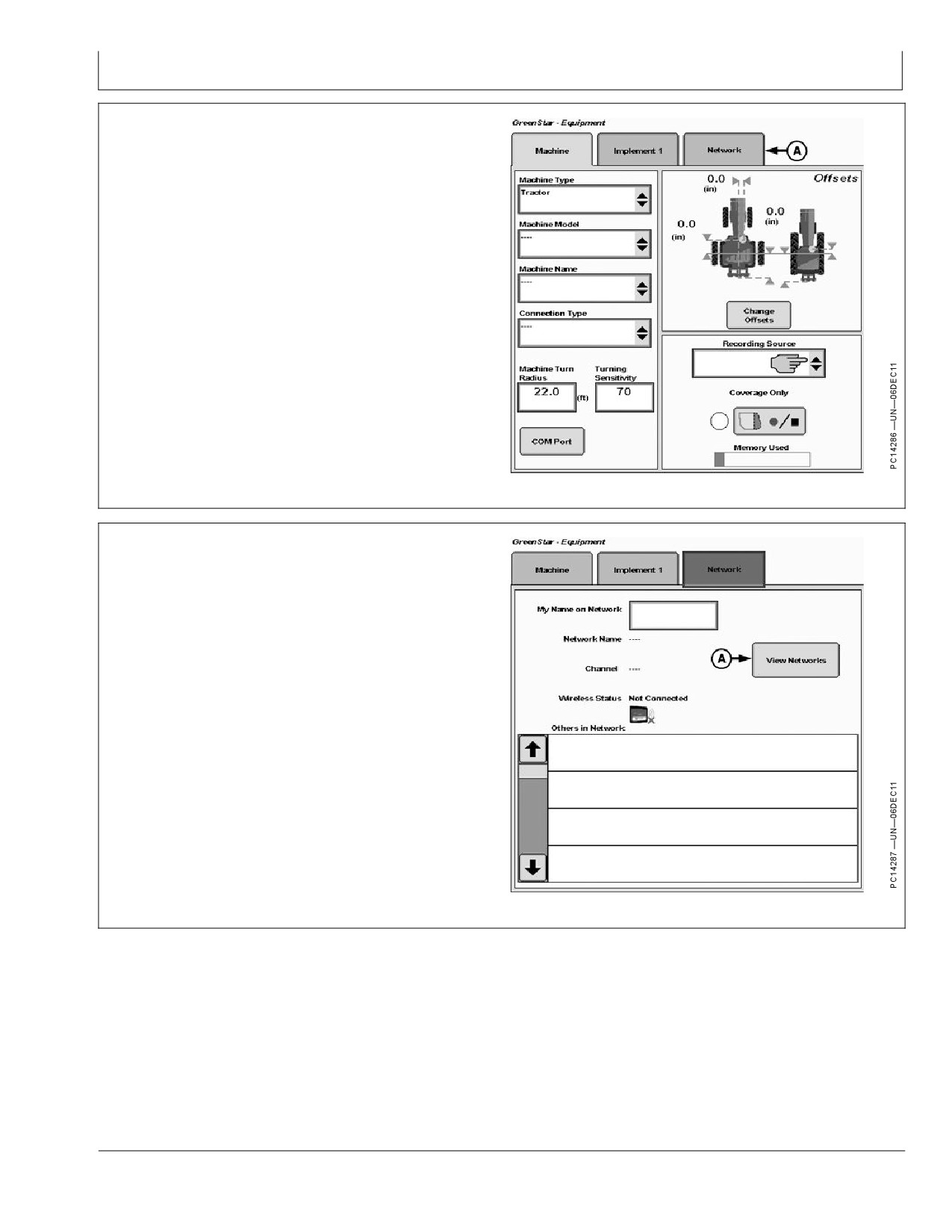

2. On GS3 display, press Menu button and select GS3
button.
3. Select Equipment softkey on the right side of main
menu.
MENU button
PC12685 —UN—14JUL10
GREENSTAR 3 PRO button
PC8677 —UN—05AUG05
EQUIPMENT softkey
Continued on next page
CZ76372,00003A8 -19-12DEC11-2/10
052912
20-1
PN=10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
4. From Equipment screen, select Network tab.
A—Network Tab
CZ76372,00003A8 -19-12DEC11-3/10
5. Select View Networks.
A—View Networks
Continued on next page
CZ76372,00003A8 -19-12DEC11-4/10
052912
20-2
PN=11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio

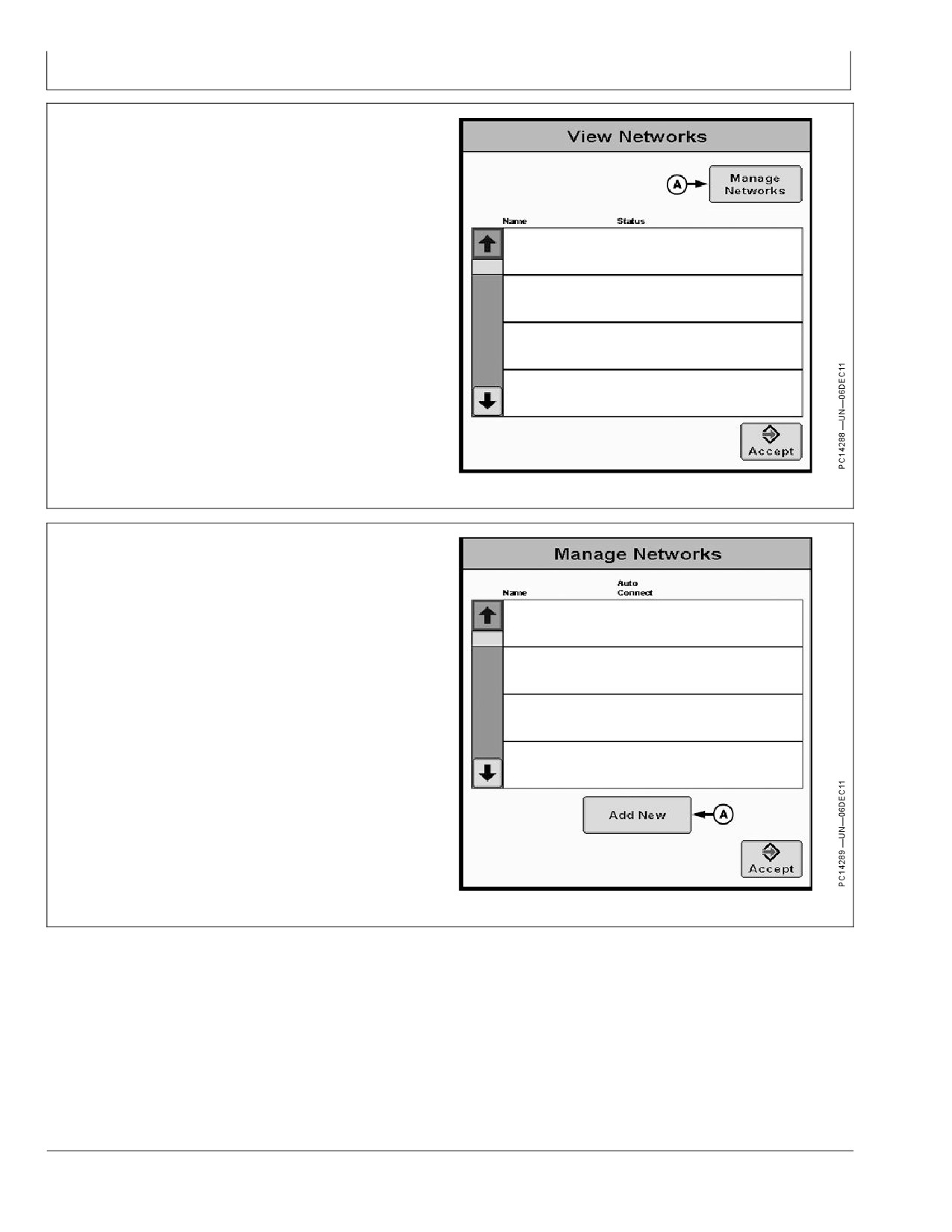

6. Select Manage Networks button.
A—Manage Networks
CZ76372,00003A8 -19-12DEC11-5/10
7. Select Add New on manage networks screen.
A—Add New
Continued on next page
CZ76372,00003A8 -19-12DEC11-6/10
052912
20-3
PN=12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio

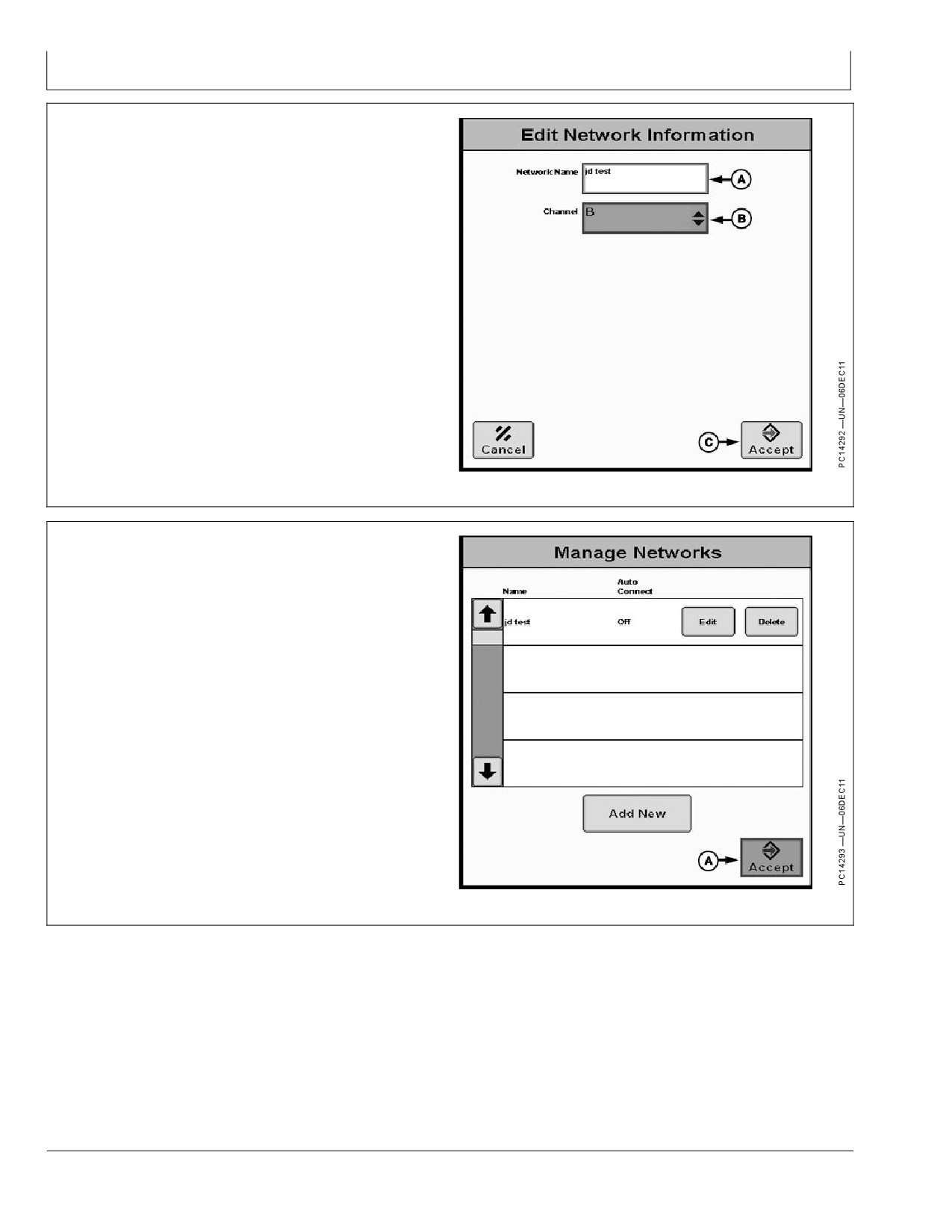

8. Select Network Name box and use keyboard to type
name of new network. Once network name is entered
press Accept button.
NOTE: Network Name must be 6-20 characters in length
and can contain lower case letters (a-z), numbers
(0-9), spaces, hyphens or dashes, and underscores.
9. Select a Channel on Edit Network Information screen
NOTE: For more details regarding channel selection
see the Radio Specifications section.

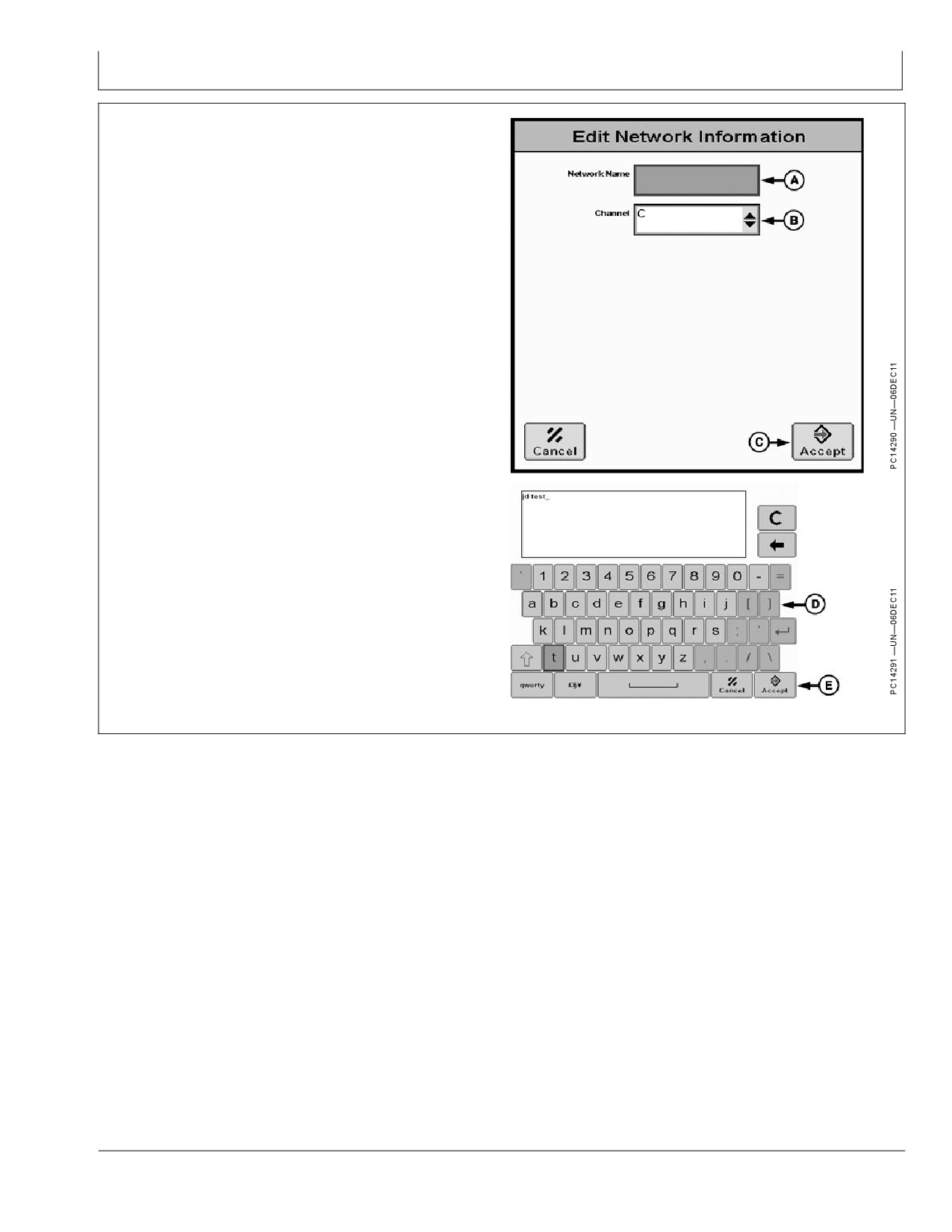

A—Network Name
D—Keyboard
B—Channel
E—Keyboard Accept Button
C—Accept Button
Continued on next page
CZ76372,00003A8 -19-12DEC11-7/10
052912
20-4
PN=13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
10. Select Accept button once Network Name and
Channel are set. The new network now exists on
Manage Networks screen.
A—Network Name
C—Accept
B—Channel
CZ76372,00003A8 -19-12DEC11-8/10
11. Select Accept button on the Manage Networks screen.
The new network now exists on View Networks screen.
A—Accept
Continued on next page
CZ76372,00003A8 -19-12DEC11-9/10
052912
20-5
PN=14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
12. Next to the network name, select Connect button to
join. A status symbol with three arrows in a circular
formation will appear. This can take up to 90 seconds
to complete. Press Accept button to return to Network
tab during (or after) this time.
NOTE: While connecting, Data Transfer (Import/Export
Data) feature is disabled.
NOTE: Each display must add each network to its
network list. To add this network to another node,
or to add another network to network list, repeat
previous steps in this process. Every vehicle in
network must Connect to same network, even if
there is no one else in network yet.

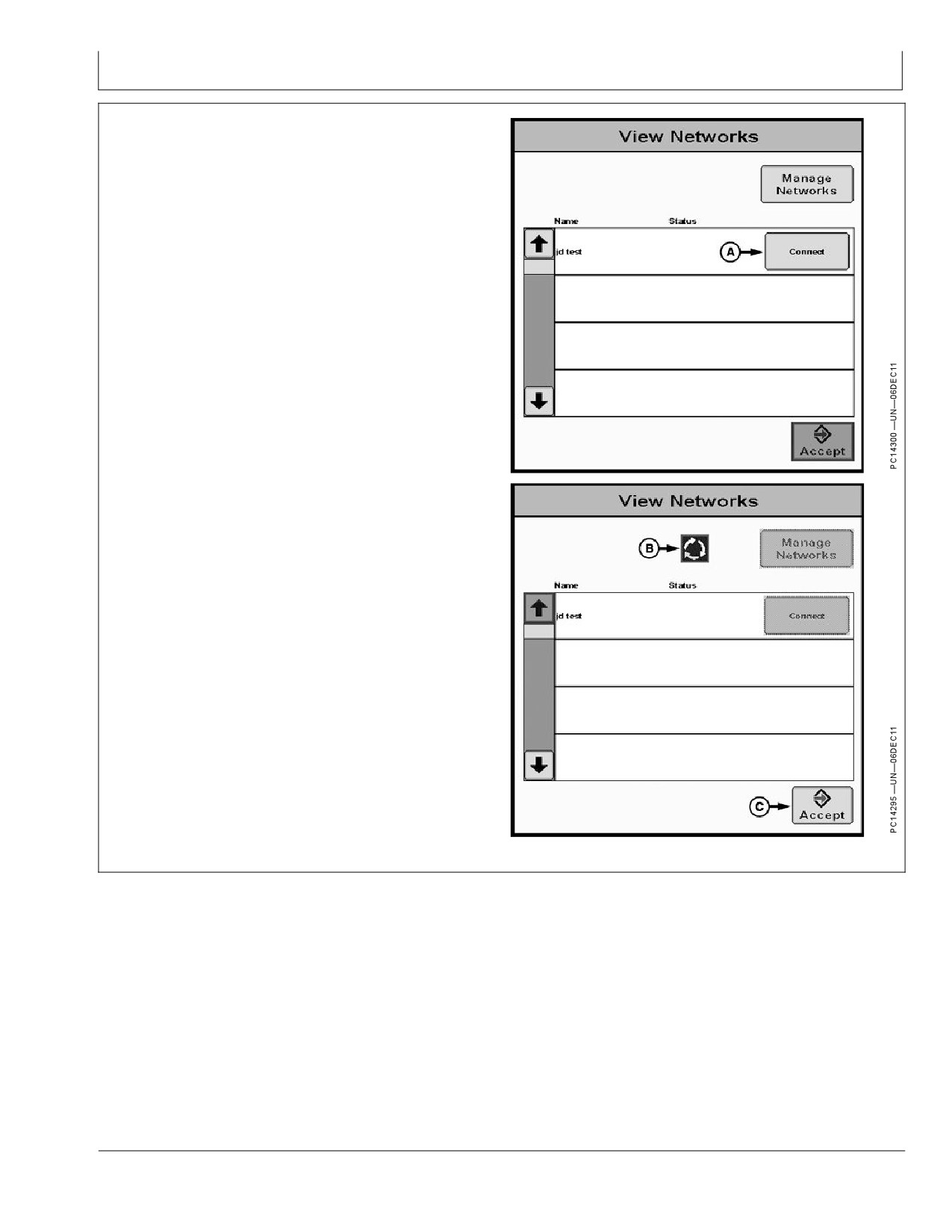

A—Connect
C—Accept Button
B—Status
CZ76372,00003A8 -19-12DEC11-10/10
052912
20-6
PN=15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
PC8663 —UN—05AUG05
Set My Name on Network
My Name on Network is the name for this vehicle on other
vehicles’ displays. This name is shown on the ‘Others in
Network’ list and in the On-Screen maps.
MENU button
PC12685 —UN—14JUL10
1. Select Menu button and select GS3 button.
2. Select Equipment softkey on the right side of main
menu.
GREENSTAR 3 PRO button
PC8677 —UN—05AUG05
EQUIPMENT softkey
Continued on next page
CZ76372,00003A9 -19-12DEC11-1/2
052912
20-7
PN=16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio

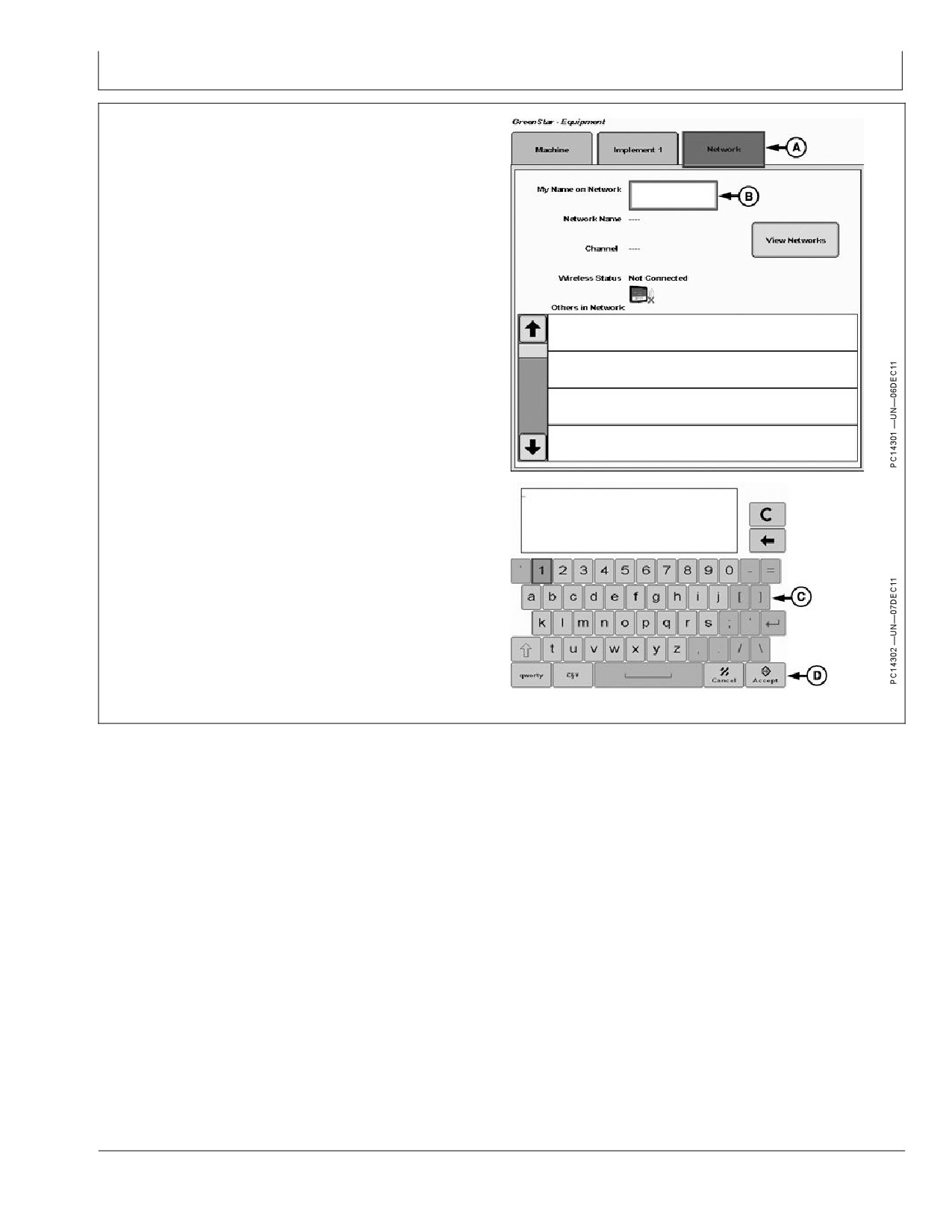

3. From Equipment screen, select Network tab.
4. Select My Name on Network box and use keyboard
to type a name to identify vehicle.
NOTE: My Name on Network can be 0-3 characters in
length and can contain upper case letters (A-Z),
lower case letters (a-z), and numbers (0-9).
5. Enter name and select Accept button.
A—Network Tab
C—Keyboard
B—My Name on Network
D—Accept Button
CZ76372,00003A9 -19-12DEC11-2/2
052912
20-8
PN=17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio
PC8663 —UN—05AUG05
Verify Network Functionality
In order to communicate, all nodes in the network must:
• connect to the same Network, having IDENTICAL
Network Name and Channel
MENU button
PC12685 —UN—14JUL10
• be within communication range and have clear
line-of-sight between vehicles
• have the same display software version
•
have the same radio firmware version
1. Once connected to a network, select Menu button and
select GS3 button.
2. Select Equipment softkey on the right side of main
menu.
GREENSTAR 3 PRO button
PC8677 —UN—05AUG05
EQUIPMENT softkey
CZ76372,00003AA -19-12DEC11-1/3
3. From Equipment screen, select Network tab (A).
A—Network Tab
Continued on next page
CZ76372,00003AA -19-12DEC11-2/3
052912
20-9
PN=18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuring Radio

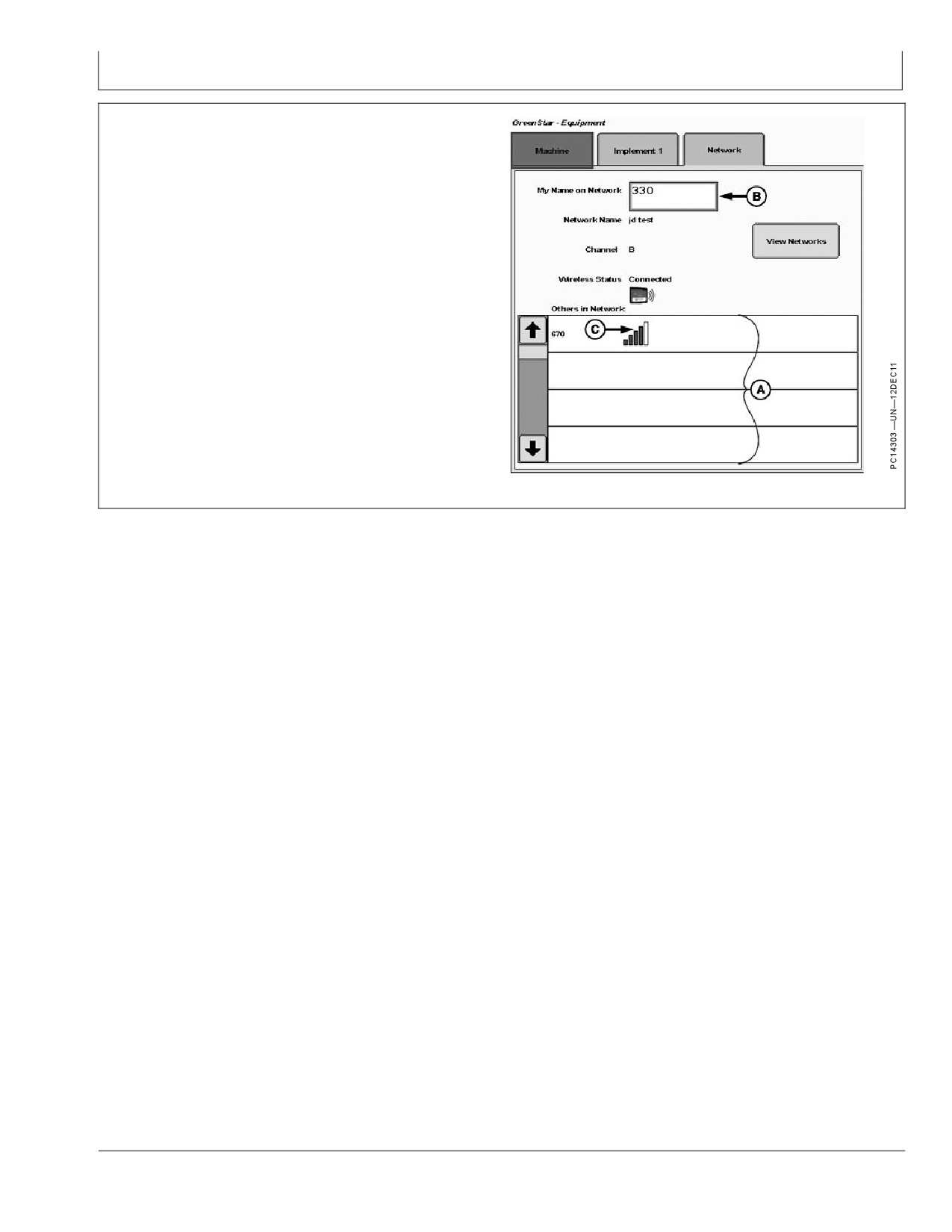

4. All other vehicles in network will be displayed in Others
in Network list (A).
The name shown in this list is the name entered for My
Name on Network (B) on other displays.
Other vehicles will appear in the list as they come into
range or join the network.
5. There will be 5 bars (C) next to each node in the list.
These will be filled in with color based on strength of
signal between your node and that vehicle.
A—My Name on Network
B—Status Bars
CZ76372,00003AA -19-12DEC11-3/3
052912
20-10
PN=19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reprogram Radio
PC8663 —UN—05AUG05
Update Radio Software
1. Plug radio into display with Ethernet cable and make
sure radio is powered.
2. Insert USB drive with new radio software in to GS3
MENU button
display. Power up display.
PC12868 —UN—16SEP10

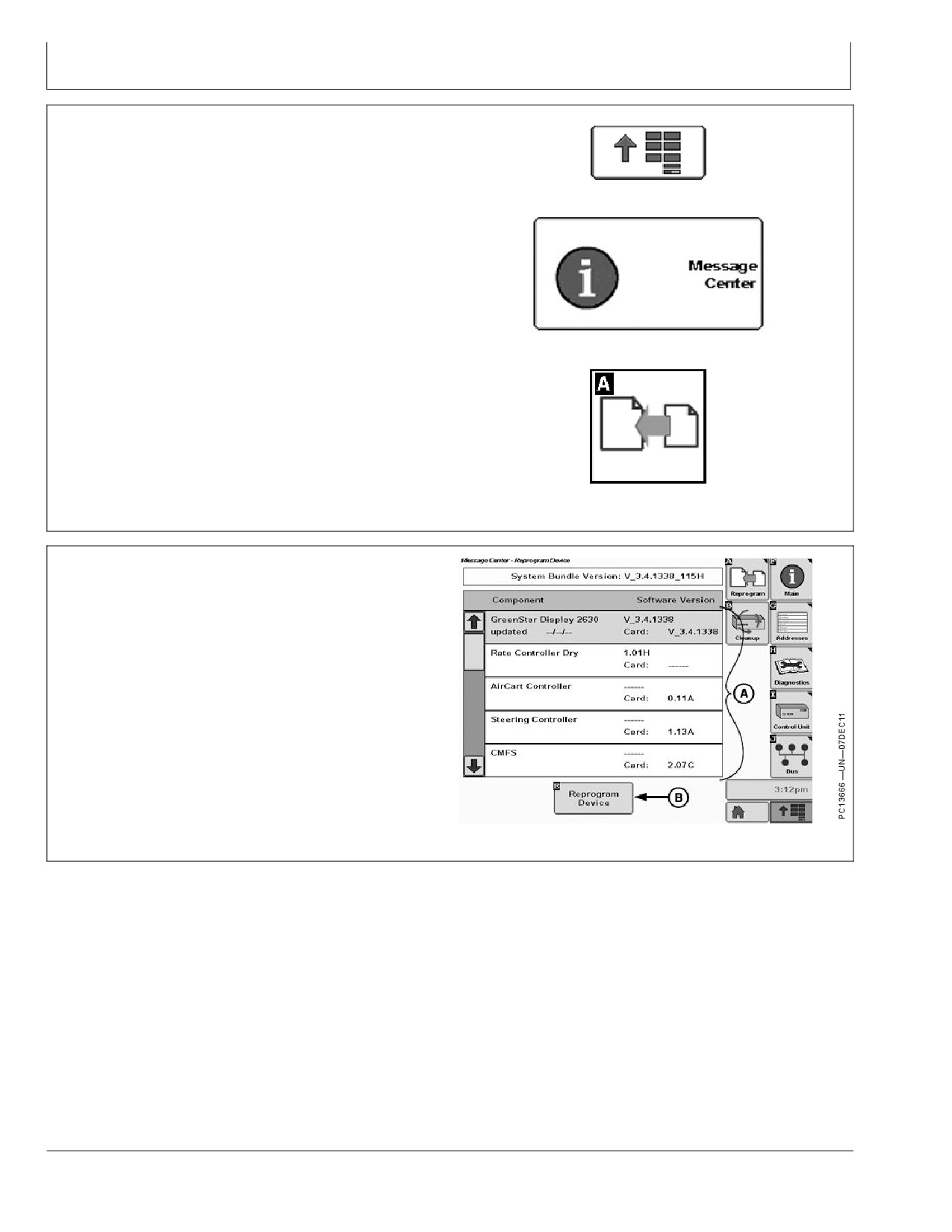

3. Select Main Menu button. Select Message Center.
Select Reprogram softkey.
A—Controller List
B—Reprogram Device
MESSAGE CENTER button (With Info Icon)
PC8665 —UN—05AUG05
COMPONENTS AND SOFTWARE VERSIONS button
CZ76372,00003AB -19-12DEC11-1/3
4. Highlight MCR in controller list (A) and select
Reprogram Device (B).
A—Controller List
B—Reprogram Device Button
Continued on next page
CZ76372,00003AB -19-12DEC11-2/3
052912
25-1
PN=20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reprogram Radio

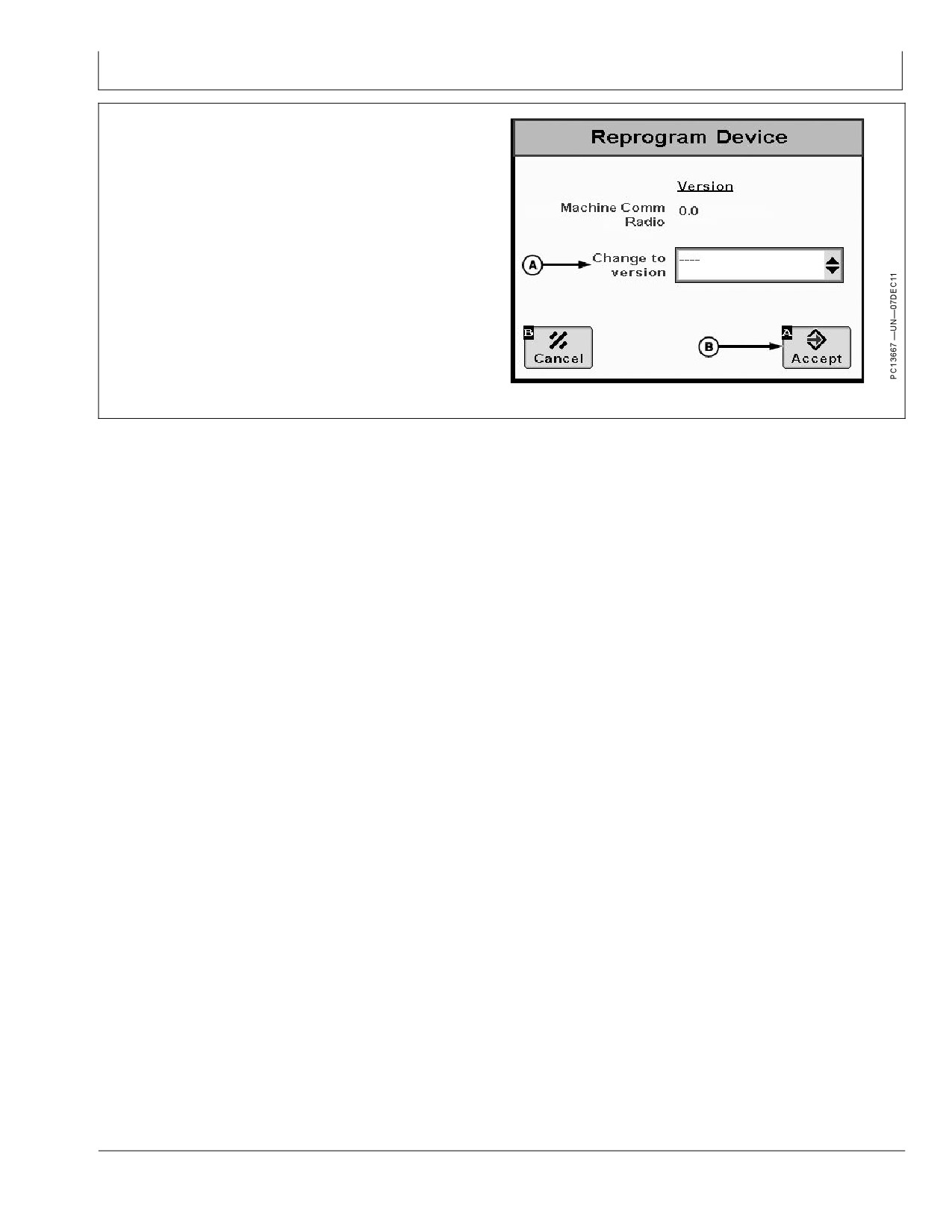

5. Select the new software version in Change To Version
(A) drop down box.
6. Select Accept (B) button to start update.
A—Change to Version
B—Accept Button
CZ76372,00003AB -19-12DEC11-3/3
052912
25-2
PN=21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

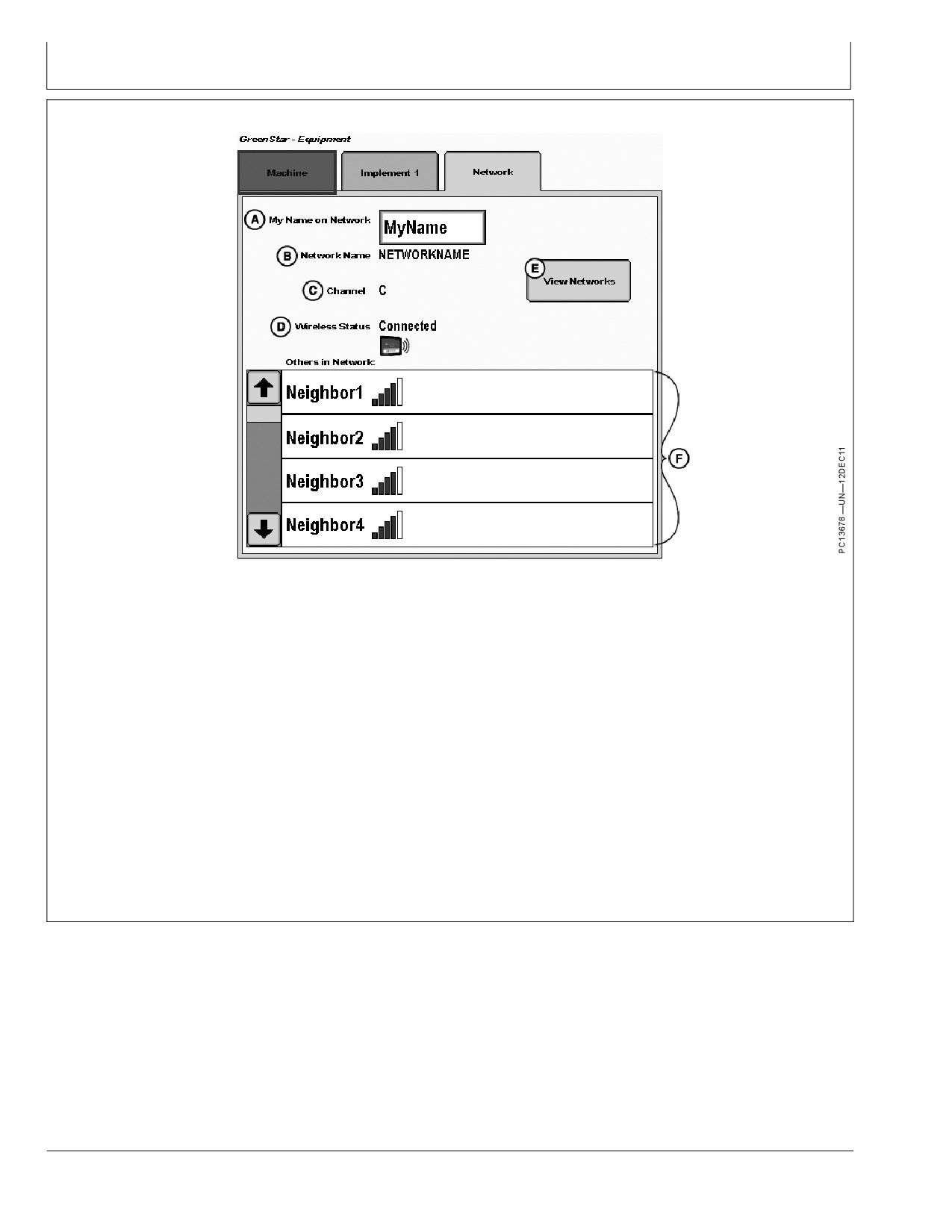

Network Information
Network Tab
Network Tab
A—My Name on Network
C—Channel
E—View Networks
B—Network Name
D—Wireless Status
F— Others in Network list
My Name on Network
Wireless Status
• The name shown on neighbors’ Others in Network list.
• Shows Connected when local node is communicating
See Set My Name on Network for more information.
with at least one neighbor node. See Verify Network
Network Name
Functionality and Radio Troubleshooting for more
information.
• The name of the currently connected network. Shows
“----“ if not connected. See Create Network for more
View Networks
information.
• Select to connect to or disconnect from networks. Use
Channel
to create, edit, delete networks. See Create Network
for more information.
• The communication channel of the currently connected
network. Shows empty if not connected. See Radio
Others in Network list
Specifications for more information.
• Each row in the list is one neighbor. Neighbor’s name
(My Name on Network entered on other display) appears
first. Neighbor’s signal strength appears second
CZ76372,00003B2 -19-12DEC11-1/1
052912
30-1
PN=22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Network Information
Network Diagnostics

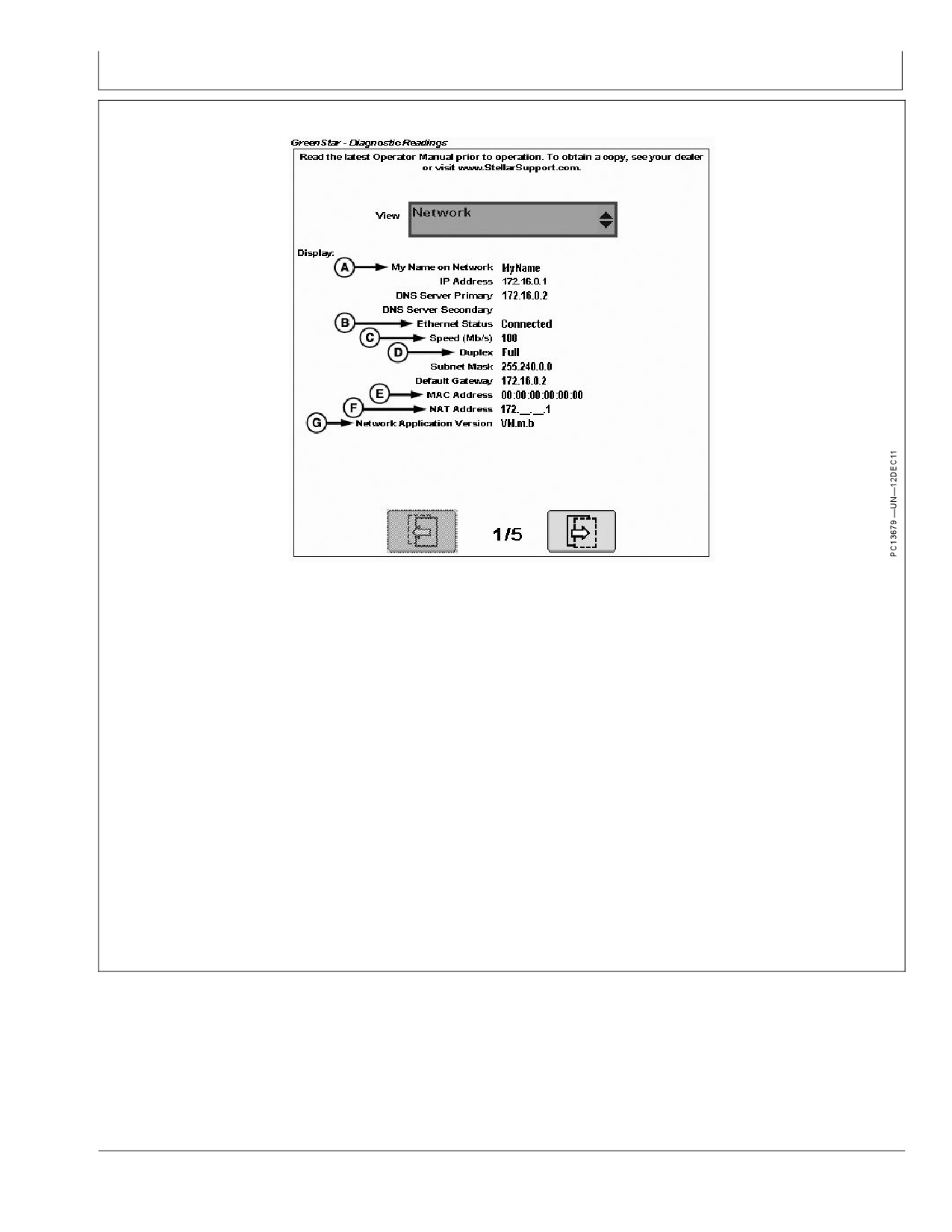

GS3 Network Diagnostics Page 1
A—My Name on Network
C—Speed
F— NAT Address
B—Ethernet Status
D—Duplex
G—Network Application Version
E—MAC Address
My Name on Network
MAC Address
• The name shown on neighbors’ “Others in Network” list.
• Unique identifier for 2630 on Network. All displays must
See Set My Name on Network for more details.
have unique MAC Address.
Ethernet Status
NAT Address
• Shows “Connected” if 2630 is connected to MCR, MTG,
• Unique identifier for 2630 on Network. All displays must
or other Ethernet enabled device.
have unique NAT Address.
Speed
Network Application Version
• Shows speed of the Ethernet connection on the 2630.
• Version number for communication sub-assembly. All
Speed should be “100” Mbps. If “10” is displayed,
displays and devices on Network must have same (or
there may be fault in the Ethernet cable(s), the 2630
compatible) version number.
hardware, or the MCR hardware.
Duplex
• Normal operation will display “Full”. If “Half” is displayed,
there may be fault in the Ethernet cable(s), the 2630
hardware, or the MCR hardware.
Continued on next page
CZ76372,00003B3 -19-12DEC11-1/3
052912
30-2
PN=23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Network Information

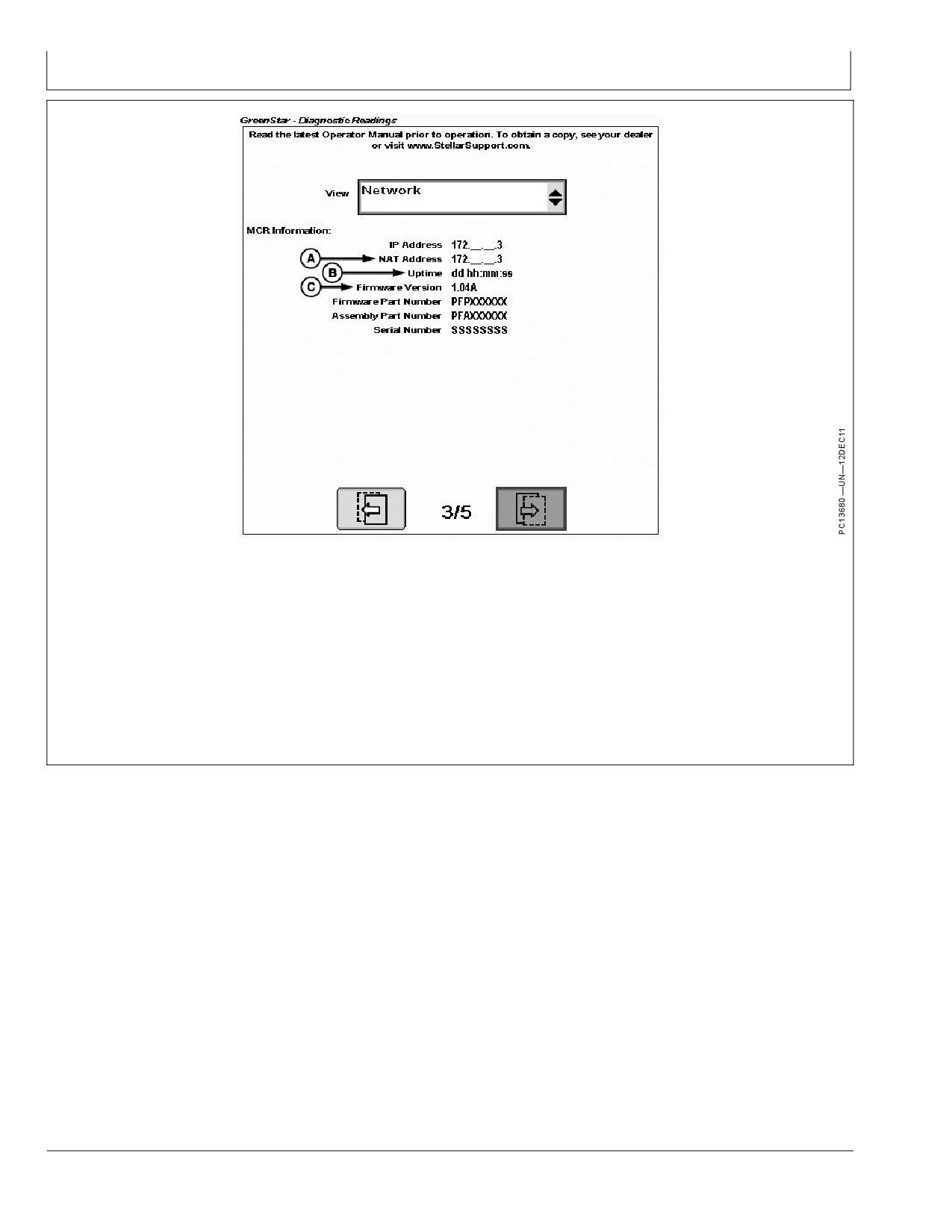

GS3 Network Diagnostics Page 3
A—NAT Address
B—Uptime
C—Firmware Version
NAT Address
vehicle keying, there may be a wiring harness fault or
configuration failure.
• Unique identifier for MCR on the network. All MCRs
must have a unique NAT address.
Firmware Version
Uptime
• Software installed on MCR. All MCR’s in the network
must have the same firmware version. See Update
• Amount of time MCR has been running. The MCR
Radio Software for MCR reprogramming instructions.
will reset each time the vehicle cycles keyed power.
If run time does not reasonably match time since
Continued on next page
CZ76372,00003B3 -19-12DEC11-2/3
052912
30-3
PN=24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Network Information

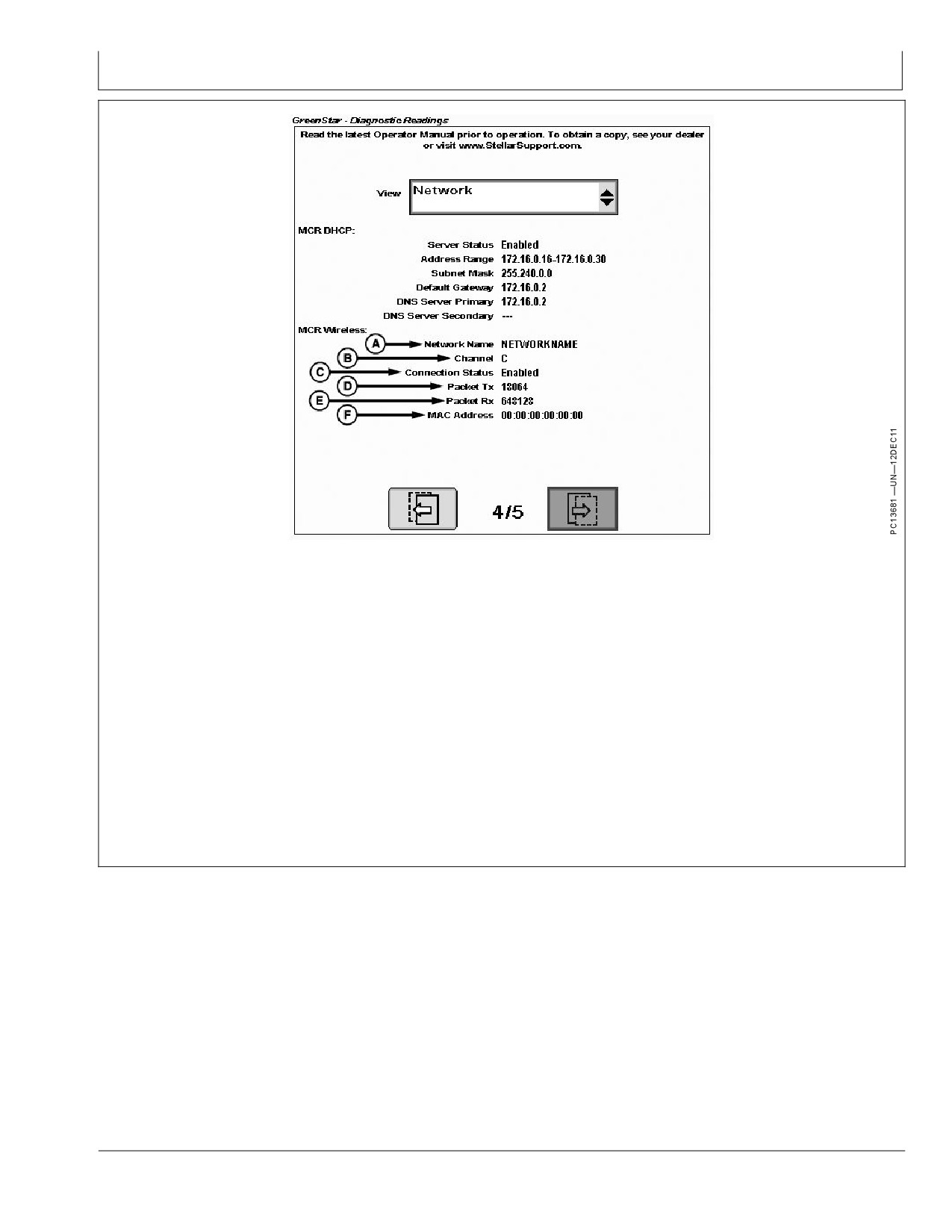

GS3 Network Diagnostics Page 4
A—Network Name
C—Connection Status
E—Packet Rx
B—Channel
D—Packet Tx
F— MAC Addres
Network Name
Packet Tx
• The name of the currently connected network. Shows
• Number of messages transmitted from MCR.
“----“ if not connected. See Create Network for more
information.
Packet Rx
Channel
• Number of messages received from other MCR’s.
• The communication channel of the currently connected
MAC Address
network. Shows empty if not connected. See Radio
Specifications for more information.
• Unique identifier for MCR on Network. All MCR’s must
have unique MAC Address.
Connection Status
• Shows “Enabled” when connected to a network, even
if no neighbors are visible. Shows “Disabled” when
disconnected from a network.
CZ76372,00003B3 -19-12DEC11-3/3
052912
30-4
PN=25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting
Radio Troubleshooting
Symptom
Problem
Solution
The radio does not show up on the
The radio does not have power
Check the power/Ethernet cables,
display
ensure connections are tight. Radio
only operates on switched power.
LED will illuminate green when power
is properly connected.
Configuration
Check Connection Status on page
1 of diagnostics. Status should be
Enabled when radio is powered and
joined to a network. Ensure display
software is updated.
The radio does not show up on
Network set up incorrectly
All radios must have an IDENTICAL
OTHER displays
Network Name and Channel in order
to communicate with each other.
The radio exhibits decreased range
Faulty antenna path
Ensure that coax cable from the radio
to antenna is in good shape, and that
antenna is securely fastened. Ensure
antenna is not broken.
Low power availability
Ensure Ethernet cable is securely
attached to the radio. Make sure the
radio LED is green.
Interference from outside sources
There may be an outside system
interfering with the signal. Try
switching to a different Channel (all
nodes in network must switch in order
to keep communicating).
Obstruction in path between vehicles
The MCR is a line-of-sight system.
Any obstructions (trees, hills, parts
of the vehicle, etc) obstructing the
antennas from having a direct line of
sight will decrease the range of the
system.
Signal Strength shows zero bars
Indirect nodes
The MCR is a line-of-sight system.
The MCR also utilizes advanced
networking features to communicate
with nodes that it cannot directly see,
but can see through other MCR nodes
in the network. In this case Zero Bars
of Signal does not mean there is a
problem.
Faulty antenna path
Check antenna to ensure a solid
connection.
Continued on next page
CZ76372,00003AC -19-12DEC11-1/2
052912
35-1
PN=26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting
Symptom
Problem
Solution
User cannot disassociate from a
Loss of communication with display
Check Ethernet cable to ensure solid
network
connections.
MCR LED is blinking
Radio is not connected to a network. Led will blink until the radio is
connected to a network. If the radio
loses connection to a network, the
LED will stay solid until power is
cycled on the radio.
CZ76372,00003AC -19-12DEC11-2/2
Cap Antenna Connections
connected. If you anticipate having to remove the antenna
for transport or storage, John Deere recommends using
Contamination in antenna connections can contribute
the cap which came on the radio antenna connector to
to poor radio performance. Ensure antenna connectors
keep this in good working order.
on radio and on roof are covered when antenna is not
CZ76372,00003AD -19-12DEC11-1/1
052912
35-2
PN=27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications
Radio Specifications
Frequency: 2.4 GHz
Range of Operation: 3 mile radius (line-of-sight)
Channel ID
A
B
C
Channel #
1
5
9
Center frequencies (MHz)
2412
2432
2452
CZ76372,00003AE -19-12DEC11-1/1
EC Declaration of Conformity
Deere & Company
Moline, Illinois U.S.A.
The undersigned hereby declares that:
Product: John Deere Machine Communication Radio
Part Number: PFA10196
Fulfills all relevant provisions and essential requirements of the following directives:
Directive
Number
Certification Method
Radio and Telecommunications Terminal
1999/5/EC
Annex III
Equipment Directive (R&TTE)
The product is in conformity with the following standards and/or other normative documents:
ETSI EN 300 328-2 V1.7.1
ETSI EN 301 489-17 V2.1.1
ETSI EN 301 489-1 V1.8.1
ETSI EN60950-1 Second Ed.
Name and address of the person in the European Community authorized to compile the technical construction file:
Brigitte Birk
Deere & Company European Office
John Deere Strasse 70
Mannheim, Germany D-68163
EUConformity@JohnDeere.com
Place of declaration: Kaiserslautern, Germany Name: Aaron Senneff
Date of declaration: 9 December 2011
Title: Engineering Manager, John Deere Intelligent
Solutions Group
Manufacturing Unit: John Deere Intelligent Solutions Group
DXCE01 —UN—28APR09
CZ76372,00003AF -19-14DEC11-1/1
052912
40-1
PN=28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Index
Page
C
Components
15-1
Configure Radio
Create Network
20-1
Set My Name on Network
20-7
Verify Network Functionality
20-9
Create Network
20-1
M
Machine Communication Radio
Components
15-1
Configure Radio
20-1
Reprogram Radio
25-1
Specifications
40-1
Theory of Operation
15-1
Troubleshooting
35-1
R
Radio Specifications
40-1
Regulatory Notification
10-1
Canada
10-1
European Community
10-1
United States
10-1
Reprogram Radio
Update Radio Software
25-1
S
Set My Name on Network
20-7
T
Theory of Operation
15-1
Troubleshooting
Antenna Connections
35-2
Machine Communication Radio
35-1
U
Update Radio Software
25-1
V
Verify Network Functionality
20-9
052912
Index-1
PN=1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Index
052912
Index-2
PN=2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

John Deere Service Literature Available
Technical Information
Technical information can be purchased from John Deere.
Some of this information is available in electronic media,
such as CD-ROM disks, and in printed form. There are
many ways to order. Contact your John Deere dealer.
Call 1-800-522-7448 to order using a credit card. Search
online from http://www.JohnDeere.com. Please have
available the model number, serial number, and name of
the product.
Available information includes:
• PARTS CATALOGS list service parts available for your
machine with exploded view illustrations to help you
identify the correct parts. It is also useful in assembling
and disassembling.
• OPERATOR’S MANUALS providing safety, operating,
maintenance, and service information. These manuals
and safety signs on your machine may also be available
in other languages.
• OPERATOR’S VIDEO TAPES showing highlights of
safety, operating, maintenance, and service information.
These tapes may be available in multiple languages
and formats.
• TECHNICAL MANUALS outlining service information
for your machine. Included are specifications, illustrated
assembly and disassembly procedures, hydraulic oil
flow diagrams, and wiring diagrams. Some products
have separate manuals for repair and diagnostic
information. Some components, such as engines, are
available in separate component technical manuals
• FUNDAMENTAL MANUALS detailing basic information
regardless of manufacturer:
- Agricultural Primer series covers technology in farming
and ranching, featuring subjects like computers, the
Internet, and precision farming.
- Farm Business Management series examines
“real-world” problems and offers practical solutions
in the areas of marketing, financing, equipment
selection, and compliance.
- Fundamentals of Services manuals show you how to
repair and maintain off-road equipment.
- Fundamentals of Machine Operation manuals
explain machine capacities and adjustments, how to
improve machine performance, and how to eliminate
unnecessary field operations.
DX,SERVLIT -19-31JUL03-1/1
052912
SLIT-1
PN=31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

John Deere Service Literature Available
052912
SLIT-2
PN=32



















///////////////////////////////////////
