Wiring diagrams  12•25

12

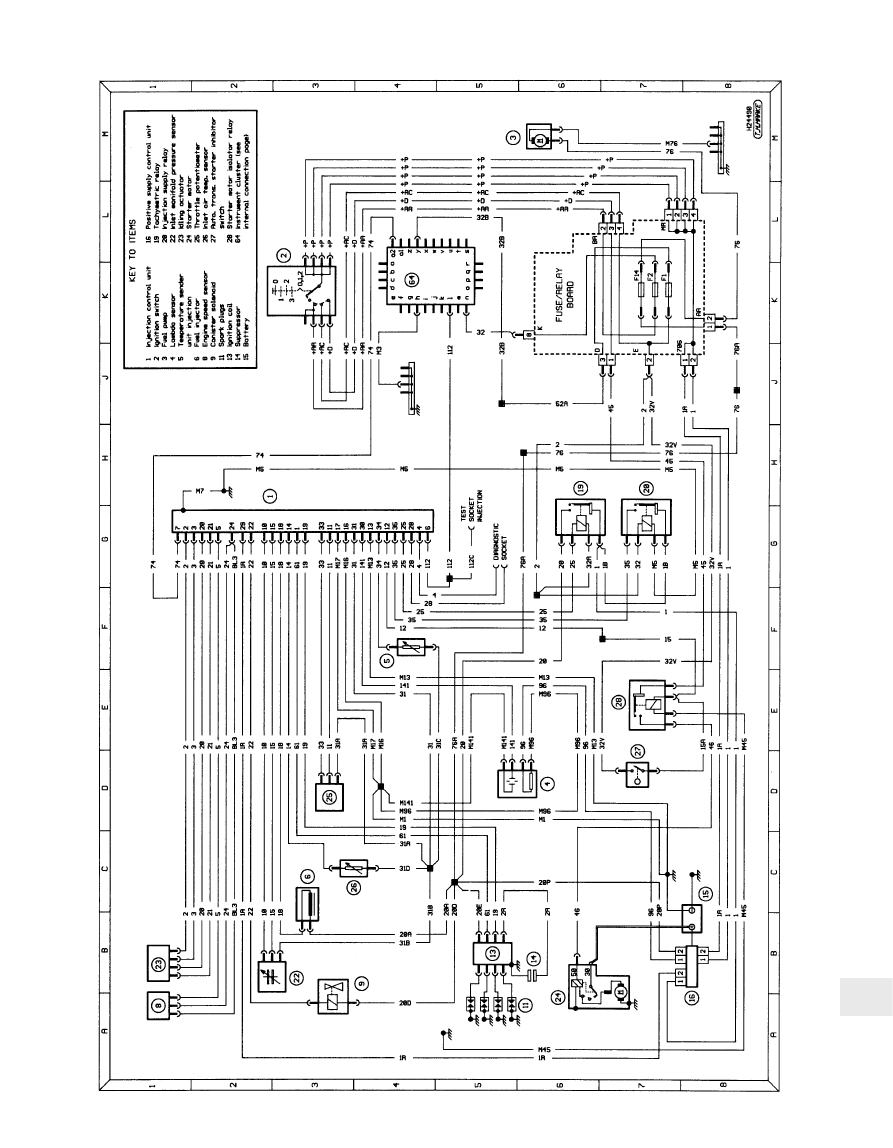

Supplementary diagram B:  Typical engine management (TU1M/L and XU5M3/Z/L engine models)

12•26 Wiring diagrams

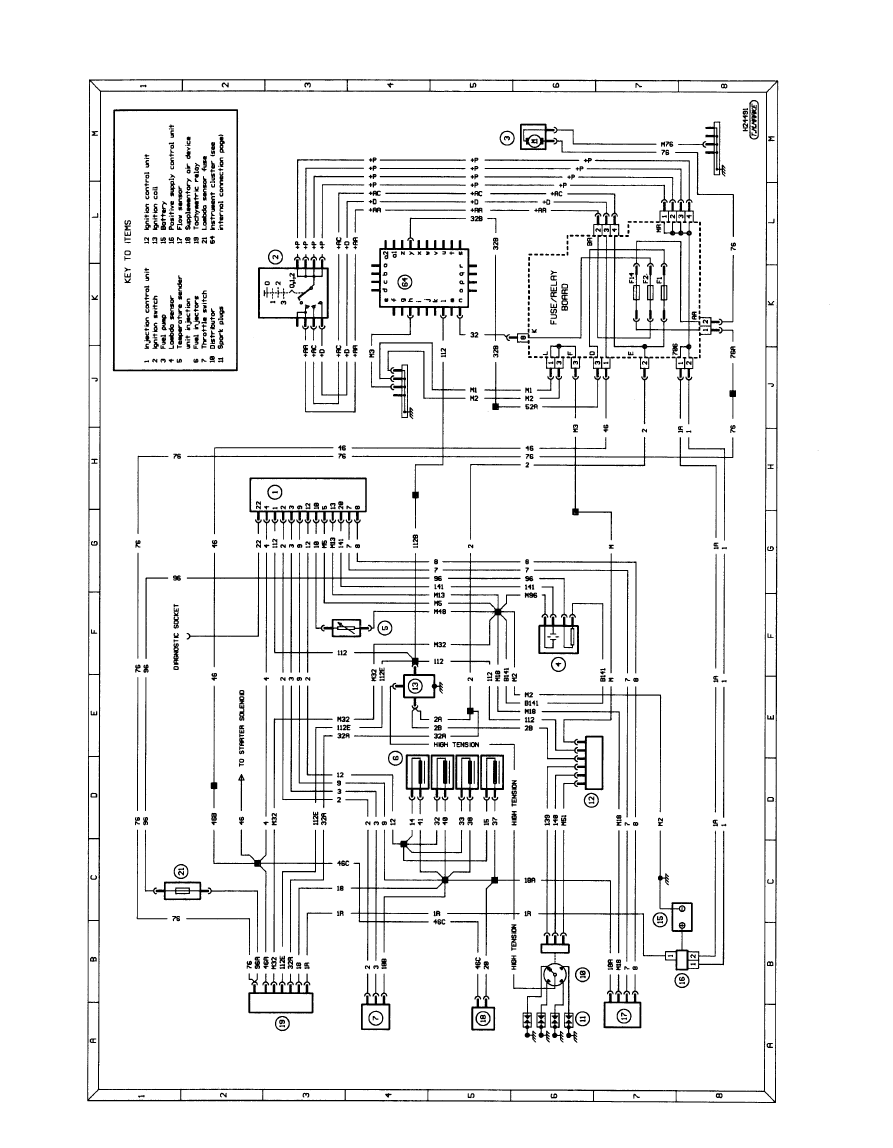

Supplementary diagram C:  Typical engine management (XU9J1/Z/L engine models)

Wiring diagrams  12•27

12

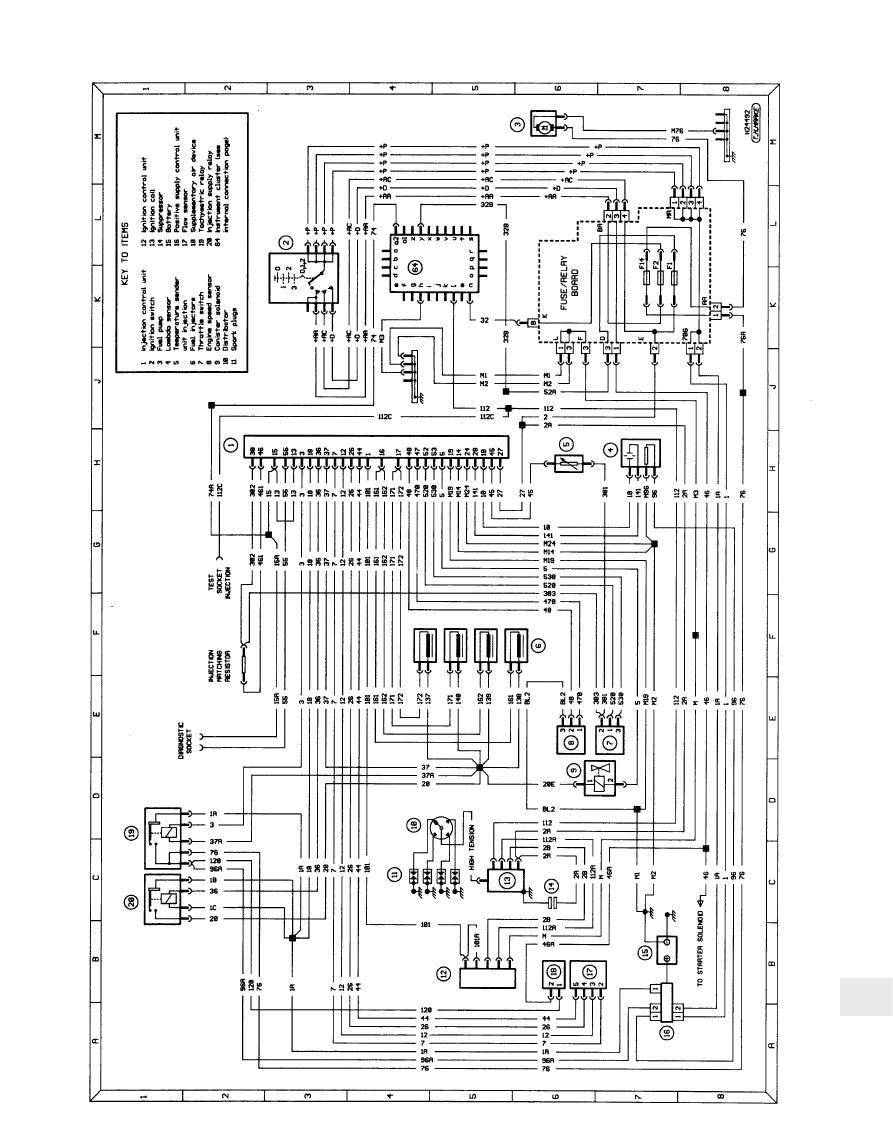

Supplementary diagram D:  Typical engine management (XU9JA/L engine models)

REF

Dimensions and weights

Note: All figures are approximate, and may vary according to model. Refer to manufacturer’s data for exact figures.

Dimensions

Overall length  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3705 mm

Overall width:

Basic, GL, GE and Van  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1562 mm

All other models except Cabriolet  . . . . . . . . . . . . . . . . . . . . . . . . . . .

1572 mm

Cabriolet  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1589 mm

Overall height  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1372 to 1381 mm

Wheelbase  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2420 mm

Front track:

All models except SR, GT, Cabriolet and GTI  . . . . . . . . . . . . . . . . . .

1350 mm

SR and GT models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1364 mm

1.6 GTI and Cabriolet models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1392 mm

1.9 GTI models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1383 mm

Rear track:

All models except SR, GT, Cabriolet and GTI  . . . . . . . . . . . . . . . . . .

1300 mm

SR and GT models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1314 mm

1.6 GTI and Cabriolet models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1328 mm

1.9 GTI models  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1344 mm

Weights

Kerb weight*  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

740 to 935 kg

Maximum towing weight:

TU9 and TU1 engines  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

700 kg

All other engines  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

800 kg

Maximum roof rack load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50 kg

*Exact kerb weight varies depending on model - refer to VIN plate for details

Dimensions and weights . . . . . . . . . . . . . . . .REF•1
Conversion factors  . . . . . . . . . . . . . . . . . . . .REF•2
Buying spare parts  . . . . . . . . . . . . . . . . . . . .REF•3
Vehicle identification  . . . . . . . . . . . . . . . . . . .REF•3
General repair procedures  . . . . . . . . . . . . . .REF•4
Jacking and vehicle support  . . . . . . . . . . . . .REF•5

Radio/cassette unit anti-theft system   . . . . .REF•5
Tools and working facilities  . . . . . . . . . . . . . .REF•6
MOT test checks . . . . . . . . . . . . . . . . . . . . . .REF•8
Fault finding  . . . . . . . . . . . . . . . . . . . . . . . .REF•12
Glossary of technical terms  . . . . . . . . . . . .REF•20
Index  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .REF•25
