EC-108

< SYSTEM DESCRIPTION >

[VQ35DE]

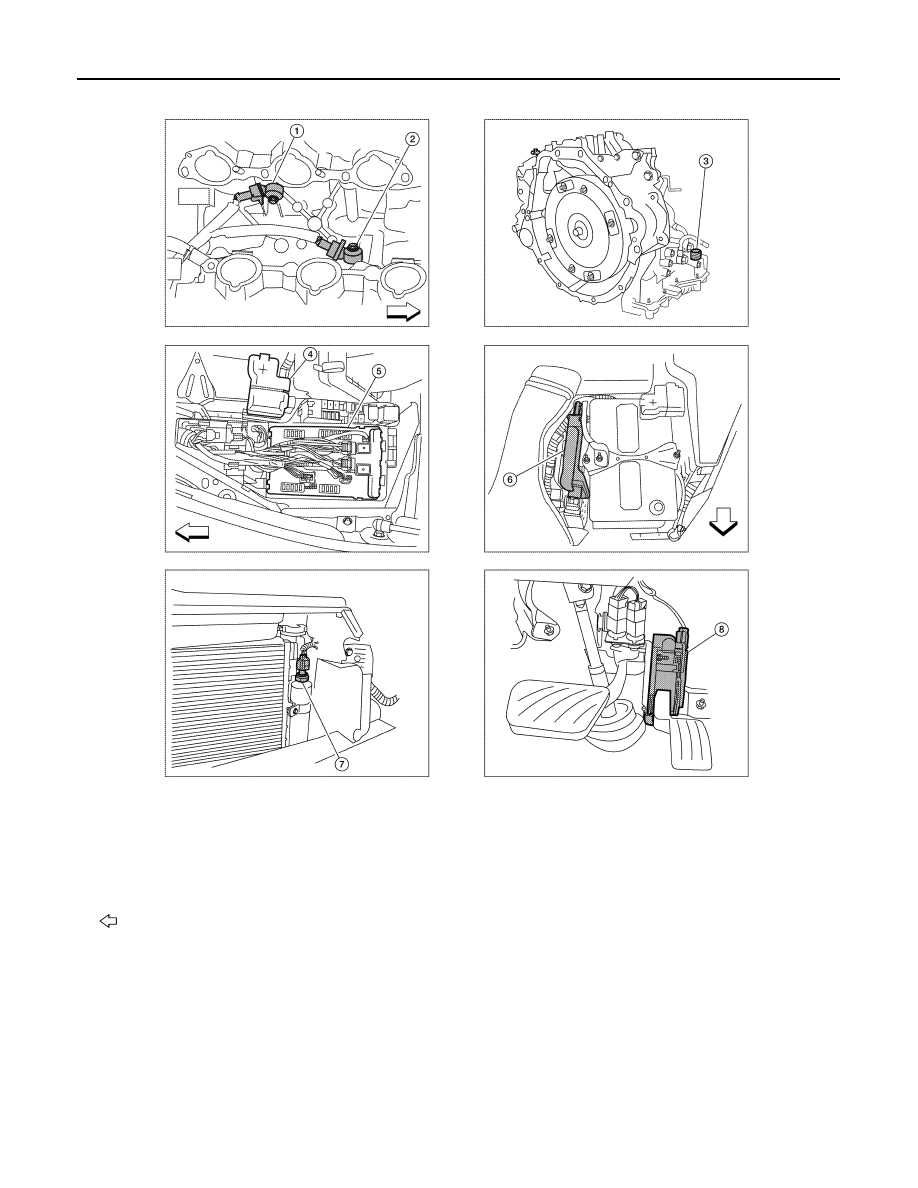

EXHAUST VALVE TIMING CONTROL

1.

Knock sensor (bank 2) (view with in-
take manifold removed)

2.

Knock sensor (bank 1)

3.

Transmission range switch
(view with CVT removed)

4.

Battery

5.

IPDM E/R

6.

ECM

7.

Refrigerant pressure sensor (view
with front grille removed)

8.

Accelerator pedal position sensor

: Vehicle front

ALBIA0607ZZ

EXHAUST VALVE TIMING CONTROL

EC-109

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

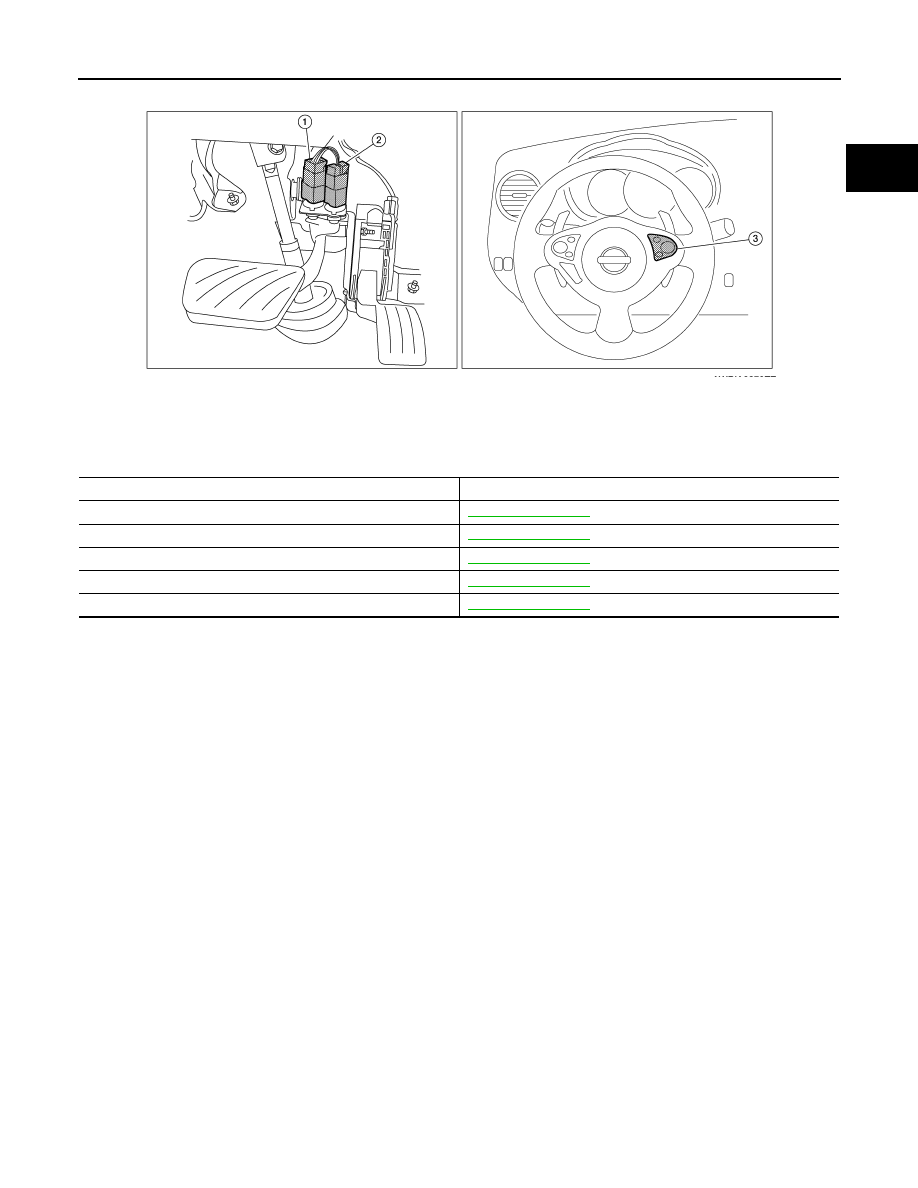

Component Description

INFOID:0000000010094833

1.

Stop lamp switch

2.

ASCD brake switch

3.

ASCD steering switch

AWBIA0670ZZ

Component

Reference

Camshaft position sensor

EC-300, "Description"

Crankshaft position sensor

EC-296, "Description"

Engine oil temperature sensor

EC-277, "Description"

Exhaust valve timing control magnet retarder

EC-180, "Description"

Exhaust valve timing control position sensor

EC-400, "Description"

EC-110

< SYSTEM DESCRIPTION >

[VQ35DE]

INTAKE VALVE TIMING CONTROL

INTAKE VALVE TIMING CONTROL

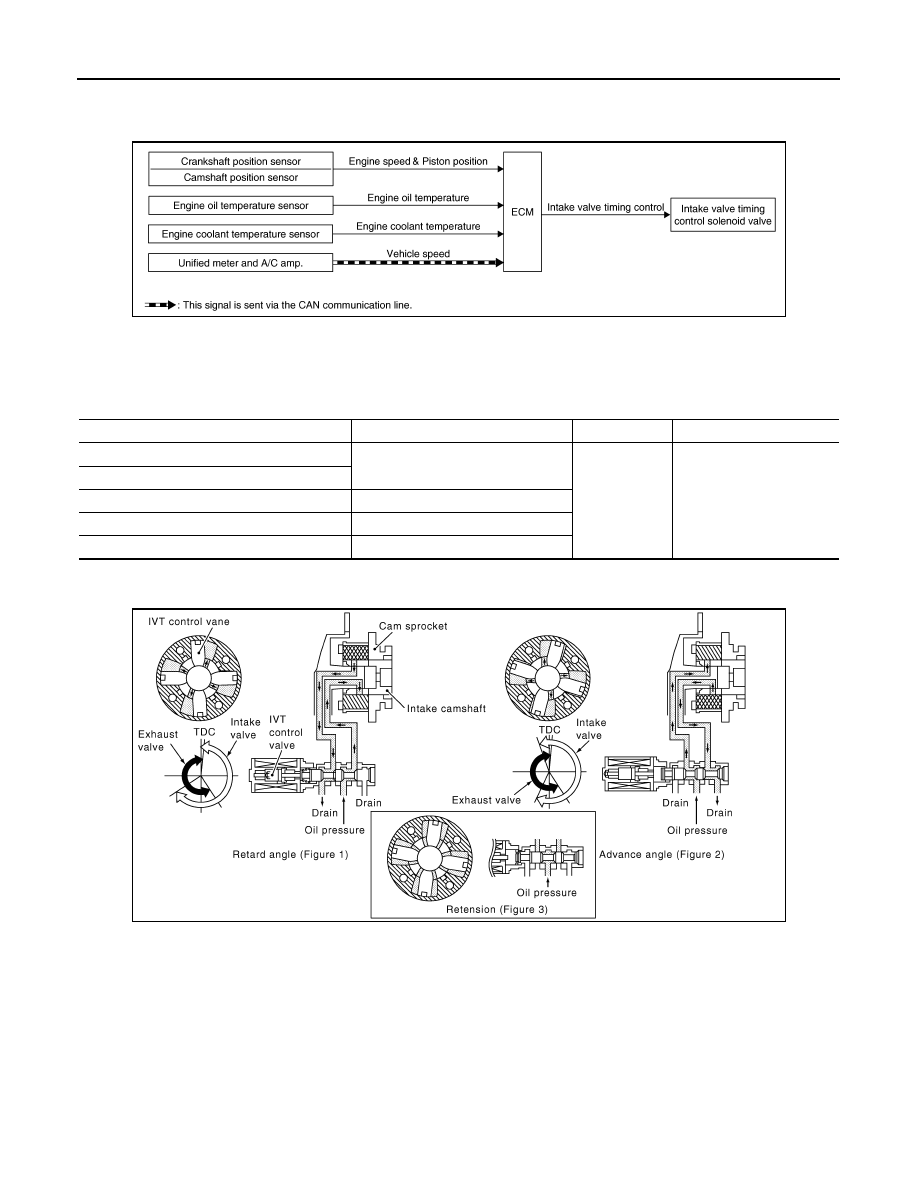

System Diagram

INFOID:0000000010094834

System Description

INFOID:0000000010094835

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM via the CAN communication line

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake

valve.

The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant

temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-

noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake

valve to increase engine torque in low/mid speed range and output in high-speed range.

JMBIA1532GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Intake valve
timing control

Intake valve timing control
solenoid valve

Camshaft position sensor (PHASE)

Engine oil temperature sensor

Engine oil temperature

Engine coolant temperature sensor

Engine coolant temperature

Unified meter and A/C amp.

Vehicle speed*

JMBIA0060GB

INTAKE VALVE TIMING CONTROL

EC-111

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

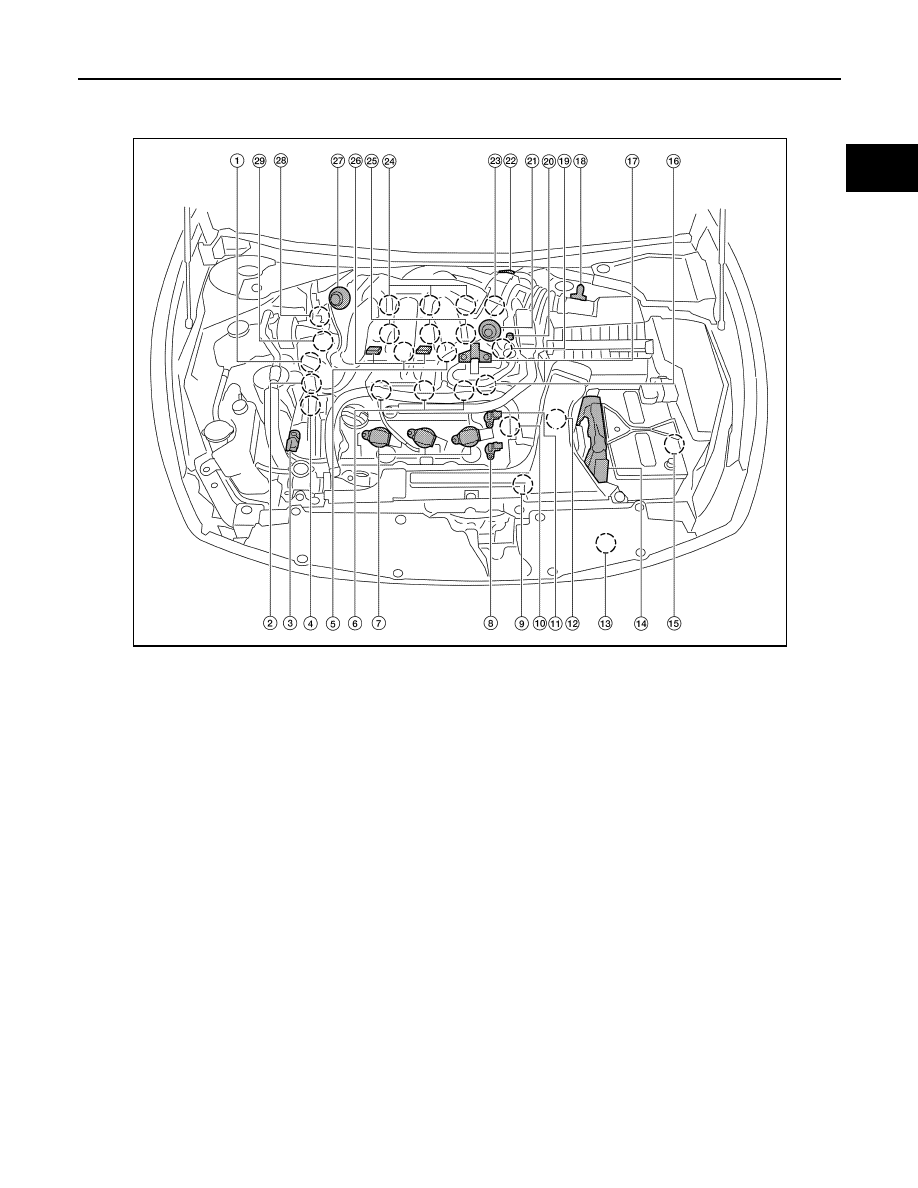

Component Parts Location

INFOID:0000000010094836

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Electronic controlled engine mount
control solenoid valve

3.

Exhaust valve timing control magnet
retarder (bank 2)

4.

Intake valve timing control solenoid
valve (bank 2)

5.

Knock sensor (bank 1 and 2)

6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor) and
spark plug (bank 2)

8.

Exhaust valve timing control position
sensor (bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11. Camshaft position sensor (PHASE)

(bank 2)

12. Transmission range switch

13. Refrigerant pressure sensor

14. ECM

15. Battery current sensor

16. Condenser-2

17. EVAP canister purge volume control

solenoid valve

18. Mass air flow sensor (with intake air

temperature sensor)

19. Camshaft position sensor (PHASE)

(bank 1)

20. EVAP service port

21. Power valve actuator 2

22. Electric throttle control actuator

23. Exhaust valve timing control position

sensor (bank 1)

24. Ignition coil (with power transistor) and

spark plug (bank 1)

25. Fuel injector (bank 1)

26. VIAS control solenoid valve 1 and 2

27. Power valve actuator 1

28. Exhaust valve timing control magnet

retarder (bank 1)

29. Power steering pressure sensor

ALBIA0603ZZ
