PG-80

< WIRING DIAGRAM >

FUSE, FUSIBLE LINK AND RELAY BOX

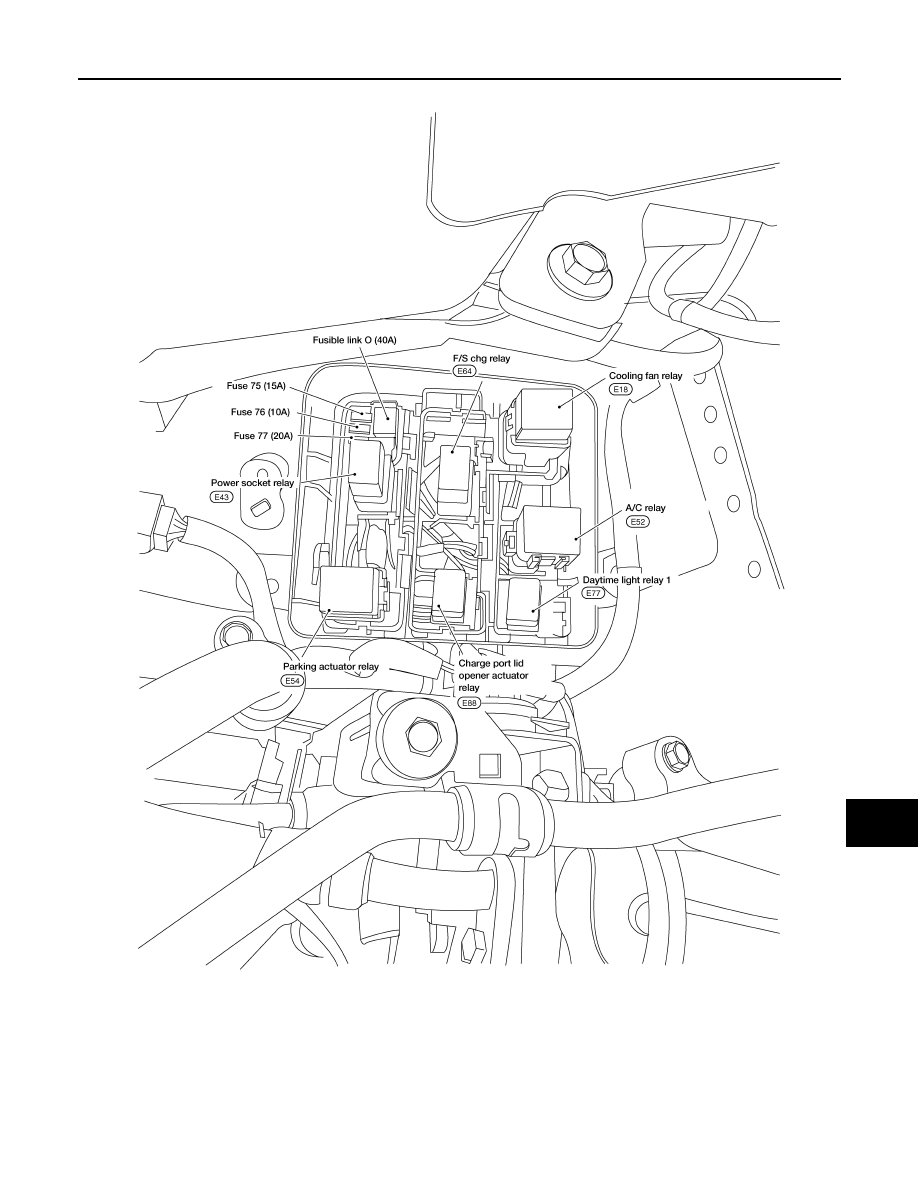

FUSE AND RELAY BOX

AAMIA2459GB

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-81

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

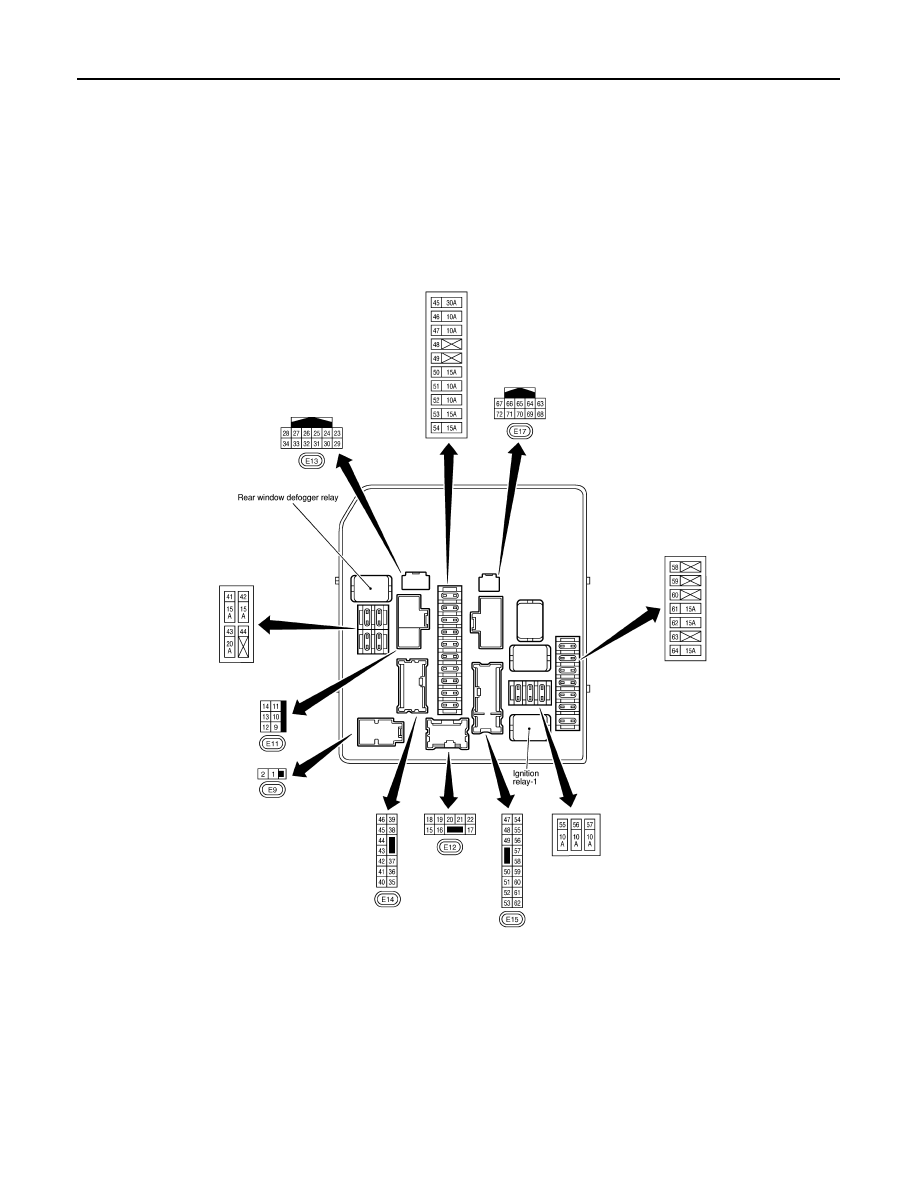

FUSE, FUSIBLE LINK AND RELAY BOX 2

AAMIA2460GB

PG-82

< WIRING DIAGRAM >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

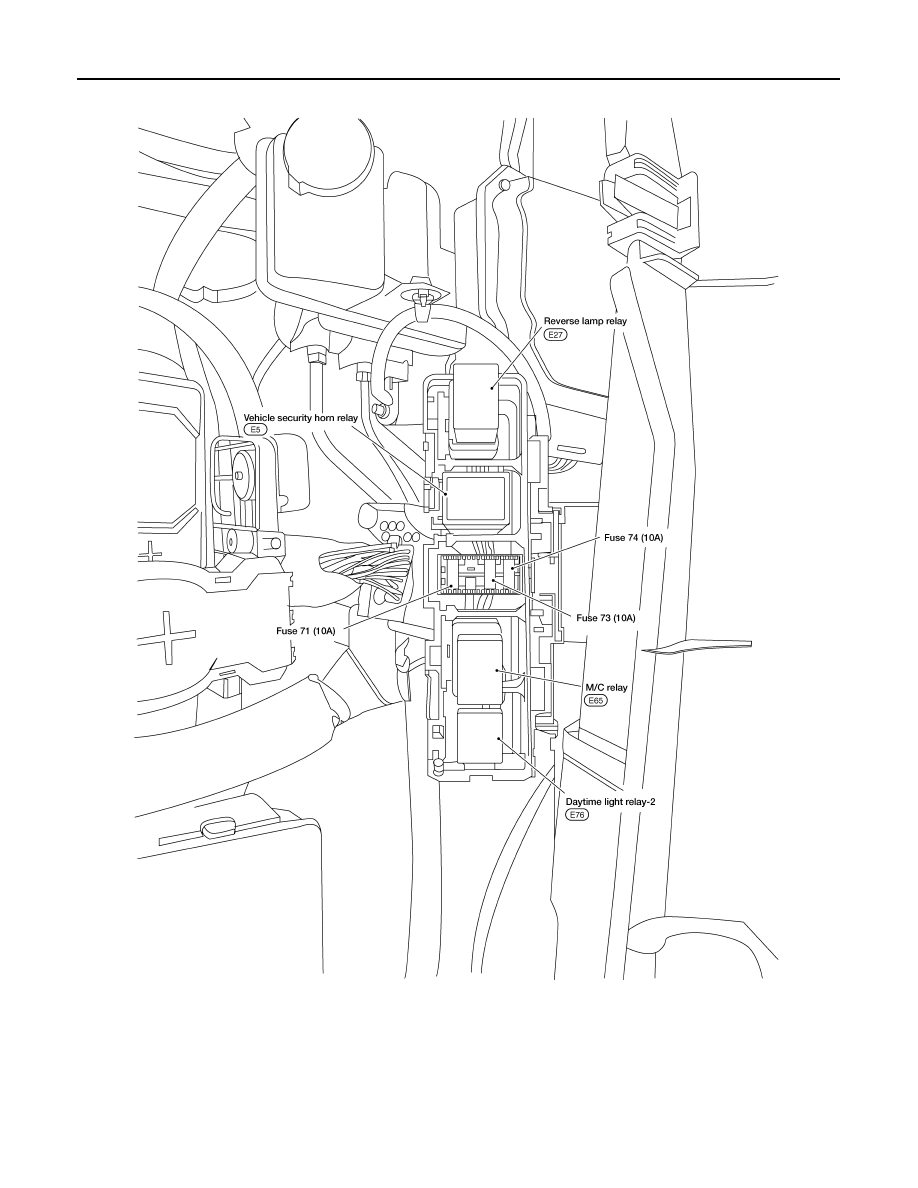

IPDM E/R Terminal Arrangement

INFOID:0000000010586667

AAMIA2475GB

PG

12V BATTERY INSPECTION

PG-83

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

12V BATTERY INSPECTION

How to Handle 12V Battery

INFOID:0000000010119396

CAUTION:

• If it becomes necessary to start the EV system with a booster battery and jumper cables, use a 12-

volt booster battery.

• After connecting 12V battery cables, ensure that they are tightly clamped to 12V battery terminals for

good contact.

• Never add distilled water through the hole used to check specific gravity.

METHODS OF PREVENTING OVER-DISCHARGE

The following precautions must be taken to prevent over-discharging a battery.

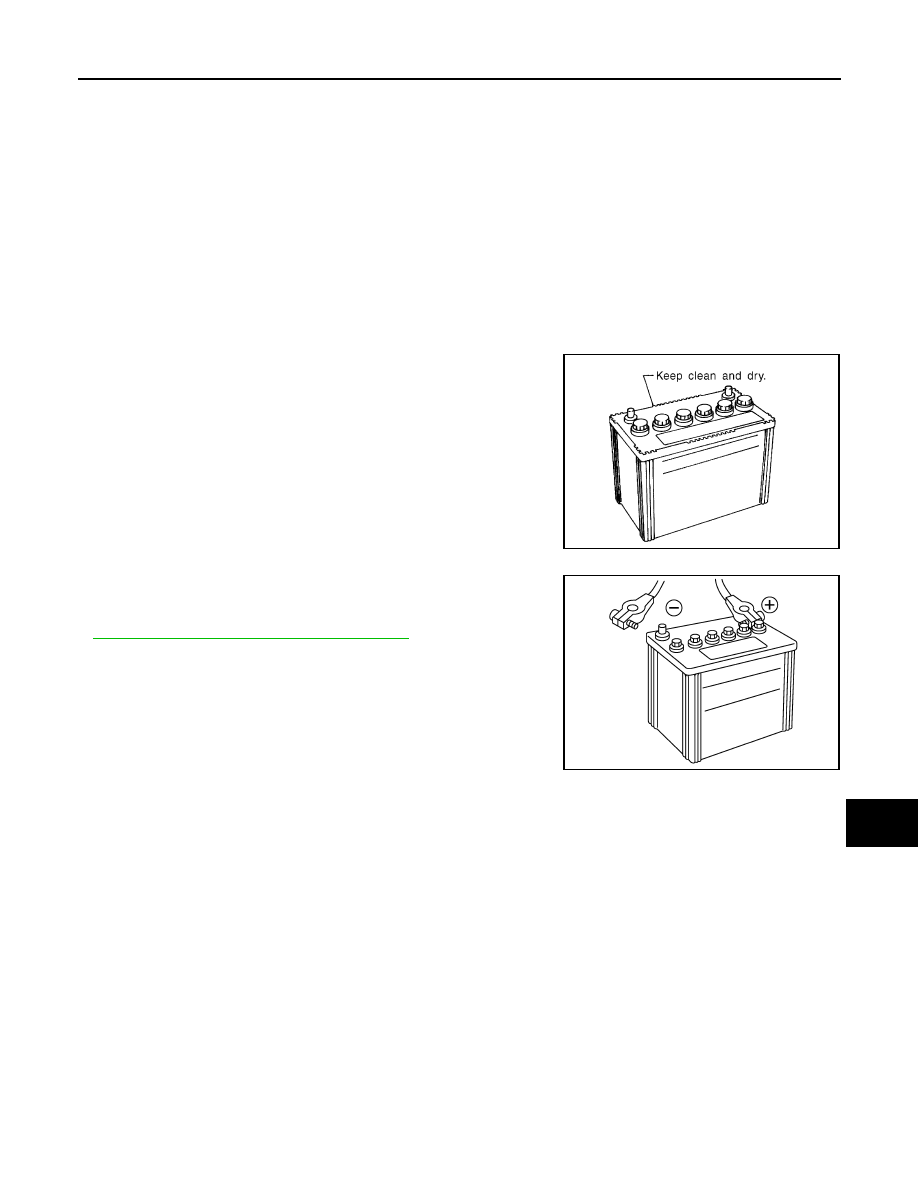

• The 12V battery surface (particularly its top) should always be kept

clean and dry.

• The terminal connections should be clean and tight.

• At every routine maintenance, check the electrolyte level.

This also applies to batteries designated as “low maintenance” and

“maintenance-free”.

• When the vehicle is not going to be used over a long period of

time, disconnect the 12V battery cable from the negative terminal.

(If the vehicle has an extended storage switch, turn it off.) Refer to

PG-6, "Precaution for Removing 12V Battery"

.

Work Flow

INFOID:0000000010119397

12V BATTERY DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI

To diagnose and confirm the condition of the 12V battery, use the following special service tools:

• EXP-800 NI Battery and electrical diagnostic analyzer

• GR8-1200 NI Multitasking battery and electrical diagnostic station

NOTE:

Refer to the applicable instruction manual for proper battery diagnosis procedures.

12V BATTERY DIAGNOSIS WITHOUT EXP-800 NI OR GR8-1200 NI

Check Electrolyte Level

WARNING:

Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces. After touch-

ing a 12V battery, never touch or rub your eyes until you have thoroughly washed your hands. If acid

contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical atten-

tion.

Failure to do this may cause personal injury or damage to clothing or the painted surfaces.

MEL040F

ELA0349D
