Nissan Primera P11. Manual - part 229

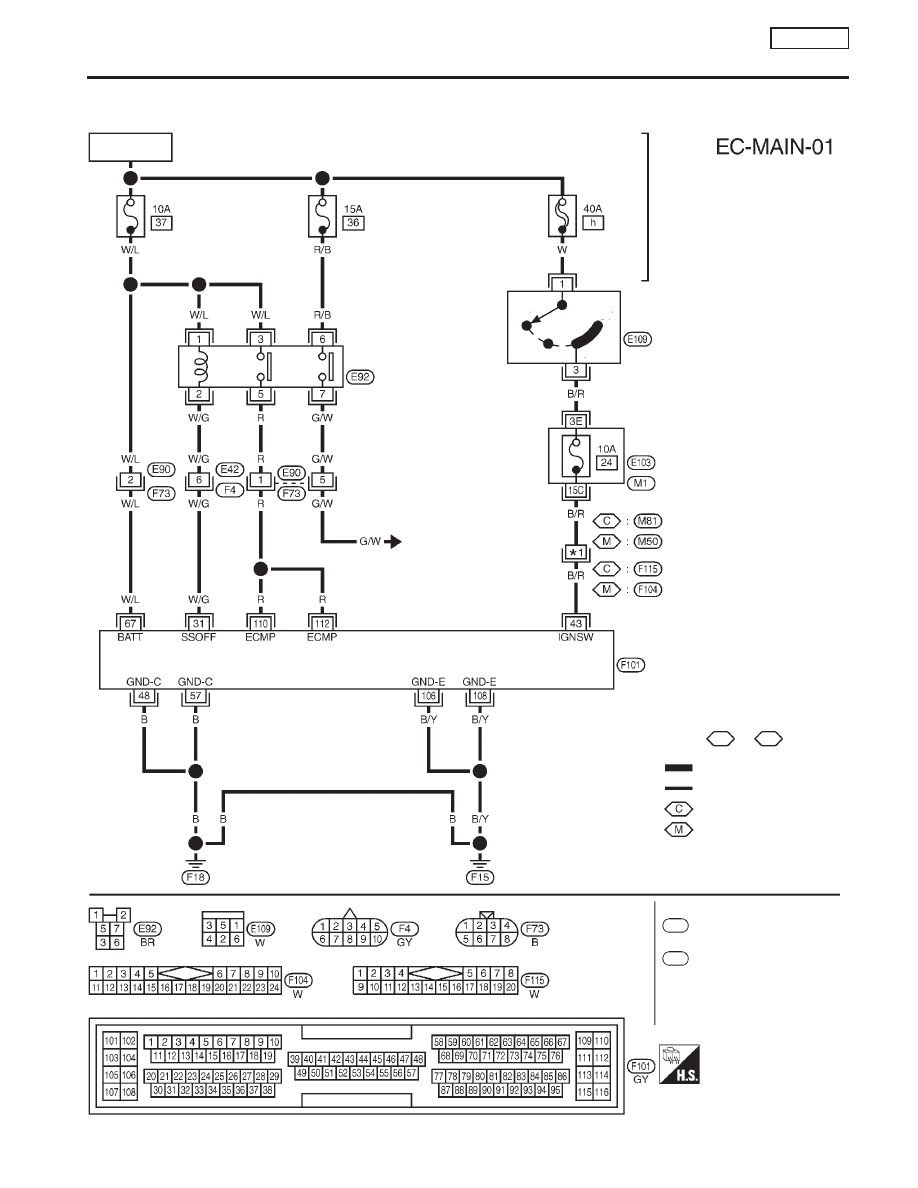

Main Power Supply and Ground Circuit

WIRING DIAGRAM

NCEC0047

YEC828

BATTERY

Refer to EL-POWER.

OFF

ACC

ST

ON

IGNITION
SWITCH

FUSE
BLOCK
(J/B)

To EC-IBN/SG,

EC-TP/SW,
EC-AAC/V,
EC-EGR

ECM
RELAY

ECM

: Detectable line for DTC

: Non-detectable line for DTC

: Hyper CVT models

: M/T models

.

REFER TO THE FOLLOWING

M1

FUSE BLOCK -

Junction Box (J/B)

E103

FUSE BLOCK -

Junction Box (J/B)

1 :

C

17

M

23

TROUBLE DIAGNOSIS FOR POWER SUPPLY

SR20DE

Main Power Supply and Ground Circuit

EC-115

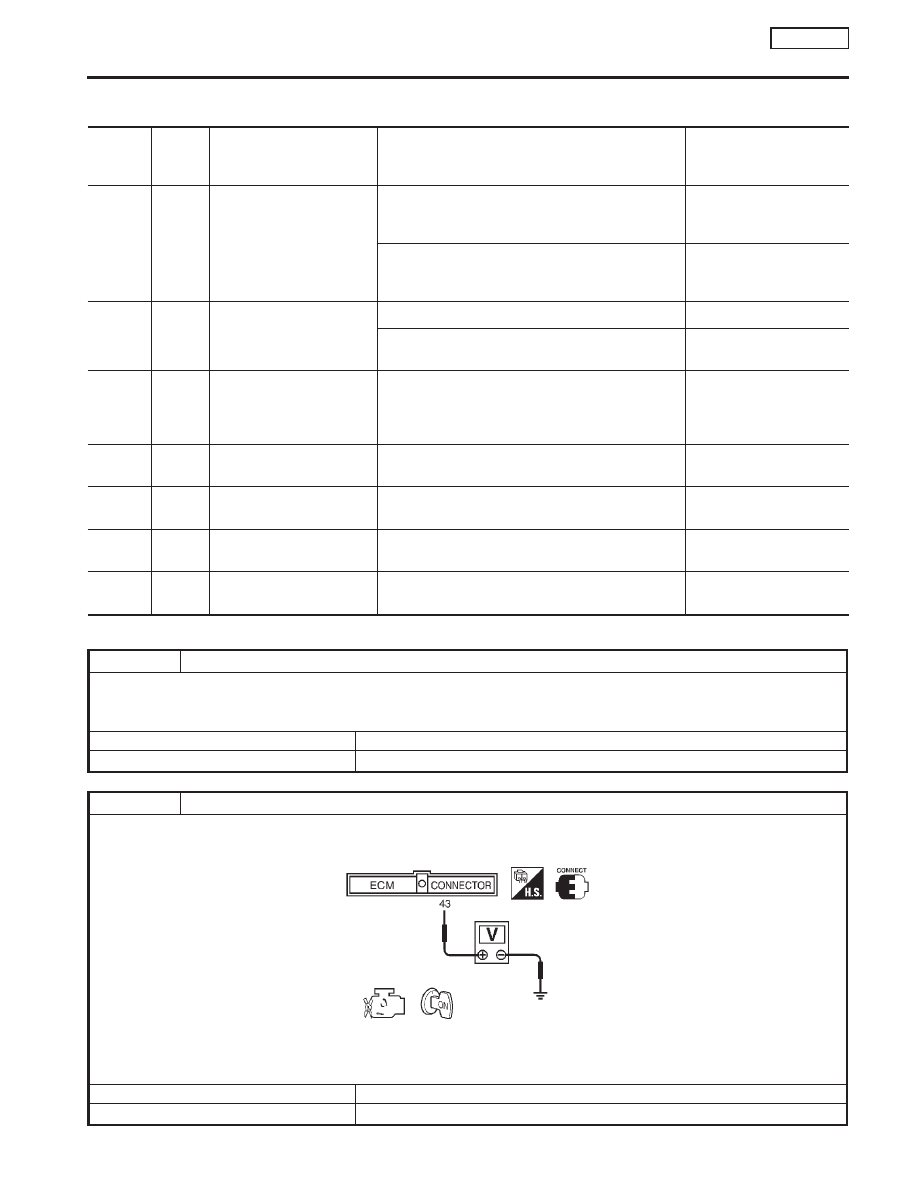

ECM TERMINALS AND REFERENCE VALUE

NCEC0048

Specification data are reference values and are measured between each terminal and 48 (ECM ground).

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

31

W/G

ECM relay (Self shut-off)

[Engine is running]
[Ignition switch “OFF”]

I

For 9 seconds after turning ignition switch “OFF”

0 - 1V

[Ignition switch “OFF”]

I

9 seconds passed after turning ignition switch
“OFF”

BATTERY VOLTAGE
(11 - 14V)

43

B/R

Ignition switch

[Ignition switch “OFF”]

0V

[Ignition switch “ON”]

BATTERY VOLTAGE
(11 - 14V)

48

B

ECM ground

[Engine is running]

I

Idle speed

Engine ground
(Probe this terminal with
(−) tester probe when
measuring)

57

B

ECM ground

[Engine is running]

I

Idle speed

Engine ground

67

W/L

Power supply for ECM
(Back-up)

[Ignition switch “OFF”]

BATTERY VOLTAGE
(11 - 14V)

106
108

B/Y
B/Y

ECM ground

[Engine is running]

I

Idle speed

Engine ground

110
112

R
R

Power supply for ECM

[Ignition switch “ON”]

BATTERY VOLTAGE
(11 - 14V)

DIAGNOSTIC PROCEDURE

NCEC0049

1

INSPECTION START

Start engine.
Is engine running?

Yes or No

Yes

©

GO TO 4.

No

©

GO TO 2.

2

CHECK POWER SUPPLY-I

1. Turn ignition switch “OFF” and then “ON”.
2. Check voltage between ECM terminal 43 and ground with CONSULT-II or tester.

SEF981W

Voltage: Battery voltage

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

TROUBLE DIAGNOSIS FOR POWER SUPPLY

SR20DE

Main Power Supply and Ground Circuit (Cont’d)

EC-116

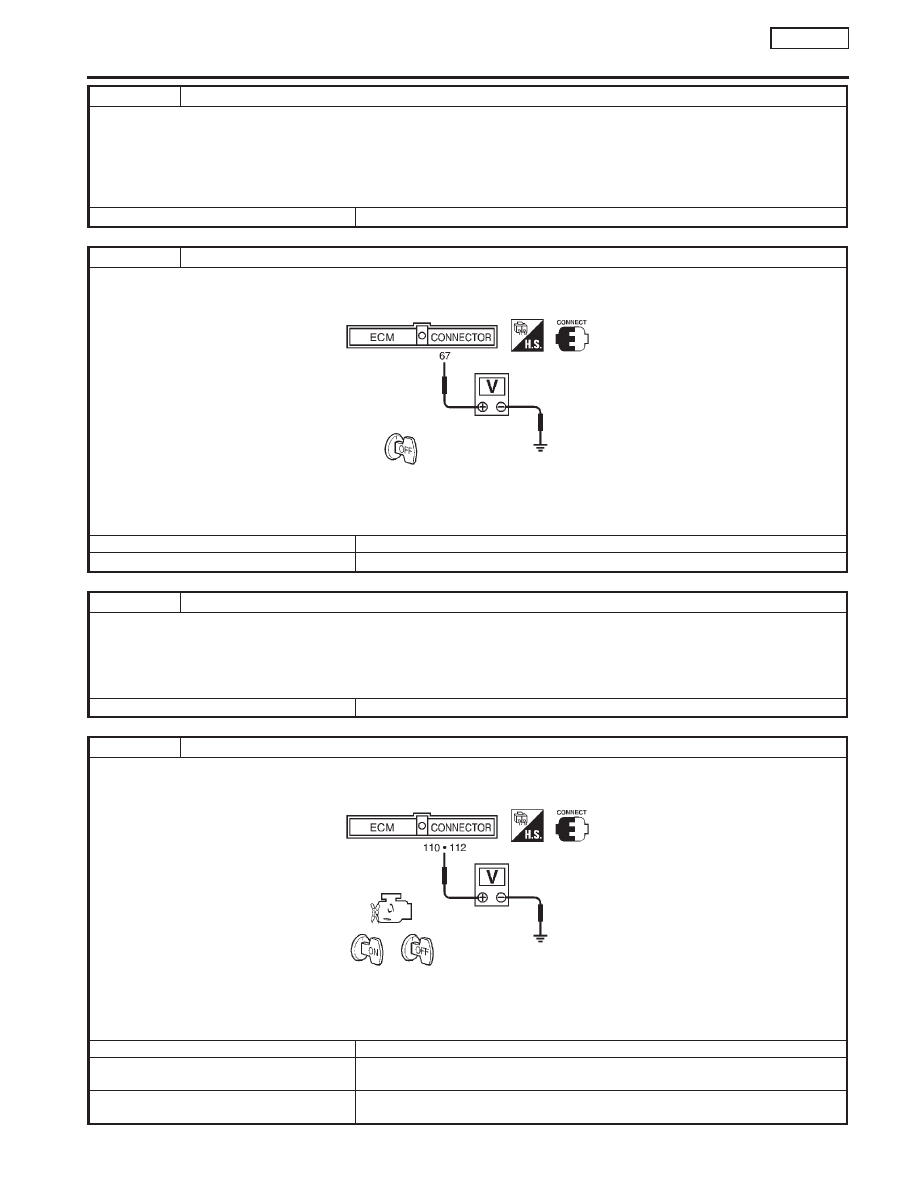

3

DETECT MALFUNCTIONING PART

Check the following.

I

Fuse 10A, 40A

I

Harness connectors M50, F104 (CVT: M81, F115)

I

Harness for open or short between ECM and fuse block

I

Harness for open or short between fuse block and ignition switch. Refer to wiring diagram.

©

Repair harness or connectors.

4

CHECK POWER SUPPLY-II

1. Stop engine.
2. Check voltage between ECM terminals 67 and ground with CONSULT-II or tester.

SEF982W

Voltage: Battery voltage

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

5

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E90, F73

I

10A fuse

I

Harness for open or short between ECM and fuse

©

Repair harness or connectors.

6

CHECK POWER SUPPLY-III

1. Turn ignition switch “ON” and then “OFF”.
2. Check voltage between ECM terminals 110, 112 and ground with CONSULT-II or tester.

SEF983W

Voltage:

After turning ignition switch “OFF”, battery voltage will exist for a few seconds, then drop to approximately 0V.

OK or NG

OK

©

GO TO 14.

NG (Battery voltage does not
exist.)

©

GO TO 7.

NG (Battery voltage exists for
more than a few seconds.)

©

GO TO 13.

TROUBLE DIAGNOSIS FOR POWER SUPPLY

SR20DE

Main Power Supply and Ground Circuit (Cont’d)

EC-117

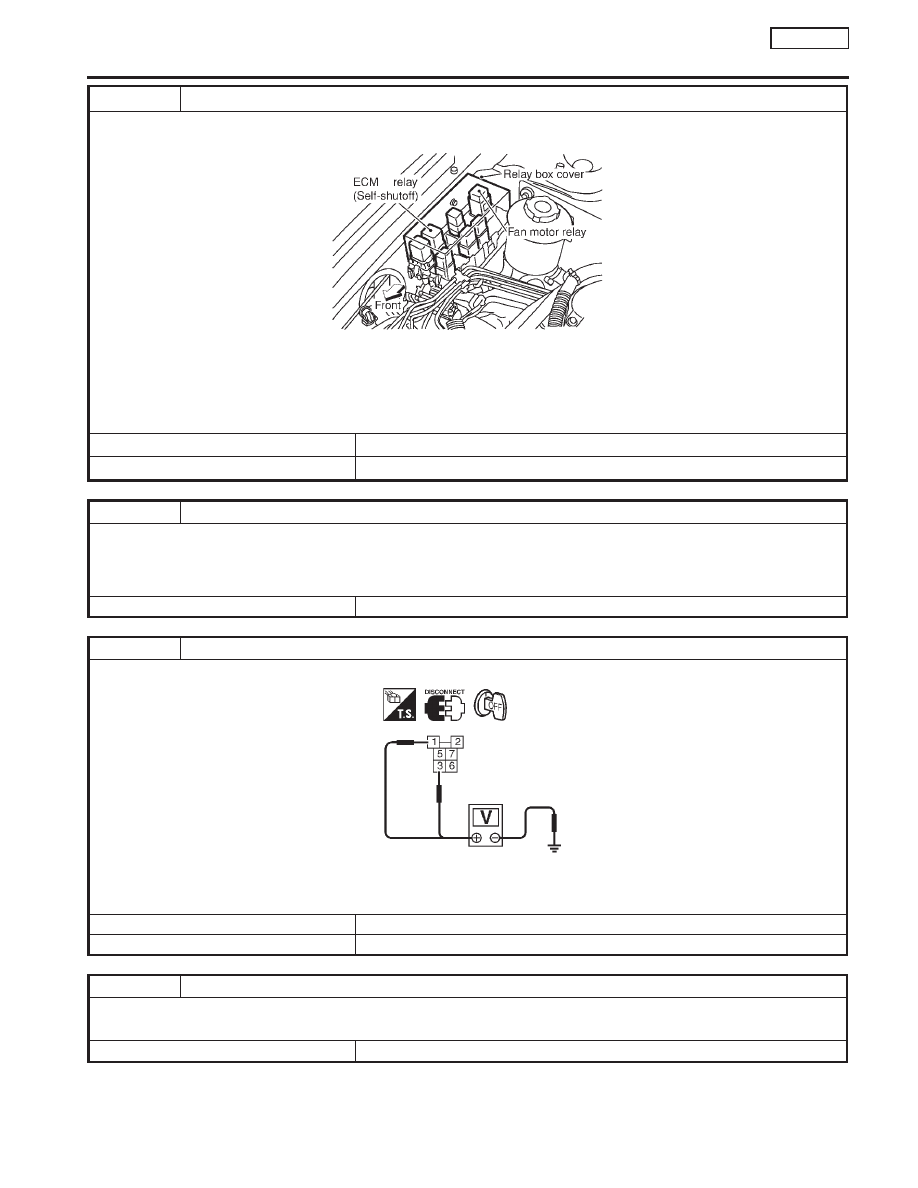

7

CHECK HARNESS CONTINUITY BETWEEN ECM RELAY AND ECM

1. Disconnect ECM harness connector.
2. Disconnect ECM relay.

SEF984W

3. Check harness continuity between ECM terminals 110, 112 and relay terminal 5.

Refer to wiring diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 9.

NG

©

GO TO 8.

8

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E90, F73

I

Harness for open or short between ECM relay and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

9

CHECK VOLTAGE BETWEEN ECM RELAY AND GROUND

Check voltage between relay terminals 1, 3 and ground with CONSULT-II or tester.

SEF985W

Voltage: Battery voltage

OK or NG

OK

©

GO TO 11.

NG

©

GO TO 10.

10

DETECT MALFUNCTIONING PART

Check the harness for open or short between ECM relay and fuse.

©

Repair harness or connectors.

TROUBLE DIAGNOSIS FOR POWER SUPPLY

SR20DE

Main Power Supply and Ground Circuit (Cont’d)

EC-118
