Wiring Diagram — ROOM/L —

NLEL0436

YEL950D

INTERIOR ROOM LAMP

Wiring Diagram — ROOM/L —

EL-80

YEL951D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

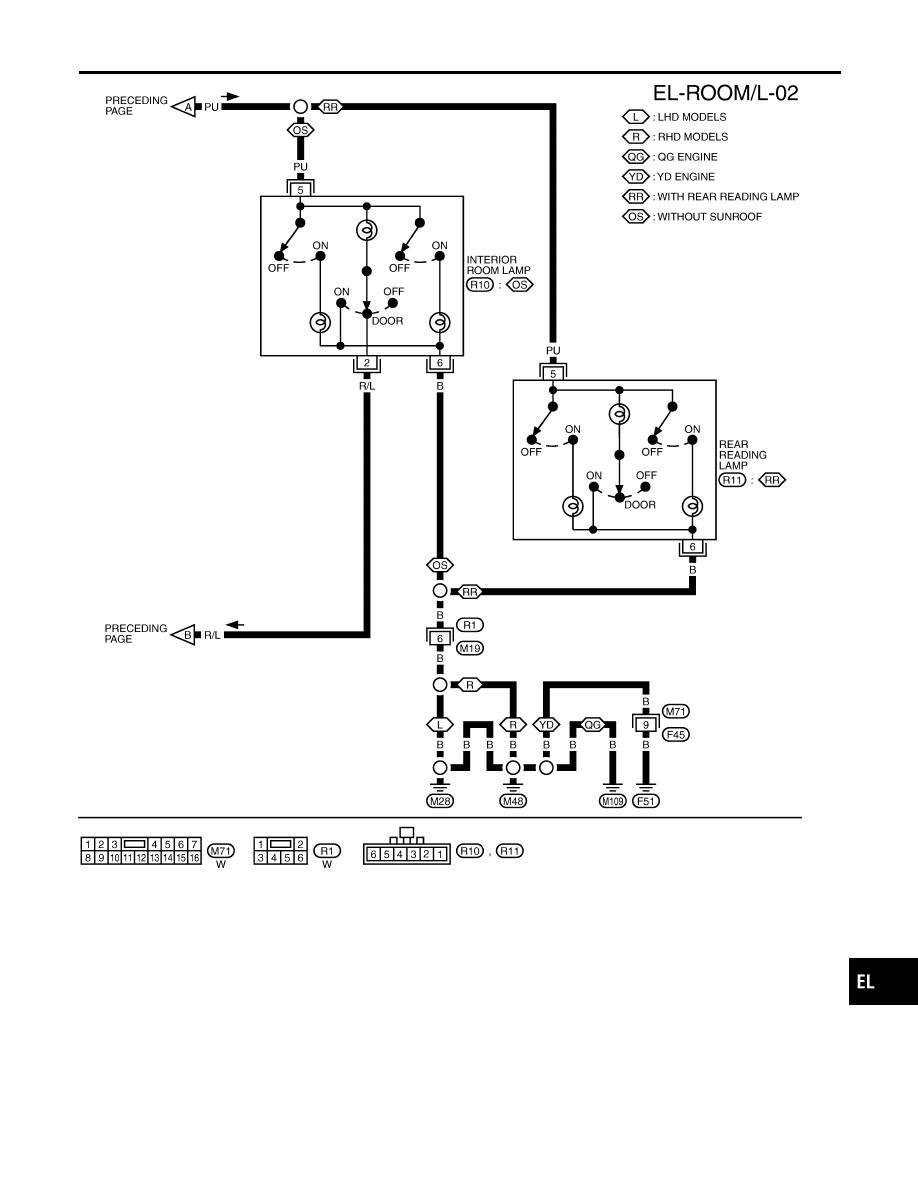

Wiring Diagram — ROOM/L — (Cont’d)

EL-81

YEL952D

INTERIOR ROOM LAMP

Wiring Diagram — ROOM/L — (Cont’d)

EL-82

Terminal and Reference Valve for Smart
Entrance Control Unit

NLEL0680

Terminal

No.

Wire

color

Connections

Operated condition

Voltage (Approximate values)

5

B/R

Key switch

Ignition key Removed

,

Inserted

0V

,

12V

13

GY

Door lock/unlock switches

Neutral

,

Locks

12V

,

0V

14

L

Door lock/unlock switches

Neutral

,

Unlocks

12V

,

0V

28

R/Y

Interior room lamp

When interior lamp is operated using
remote controller (Lamp switch in
“DOOR” position)

12V

,

0V

29

Y/G

Ignition key switch

Ignition key is in “ON” position

12V

43

R/W

Front door switch

Front door (Driver side):
Open

,

Closed

12V

,

0V

44

L/OR

Front door switch
(Passenger side)

Front door (Passenger side):
Open

,

Closed

0V

,

12V

53

B

Ground

0V

56

R/B

Power source

12V

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

Terminal and Reference Valve for Smart Entrance Control Unit

EL-83
