Nissan Teana J32. Manual - part 64
AV
AV CONTROL UNIT
AV-111
< ECU DIAGNOSIS >

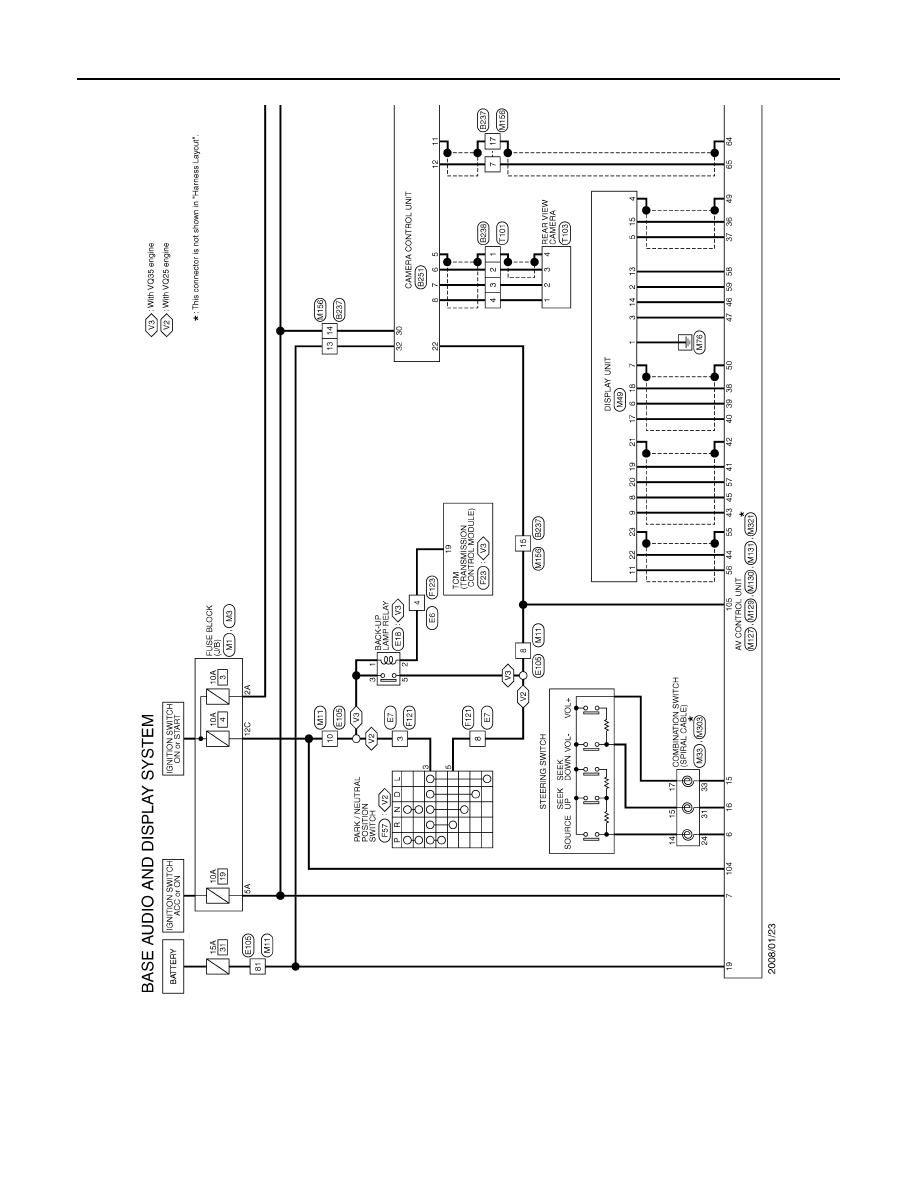

[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
M
B
A
O
P
*:Stereo sounds are input only when the 2 channel stereo sound is played.
96
(B)
97
(R)
AUX sound signal LH
Input
Ignition
switch
ON
AUX sound input.
101
(BR)
Ground
Switch ground
—
Ignition
switch
ON
—
0 V
103
(SB)
Ground
Disk eject signal
Input
Ignition
switch
ON
Pressing the eject switch.
0 V
Except for above.
3.3 V
104
(O)
Ground
Ignition signal
Input
Ignition
switch
ON
—
Battery voltage
105
(P/B)
Ground
Reverse signal
Input
Ignition
switch
ON
Selector lever in R position.
12.0 V
Other than selector lever in
R position.
0 V
106
(G/R)
Ground
Parking brake signal
Input
Ignition
switch
ON
Parking brake ON.
0 V
Parking brake OFF.
107
(V/W)
Ground
Vehicle speed signal
(8-pulse)
Input
Ignition
switch
ON
When vehicle speed is ap-
prox. 40 km/h (25MPH).
NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
111
—
Shield
—
—
—
—
Terminal
(Wire color)
Description
Condition
Reference value
(Approx.)
+
–
Signal name
Input/
Output
SKIB3609E
JSNIA0007GB
JSNIA0012GB
