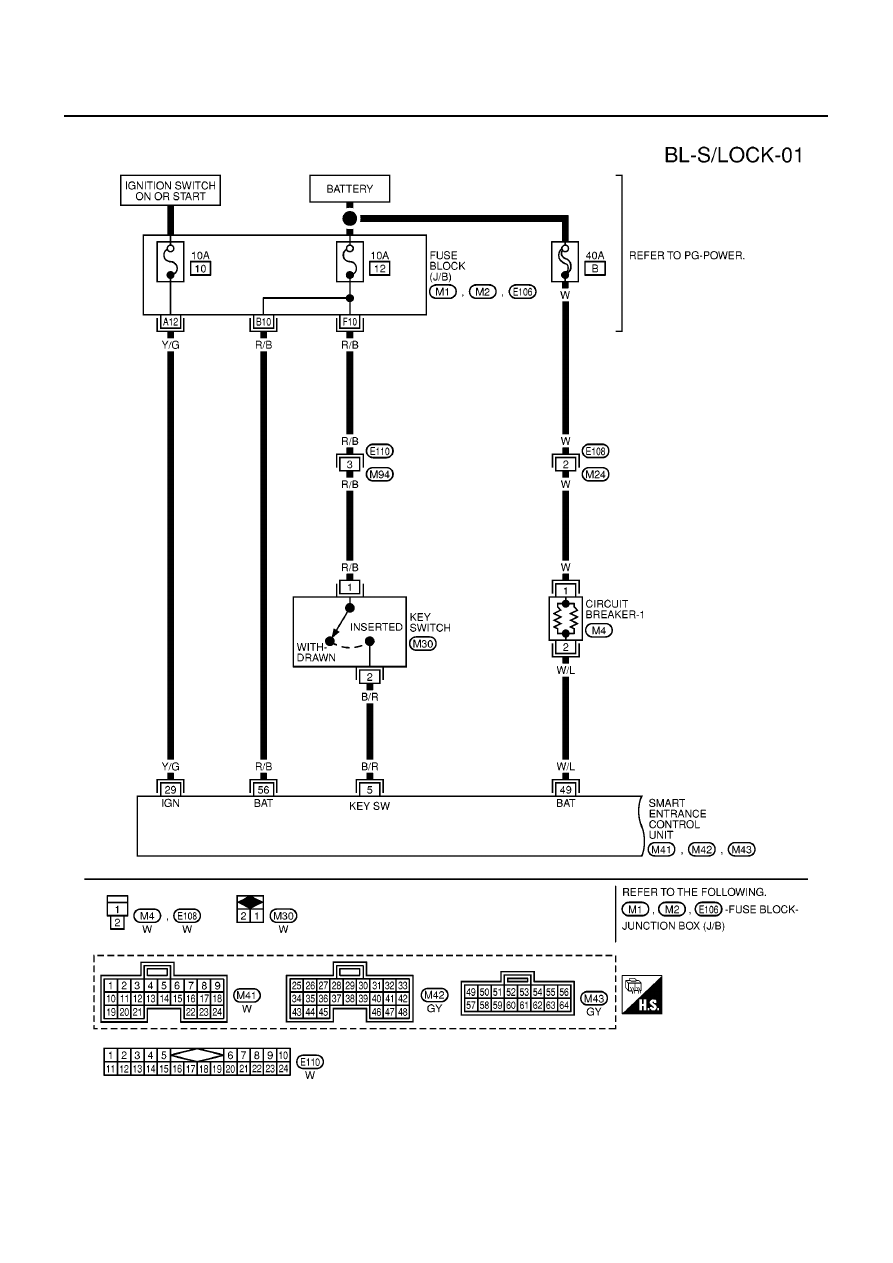

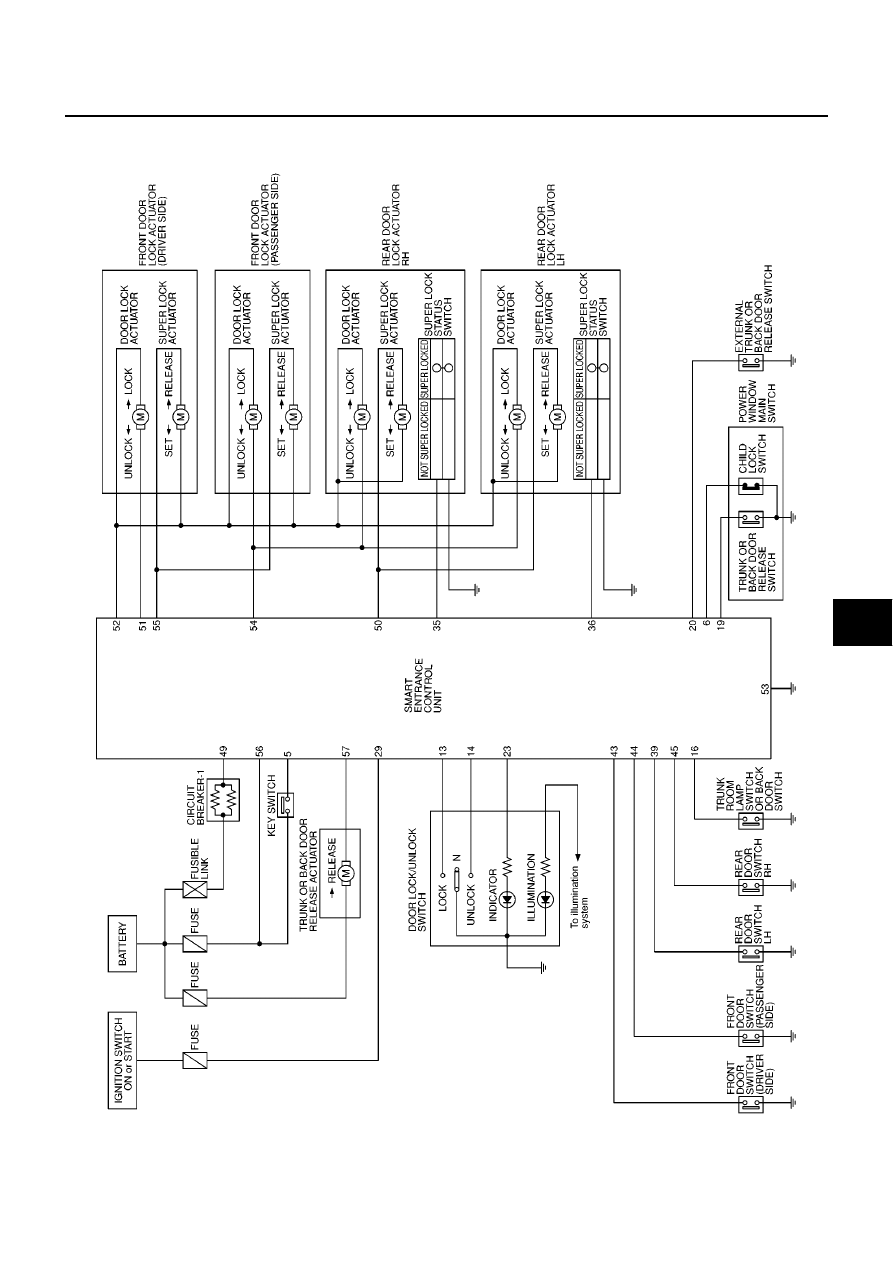

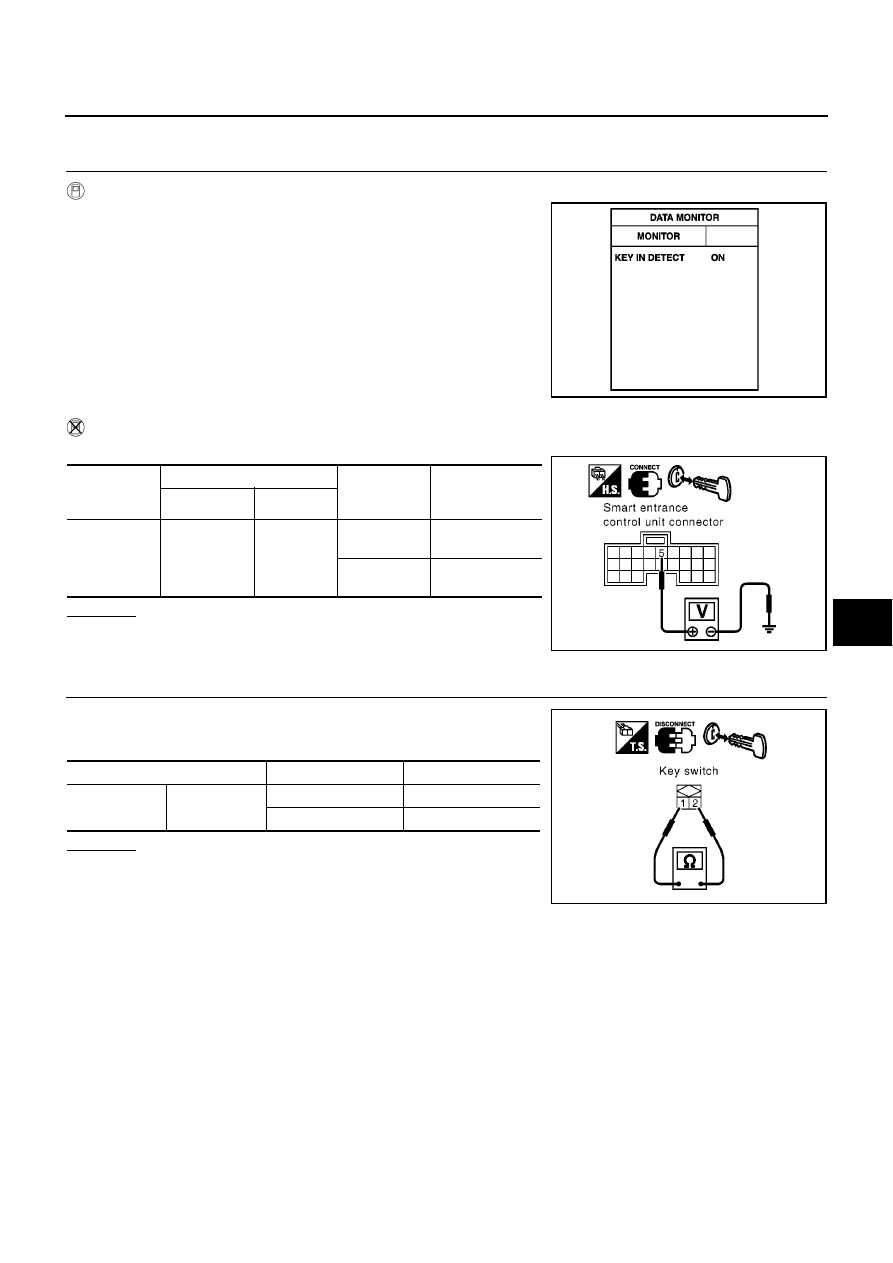

POWER DOOR LOCK SYSTEM BL-41 C D E F G H J K L M A B BL Key Switch Check EIS005H5 1. CHECK KEY SWITCH INPUT SIGNAL WITH CONSULT-II Check key switch signal (“KEY IN DETECT”) in “DATA MONITOR” WITHOUT CONSULT-II Check voltage between smart entrance control unit harness connector M41 terminal 5 and ground. OK or NG OK >> Key switch is OK. NG >> GO TO 2. 2. CHECK KEY SWITCH 1. Disconnect key switch connector. 2. Check continuity between key switch terminal 1 and 2. OK or NG OK >> Check the following. ● 10A fuse [No. 12, located in fuse block (J/B)] ● Harness for open or short between key switch and ● Harness for open or short between smart entrance control unit and key switch NG >> Replace key switch. KEY IN DETECT Key is inserted in ignition cylinder : ON Key is removed from ignition key cylinder : OFF MKIB0200E Connector Terminals (wire color) Condition (Door lock/ unlock switch) Voltage (V) (Approx.) (+) ( − ) M41 5 (B/R) Ground Key is inserted Battery voltage Key is removed 0 MKIB0585E Terminal Condition Continuity 1 2 Key is inserted Yes Key is removed No MKIB0586E |
