Nissan Tiida C11. Manual - part 768





EXL-70

< COMPONENT DIAGNOSIS >

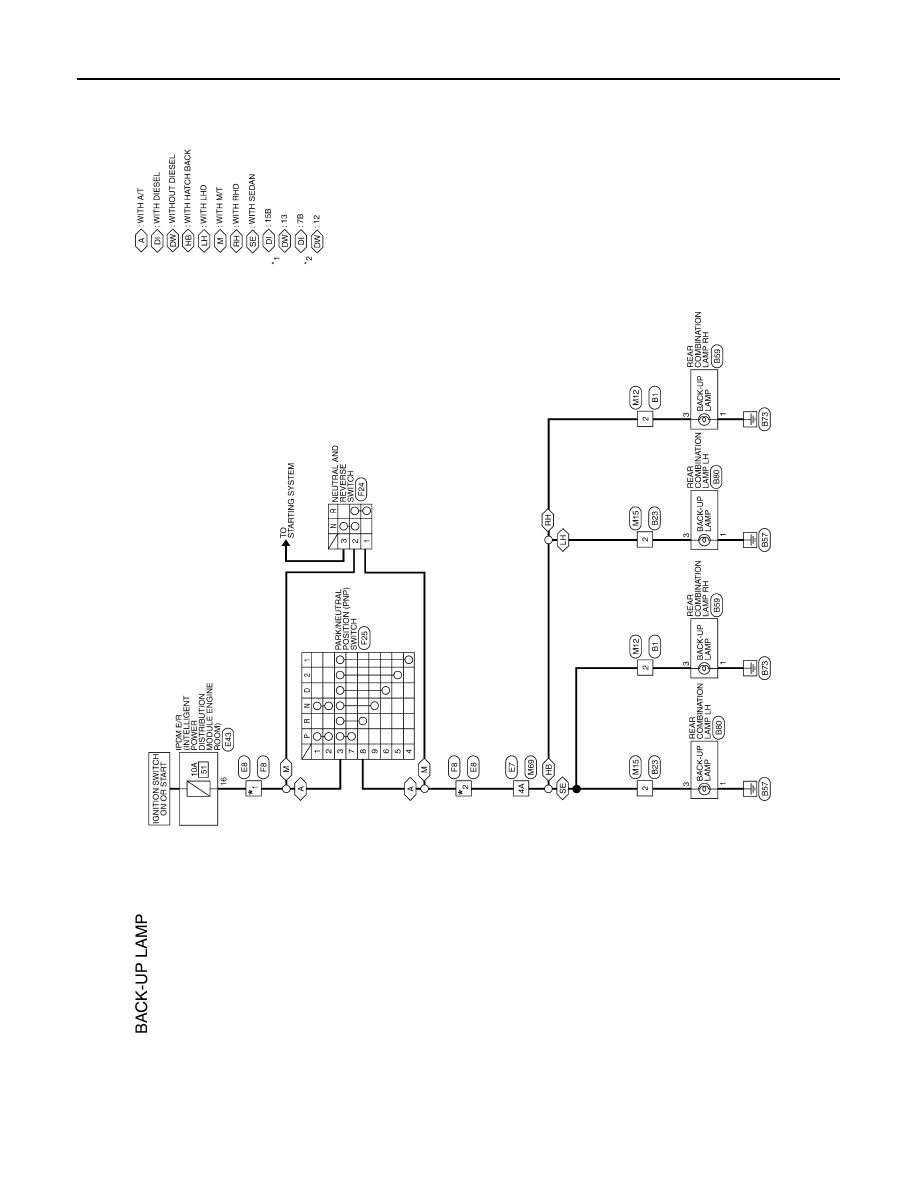

BACK-UP LAMP

BACK-UP LAMP

Wiring Diagram

INFOID:0000000001523284

ALLWA0055GB

BCM (BODY CONTROL MODULE)

EXL-71

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Description

INFOID:0000000001523285

REFERENCE VALUES FOR BCM

For BCM reference values, refer to

XX-XX, "*****"

.

TERMINAL LAYOUT FOR BCM

For the terminal layout for the BCM, refer to

XX-XX, "*****"

.

PHYSICAL VALUES FOR BCM

For physical values for the BCM, refer to

XX-XX, "*****"

.

WIRING DIAGRAM - BCM

For the BCM wiring diagram, refer to

XX-XX, "*****"

.

FAIL SAFE  - BCM

For BCM fail safe information, refer to

XX-XX, "*****"

.

DTC INSPECTION PRIORITY CHART - BCM

For the BCM DTC inspection priority chart, refer to

XX-XX, "*****"

.

DTC INDEX - BCM

For the BCM DTC index, refer to

XX-XX, "*****"

.

EXL-72

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Description

INFOID:0000000001523286

REFERENCE VALUES FOR IPDM E/R

For IPDM E/R reference values, refer to

XX-XX, "*****"

.

TERMINAL LAYOUT FOR IPDM E/R

For the terminal layout for the IPDM E/R, refer to

XX-XX, "*****"

.

PHYSICAL VALUES FOR IPDM E/R

For physical values for the IPDM E/R, refer to

XX-XX, "*****"

.

WIRING DIAGRAM - IPDM E/R

For the IPDM E/R wiring diagram, refer to

XX-XX, "*****"

.

FAIL SAFE  - IPDM E/R

For IPDM E/R fail safe information, refer to

XX-XX, "*****"

.

DTC INSPECTION PRIORITY CHART - IPDM E/R

For the IPDM E/R DTC inspection priority chart, refer to

DTC INDEX - IPDM E/R

For the IPDM E/R DTC index, refer to

XX-XX, "*****"

.

EXTERIOR LIGHTING SYSTEM SYMPTOMS

EXL-73

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SYMPTOM DIAGNOSIS

EXTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000001523287

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.

Symptom

Possible cause

Inspection item

Headlamp does not
switch to the high beam.

One side

• Fuse
• Harness between IPDM E/R

and the front combination lamp

• Front combination lamp

(High beam relay)

• IPDM E/R

Headlamp (HI) circuit
Refer to

EXL-33

.

Both sides

Symptom diagnosis
 "BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM"
Refer to

EXL-76

.

High beam indicator lamp is not turned ON.
(Headlamp switches to the high beam.)

• Combination meter
• BCM

• Combination meter.

Data monitor "HI-BEAM IND"

• BCM (HEAD LAMP)

Active test "HEADLAMP"

Headlamp does not
switch to the low beam.

One side

Front combination lamp (Low
beam relay)

Both sides

• Combination switch
• Harness between the combina-

tion switch and BCM

• BCM

Combination switch
Refer to

XX-XX, "*****"

.

High beam request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "HL HI REQ"

IPDM E/R

Headlamp does not turn
ON.

One side

• Fuse
• Bulb
• Harness between IPDM E/R

and the front combination lamp

• Front combination lamp
• IPDM E/R

Headlamp (LO) circuit
Refer to

EXL-37

.

Both sides

Symptom diagnosis
"BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON"
Refer to

EXL-77, "Description"

.

Headlamp does not turn
OFF.

When the ignition
switch is turned ON

• BCM
• Combination switch

Combination switch
Refer to

XX-XX, "*****"

.

The ignition switch is
turned OFF (After acti-
vating the battery sav-
er).

IPDM E/R

Headlamp is not turned ON/OFF with the lighting
switch AUTO.

• Combination switch
• Harness between the combina-

tion switch and BCM

• BCM

Combination switch
Refer to

XX-XX, "*****"

.

• Light & rain sensor
• Harness between the light &

rain sensor and BCM

• BCM

light & rain sensor
Refer to

EXL-55

.
