AIR CONDITIONING
SG01 - Basic System





SG01-15

TC070-15-01H

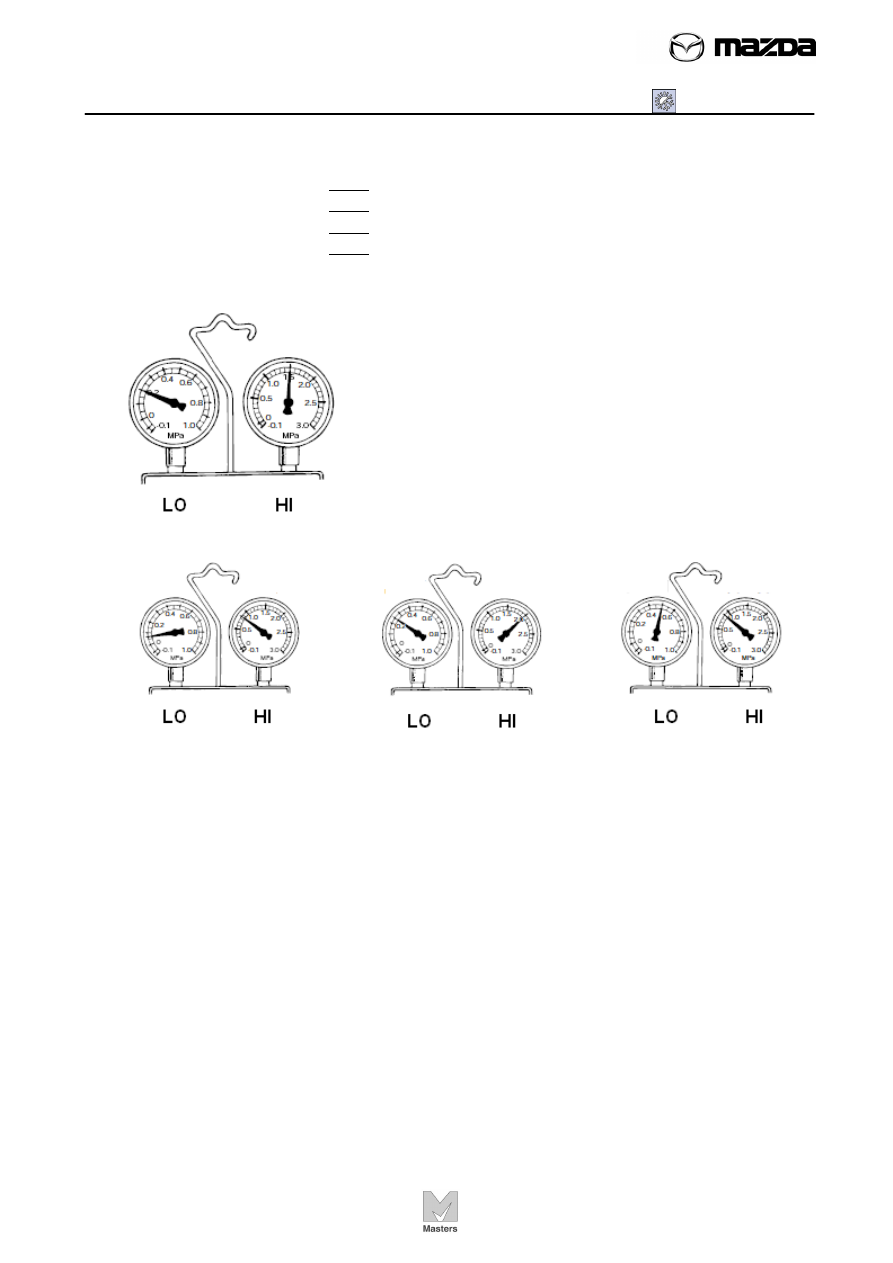

6. In this example match the gauge reading with the possible condition.

Compressor Failure



Insufficient refrigerant



Excessive refrigerant



Normal









A

B

C

D

AIR CONDITIONING
01 - Identifying A/C Components





Activity01-1

TC070-15-01H


Technician Name

IDENTIFYTING A/C COMPONENTS

Purpose: In this activity, you will identify major A/C components.

What you will need to complete this activity:




Current model vehicle



Workshop Manual or Body Electrical Trouble Shooting Manual



Component Identification
Identify the numbered A/C components on the vehicle and record in the spaces
below. If you need help, refer to the Workshop Manual.


1. 6.

2. 7.

3. 8.

4. 9.

5. 10.


Visual Inspection

1.  Do the condenser and radiator have any obstructions to airflow? … Yes  … No


NOTE

Perform the following checks with engine off and key out of ignition.


2.  Do the electric cooling fans turn easily with engine and power off? … Yes  … No
3.  Does the coolant reservoir tank have proper fluid level? … Yes  … No
4.   What is the general appearance of the refrigeration system components?




NOTE

A leak can look like an oily residue. The oily residue will often show up at hose
connections and seal locations.


5.  Is the compressor drive belt in good condition and adjusted to specification?


…

 Yes  … No

AIR CONDITIONING
01 - Identifying A/C Components





Activity01-2

TC070-15-01H



NOTE

If the answer of any of the questions was no, fix the problem before continuing the
inspection. Visual and component inspection help isolate the concern to a specific
system.



Instructor Sign-Off:
Now that you have completed this activity, you should be able to:



Identify A/C components

This skill will help you service an A/C system.

Instructor’s initials:


AIR CONDITIONING
02 - Locating A/C Protection Devices





Activity02-1

TC070-15-01H


Technician Name

LOCATING A/C PROTECTION DEVICES

Purpose: In this activity, you will locate A/C protection devices and explain how they
operate.

What you will need to complete this activity:




Current model vehicle



Workshop Manual or Body Electrical Trouble Shooting Manual


Protection Devices react to abnormally high or low pressure and excessively high
temperature which would damage the system.

Refrigerant Pressure Switch
1.  Where is the pressure switch located?


2.  How does it protect a system that has a leak in the condenser?


3.  How does it protect a system that has inoperative condenser fans?


4. Is the refrigerant that contacts the switch a liquid or vapor?



Thermal Protector (Thermal Switch)

1.  Where is this device located?


2.  This component senses the temperature of liquid or vapor refrigerant?


3.  In what way does the thermal protector safeguard the system?


4.  If this component fails due to an open circuit, what will the customer notice?




NOTE

In some models, the Thermal Protector is called “Thermal Protector “ and “Thermo-
switch.” When ordering parts, use the term “Thermal Protector Kit.”
