AIR CONDITIONING
SG00b - Pre-Test





SG00b-5

TC070-15-01H

16. Technician A says the accumulator traps liquid refrigerant allowing it time to
completely vaporize.
Technician B says if liquid refrigerant reaches the compressor it could be damaged.
Who is correct?

a. Technician A
b. Technician B
c. Both Technicians
d. Neither technician




17. Technician A says small refrigerant leaks are normal and the refrigerant should
be replaced once a year as a maintenance item.
Technician B says if the refrigerant has leaked out of an A/C system the technician
should charge the system with a small amount of refrigerant for leak testing purposes.
Who is correct?

a. Technician A
b. Technician B
c. Both Technicians
d. Neither technician




18. This method of charging an A/C system adds gaseous refrigerant through the
low-side service valve while the compressor is running.

a. Liquid charging
b. Vapor charging
c.  Both answers a and b
d.  Neither answer a or b




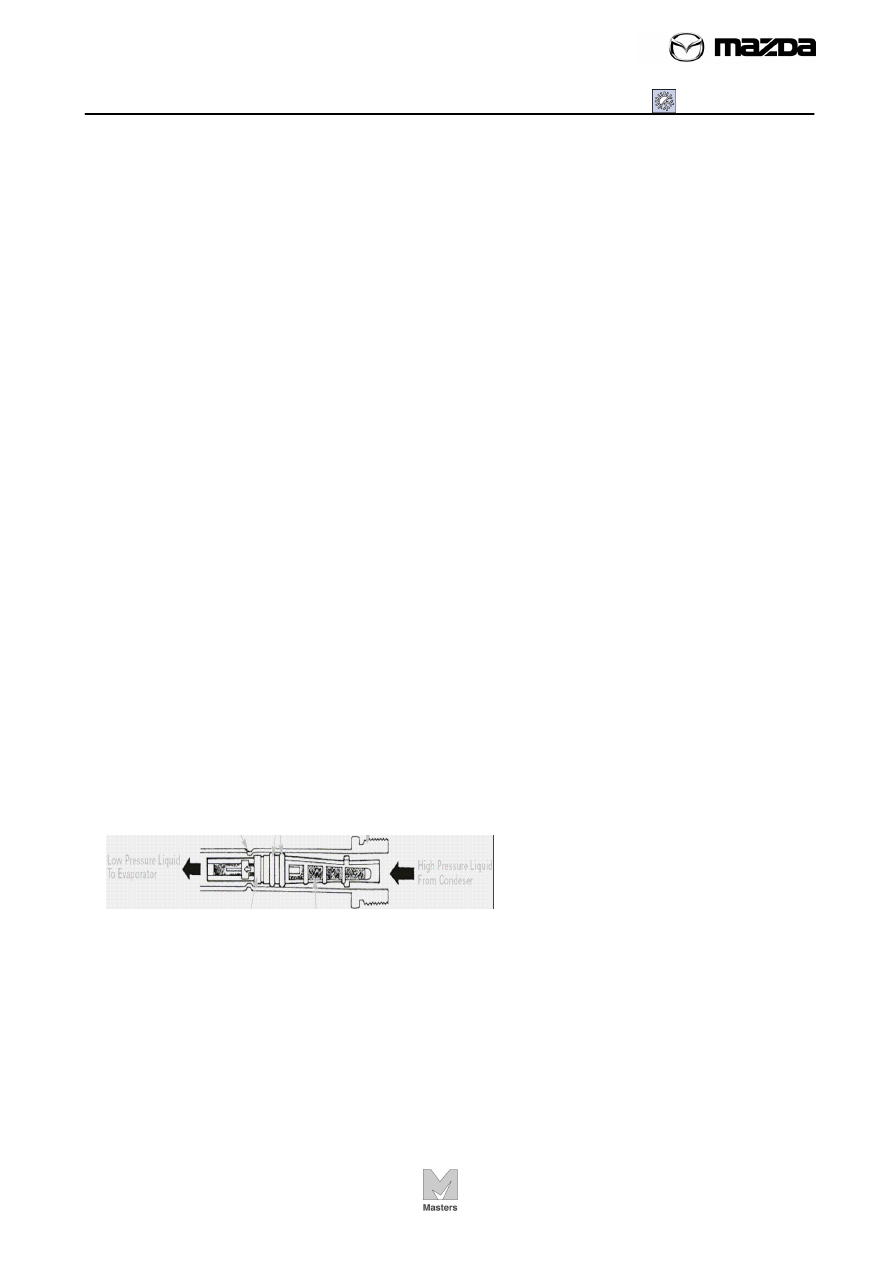

19. The component in this illustration divides the A/C system into high and low
pressure sides, what is it?

a.  Fixed orifice tube
b. Expansion valve
c. Accumulator
d. Receiver dryer

AIR CONDITIONING
SG00b - Pre-Test





SG00b-6

TC070-15-01H

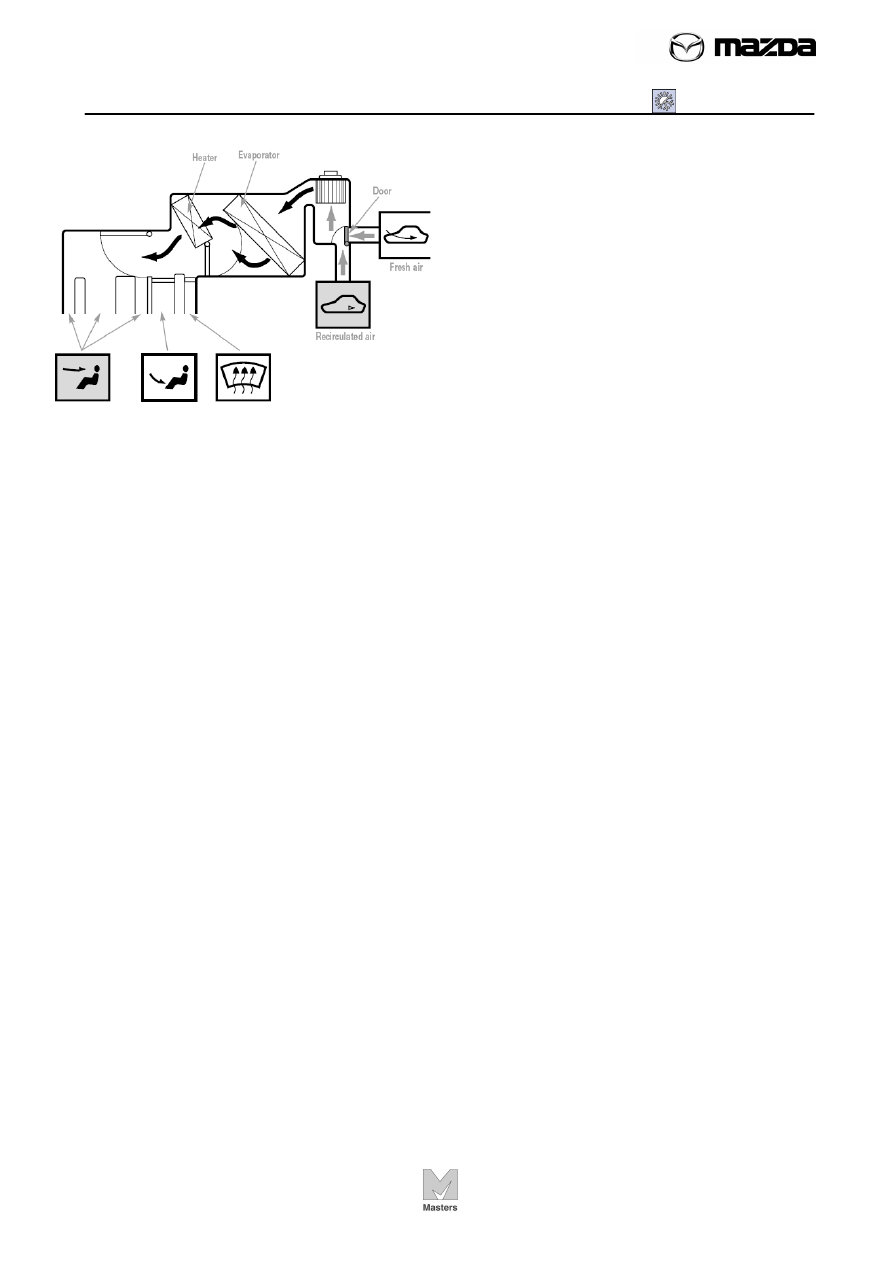

20. Which statement is true about this
climate control plenum assembly?

a.  All air passes through the

evaporator

b.  The air is being re-circulated
c.  The temperature blend door is set

for max heat

d.  All the above


























AIR CONDITIONING
SG01 - Basic System





SG01-1

TC070-15-01H


OBJECTIVES

After completing this section, you will be able to:





Describe a refrigeration cycle and what part the components play in the
cooling process.



Identify major components of a manual A/C system




Activities To complete this section, you will perform the following activities:


Activity Title/Description

Location

AC01

Identifying A/C Components

Shop

AC02

Locating A/C Protection Devices

Shop

AC03

A/C performance Check

Shop

AC04 Refrigerant

Charging

Shop




In this section:



Basic System



A/C Components ...........................................................................................  2
A/C Unit construction/operation .....................................................................  3
Evaporator .....................................................................................................  4
Expansion valve ............................................................................................  4
Air Mix Door Operation  ..................................................................................  5
Airflow Mode Door Operation ........................................................................  5
Air filter function .............................................................................................  6
A/C compressor .............................................................................................  6
Condenser  .....................................................................................................  7
Refrigerant life ...............................................................................................  7
Spring-lock Coupling  .....................................................................................  8
Gauge manifold reading  ................................................................................  9
Refrigerant System Service Warnings (Reference) ....................................... 10
Refrigerant System Service Cautions ............................................................ 10
AC abbreviation ............................................................................................. 12
Item Specification  .......................................................................................... 12
Review Exercise ............................................................................................ 13




NOTE
This SG: Student Guide is developed based on Mazda 3.

AIR CONDITIONING
SG01 - Basic System





SG01-2

TC070-15-01H


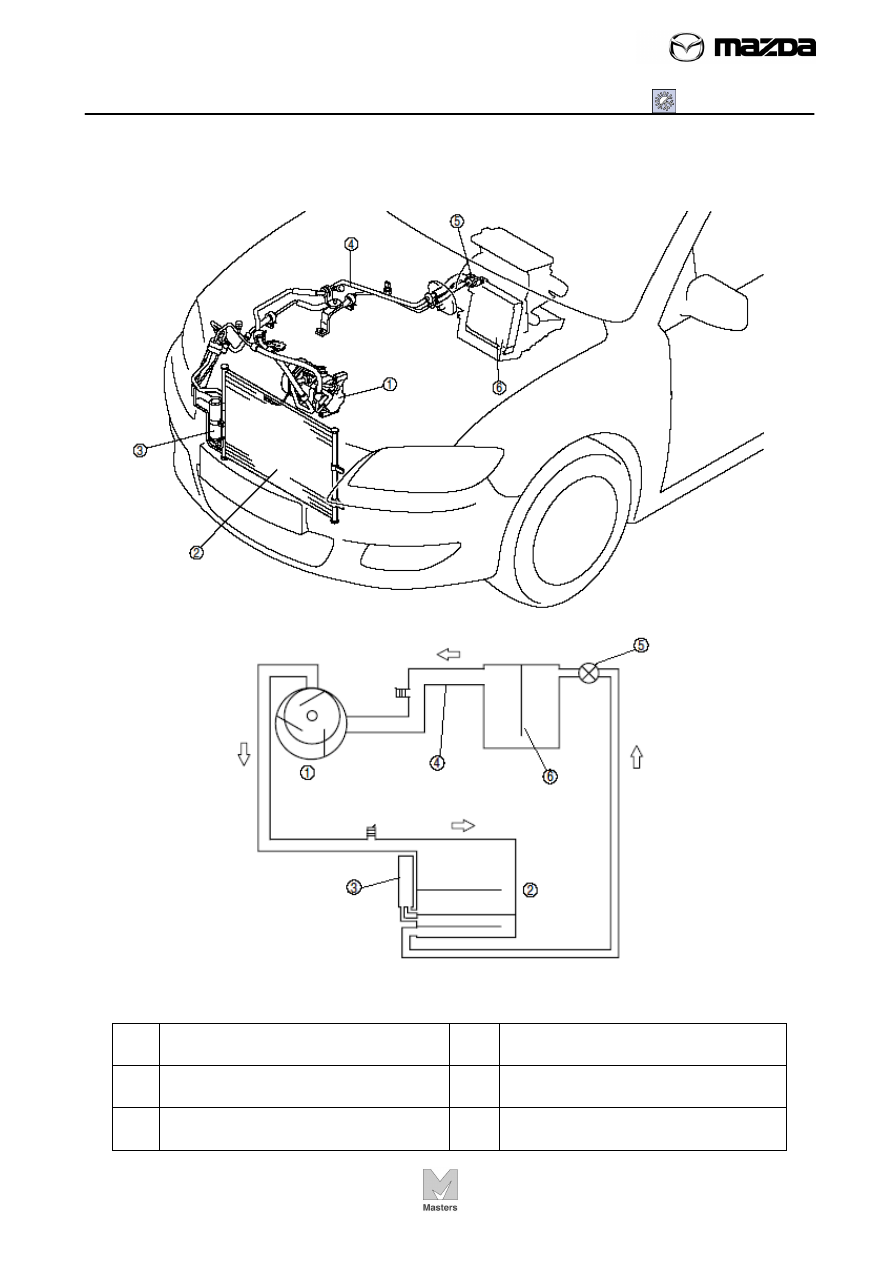

A/C Components









Name the components.
