Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



34



EXPANSION VALVE / ORIFICE TUBE

An expansion valve or orifice tube regulates the flow of refrigerant to the
evaporator. To get maximum cooling potential, the pressure of the liquid
refrigerant must be lowered before it enters the evaporator. At lower
pressure, the refrigerant’s temperature and boiling point drop, allowing it
to absorb more heat as it passes through the evaporator.



Expansion Valve

Although they perform the same function, expansion valves and orifice
tubes operate differently. Figure 17 shows a typical expansion valve.






















A bulb        on the evaporator sends information about evaporator
temperature through a capillary tube        . This tube is attached to the
diaphragm    on the expansion valve.

If the evaporator becomes too cold, the diaphragm pulls the
needle-shaped pintle    , closing the valve   and restricting refrigerant
flow. As the evaporator temperature rises, the diaphragm presses down
on the pintle, opening the valve and letting more refrigerant through.

















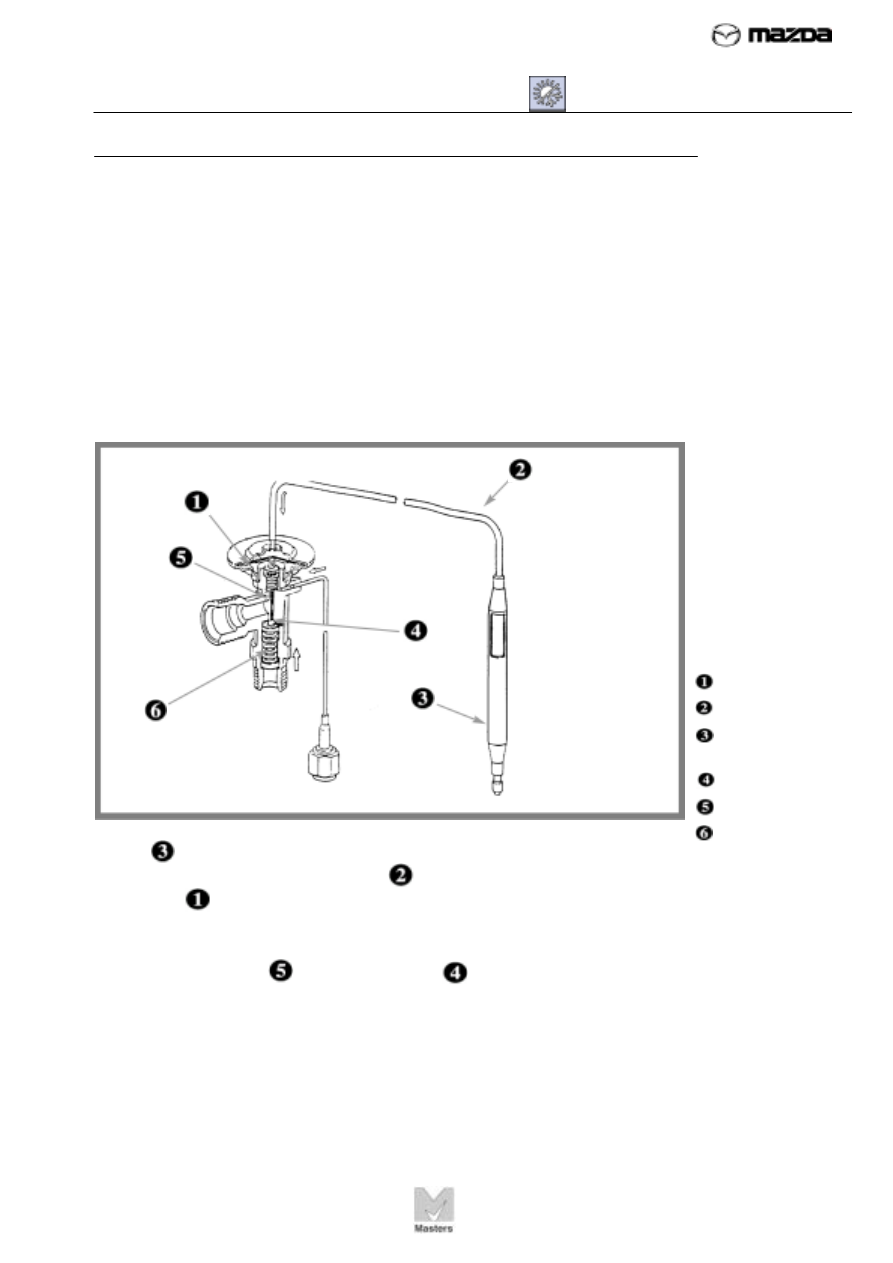

FIGURE 17. The
expansion valve
restricts the flow
of refrigerant to
the evaporator.
Lowering the
pressure of the
refrigerant allows
it to absorb more
heat as it passes
through the
evaporator.


Diaphragm

Capillary tube

Temperature-
sensing bulb

Valve

Pintle

Pressure
spring



Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



35











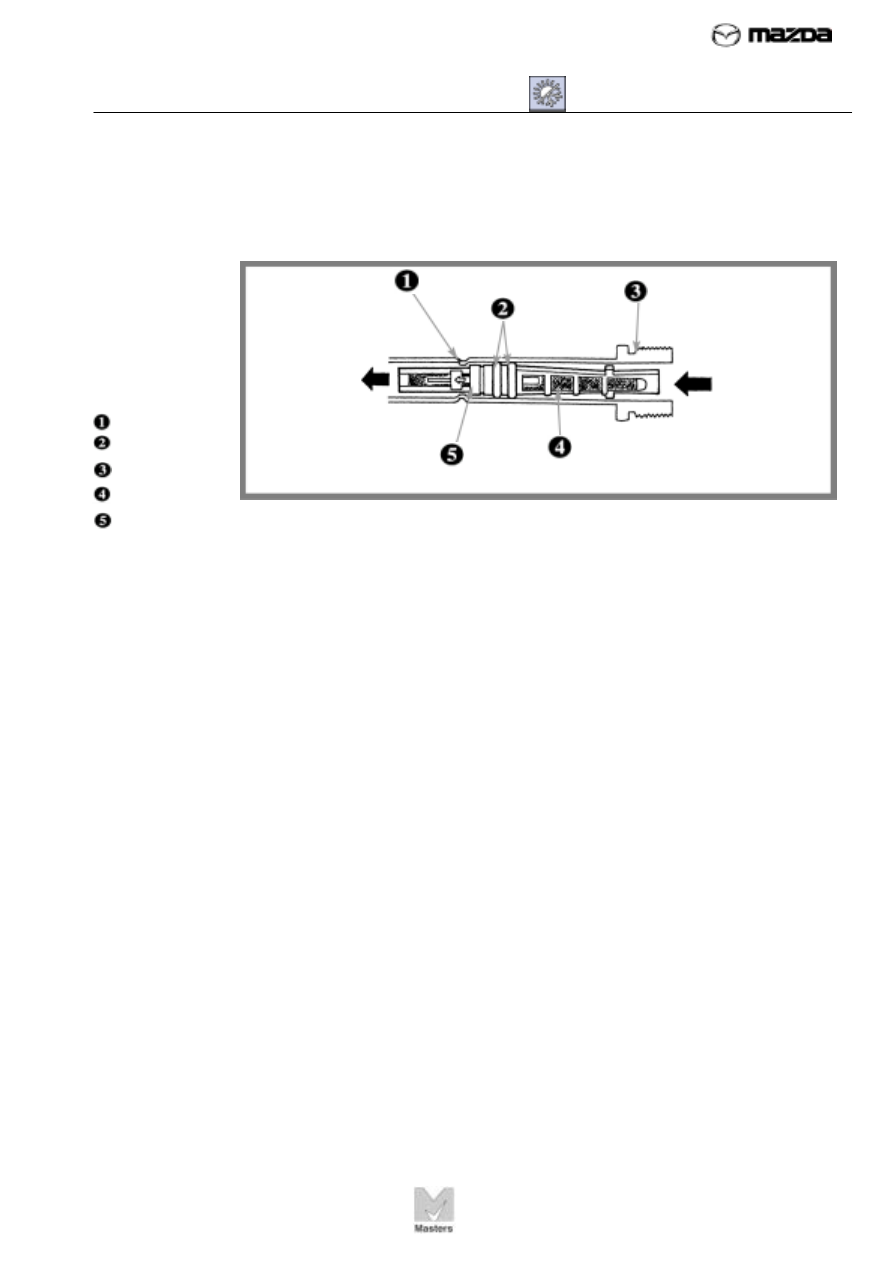

FIGURE 18. An
orifice tube
restricts refrigerant
flow between the
high- and
low-pressure sides
of the A/C system.


Pipe caulking

O-rings

Cooler pipe

Mesh screen

Orifice tube





Orifice Tube



Like an expansion valve, an orifice tube divides the high-and
low-pressure parts of the A/C system. Figure 18 shows a typical orifice
tube.



























The orifice tube has a fixed opening. The flow rate of the refrigerant
through the opening is determined by the cycling of the compressor clutch.
In response to changes in temperature and pressure, the clutch turns on
and off to engage the compressor.


Low Pressure Liquid
To Evaporator



High Pressure Liquid
From Condeser



Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



36

EVAPORATOR

The evaporator (Figure 19) is located under the dash. It removes heat
from the passenger compartment and transfers it to the refrigerant.
Refrigerant enters the evaporator as a cool, low-pressure liquid mist,
which circulates through the evaporator’s tubes and fins (much like
coolant circulates through an engine’s radiator).


























The blower fan forces warm air from the vehicle’s interior over the
surface of the evaporator. The refrigerant absorbs this heat as it
changes from a liquid to a vapor (latent heat of vaporization). The
refrigerant then exits the evaporator as a warm, low-pressure vapor.













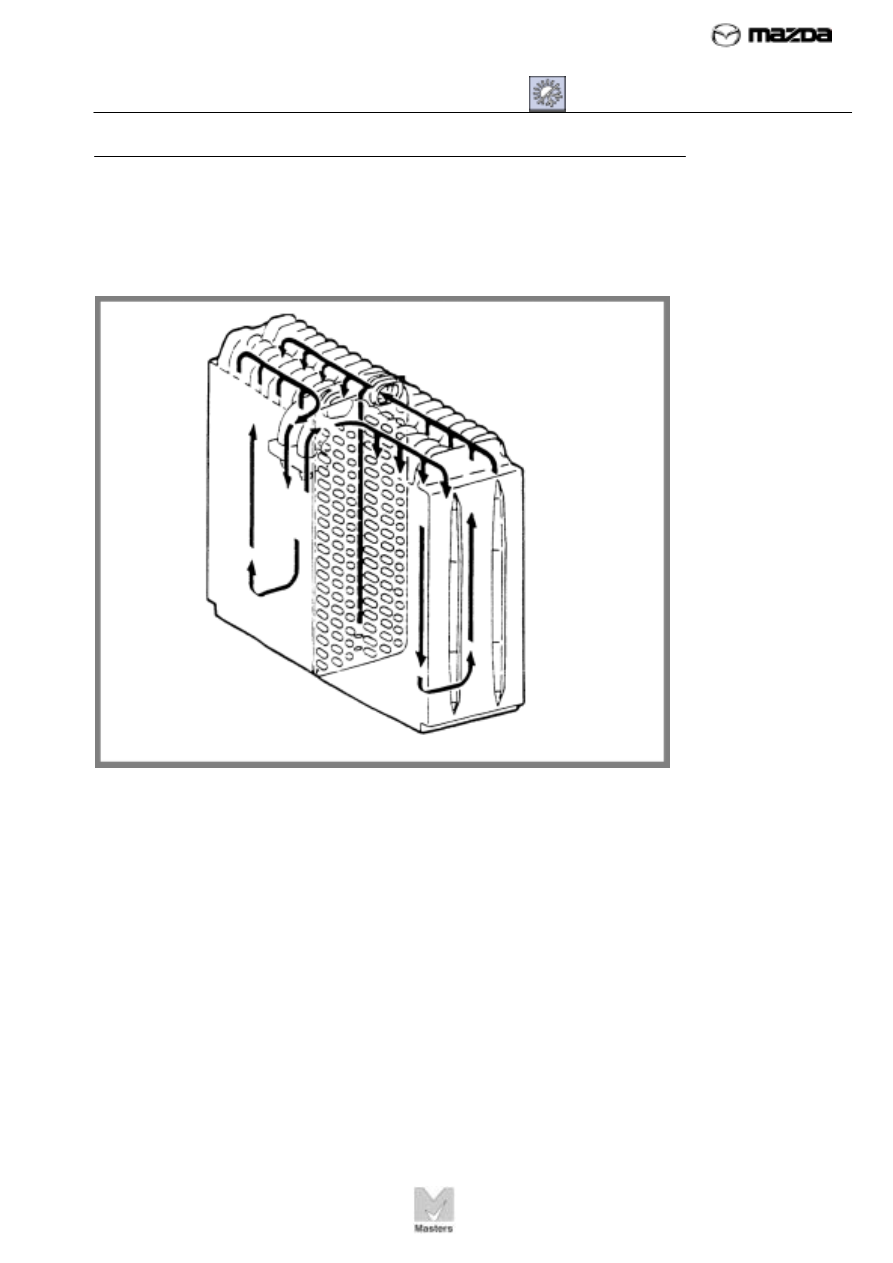

FIGURE 19. The
evaporator removes
heat from the
passenger
compartment and
transfers it to the
refrigerant as latent
heat of vaporization

.








Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



37









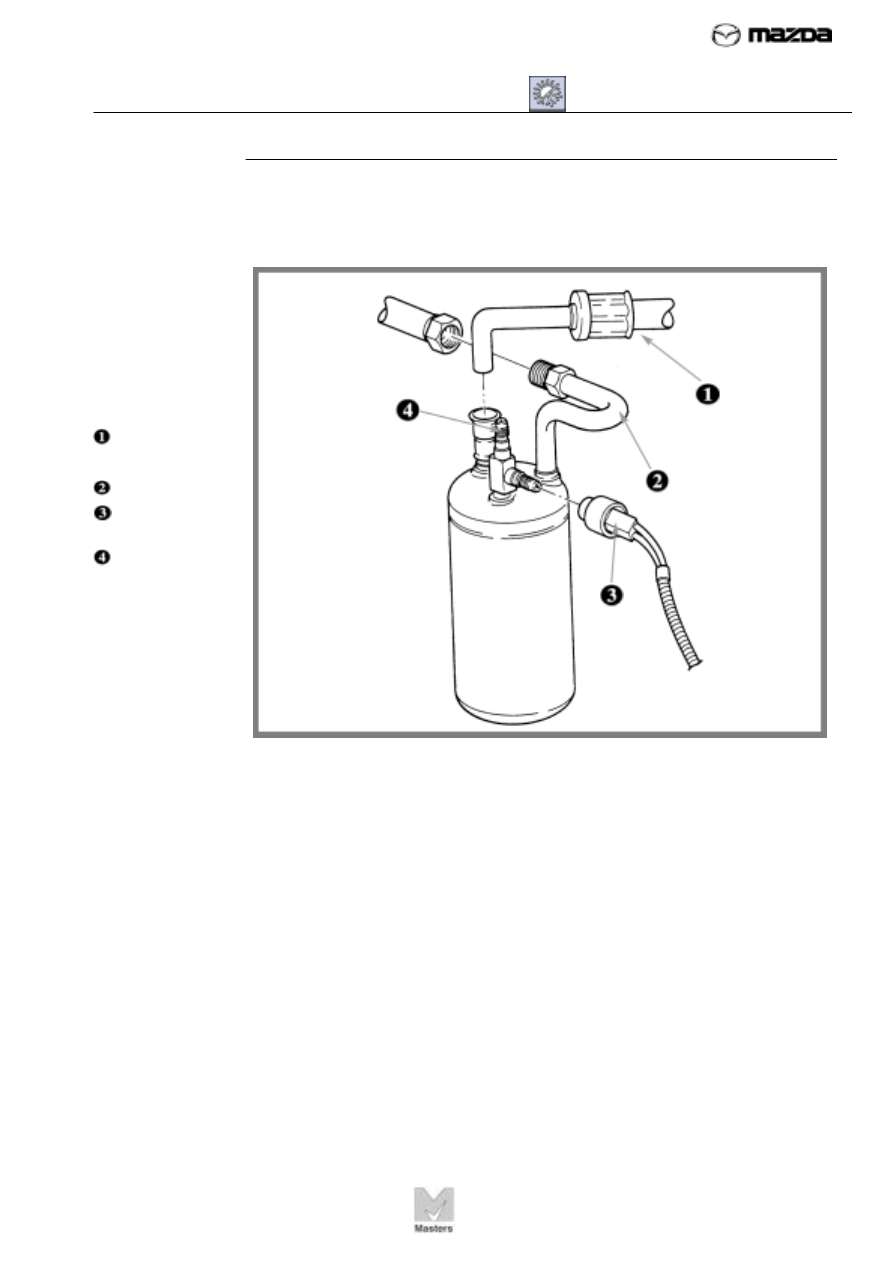

FIGURE 20. The
accumulator is
located after the
evaporator and
before the
compressor on the
low-pressure side of
the AC system.



To compressor
suction line

From evap. core

Clutch cycling
pressure switch

Low pressure
service port








ACCUMULATOR

The accumulator (Figure 20) is used in AC systems with an orifice tube.
The accumulator is located after the evaporator and before the
compressor, on the low-pressure side of the AC system.
























The accumulator functions very much like the receiver/dryer in an
expansion valve system. However, the receiver/dryer is located on the
high-pressure side of the system, between the compressor and
condenser.
