TC001-18-01H

INTRODUCTION TO M-MDS
AP01 - Glossary







AP01- Page 2

Pocket PC

Hand-held device intended only for PDS. Also referred to as a
PDA.

SD Memory Card  Secure Digital memory card.  A type of removable memory

commonly used in hand-held devices, such as a PDA / P-PC.
SD memory cards are about the size of a postage stamp.

Soft Reset

PDA function that deletes data that has not been saved, e.g., the
current vehicle session, but saves any data that has been stored
in memory.  Use the reset button, generally located on the back
of the PDA, to perform a soft reset.

Stylus

A pointing device to select functions on a PDA / P-PC.  The
stylus functions like a mouse for a computer.

Synchronization

An automated process that replaces computer files in one
location with the most updated files from another location.  For
example, you can synchronize files on your PDA with files on
your computer or the internet.

Toolbox

The main screen of PDS that handles Vehicle Selection, VCM
Connection state, and available tools for a vehicle.

USB

Universal Serial Bus.  A hardware interface to transfer data for
computers and laptops.  USB devices include a mouse, PDA
cradle, and printer.

VCM

Vehicle Communication Module.  Hardware used to
communicate between the Pocket-PC and the vehicle.

WDS

Worldwide Diagnostic System.  Previous diagnostic scan tool
used by Mazda.



TC001-18-01H

INTRODUCTION TO M-MDS
AP02 - PDS Icons







AP02- Page 1

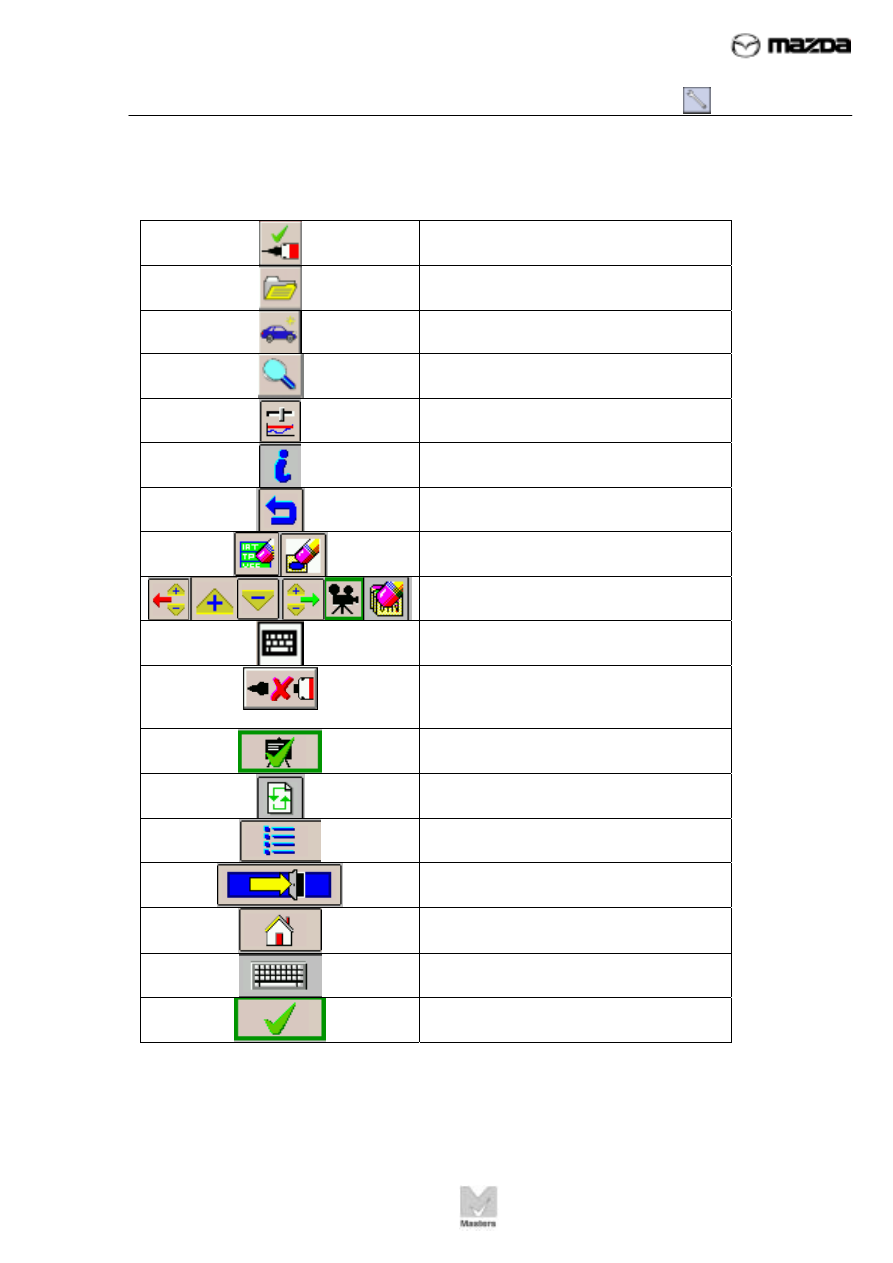

AP02: PDS ICONS





Connect VCM



Previous Sessions



New Vehicle



Vehicle Details



Configure Tool





Display Help Text



Go To Previous Diagnostic Screen



Clear

Data Capture



Keyboard on/off



Disconnect VCM






Training Mode Confirm Action



Retest



Select System Options



Exit PDS



Go to Previous Screen





Manual Identification



Confirm Action/Tick









TC001-18-01H

INTRODUCTION TO M-MDS
AP03 - IDS Icon Identification







AP03- Page 1

AP03: IDS ICON Identification

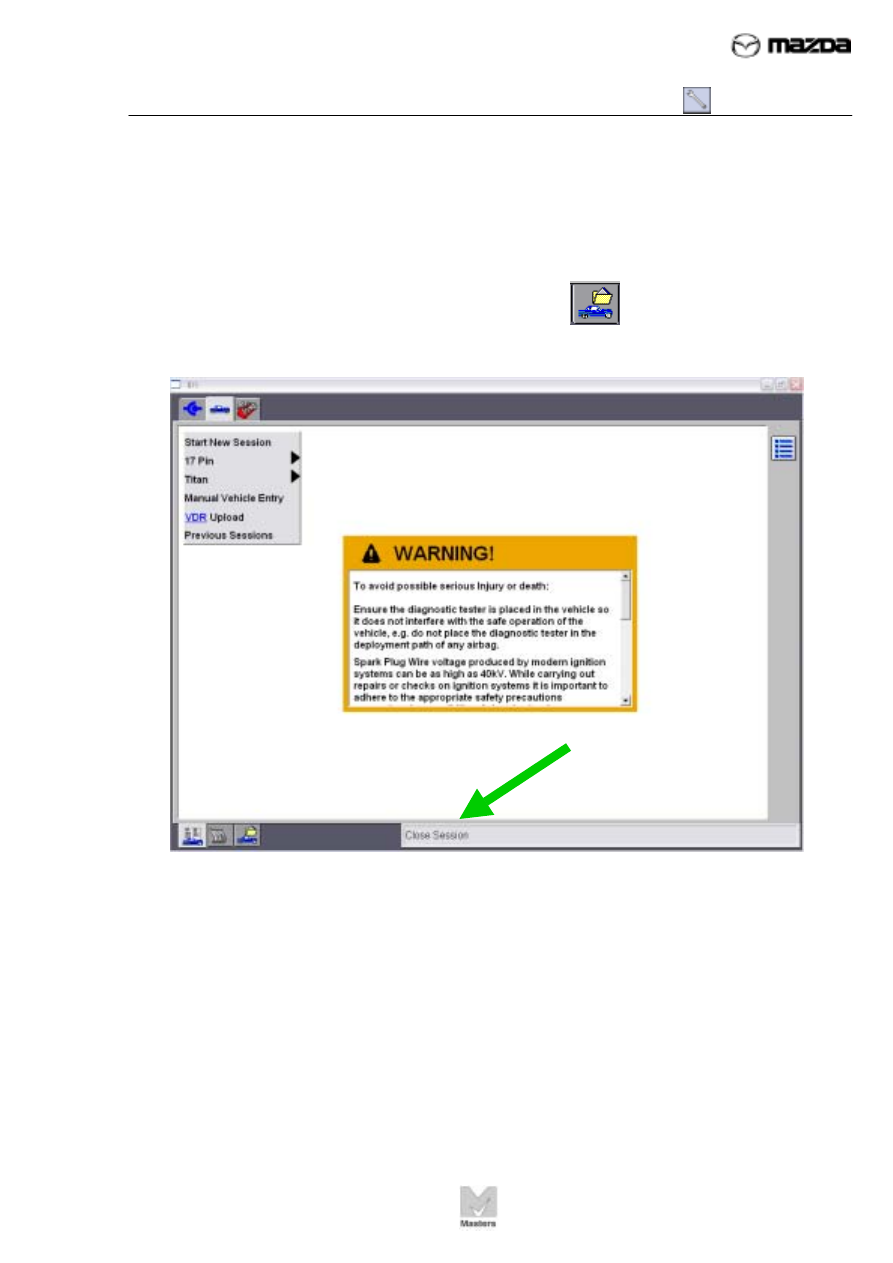

To identify an IDS icon, left click and hold the mouse on the icon.  The icon’s
definition will display in the field at the bottom of the screen normally used for an
“action bar.”


For example, left click on and hold the mouse on the

 icon at the bottom of the

screen.  You will see “Close Session” displayed in the center bottom of the screen.



























TC001-18-01H

INTRODUCTION TO M-MDS
AP04 - Assembling PDS Components







AP04- Page 1

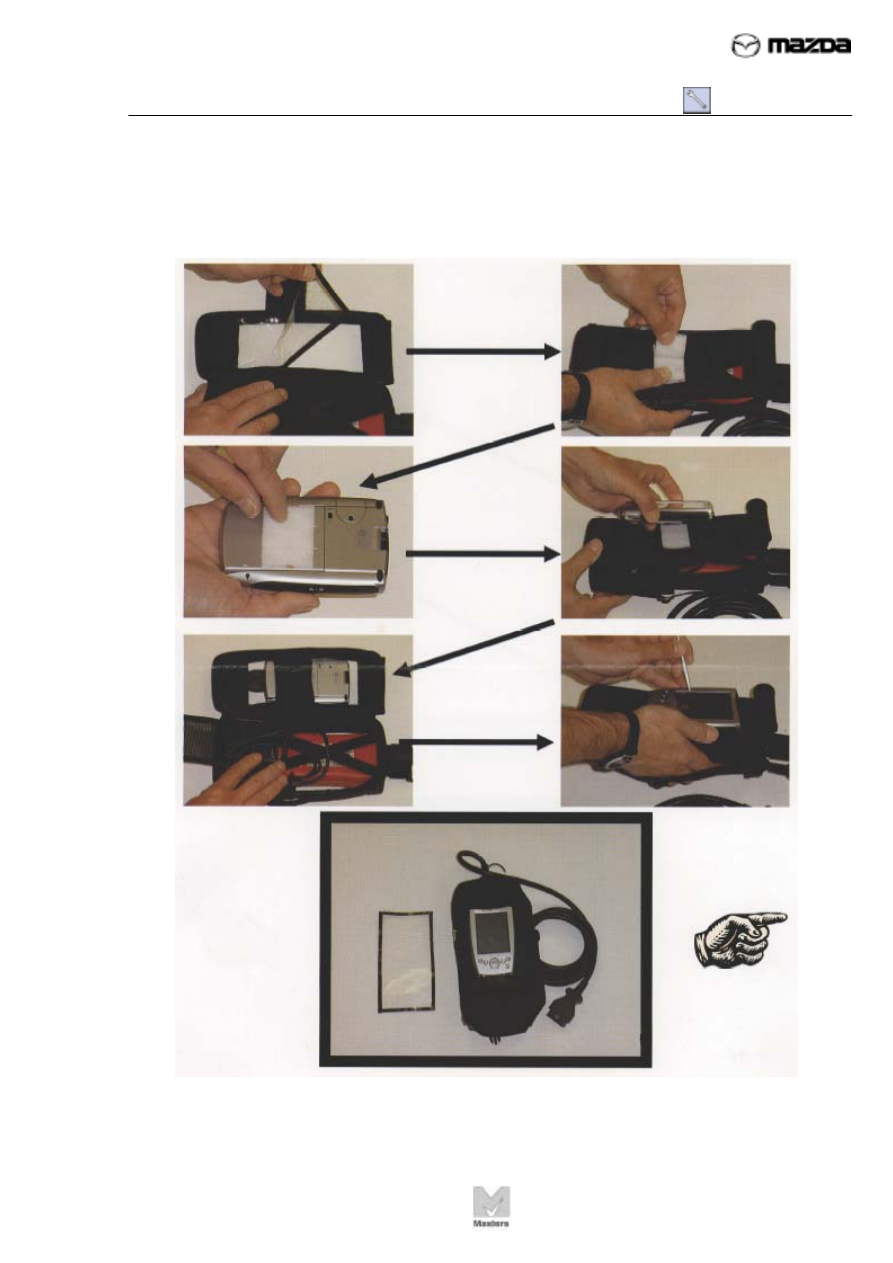

AP04: Assembling PDS Components

These visual instructions for assembling PDS components are provided in the Mazda
Vehicle Communication kit from the manufacturer.
