INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 5

Activity 14
(Continued)

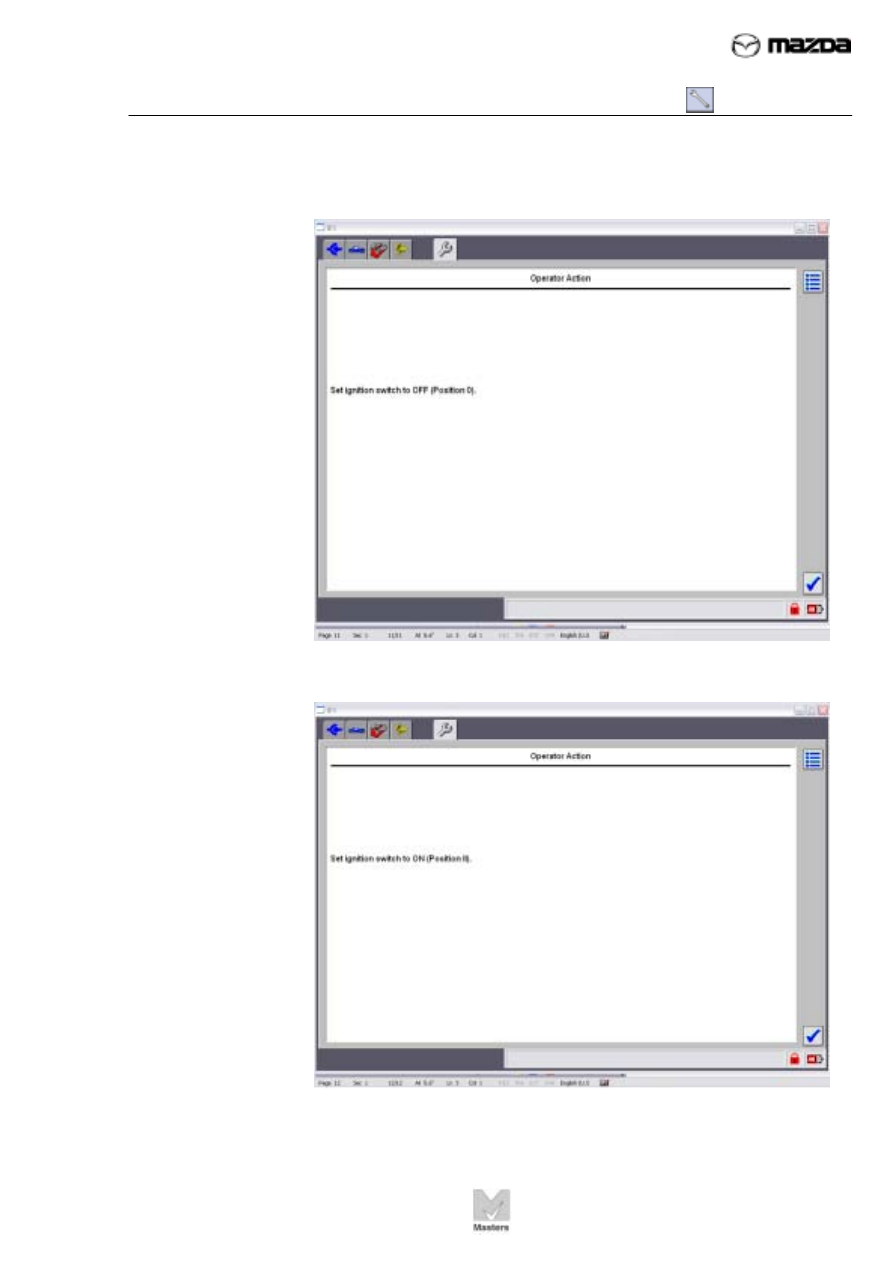

Turn ignition off and click tick





Turn ignition on and click tick


TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 6

Activity 14
(Continued)

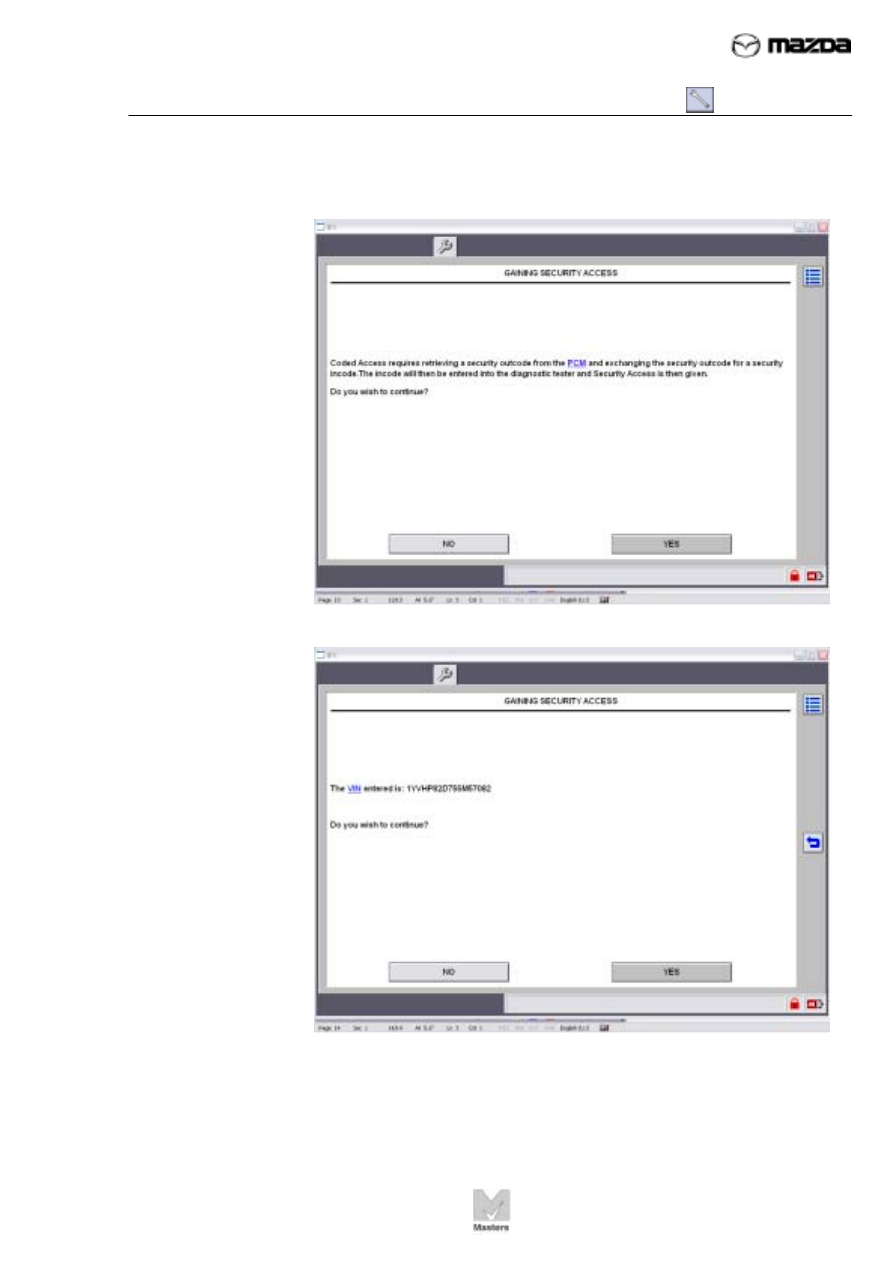

Click yes






Verify the vehicles VIN and click yes



TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 7

Activity 14
(Continued)

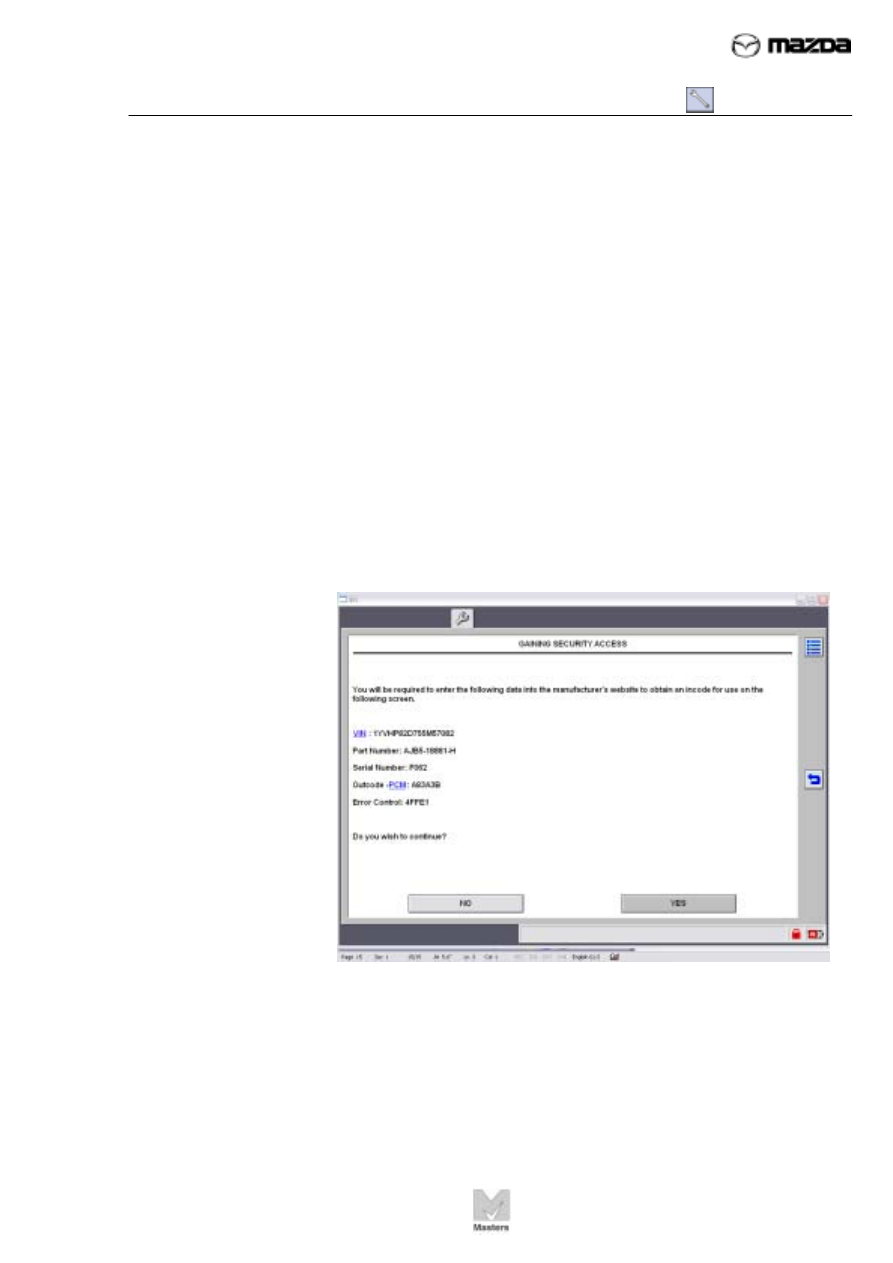

Copy down the information from your vehicle displayed in IDS

VIN____________________________________________________

Part Number __________-___________-_________

Serial Number ______________________________

Out Code___________________________________

Error Control________________________________

Access MS3: Make sure to logon with your own logon

Input the data you copied down above into MS3 to request an incode.

Incode from MS3_____________________________





Click yes






TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 8

Activity 14
(Continued)

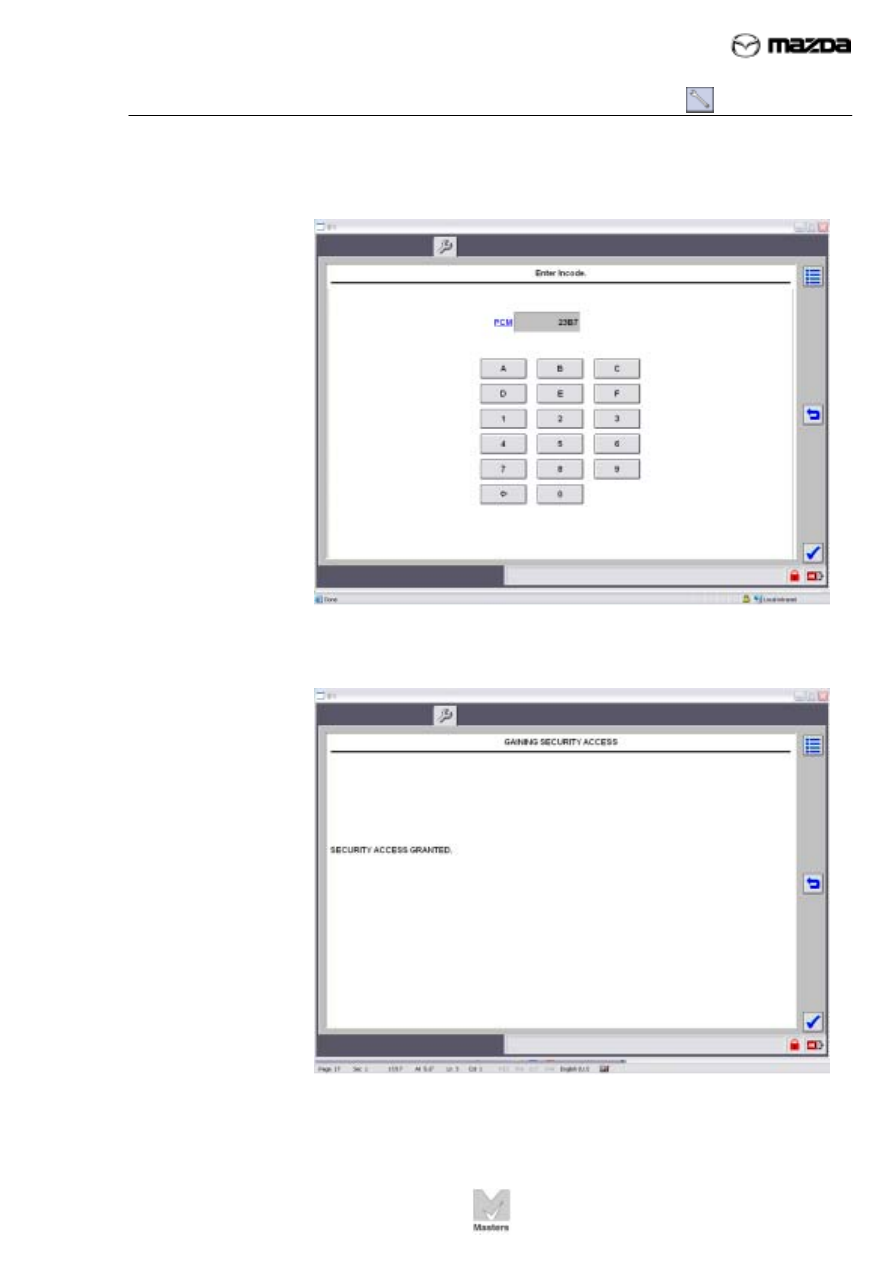

Input incode from above that you got from MS3 and click tick






Click tick
