TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data







Activity 13- Page 1

Activity 13:  Retrieving DTCs and Freeze Frame Data

Upon completing this activity you will be able to retrieve DTCs and read Freeze
Frame Data with IDS.

What you need to complete this activity:


•

Mazda-approved laptop with PDS installed


Procedure:

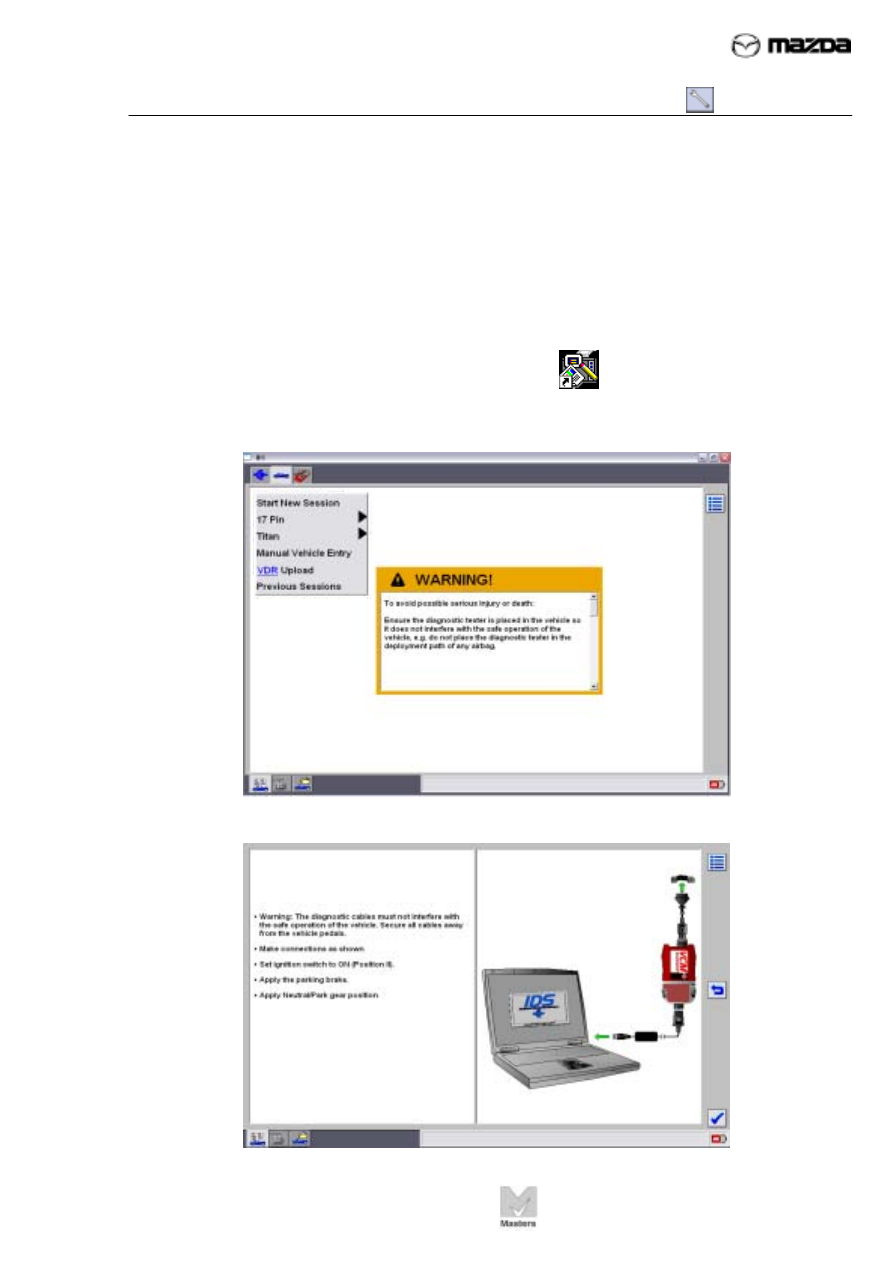

1.  Double left click the IDS icon on your desktop.

2. Select Start New Session, then press enter or click tick.


















3.  Follow the screen instructions, then press enter or click tick.
















Ids.lnk

TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data







Activity 13- Page 2

Activity 13
(Continued)

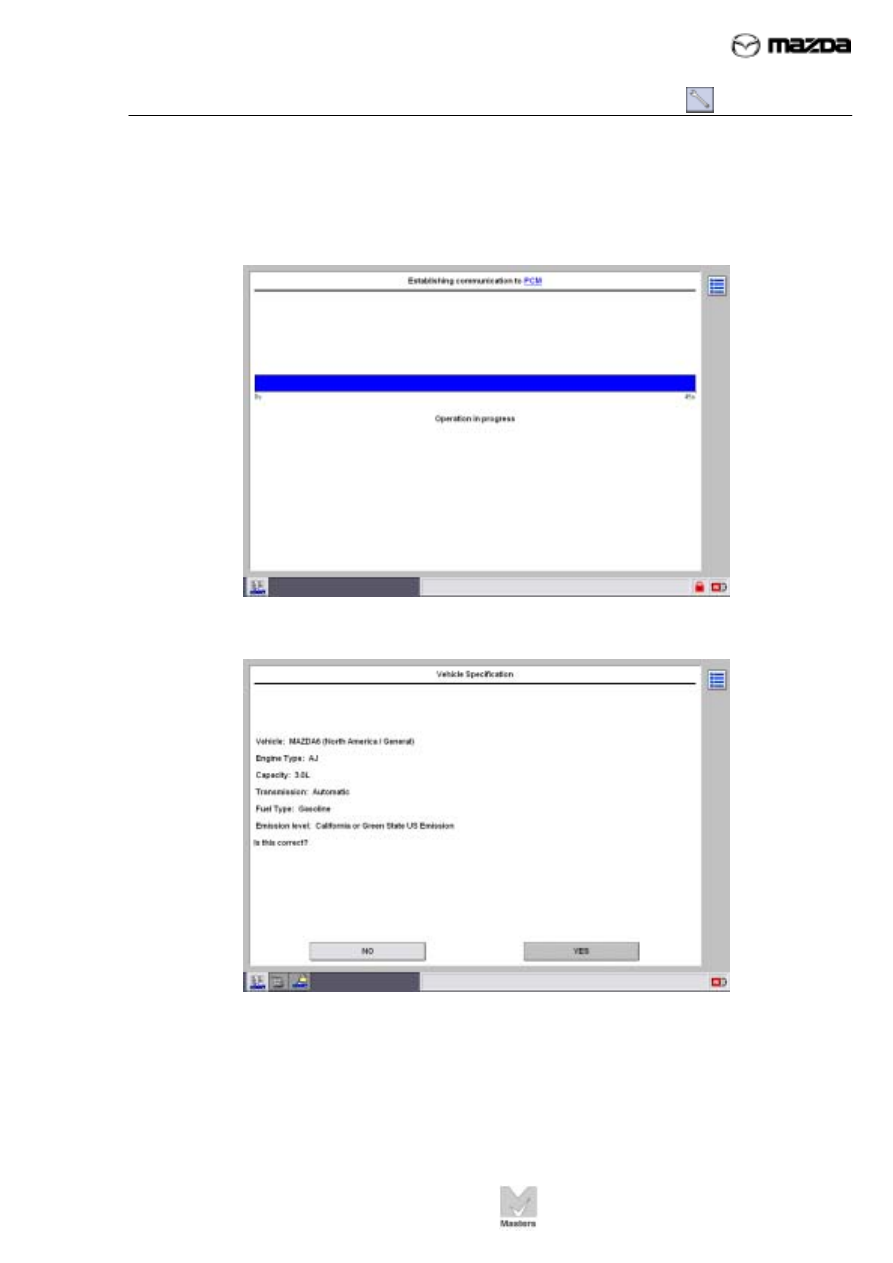

4.  Watch the following Establishing Communication screen flash on then off.


















5.  Verify the vehicle information is correct, then press enter or click YES


























TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data







Activity 13- Page 3

Activity 13
(Continued)

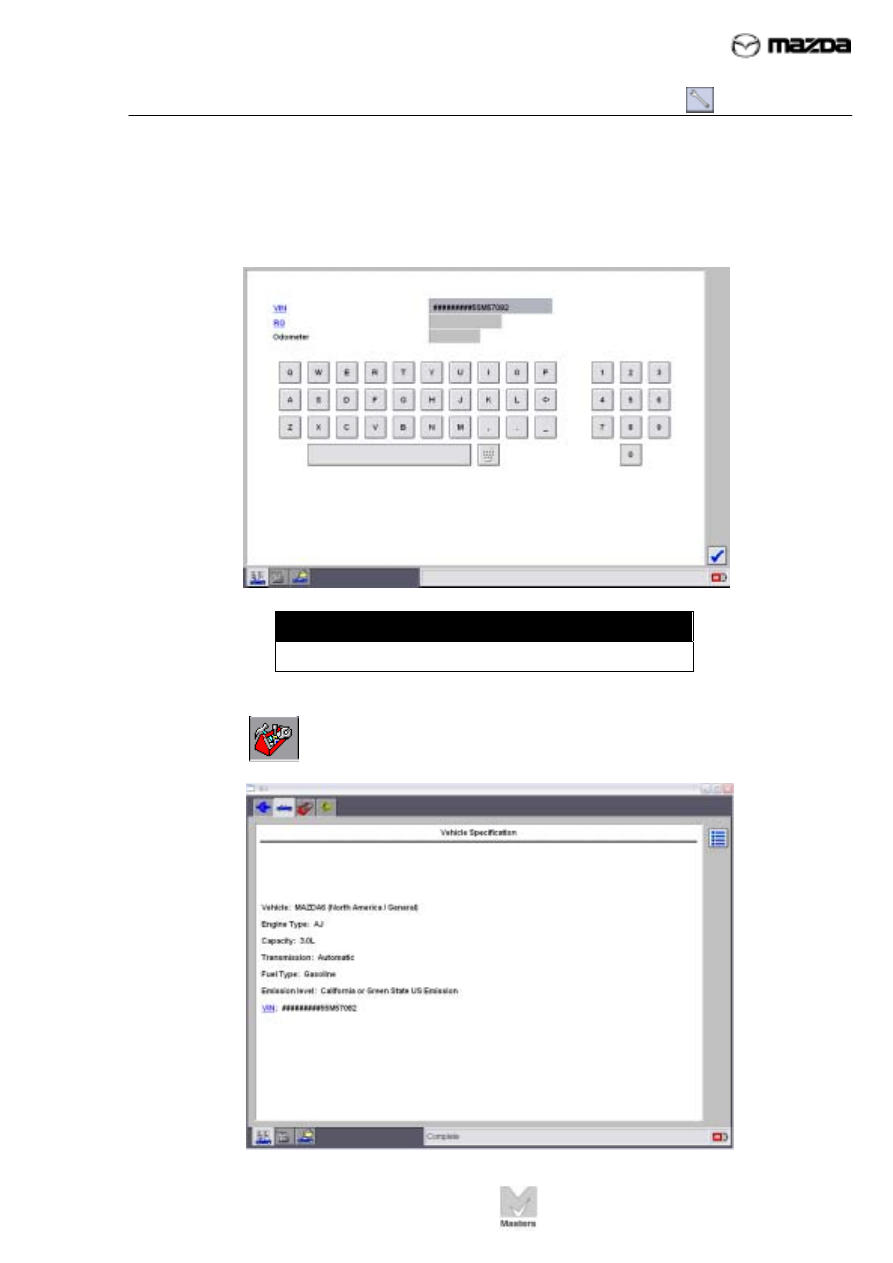

6.  If desired, leave the fields empty or enter data into any of the fields, then
























7. Click the

 toolbox icon at the top of the screen.




















NOTE

This is an optional screen and you may not see it.



TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data







Activity 13- Page 4

Activity 13
(Continued)

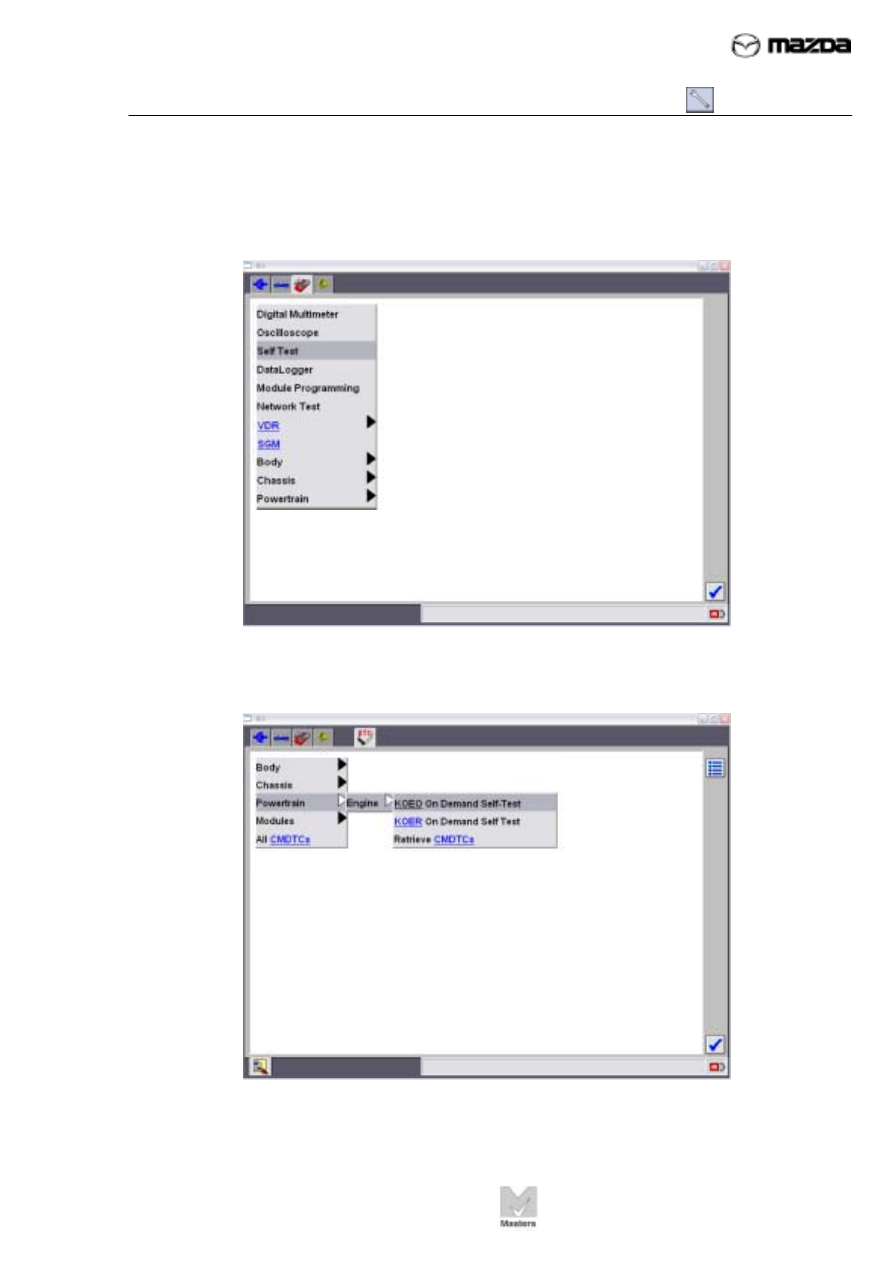

8. Select Self Test, then press enter or click tick.




















9. Select

Powertrain, then Engine, then KOEO On Demand Self Test.  Now

press enter or click tick.
