INTRODUCTION TO M-MDS
12 - Installing IDS on Laptop










Activity 12- Page 11

Activity 12
(Continued)

21.  Remove the IDS DVD and store it in a safe place.


22.  The icon IDS will now be on the desktop.

Ids.lnk





NOTE

If you are installing IDS for a new VCM (i.e., the VCM has not been used before),
you must perform the following steps to update the VCM.


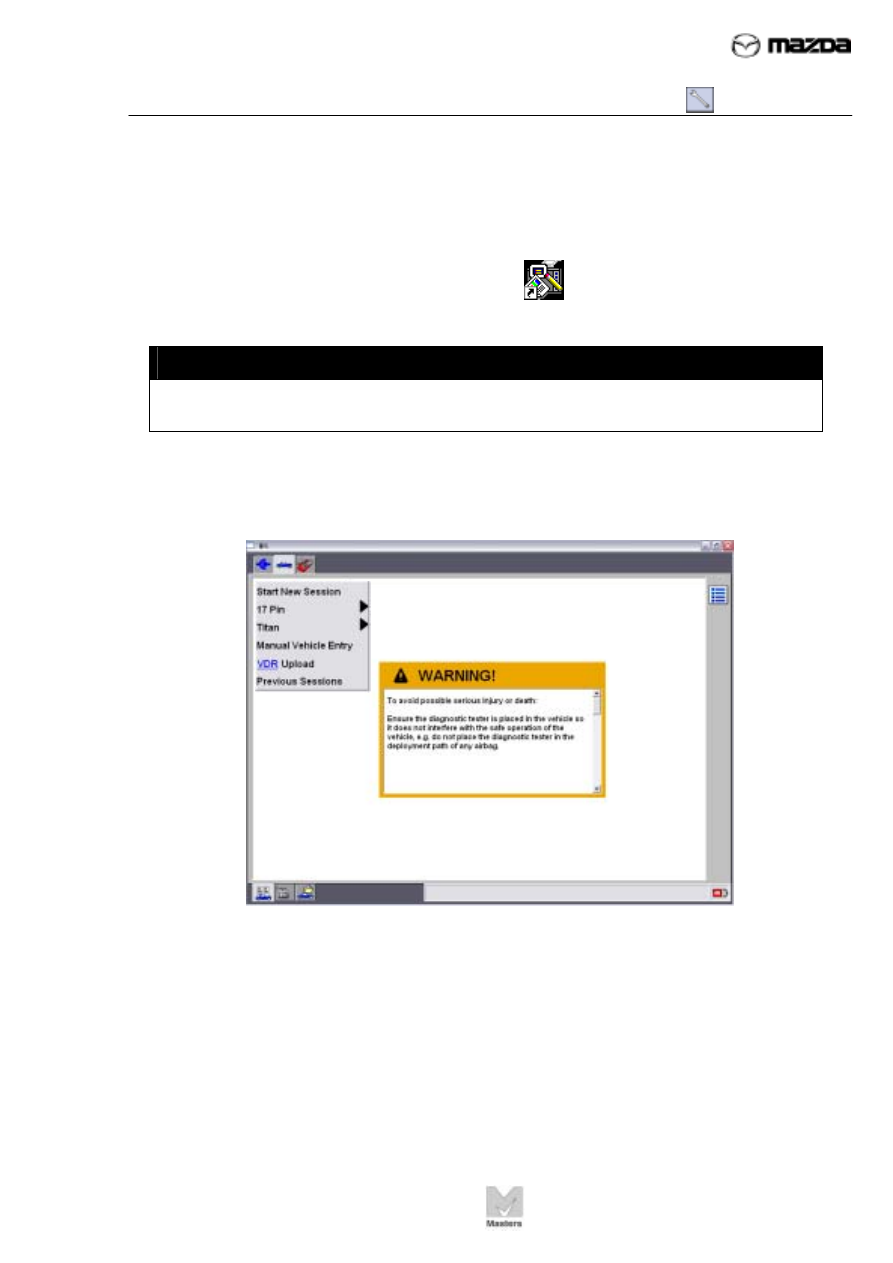

23.  Double-click the IDS icon to start IDS.

24. Select

Start New Session, then press enter or click tick.
































TC001-18-01H

INTRODUCTION TO M-MDS
12 - Installing IDS on Laptop










Activity 12- Page 12

Activity 12
(Continued)

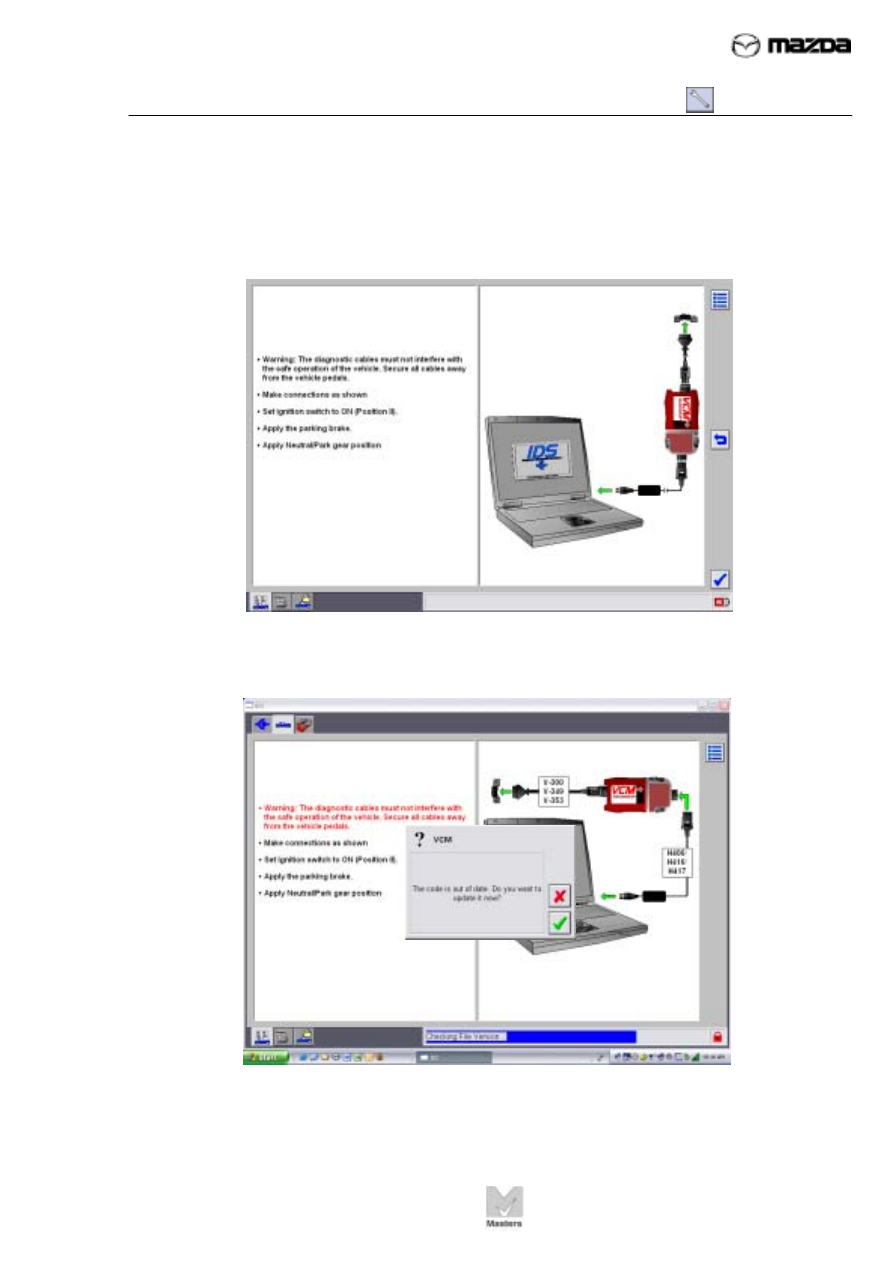

25.  Make connections as shown, do not click tick.  Make sure you plug the data

cable into DLC2 on a current Mazda vehicle.




















26.  Click tick in the pop-up window to update the VCM code.

























TC001-18-01H

INTRODUCTION TO M-MDS
12 - Installing IDS on Laptop










Activity 12- Page 13

Activity 12
(Continued)

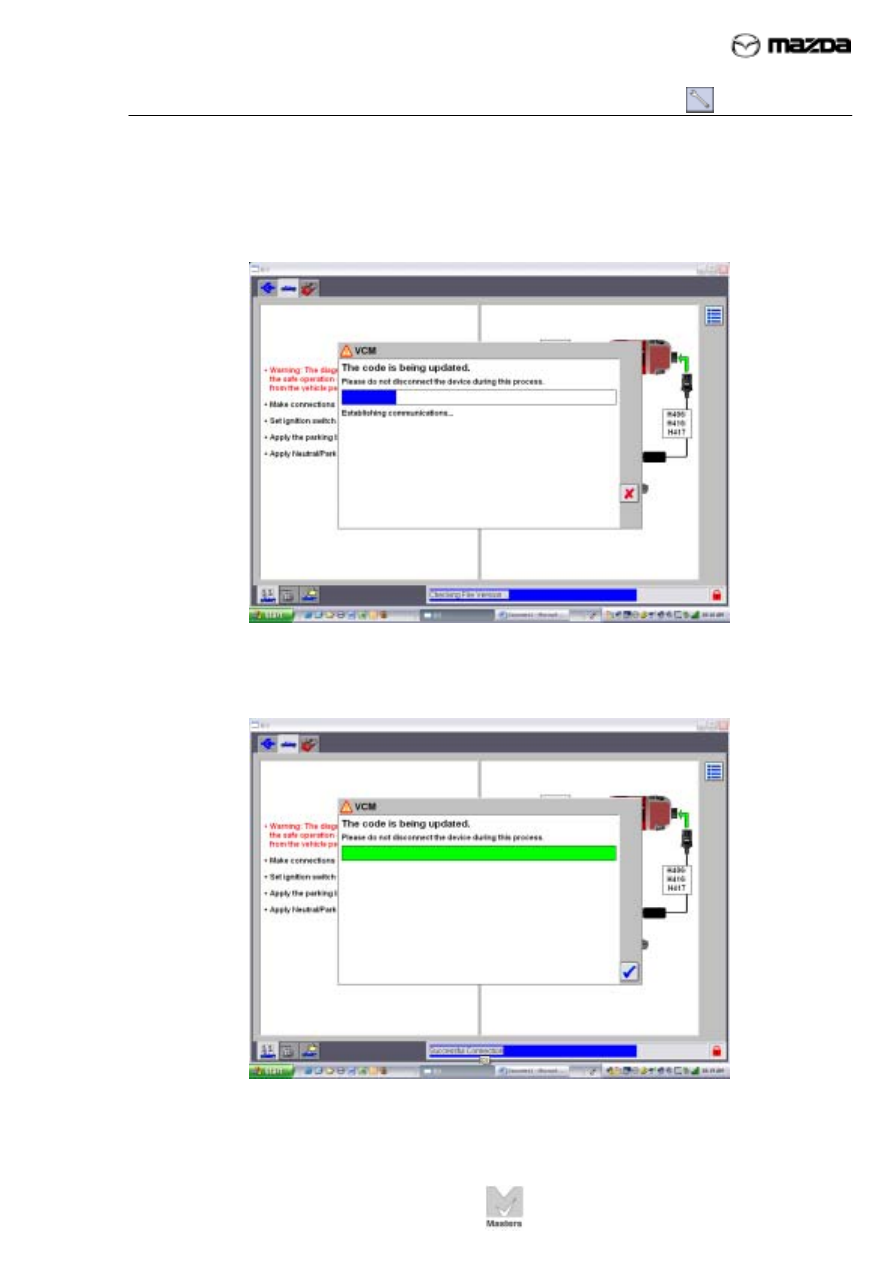

27.  This screen displays the progress of the code being updated.





















28.  Click tick once the progress bar has turned green.
























TC001-18-01H

INTRODUCTION TO M-MDS
12 - Installing IDS on Laptop










Activity 12- Page 14

Activity 12
(Continued)

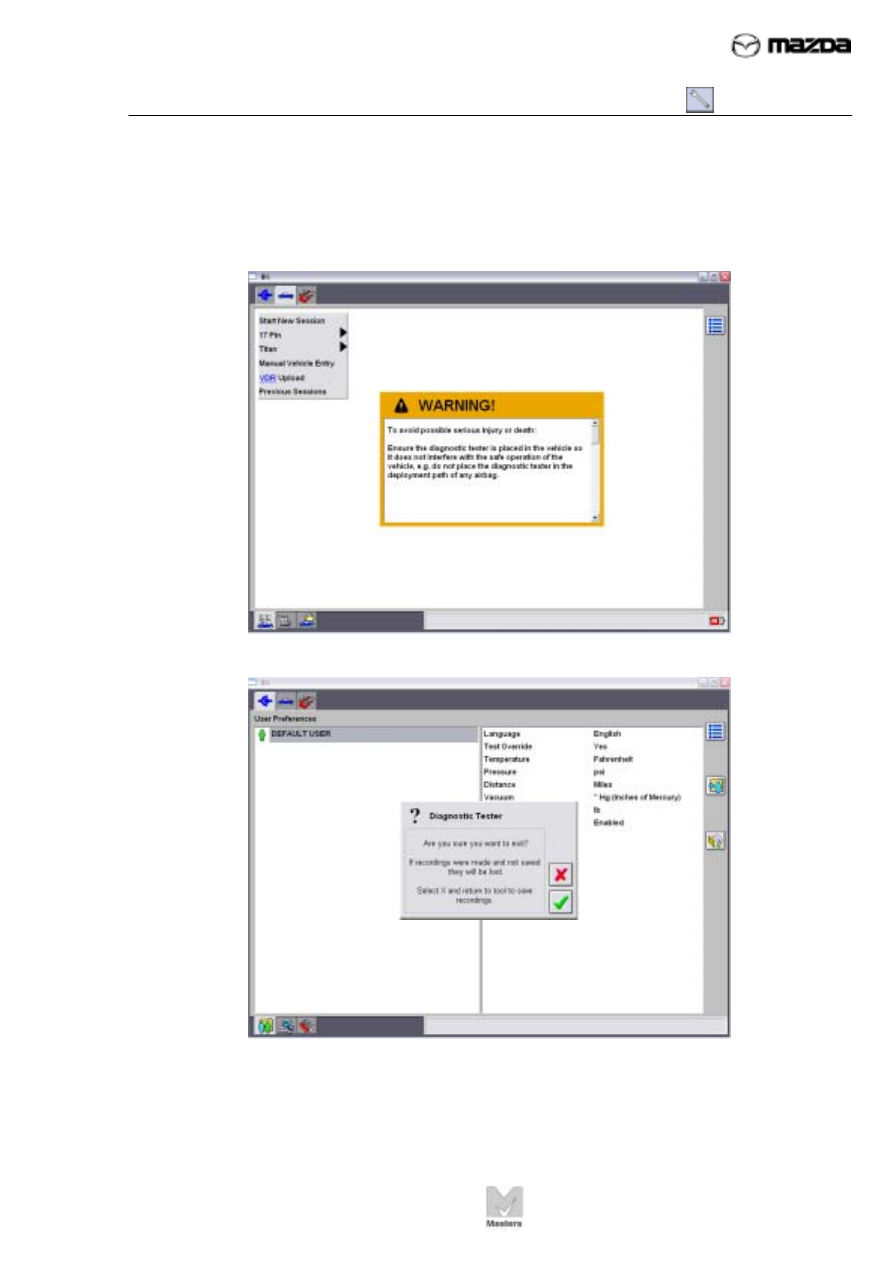

29. Click

Start New Session to diagnose a vehicle or the

X

 in the upper right

corner to close this window.




















30.  Click tick in the pop-up window to exit IDS and return to the desktop.





















IDS and the VCM are now ready to use.



Conclusion:
In this activity, you installed IDS and updated a new VCM.



Instructor Sign Off: ___________________________
