Mazda Training manual - part 210

TC001-18-01H

INTRODUCTION TO M-MDS
11 - Updating PDS & PFM










Activity 11- Page 5

Activity 11
(Continued)

11.  The PC and PDA are now at the same update level.





















Write the version information from your Laptop / PC: ________



Write the version information from your PDA: ______________

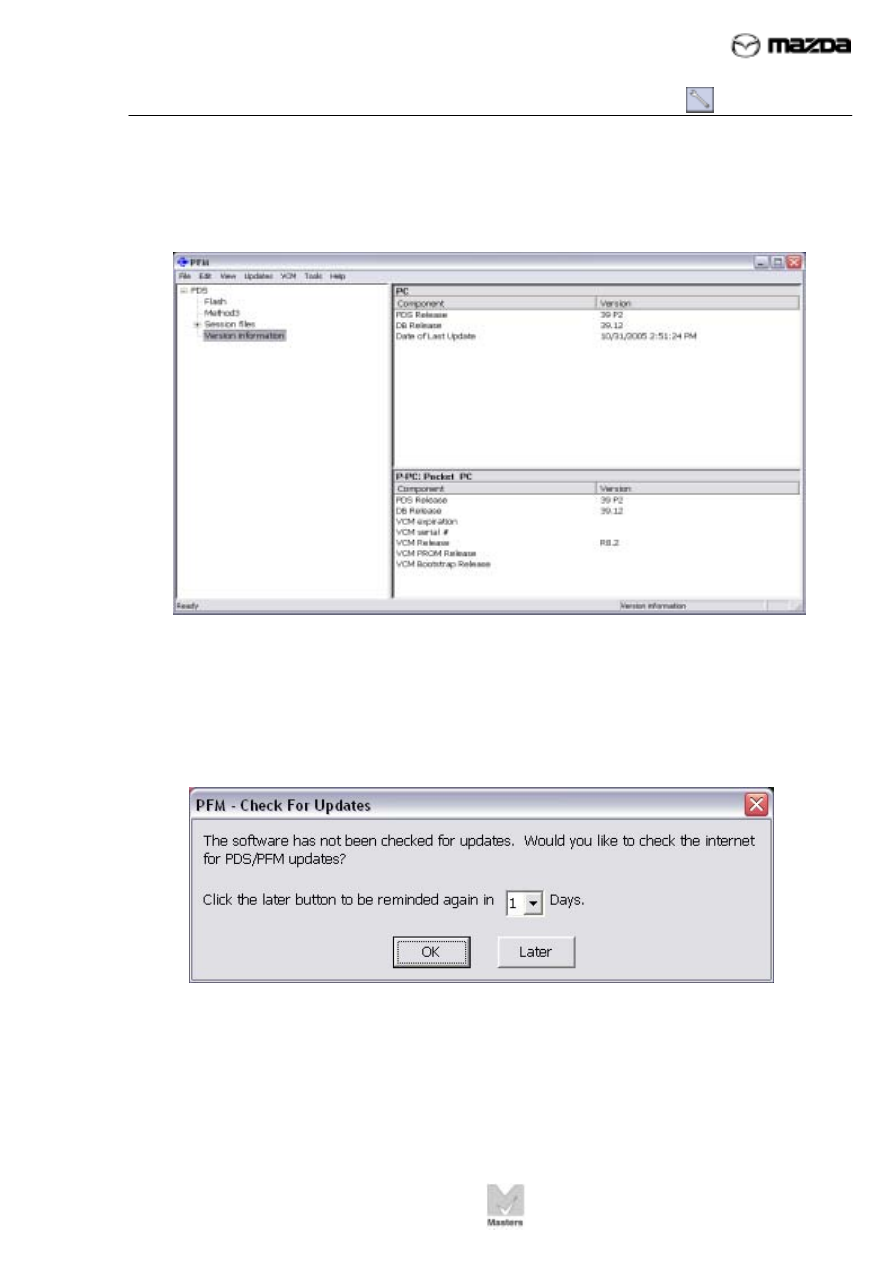

12.  Occasionally you will see the following screen.  If this screen displays, click OK.

PFM will automatically go to the update screens in steps 10 and 11.














Conclusion:

In this activity, you updated M-MDS from the internet.

Instructor Sign-off: ____________________________________


TC001-18-01H

INTRODUCTION TO M-MDS
SG03 - Tab-IDS









SG03 Page- 1


Objectives

After completing this section, you will be able to use IDS to:


•

Install IDS on a Mazda-approved your laptop

•

Update IDS using the DVD

•

Retrieve DTCs

•

Read Freeze Frame Data

•

Remove IDS from your laptop



Activities


# Title  Location

12

Installing IDS on Laptop

Shop

13

Retrieving DTCs and Freeze Frame Data

Classroom

14

PATS Key programming

Shop

15

Updating IDS using Internet

Shop

16

Removing IDS from Laptop

Shop





TC001-18-01H

INTRODUCTION TO M-MDS
12 - Installing IDS on Laptop










Activity 12- Page 1

Activity 12:  Installing IDS on Laptop

Upon completing this activity you will be able to install IDS on your laptop.


What you need to complete this activity:


•

Mazda-approved laptop with Windows XP SE Professional

•

IDS software (on VCM DVD)

•

Ask your Instructor to log in to the PC before you begin this activity



Procedure:


NOTE

To do this activity, you must have Administrator rights to install and remove
software from the laptop or PC.


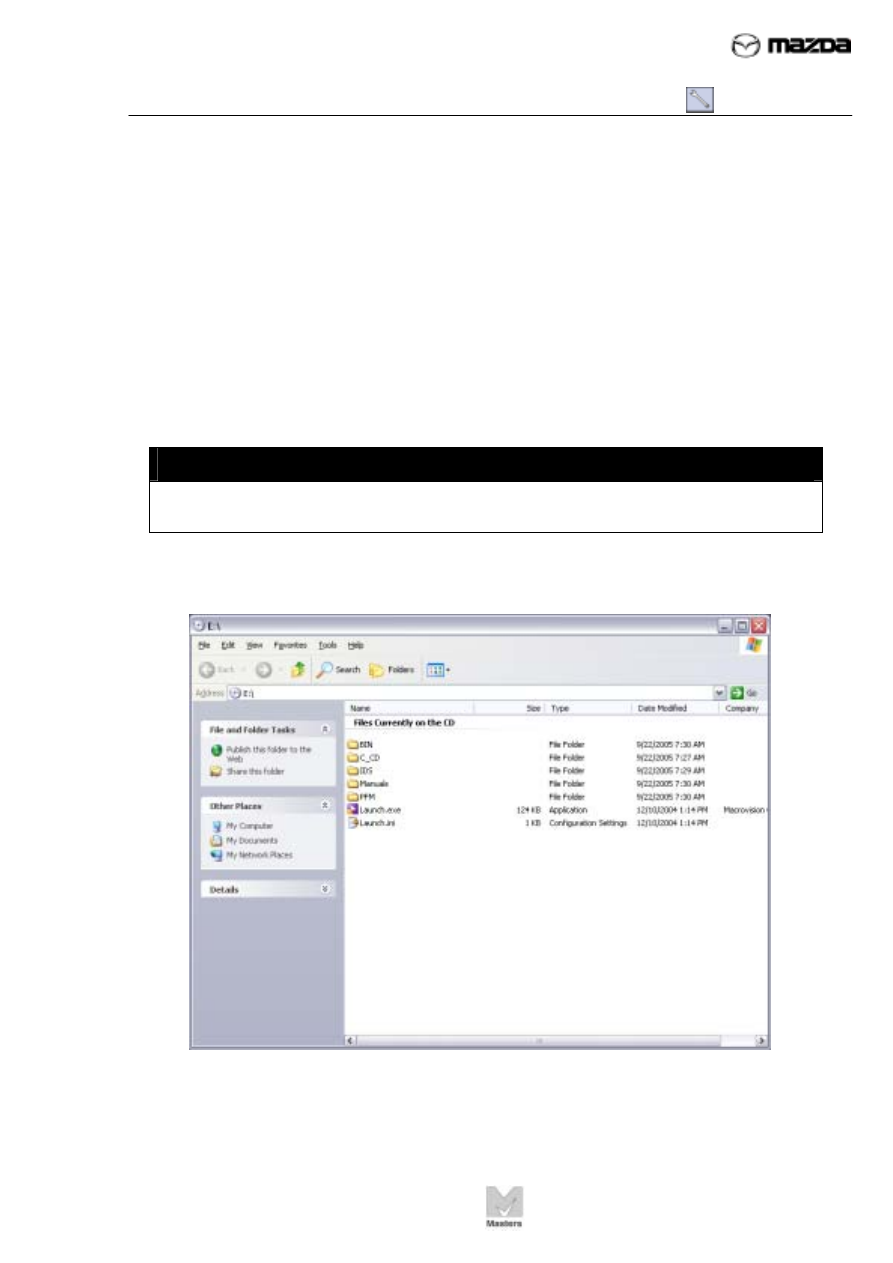

1.  Put the IDS DVD in the laptop’s DVD drive.  If the program does not launch

automatically, double-click Launch.exe.



























TC001-18-01H

INTRODUCTION TO M-MDS
15 - Updating IDS






Activity 15- Page 1

Activity 15:  Updating IDS

Upon completing this activity you will be able to download from the Internet:


•   Manual Calibration Updates–

•   Load all DIF (*), Patches (*)

•   Tech Tips

•   Calibration file updates through Internet.



*

DIF: Small software to update diagnostic database for IDS

*Patch: Small software to modify or add functions to the IDS



(Note: This is only for updates between the bi-monthly DVD updates.)



What you need to complete this activity:


•

Mazda-approved laptop or PC with PDS / PFM installed

•

High-speed internet access



Procedure:

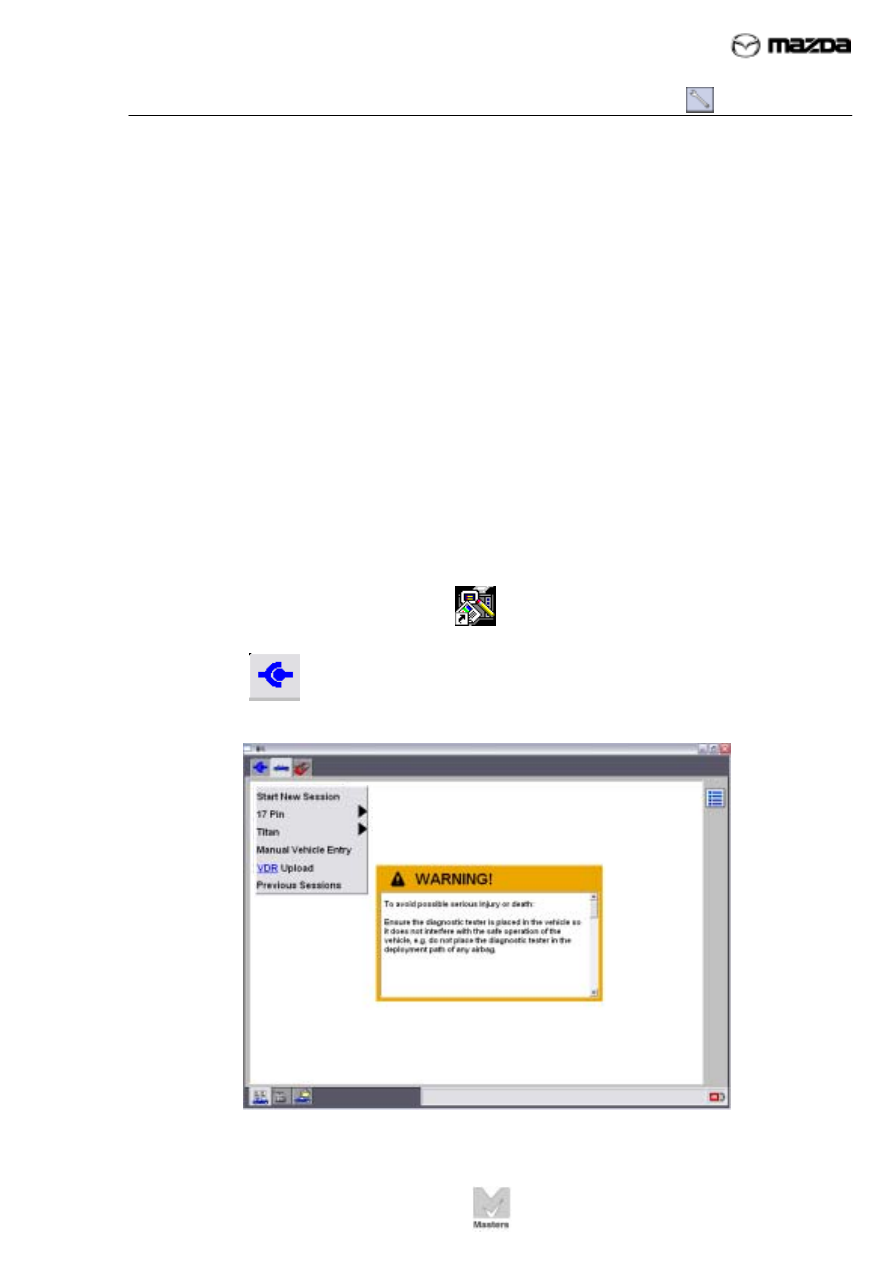

1.  Click the IDS icon on the desktop.





2. Click the

 System Page tab in the upper left corner.
