TC001-18-01H

INTRODUCTION TO M-MDS
11 - Updating PDS & PFM










Activity 11- Page 1

Activity 11:  Updating PDS & PFM

Upon completing this activity you will be able to update PDS from the internet.

What you need to complete this activity:


•

Mazda-approved laptop or PC with PDS / PFM installed

•

High-speed internet access


Procedure:

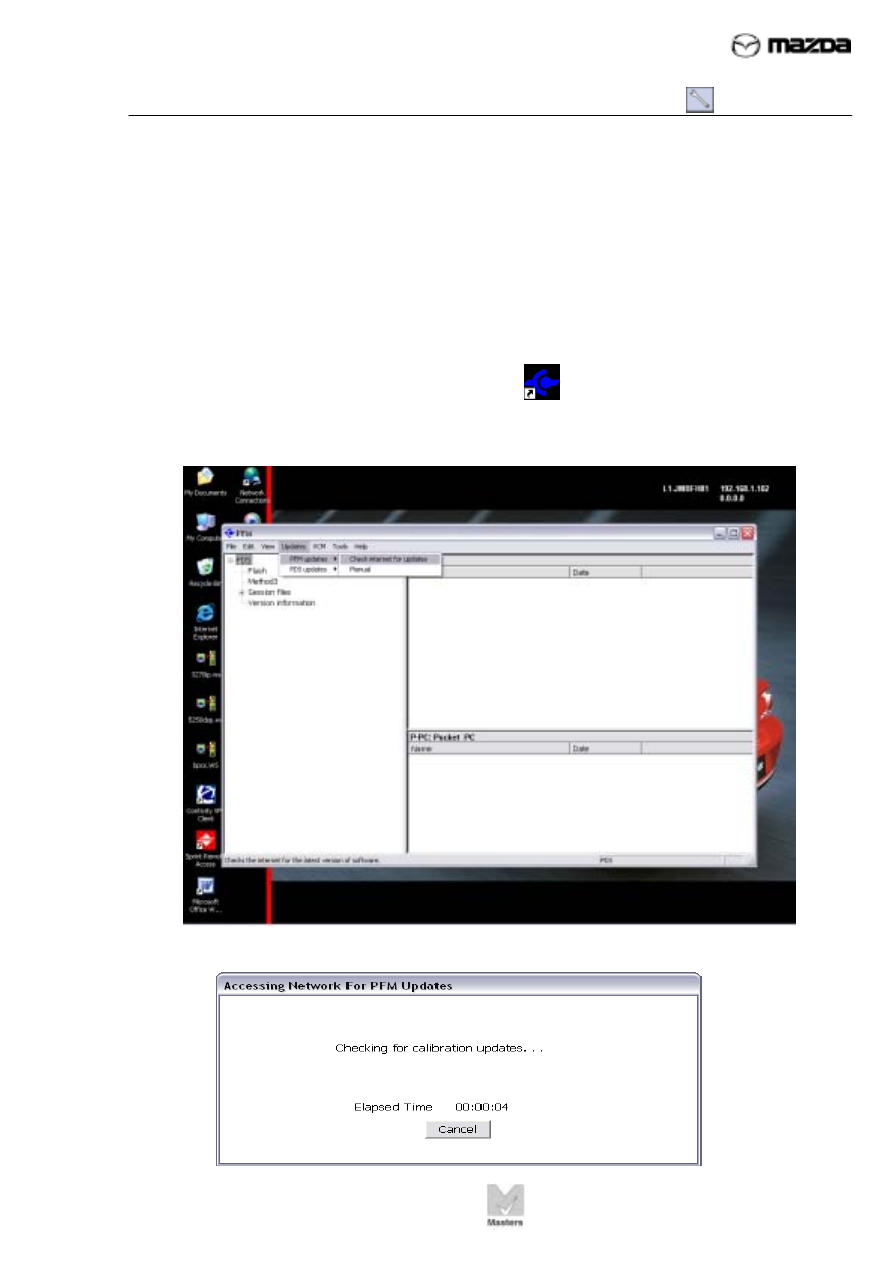

1.  Double-click the PFM icon on the desktop.




2. Click Updates, then PFM updates, then Check internet for updates.


























3.  The following screen flashes on then off.













TC001-18-01H

INTRODUCTION TO M-MDS
11 - Updating PDS & PFM










Activity 11- Page 2

Activity 11
(Continued)

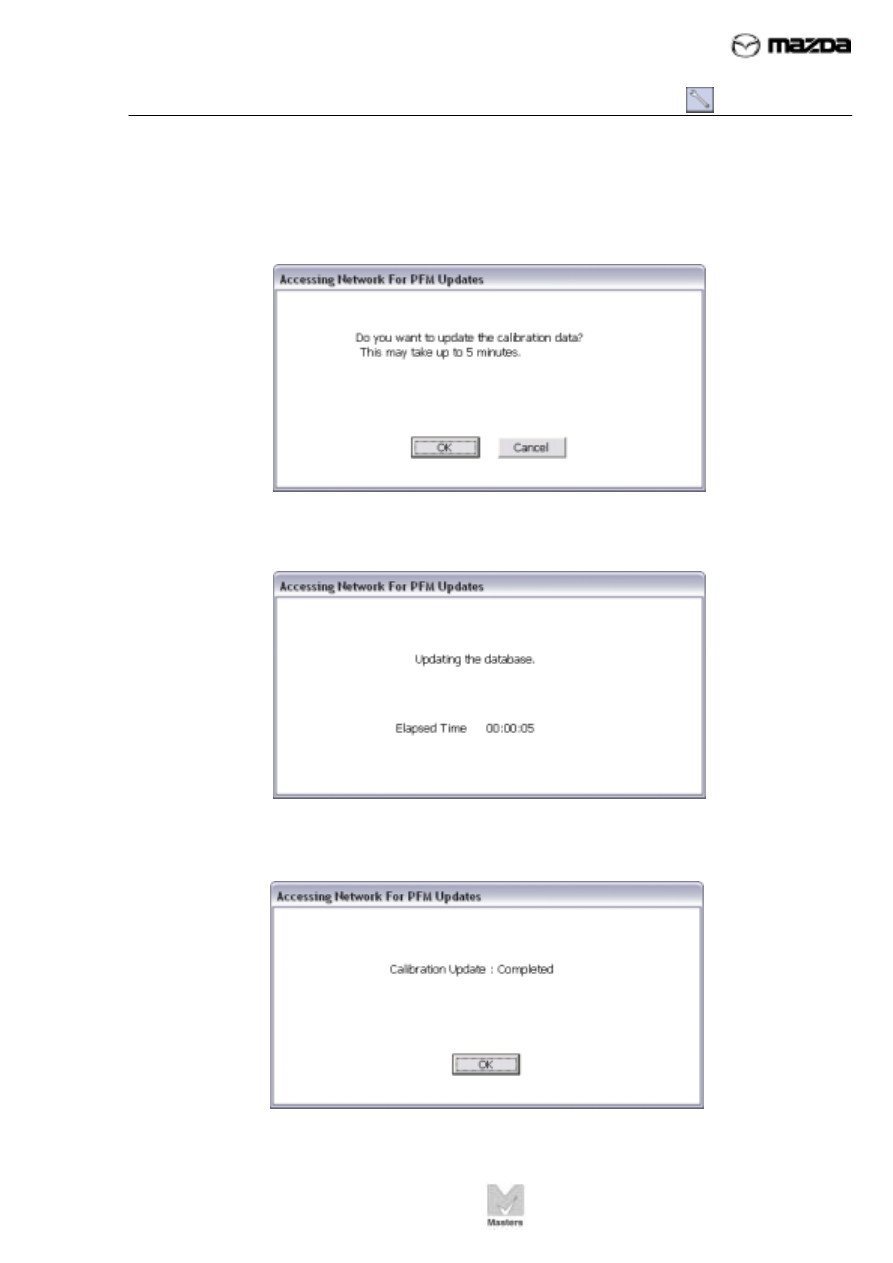

4. Click OK.  It usually takes less than 60 seconds to update the calibration data.














5.  The following screen flashes on then off.














6. Click OK.














TC001-18-01H

INTRODUCTION TO M-MDS
11 - Updating PDS & PFM










Activity 11- Page 3

Activity 11
(Continued)

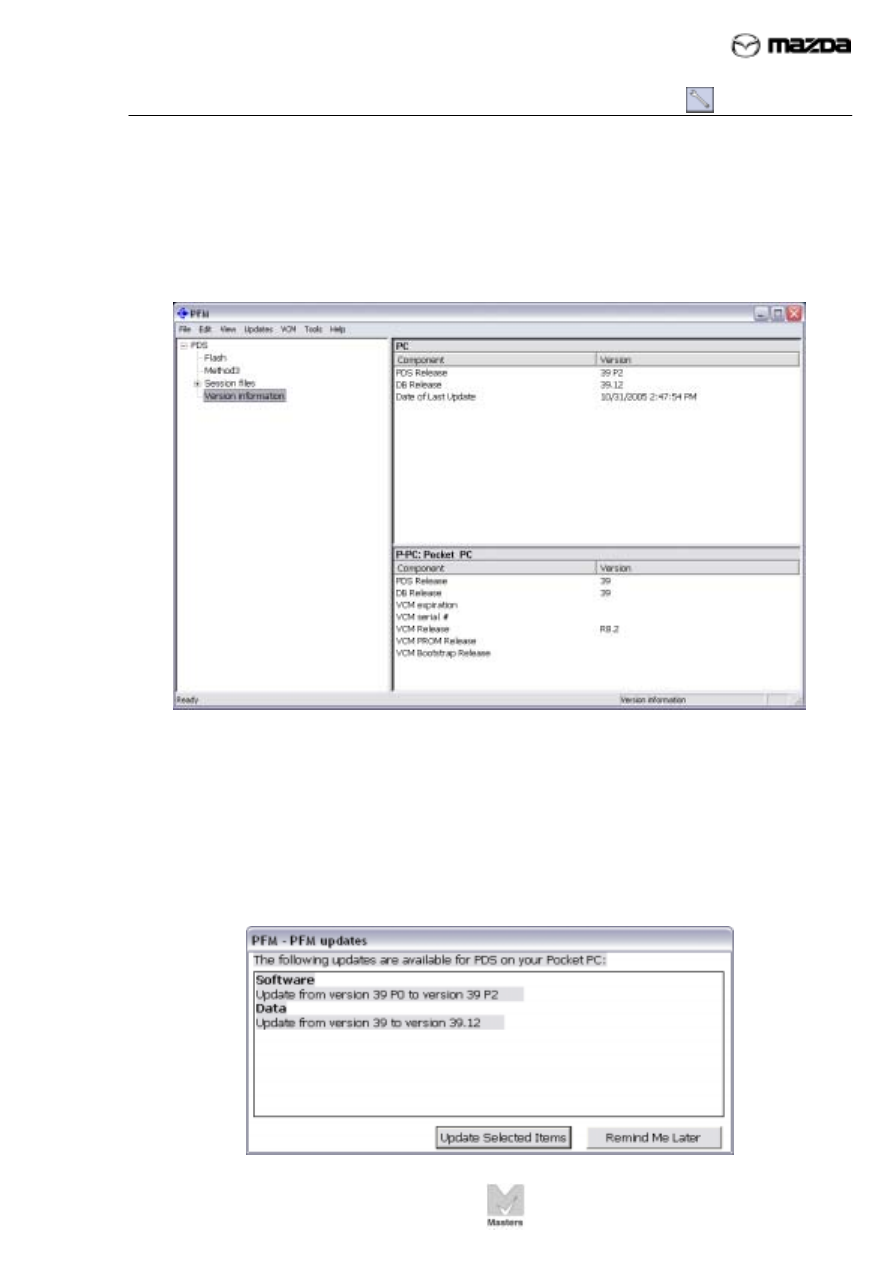

7. Click Version information.  You can see the version information for your Laptop

and PDA (if it is in the cradle) on the right side of the screen.  Note the difference
between the PC and the PDA / P-PC.
























Write the version information from your Laptop / PC: ________



Write the version information from your PDA: ______________


8.  Occasionally you will see the following screen.  This screen indicates updates and

calibrations are available for PDS.



Click Update Selected Items.














TC001-18-01H

INTRODUCTION TO M-MDS
11 - Updating PDS & PFM










Activity 11- Page 4

Activity 11
(Continued)

9. Click OK.










NOTE

If the above pop-up message displays again, click OK.






10. It will take a while to update PDS.
